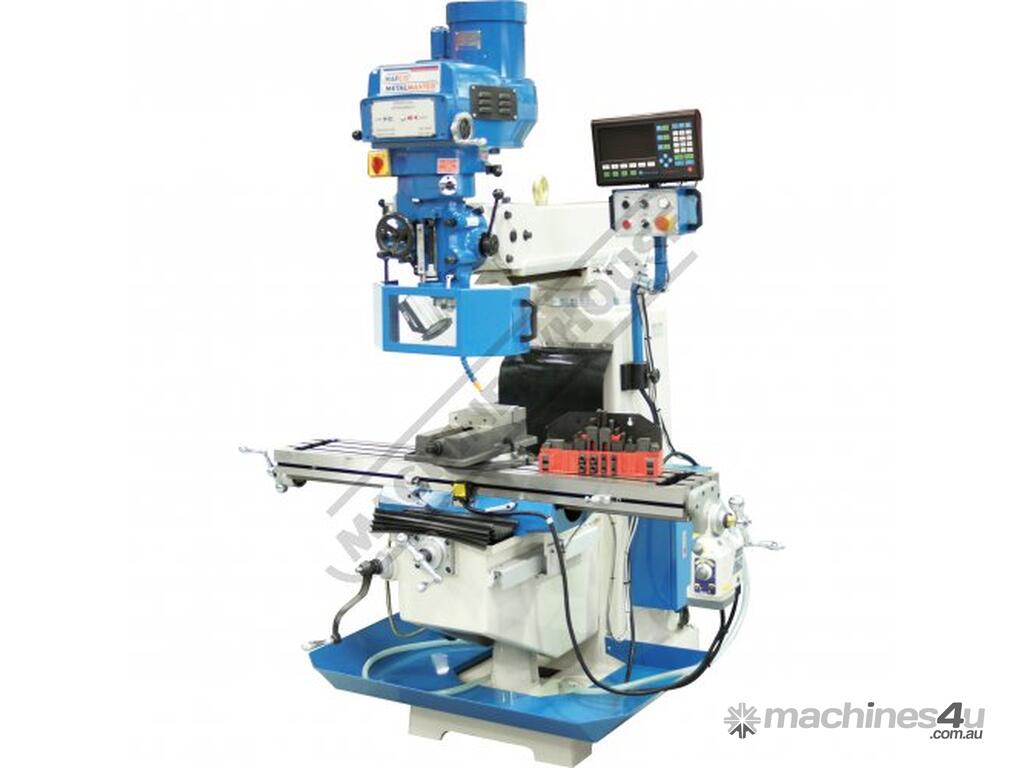

BM-40V Industrial Turret Milling Machine Table Travel: (X) - 860mm (Y) - 360mm (Z) - 425mm Includes

HAFCO-METALMASTER BM-40V Industrial Turret Milling Machine Table Travel: (X) - 860mm (Y) - 360mm (Z) - 425mm Includes Digital Readout System, Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M607D

The BM-40V Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.

This medium robust milling machine package is next in the line up from the BM-30A model and is also complete with a few of the most desirable features for example, easy to use variable spindle speed dial, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, heavy duty X-axis auto power-feed with adjustable feed stops, 3-axis digital readout system fitted, manual operated oil pump to keep slides in perfect working order and also includes a machine vice & clamp kit set to get you started.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To conclude this BM-40V turret milling machine is the most common size machine that’s found in approximately 70% of engineering workshops and when its put to the test it certainly performs its duties with no hesitation.

Features:

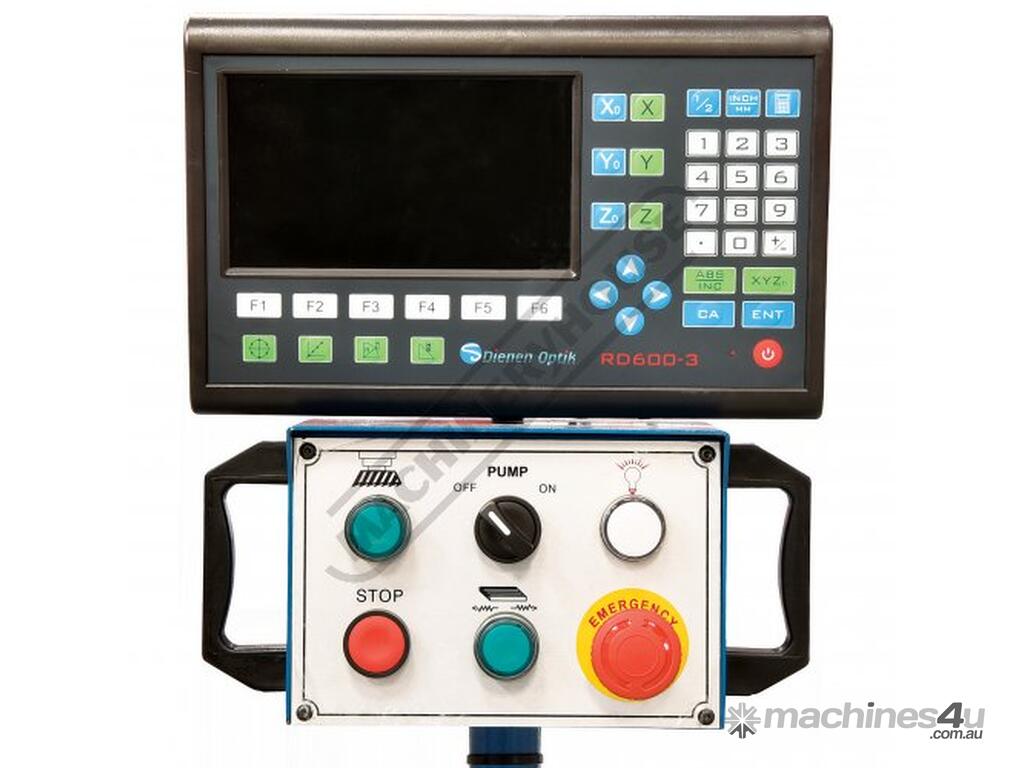

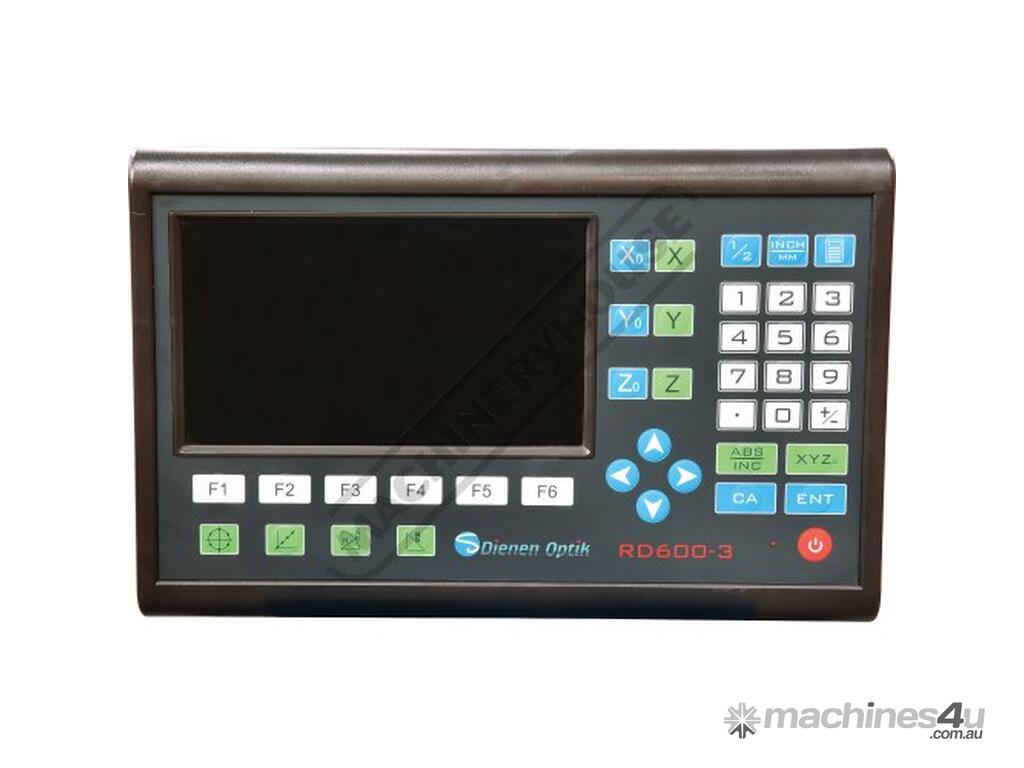

3 Axis digital readout fitted

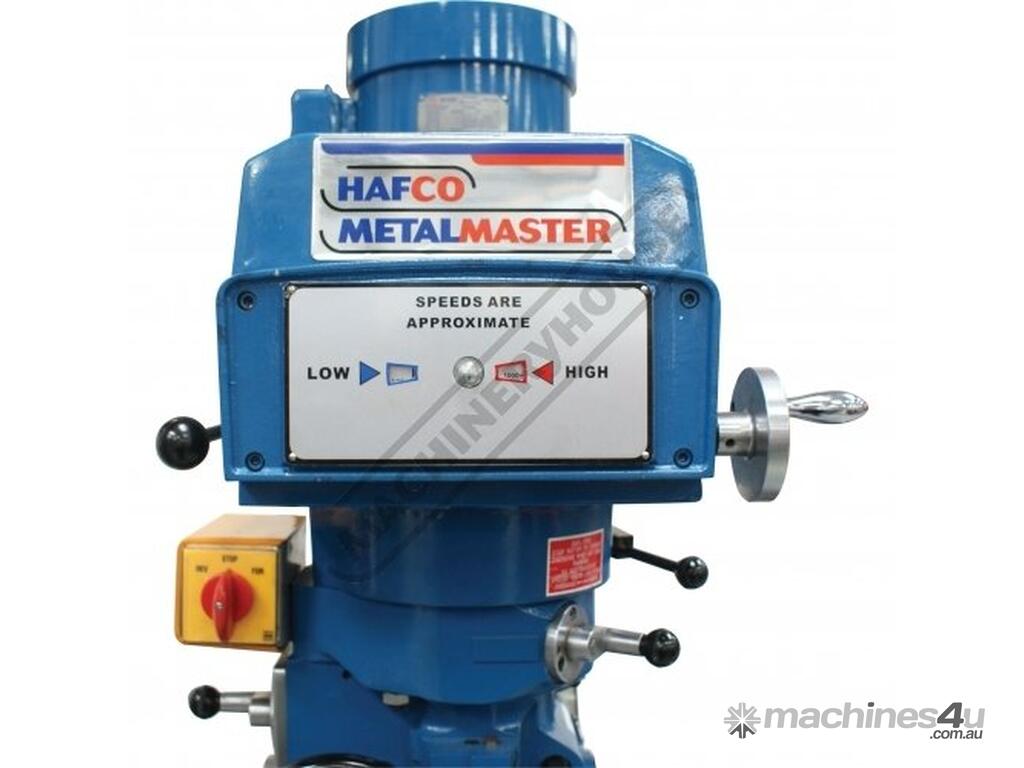

3HP 415V motor dial variable speed system (BM-40V)
NT30 spindle taper with a chrome & ground quill
Hardened & ground work table & slide-ways
Turcite "B" coated X & Y Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation

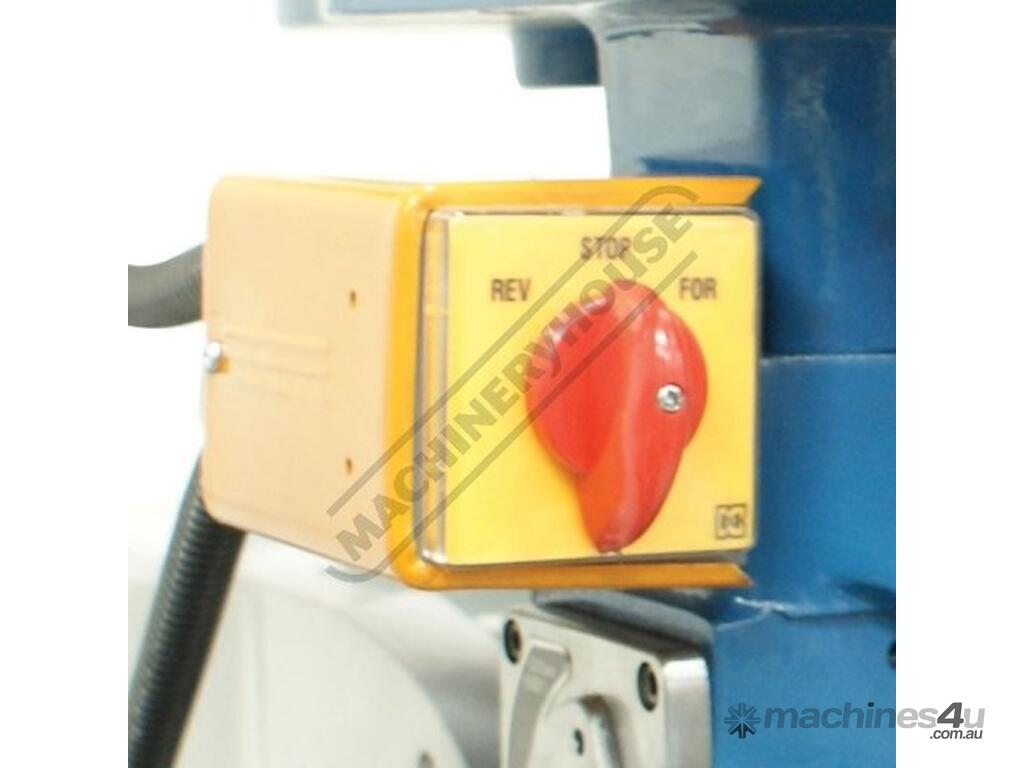

Quality electrics & overload protection in an easy access enclosure

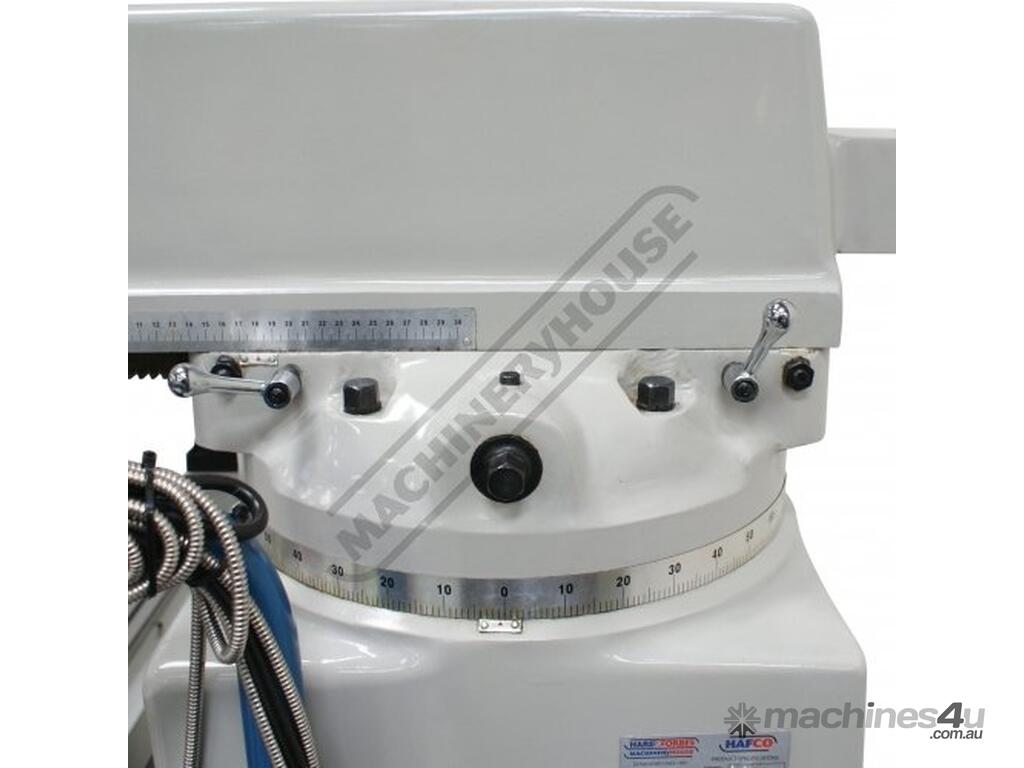

Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

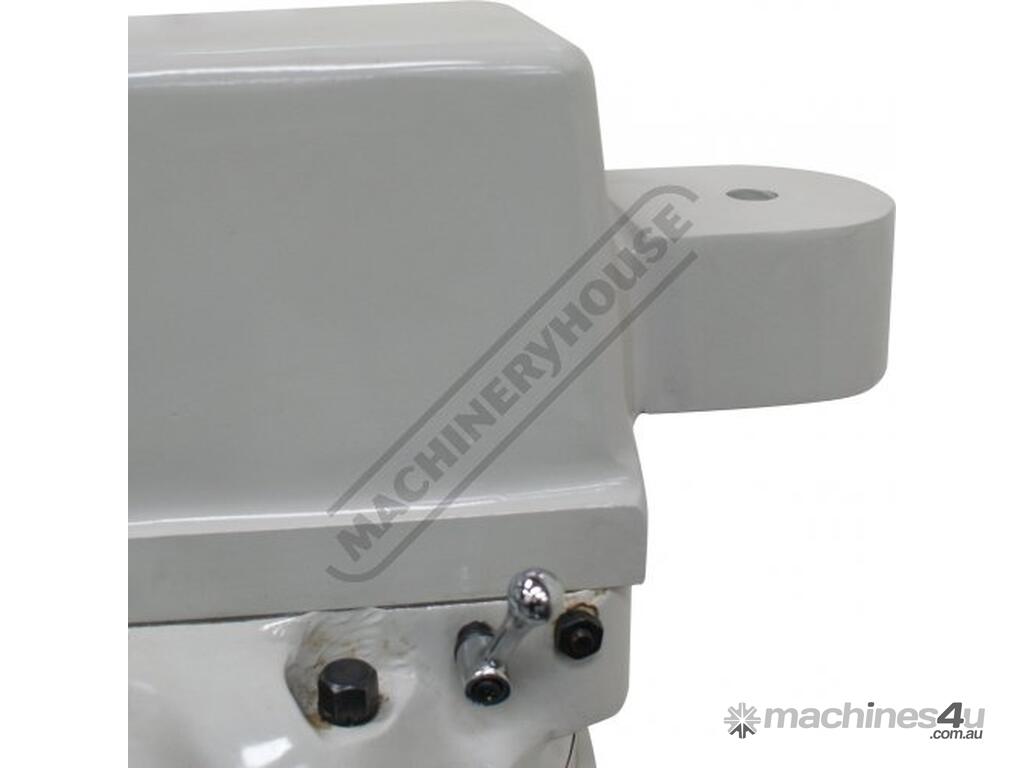

The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

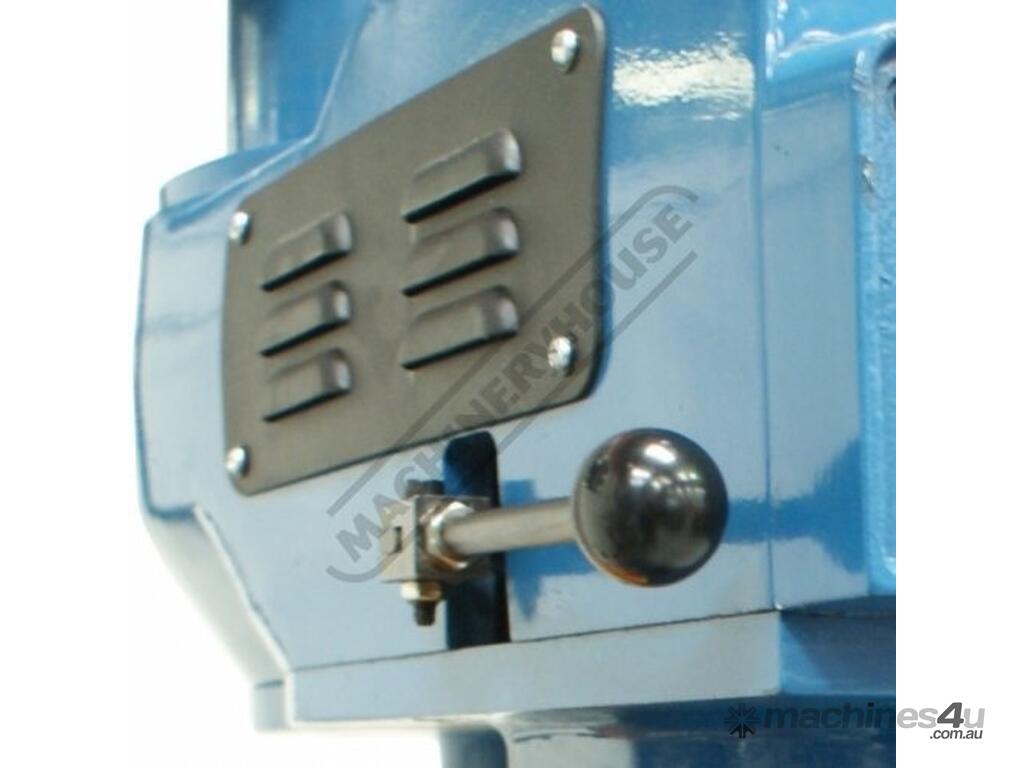

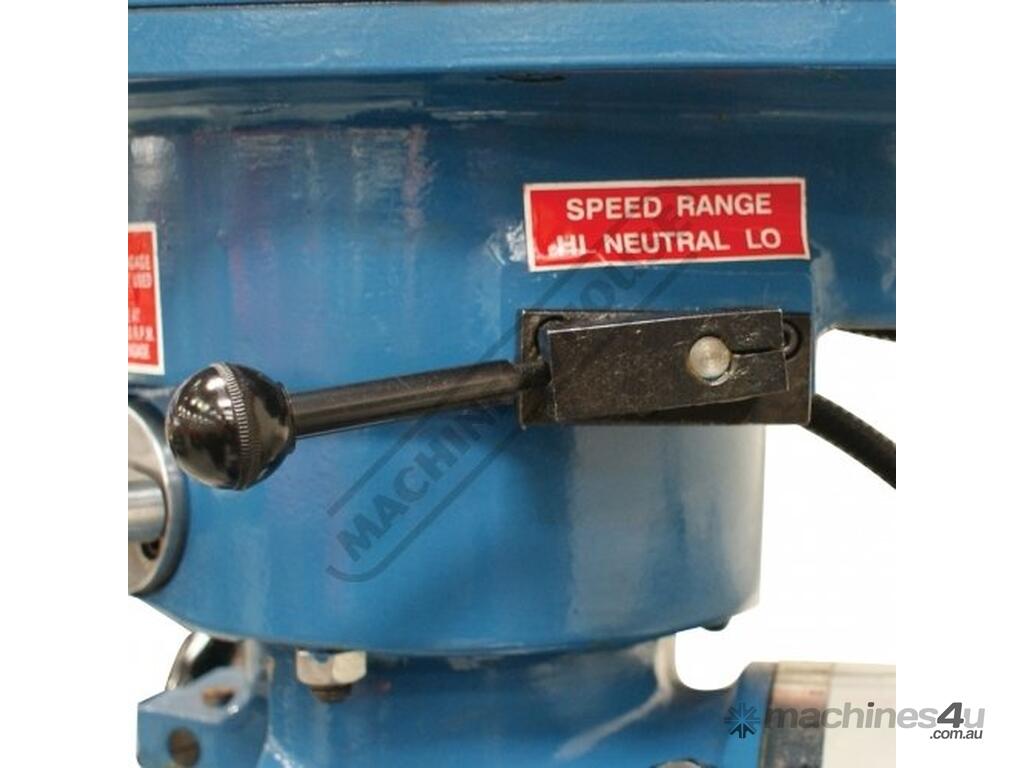

High / neutral and low gear selection lever to maximise torque

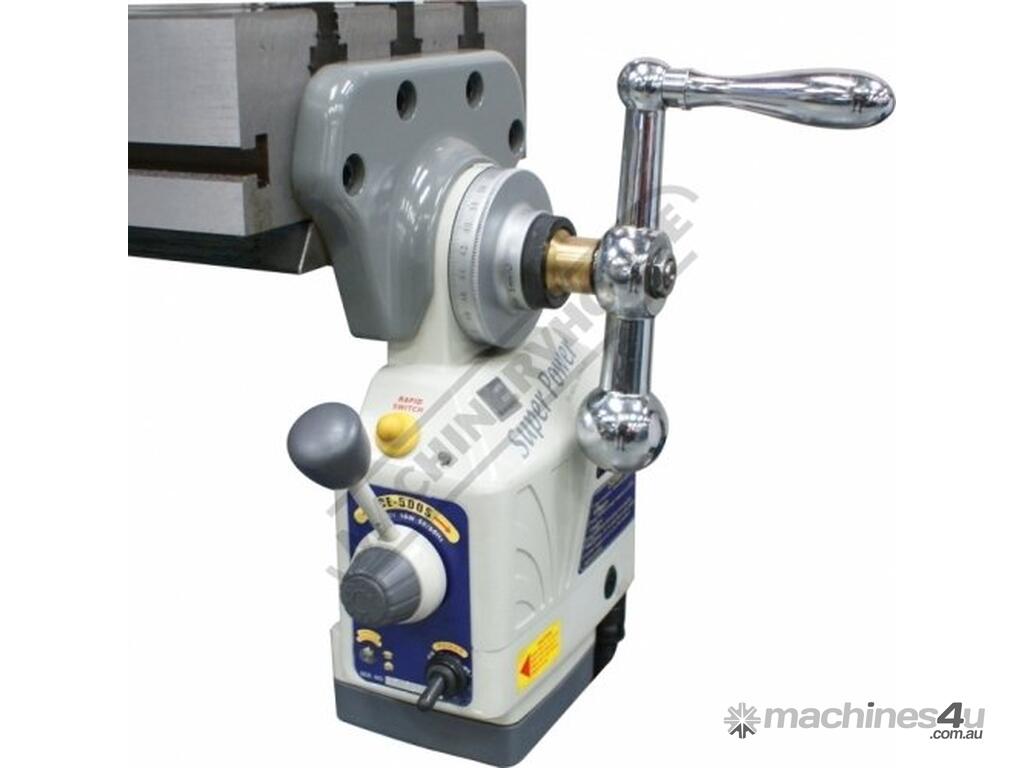

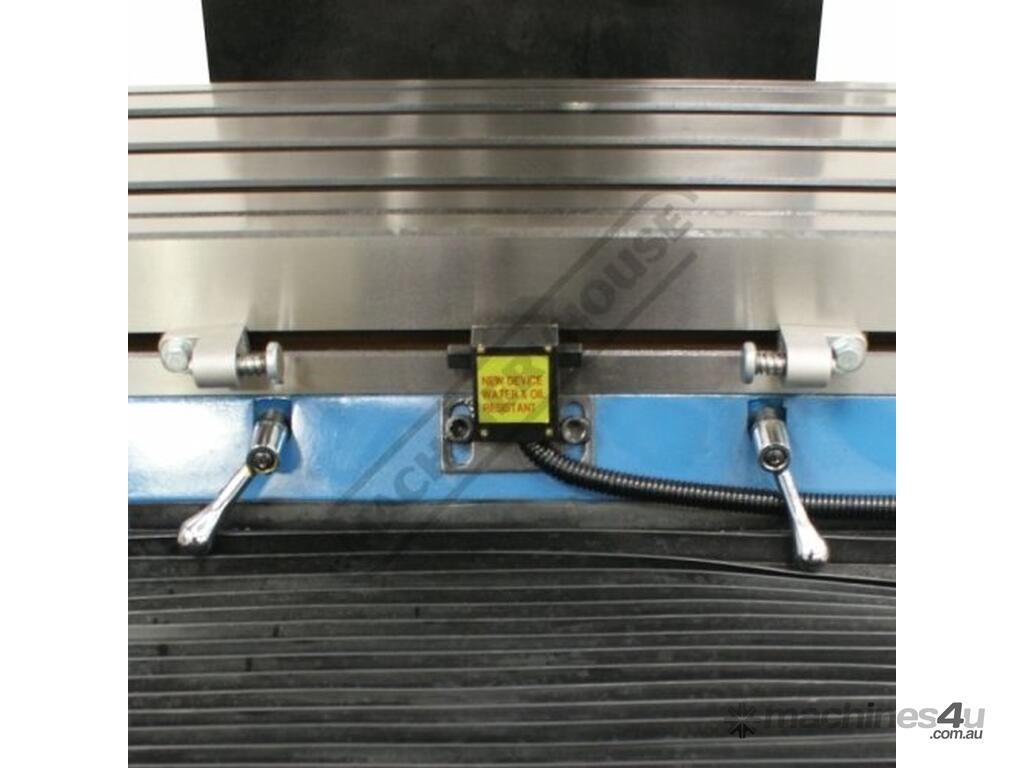

Align AL-500S X-Axis power-feed with adjustable micro switch feed stops
Metric dial graduations 0.02mm for X Y & Z-Axis

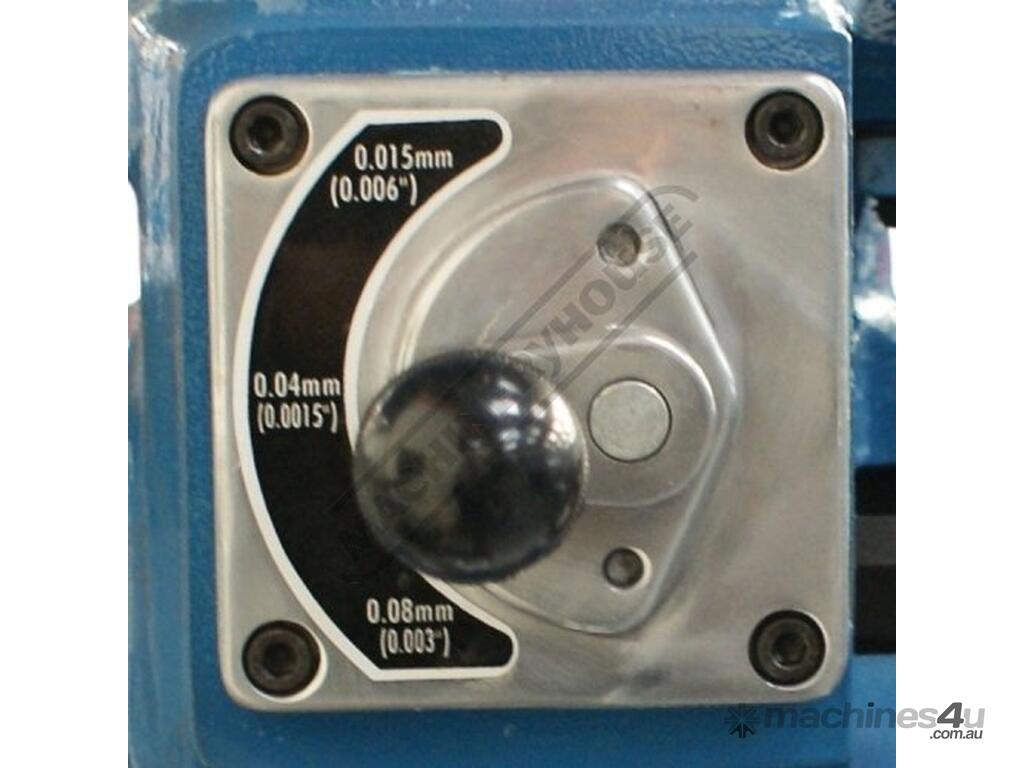

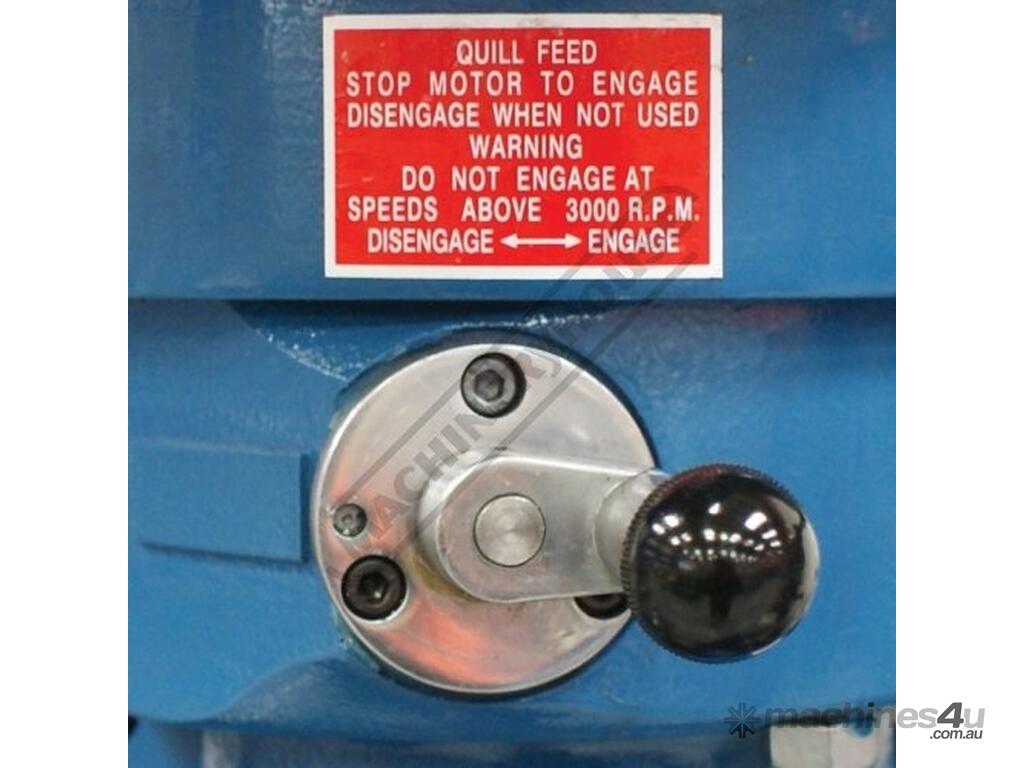

Automatic quill feed 0.015 0.04 0.08mm/rev

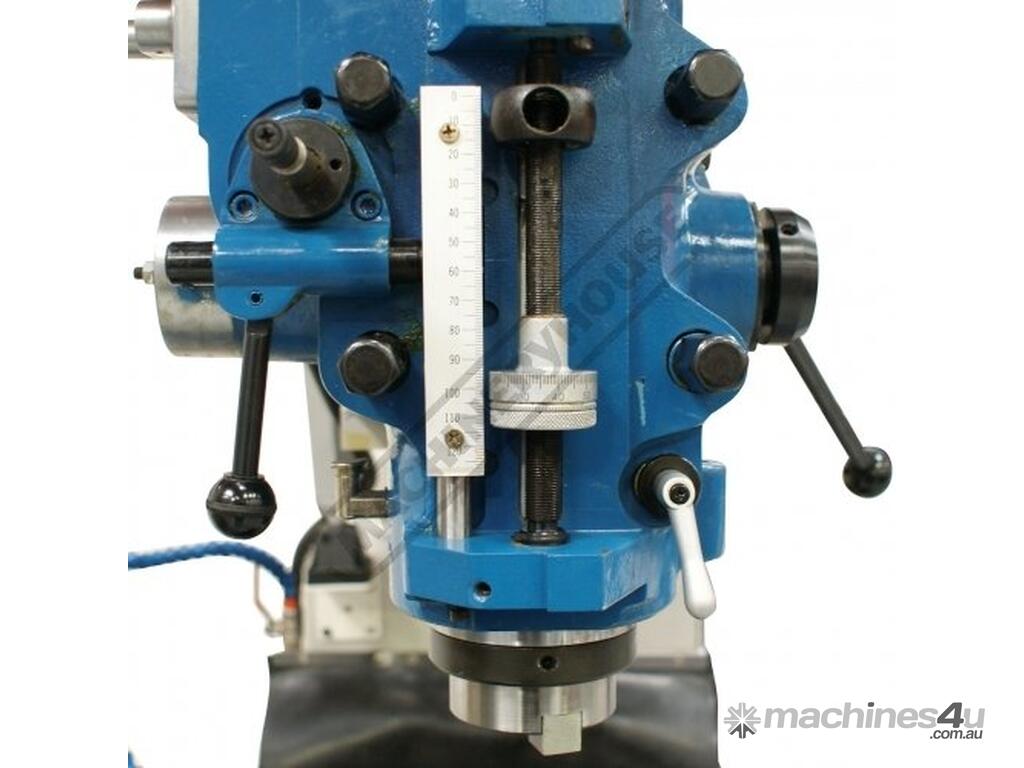

Automatic cut off depth stop on quill

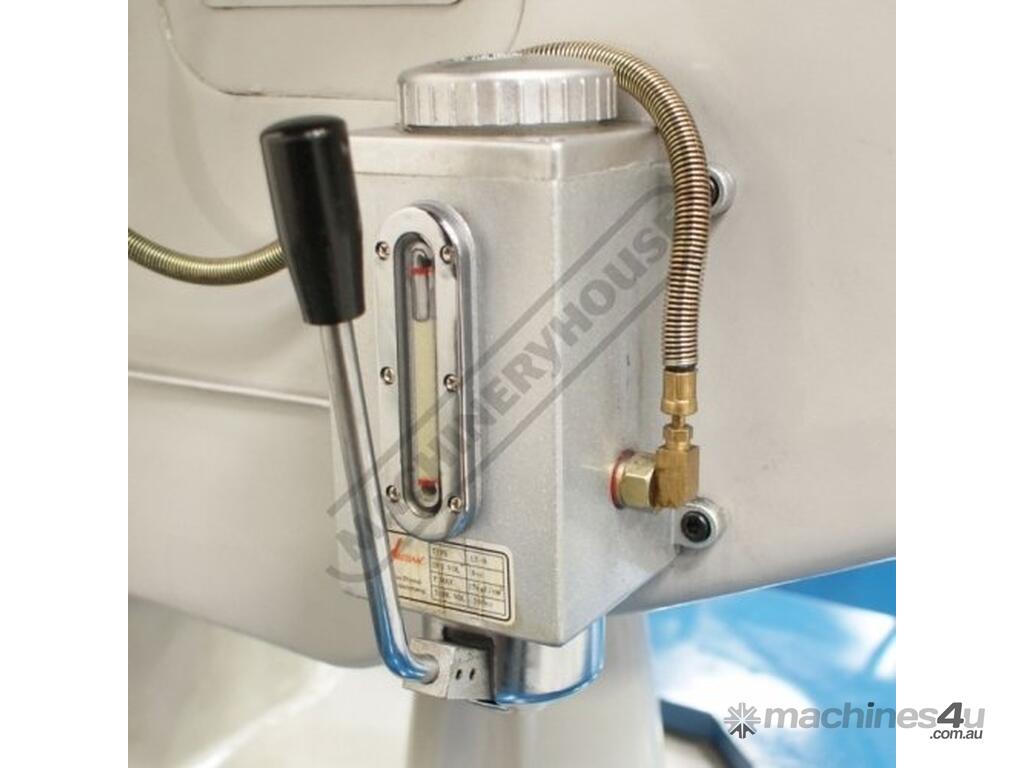

Oil lubrication pump and reservoir

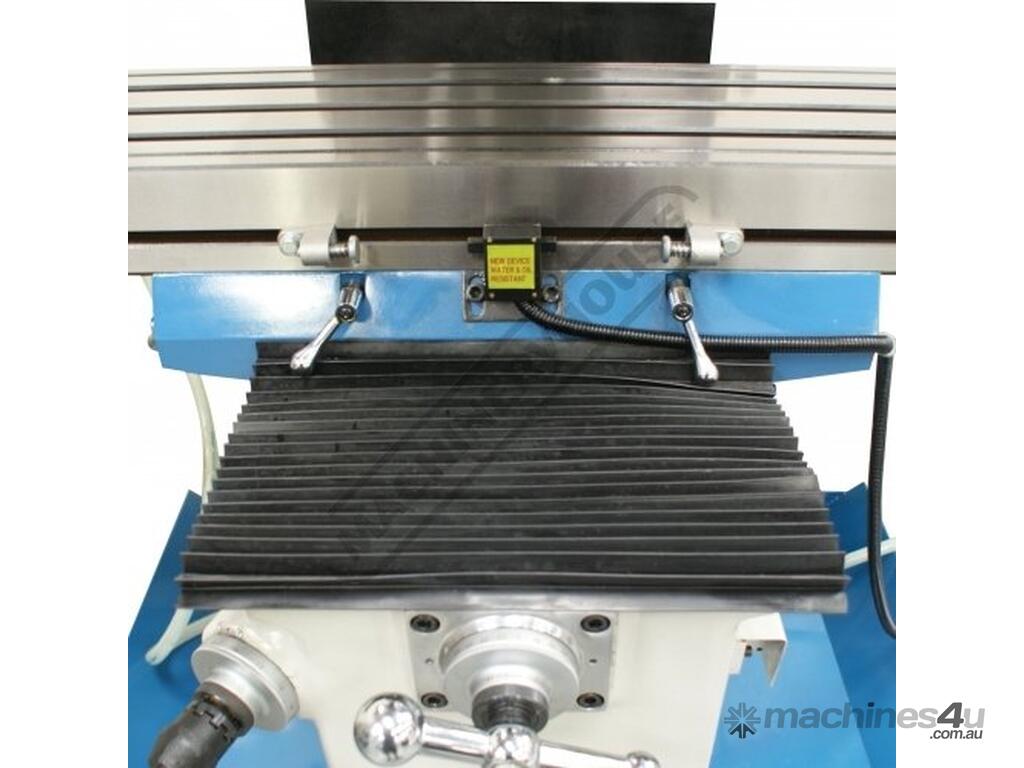

Slide-way covers Y & Z-Axis

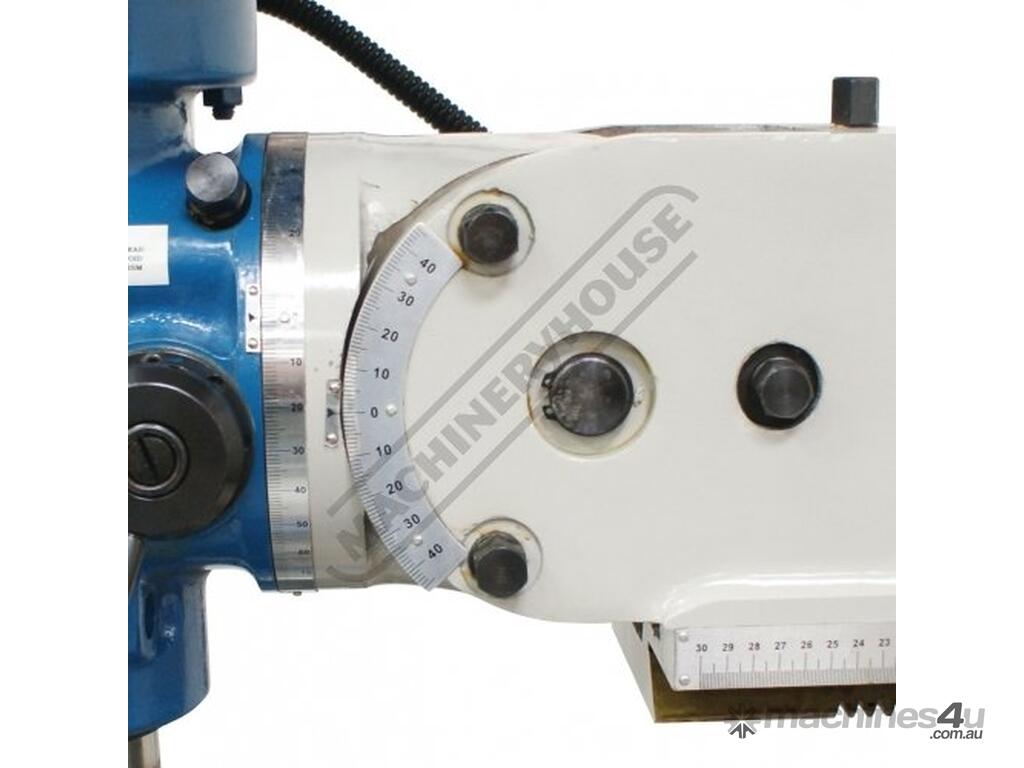

Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right

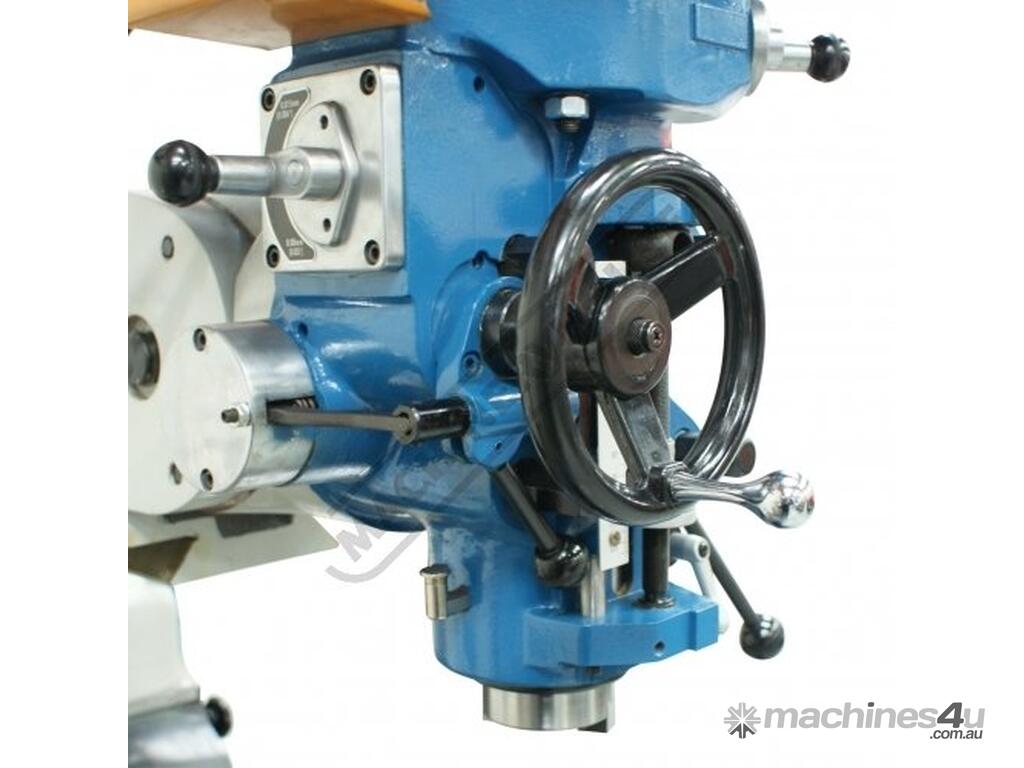

Manual quick action quill lever
Mechanical spindle brake
Tool box and manual

Includes:
- 3-Axis digital readout fitted
- One-shot oil lubrication pump and reservoir
- Drawbar M12 thread

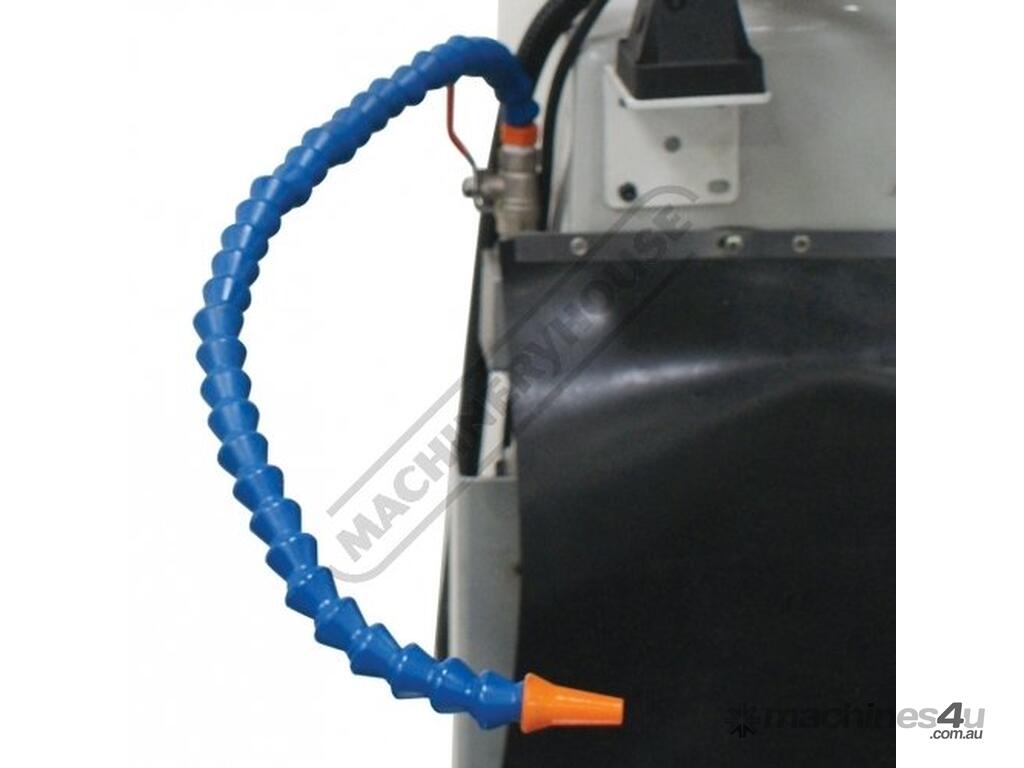

- Coolant system
- Slide-way covers
- X-Axis power-feed

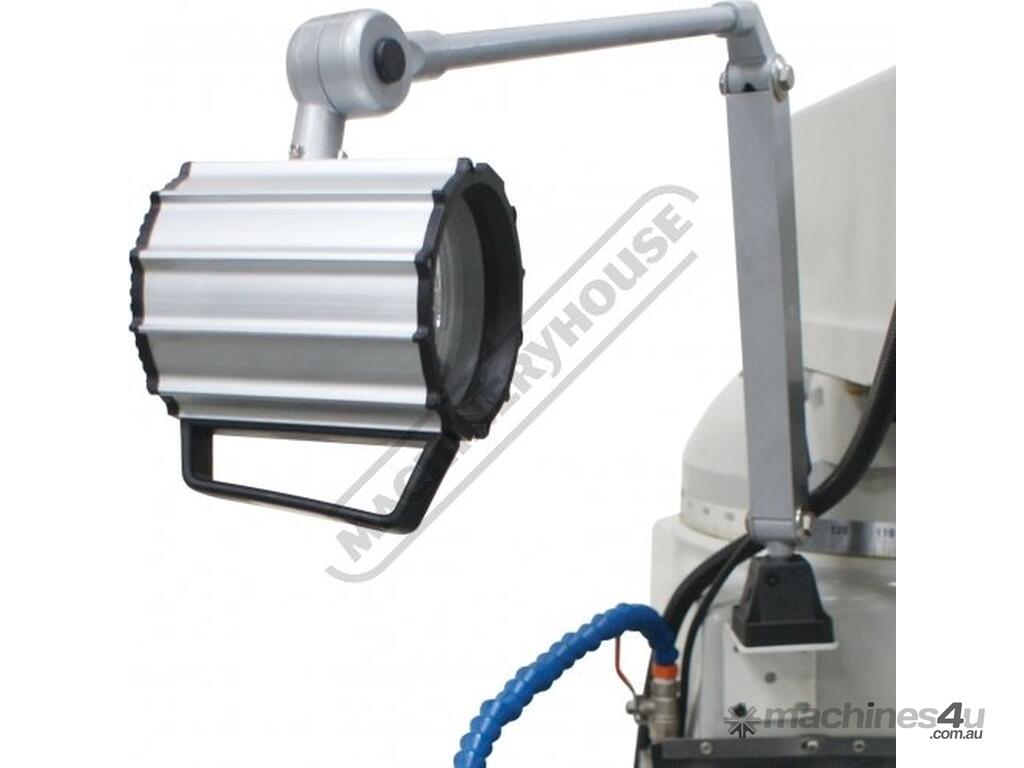

- Halogen light
- Machine vice (150mm)
- Clamp kit
- Safety cutter guard
- Swarf tray



Specifications:
ORDER CODE: M607D
MODEL: BM-40V
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1370 x 254
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 860
Cross Travel (Y-Axis) (mm): 360
Vertical Travel (Z-Axis) (mm): 425
Type of Slides: Dovetail
Ram Travel (mm): 508
Spindle to Table (mm): 505
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 735
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.015 / 0.04 / 0.08
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Optional
Table T-Slot Size (inch / mm): 5/8
Work Table Load Capacity (kg): 300
Spindle Speeds Vertical (No./ rpm): Variable (70 - 3500)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1300
