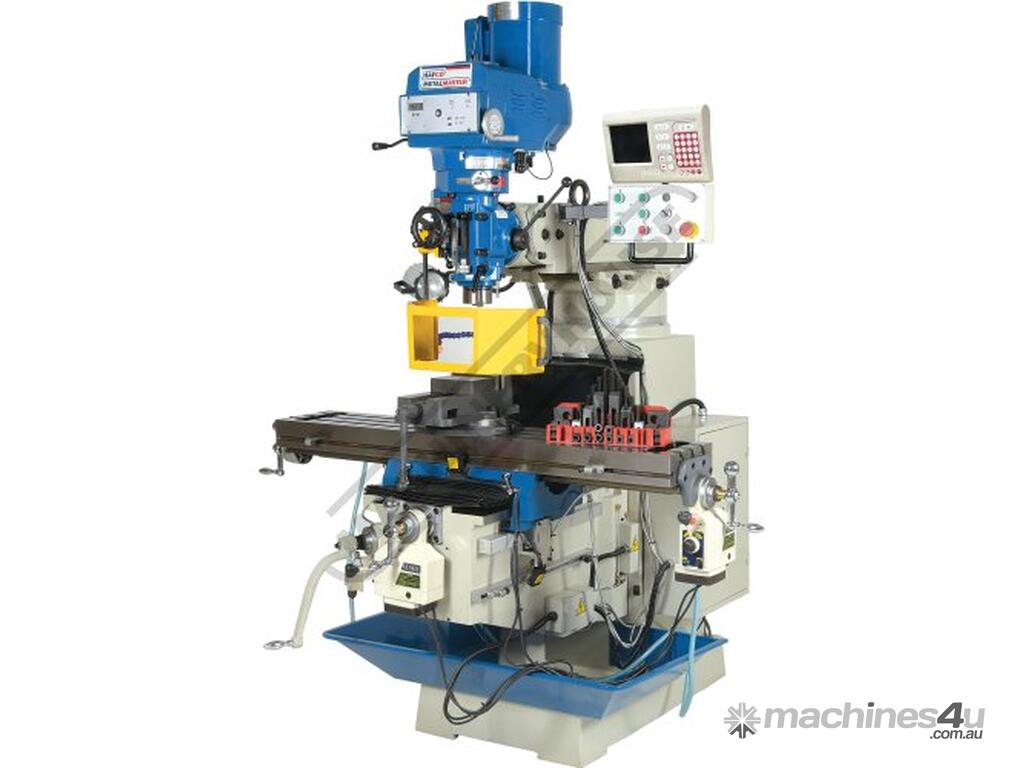

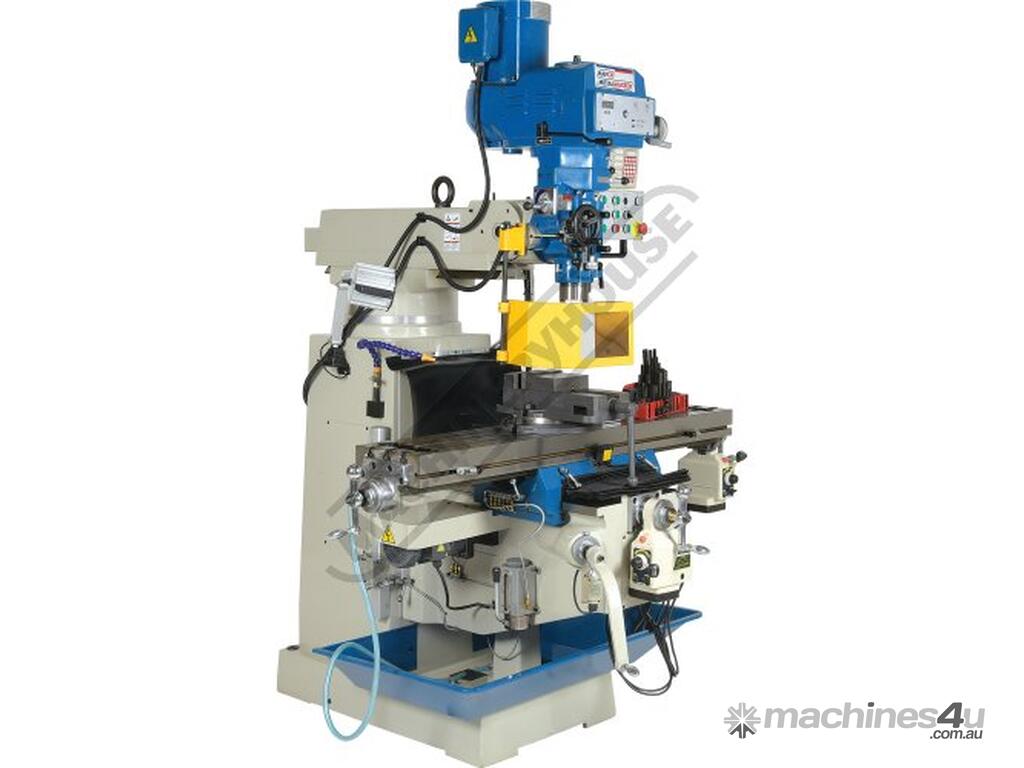

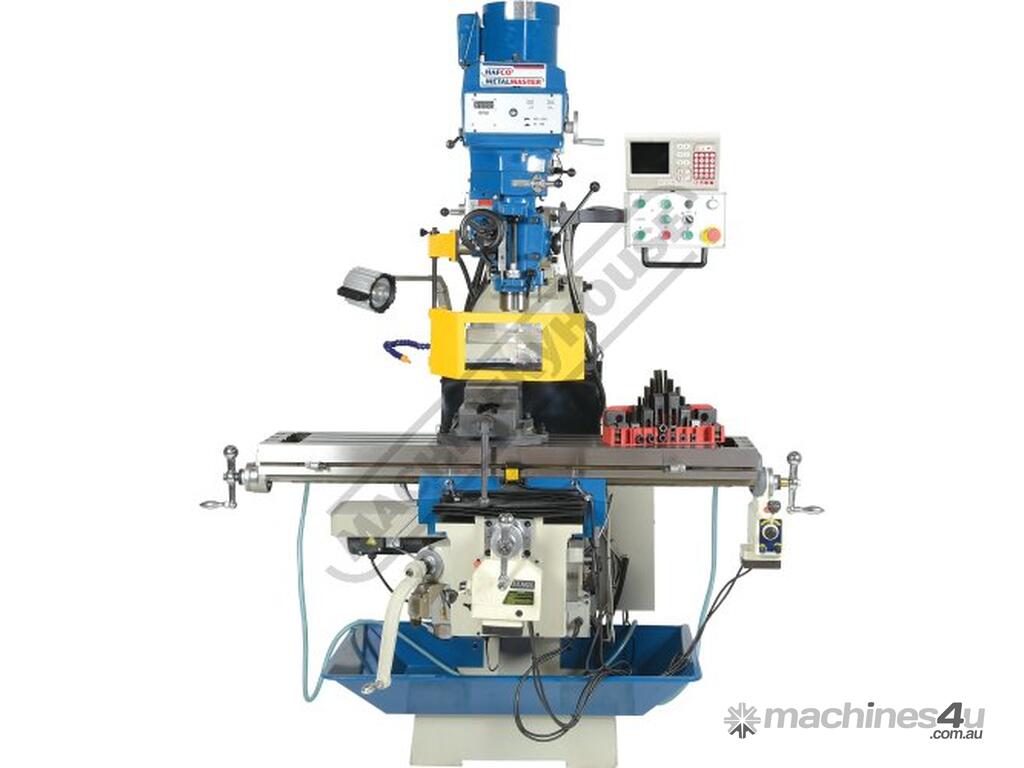

BM-53VE Industrial Turret Milling Machine Table Travel: (X) - 890mm (Y) - 400mm (Z) - 415mm Includes

HAFCO-METALMASTER BM-53VE Industrial Turret Milling Machine Table Travel: (X) - 890mm (Y) - 400mm (Z) - 415mm Includes Digital Readout System, Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M597D

Quality product representing excellent value

Features:

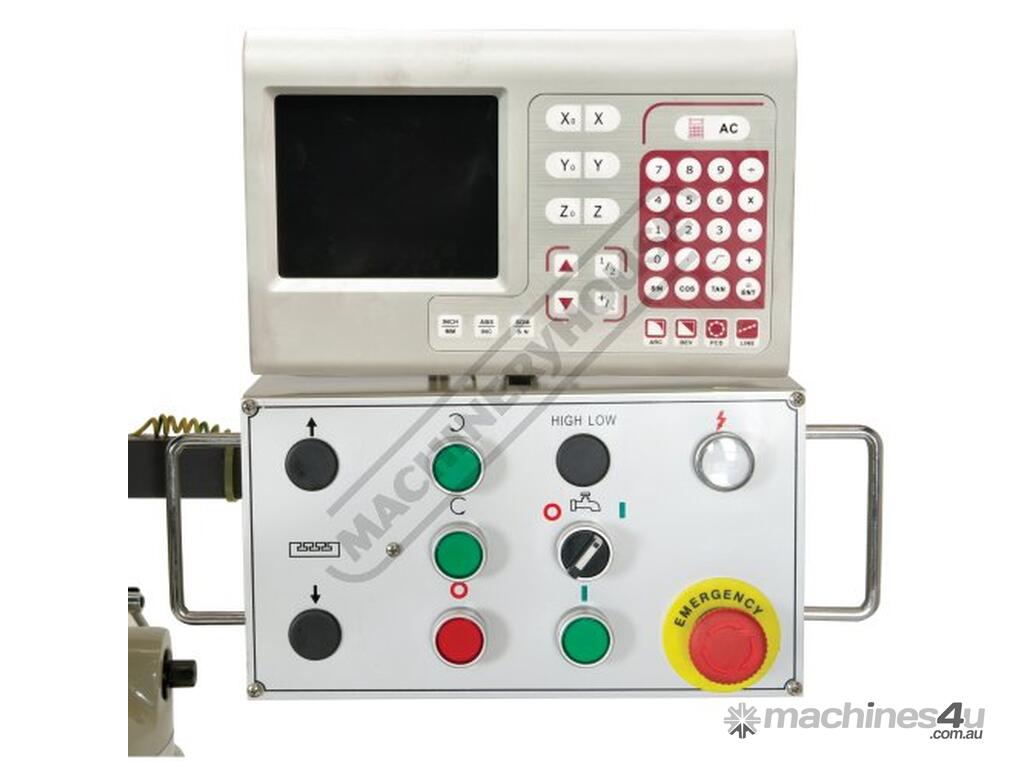

3 Axis digital readout fitted
5HP 415V motor with mechanical variable speed system
NT40 Spindle taper with a chrome & ground quill

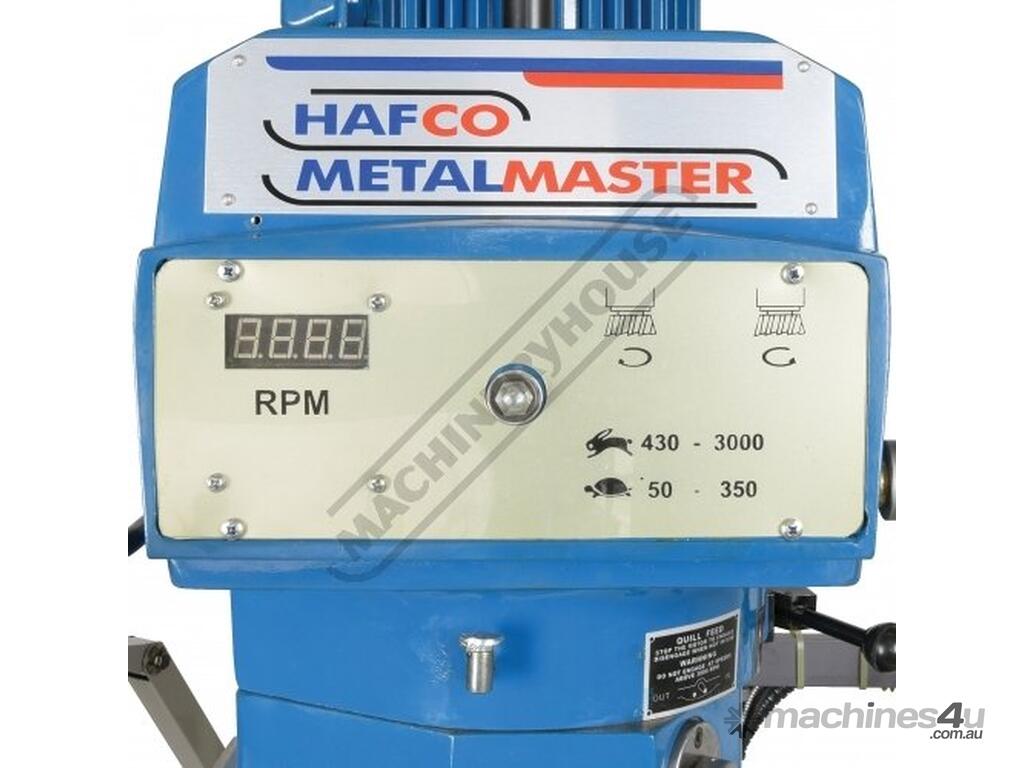

Digital speed readout display for accurate cutter speed
Hardened & ground work table & slide-ways
Square construction slides for Y & Z-Axis to maximise rigidity
Powered elevating motor for Z-Axis
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure

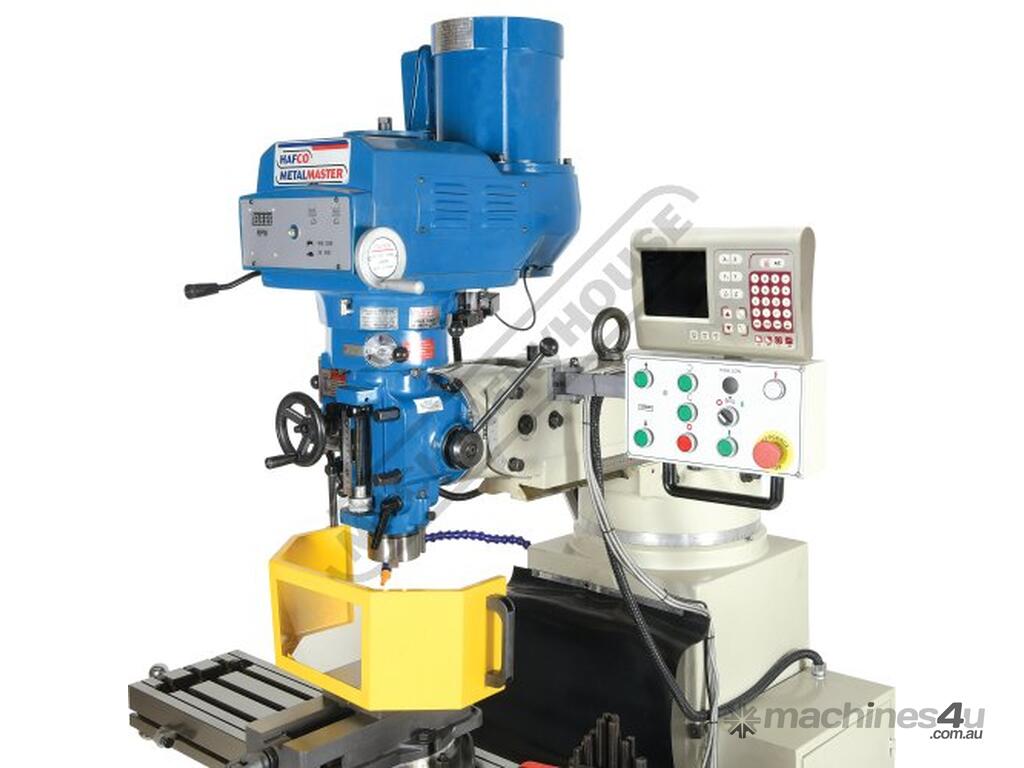

Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

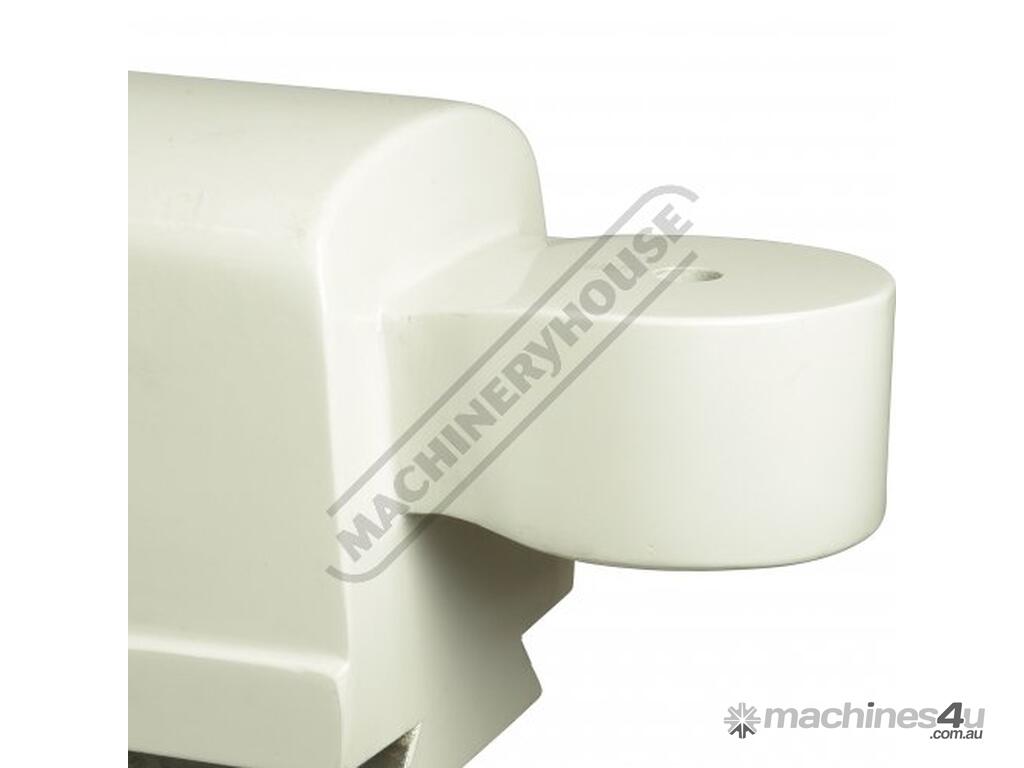

The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

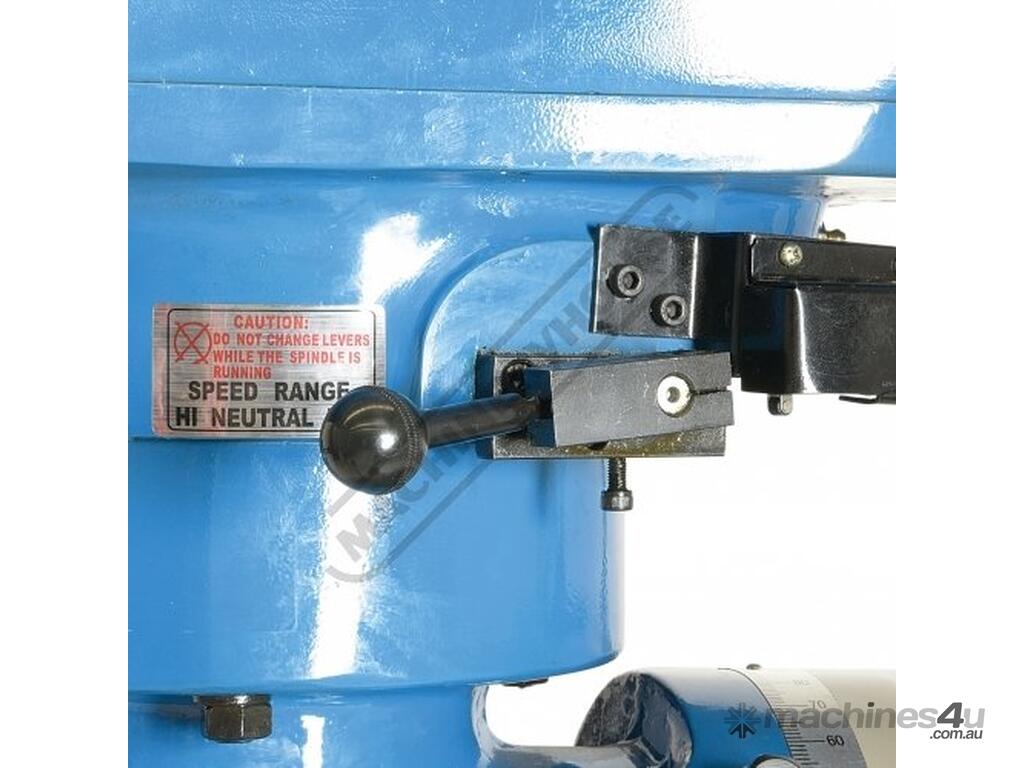

High / neutral and low gear selection lever to maximise torque

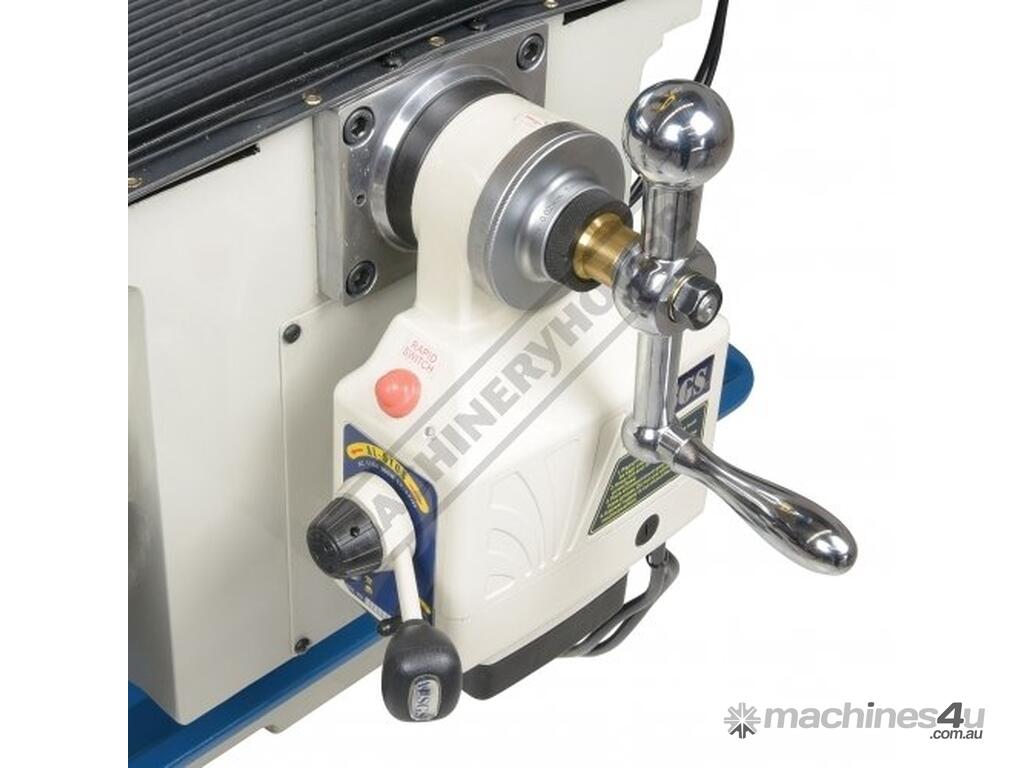

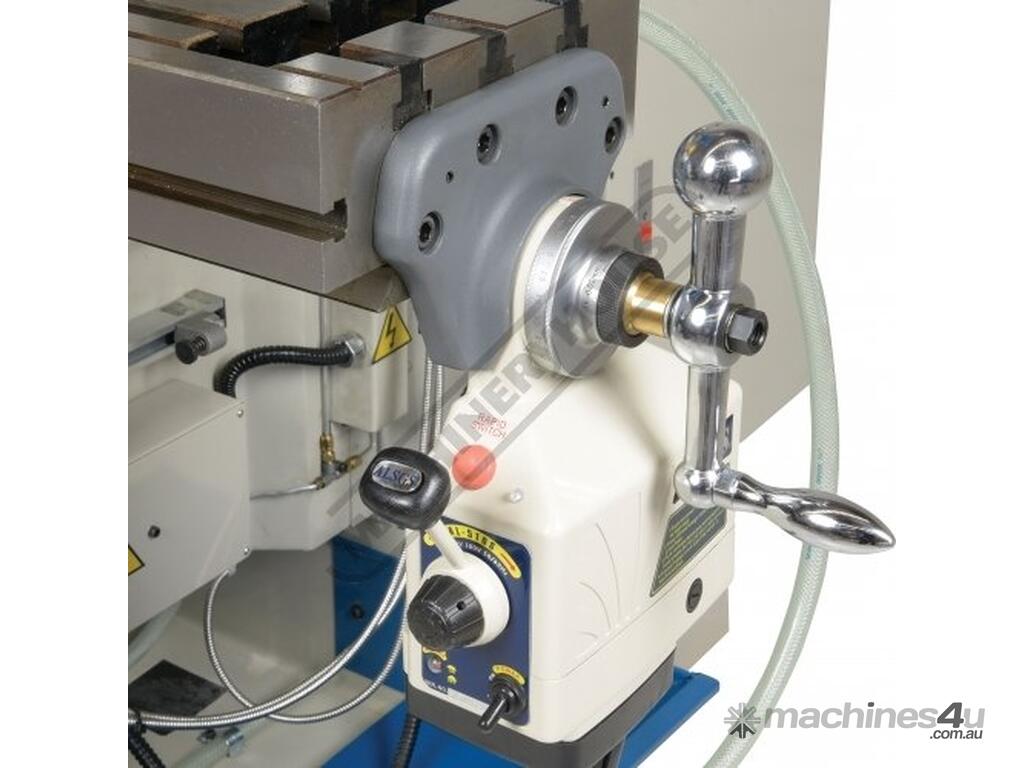

X & Y-Axis power-feed with adjustable micro switch feed stops

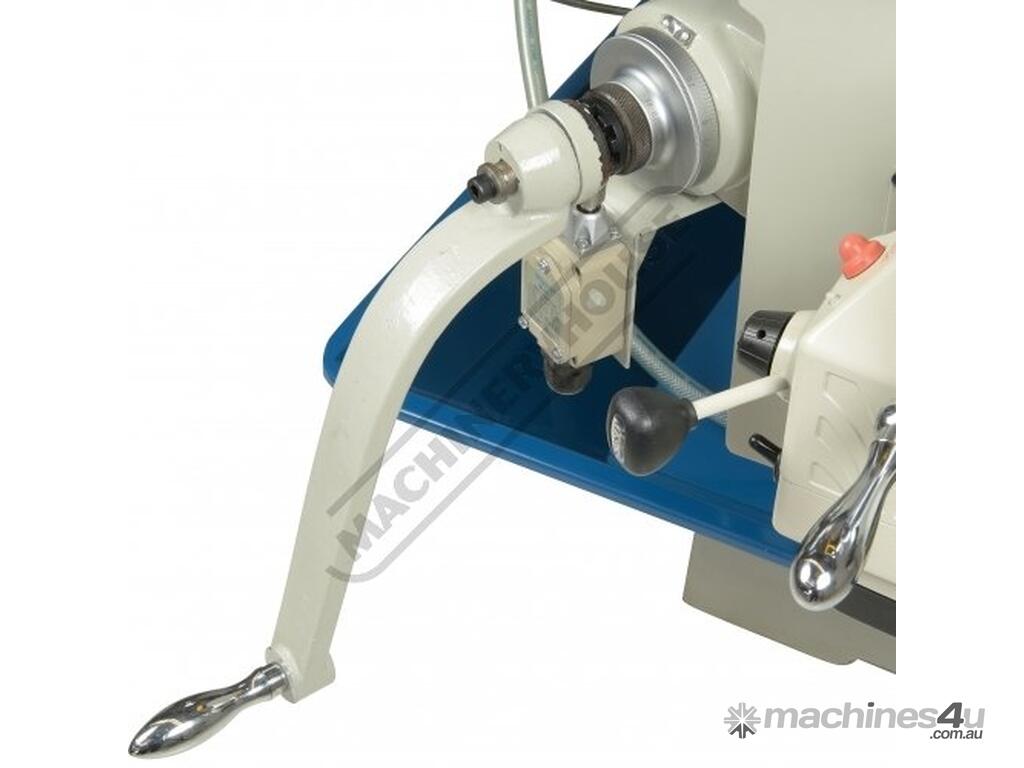

Micro switch on the manual knee handle for additional operator safety

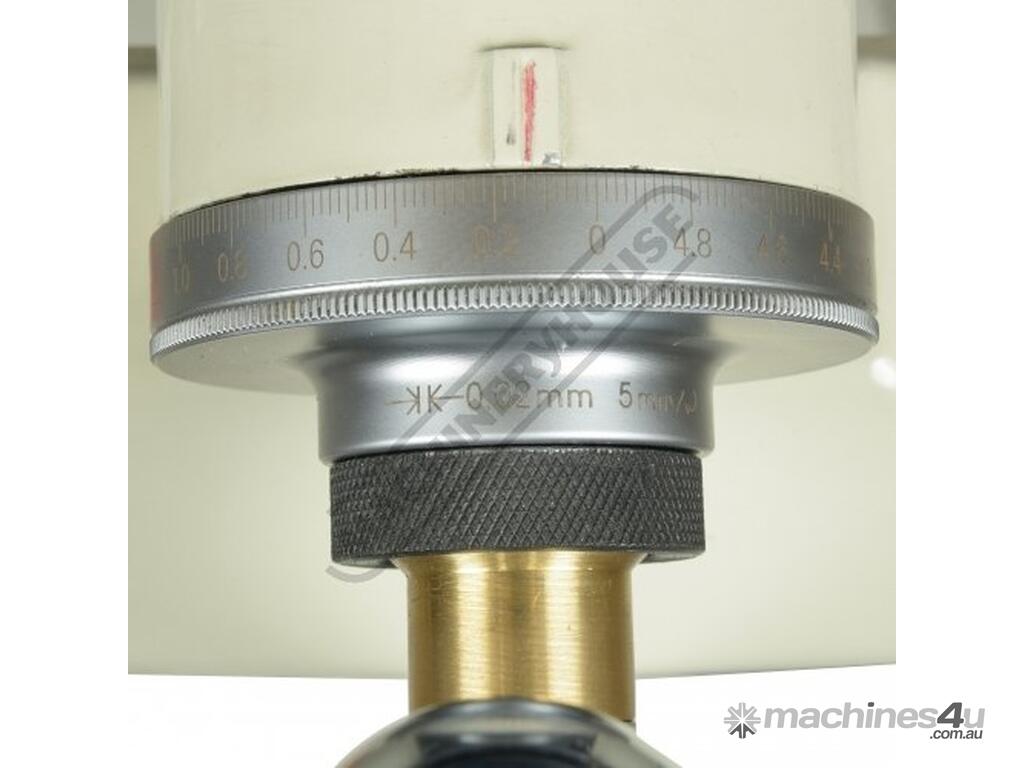

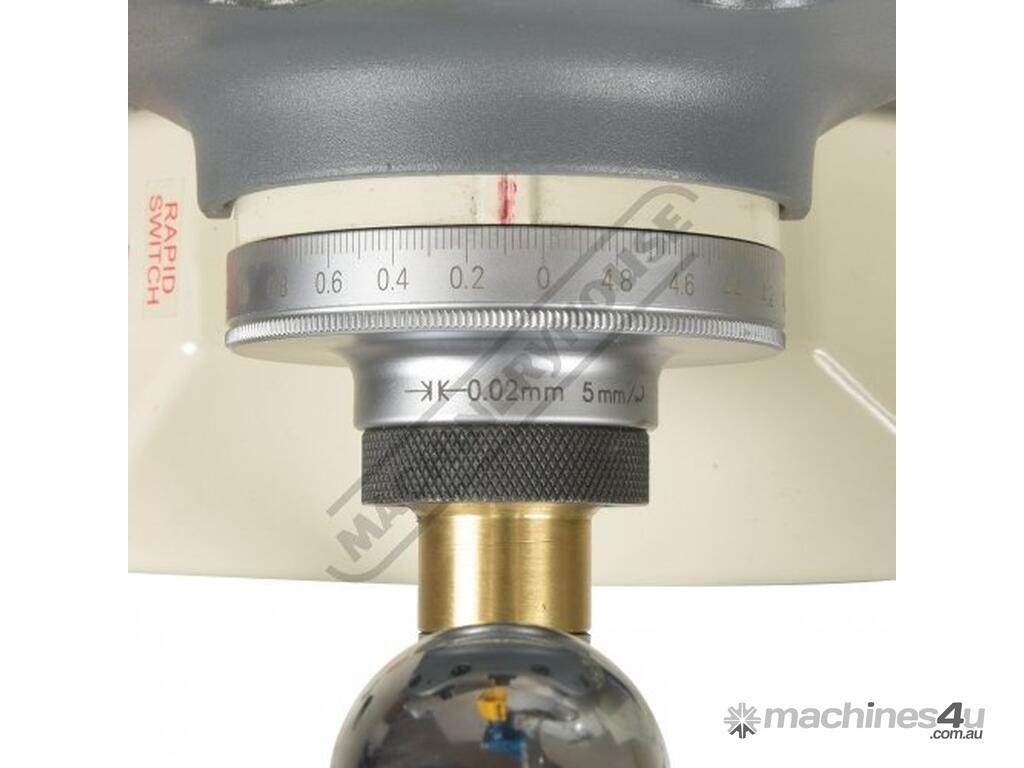

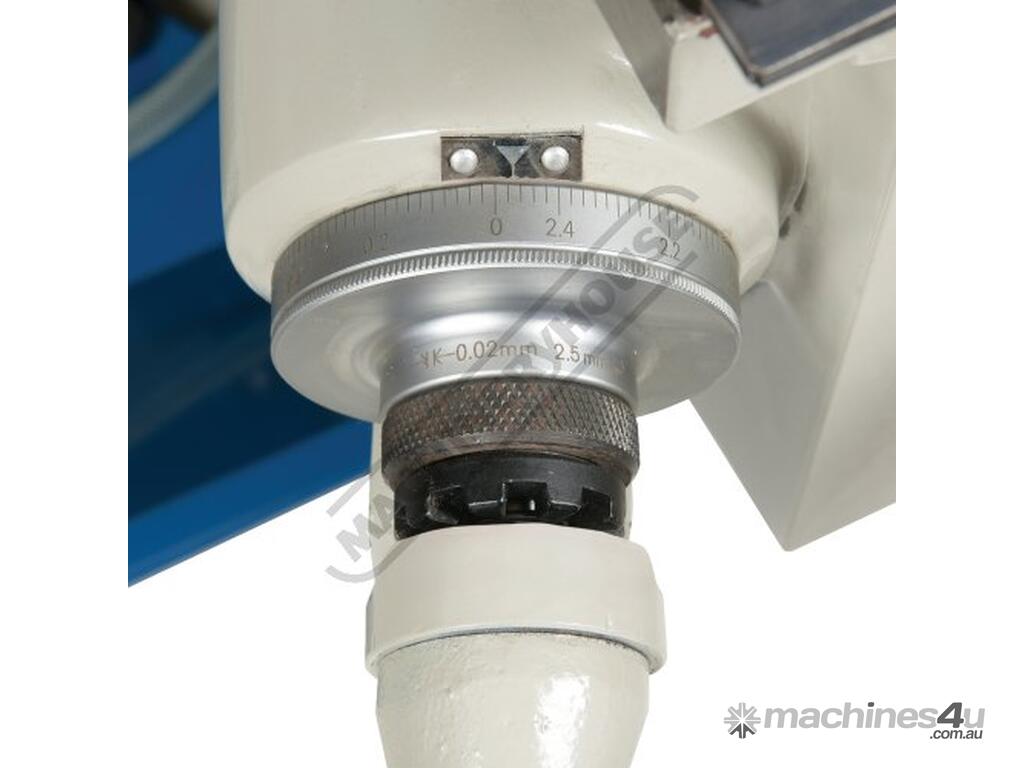

Metric dial graduations 0.02mm for X Y & Z-Axis

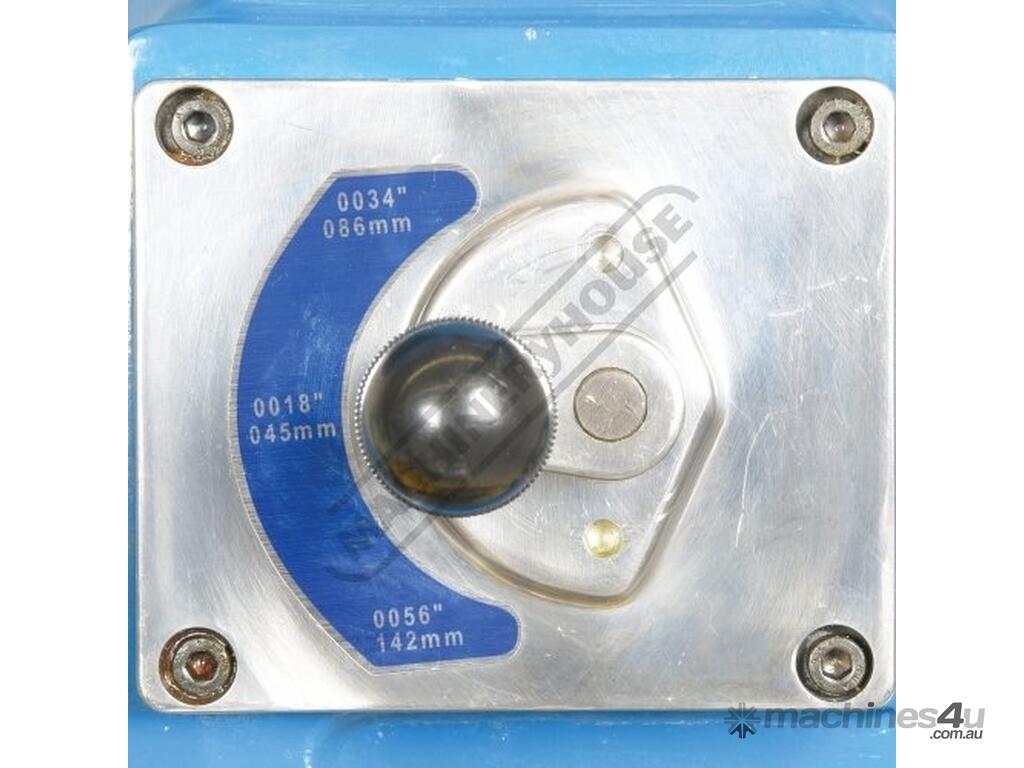

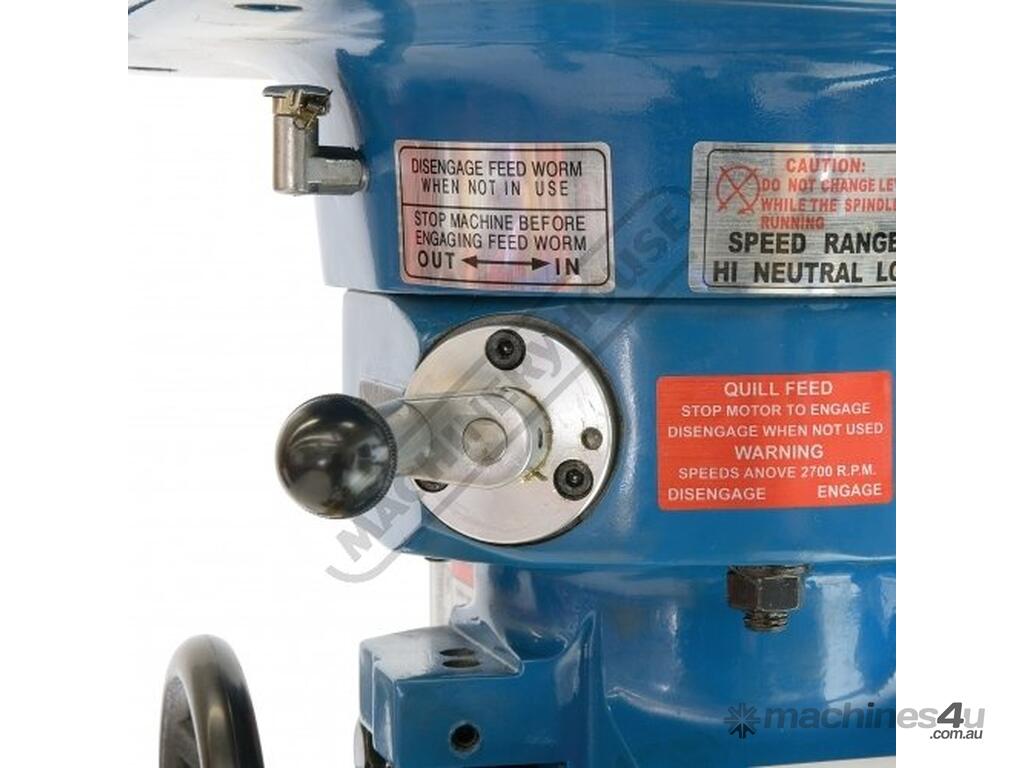

Automatic quill feed 0.04 0.08 0.15mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir

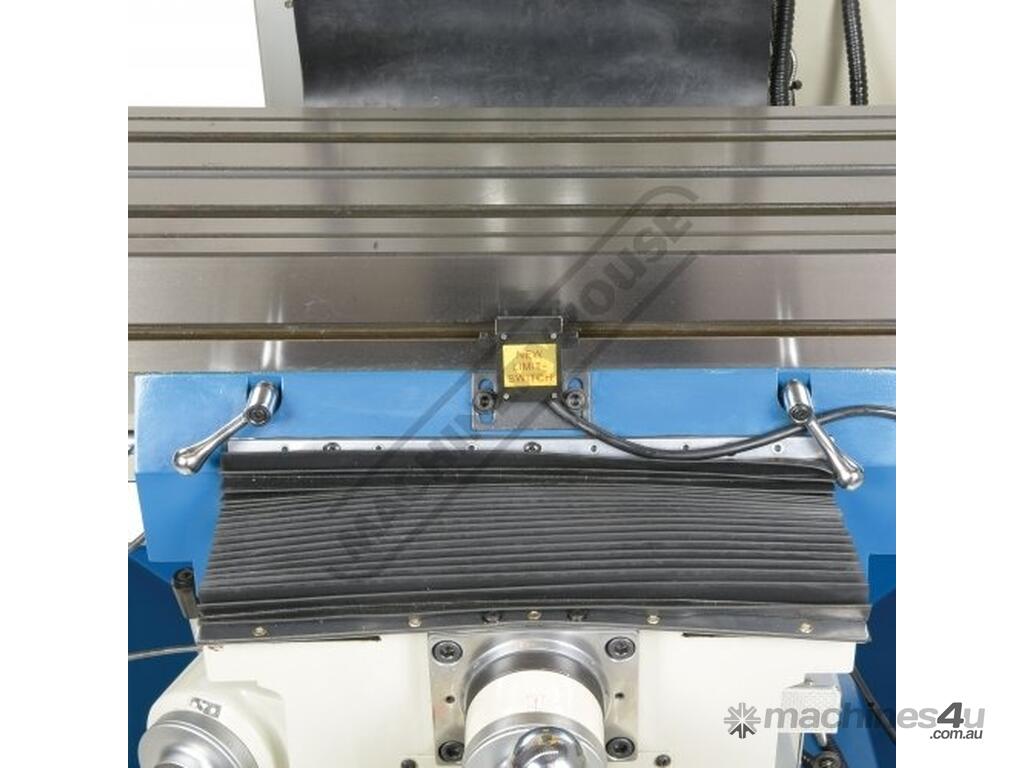

Slide-way covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right

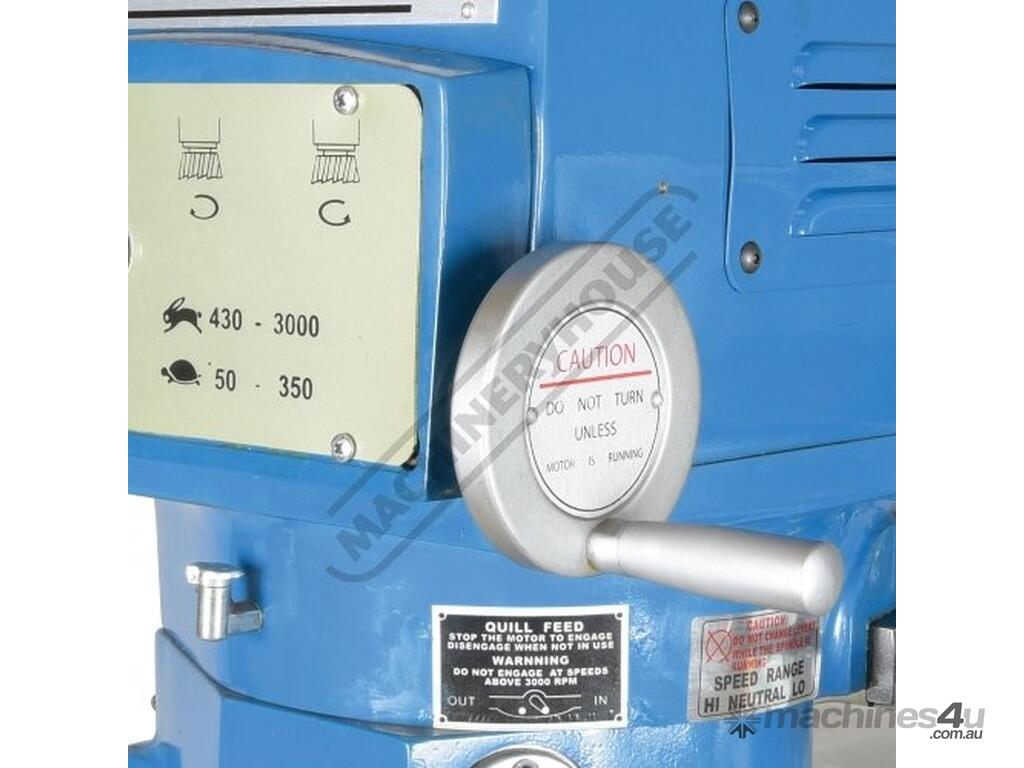

Manual quick action quill lever

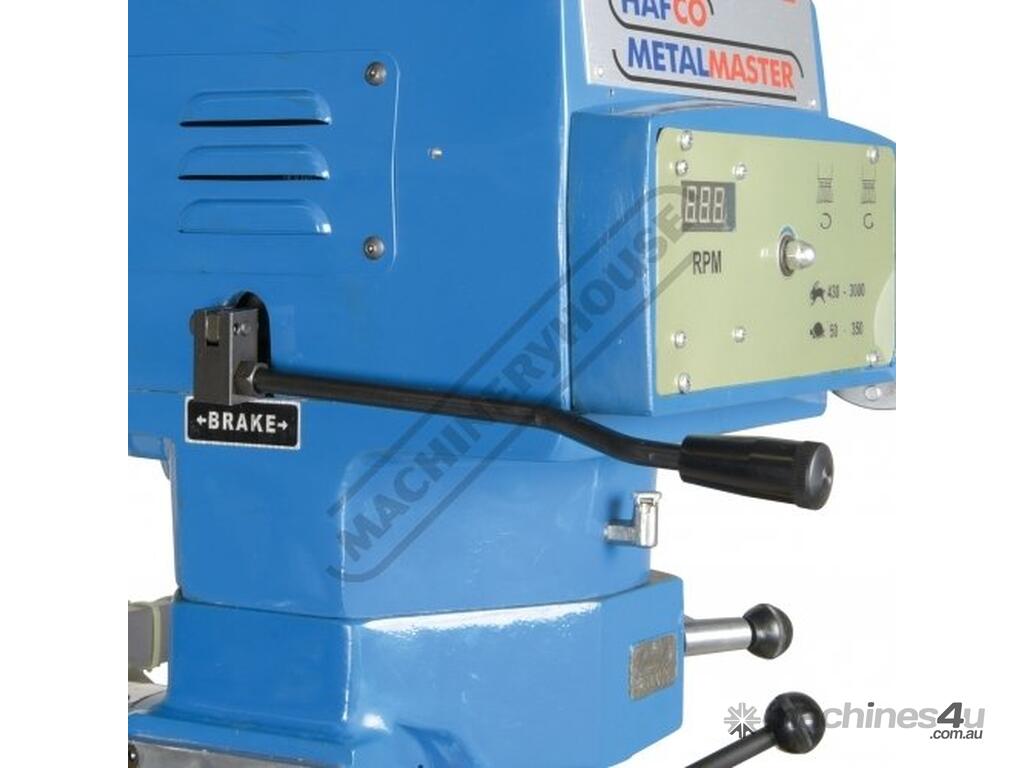

Mechanical spindle brake
Tool box and manual

Includes:
- 3 Axis digital readout fitted
- Digital speed readout display
- Z-Axis powered elevating motor
- X & Y-Axis power-feeds
- One-shot oil lubrication pump and reservoir
- Machine vice (160mm)
- Clamp kit

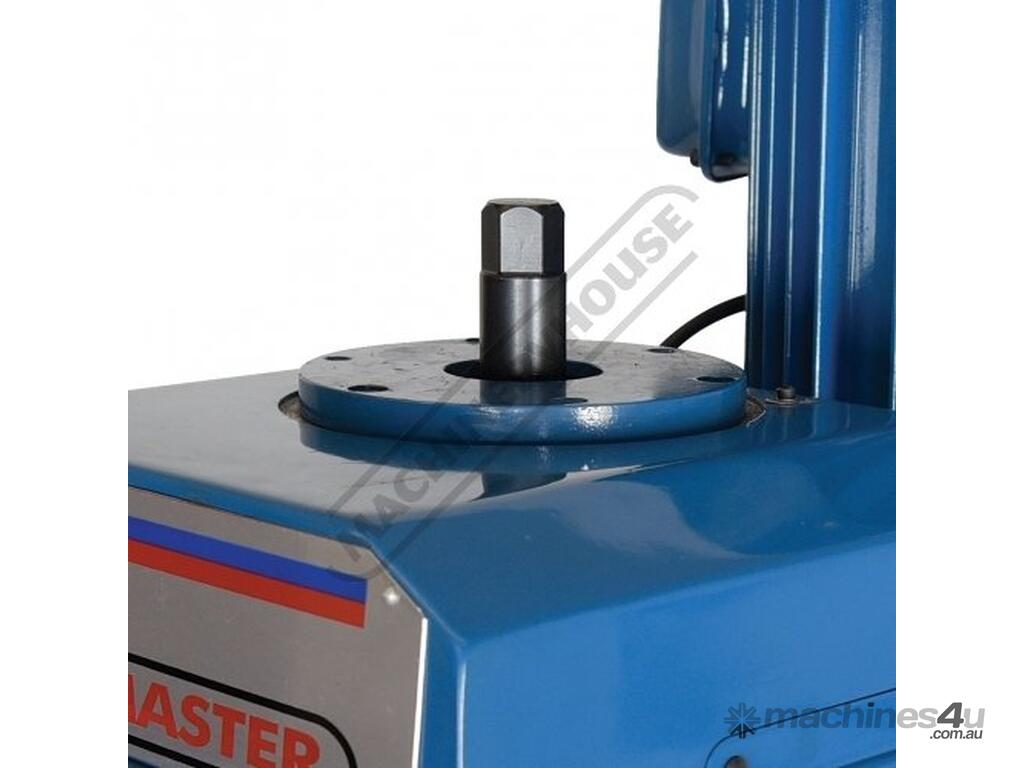

- Drawbar M16 thread
- Coolant system
- Slideway covers
- Halogen light
- Safety cutter guard
- Swarf tray



Specifications:
ORDER CODE: M597D
MODEL: BM-53VE
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1370 x 254
Column Type: ~
Spindle Taper - Vertical: NT40
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 890
Cross Travel (Y-Axis) (mm): 400
Vertical Travel (Z-Axis) (mm): 415
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 555
Spindle to Table (mm): 465
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 635
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.15
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): 20 - 2000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 16
Work Table Load Capacity (kg): 350
Spindle Speeds Vertical (No./ rpm): Variable (50 - 3550)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 3.75 / 5
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1545
