BM-70VE Industrial Turret Milling Machine Table Travel: (X) - 1050mm (Y) - 420mm (Z) - 400mm Include

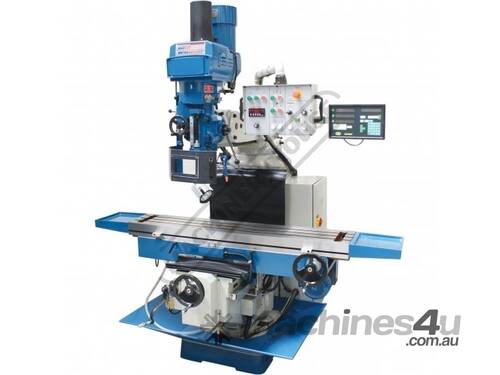

HAFCO-METALMASTER BM-70VE Industrial Turret Milling Machine Table Travel: (X) - 1050mm (Y) - 420mm (Z) - 400mm Includes Digital Readout System, Inverter Variable Spindle Speed & Inverter X & Y-Axis Feed Motors
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M630D

The BM-70VE Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs from small to big that is set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.

This heavy-duty solid milling machine has a generous scope in all X, Y & Z travels, X-axis 1050mm, Y-axis 420mm & Z-axis 400mm. What separates this BM-70VE turret milling machine from all the others on the market is the large 1500 x 305mm table has a very long table base support and will accept a heavy table weight of 500kg. furthermore, it is complimented with square slide-ways for the Y & Z-axis which relates to more surface area resulting in outstanding rigidity and performance when taking heavy cuts.

This milling machine package is also complete with a few of the most desirable features for example, 5hp motor driving the NT40 spindle taper, Inverter controller X & Y axis feeds, Z-axis powered elevating motor, pneumatic operated draw bar to easily & quickly change tool holders with a push of a button and automatic operated oil pump to keep slides in perfect working order.

The BM-70VE machine also includes features like, electronic variable spindle speed with a digital readout display, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways and a 3-axis digital readout system fitted.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To conclude this BM-70VE heavy-duty industrial turret milling machine is that this model can withstand the heavy metal removal cuts, and when its put to the test it certainly performs its duties with absolutely no hesitation.

Features:

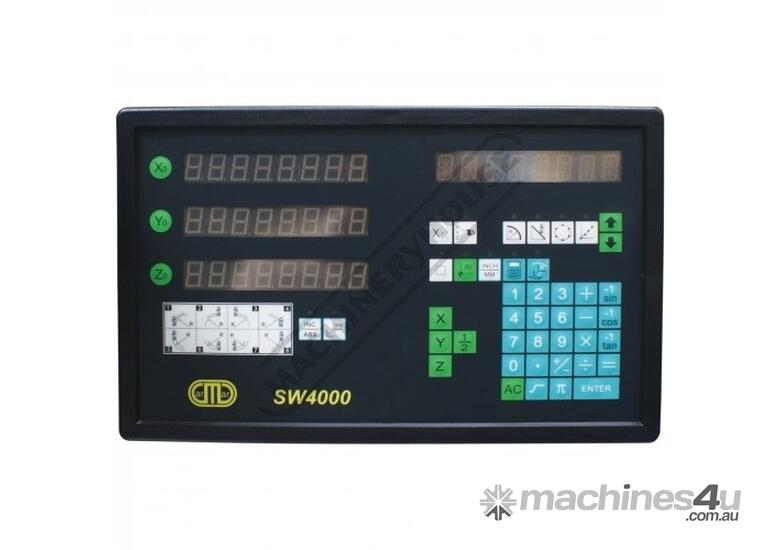

3 Axis digital readout fitted
5HP 415V motor inverter control variable speed system with automatic spindle brake (BM-70VE)
Inverter controlled feed motors on X & Y-Axis
High quality spindle speed control with digital readout

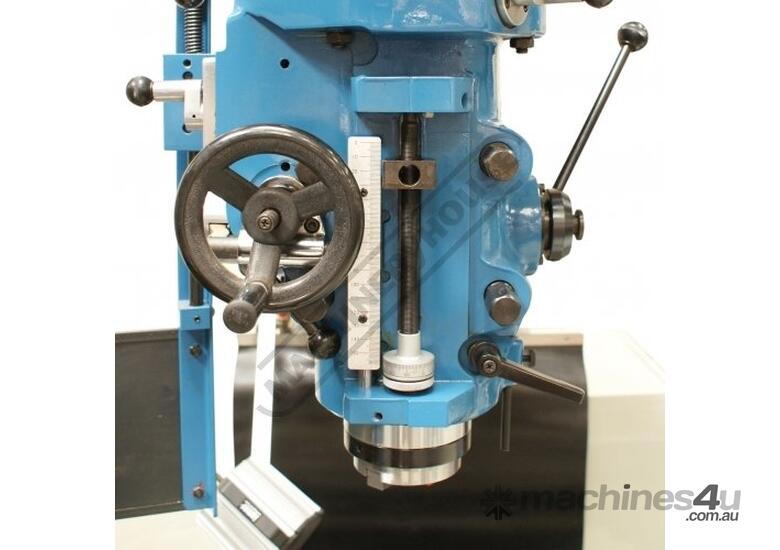

NT40 Spindle taper with a 105mm chrome & ground quill
Digital spindle speed readout
Hardened & ground work table & slide-ways
Square construction slides for X & Z axis to maximise rigidity
Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation
Pneumatic operation drawbar system for quick and effortless tool change
Powered elevating motor for Z-Axis
Meehanite casting for high strength & minimal deformation

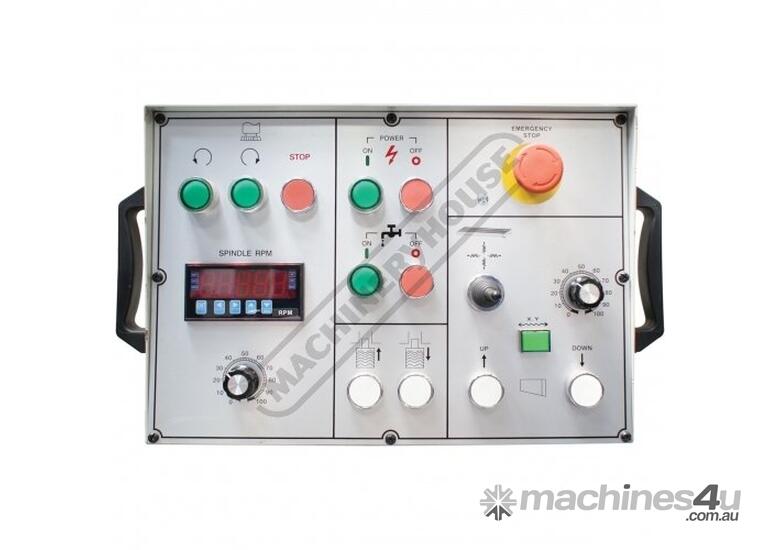

Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
High / neutral and low gear selection lever to maximise torque
Micro switch on the manual knee handle for additional operator safety
Metric dial graduations 0.02mm for X Y & Z-Axis
Automatic quill feed 0.04 0.08 0.13mm/rev
Automatic cut off depth stop on quill
Automatic oil lubrication pump and reservoir
Slide-way covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right
Manual quick action quill lever
Tool box and manual

Includes:
- 3 Axis digital readout fitted
- Automatic oil lubrication pump and reservoir
- Pneumatic drawbar system M16 thread
- Coolant system
- Slideway covers
- Z-Axis powered elevating motor
- X & Y-Axis inverter controlled power-feed
- Halogen light
- Safety cutter guard
- Swarf tray
- Drawbar M16 thread



Specifications:
ORDER CODE: M630D
MODEL: BM-70VE
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1500 x 305
Column Type: ~
Spindle Taper - Vertical: NT40
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 1050
Cross Travel (Y-Axis) (mm): 420
Vertical Travel (Z-Axis) (mm): 400
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 485
Spindle to Table (mm): 460
Spindle to Base: ~
Spindle Travel / Diameter (mm): 155 / 105
Throat Depth (max.) (mm): 750
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.13
Power Feed - Longitudinal (X-Axis) (mm/min): 30 - 3000
Power Feed - Cross (Y-Axis) (mm/min): 30 - 3000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 5/8
Work Table Load Capacity (kg): 500
Spindle Speeds Vertical (No./ rpm): Inverter (70 - 4200)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 3.75 / 5
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1800
