BM-90HV Industrial Turret Milling Machine - Horizontal - Vertical Table Travel: (X) - 1120mm (Y) - 5

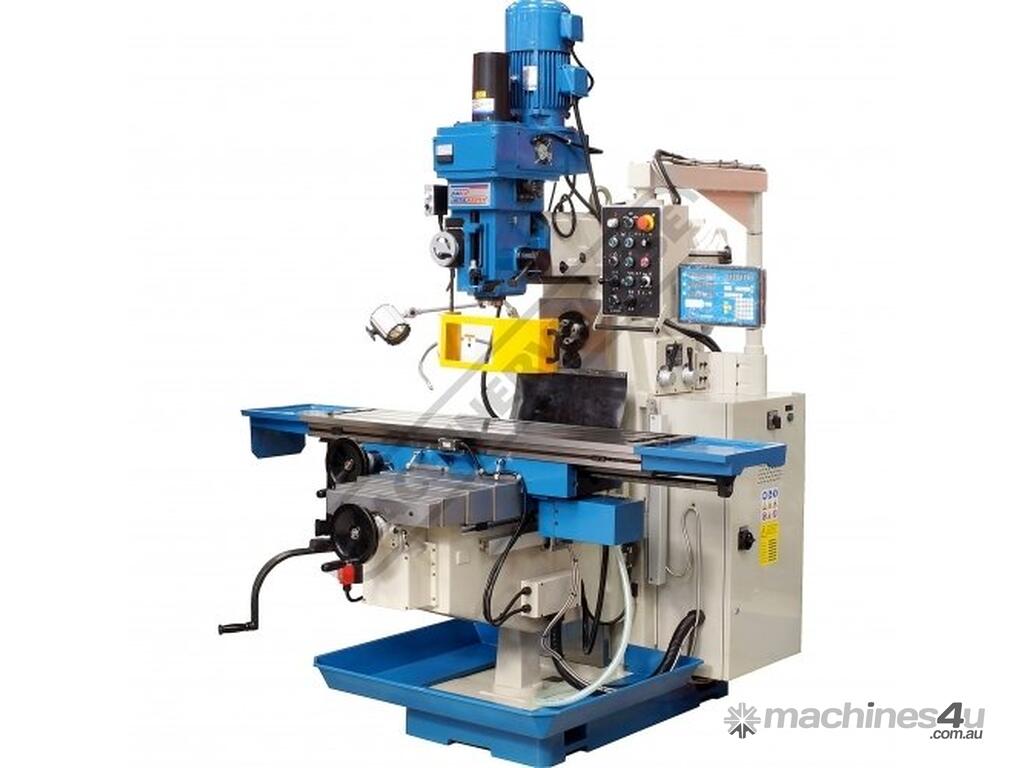

HAFCO-METALMASTER BM-90HV Industrial Turret Milling Machine - Horizontal - Vertical Table Travel: (X) - 1120mm (Y) - 520mm (Z) - 440mm Includes Digital Readout System, Servo Driven Ball screw System X & Y-Axis & Pneumatic Draw bar System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M633D

The BM-90HV industrial horizontal & vertical turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs from small to big that is set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.

This magnificent milling machine is very similar to the BM-90VE, however the BM-90HV model is built with a vertical & horizontal NT40 spindles to give you much more scope & usability. It also has a generous range in all X, Y & Z travels, X-axis 1120mm, Y-axis 520mm & Z-axis 440mm. The large 1470 x 370mm hardened & ground table is controlled by servo driven feed motors coupled to hardened ballscrew system in X & Y-Axis providing smooth & accurate positioning. The 5hp vertical spindle motor speed is regulated via a Japanese quality Yaskawa inverter control unit and designed to achieve maximum torque in all spend ranges. In addition, the large vertical spindle measure 110mm in diameter and helps provide greater rigidity when side loading with large diameter cutters. The 5hp horizontal spindle motor is coupled to a gearbox mounted on the side for quick access speed changes.

This milling machine package is also complete with a few of the most desirable features for example, NT40 spindle taper, Z-axis powered elevating motor, pneumatic operated draw bar to easily & quickly change tool holders with a push of a button and automatic operated oil pump to keep slides in perfect working order.

The BM-90HV machine also includes features like, 3-axis digital readout system fitted, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, square constructed slideways on X & Z-Axis, Steel slideway cover on Y-Axis for maximum protection & an electric fan installed on the milling head to reduce excessive heat & maintain accuracy.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

Features:

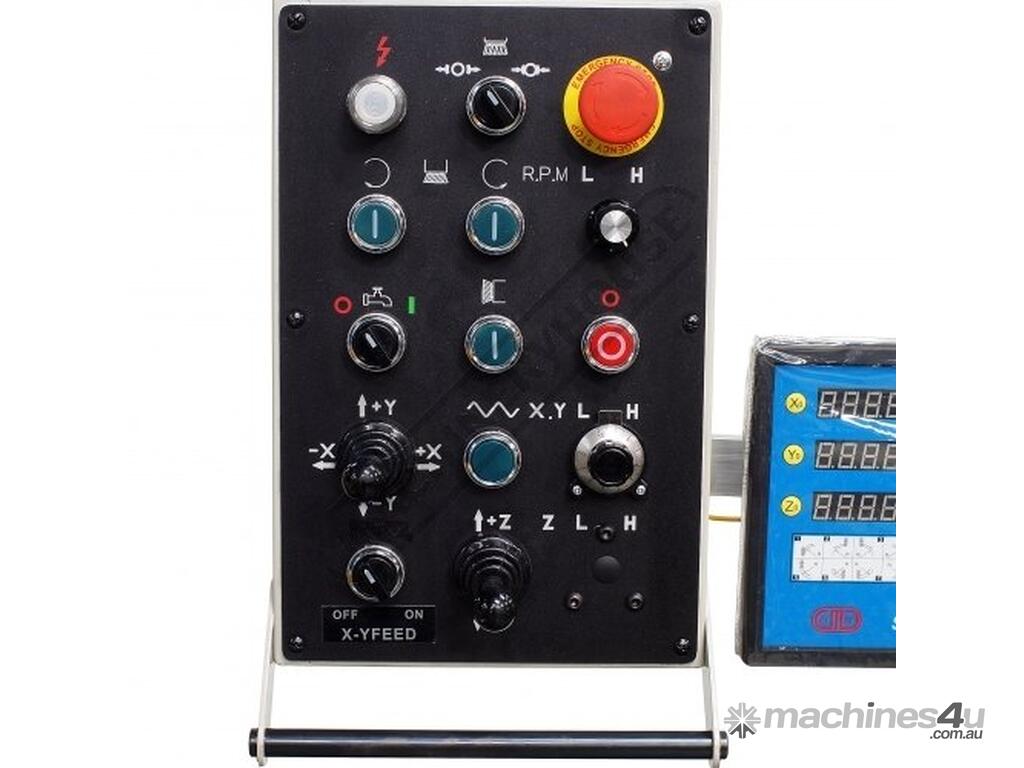

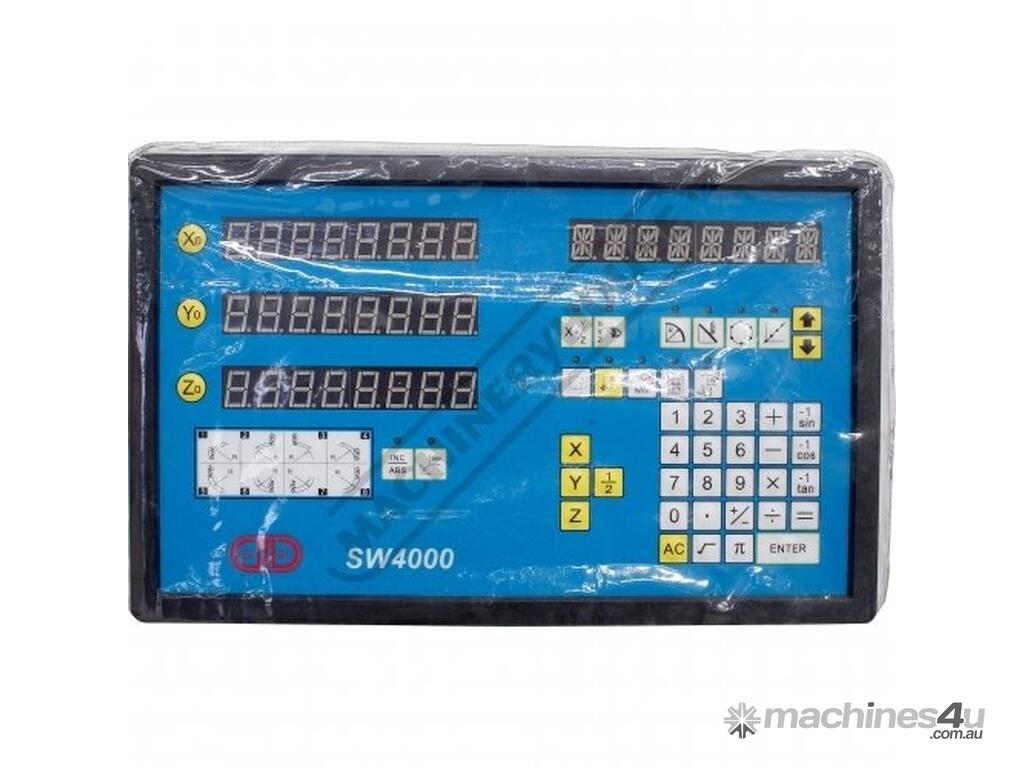

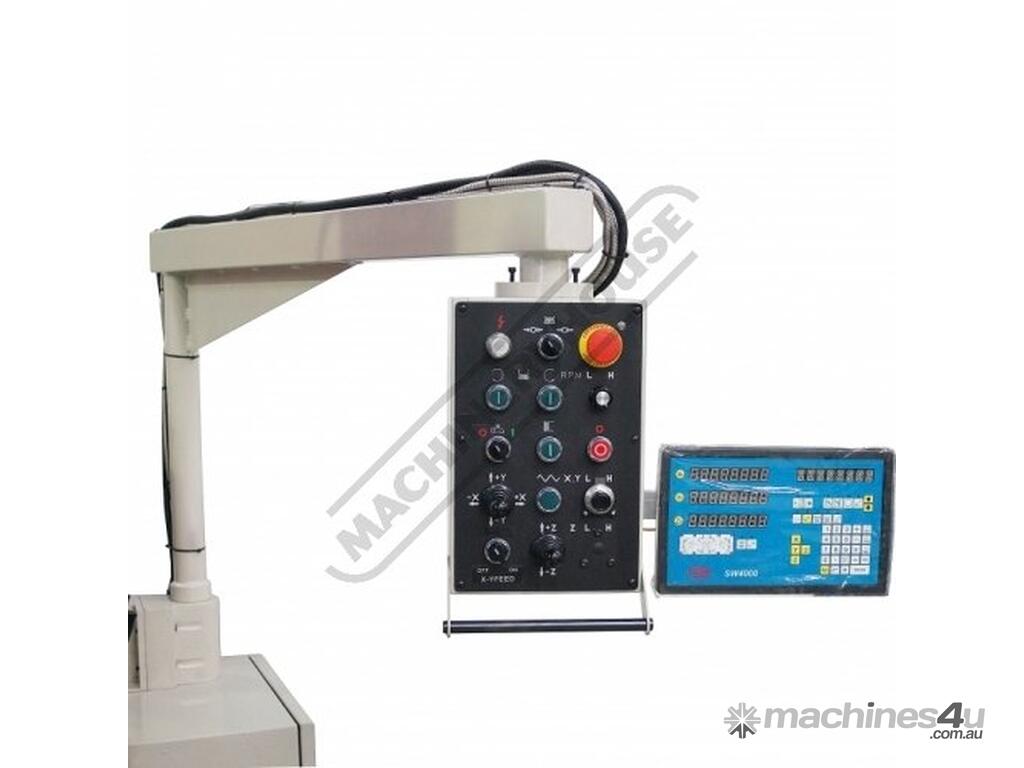

3-Axis Digital Readout fitted
5HP 415V motor on vertical spindle Inverter control variable speed system (BM-90HV)

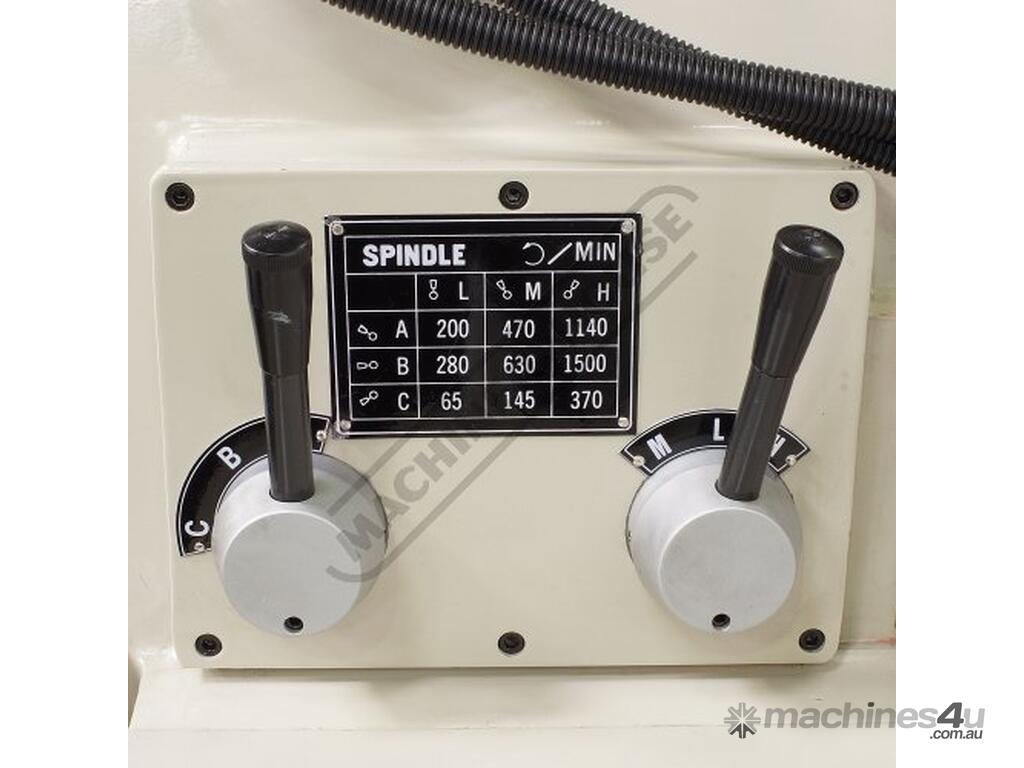

5HP 415V motor on horizontal spindle Speeds control by gear selection levers
Hardened ballscrew X & Y-Axis providing smooth and accurate operation
Japanese Quality Yaskawa Spindle speed control

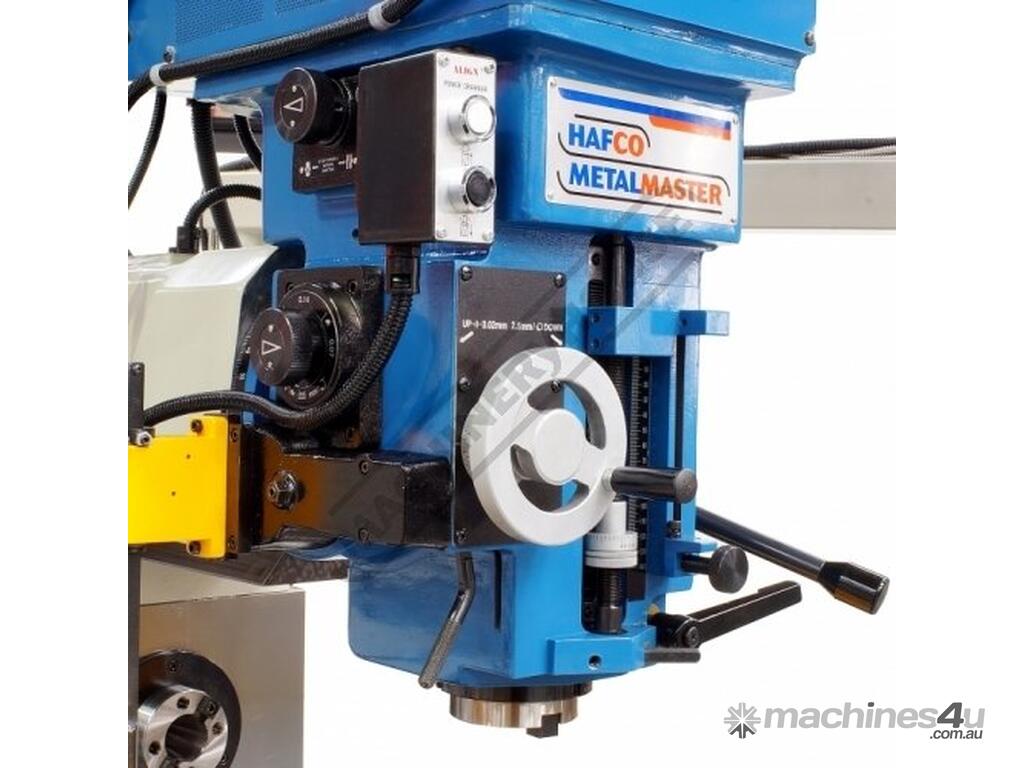

NT40 vertical spindle taper with a 110mm chrome & ground quill

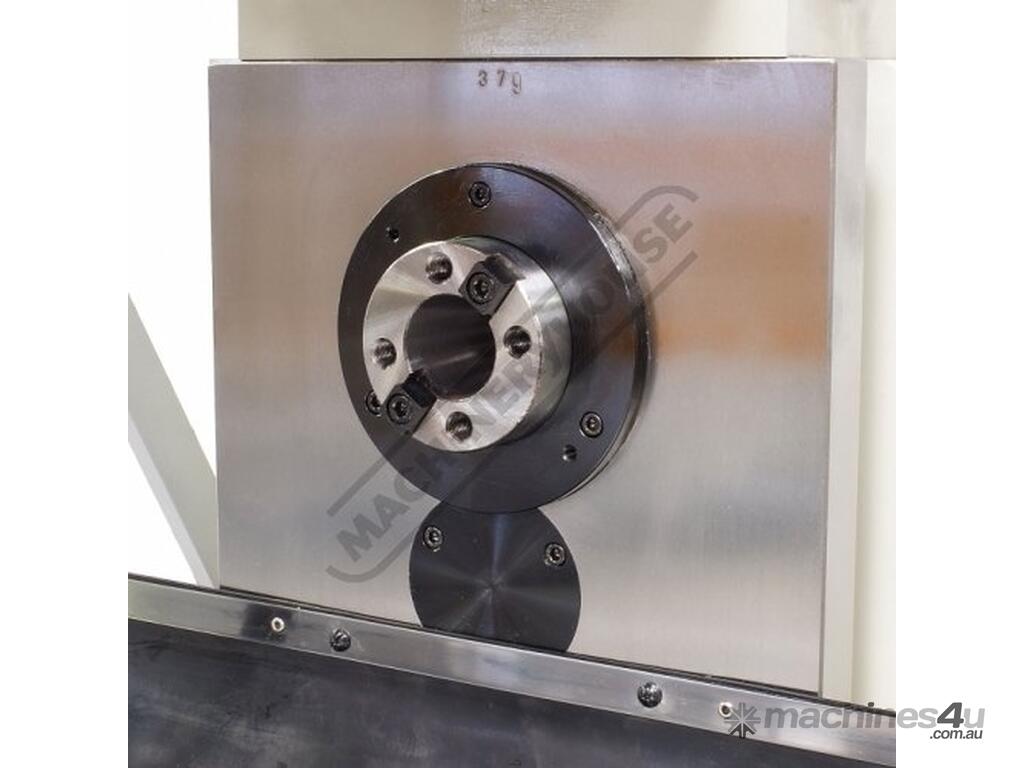

NT40 horizontal spindle taper
Servo controlled feed motors on X & Y-Axis ensures response accuracy and consistent feed
Hardened & ground work table & slide-ways
Square construction slides for X & Z-Axis to maximise rigidity
Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation

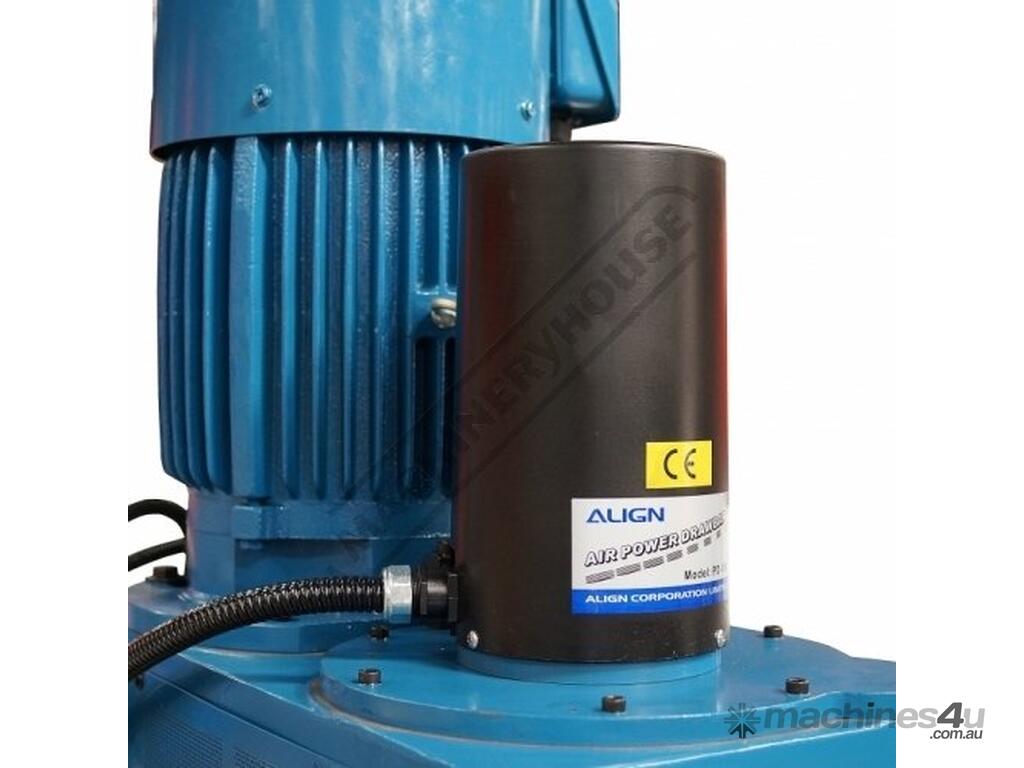

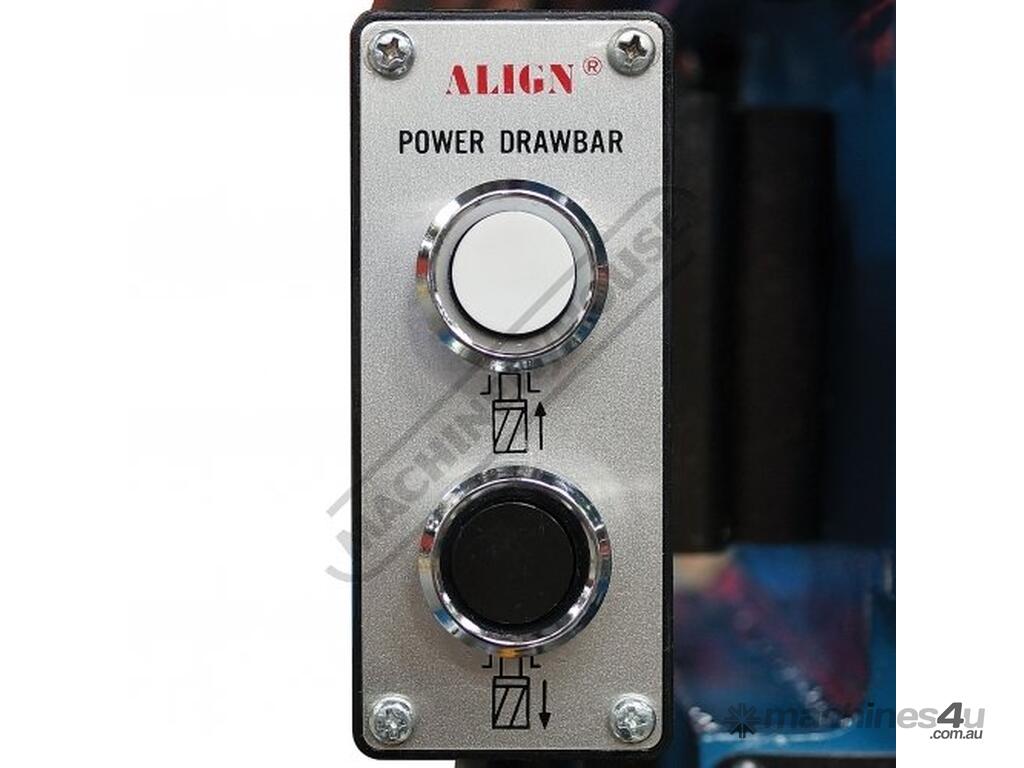

Pneumatic operation drawbar system for quick and effortless tool change

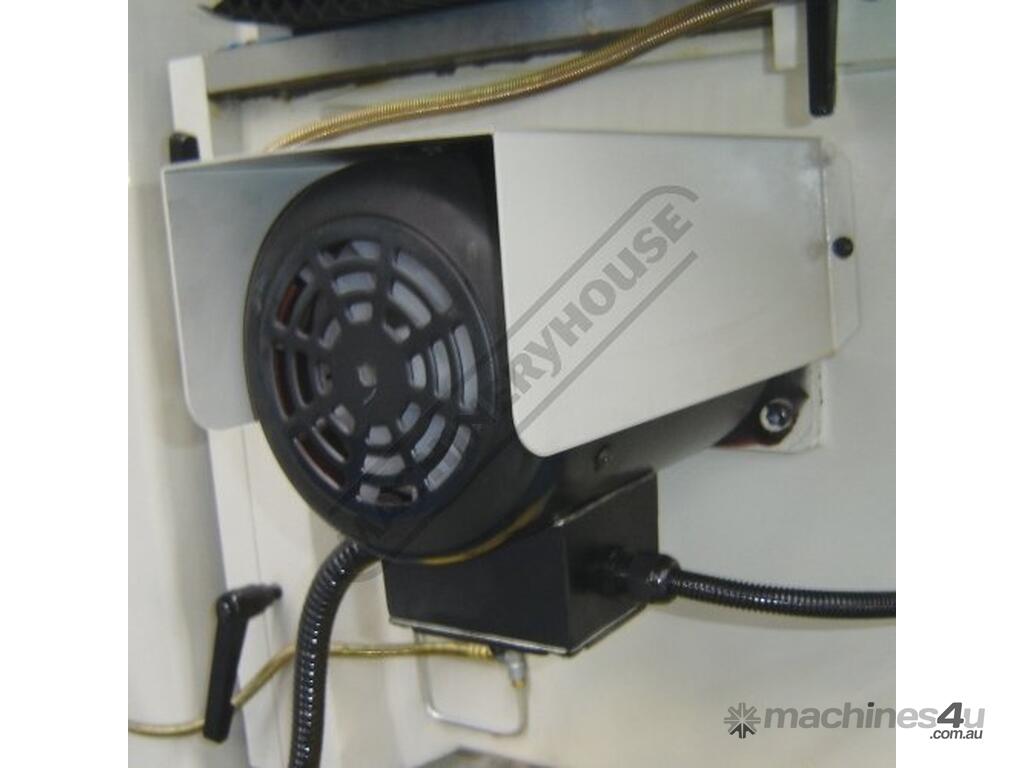

Powered elevating motor for Z-Axis
Large 1470mm x 370mm work table
Electric fan incorporated in milling head to reduce heat
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a solid base allowing repositioning of spindle

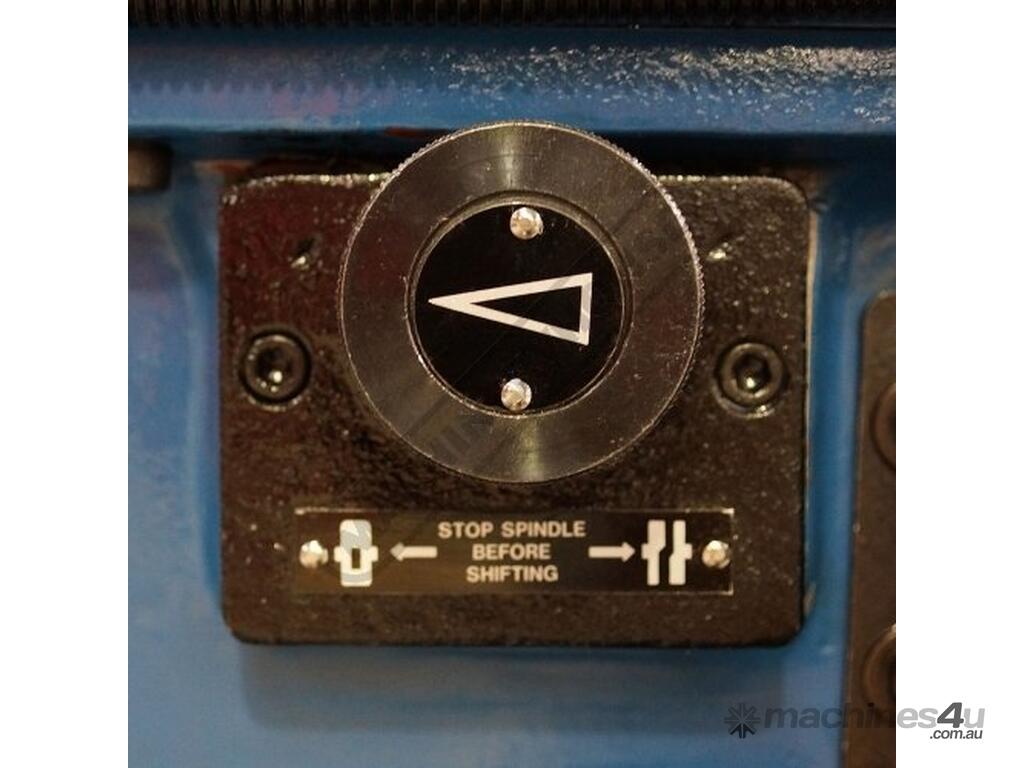

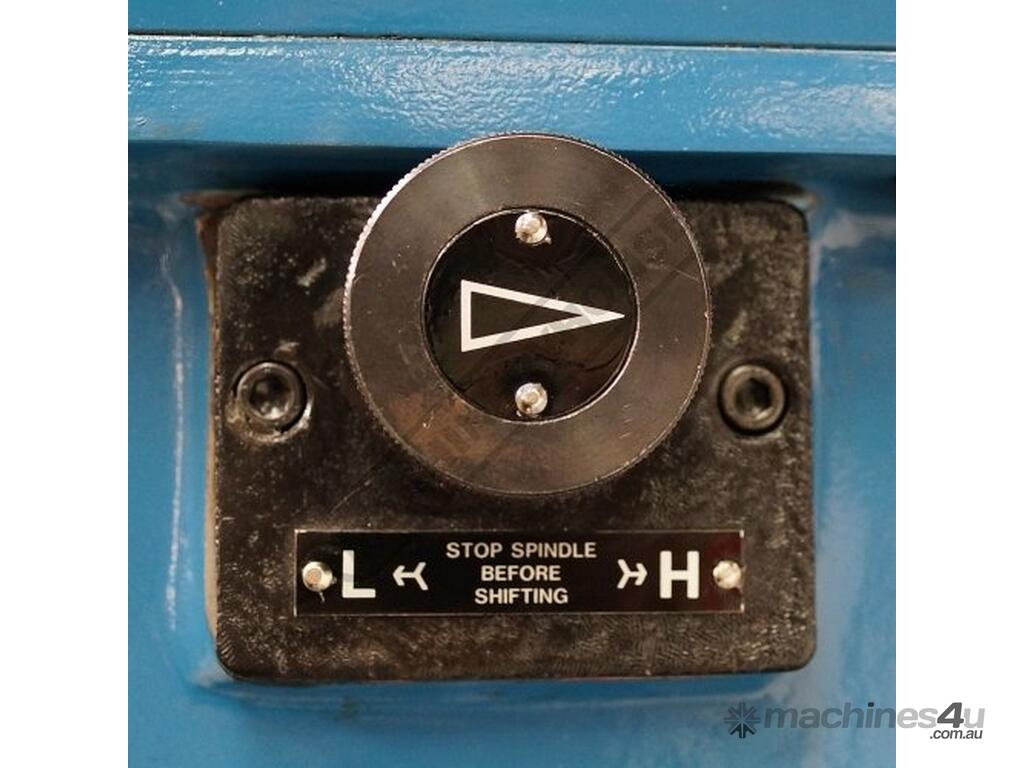

High / neutral and low gear selection lever to maximise torque
Micro switch on the manual knee handle for additional operator safety
Metric dial graduations 0.02mm for X Y & Z-Axis

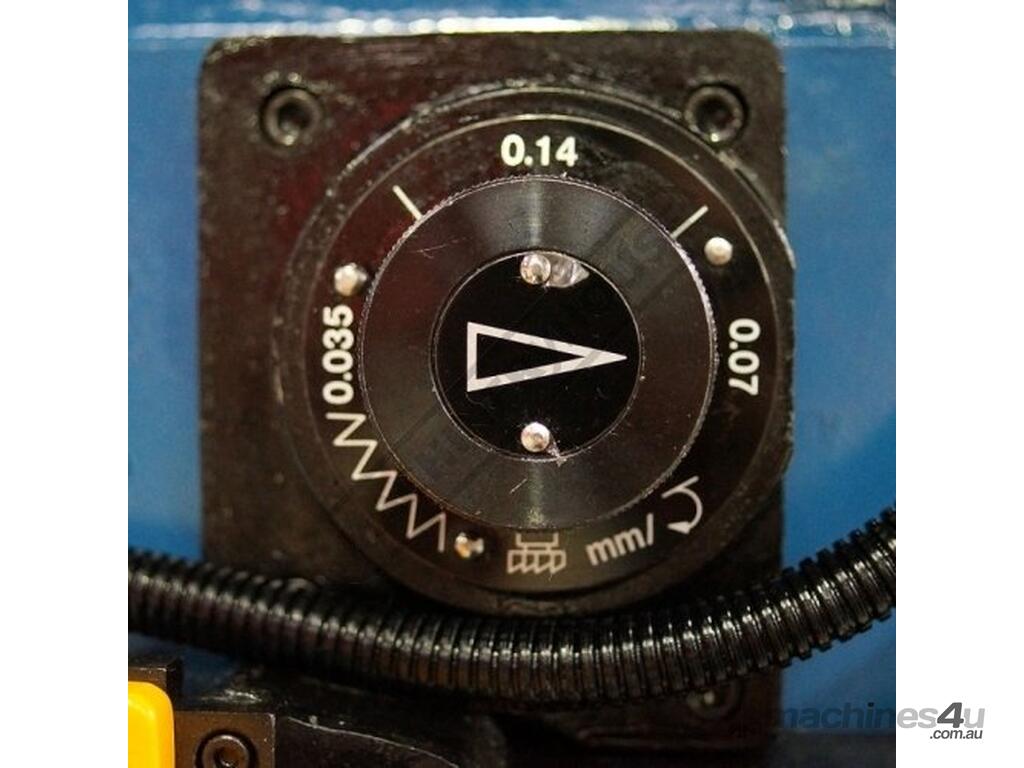

Automatic quill feed 0.35 0.07 0.14mm/rev

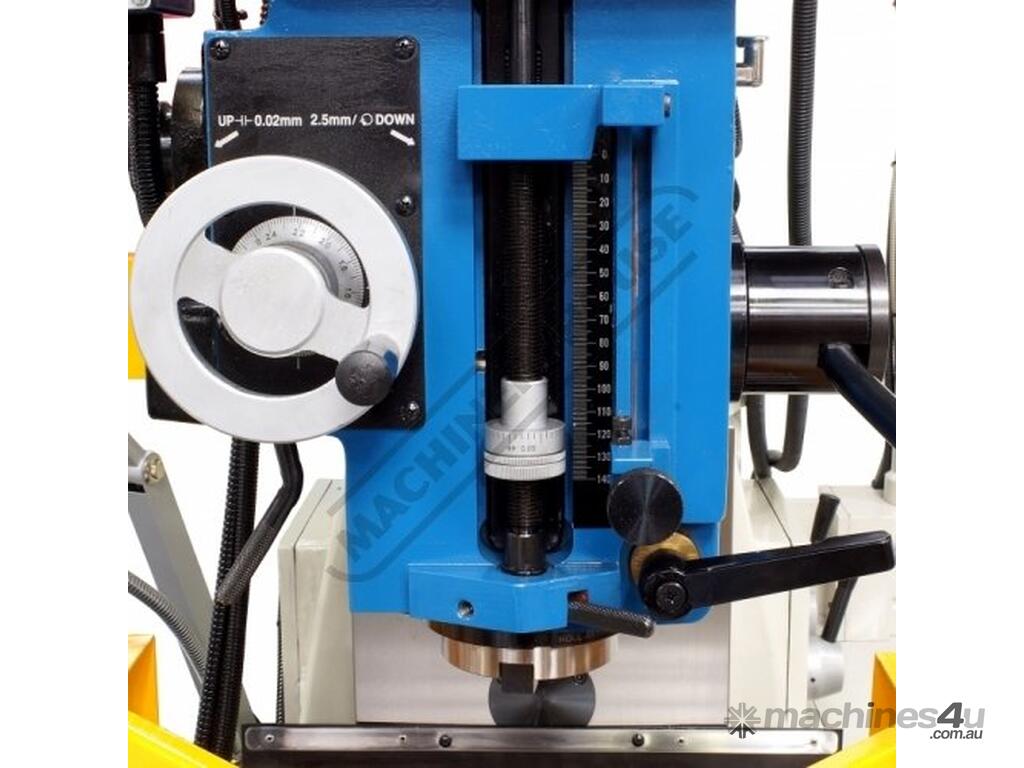

Automatic cut off depth stop on quill
Automatic oil lubrication pump and reservoir
Table trays each end of work table

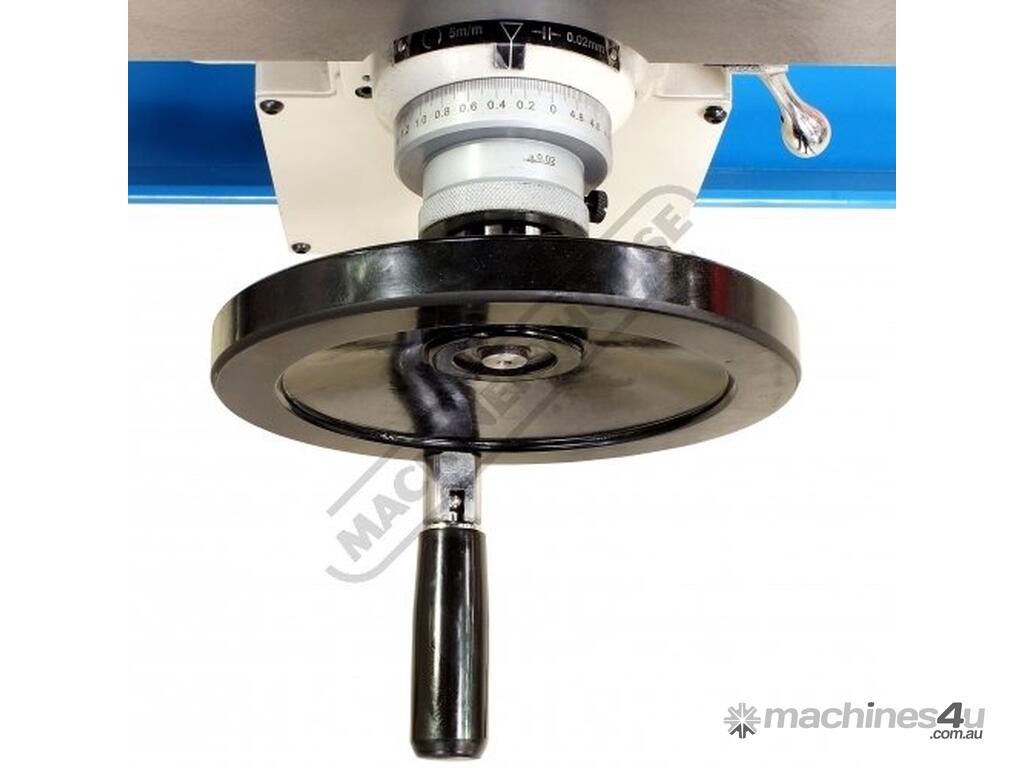

Clutch hand wheels X & Y-Axis

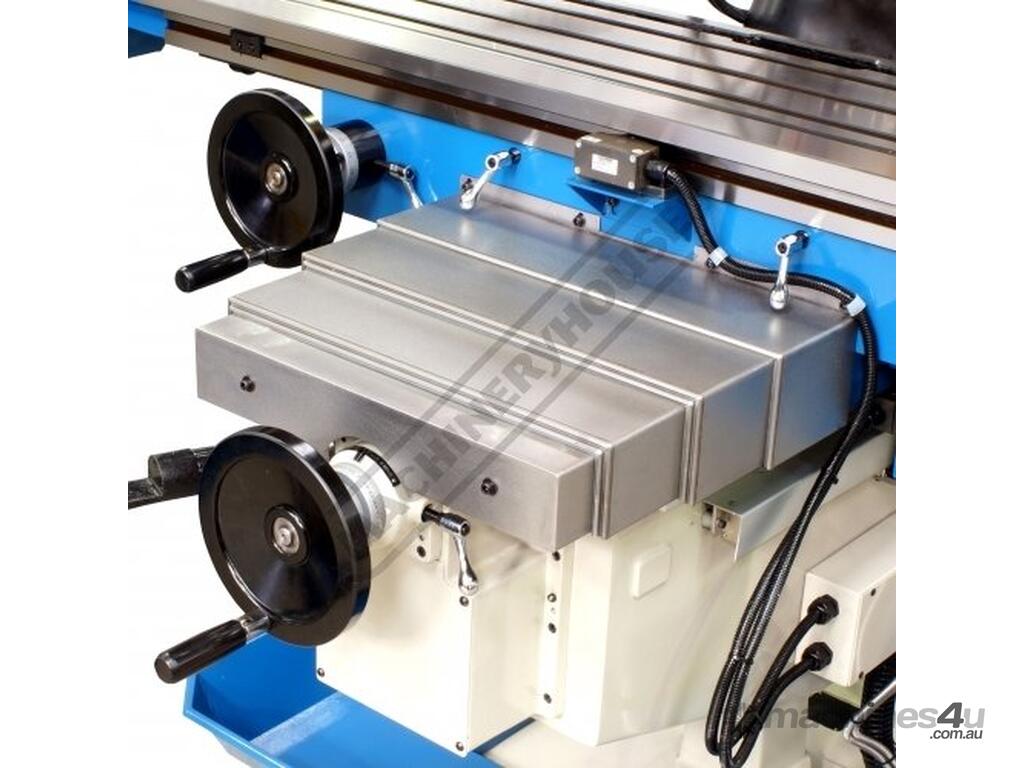

Steel slide-way cover Y-Axis

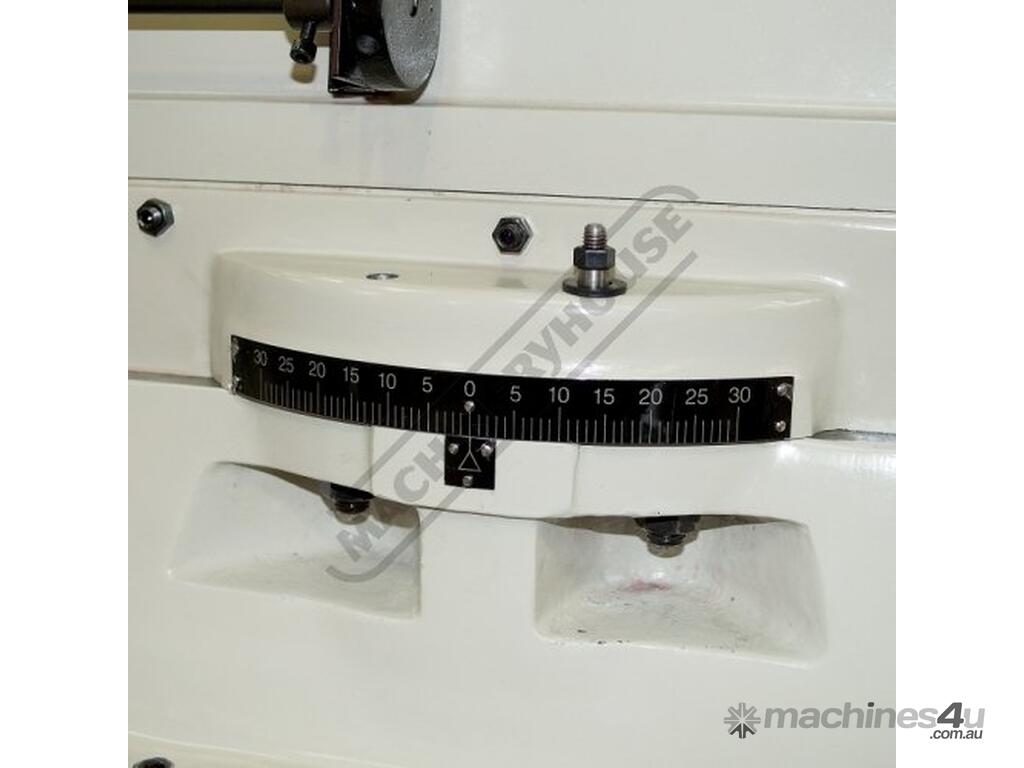

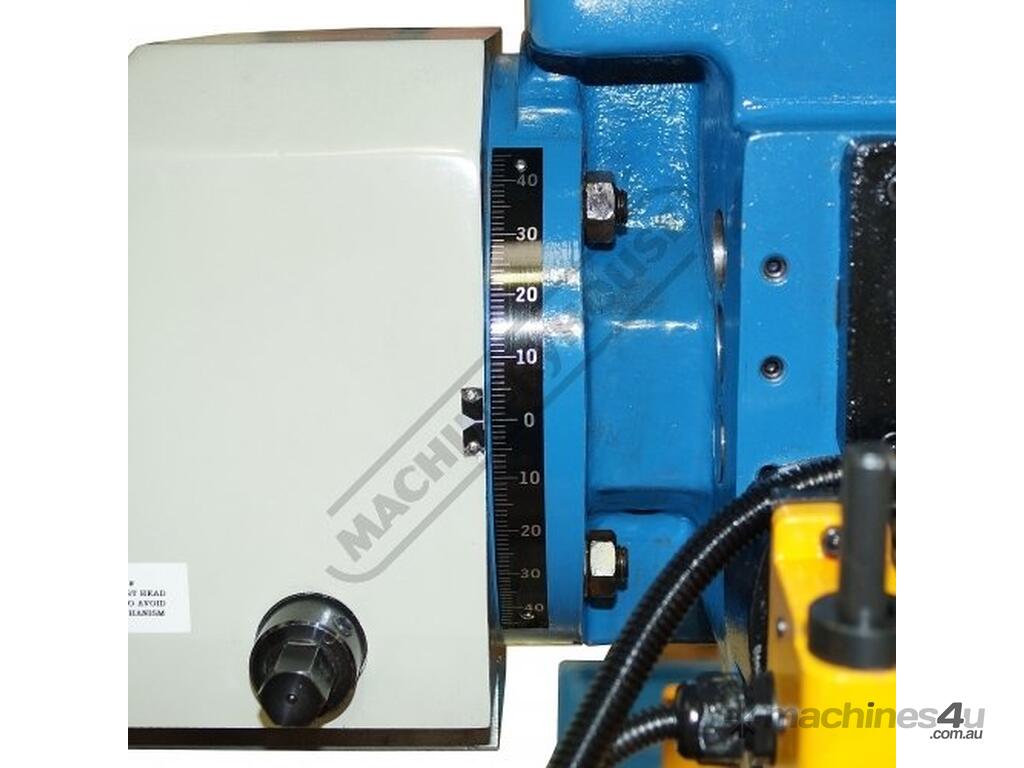

Mill head tilts to ±90º left and right

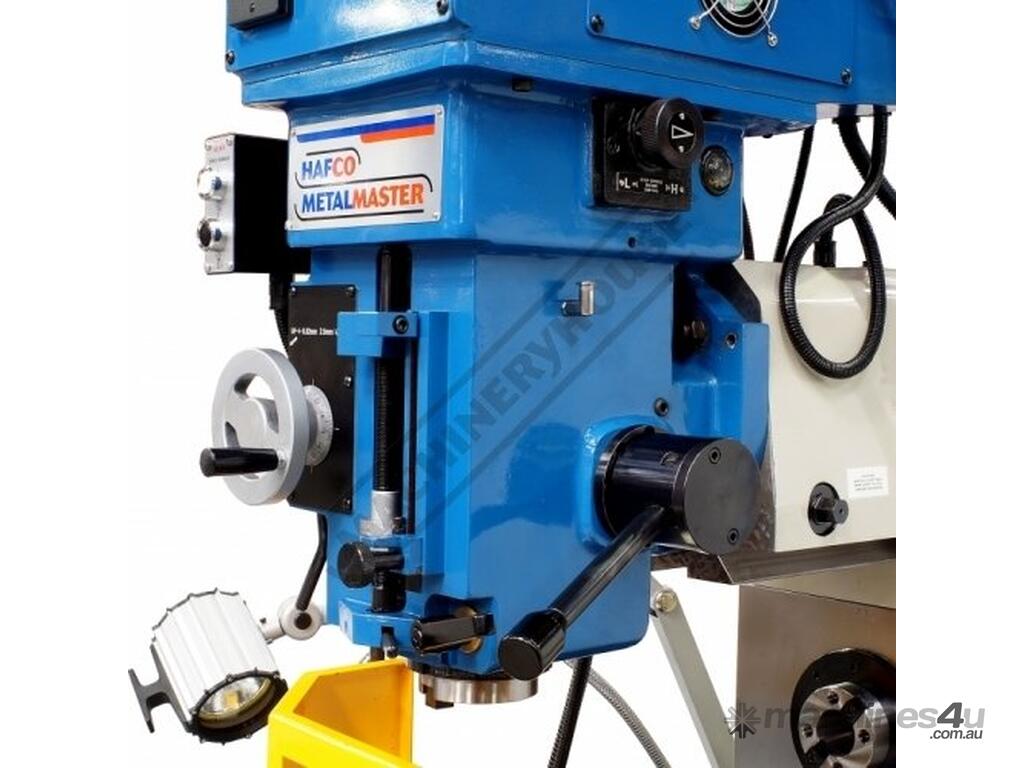

Manual quick action quill lever
Toolbox and Manual

Includes:
- 3-Axis digital readout fitted
- 1" horizontal arbor & support
- Hardened ballscrew X & Y-Axis
- Automatic oil lubrication pump and reservoir
- Pneumatic drawbar system M16 thread
- Coolant system
- Steel slide-way cover
- Z axis powered elevating motor
- X & Y-Axis servo controlled power-feed
- Halogen light

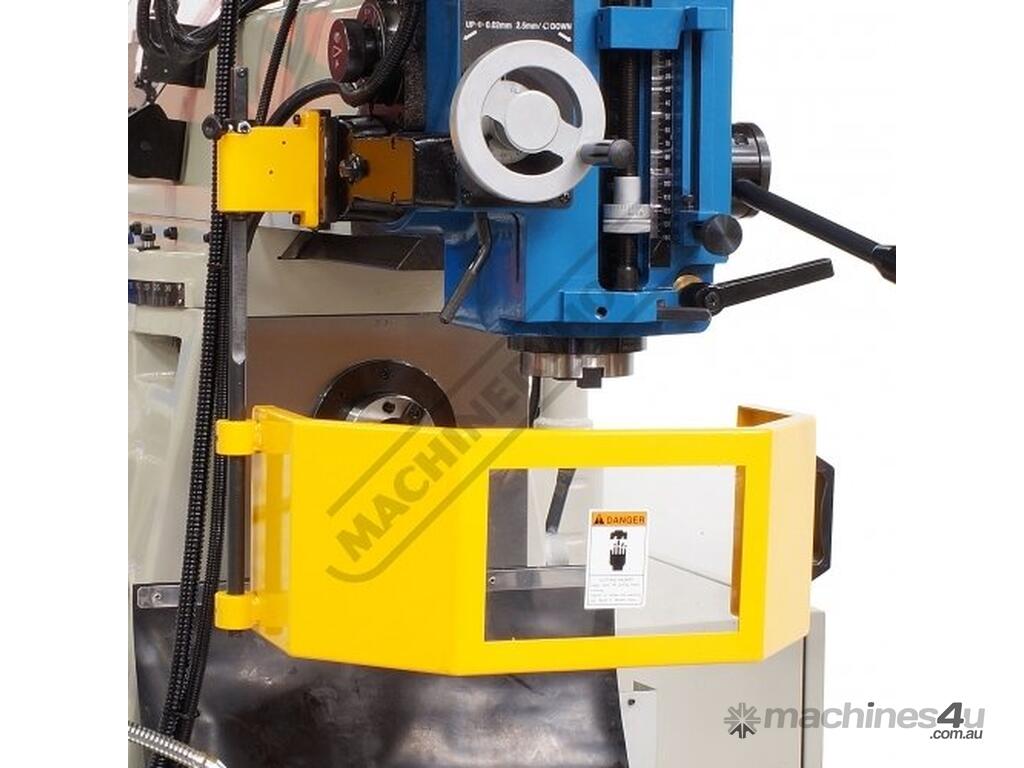

- Safety cutter guard
- Swarf tray
- Drawbar M16 thread



Specifications:
ORDER CODE: M633D
MODEL: BM-90HV
Digital Readout: 3-Axis Digital Readout
Type: Vertical & Horizontal
Table Size (mm): 1470 x 370
Column Type: ~
Spindle Taper - Vertical: NT40
Spindle Taper - Horizontal: NT40
Longitudinal Travel (X-Axis) (mm): 1120
Cross Travel (Y-Axis) (mm): 520
Vertical Travel (Z-Axis) (mm): 440
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 600
Spindle to Table (mm): 505
Spindle to Base: ~
Spindle Travel / Diameter (mm): 140 / 110
Throat Depth (max.) (mm): 785
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.035 / 0.07 / 0.14
Power Feed - Longitudinal (X-Axis) (mm/min): 30 - 3000
Power Feed - Cross (Y-Axis) (mm/min): 30 - 3000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 18
Work Table Load Capacity (kg): 600
Spindle Speeds Vertical (No./ rpm): Inverter (60 - 3600)
Spindle Speeds Horizontal (No./ rpm): 9 (65 - 1500)
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 3.75 / 5
Motor Power - Horizontal Spindle (kW / hp): 3.75 / 5
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2725
