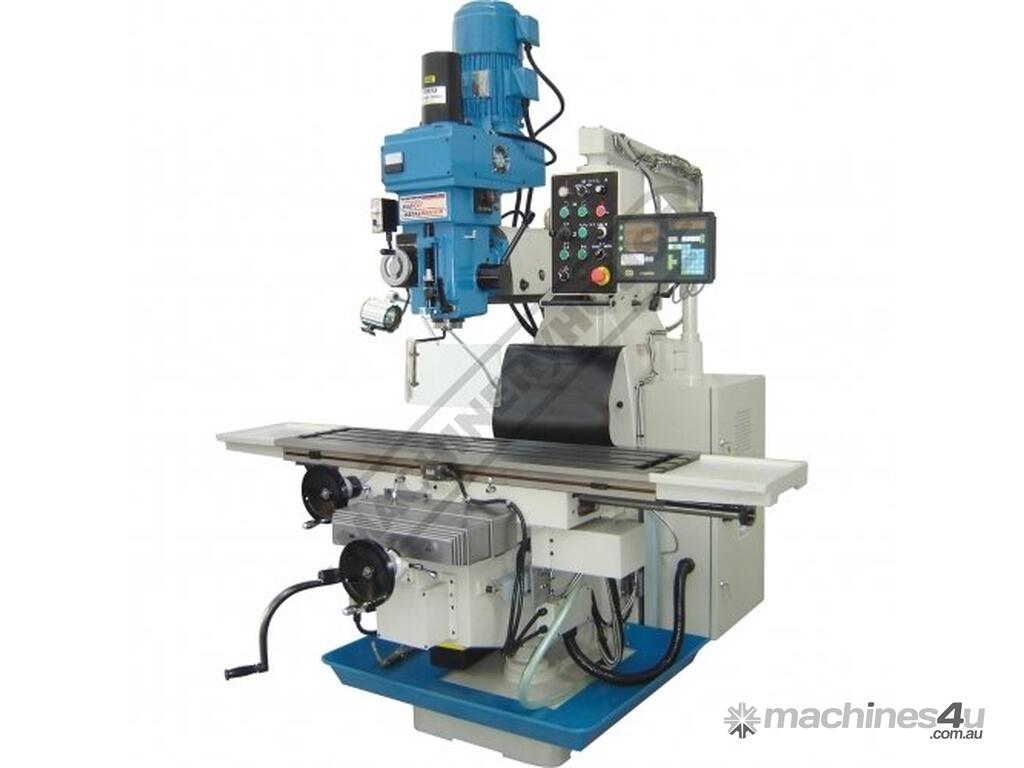

BM-90VE Industrial Turret Milling Machine Table Travel: (X) - 1120mm (Y) - 520mm (Z) - 360mm Include

HAFCO-METALMASTER BM-90VE Industrial Turret Milling Machine Table Travel: (X) - 1120mm (Y) - 520mm (Z) - 360mm Includes Digital Readout System, Servo Driven Ballscrew System X & Y-Axis & Pneumatic Brawbar System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M632D

The BM-90VE Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs from small to big that is set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.

This magnificent milling machine has a generous range in all X, Y & Z travels, X-axis 1120mm, Y-axis 520mm & Z-axis 360mm. The large 1470 x 370mm hardened & ground table is controlled by servo driven feed motors coupled to hardened ballscrew system in X & Y-Axis providing smooth & accurate positioning. The 5hp spindle motor speed is regulated via a Japanese quality Yaskawa inverter control unit and designed to achieve maximum torque in all spend ranges. In addition, the large spindle measure 110mm in diameter and helps provide greater rigidity when side loading with large diameter cutters.

This milling machine package is also complete with a few of the most desirable features for example, NT40 spindle taper, Z-axis powered elevating motor, pneumatic operated draw bar to easily & quickly change tool holders with a push of a button and automatic operated oil pump to keep slides in perfect working order.

The BM-90VE machine also includes features like, 3-axis digital readout system fitted, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, square constructed slideways on X & Z-Axis, Steel slideway cover on Y-Axis for maximum protection & an electric fan installed on the milling head to reduce excessive heat & maintain accuracy.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

Features:

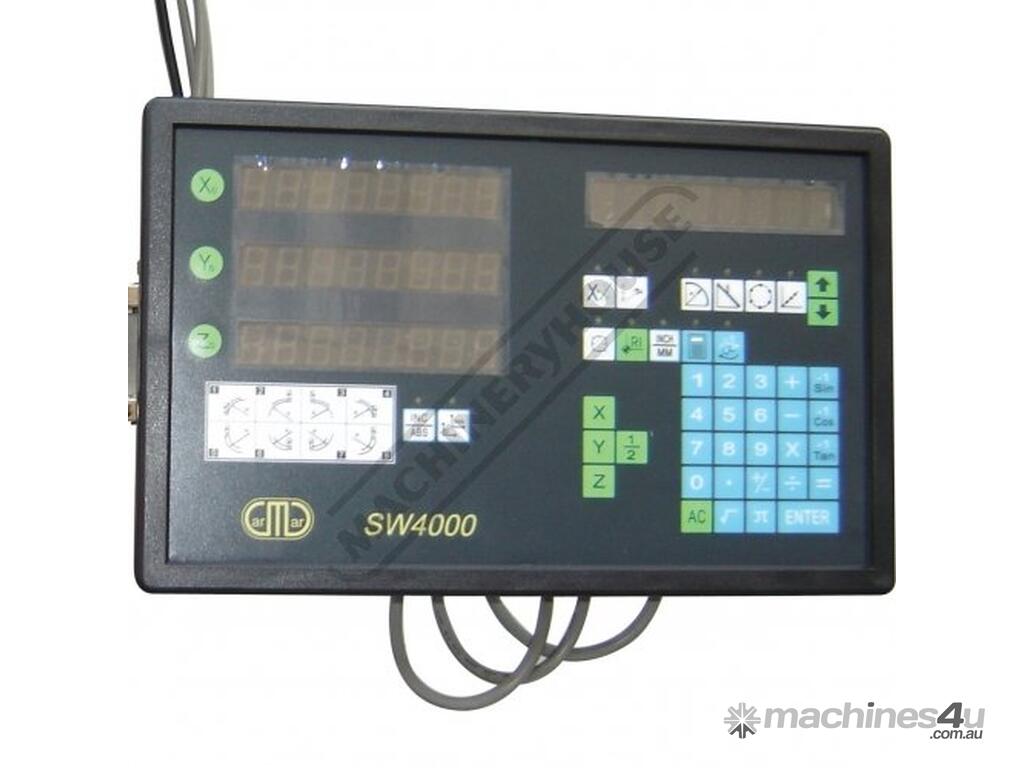

3 Axis digital readout fitted
5HP 415V motor inverter control variable speed system(BM-90VE)
Hardened ballscrew X & Y-Axis providing smooth and accurate operation
Japanese quality Yaskawa spindle speed control
NT40 Spindle taper with a 110mm chrome & ground quill
Servo controlled feed motors on X & Y-Axis ensures response accuracy and consistent feed
Hardened & ground work table & slide-ways
Square construction slides for X & Z-Axis to maximise rigidity
Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation

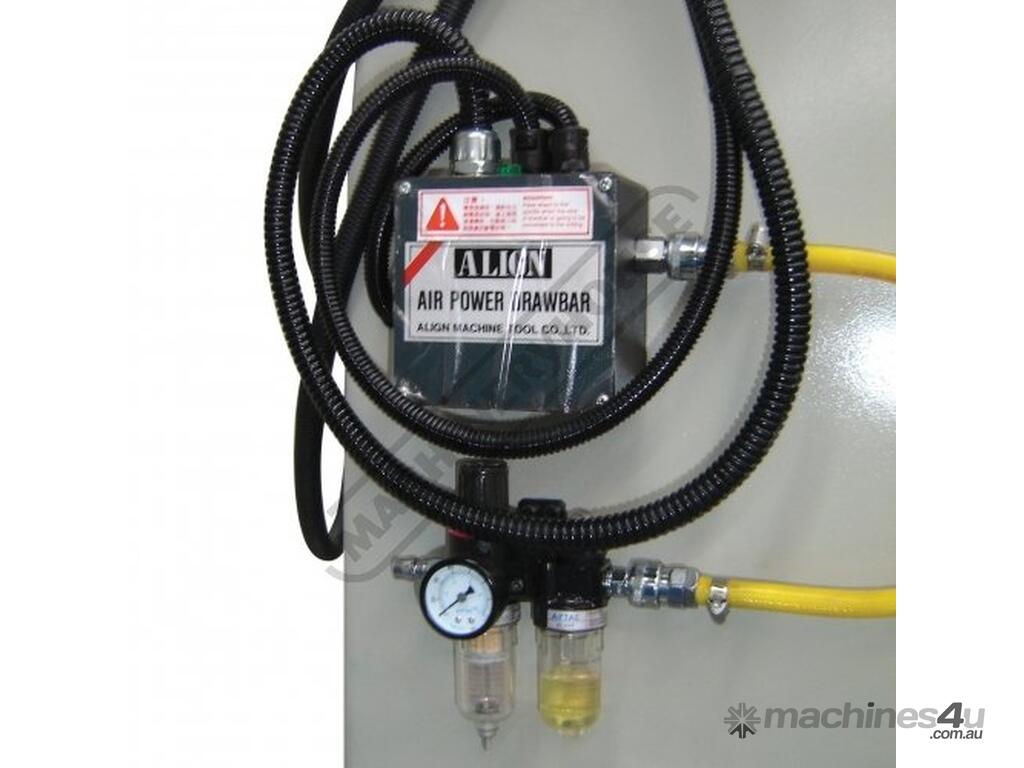

Pneumatic operation drawbar system for quick and effortless tool change

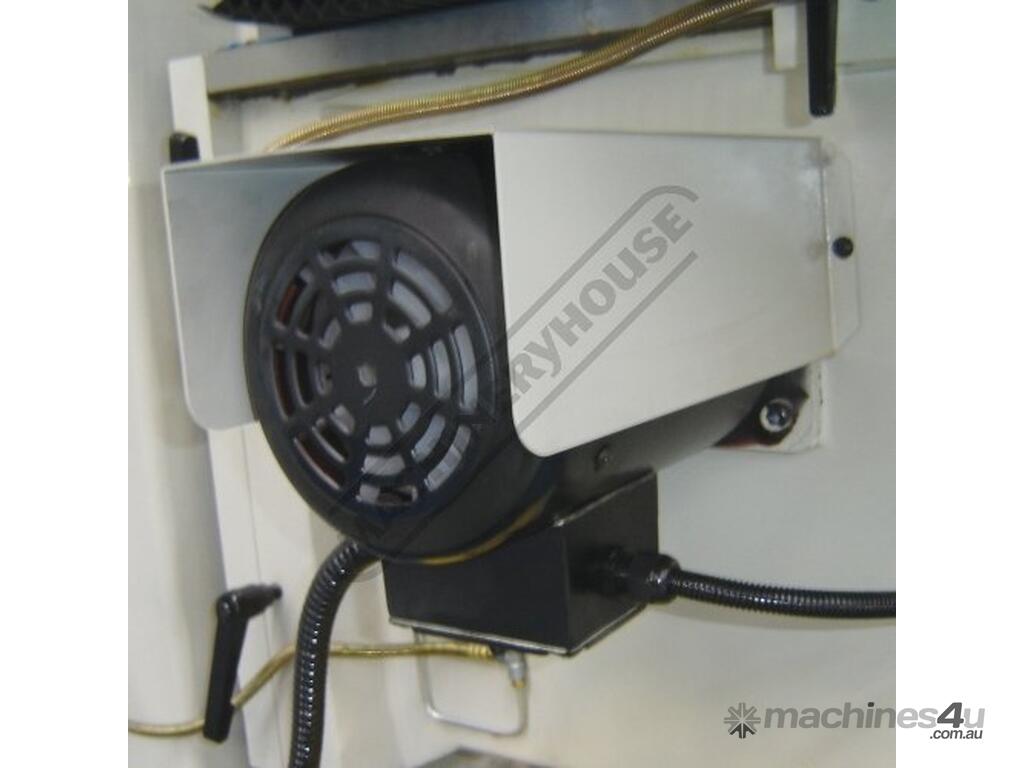

Powered elevating motor for Z-Axis
Large 1470mm x 370mm work table
Electric fan incorporated in milling head to reduce heat
Meehanite casting for high strength & minimal deformation

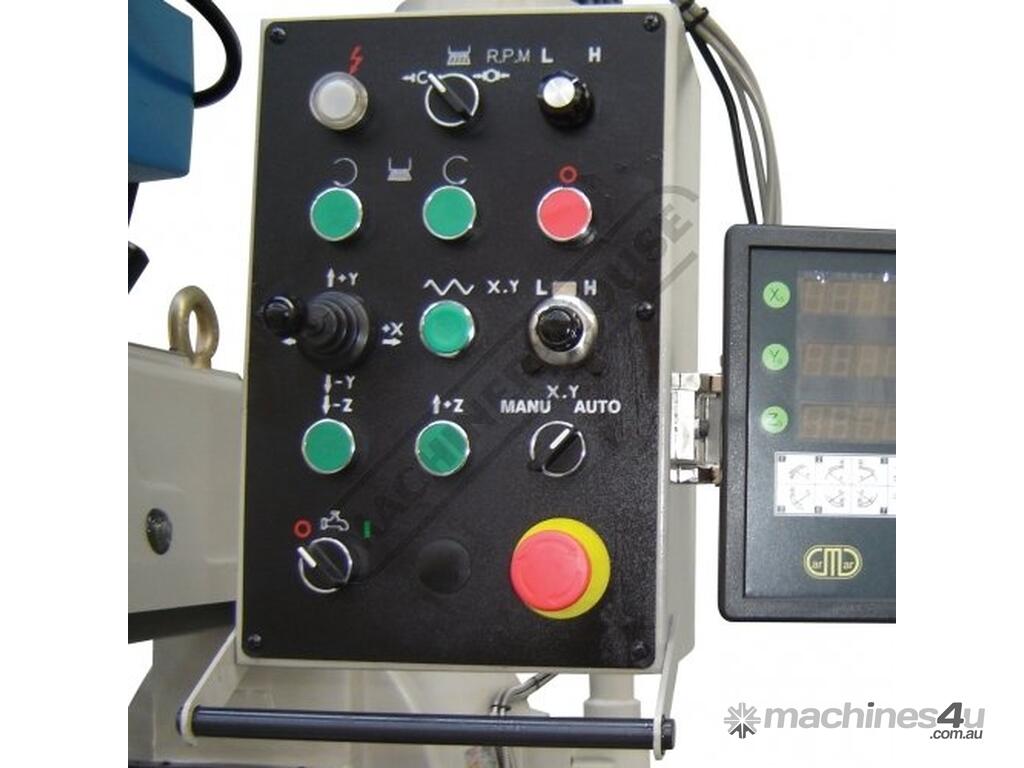

Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a solid base allowing repositioning of spindle
High / neutral and low gear selection lever to maximise torque

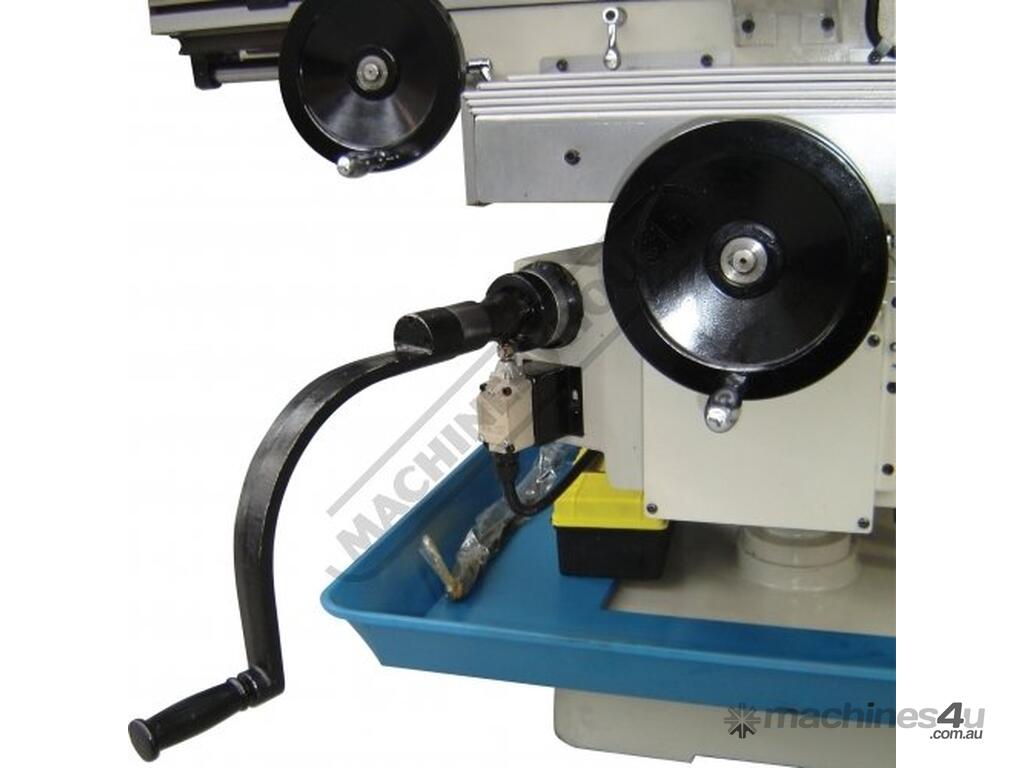

Micro switch on the manual knee handle for additional operator safety
Metric dial graduations 0.02mm for X Y & Z-Axis
Automatic quill feed 0.04 0.08 0.13mm/rev
Automatic cut off depth stop on quill

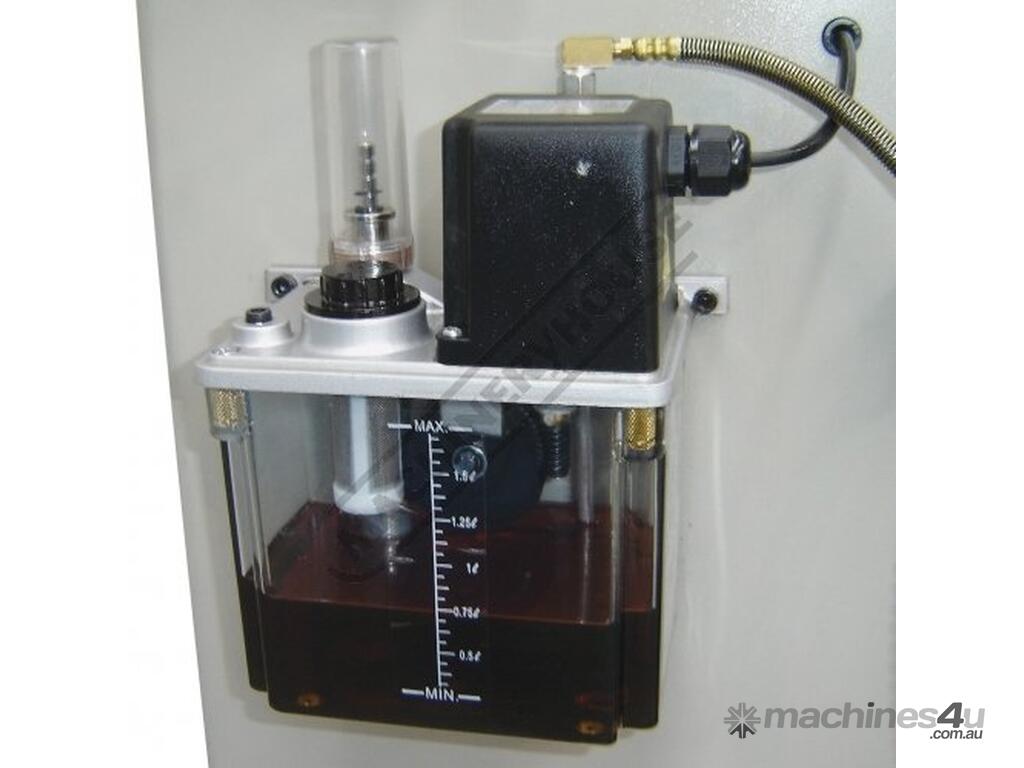

Automatic oil lubrication pump and reservoir
Table trays each end of work table
Clutch hand wheels X & Y-Axis
Steel slideway cover Y-Axis
Mill head tilts to ±90º left and right
Manual quick action quill lever
Tool box and manual

Includes:
- 3 Axis digital readout fitted
- Hardened ballscrew X & Y-Axis
- Automatic oil lubrication pump and reservoir
- Pneumatic drawbar system M16 thread
- Coolant system
- Steel slideway cover
- Z axis powered elevating motor
- X & Y-Axis servo controlled power-feed
- Halogen light
- Safety cutter guard

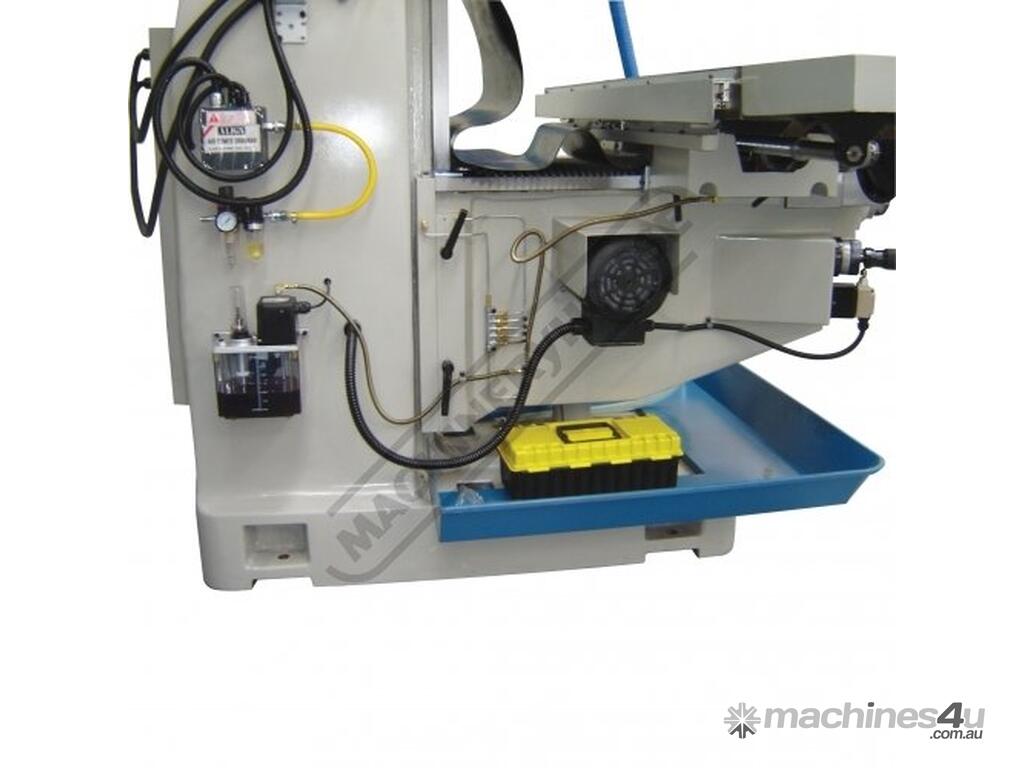

- Swarf tray
- Drawbar M16 thread



Specifications:
ORDER CODE: M632D
MODEL: BM-90VE
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1470 x 370
Column Type: ~
Spindle Taper - Vertical: NT40
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 1120
Cross Travel (Y-Axis) (mm): 520
Vertical Travel (Z-Axis) (mm): 360
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 500
Spindle to Table (mm): 500
Spindle to Base: ~
Spindle Travel / Diameter (mm): 140 / 110
Throat Depth (max.) (mm): 685
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.035 / 0.07 / 0.14
Power Feed - Longitudinal (X-Axis) (mm/min): 30 - 3000
Power Feed - Cross (Y-Axis) (mm/min): 30 - 3000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 18
Work Table Load Capacity (kg): 600
Spindle Speeds Vertical (No./ rpm): Inverter (60 - 3600)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 3.75 / 5
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2600
