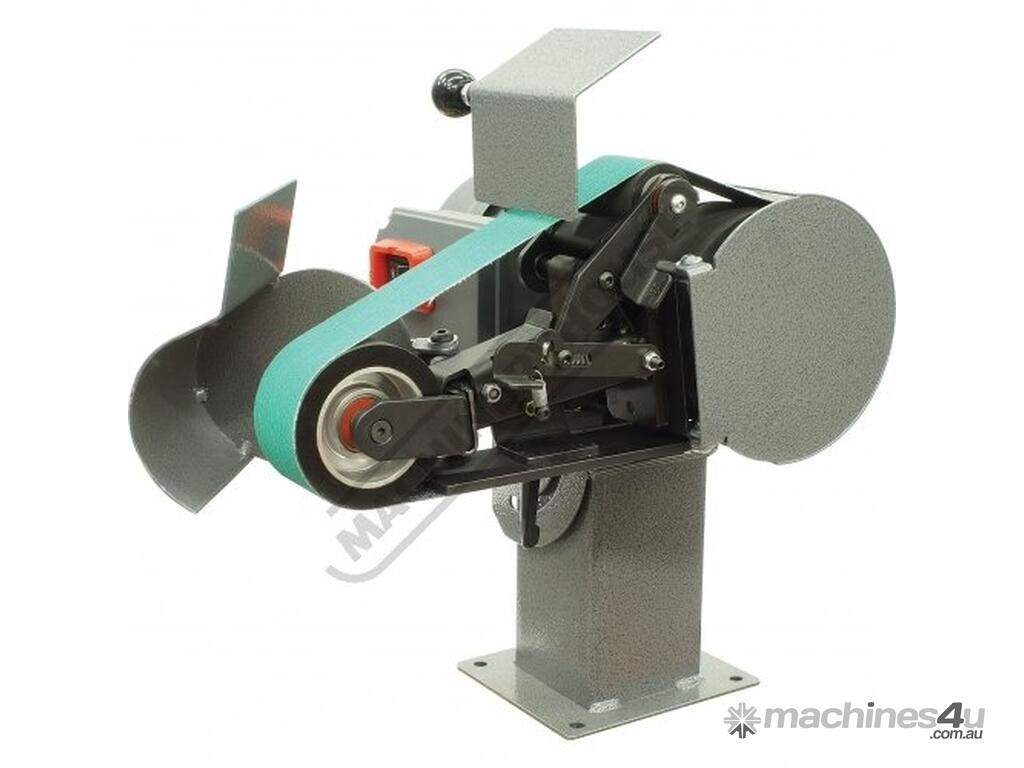

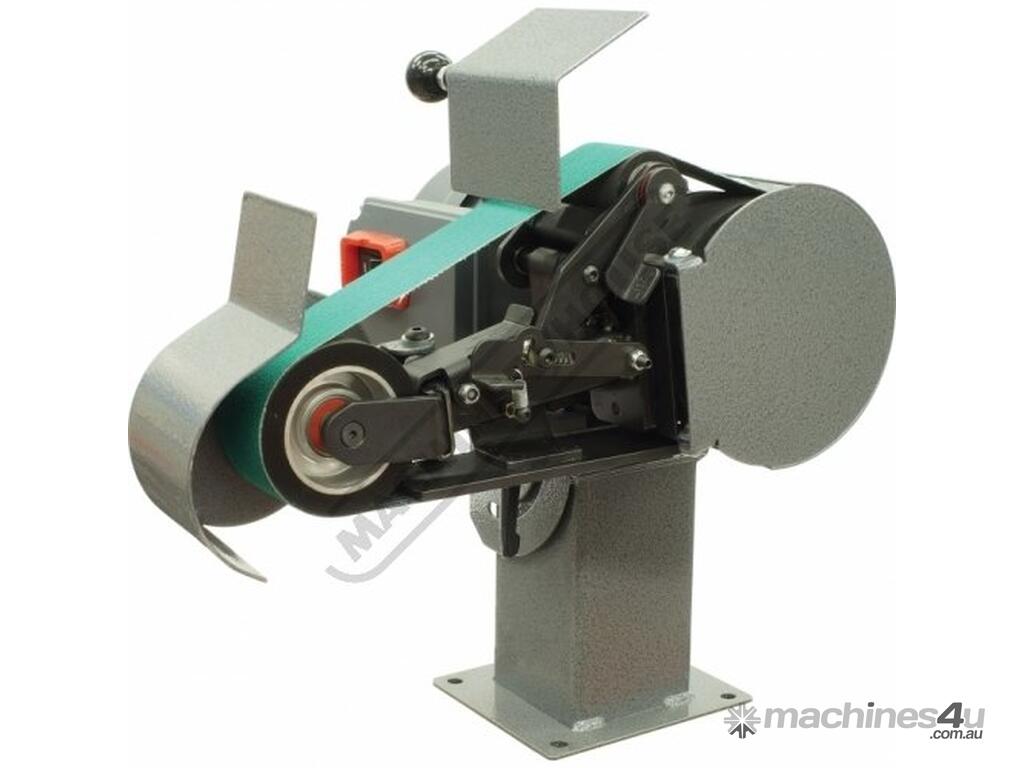

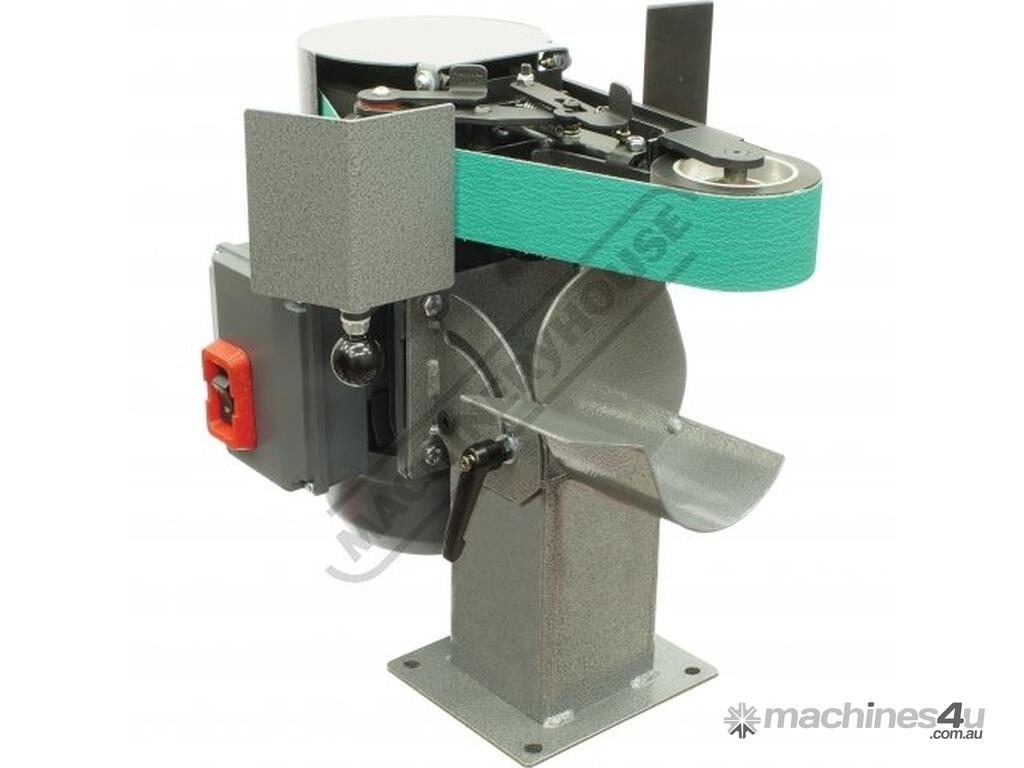

BM362 Blade Master Bench Belt Grinder / Linisher 50 x 915mm Belt Size 5 Work Stations

RADIUS MASTER BM362 Blade Master Bench Belt Grinder / Linisher 50 x 915mm Belt Size 5 Work Stations
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L0995

The Best Knife Making Machines & Belt Grinding Machines In The World

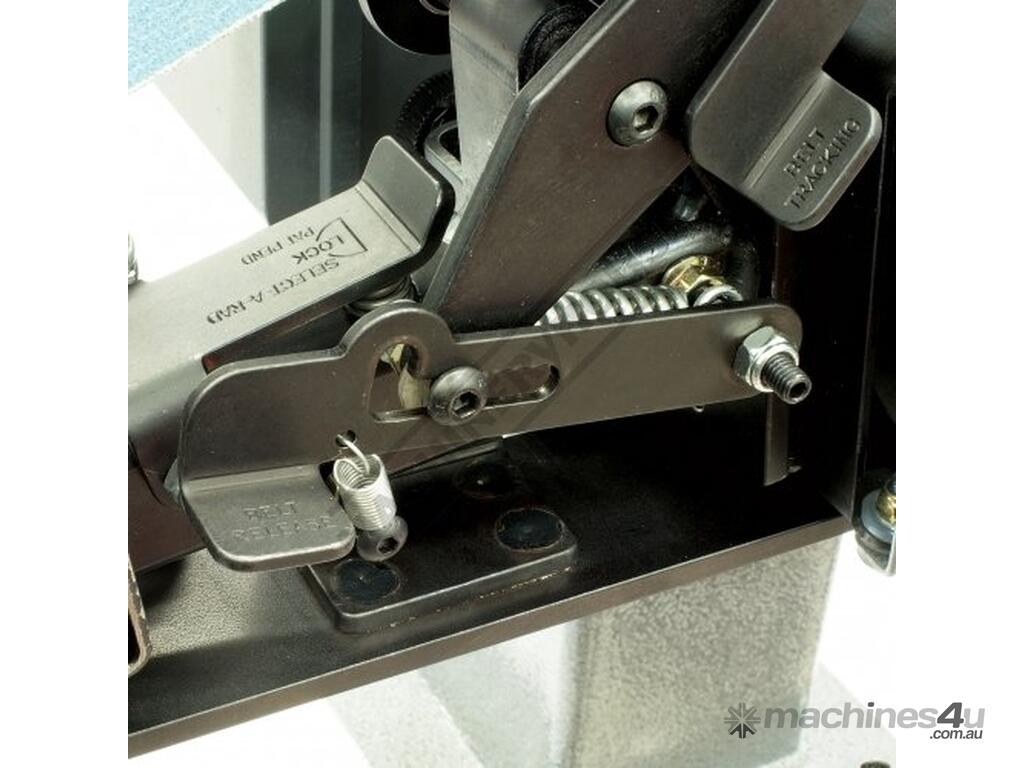

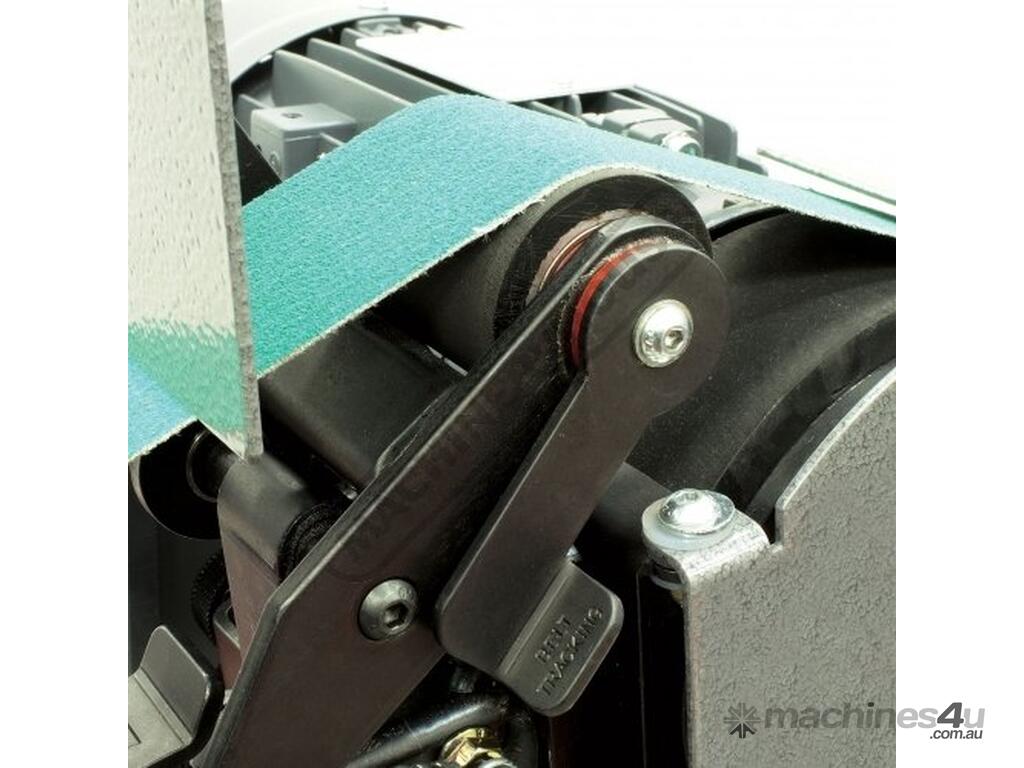

Blade Master BM362 has many user friendly features that set it apart. No time is lost in dismantling and changing accessories. In the case of semi-production work, time saved can be hours per day. The guards covering the contact wheels are easy to engage and disengage. The handle position can be adjusted on all clamp levers. The ease of selection, belt change, belt tracking and its versatility make using this machine a pleasant hands-on experience.

Blade Master patented wheel cartridge lock is so efficient it can support a 203mm (8”) Ø contact wheel. The addition of this contact wheel steps it up to the next popular belt size of 1220 x 50 (48” x2”). This provides exceptional flat grinding & hollow grinding performance essential for custom knife making.

Radius Master has proven an invaluable aid by engineers, fabricators, welders, fitters, balustrade and stainless specialists, foundries, toolmakers, rural manufacturers, mechanics, restorers, aircraft engineers, medical equipment manufacturers, sculptors, knife makers, model makers, many universities and the CSIRO

Features:
5 work stations for rapid metal removal

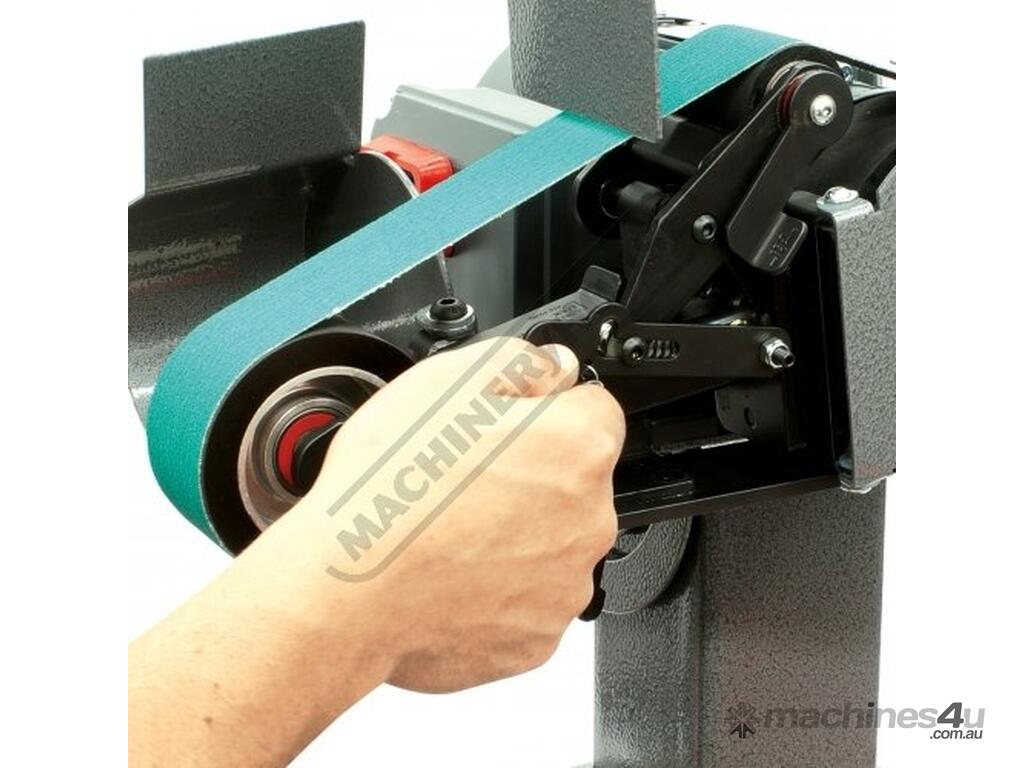

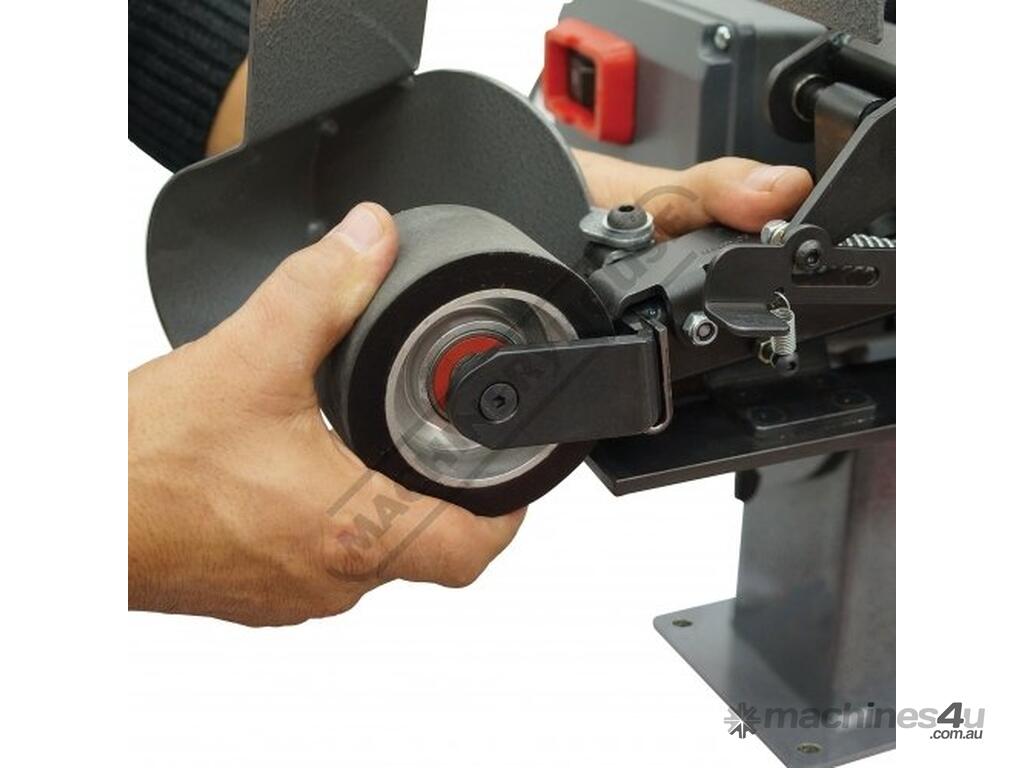

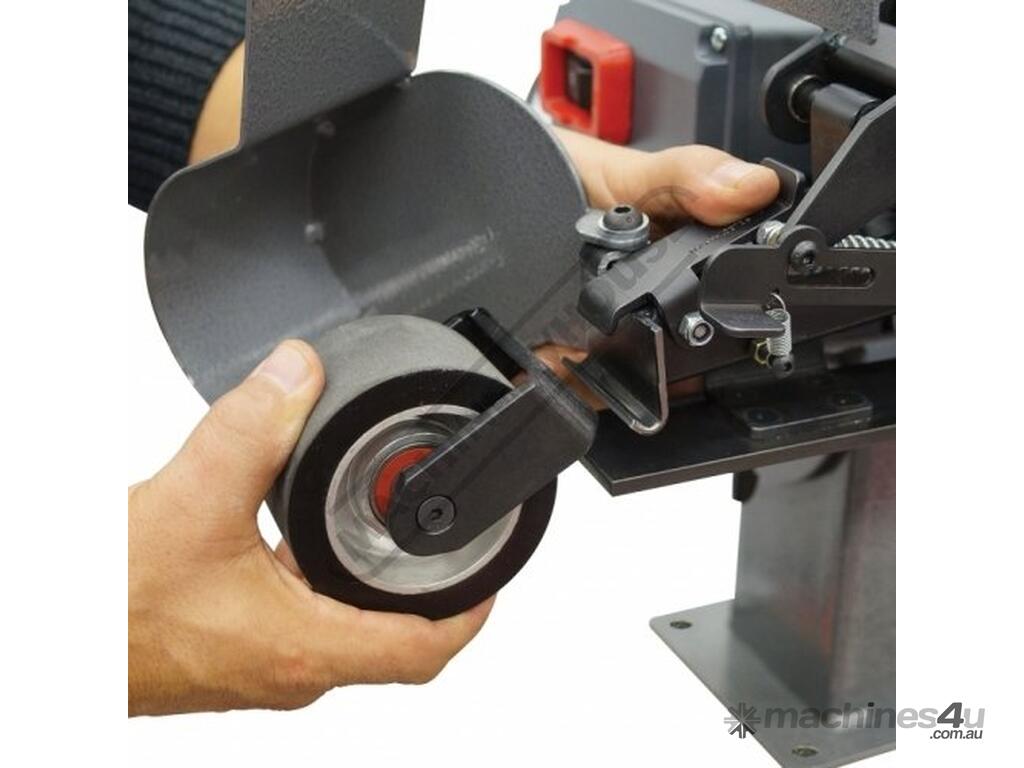

Quick change belt & wheel system

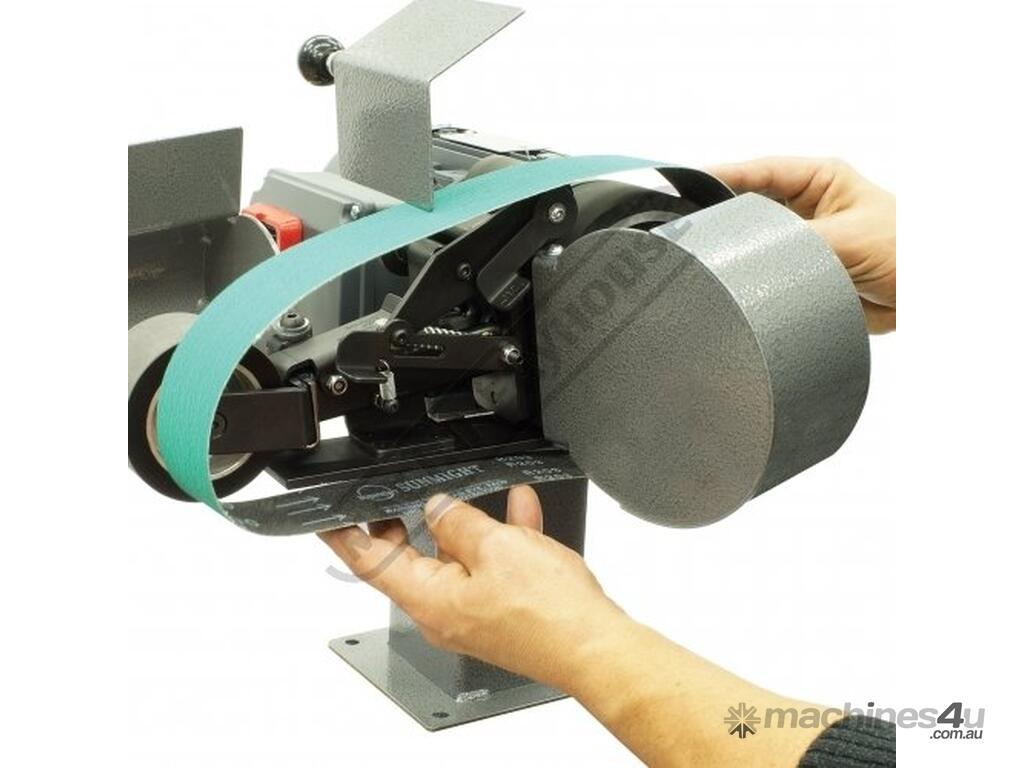

50 x 915mm belt (6 sec belt change)
4320fpm1316mpm belt speed
Exceptional performance at moderate cost.
Out performs other grinders with twice the belt length.
Blade Master patented wheel cartridge lock is so efficient it can support a 203 (8”) Ø contact wheel.
The addition of this contact wheel steps it up to the next popular belt size of 1220 x 50 (48” x2”)
This provides exceptional flat grinding & hollow grinding performance essential for custom knife making.
5 work stations for rapid metal removal

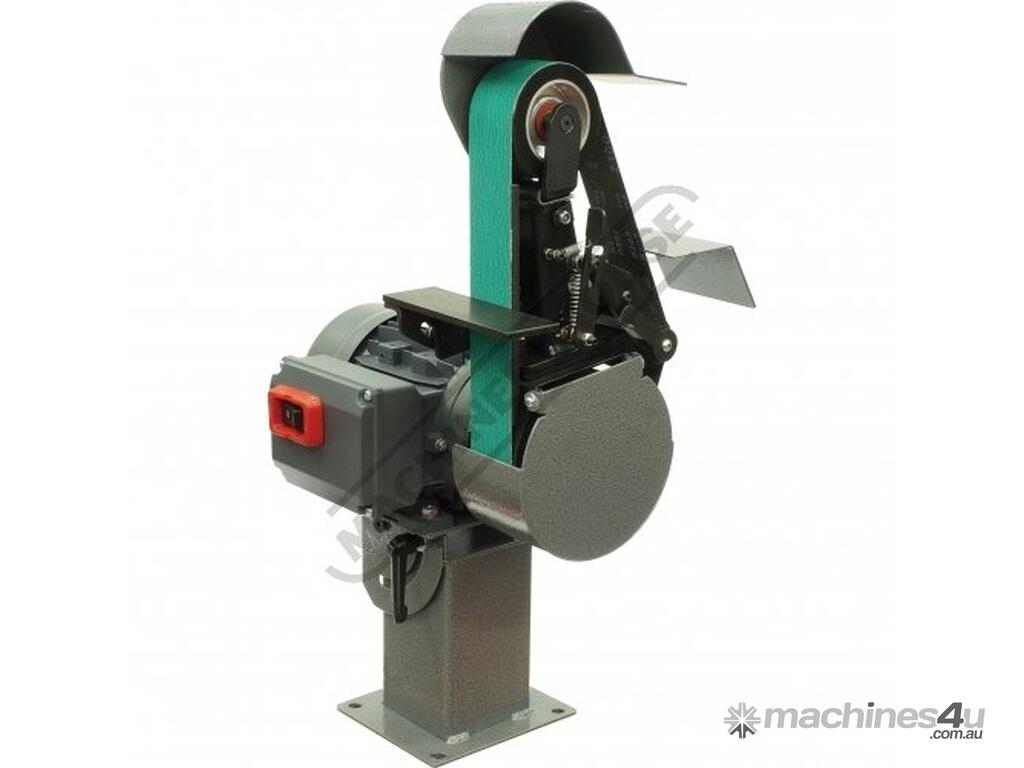

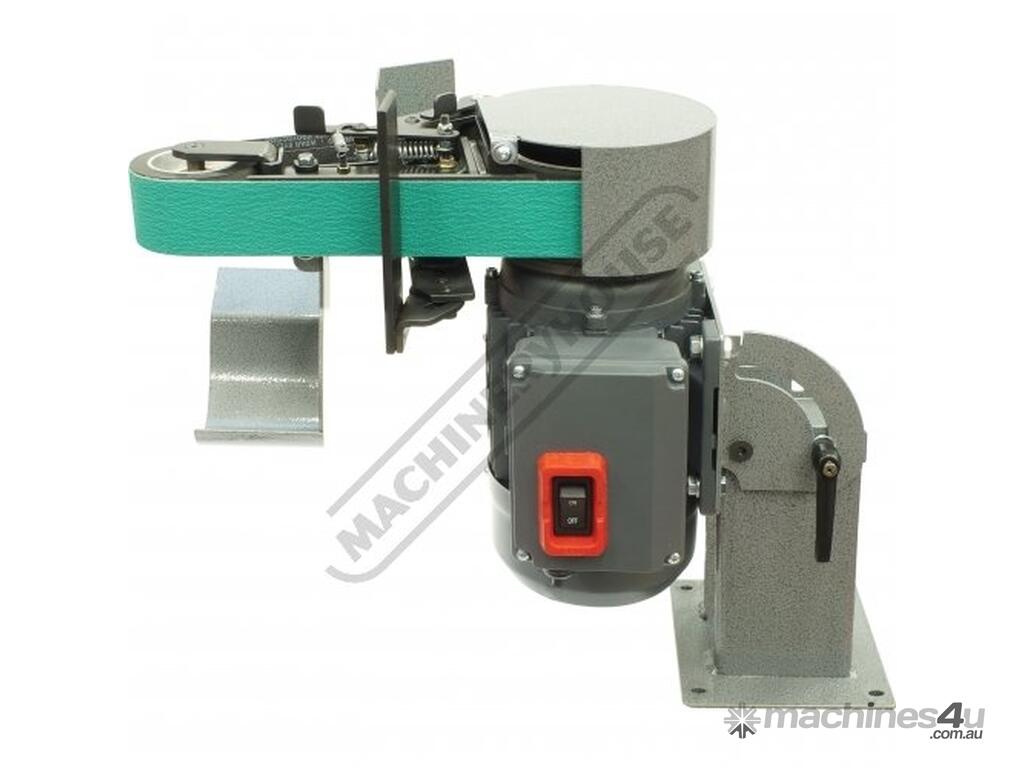

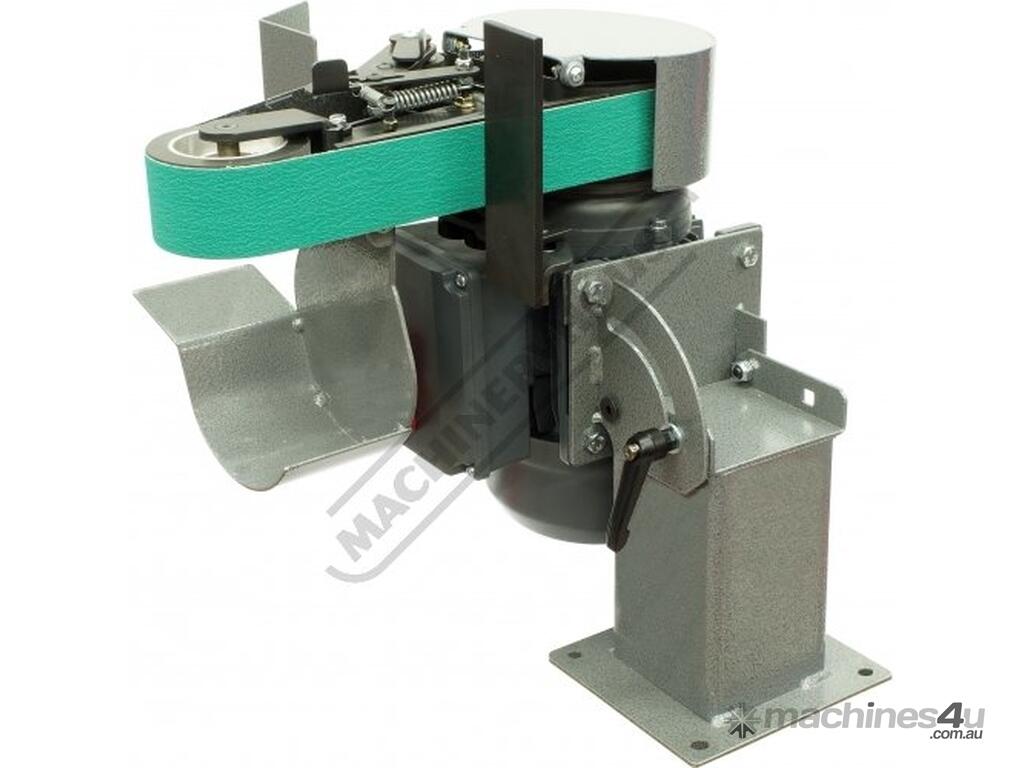

Head tilts to 90 degrees and rotates in 3 positions
Performance and durability backed by a 2 year commercial warranty

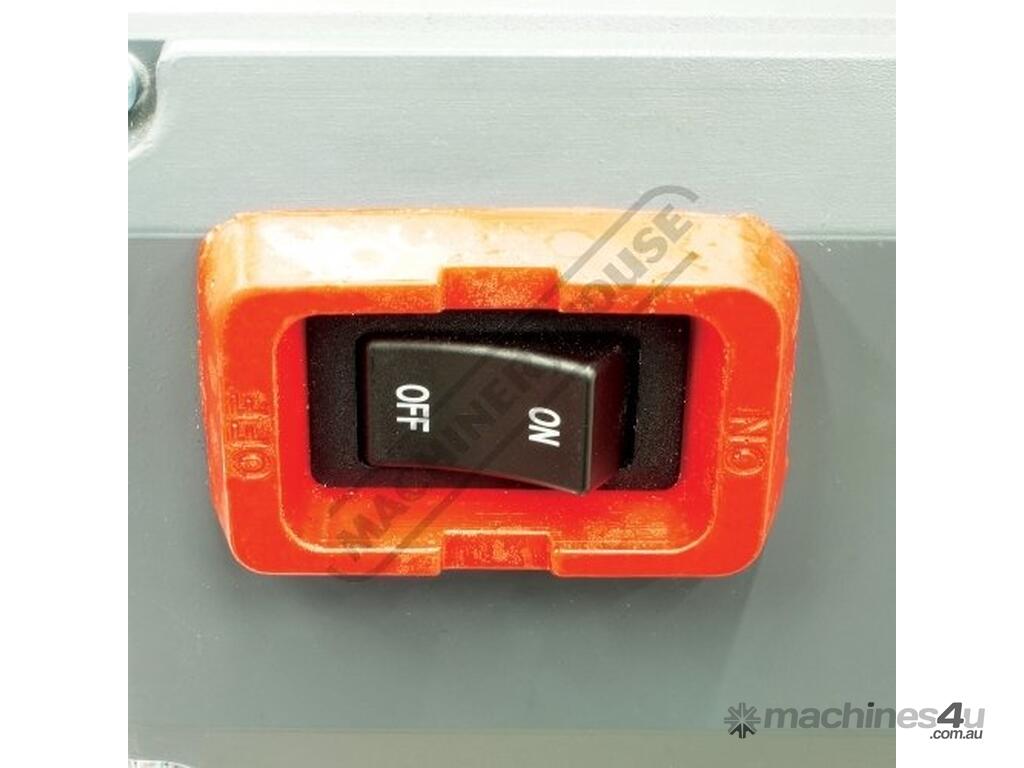

240V 0.75kW motor totally enclosed with overload protection
Made in Australia

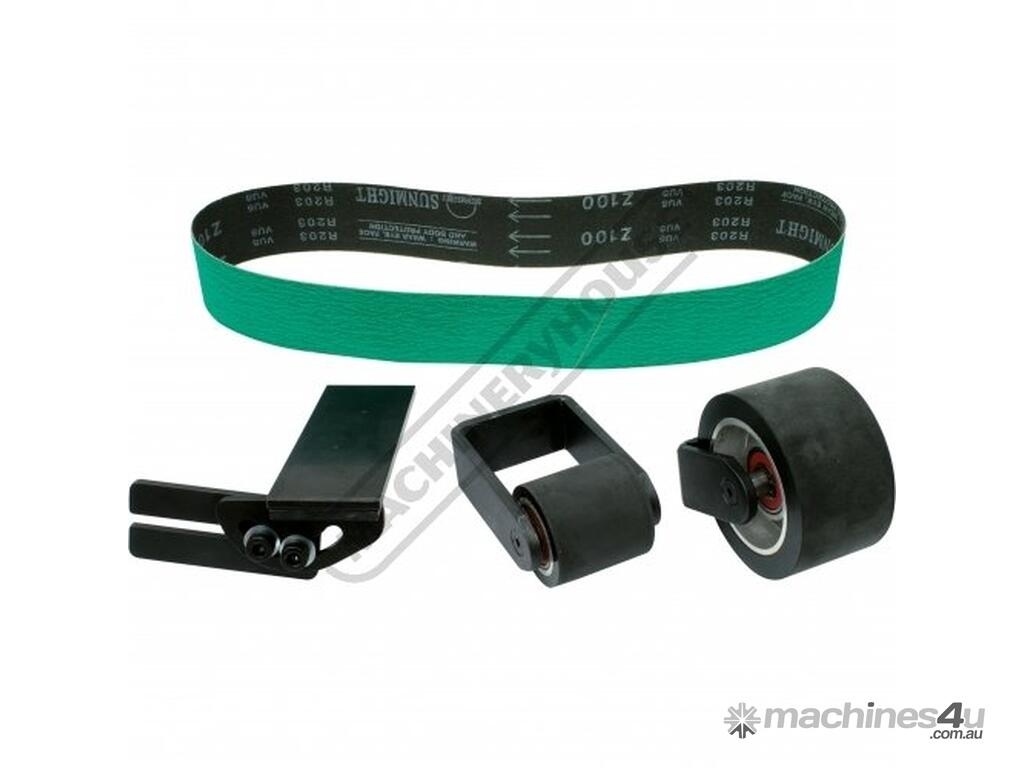

Includes:

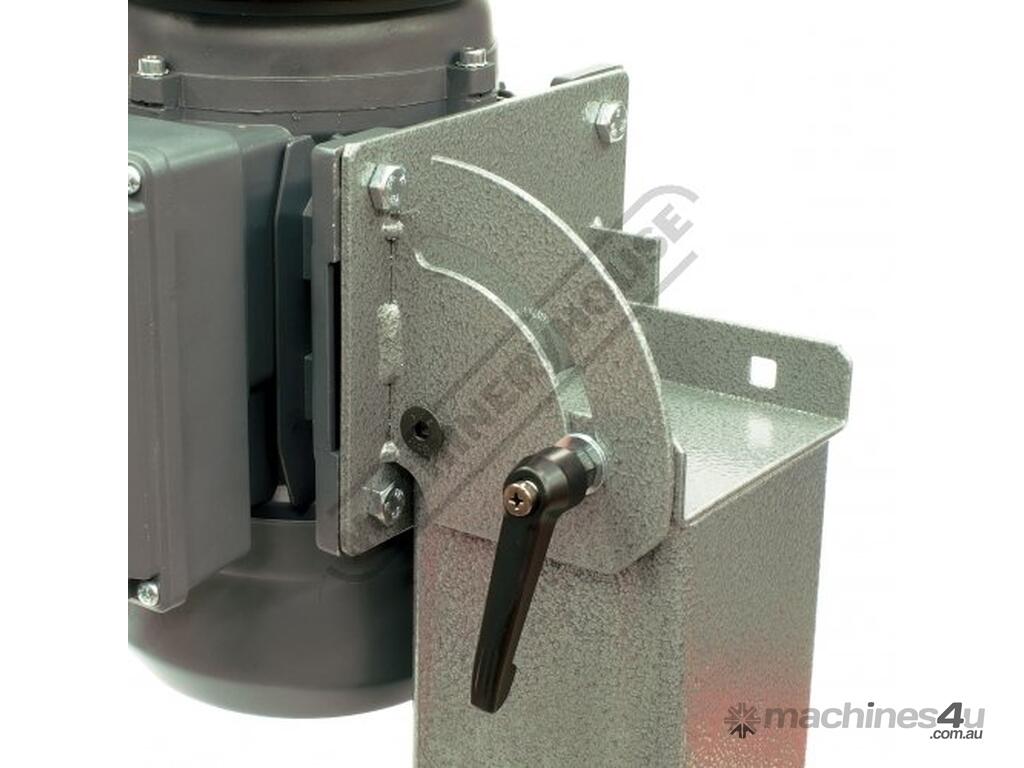

- Tilting top bench mount

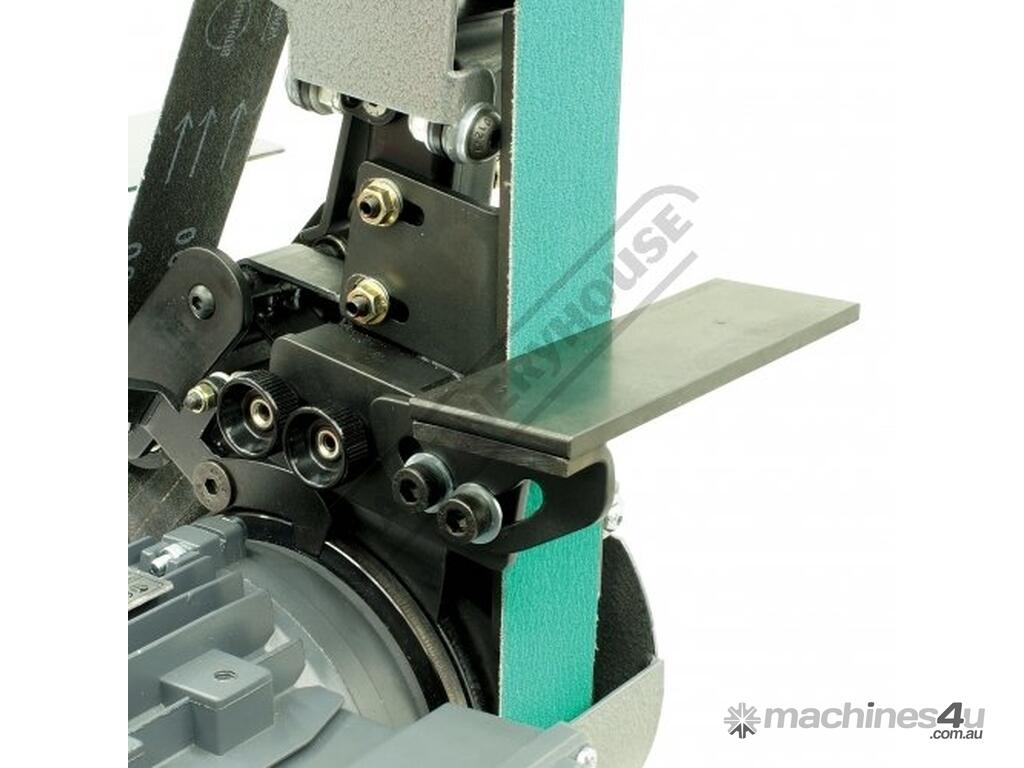

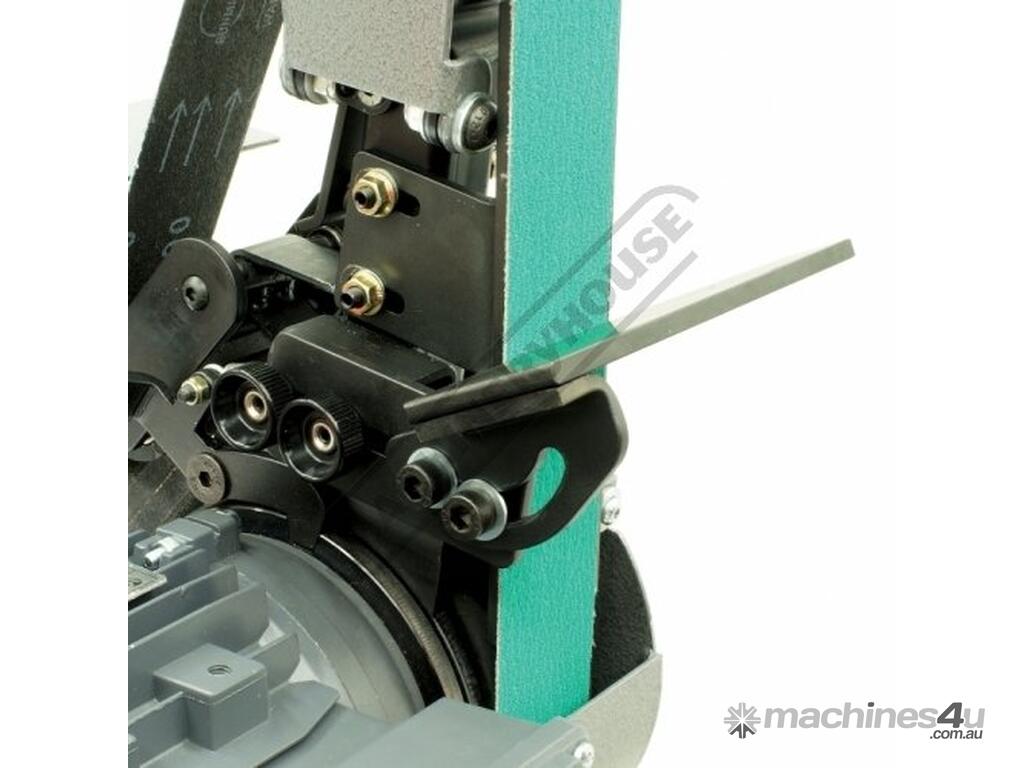

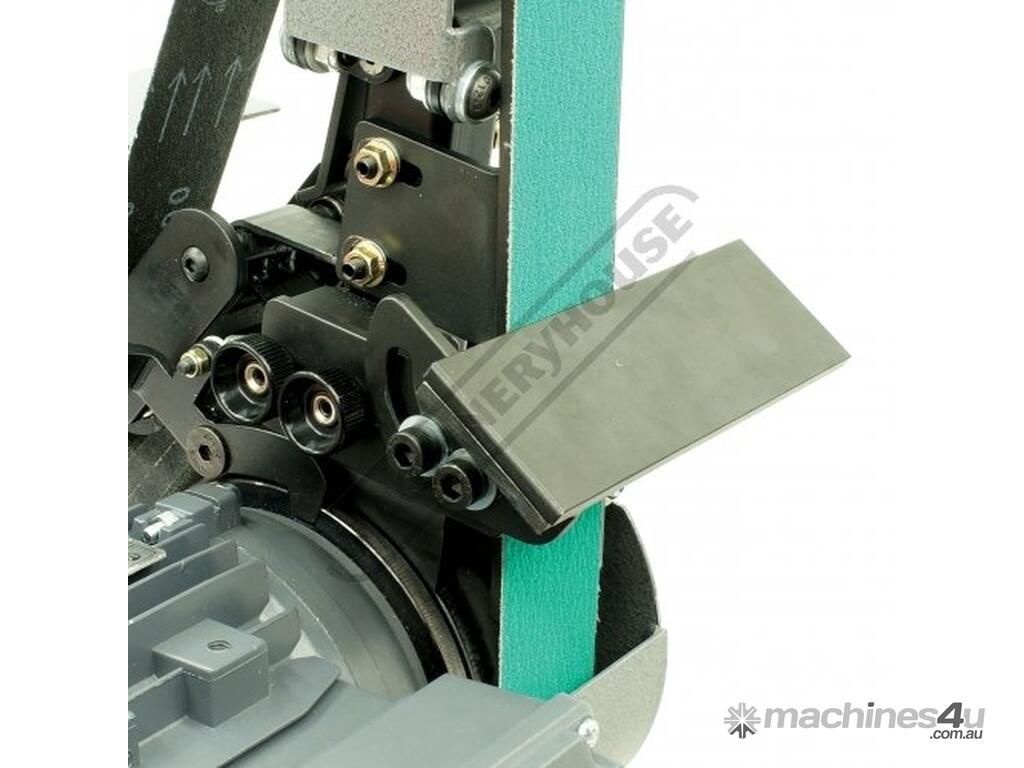

- Tool rest
- 1 x zirconia belt
- 2 contact wheels (Ø50 & Ø89mm)



Specifications:
ORDER CODE: L0995
MODEL: BM362
Type: Belt Grinder / Linisher
Mounting Type - Bench / Pedestal: Bench
Includes Stand: ~
Belt Size (mm): 50 x 915
Belt Speed (fpm / mpm): 4320 / 1316
Motor Speed (rpm): 2800
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 50
