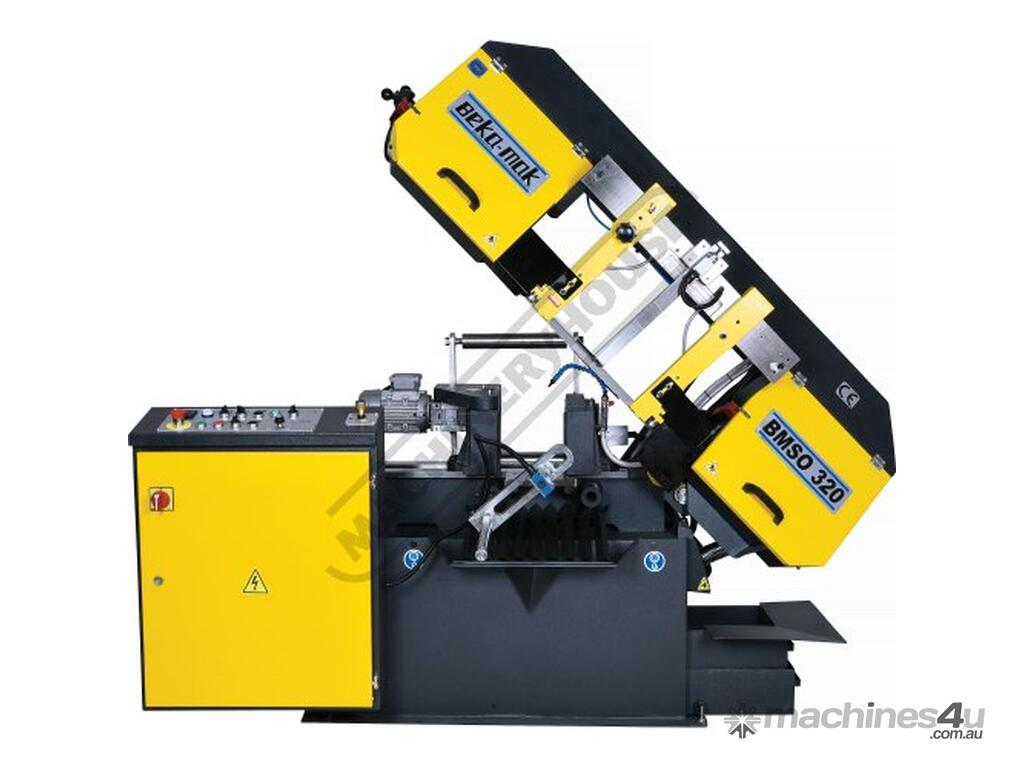

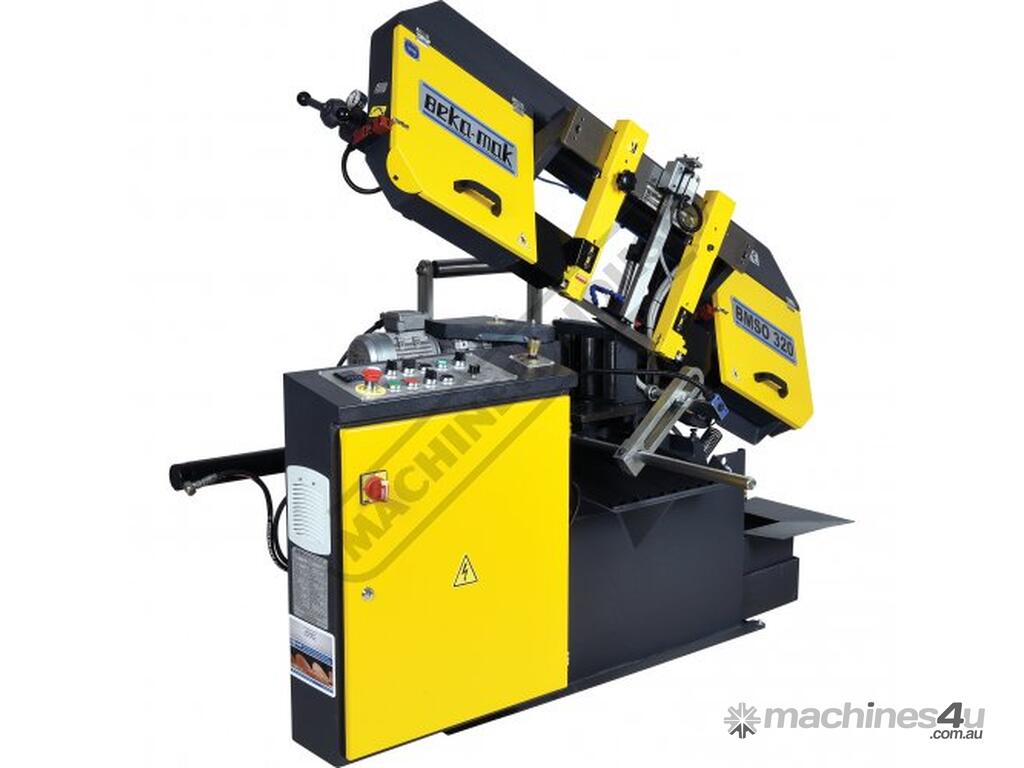

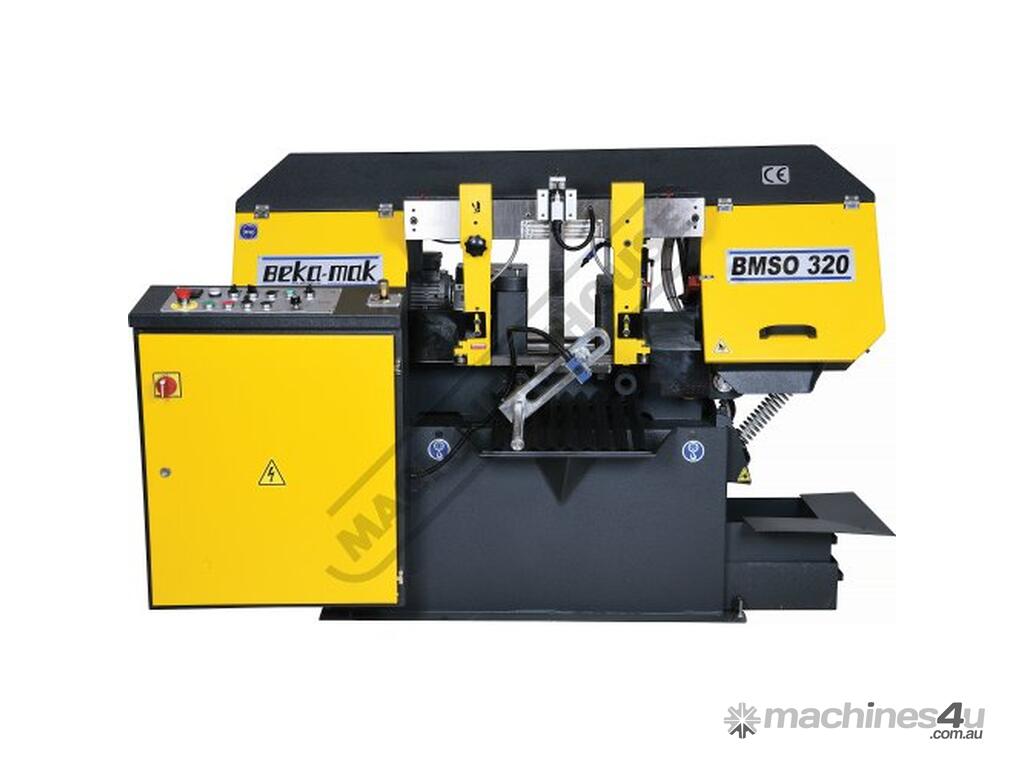

BMSO-320 Automatic Roller Feed Metal Cutting Band Saw Inverter Variable Blade Speed Control, Automat

BEKA-MAK BMSO-320 Automatic Roller Feed Metal Cutting Band Saw Inverter Variable Blade Speed Control, Automatic Roller Feed 10 ~ 500mm Length Stop & Includes Hydraulic Downfeed Control 300 x 300mm (W x H) Square Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B038

Manufactured in Turkey

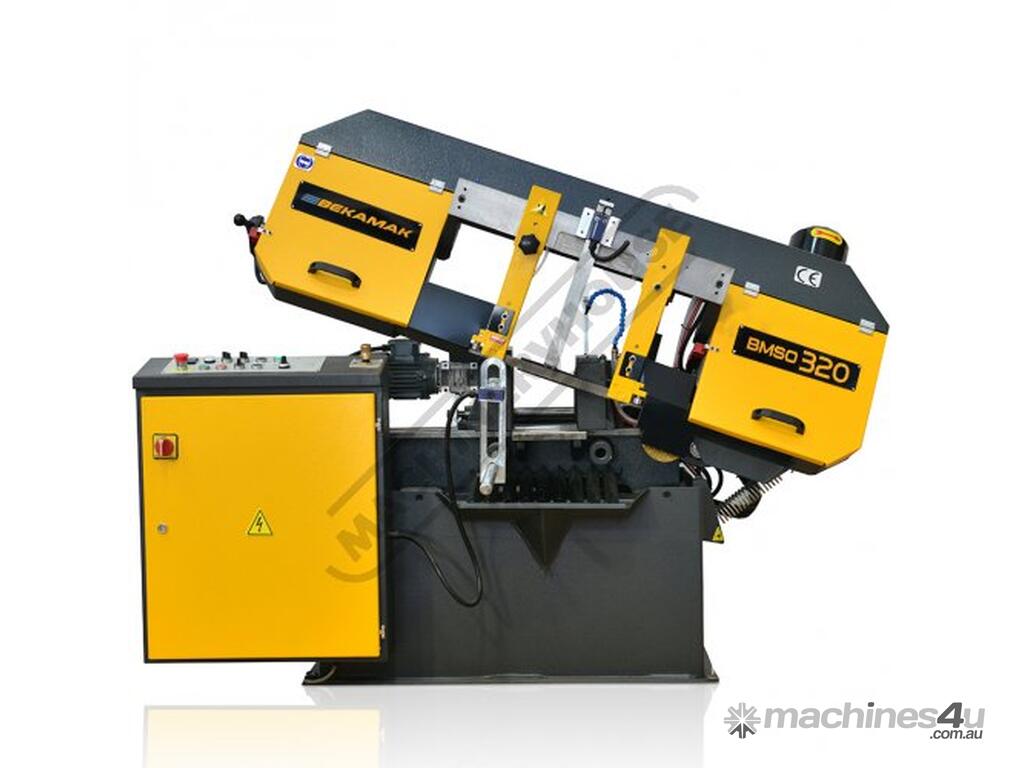

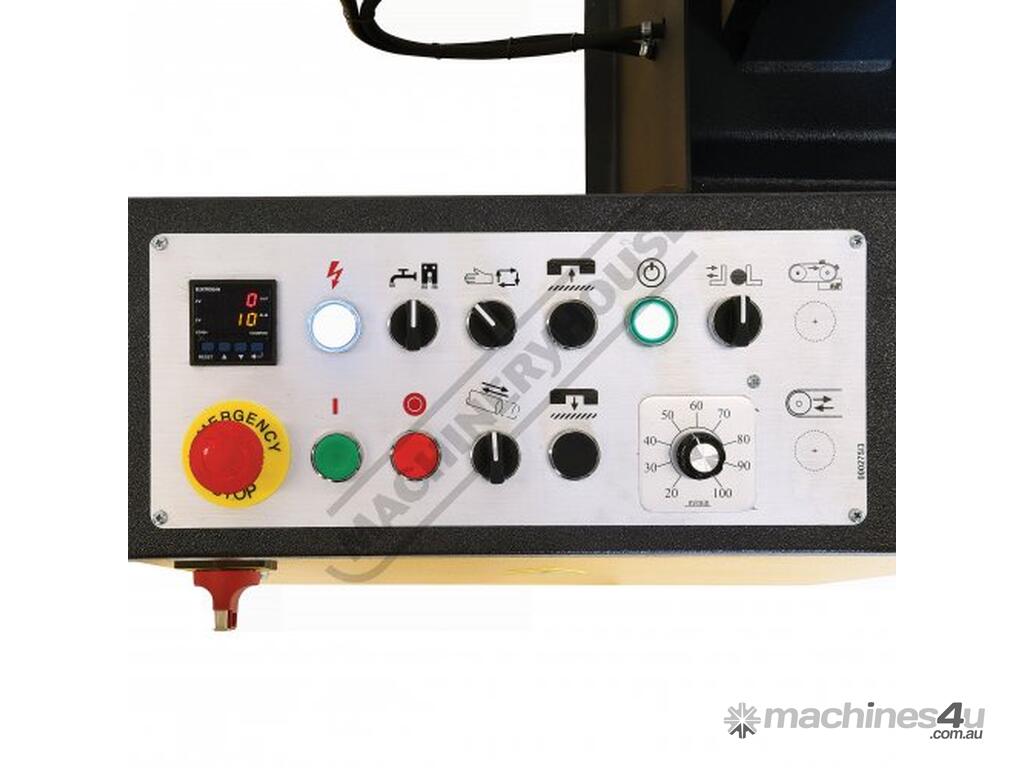

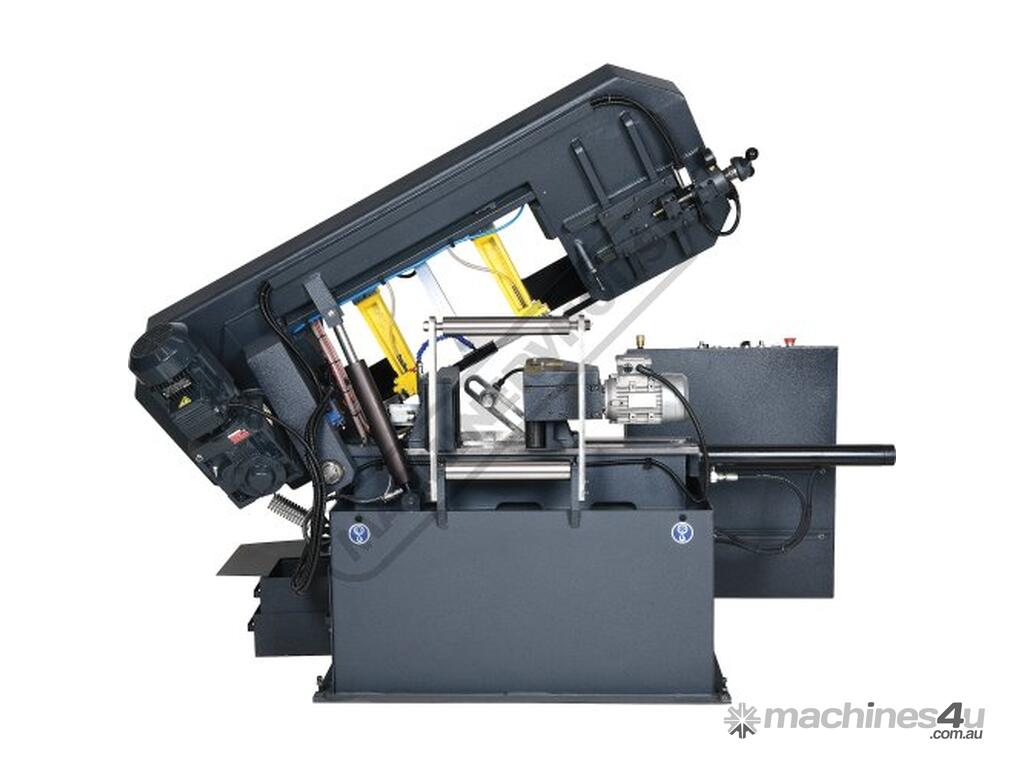

The BSMO-320 fully automatic metal cutting band saw with a cutting capacity of up to 320mm diameter or 300 x 300mm in steel at 90º. The auto feed rollers enables you to set up the control & material length stop to cut autonomously when auto mode is selected and the machine will also automatically stop after the programmed cut quantity is reached. Changing the blade speed to suit your material specifications is easily done by the electronic variable speed dial on the control panel and the ball bearing & carbide blade guides provide optimal control to achieve accuracy when cutting.

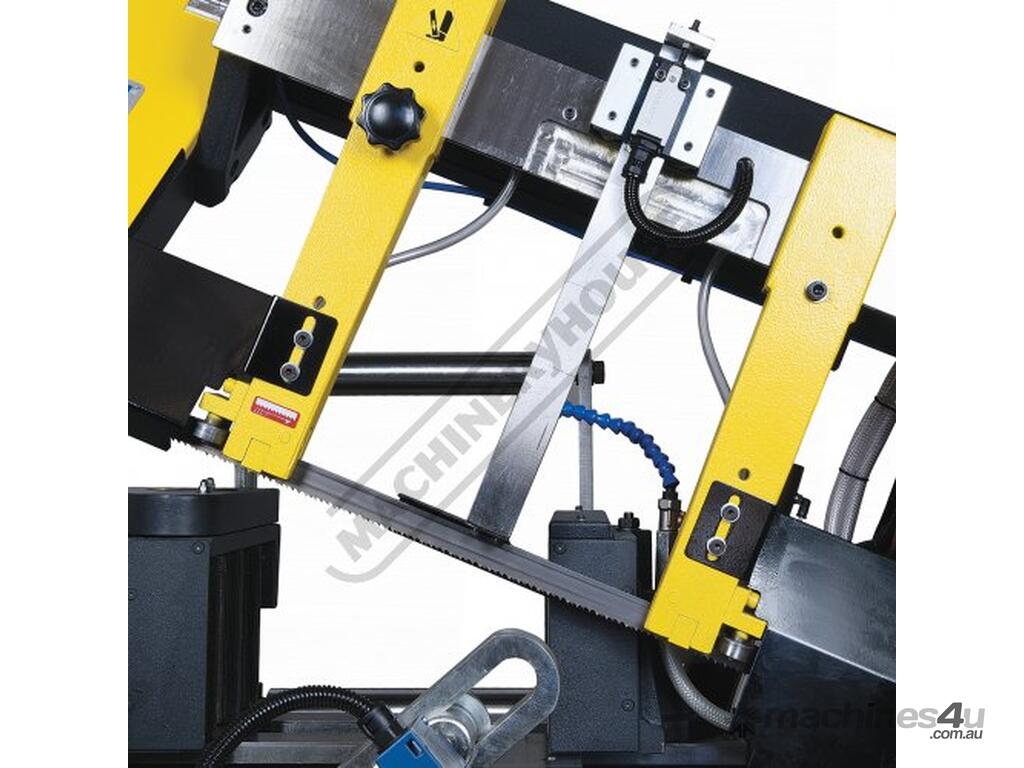

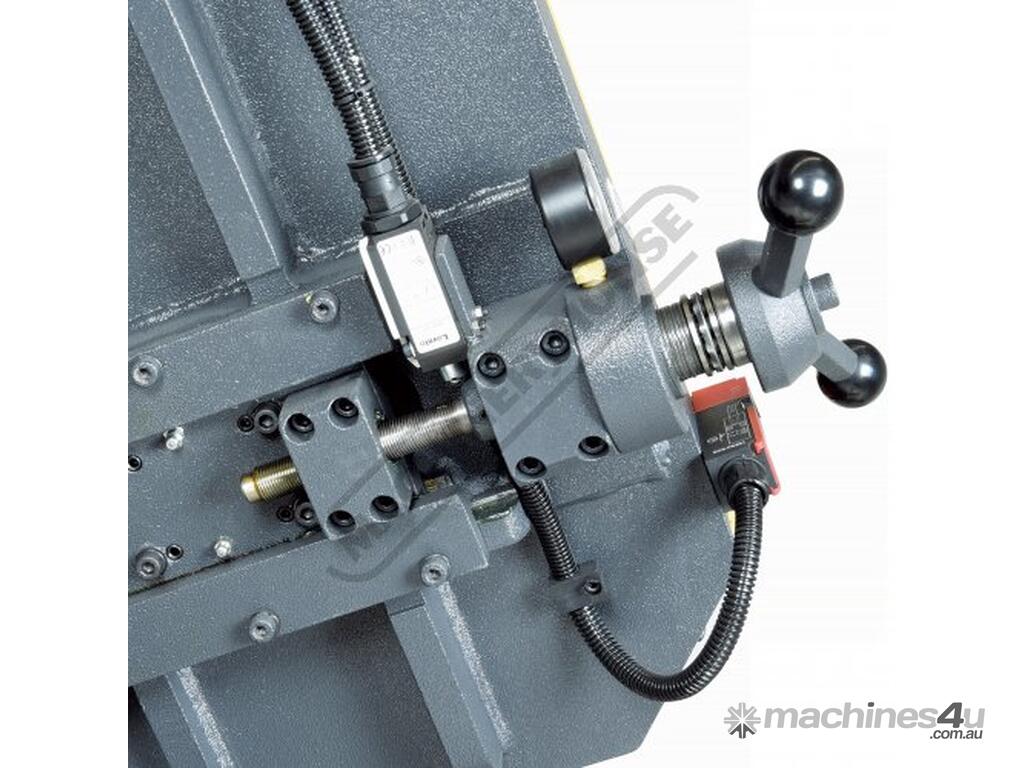

Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible, this means reliability and accurate square cuts is easily achieved. There is a built-in coolant system that ensures maximum cutting efficiency and longer blade life when using the correct cutting-cooling fluid.

If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting bandsaw with all these features and at this great price, it represents excellent value.

Features:
Ø320mm round capacity
300 x 300mm (W x H) square capacity
Pre-set cut counter machine stops when count cycle is reached

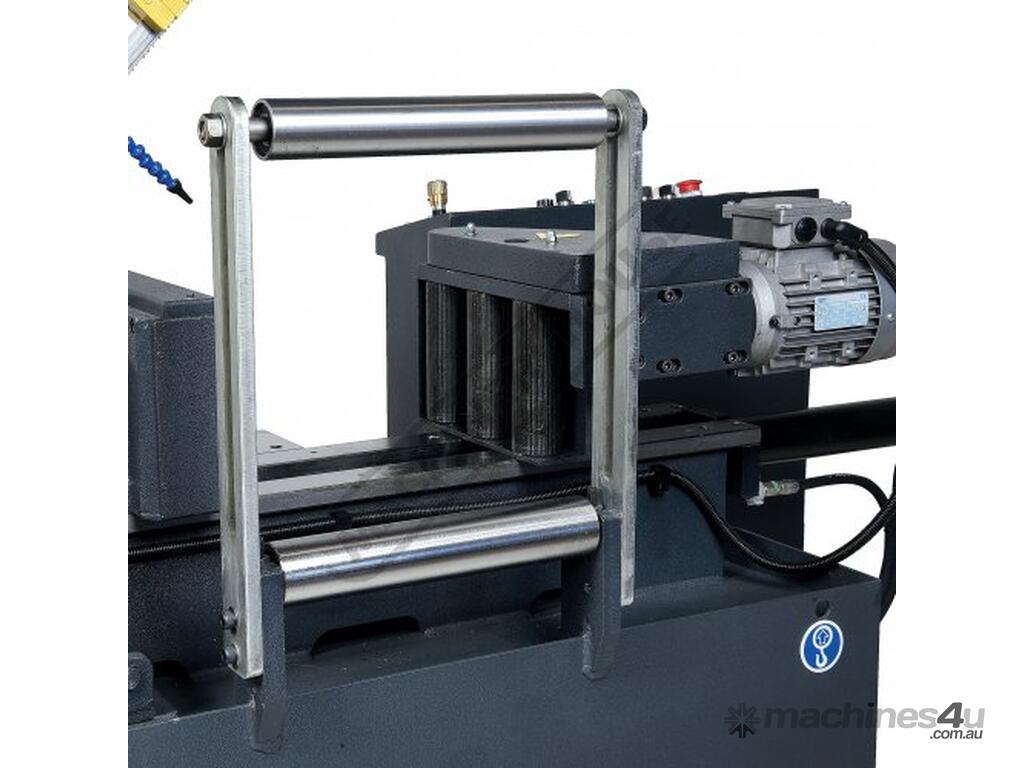

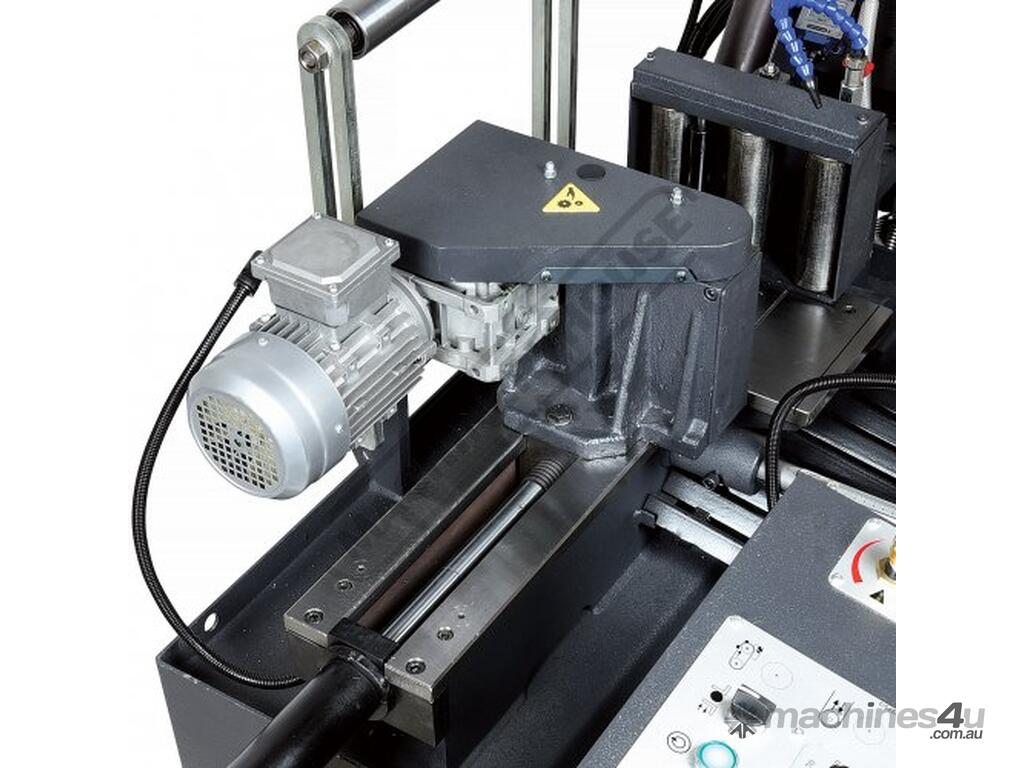

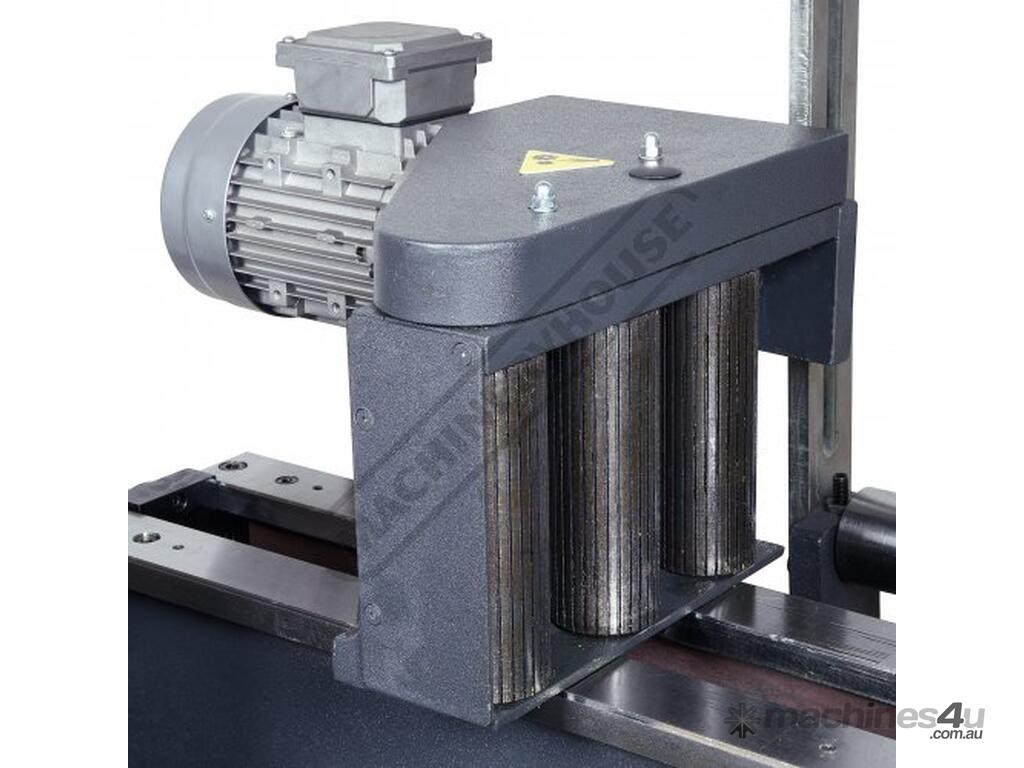

Automatic material feed roller system with micro switch stop
Blade breakage sensor fitted that automatically shuts machine off
Material height sensor for beam to rapid down and start cut feed rate when reached material
Variable speed drive system changes blade speed from 20-100mpm
Automatic operation automatic arm rise after completion of cut
Adjustable hydraulic cutting feed rate for multiple applications

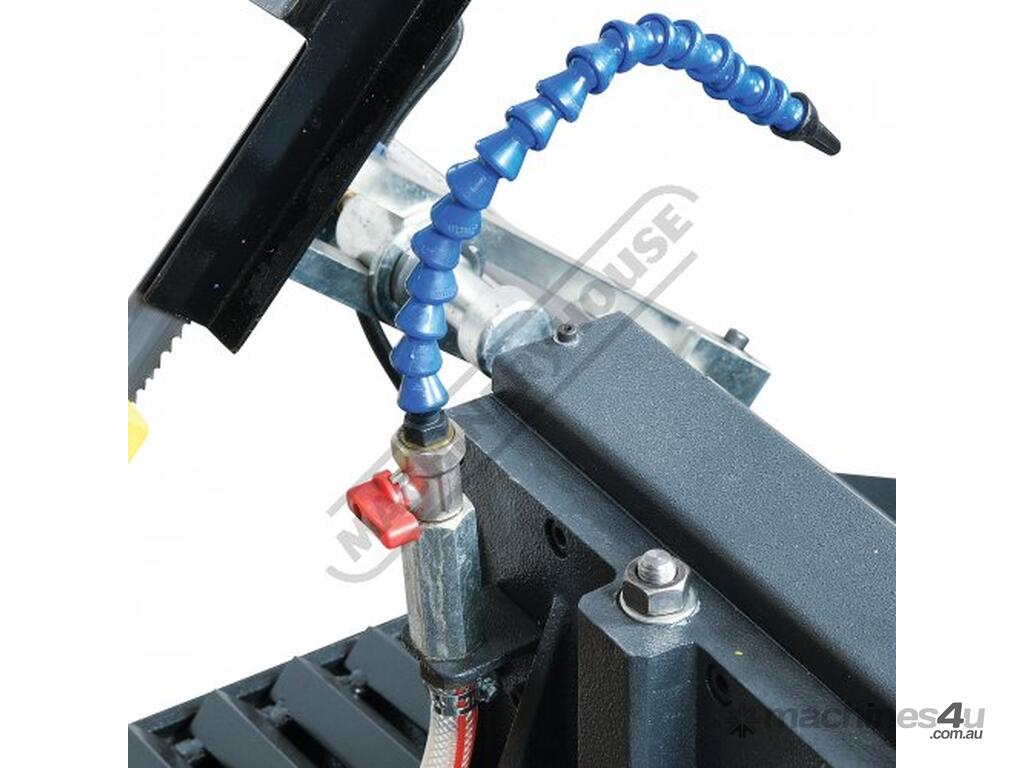

Built-in coolant system for maximum cutting efficiency

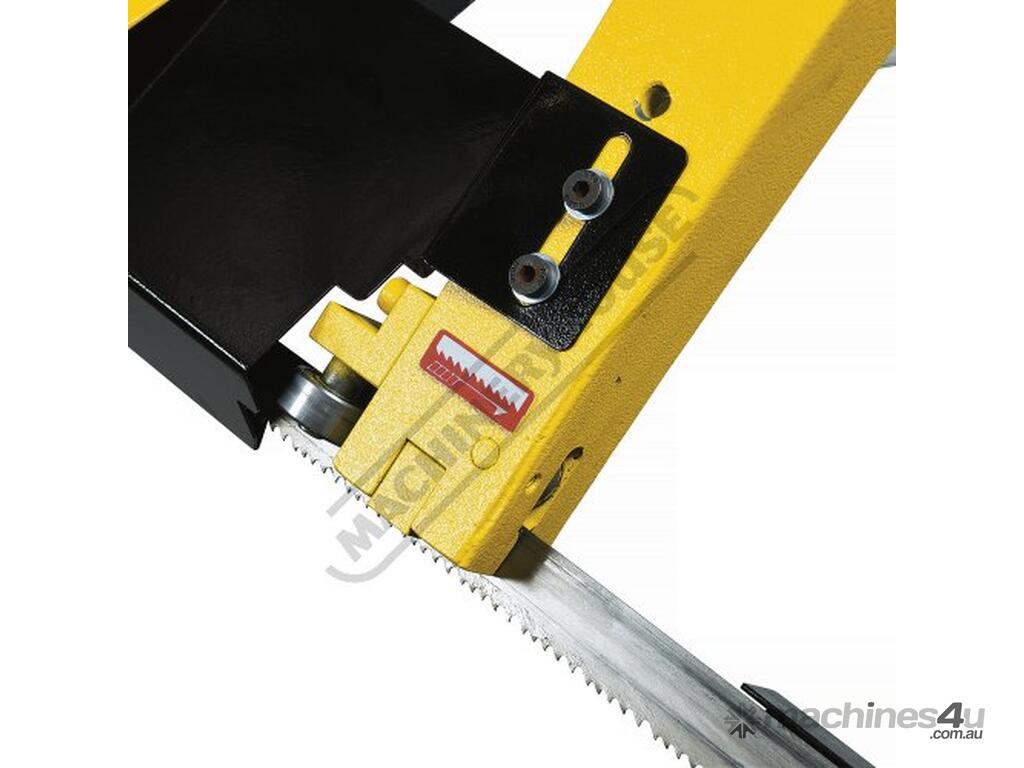

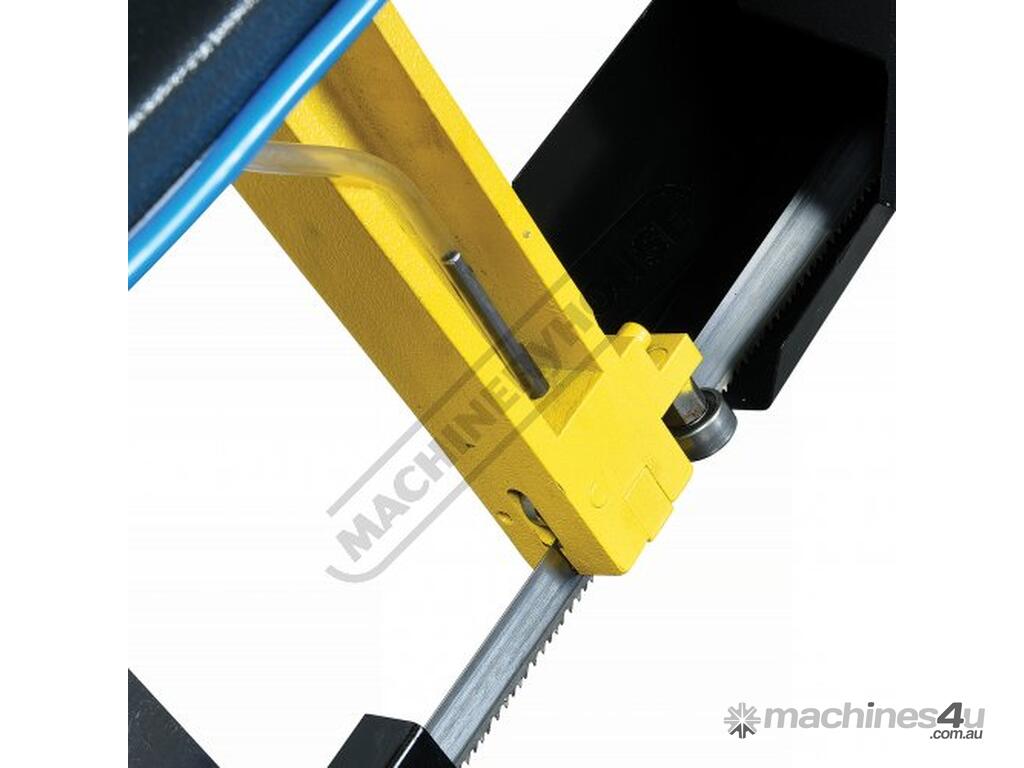

Adjustable carbide blade guides provides accurate cutting

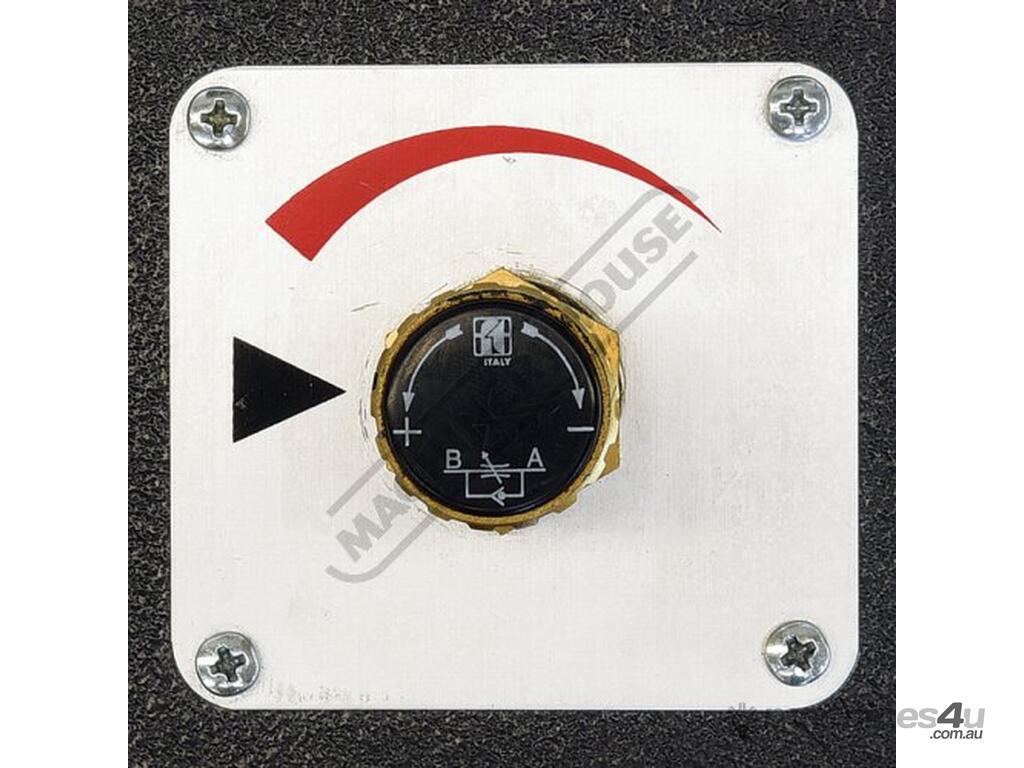

Integrated hydraulic unit with arm feed control trimming

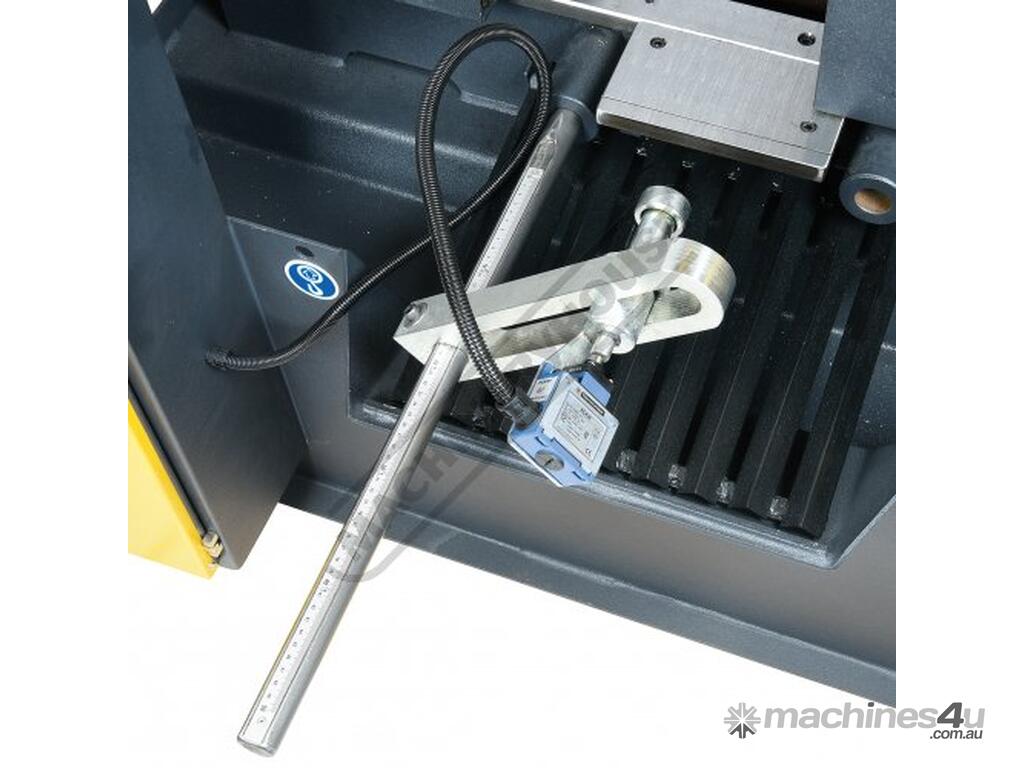

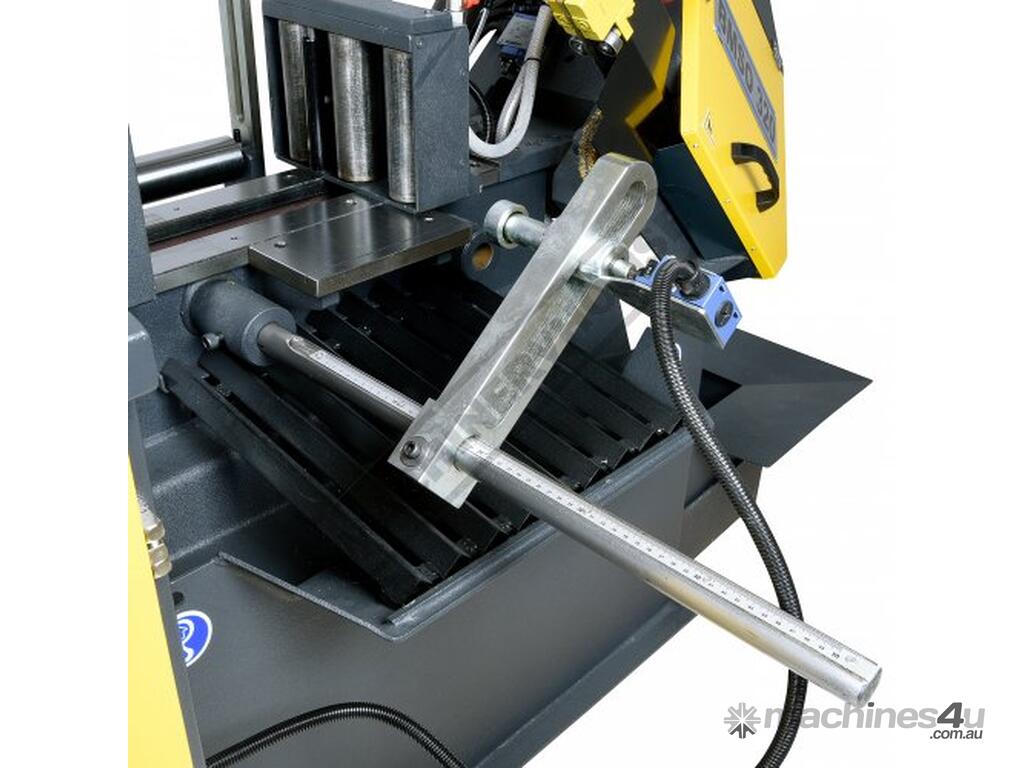

Adjustable length stop with micro for repetition cutting 10 ~ 500mm

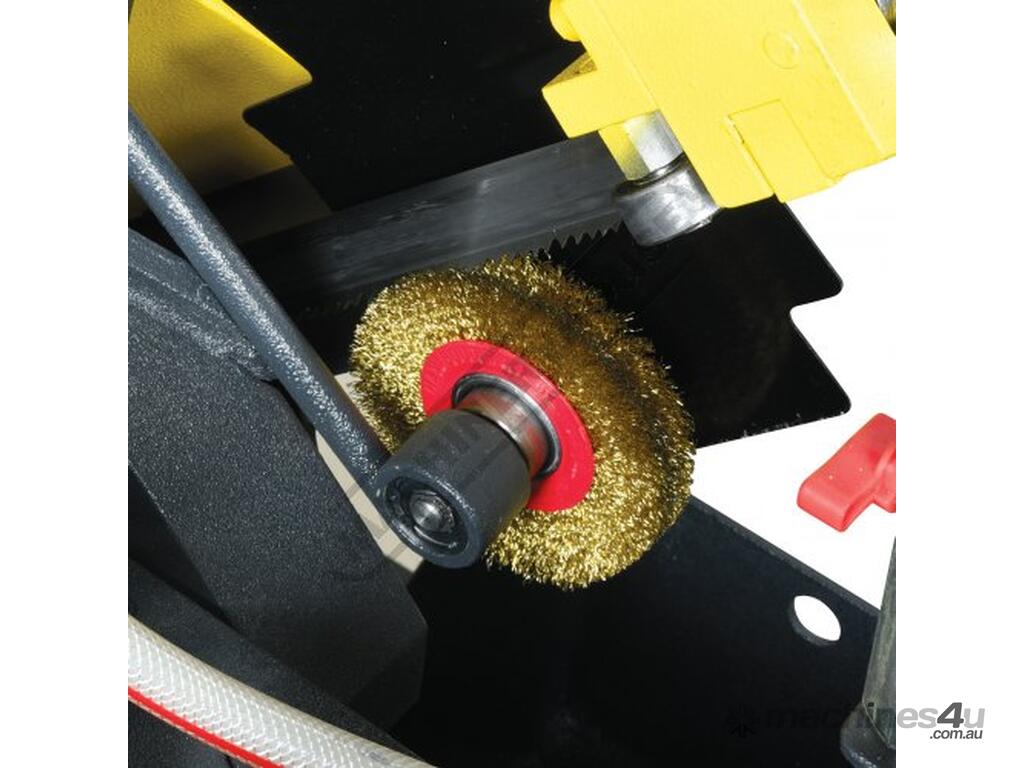

Wire wheel brush to clean swarf from blade
Designed for accurate 90º multiple job cutting

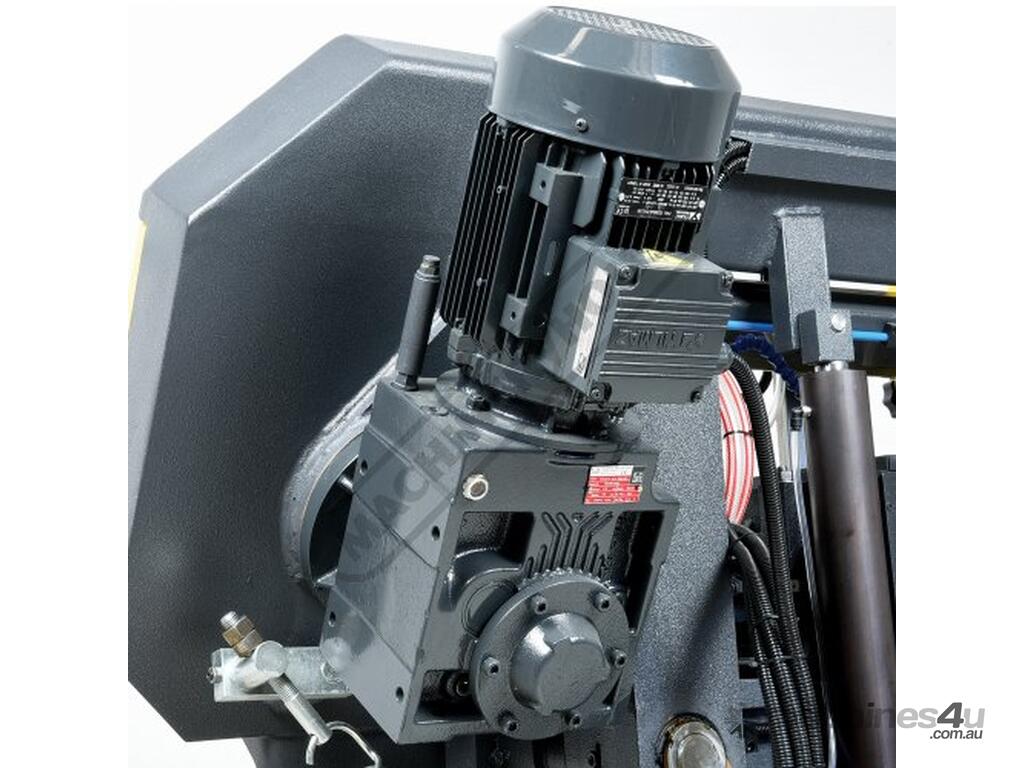

Heavy-duty gearbox driven by a 2.2kW / 3hp 415V motor


Specifications:
ORDER CODE: B038
MODEL: BMSO-320
Operation Type: Fixed Head
Operation Type: Automatic Roller Feed
Round 90º (mm): 320
Round 45º (mm): ~
Round 60º (mm): ~
Square 90º (mm): ~
Square 45º (mm): ~
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 300 x 300
Rectangle (W x H) 45º (mm): ~
Rectangle (W x H) 60º (mm): ~
Coolant System: Yes
Table Working Height (mm): 640
Cutting Head Beam Type: Fully-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 3660 x 27 x 0.9
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 735


To Purchase Online Please Visit The Machineryhouse & Search For 'B038'
