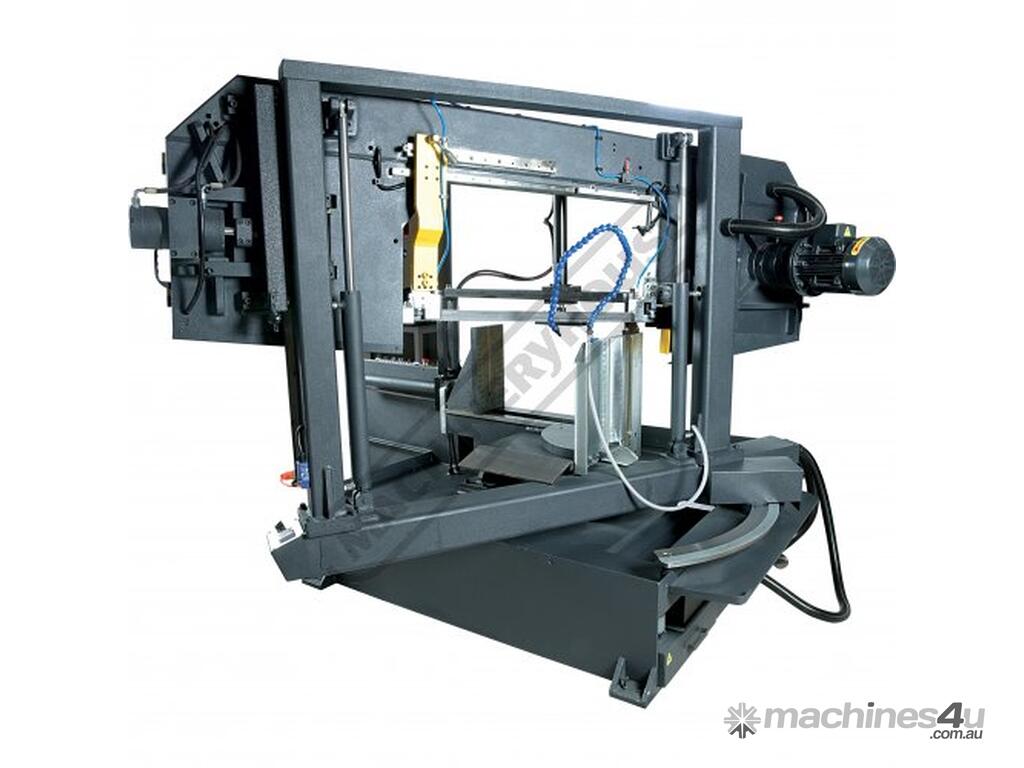

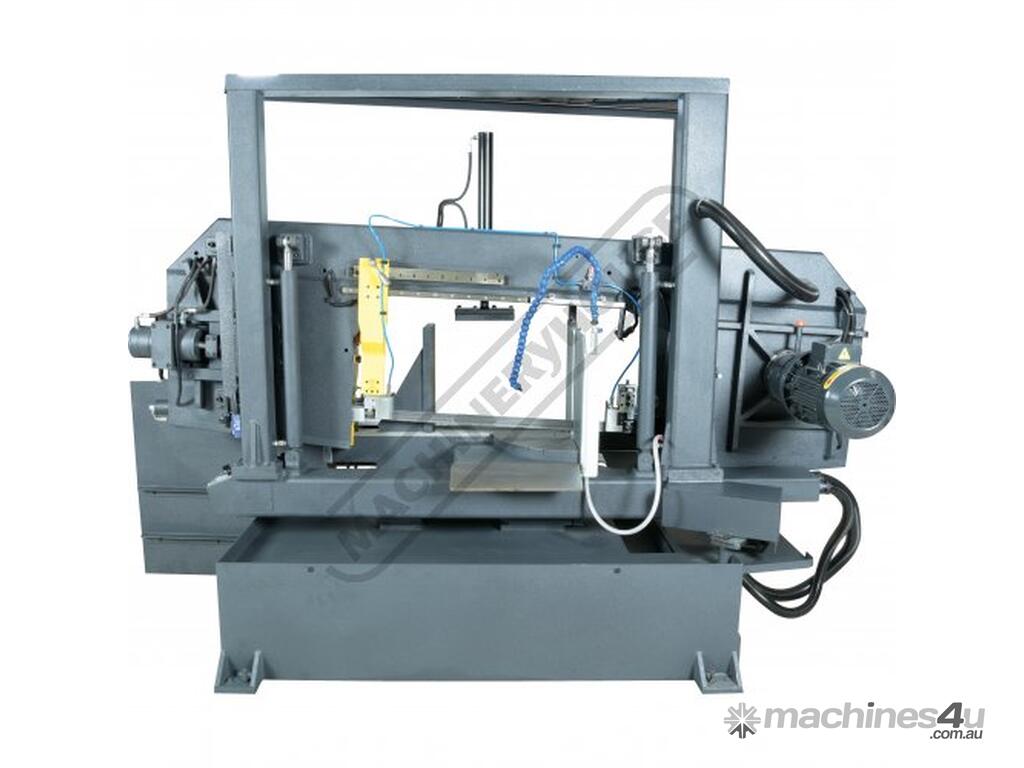

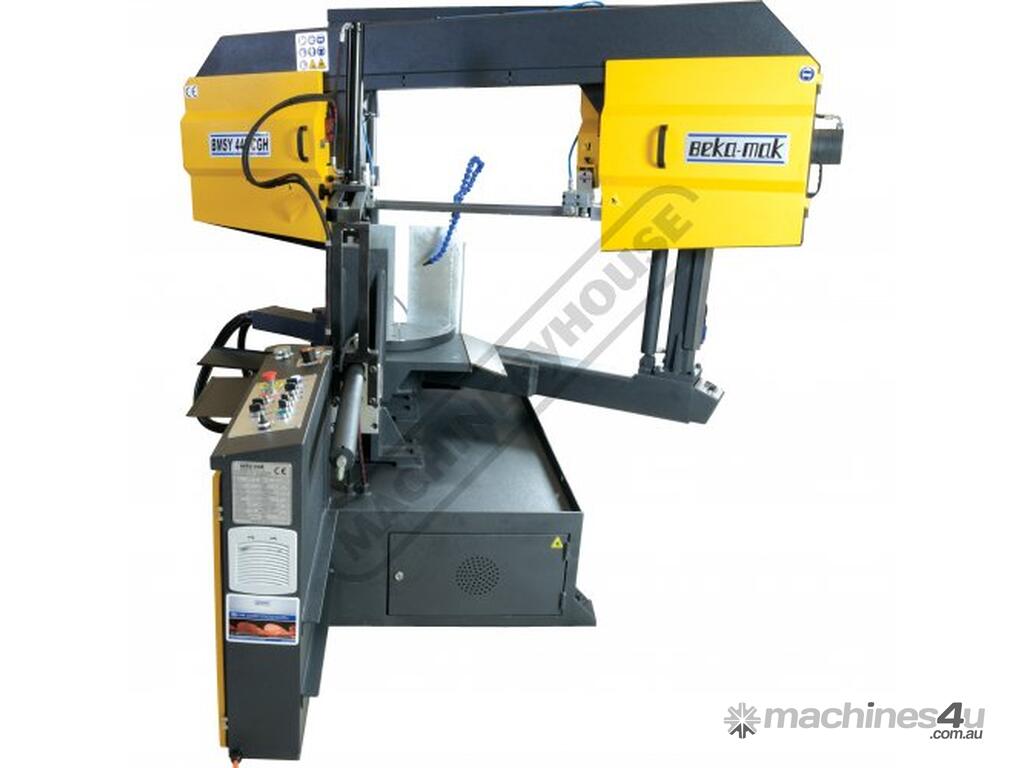

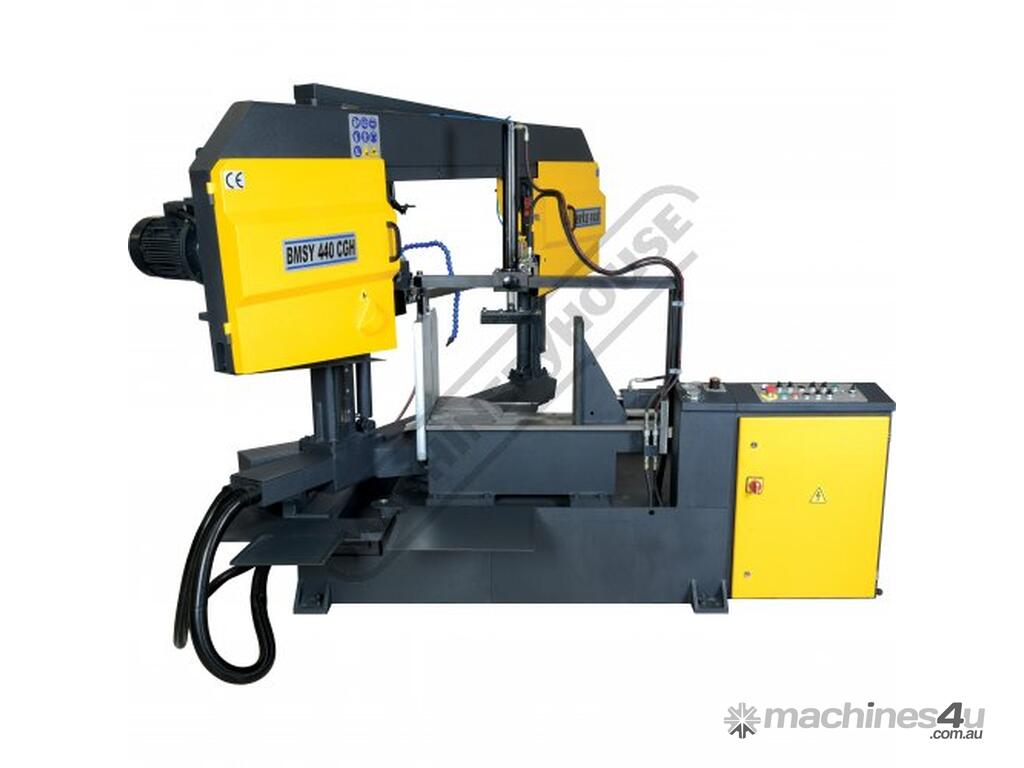

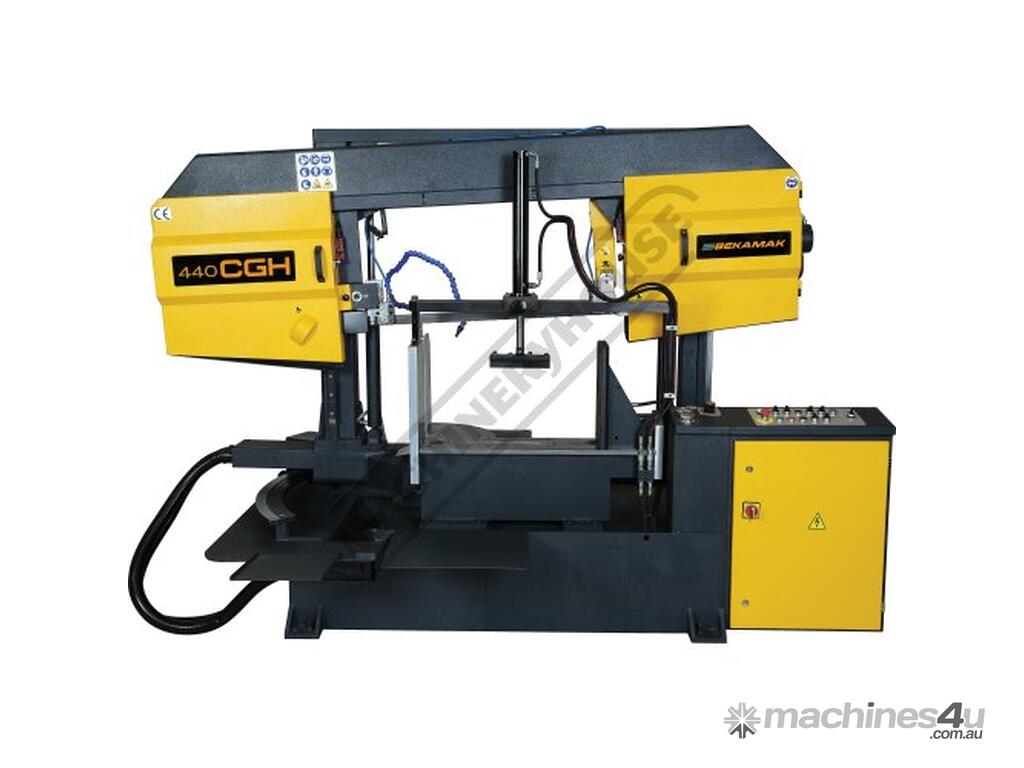

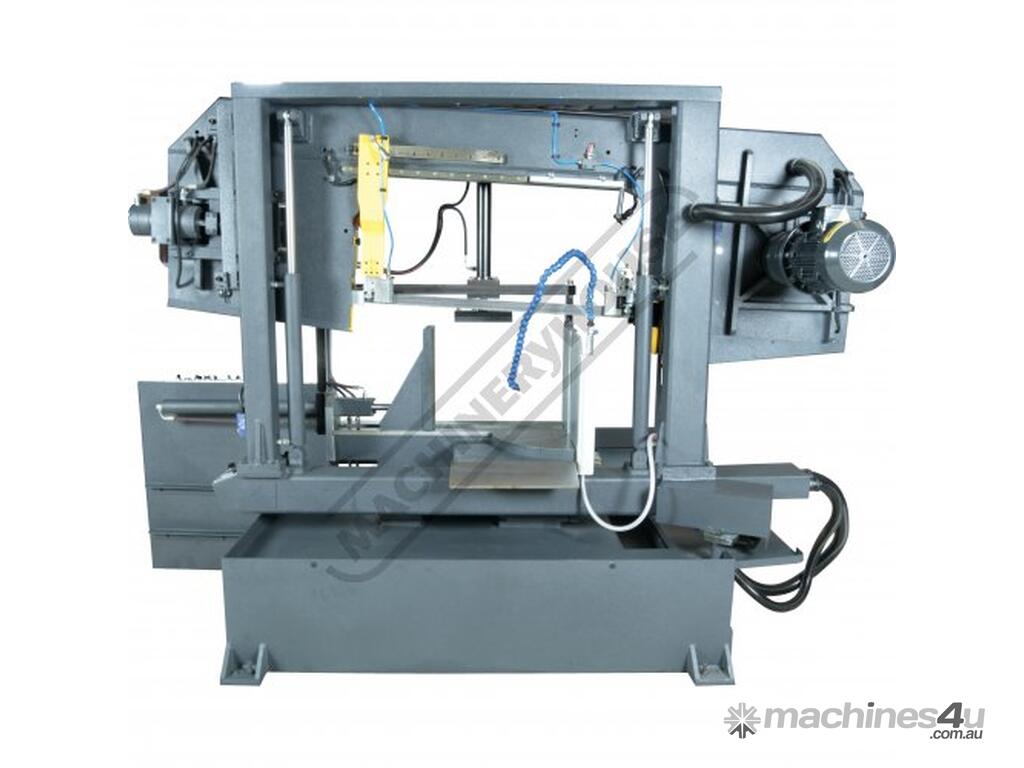

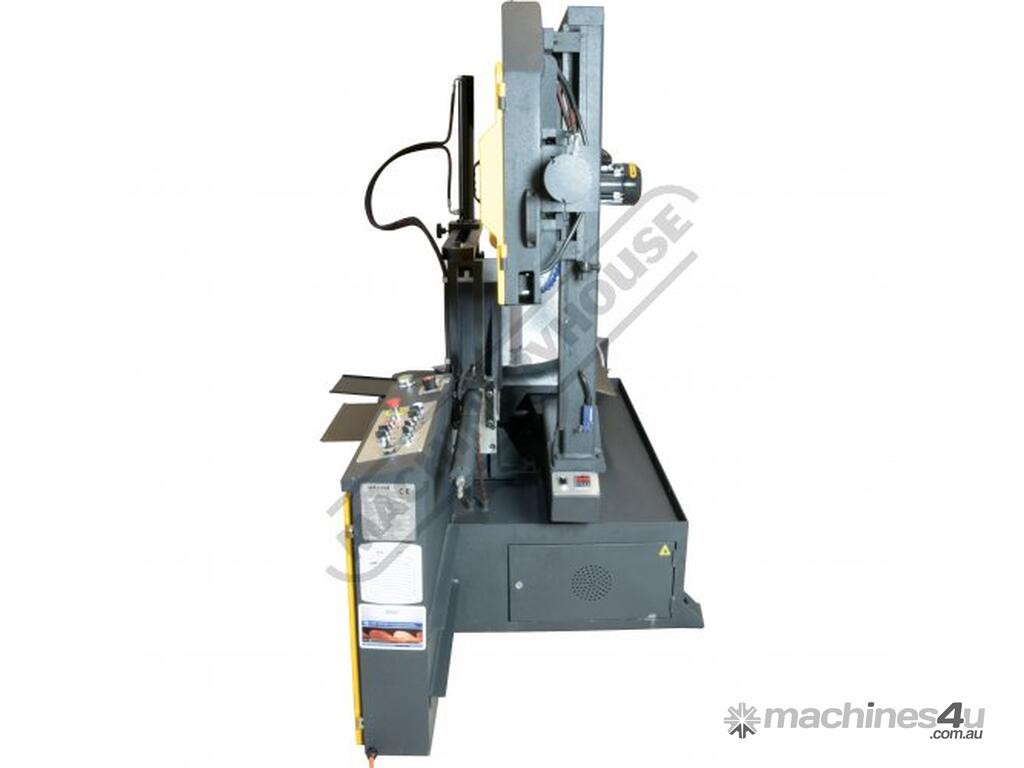

BEKA-MAK BMSY-440-CGH Semi Automatic Double Column & Swivel Head Band Saw 695 x 425mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B140
Manufactured in Turkey
BMSY-440-CGH SWIVEL HEAD, DOUBLE COLUMN, METAL CUTTING BAND SAW (415V)
Features:

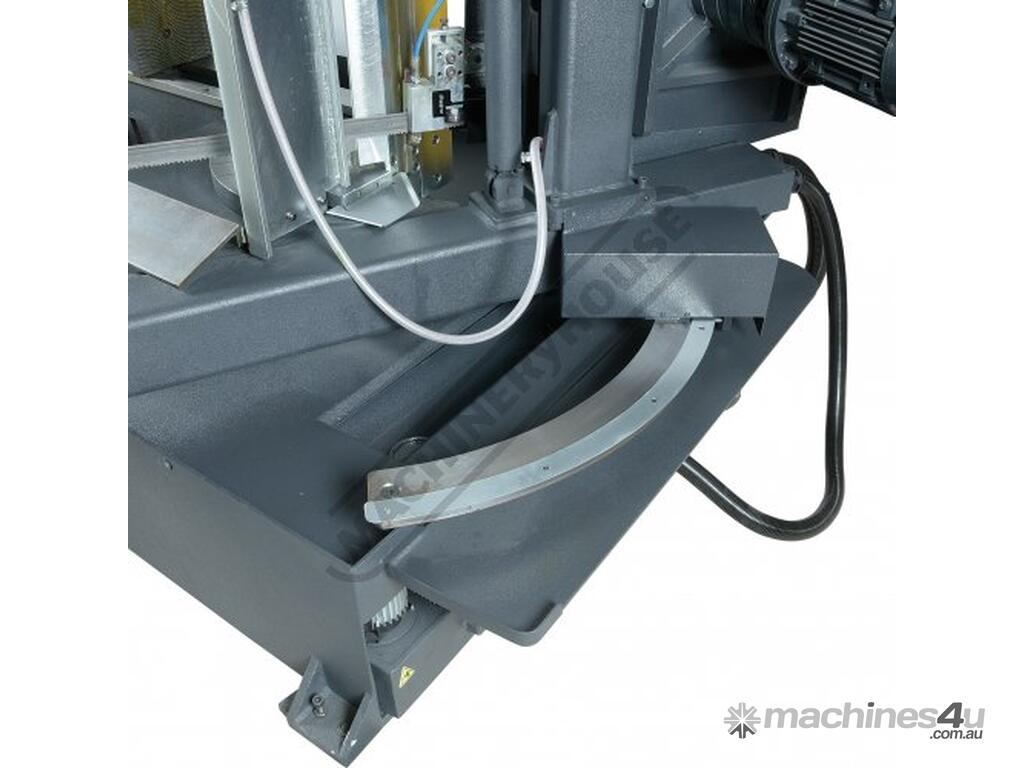

Swivel head for mitre cutting up to 60º
2º blade incline for improved cutting

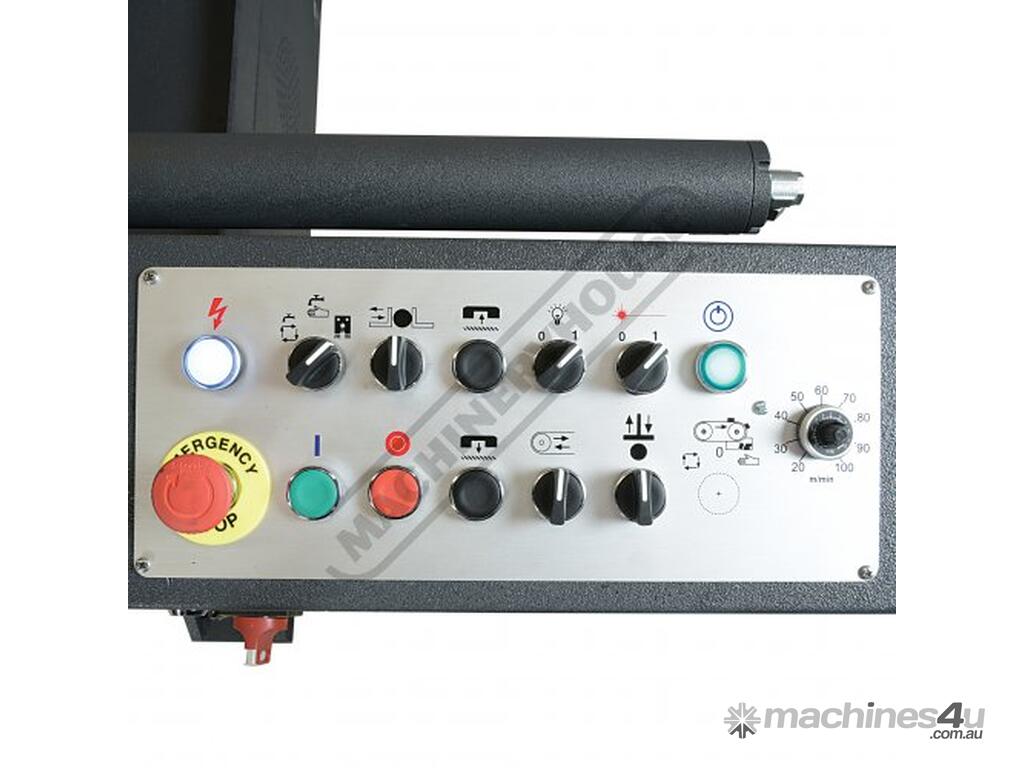

Inverter variable blade speed control
Material height sensor for beam to rapid down and start cut feed rate when reached material

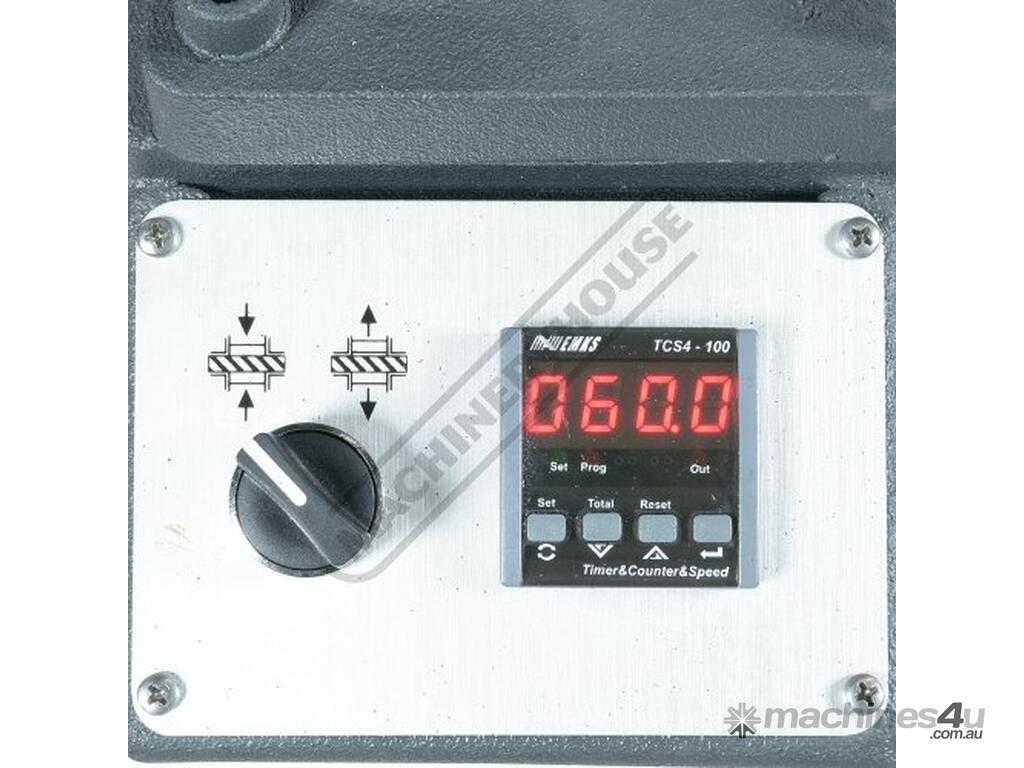

Digital readout display for accurate mitre cutting

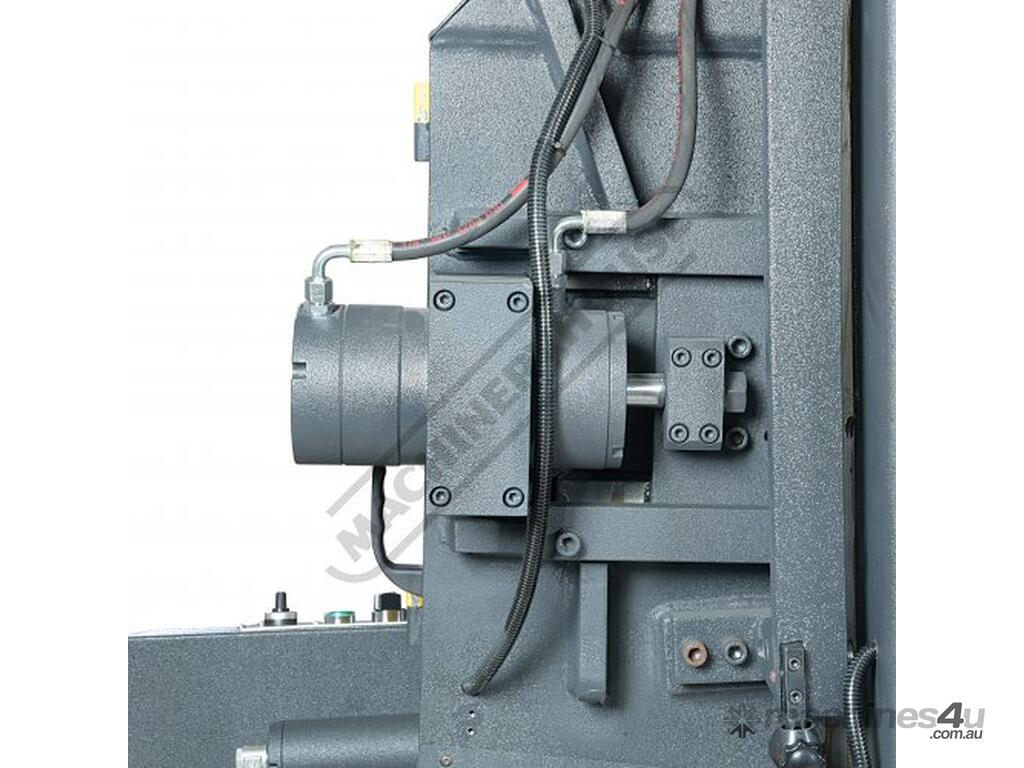

Head mitre hydraulic brake locking system

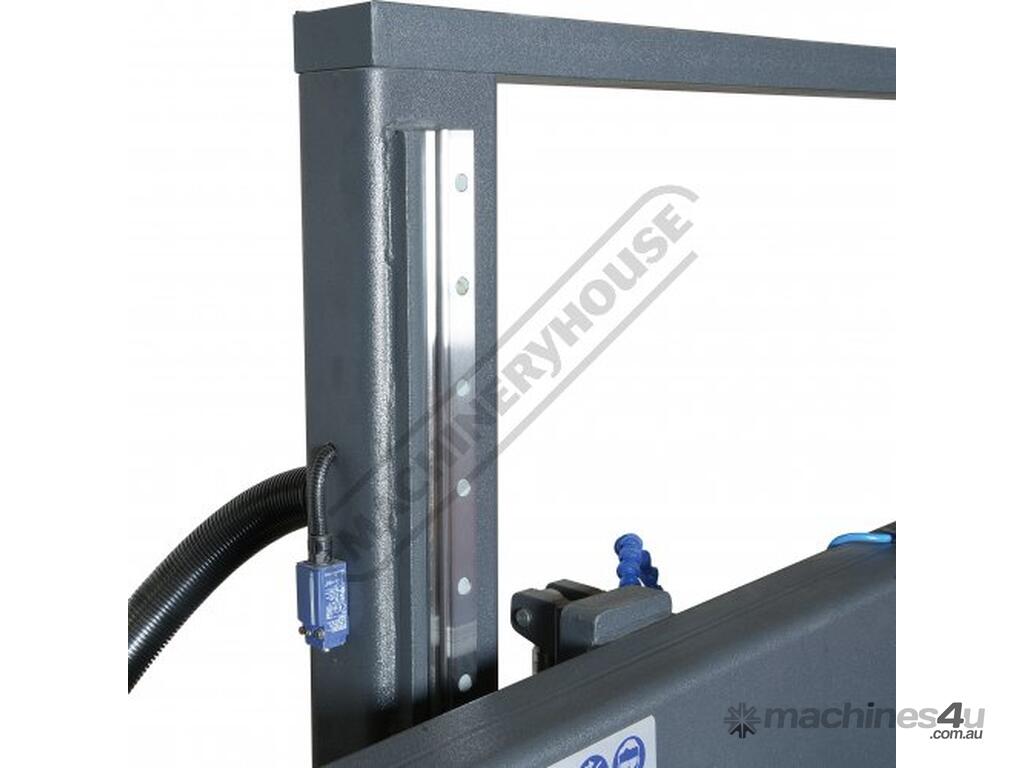

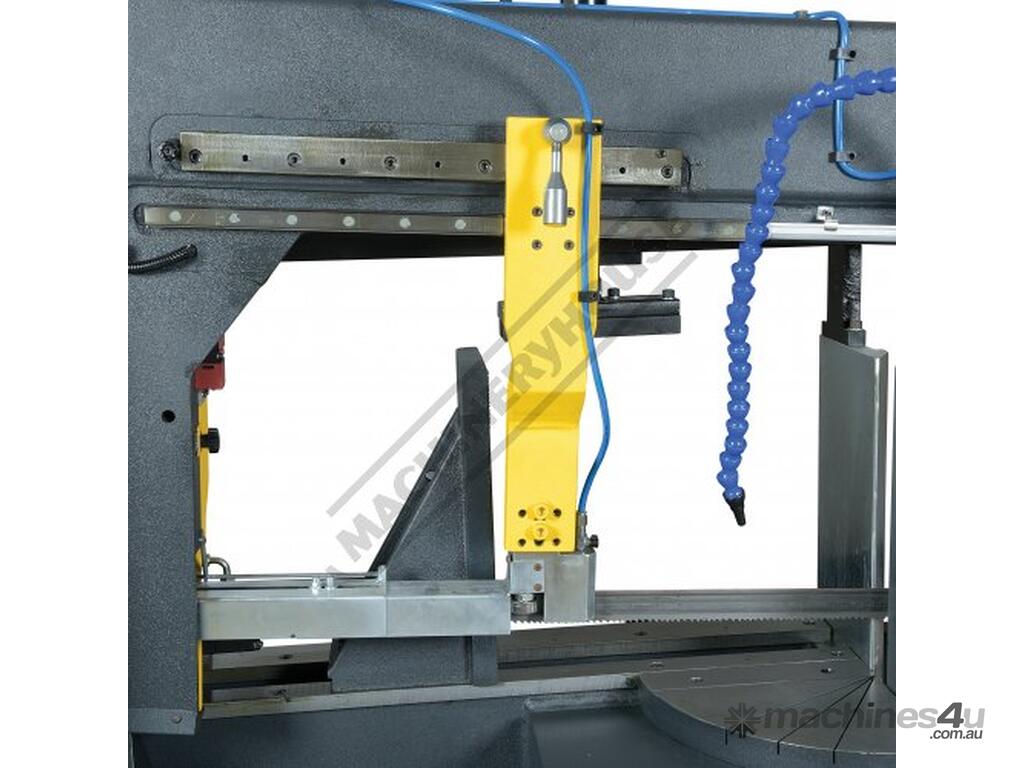

Linear guide ways for improved accuracy

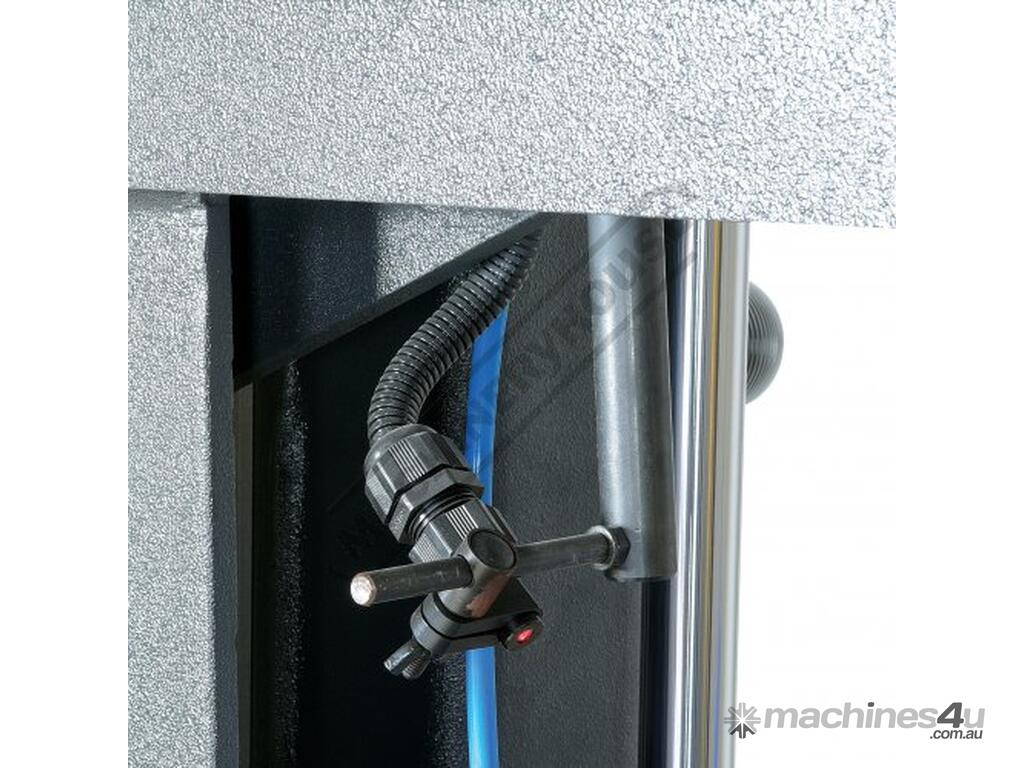

Auto optical material height adjustment

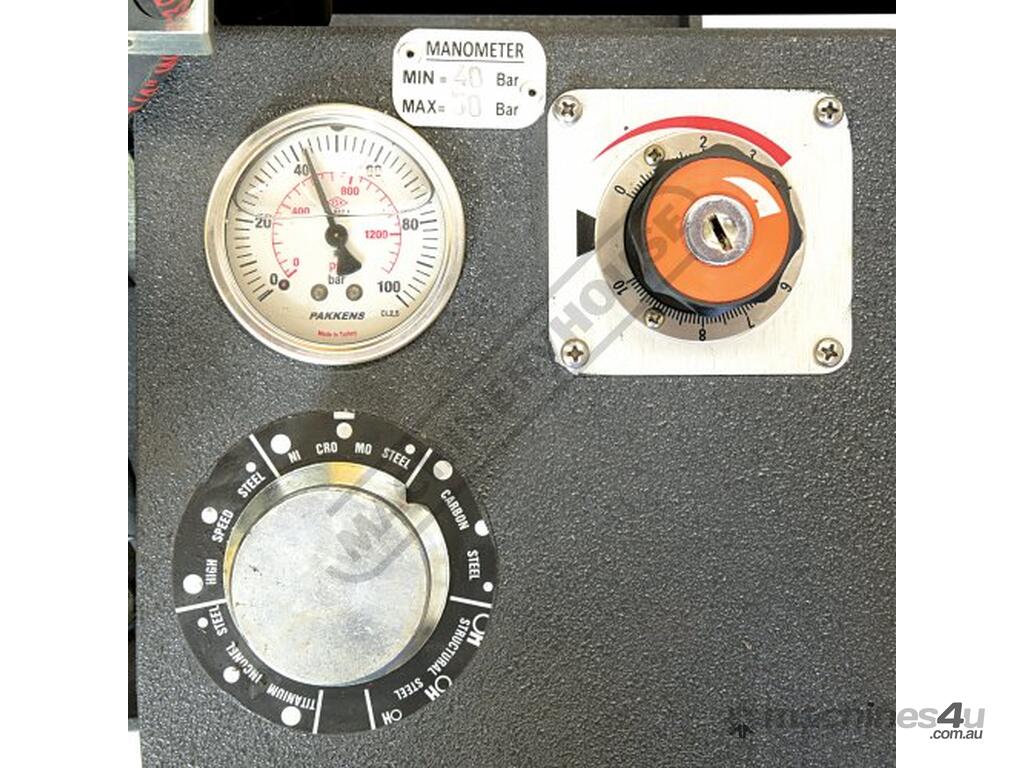

Sensitivity cutting pressure dial

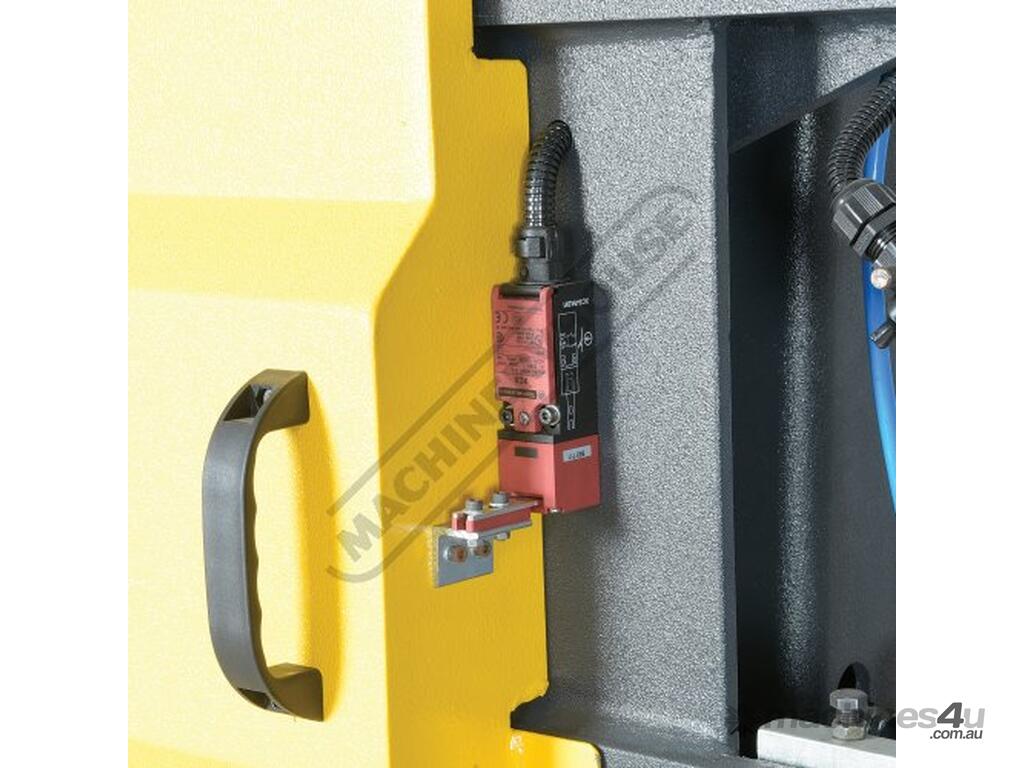

Blade cover safety interlock switches
SITI industrial duty gearbox drive
SAP coolant pump system

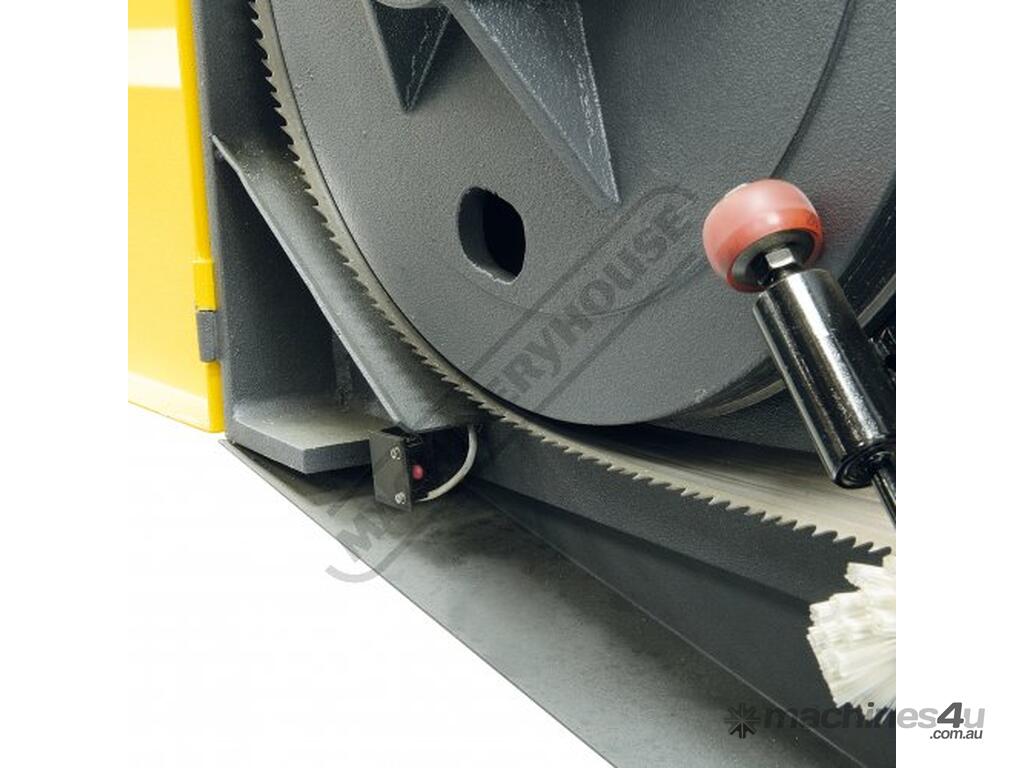

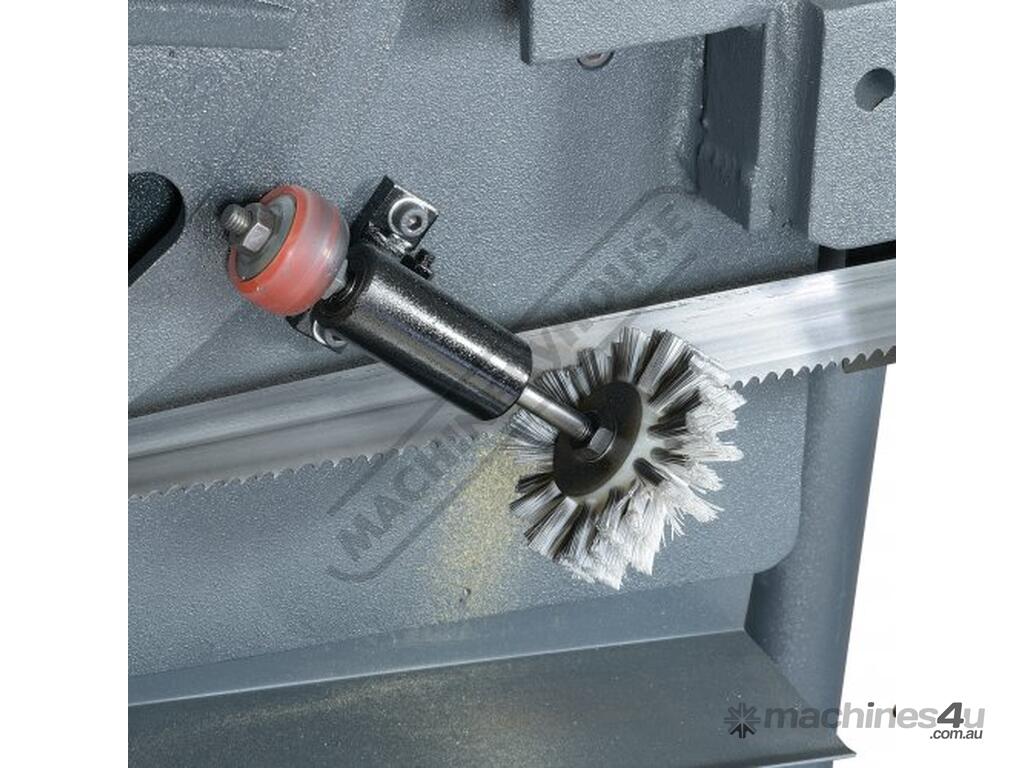

Saw blade cleaning brush
Includes:
- Laser liner material pointer

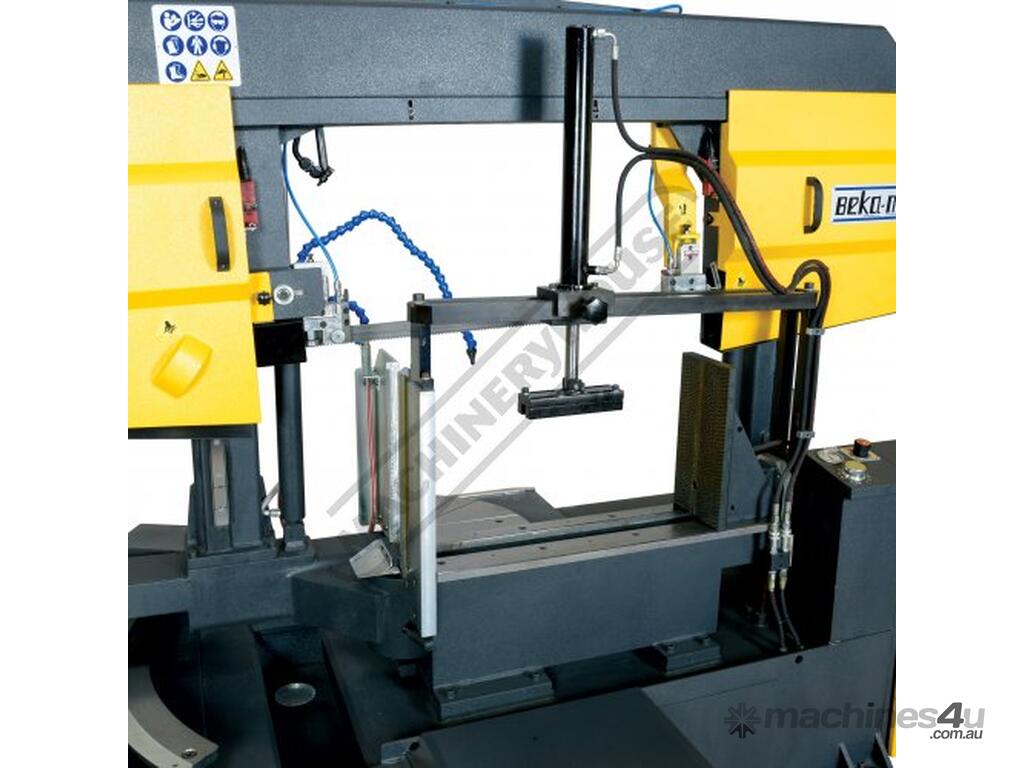

- Hydraulic material top clamp

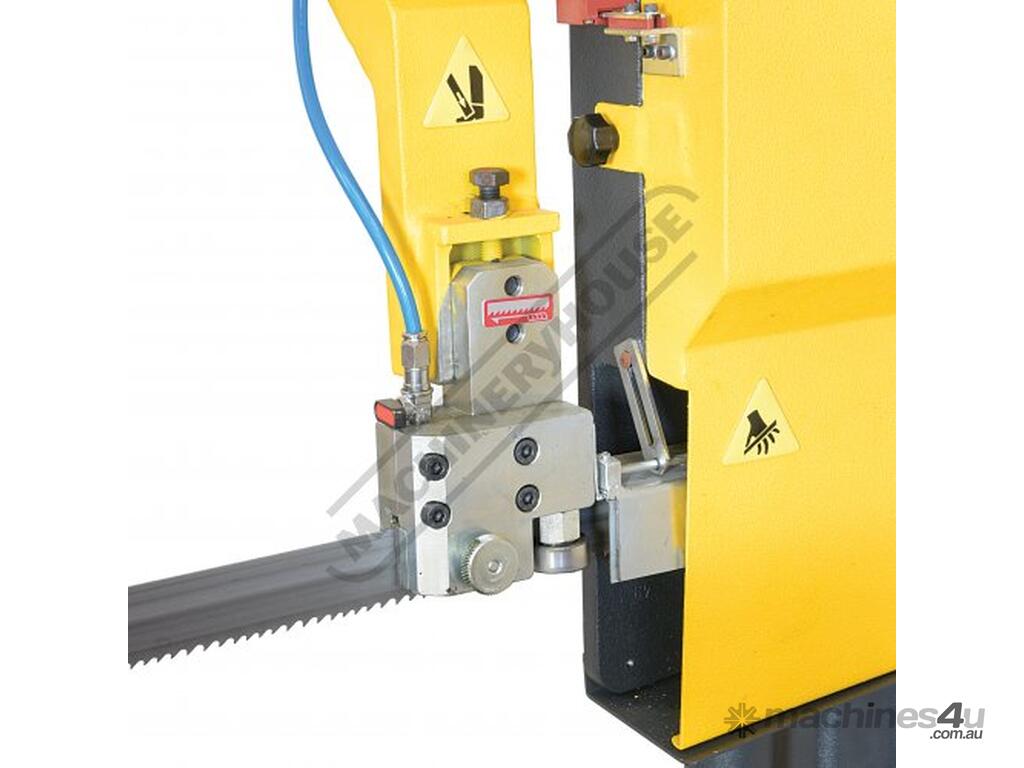

- Hydraulic blade tension device
Specifications:
ORDER CODE: B140
MODEL: BMSY-440-CGH
Operation Type: Swivel Head
Operation Type: Semi - Automatic
Round 90º (mm): 450
Round 45º (mm): 430
Round 60º (mm): 320
Square 90º (mm): 425
Square 45º (mm): 425
Square 60º (mm): 290
Rectangle (W x H) 90º (mm): 695 x 425
Rectangle (W x H) 45º (mm): 430 x 425
Rectangle (W x H) 60º (mm): 260 x 425
Coolant System: Yes
Table Working Height (mm): 690
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: Optional
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 5400 x 41 x 1.3
Motor Power (kW / hp): 4 / 5.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1630
