BMSY-540-CGH Semi Automatic Double Column & Swivel Head Band Saw 750 x 540mm (W x H) Rectangle Capa

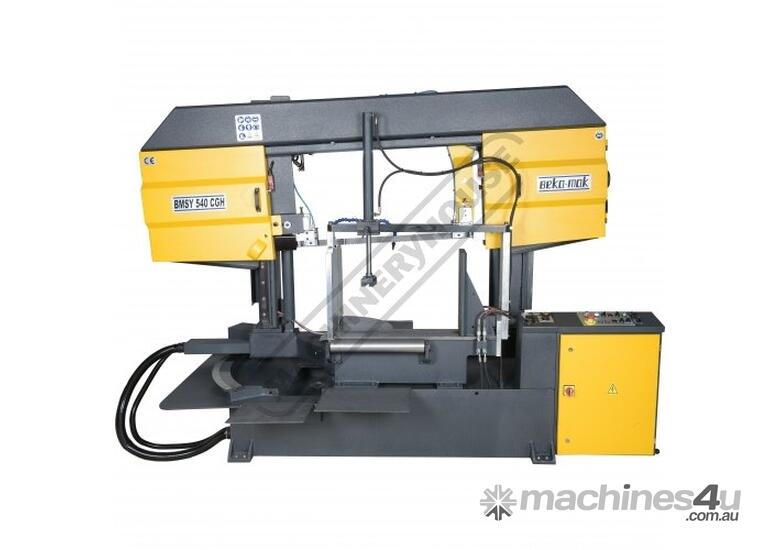

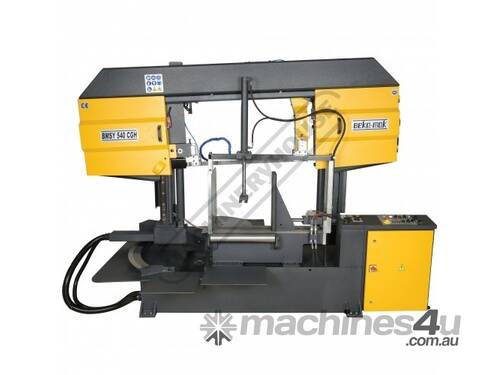

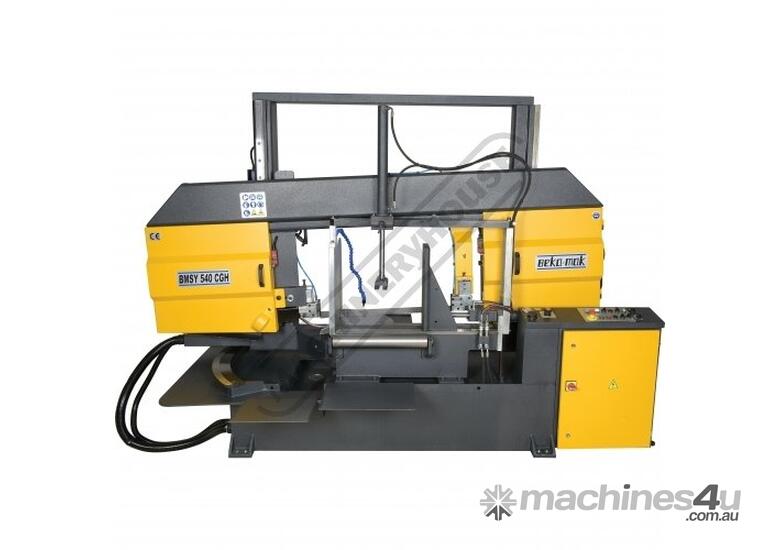

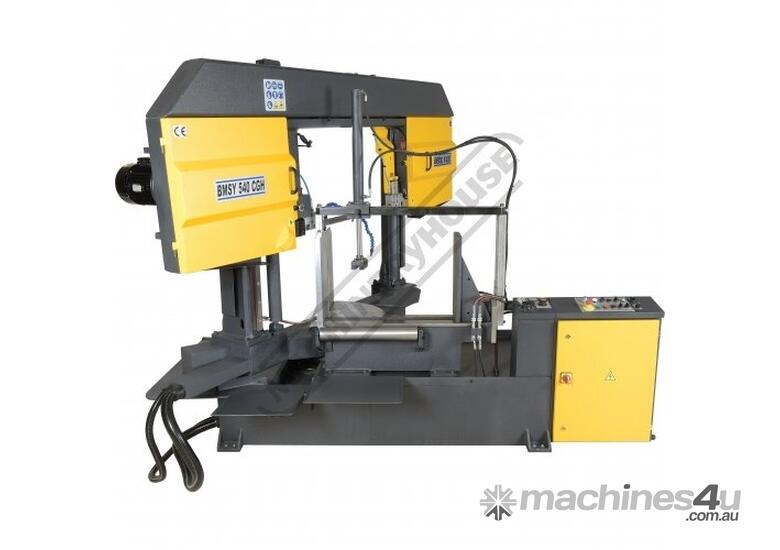

BEKA-MAK BMSY-540-CGH Semi Automatic Double Column & Swivel Head Band Saw 750 x 540mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B141

Manufactured in Turkey

BMSY-540-CGH SWIVEL HEAD, DOUBLE COLUMN, METAL CUTTING BAND SAW (415V)

Features:
Swivel head for mitre cutting up to 60º
2º blade incline for improved cutting
Inverter variable blade speed control
Material height sensor for beam to rapid down and start cut feed rate when reached material
Digital readout display for accurate mitre cutting
Head mitre hydraulic brake locking system
Linear guide ways for improved accuracy
500mm high vice jaws for increased clamping area
Auto optical material height adjustment
Sensitivity cutting pressure dial
Blade cover safety interlock switches
SITI industrial duty gearbox drive
SAP coolant pump system
Saw blade cleaning brush

Includes:
- Laser liner material pointer
- Hydraulic material top clamp
- Hydraulic blade tension device



Specifications:
ORDER CODE: B141
MODEL: BMSY-540-CGH
Operation Type: Swivel Head
Operation Type: Semi - Automatic
Round 90º (mm): 540
Round 45º (mm): 510
Round 60º (mm): 270
Square 90º (mm): 540
Square 45º (mm): 450
Square 60º (mm): 250
Rectangle (W x H) 90º (mm): 750 x 540
Rectangle (W x H) 45º (mm): 450 x 540
Rectangle (W x H) 60º (mm): 250 x 540
Coolant System: Yes
Table Working Height (mm): 695
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: Optional
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 6000 x 41 x 1.3
Motor Power (kW / hp): 4 / 5.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2445
