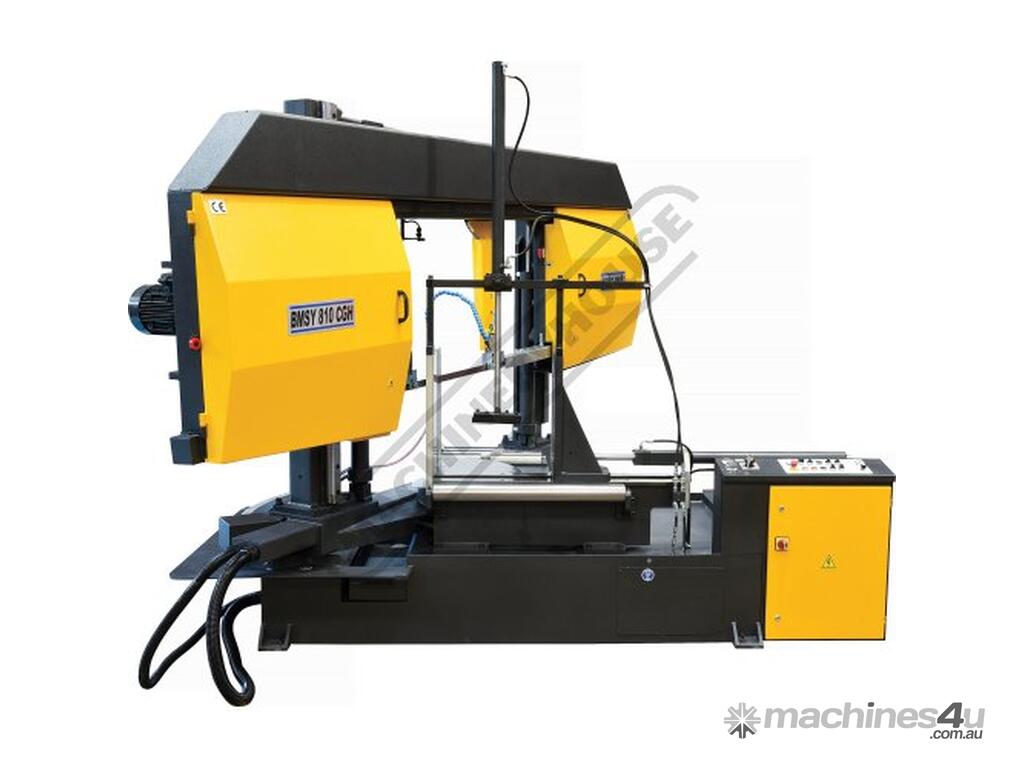

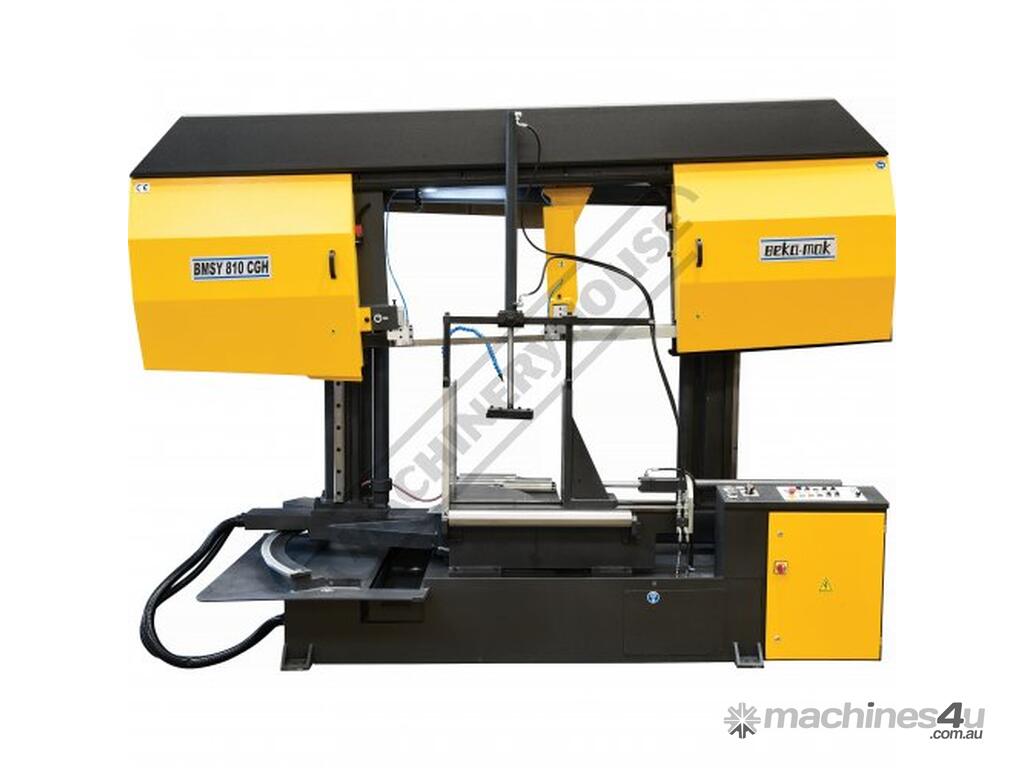

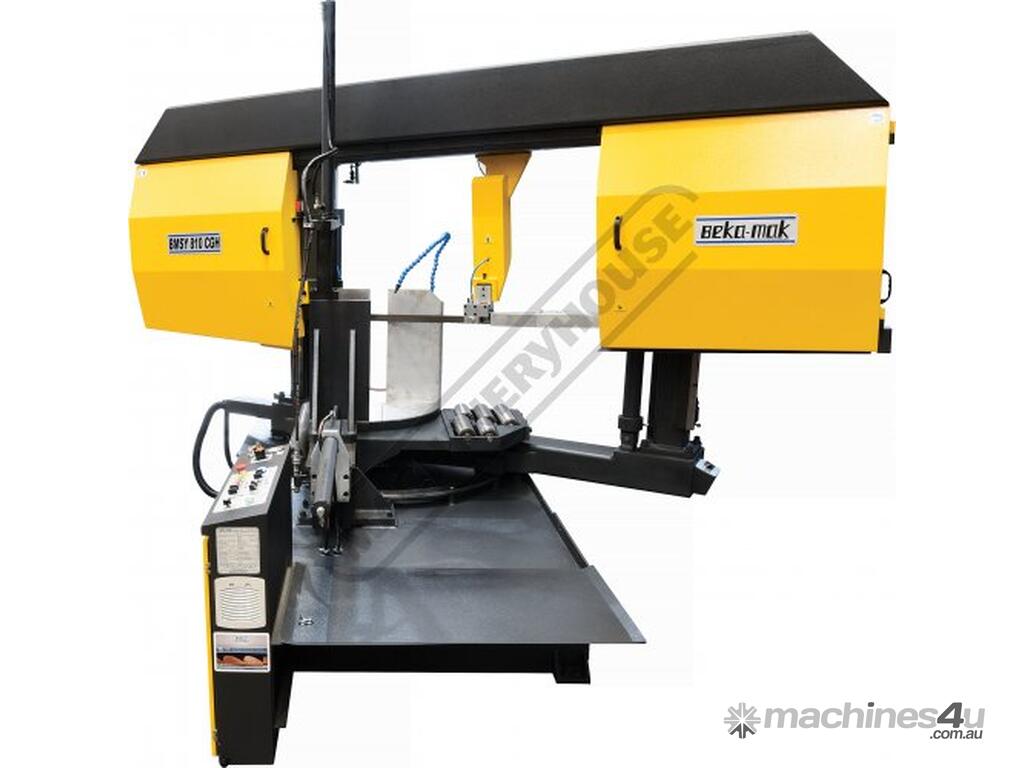

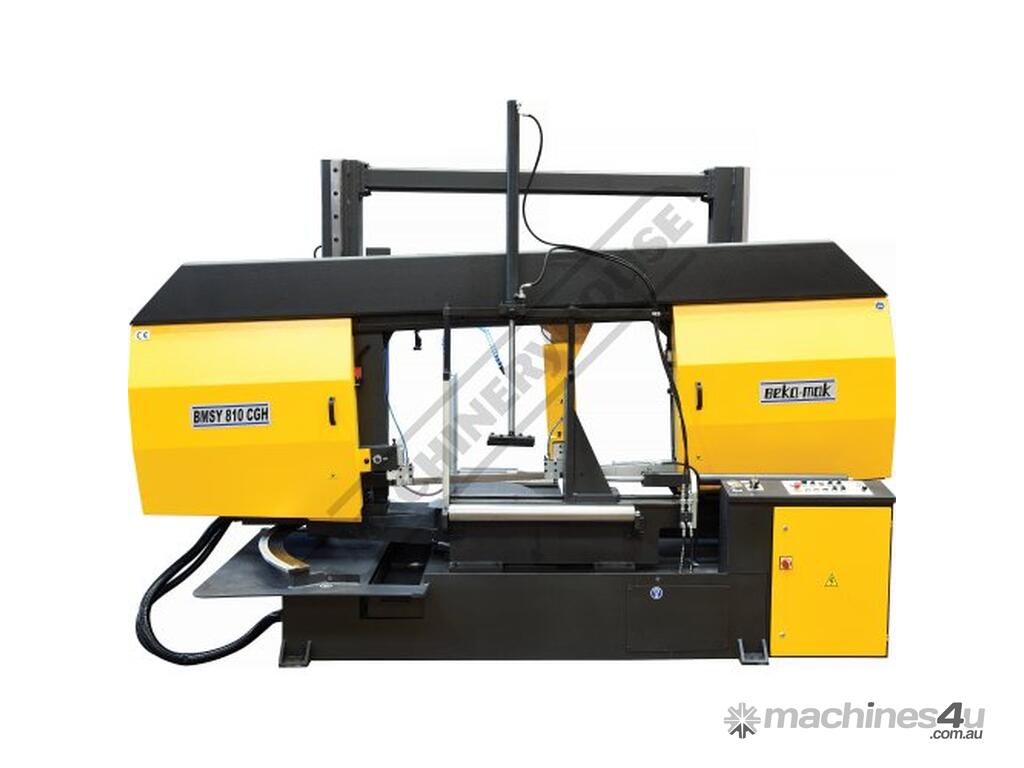

BEKA-MAK BMSY-810-CGH Semi Automatic Double Column & Swivel Head Band Saw 910 x 750mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B142
Manufactured in Turkey
BMSY-810-CGH SWIVEL HEAD, DOUBLE COLUMN, METAL CUTTING BAND SAW (415V)
Features:

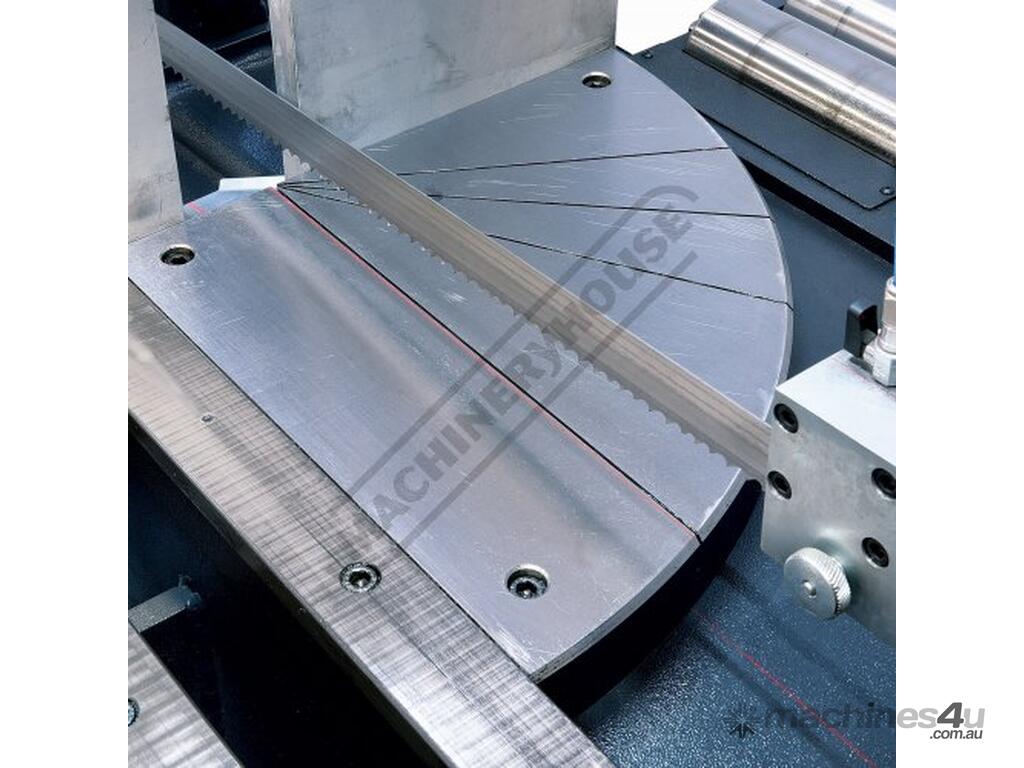

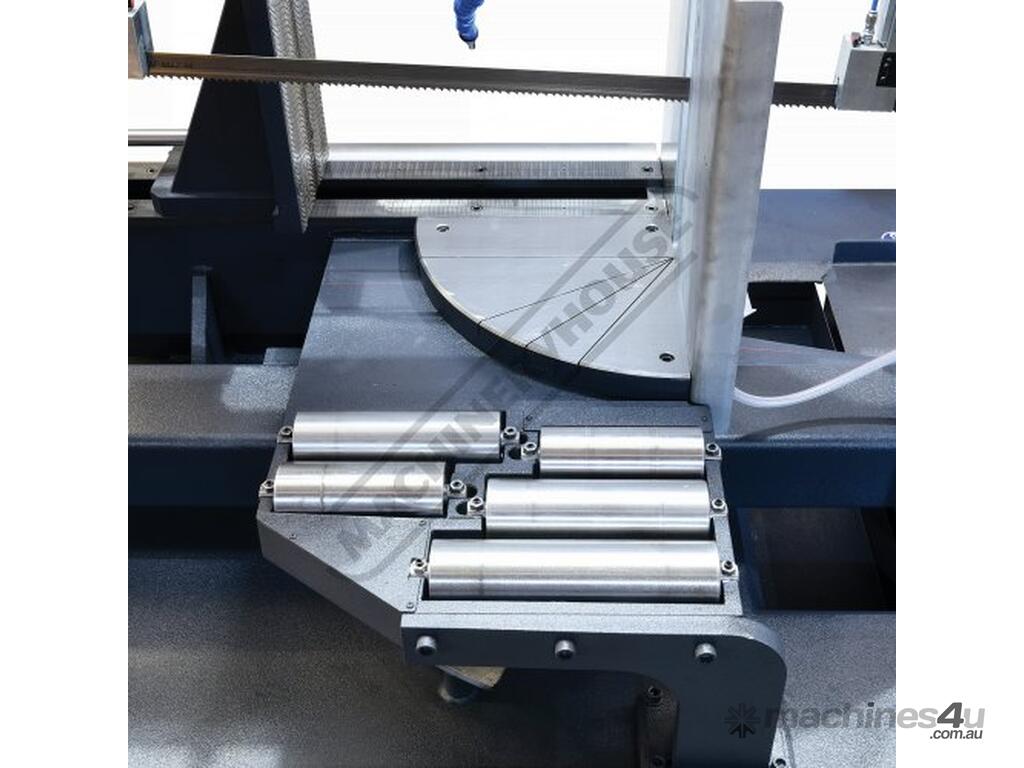

Swivel head for mitre cutting up to 60º
2º blade incline for improved cutting
Inverter variable blade speed control
Material height sensor for beam to rapid down and start cut feed rate when reached material
Digital readout display for accurate mitre cutting
Head mitre hydraulic brake locking system

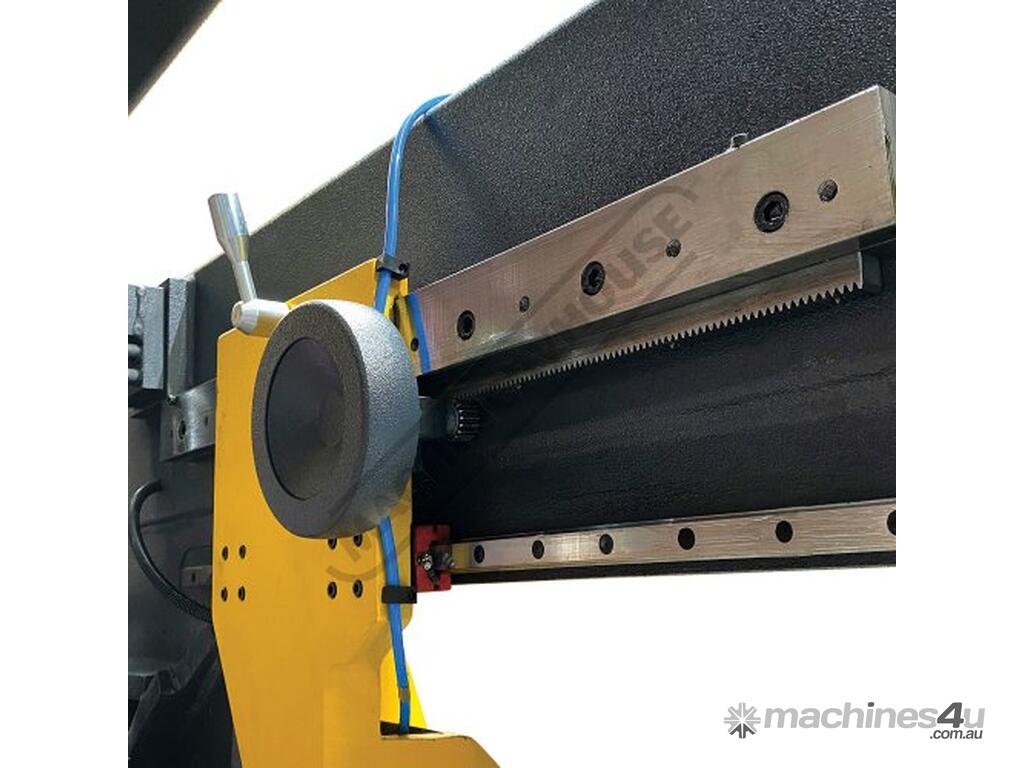

Linear guide ways for improved accuracy
600mm high vice jaws for increased clamping area
Auto optical material height adjustment

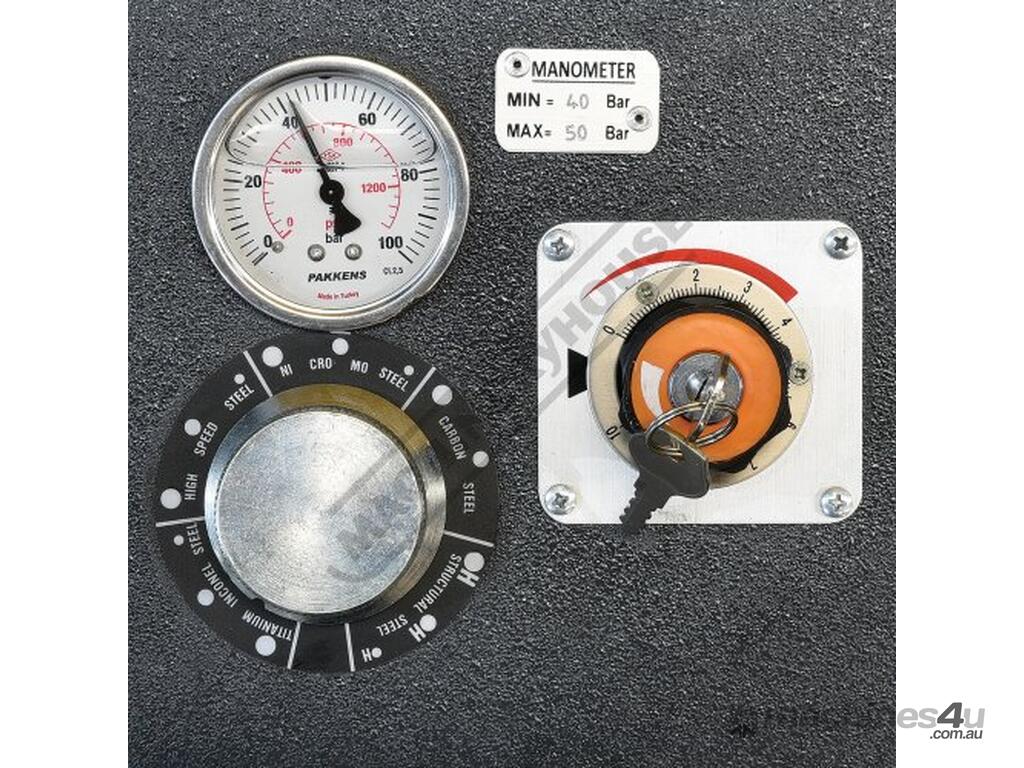

Sensitivity cutting pressure dial

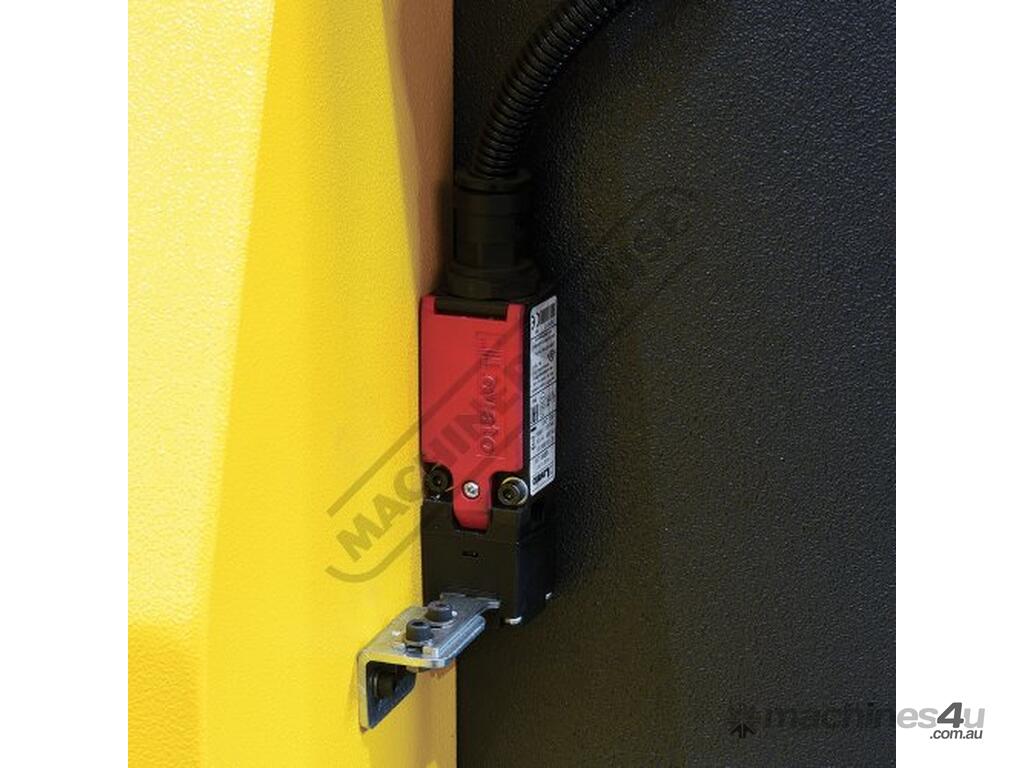

Blade cover safety interlock switches

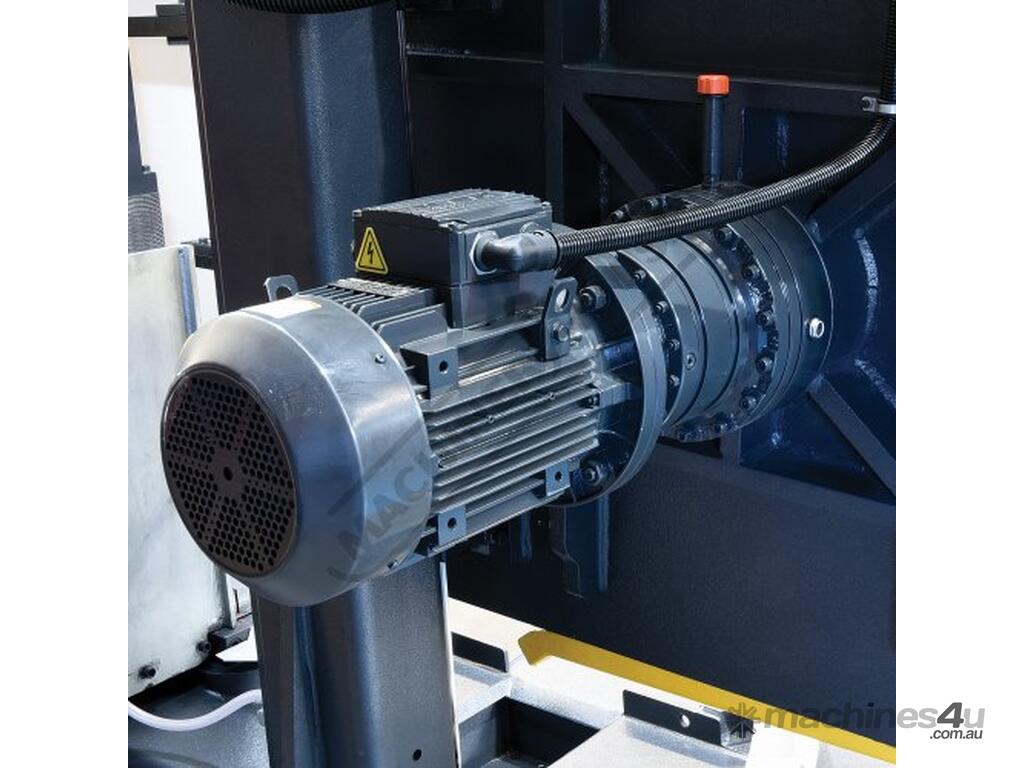

SITI industrial duty gearbox drive

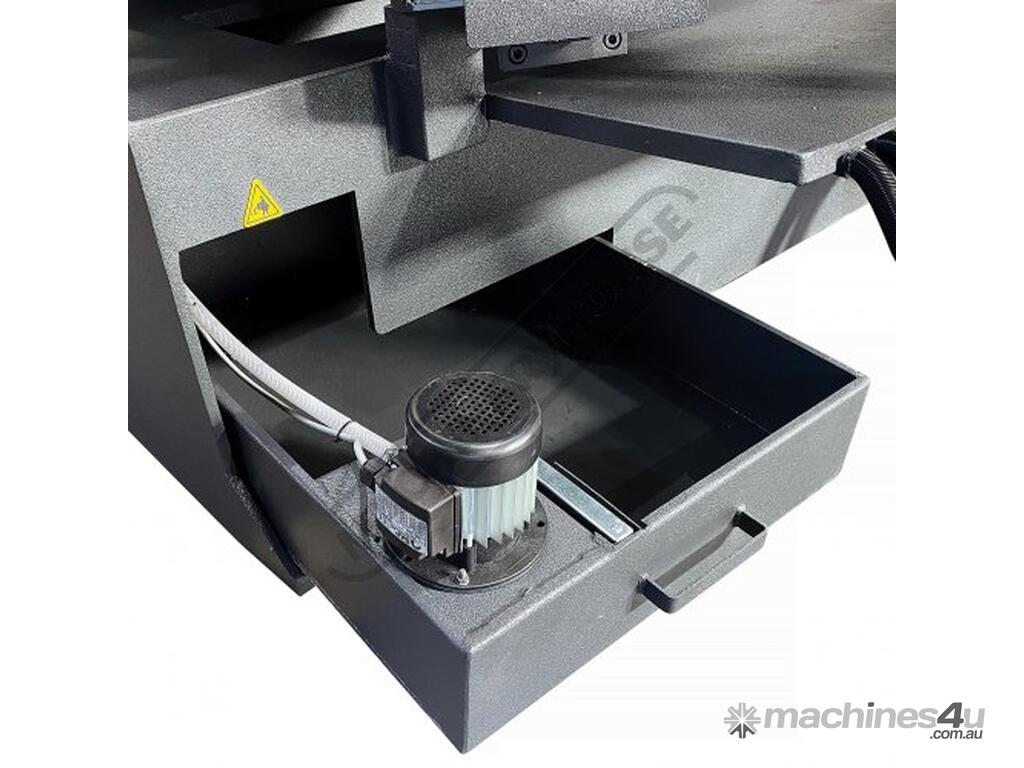

SAP coolant pump system

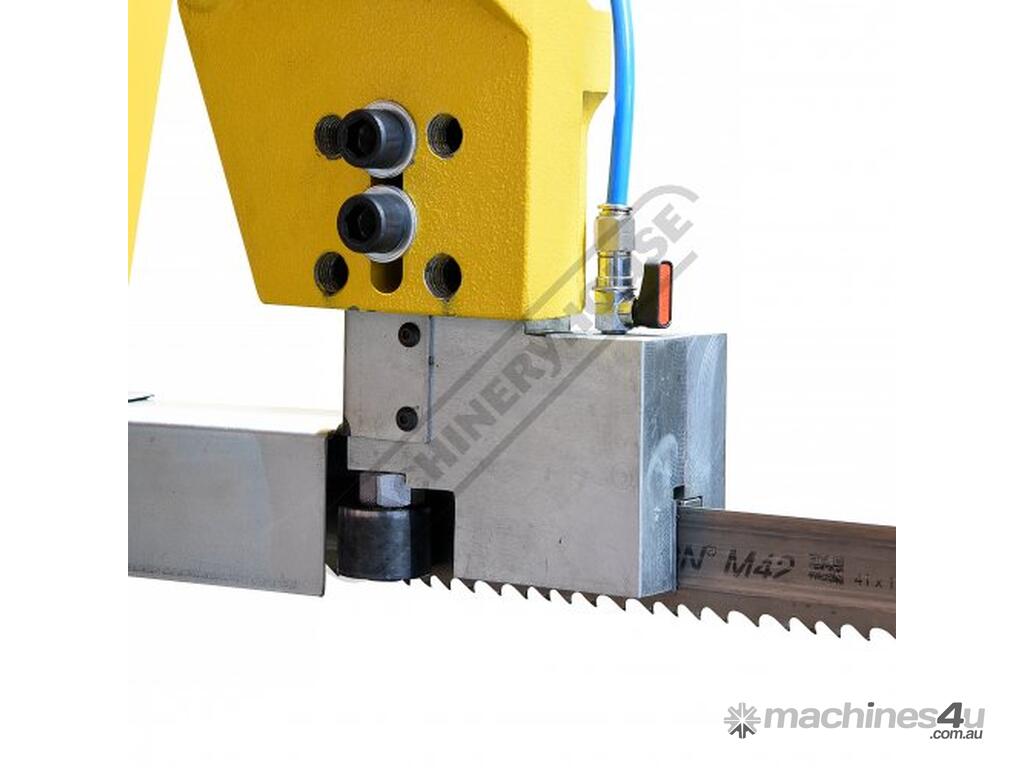

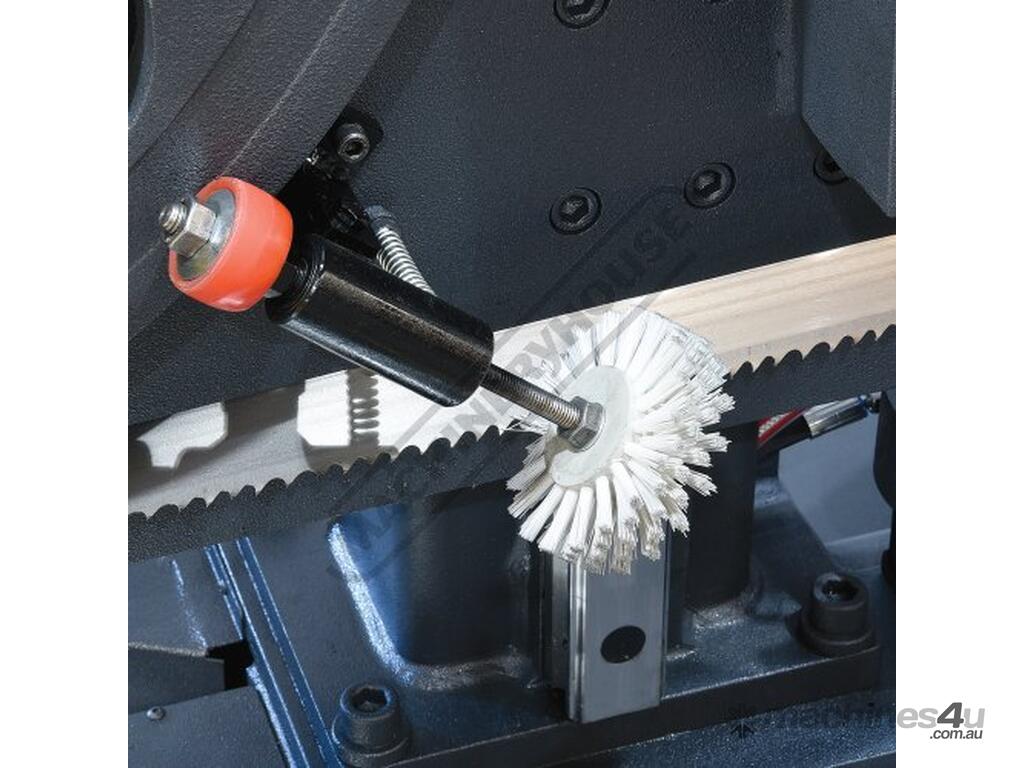

Saw blade cleaning brush
Includes:

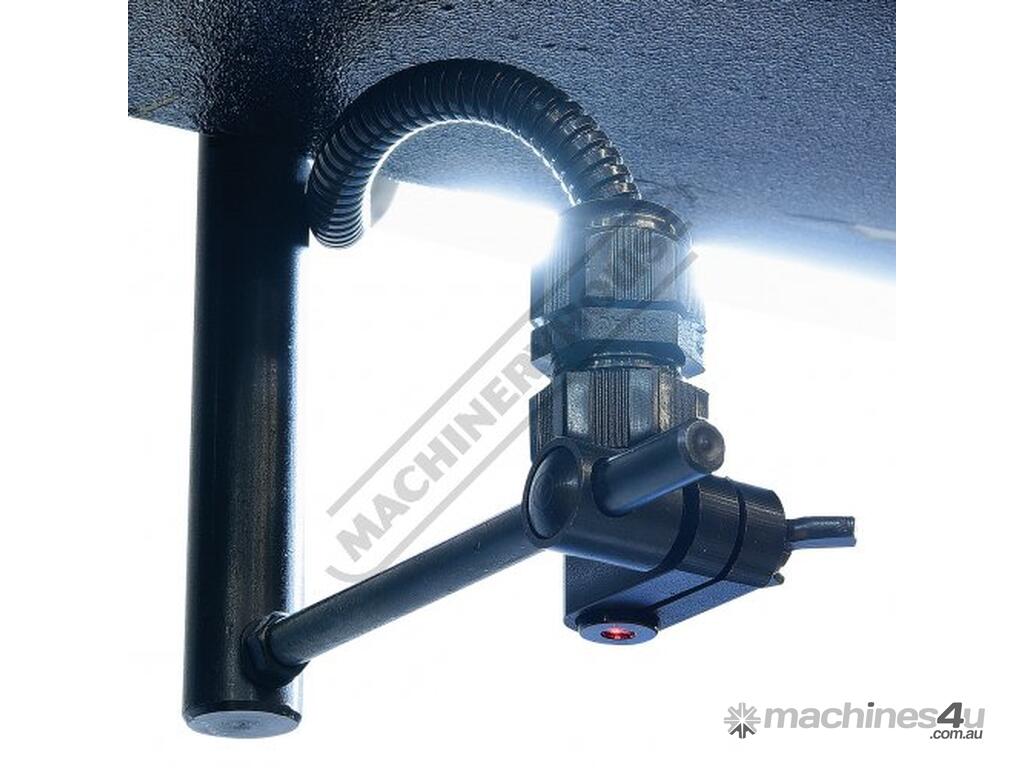

- Laser liner material pointer

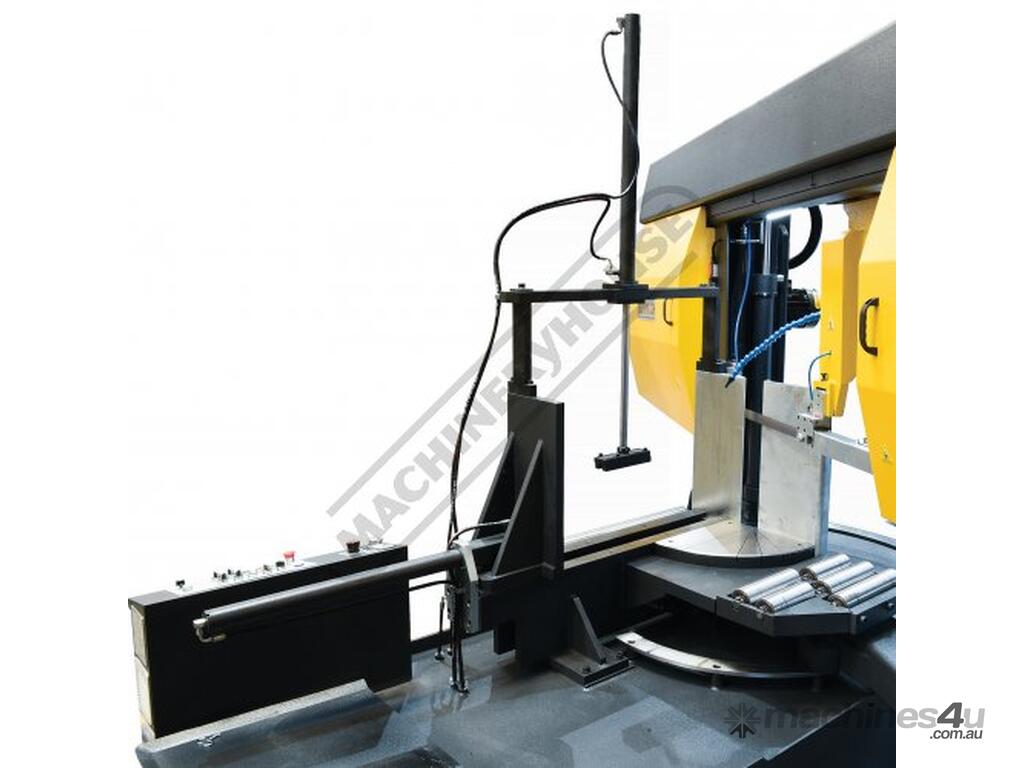

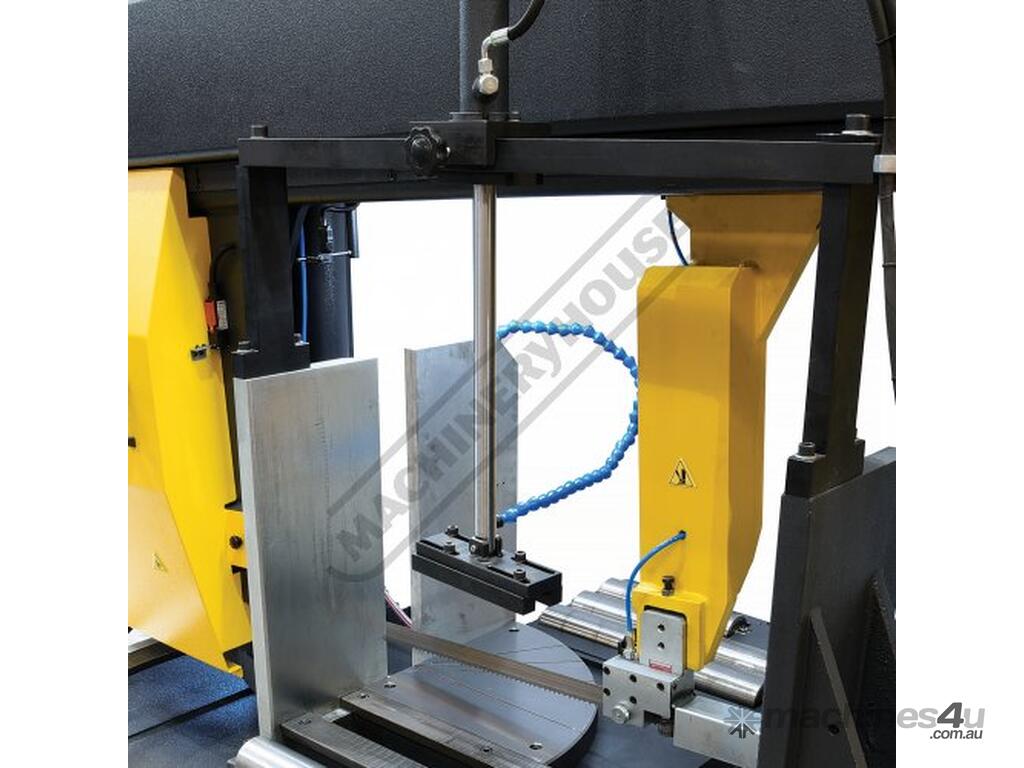

- Hydraulic material top clamp

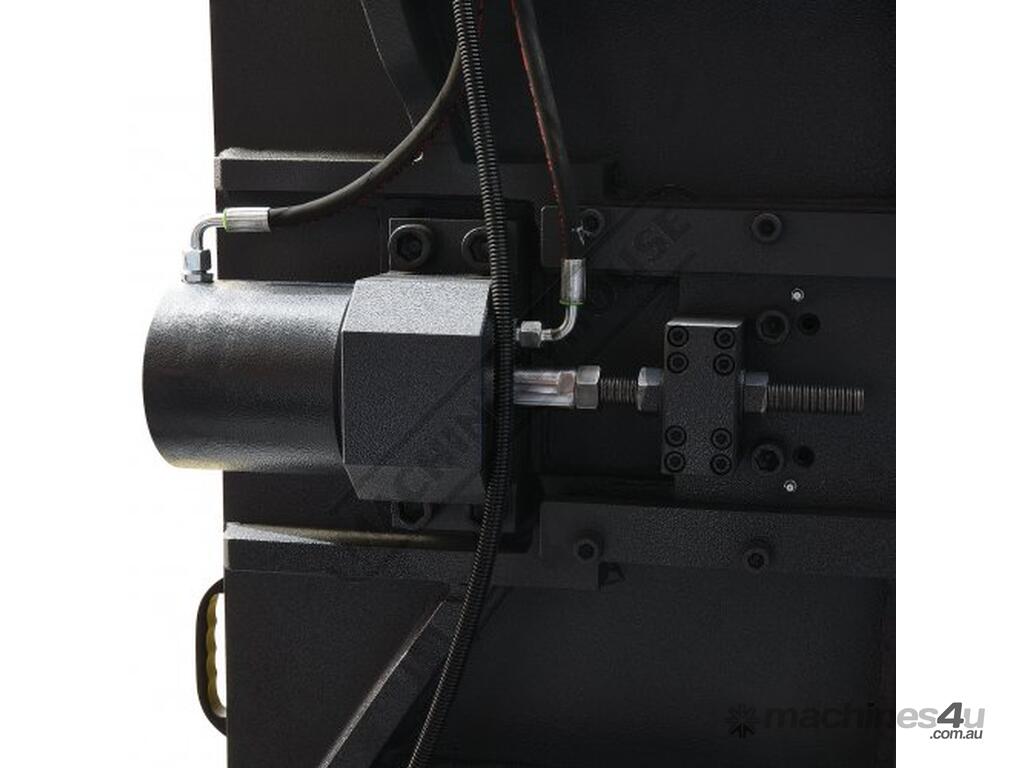

- Hydraulic blade tension device
Specifications:
ORDER CODE: B142
MODEL: BMSY-810-CGH
Operation Type: Swivel Head
Operation Type: Semi - Automatic
Round 90º (mm): 810
Round 45º (mm): 555
Round 60º (mm): 320
Square 90º (mm): 770
Square 45º (mm): 555
Square 60º (mm): 310
Rectangle (W x H) 90º (mm): 910 x 750
Rectangle (W x H) 45º (mm): 600 x 750
Rectangle (W x H) 60º (mm): 360 x 750
Coolant System: Yes
Table Working Height (mm): 725
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: Optional
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 8450 x 41 x 1.3
Motor Power (kW / hp): 4 / 5.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 4050
