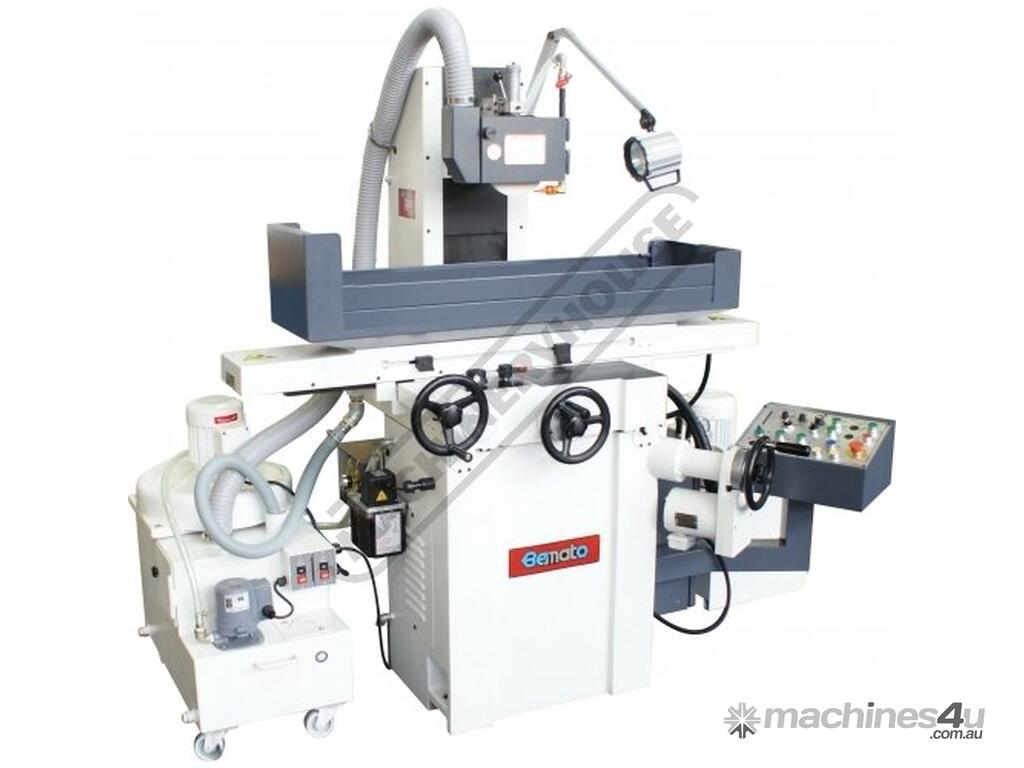

BMT-2045AH Precision Hydraulic Surface Grinder 500 x 235mm Table Travel

BEMATO BMT-2045AH Precision Hydraulic Surface Grinder 500 x 235mm Table Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G243

Manufactured in Taiwan

NOTE: Larger models also available on special order request

Features:
Spindle contains P4 grade pre-loaded precision angular contact bearings. The spindle and motor are dynamically balanced
V-way slides are coated with Turcite-B to minimise friction between slides.

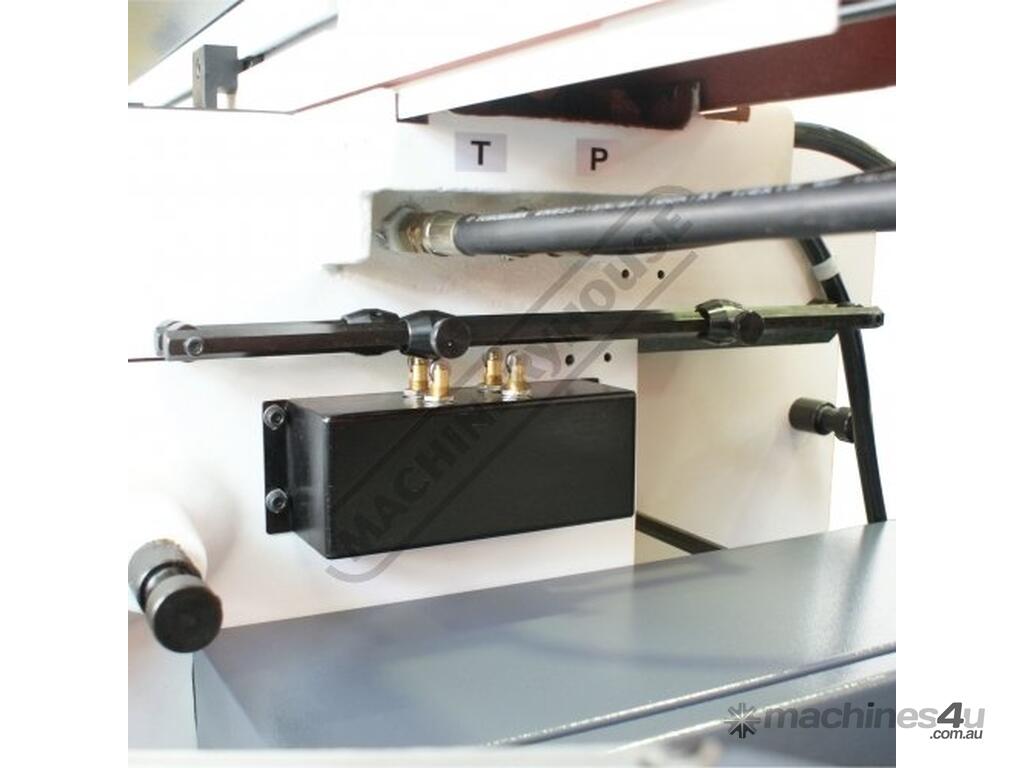

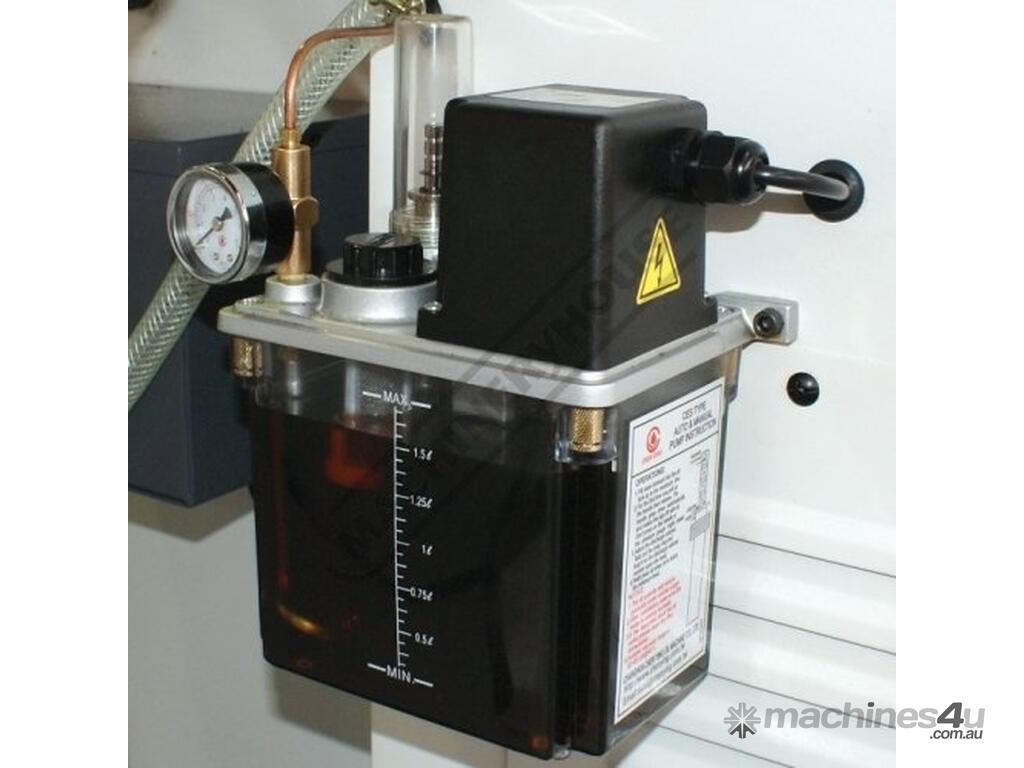

Automatic pressure lubrication system to slide-ways and screws with timer adjustment providing optimum machine conditions
High-tensile ribbed cast iron base and column tempered and stress relieved for maximum rigidity and minimum vibration
Design and quality assurance exceeds DIN JIS and ISO standards

Includes:

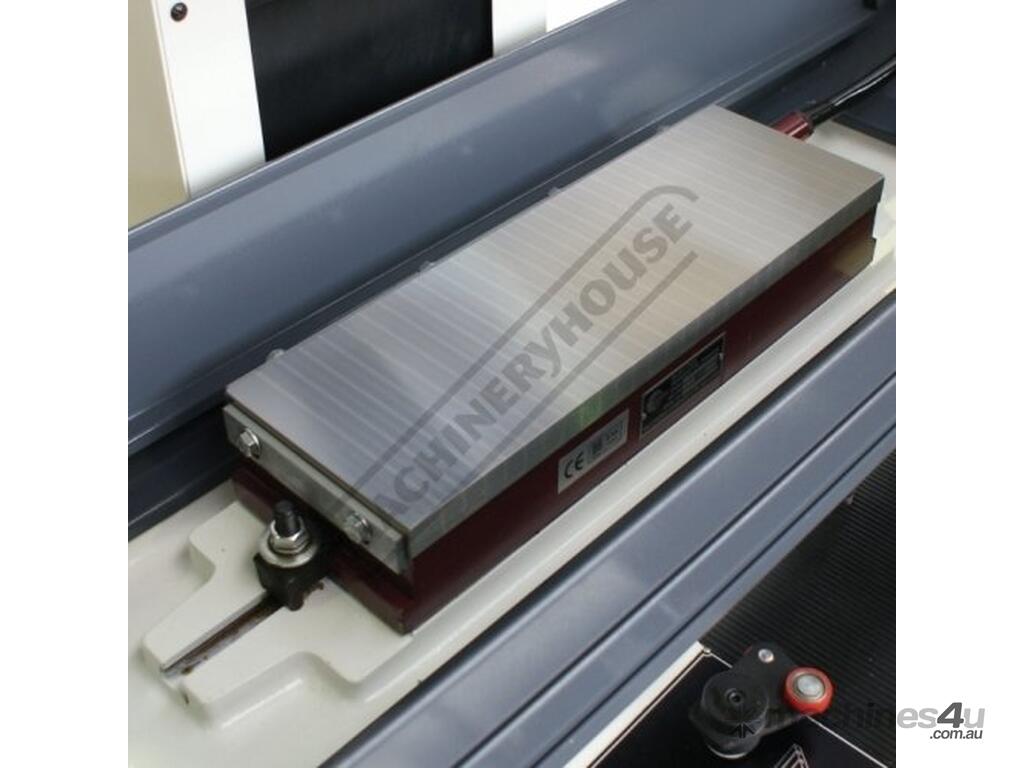

- Electromagnetic chuck with demagnetise

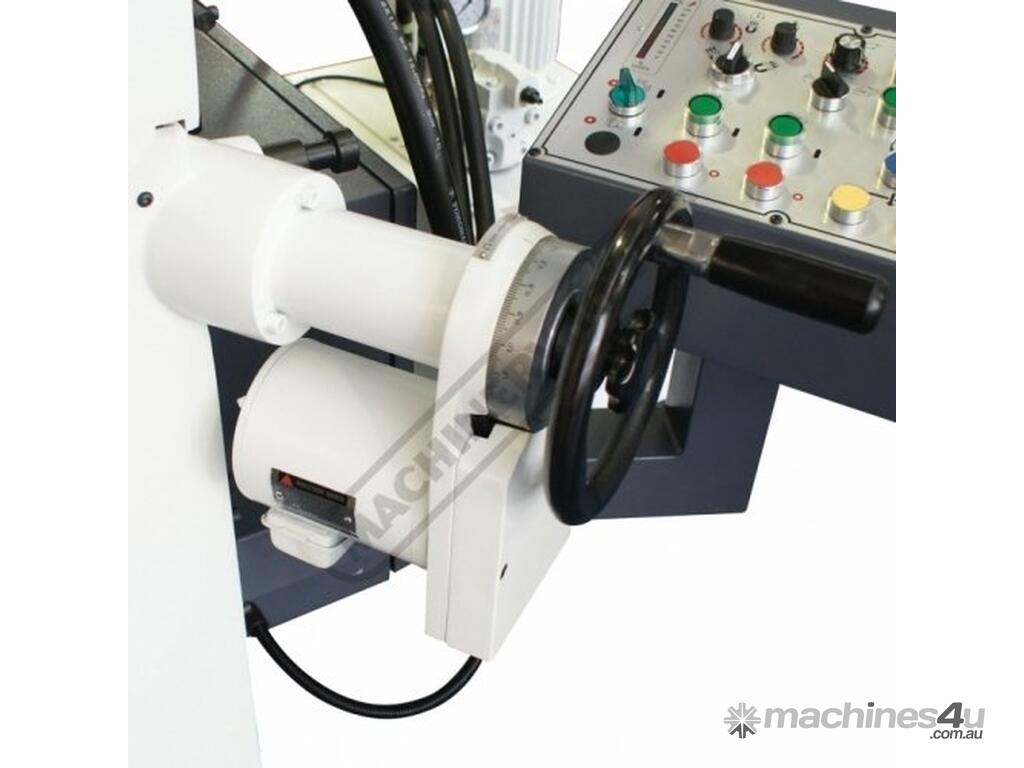

- Rapid vertical up/down feed
- Balancing arbor
- Balancing stand

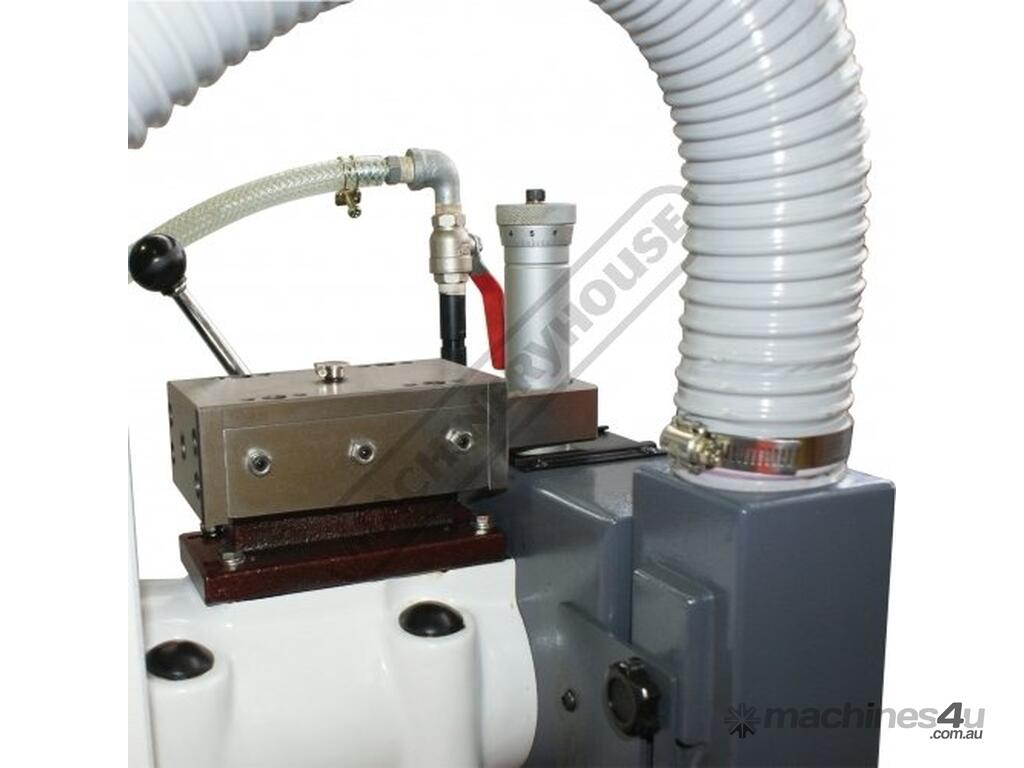

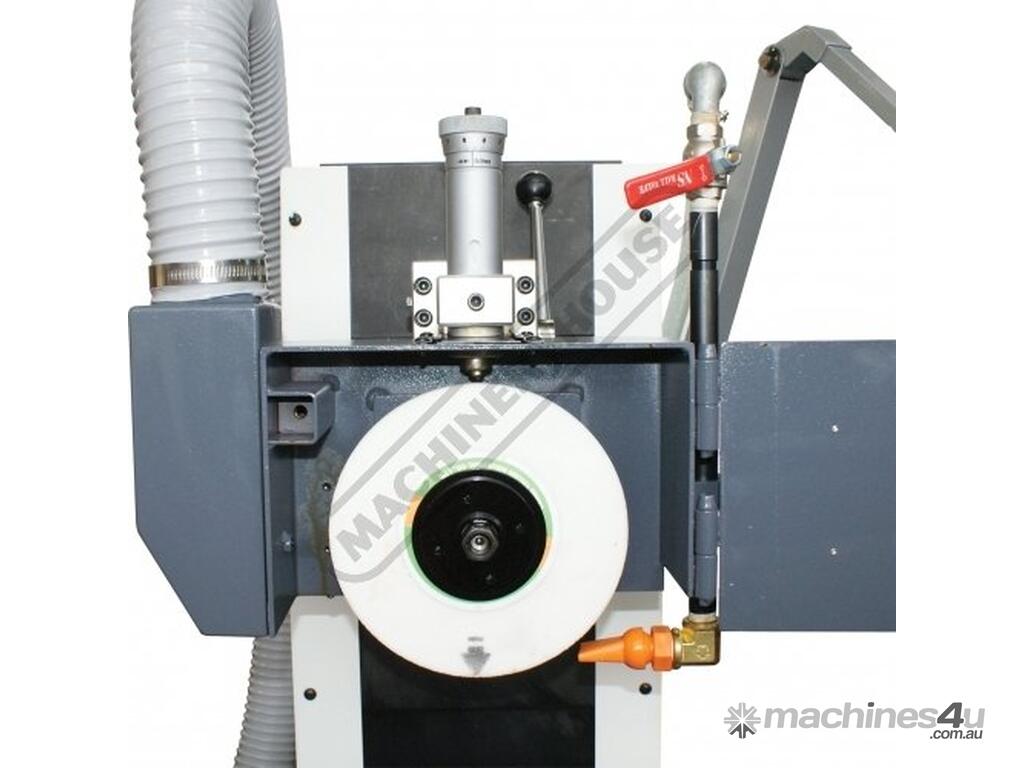

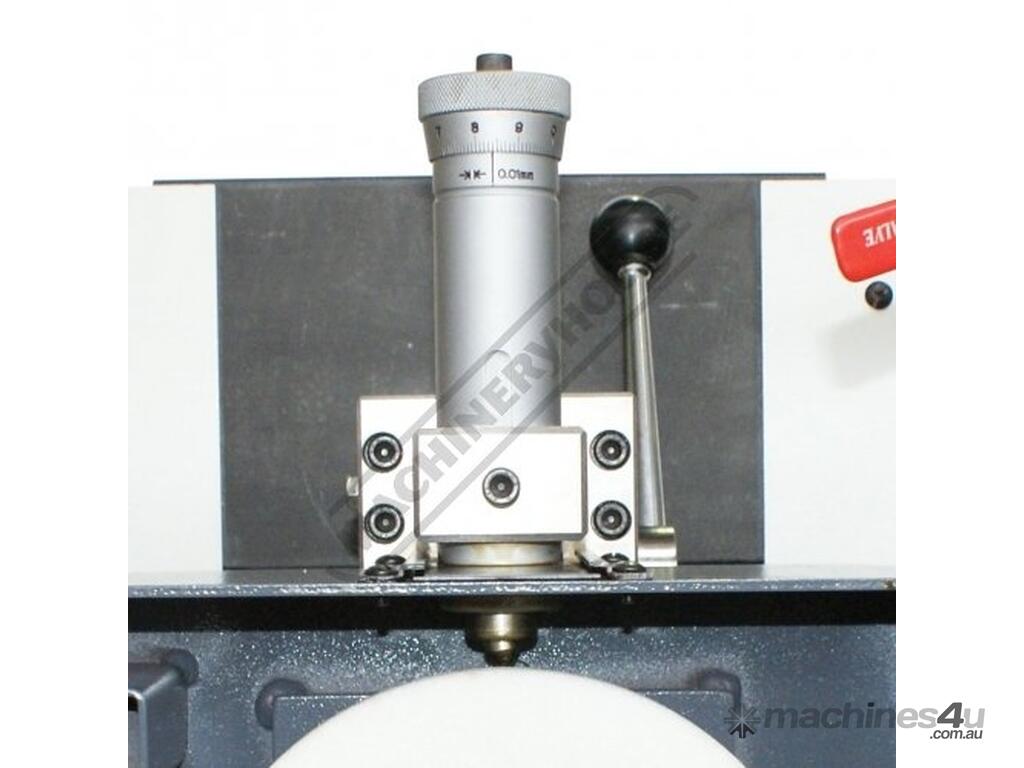

- Parallel wheel dresser

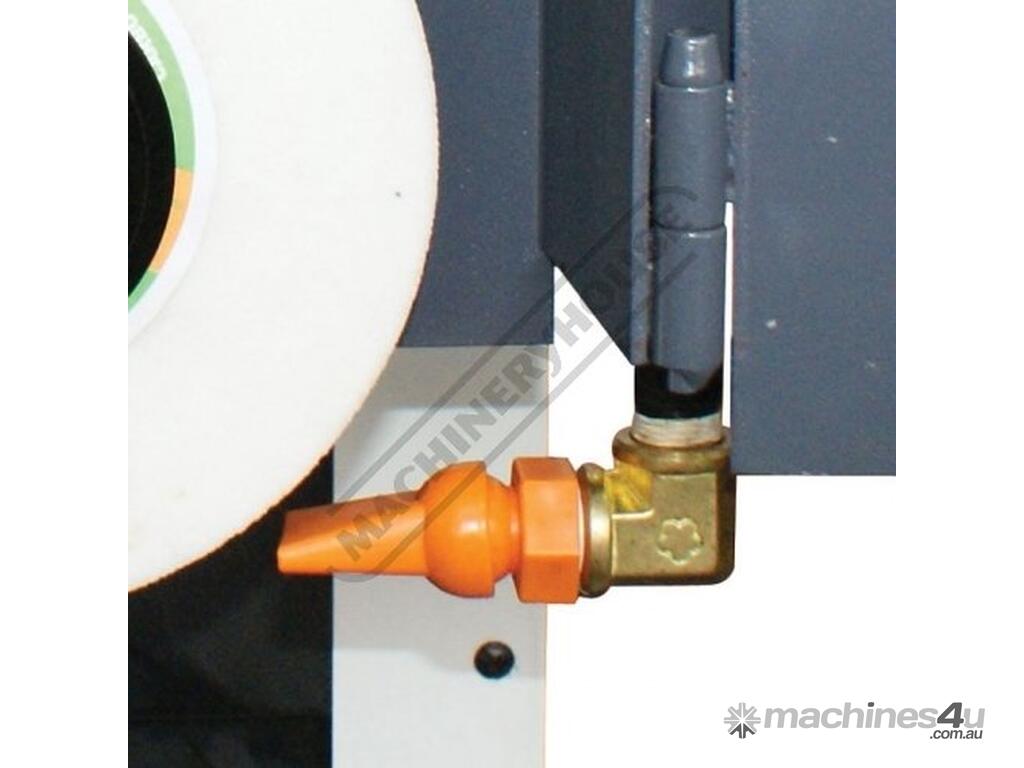

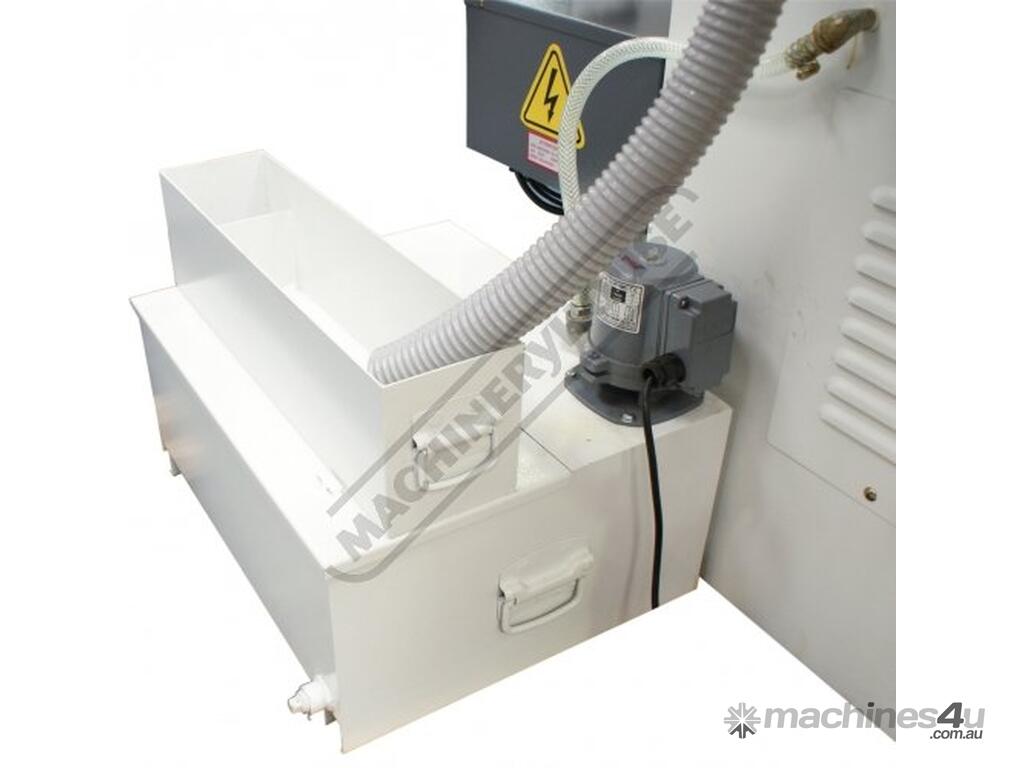

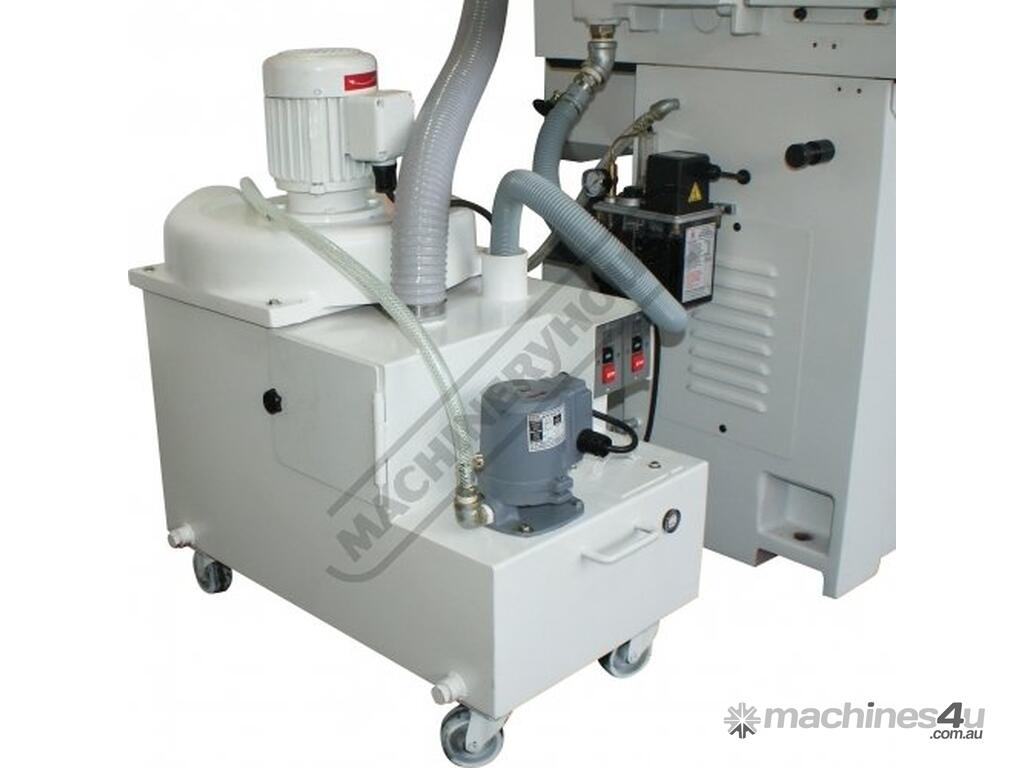

- Coolant system
- Wheel flange

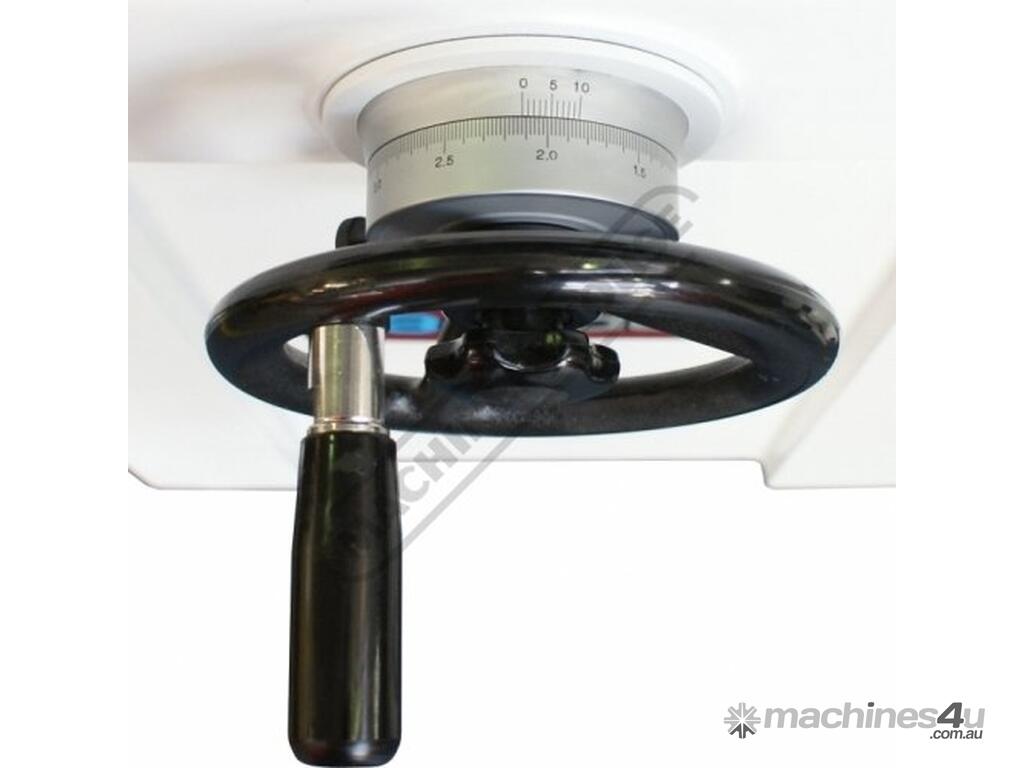

- Vertical micro feed

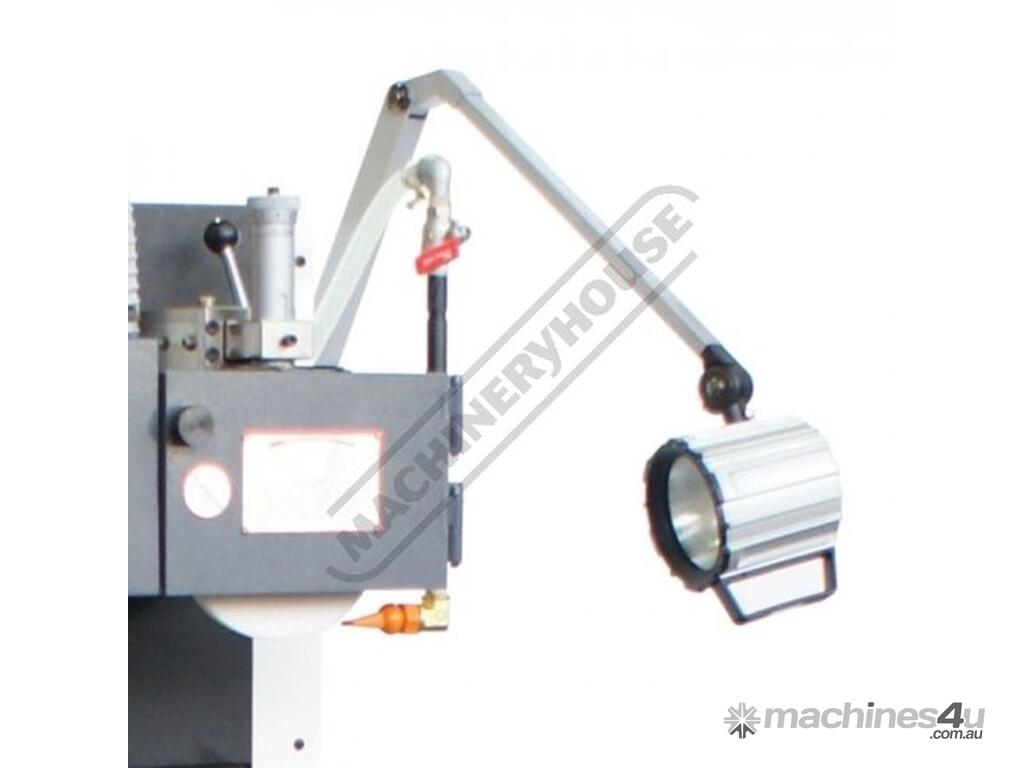

- Work light



Specifications:
ORDER CODE: G243
MODEL: BMT-2045AH
AD5 Controller: ~
Magnetic Chuck Size (mm): 450 x 200
Longitudinal Table Traverse - Maximum (mm): 500
Cross Table Traverse - Maximum (mm): 235
Table Bed Size (mm): ~
Spindle To Table - Maximum (mm): 450
Wheel Diameter (mm): 205
Vertical Increment Graduations (mm): 0.01
Vertical Graduations Per Revolution (mm/rev): 2
Cross Increment Graduations (mm): 0.02
Cross Graduations Per Revolution (mm/rev): 5
Spindle Motor (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1150
