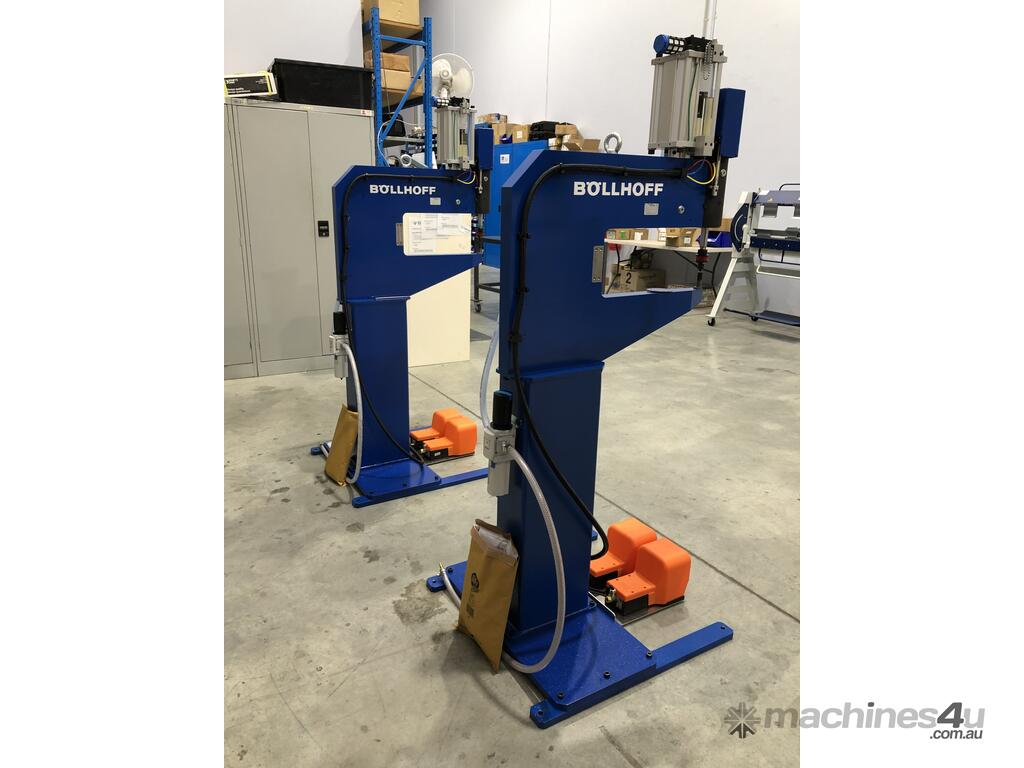

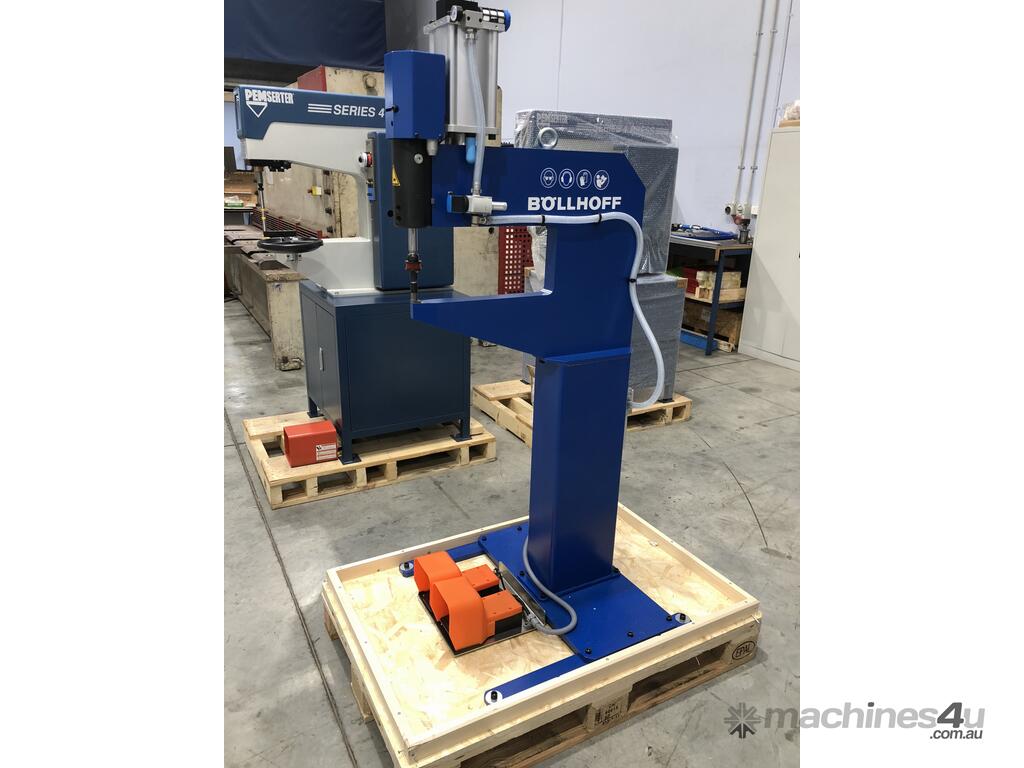

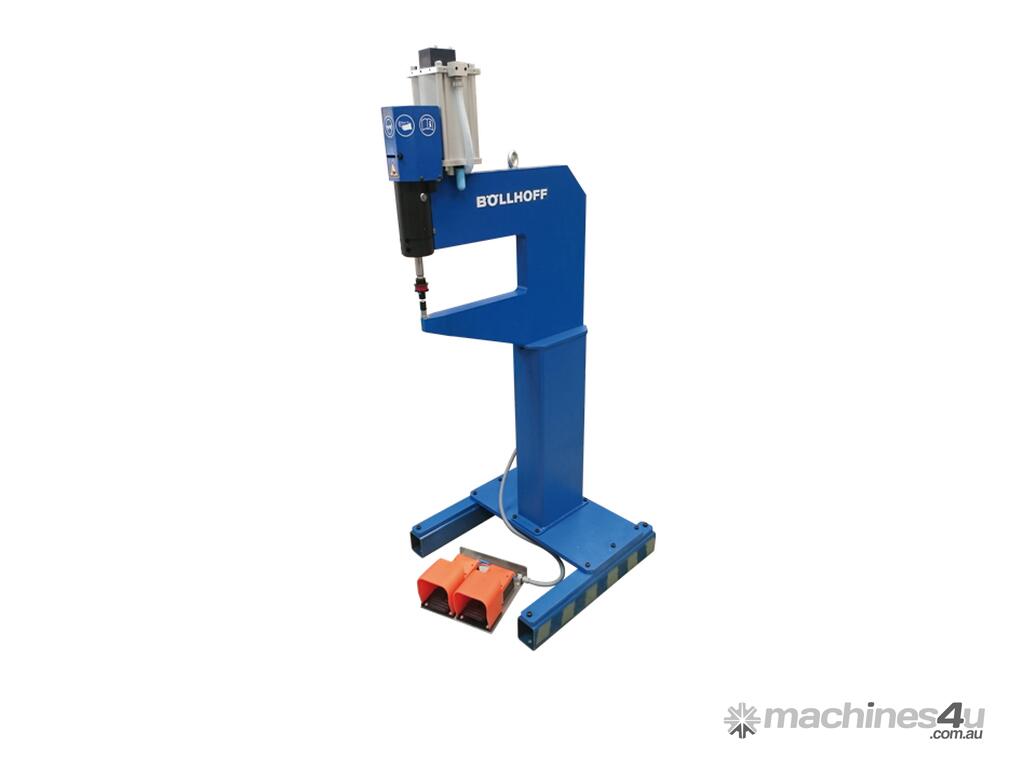

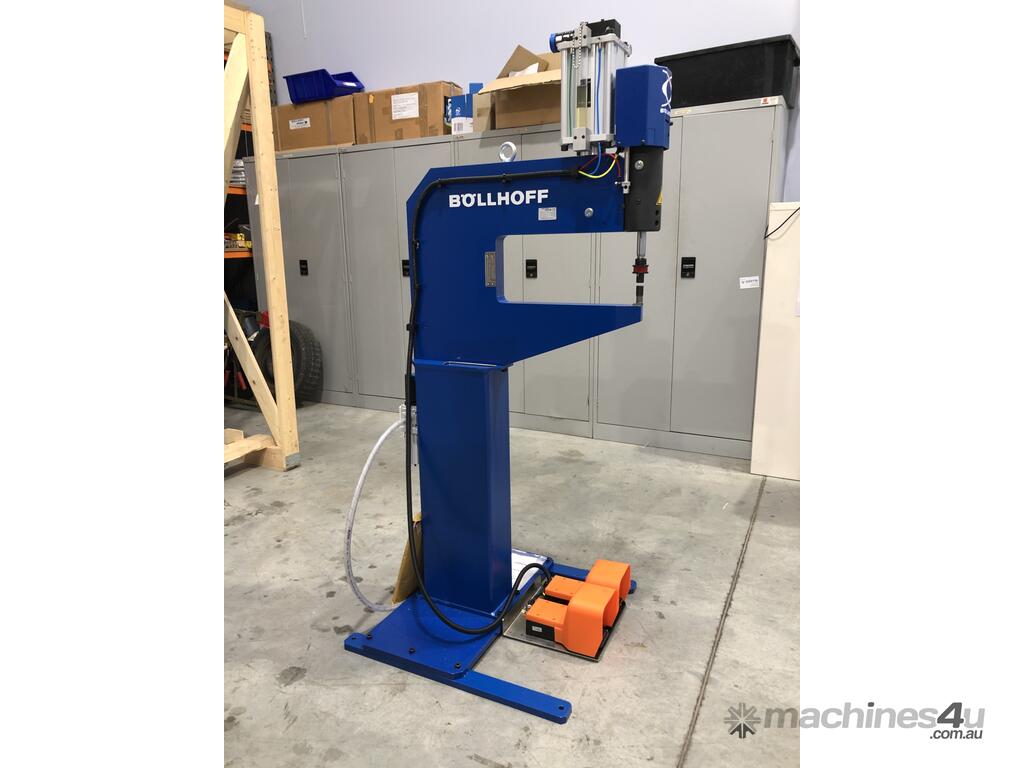

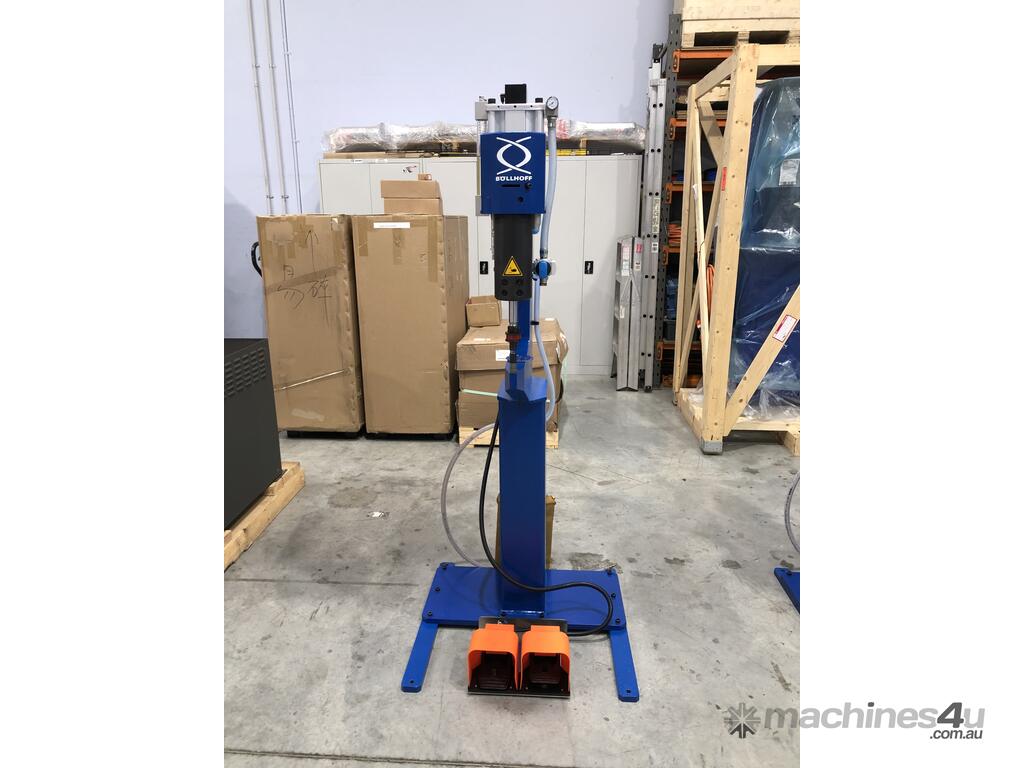

BOLLHOFF Clinching Press

Name: BOLLHOFF Clinching Press
Brand: bollhoff
SKU: 128455
Price: 27500 AUD
Availability: InStock

Hallam, VIC - Delivers Nationally

Play Video

$27,500 AUD($30,250 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$95.79
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

HVAC & Ductwork Fabrication

Make:

BOLLHOFF

Model:

RIVCLINCH 4006 P50 PASS V1

No. in Stock

Year:

2023

Type of Sale:

In Stock

Member Since: Jun 2008

Silver Member

Listings: 34

Label:

In Stock

Sellers stock ID:

128455

Description

General principals Metal Clinching - NEW ONE IN STOCK
RC4006-P50- PASS

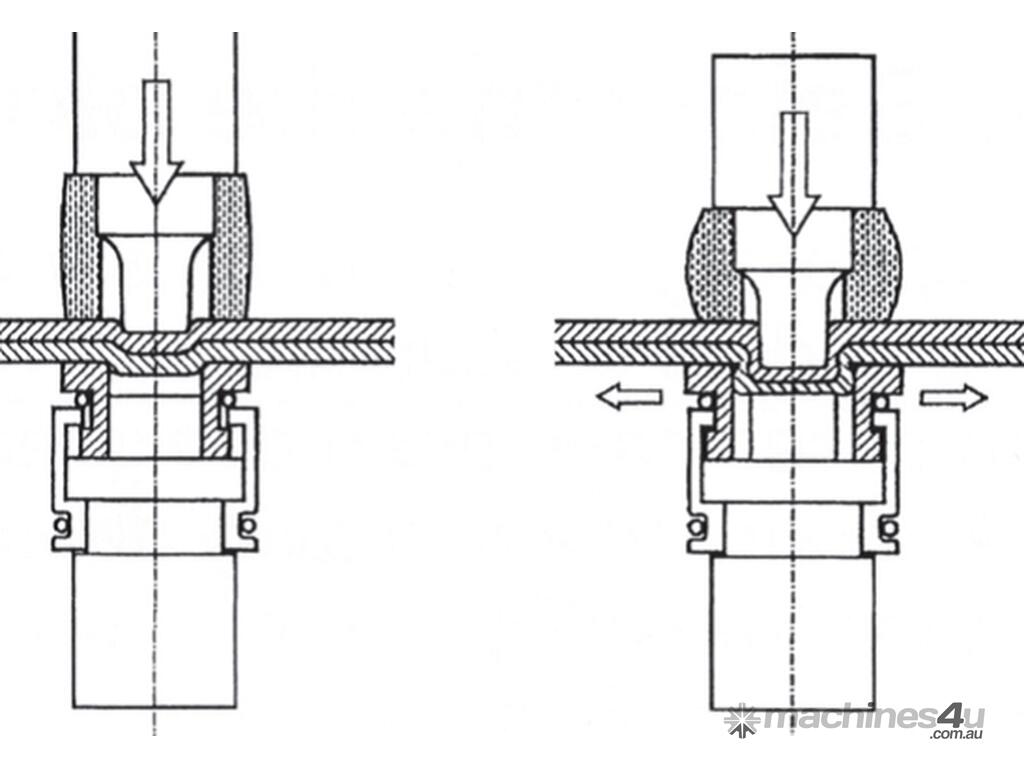

The clinching process : method of joining sheet metal by localised cold-forming of the materials. This produces an interlocking joint between two or more layers of material.

The SPOT CLINCH® / RIVCLINCH® joining technique can be used to join steel and stainless steel materials as well and / or non-ferrous materials based on a cost effective, environmentally friendly process.
Coated and painted sheet metals can also be joined together without altering the surface finish.

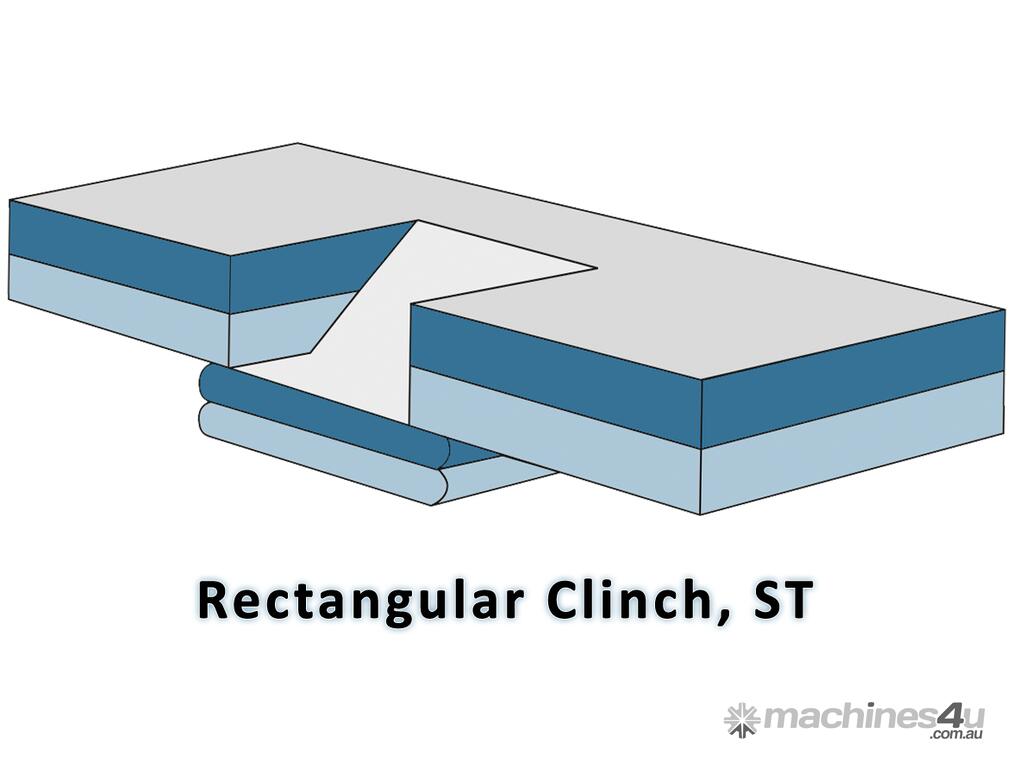

The result clinch will either be round or rectangular. It depends of the SPOT CLINCH® joining tool selected.

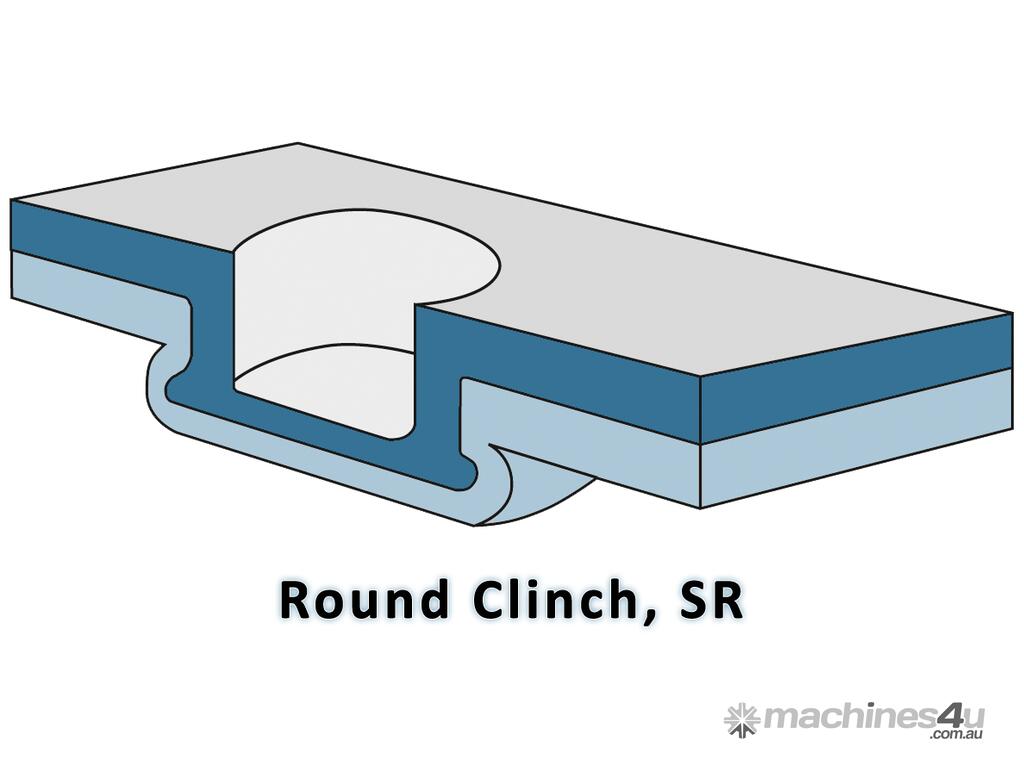

The SR round joint, without cutting trough the material, is gas tight. Consequently, it protects the coating better and provides high corrosion and fatigue resistance.

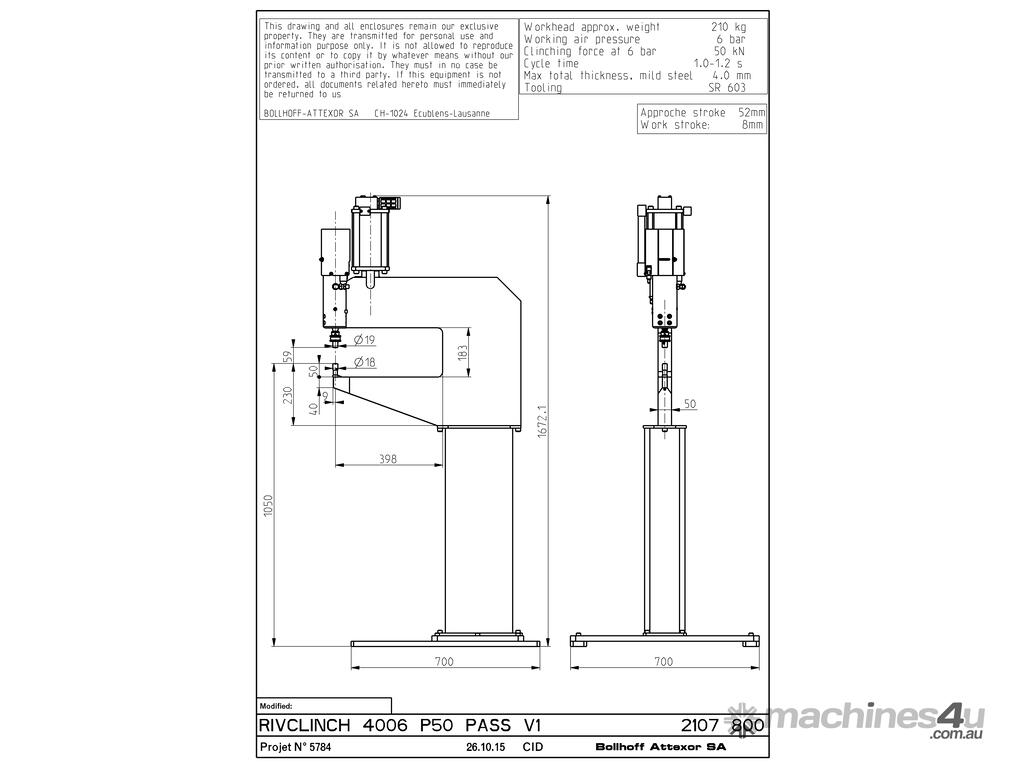

Technical specifications
Weight 210 kg
Working air pressure 6 bar
Tool force at 6 bar 50 KN
Cycle time 1.0– 1.2 sec
Work stroke 8 mm
Pre-stroke (manual) 52 mm
Depth of jaws 400 mm
Max. Total sheet thickness, mild steel 4 mm
Max. Total sheet thickness, Aluminium 5 mm
Max. Total sheet thickness, stainless 3 mm
