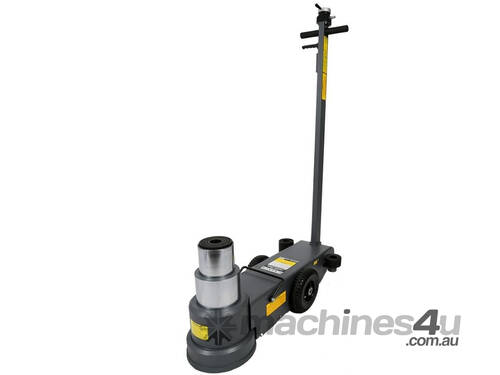

BORUM 80 Tonne 2-Stage Truck Jack Air Actuated

Use these workhorses with a 145–175psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. With several lifting options as well as included saddle adaptors…the wide range of BORUM Commercial Jacks will suit most desired applications from agriculture to mining, earth-moving to passenger transport as well as aviation and military.

The BTJ5080TA quickly and easily manages a hefty 80,000kg in the first stage lift position and 50,000kg at the higher 2nd stage extension. This Air Actuated Commercial Jack is designed for heavy duty commercial use and features a long reach “T" handle and large rubber wheels for smooth manoeuvring around the workshop. As always with BORUM, safety is just as important as industrial standard quality, so all BORUM Truck Jacks have a built-in safety valve to prevent overloading and keep the operator safe.

Additional safety feature includes a Self-Return lowering and lifting switch to ensure complete control during operation. With a minimum height of 230mm this jack is ideal for medium ground-clearance vehicles and a high lift maximum of 563mm (includes additional lifting saddles), this BORUM Air Actuated Jack is a very versatile heavy-lifter suitable for most workshops.

Seals made in America
Double Sealing Function using XTP Industry Sealing

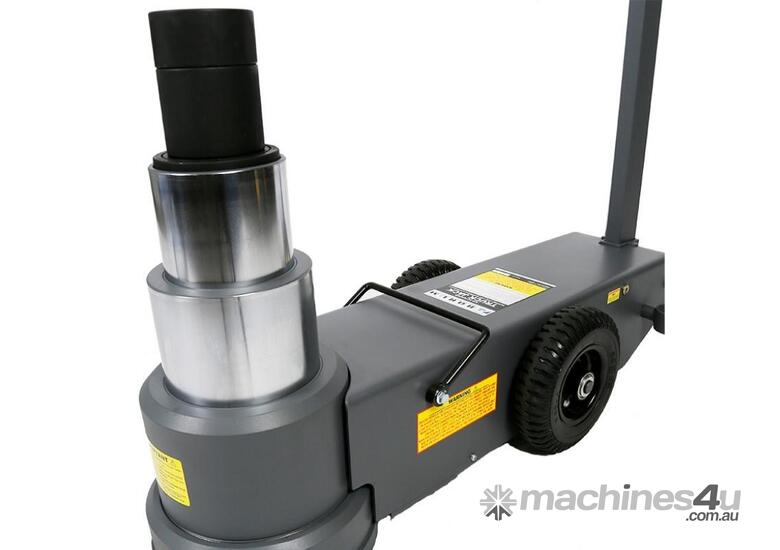

Telescopic air actuation lift (air-hydraulic pump)
Long T-handle lets you easily position your jack under vehicle
Self-Returning Lowering and Lifting Switch

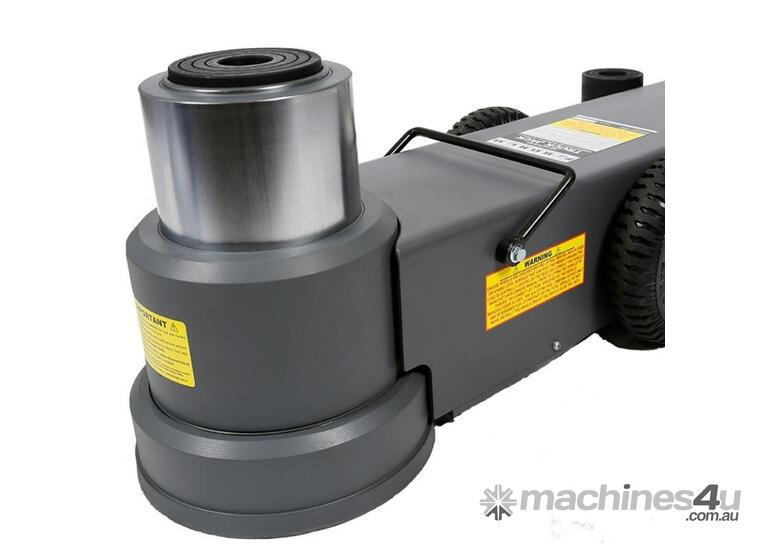

Internal and External Cylinders hard chromed
High manoeuvrability & deep reach under vehicles
2 extension adaptors / saddle plates

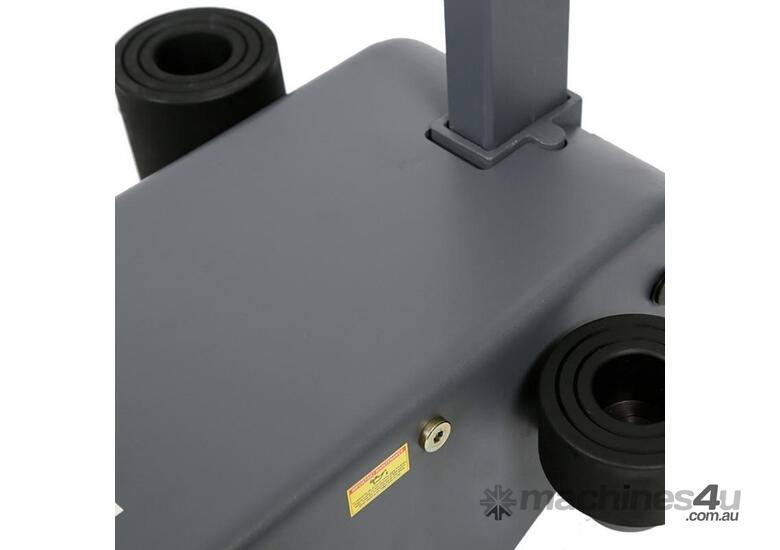

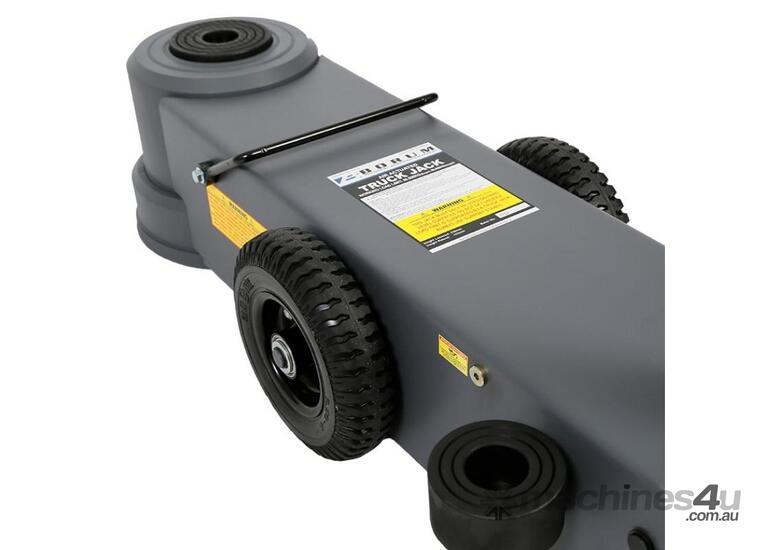

Large rubber wheels
All adaptors can be properly stored for transport on each side of the jack

First Stage: 80,000kg Safe Working Capacity
Second Stage: 50,000kg Safe Working Capacity
First Stage Hydraulic Lift: 111mm
Second Stage Hydraulic Lift: 102mm
Minimum Height: 230mm
Maximum Height: 563mm
Adaptors: 45, 75mm
Handle Length: 1380mm
Operating Air Pressure: 145-175psi
Chassis: 930(L) x 230(H) x 340(W)mm
Nett Weight: 106kg
Carton: 940x360x260mm
