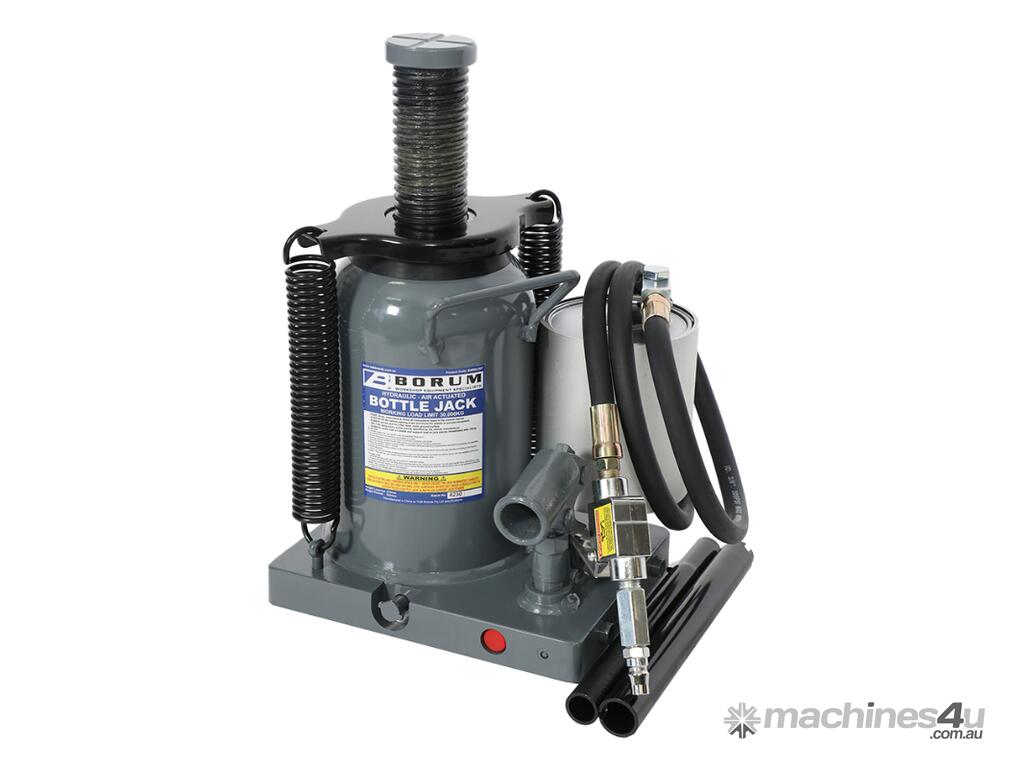

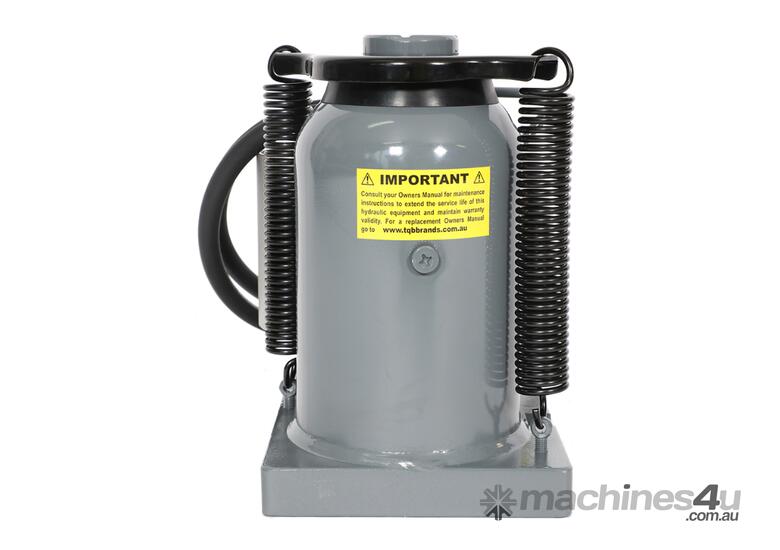

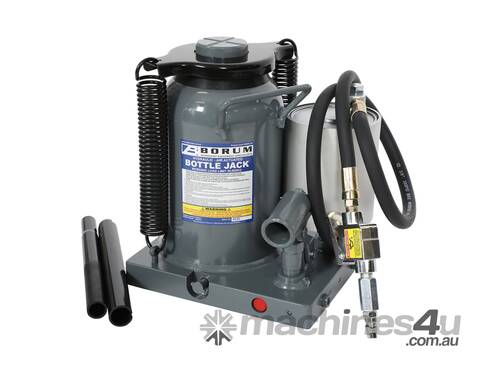

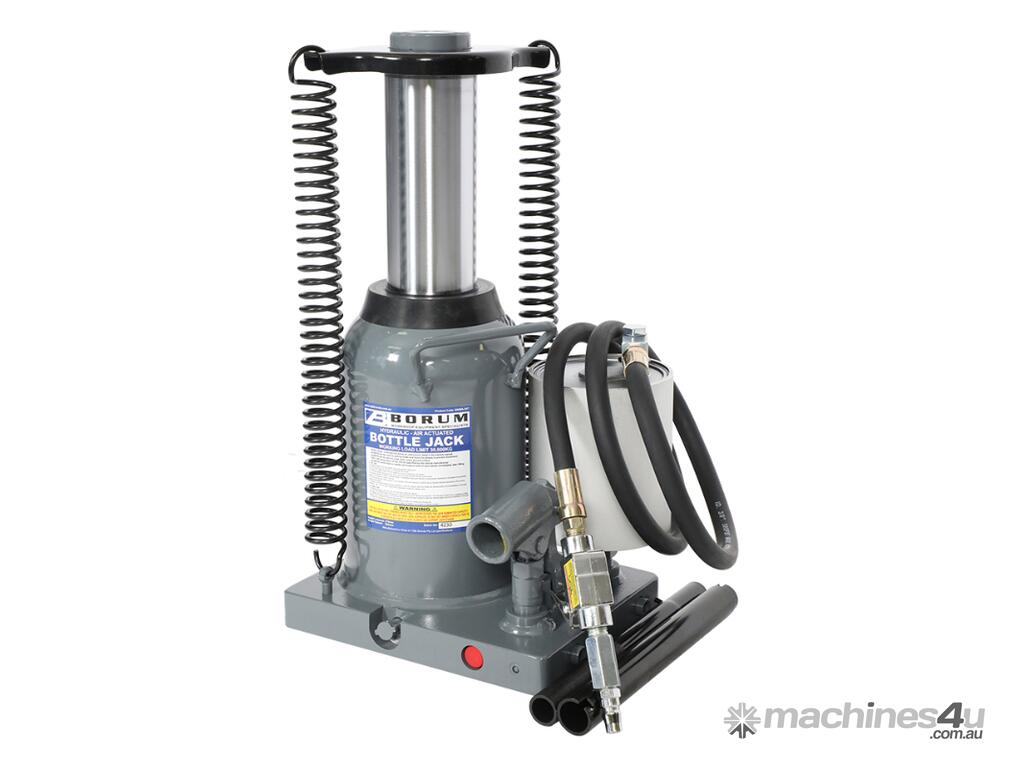

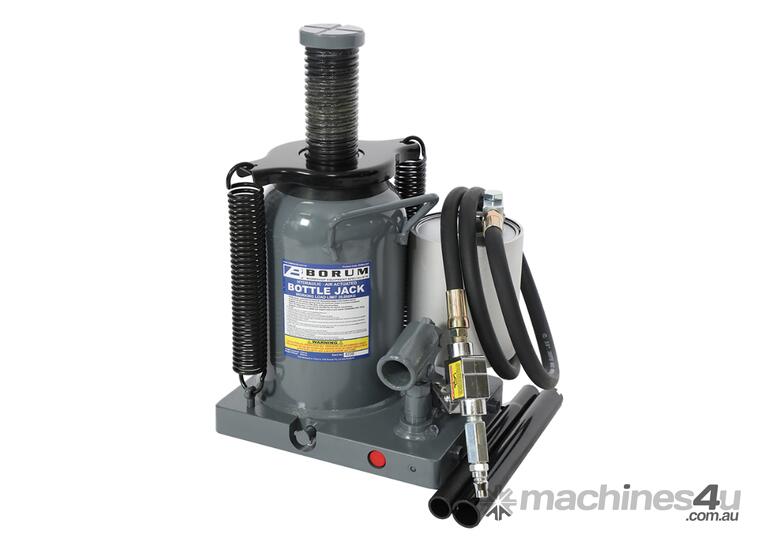

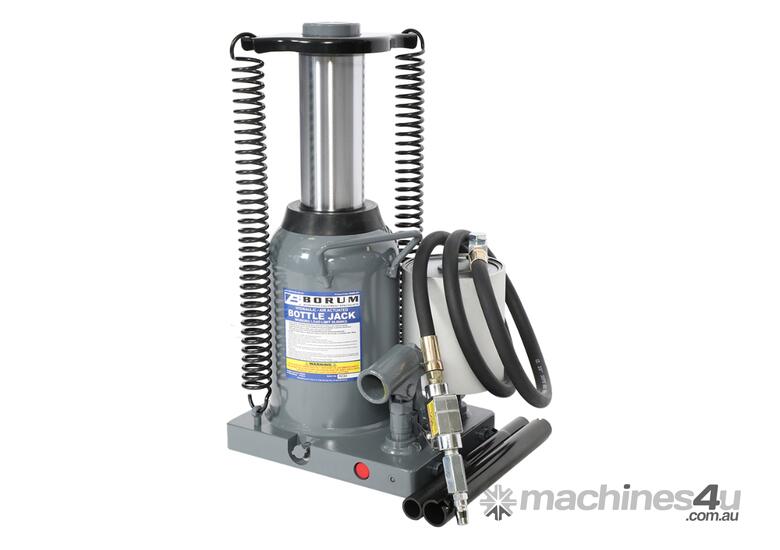

BORUM Air/Hydraulic Bottle Jack 30,000Kg

This heavy duty 30,000kg Borum Industrial Air/Manual Bottle Jack packs a big punch, providing enough lifting power for use with farm vehicles, heavy-duty machinery, industrial construction equipment and more. The 2 piece removable handle is long enough to lift the load with ease and also helps to position the jack. Use this workhorse with a 90-120psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it manually for normal operation just about anywhere. The safety overload valve offers extra protection if you load the jack up with too much weight. The safety overload kicks in and gently lowers the load before the operator is put in a dangerous situation.

Our Borum Industrial Quality Air/Manual Bottle Jacks are designed to operate either manually or pneumatically. The manual function allows for normal operation anywhere, even without an air supply.

Intended Use
For professional heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.

Features
Manufactured of superior-grade steel to exacting standards for quality and durability
Industrial quality hydraulic cylinder unit operates at lower oil pressure to raise load, reduce wear and extend service life

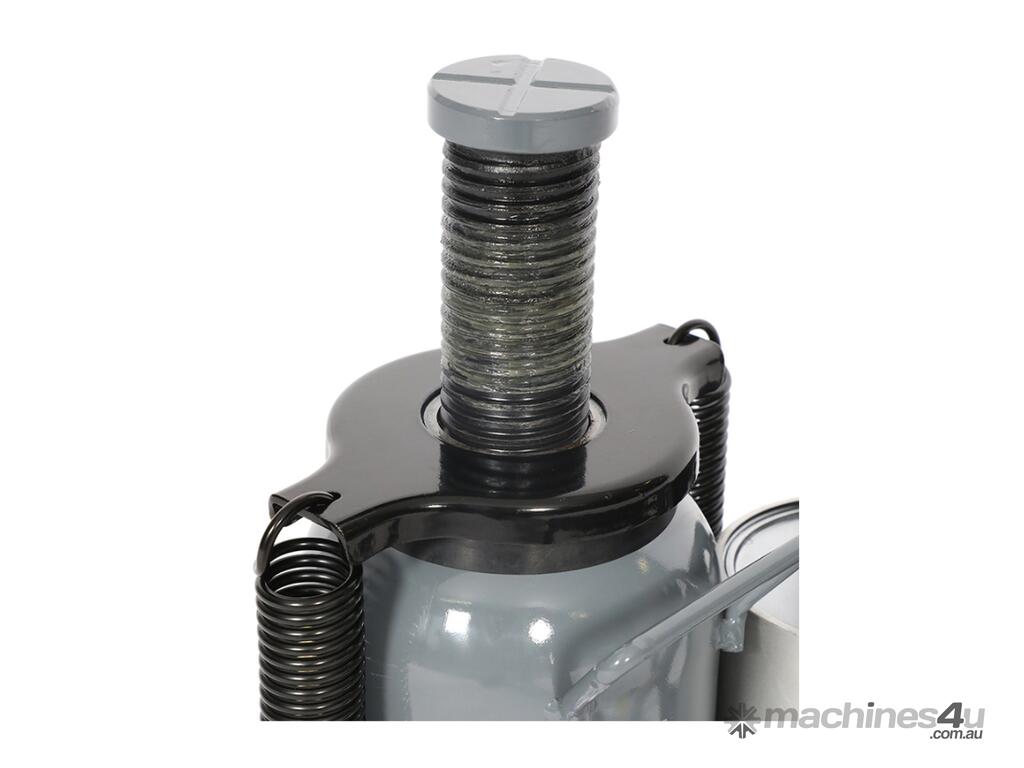

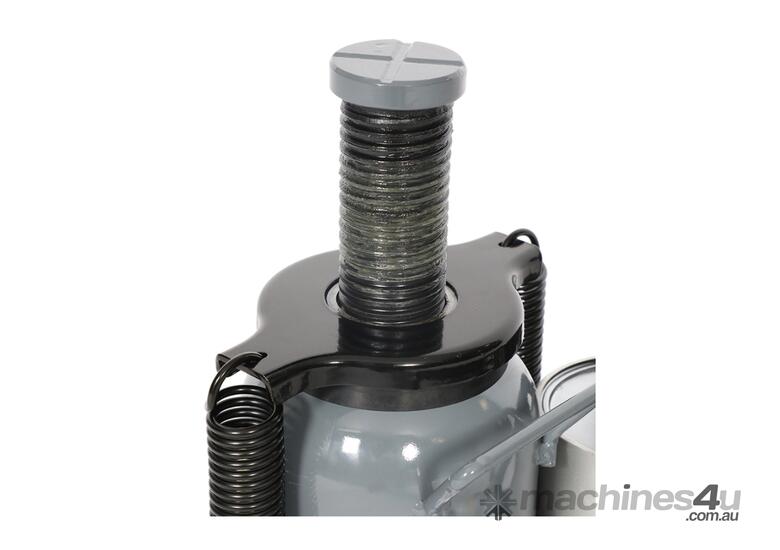

Precision machined, chrome plated and polished piston-ram
CNC machined ports and threads
Built-in hydraulic by-pass protection against over pumping damage
Versatile "quick connector" design for easy removal of air hose for compact storage or remote operation
Compact yet powerful Industrial Quality Air Turbo Motor
Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
Paint finish is oil, grease and dirt-resistant for easy cleanup
Thick welded base for heavy duty use & longevity

Specifications
Safe Working Capacity: 30,000kg
Minimum Height: 275mm
Maximum Height: 532mm
Hydraulic Lift: 162mm
Adjustable Height: 95mm
Base Area: 229 x 180mm
Operating Air Pressure: 90-120psi
Air Inlet Fitting: 1/4" x 18NPT
Nett Weight: 25.3kg
Carton: 290 x 180 x 300mm
Gross Weight: 26kg
