HAFCO-WOODMASTER BP-255 Wood Band Saw & Circle Cutting Attachment Package Deal 2 Blade Speeds - 400 & 800m/min 245mm Throat Depth x 152mm Height Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W9501

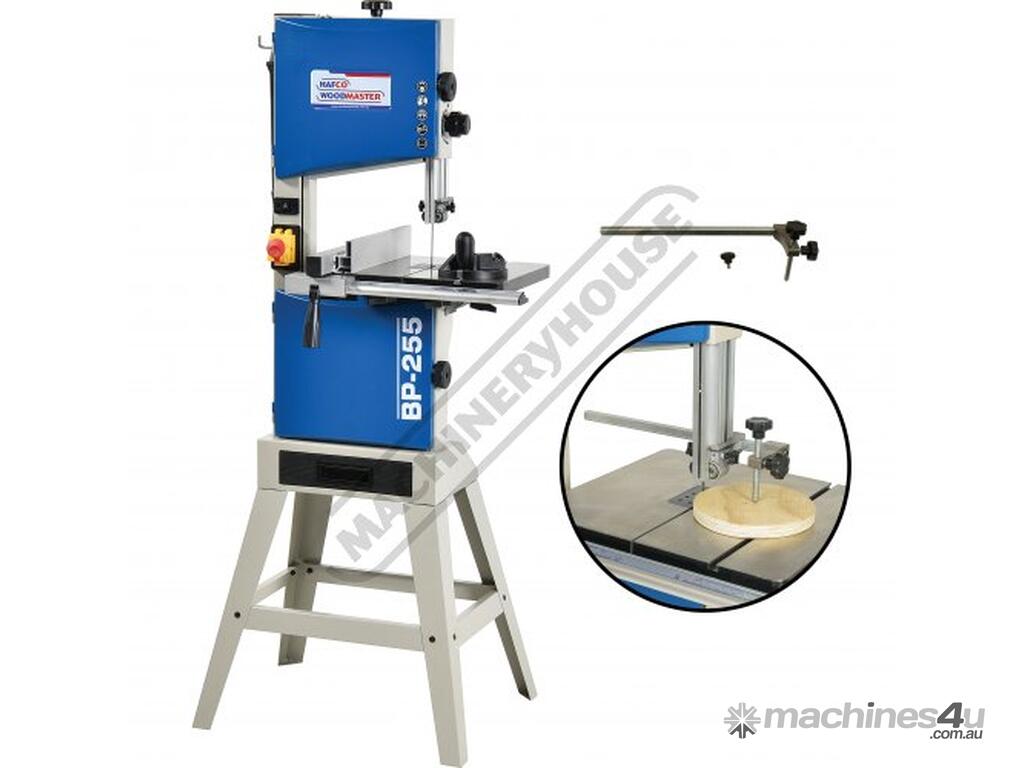

The BP-255 package deal includes & CCA-255 - Circle Cutting Attachment, and is a compact entry level bandsaw with many features that would suit the home woodworker craft workshop.
This bandsaw has a welded steel frame designed to keep your machine from twisting whilst cutting at 245 x 145mm capacity. It has a generously 360 x 320mm cast iron table with an aluminium rip fence and mitre guide to help you cut straight or angles to the required size. The table mounting trunnions are adjustable to get your tale to tilt from 90 to 45 degrees and has a quick action locking lever. This machine also has its own LED light that is mounted to a flexible arm so the light can be adjusted direct on the cutting line no matter what timber size you are cutting.
The BP-255 bandsaw though small in structure but quality is still evident as it includes ball bearing blade guides to ensure smooth blade rotation & accuracy. These provide optimum blade support and are almost impossible to wear out. Once set-up, they stay set unless you change the width of the blade. For your convenience, a rack and pinion system adjusts the upper blade guide height to suit your timber.
The dust extraction port located at rear of machine will remove most of your internal dust once connect to your dust extractor; and whatever the extractor does not collect the removable tray built into the stand will collect the rest. The 2-speed pulley system rotates at 400 or 800m/min and his driven by a nicely matched 375W / 0.5hp 240V motor
Features:

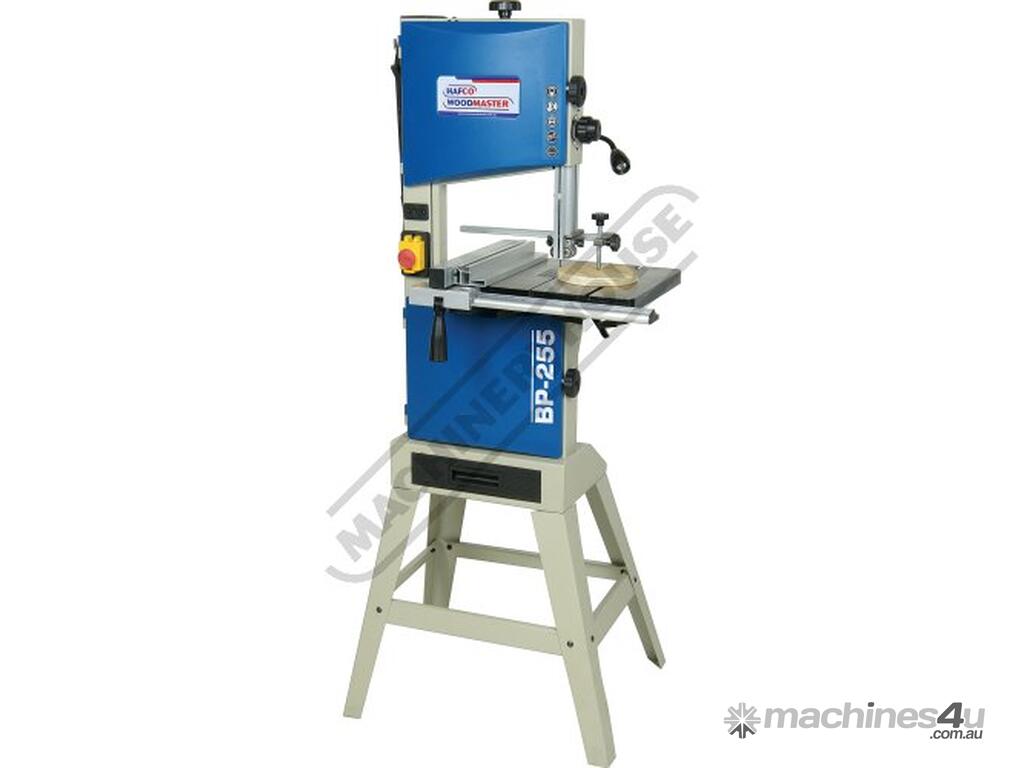

BP-255 - Wood Band Saw
375W / 1/2 hp 240V induction motor
Ball bearing blade guides to ensure smooth operation
Safety magnetic switch with dust cover and emergency stop
Hinged blade guards with safety micro-switches
LED work light on flexible arm
Cast iron table tilts 0-45° with mitre guide
Geared rack on cutting height adjustment
2 blade speeds - 400 & 800m/min
Aluminium rip fence with quick action lock
Hinged top & bottom blade guard doors enables quick blade replacement
Steel stand with slide dust compartment drawer
100mm dust collector port

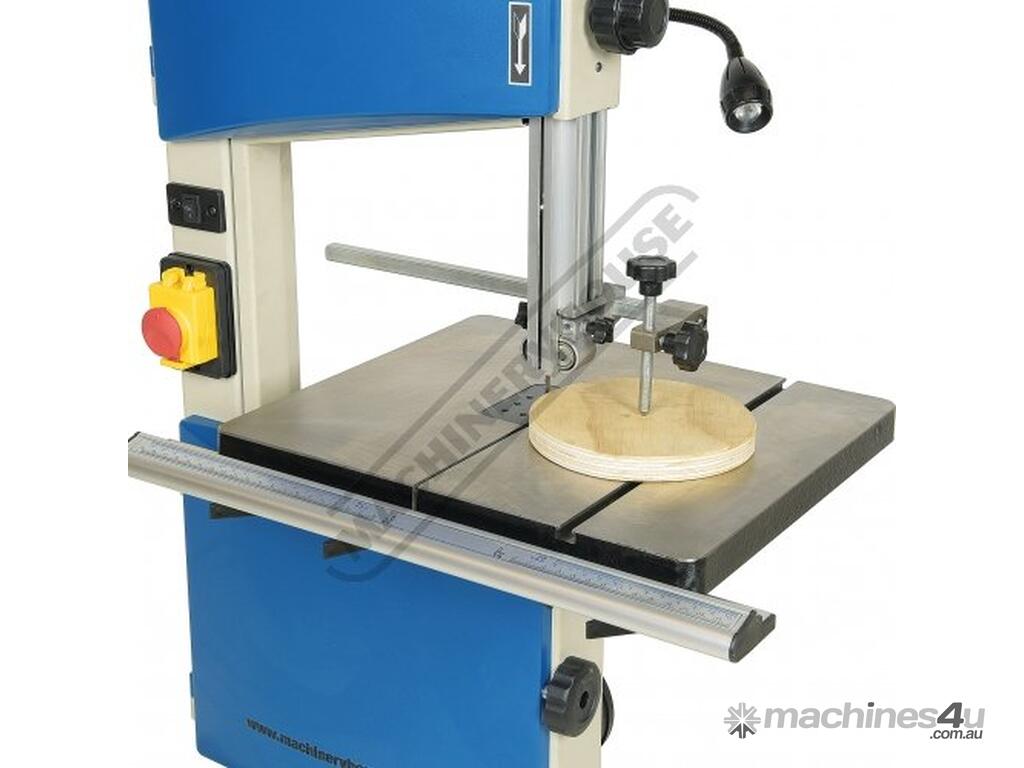

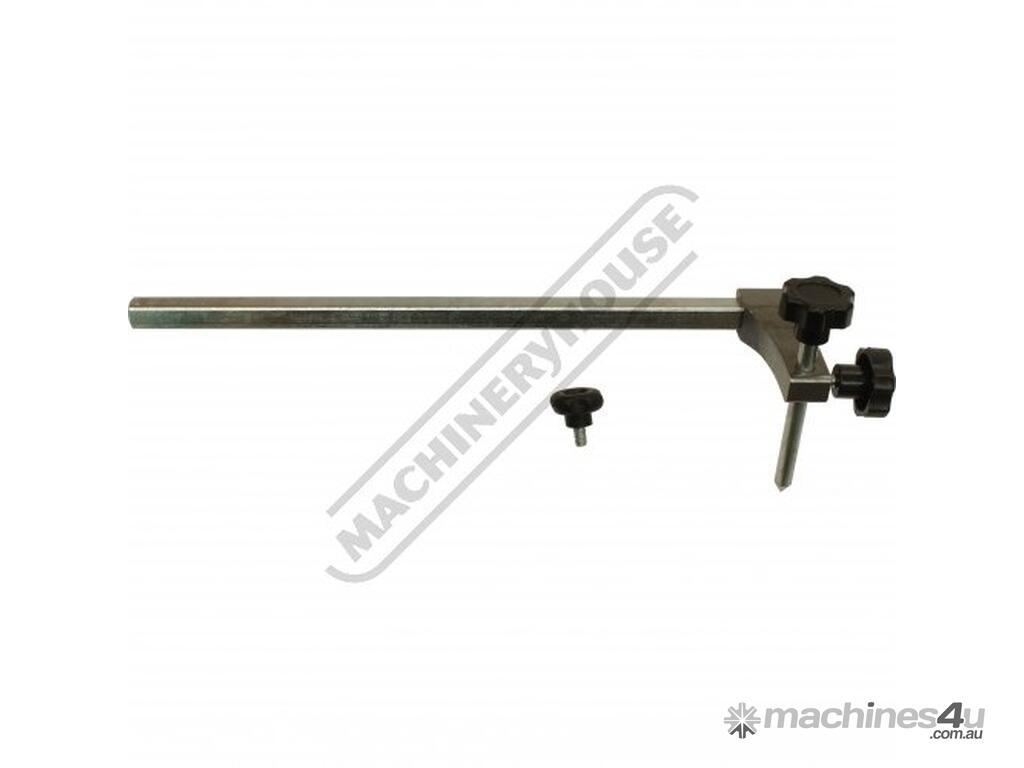

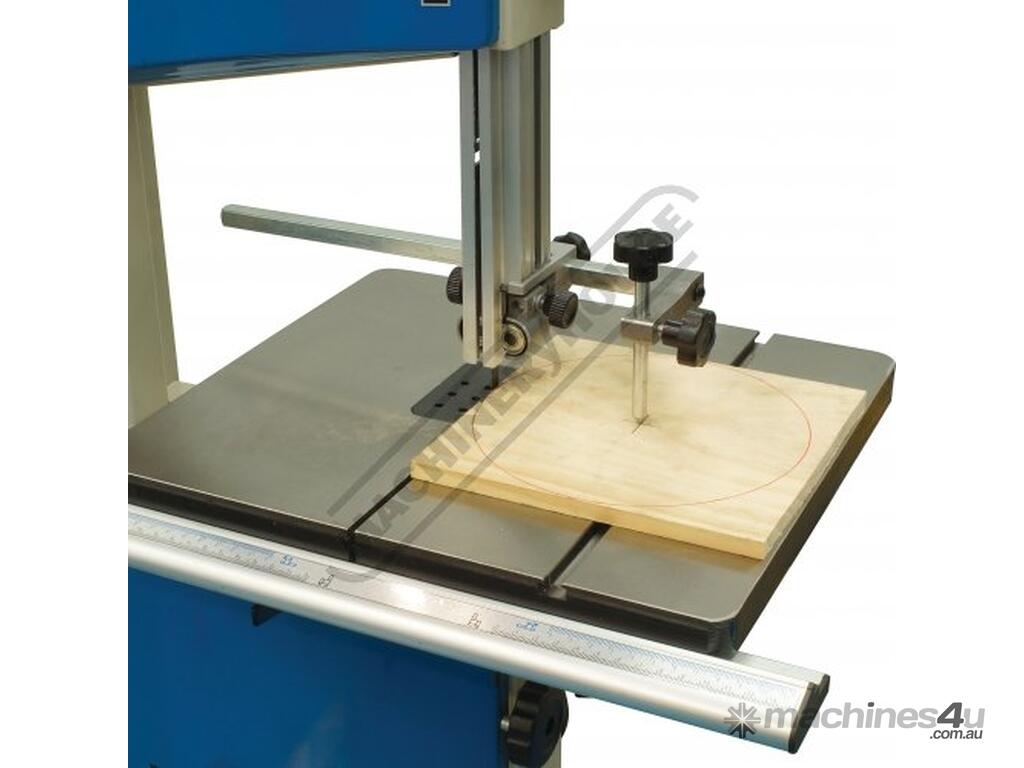

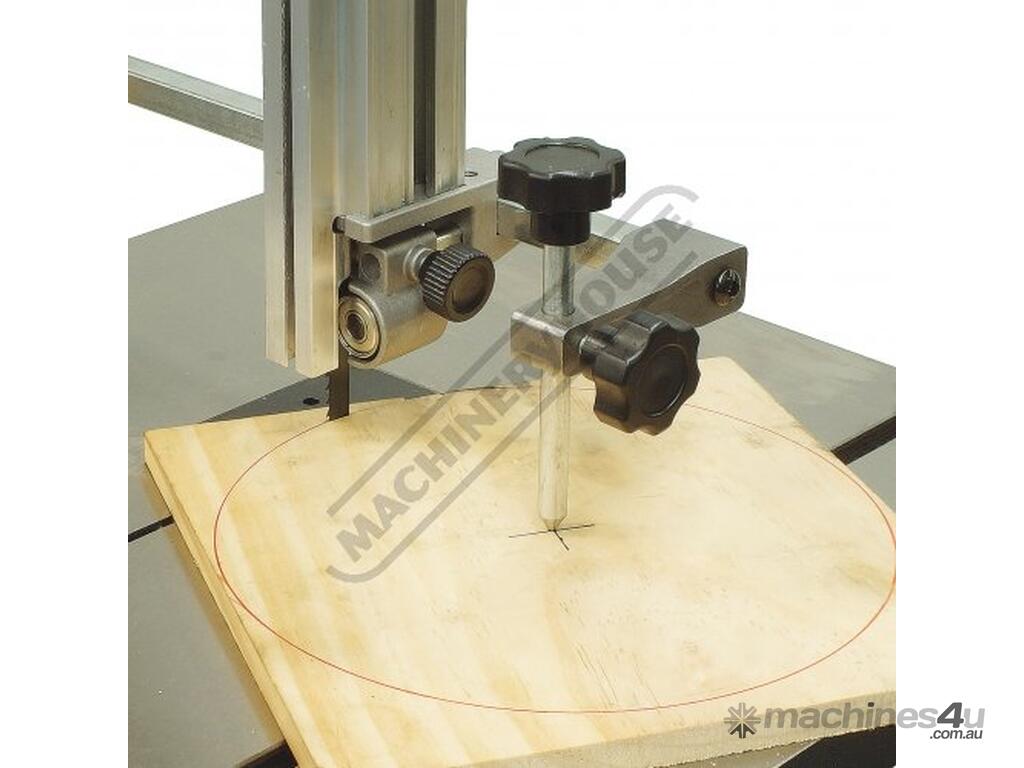

CCA-255 - Circle Cutting Attachment
110 - 600mm Circle Capacity
Adjustable arm for different size circles
Adjustable centre pin height
Thumb lock screws
Includes:
- BP-255 - Wood Band Saw (W950)
- CCA-255 - Circle Cutting Attachment (W949)
- Push Stick
- Allen Keys
- Spanner
Specifications:
ORDER CODE: W9501
MODEL: BP-255 + Circle Att Package
Wheel Diameter (Ø) (mm): 255
Throat Capacity (mm): 245
Height Capacity (mm): 152
Table Size (mm): 360 x 320
Frame Type: Steel
Motor Power (kW / hp): 0.375 / 0.5
Voltage / Amperage (V / amp): 240 / 10
Blade Code (Suits): W950A, W950B, W950F
Blade Size (L x W x T) (mm): 1826 x 12.5 x 0.65

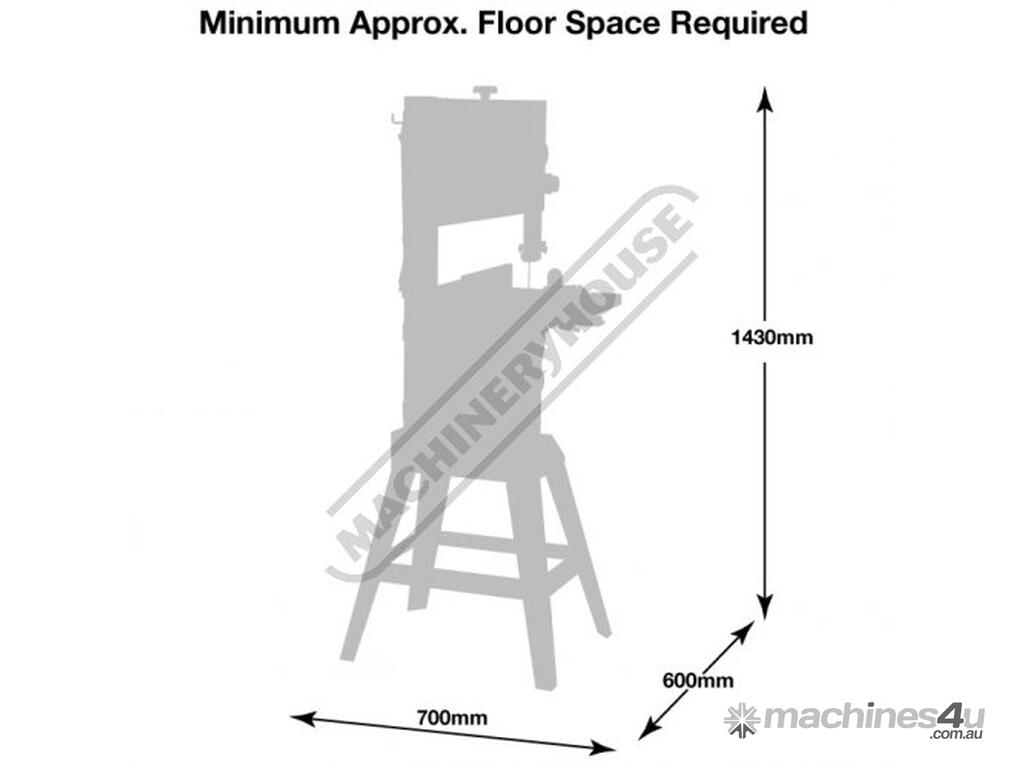

Floor Space (W x D x H) (mm): 750 x 650 x 1430
Nett Weight (kg): 43
