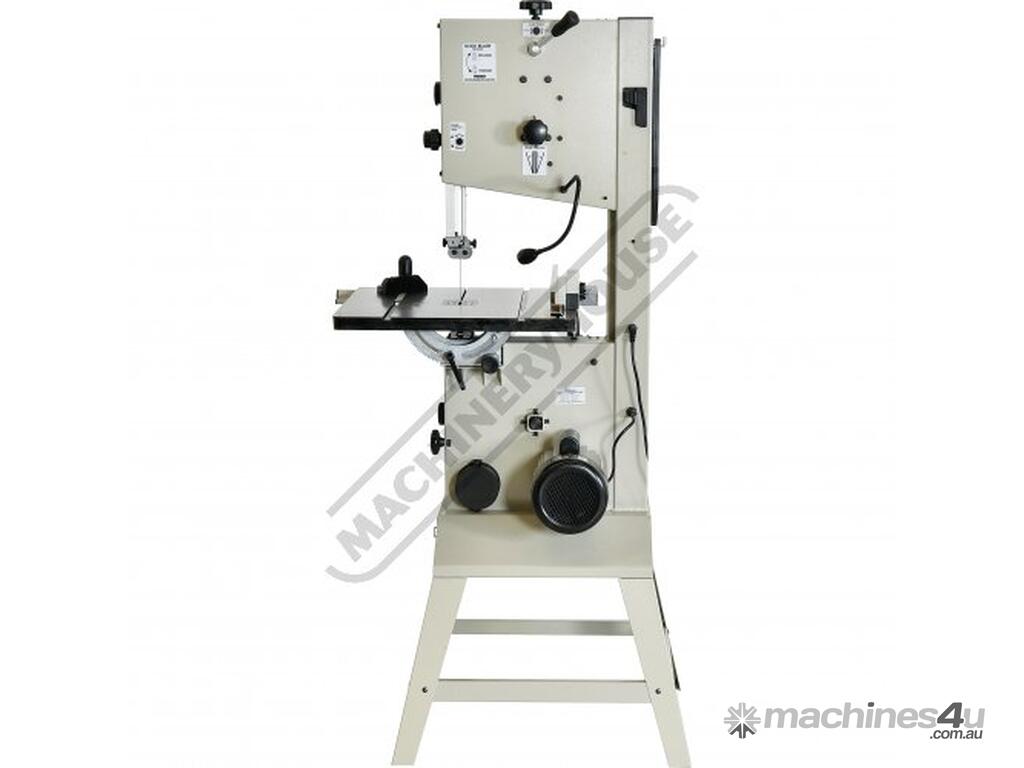

BP-360 Wood Band Saw 2 Blade Speeds - 370 & 800m/min 340mm Throat Depth x 225mm Height Capacity

HAFCO-WOODMASTER BP-360 Wood Band Saw 2 Blade Speeds - 370 & 800m/min 340mm Throat Depth x 225mm Height Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W955

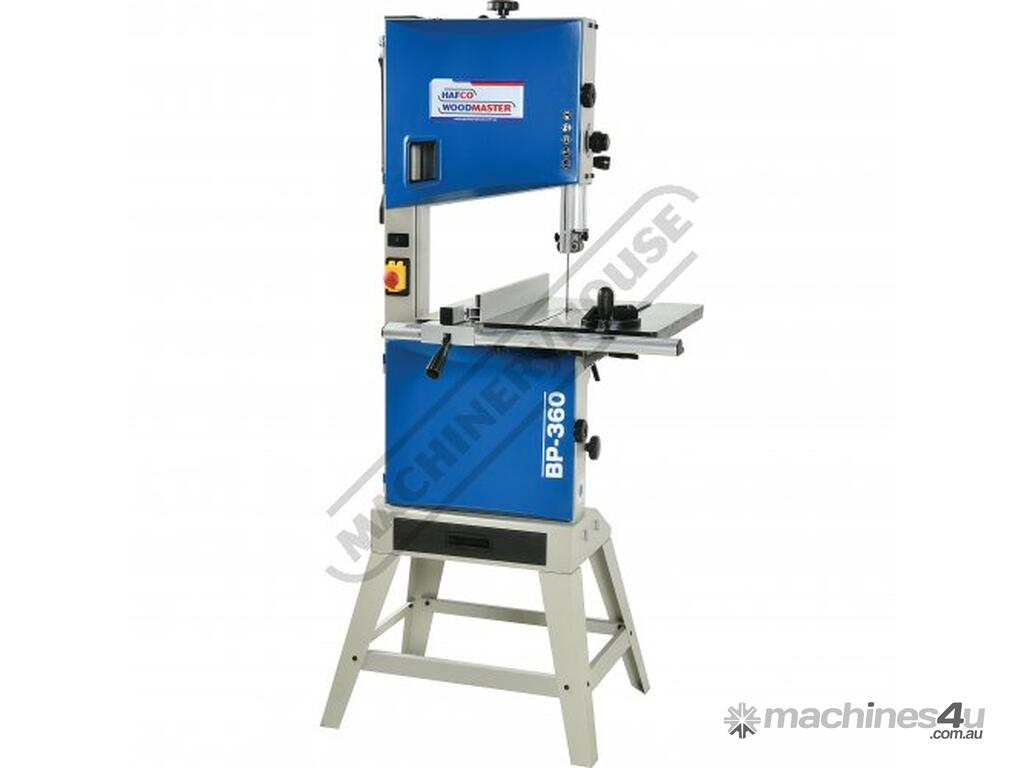

The BP-360 bandsaw is the larger of the three models in this family that incorporates many features that would suit the home woodworker or wood working enthusiast looking for more cutting capacity.

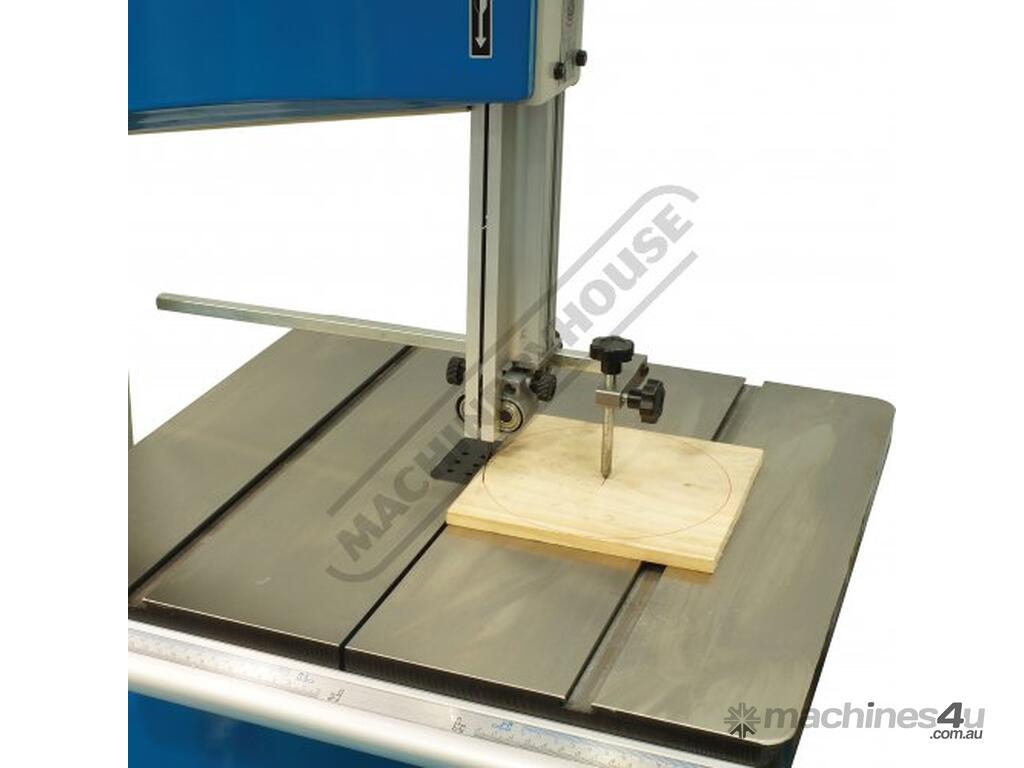

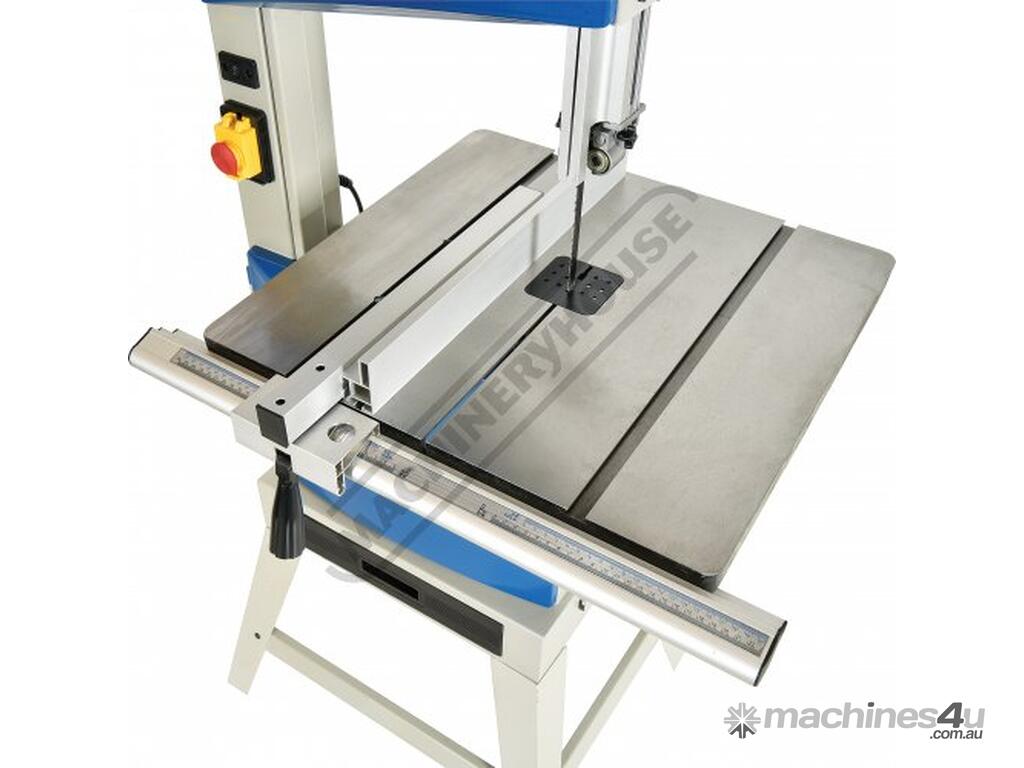

This bandsaw has a welded steel frame designed to keep your machine from twisting whilst cutting at 340 x 225mm capacity. It has a generously 545 x 515mm cast iron table with an aluminium rip fence and mitre guide to help you cut straight or angles to the required size. The table mounting trunnions are adjustable to get your tale to tilt from 90 to 45 degrees and has a quick action locking lever. This machine also has its own LED light that is mounted to a flexible arm so the light can be adjusted direct on the cutting line no matter what timber size you are cutting.

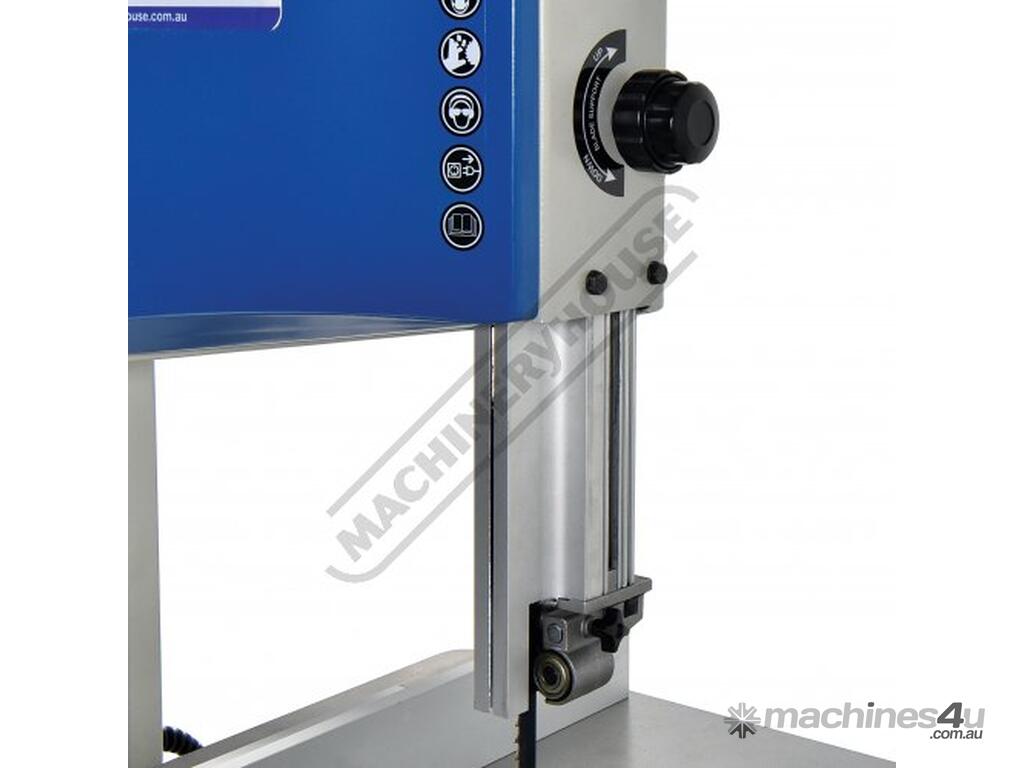

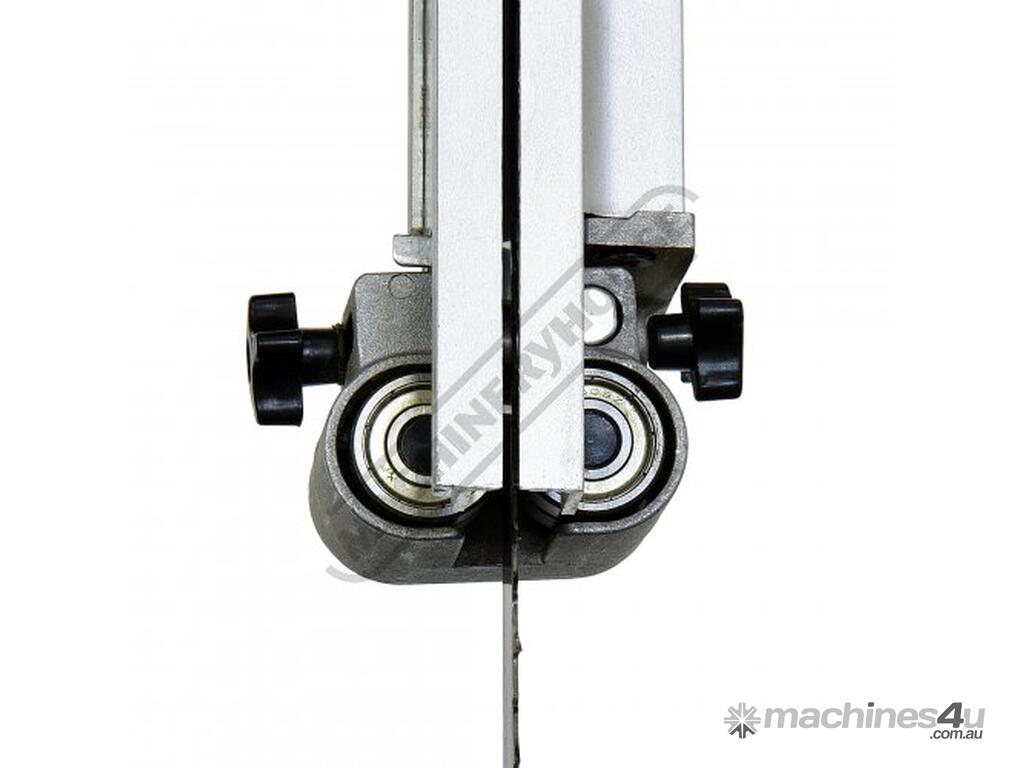

The BP-310 bandsaw though small in structure but quality is still evident as it includes ball bearing blade guides to ensure smooth blade rotation & accuracy. These provide optimum blade support and are almost impossible to wear out. Once set-up, they stay set unless you change the width of the blade. For your convenience, a rack and pinion system adjusts the upper blade guide height to suit your timber.

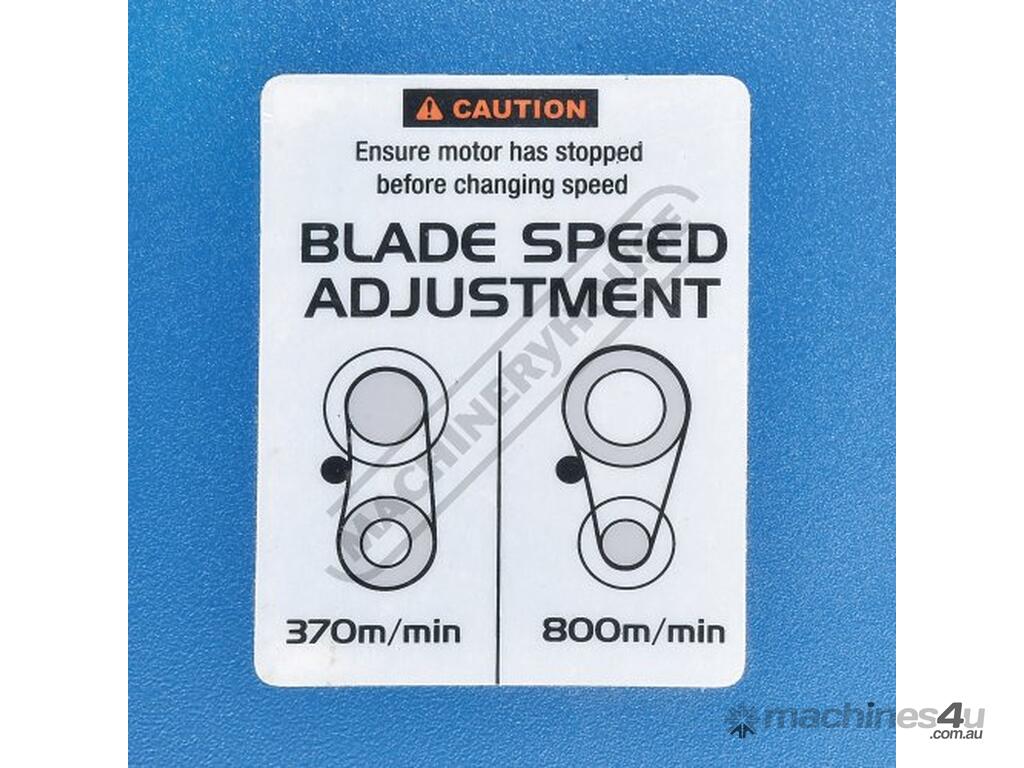

The dust extraction port located at rear of machine will remove most of your internal dust once connect to your dust extractor; and whatever the extractor does not collect the removable tray built into the stand will collect the rest. The 2-speed pulley system rotates at 370 or 800m/min and his driven by a nicely matched 1100W / 1.5hp 240V motor

Features:
1100W / 1.5hp 240V induction motor
Ball bearing blade guides to ensure smooth operation

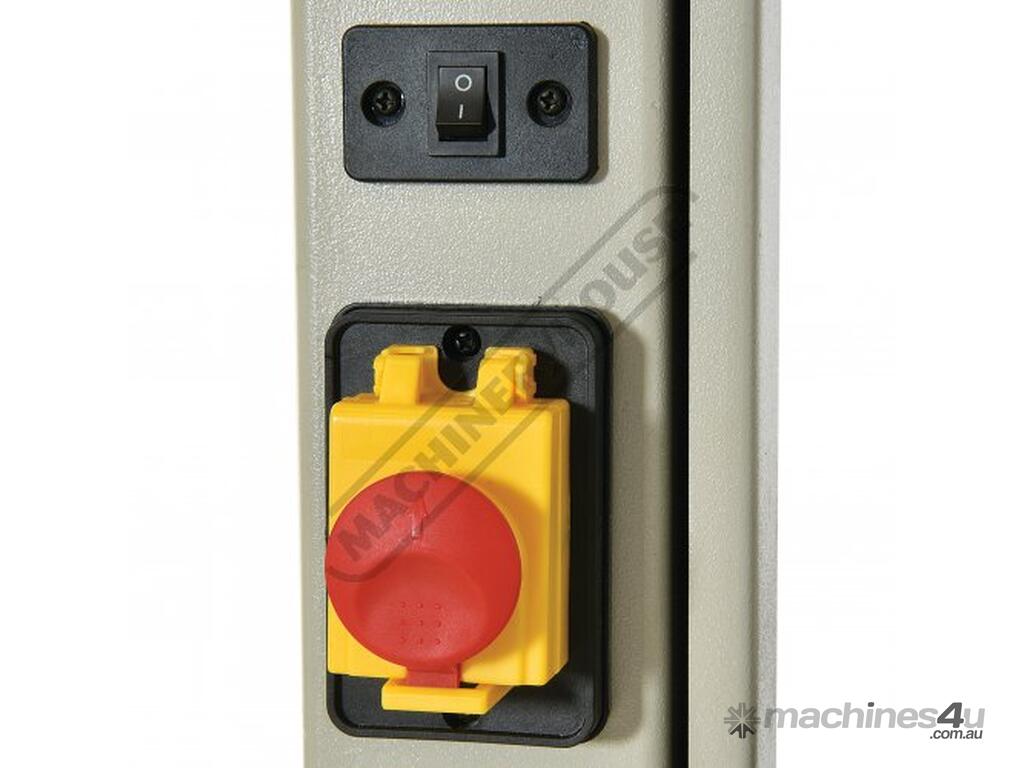

Safety magnetic switch with dust cover and emergency stop
Hinged blade guards with safety micro-switches

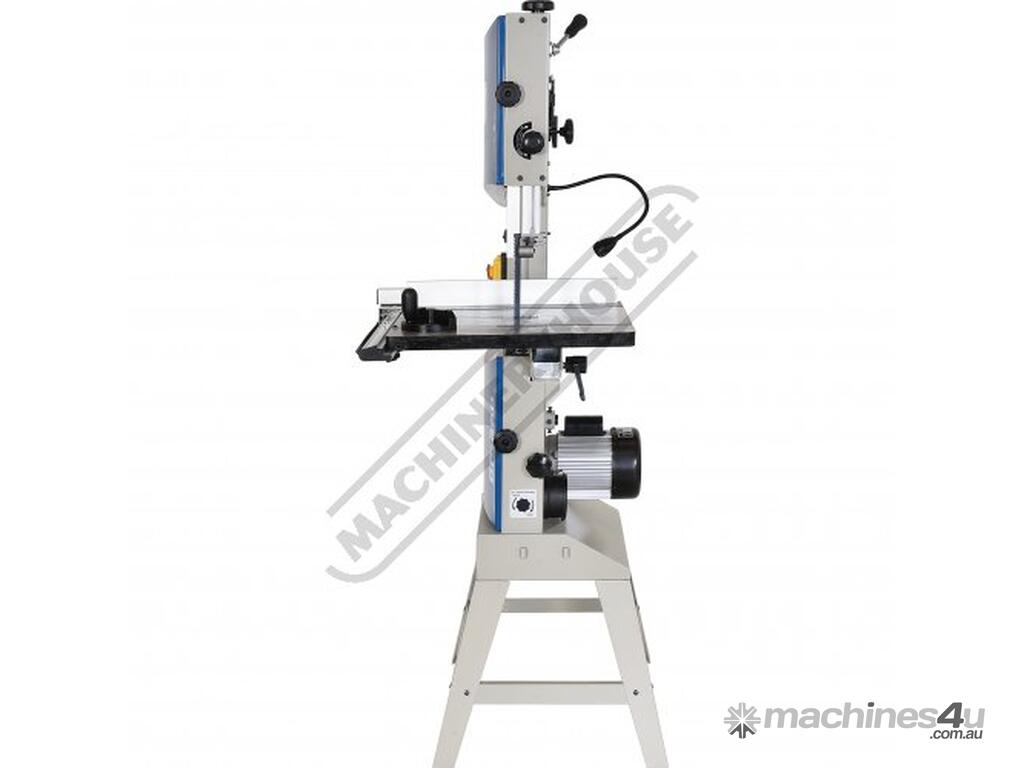

LED work light on flexible arm

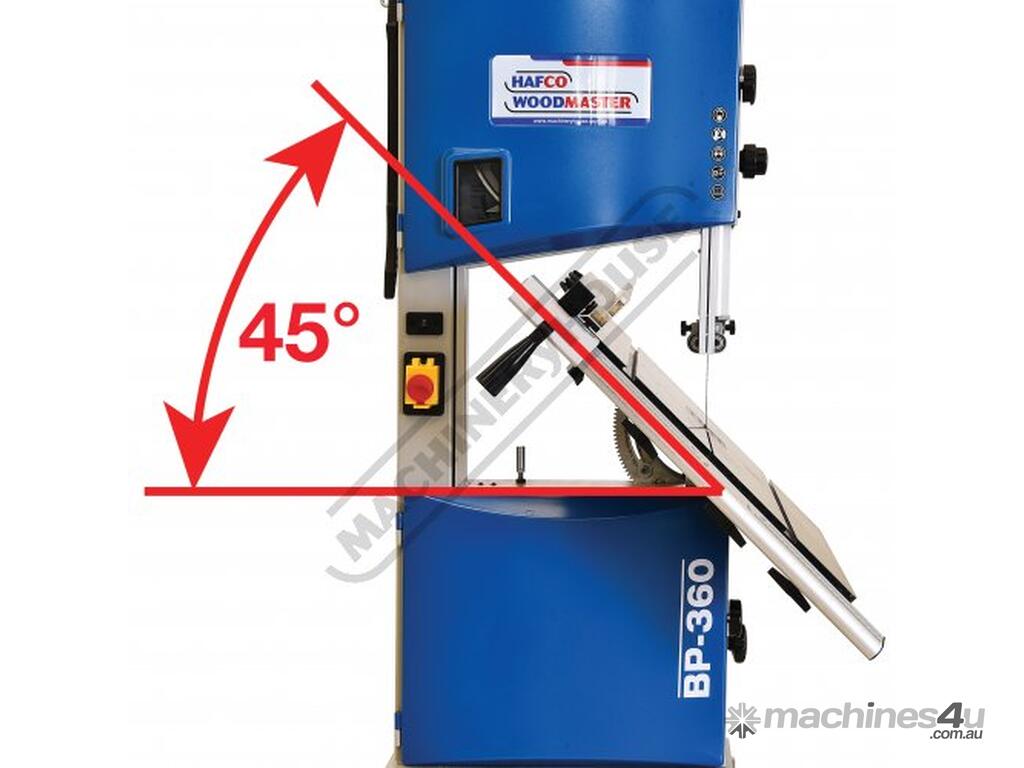

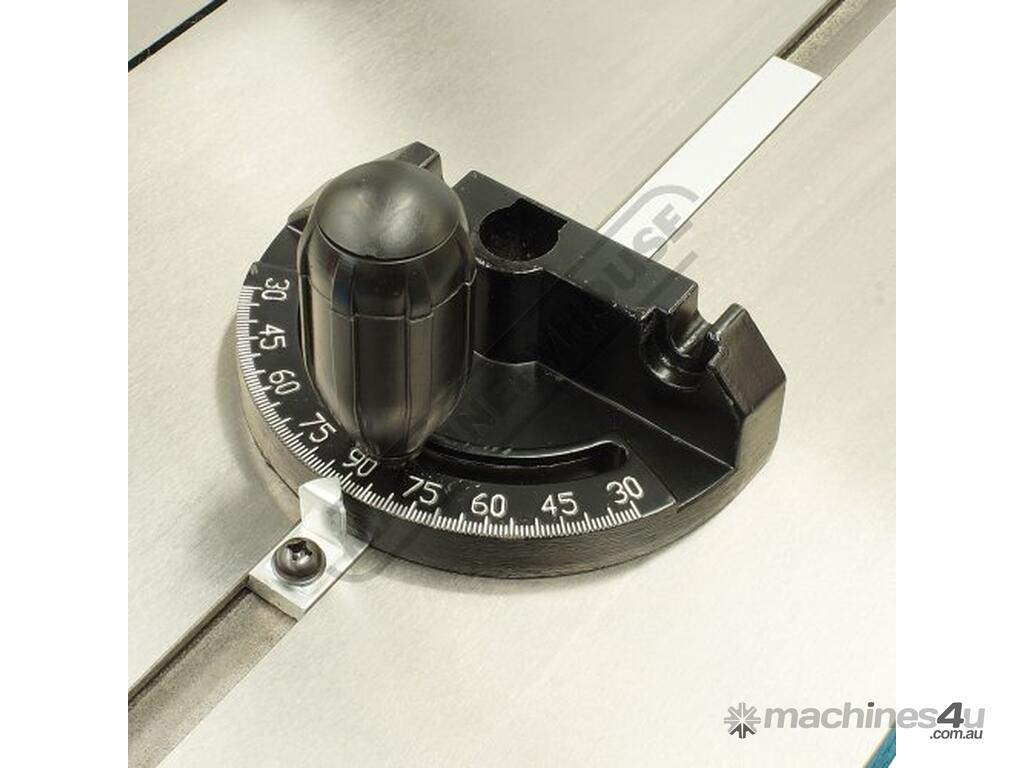

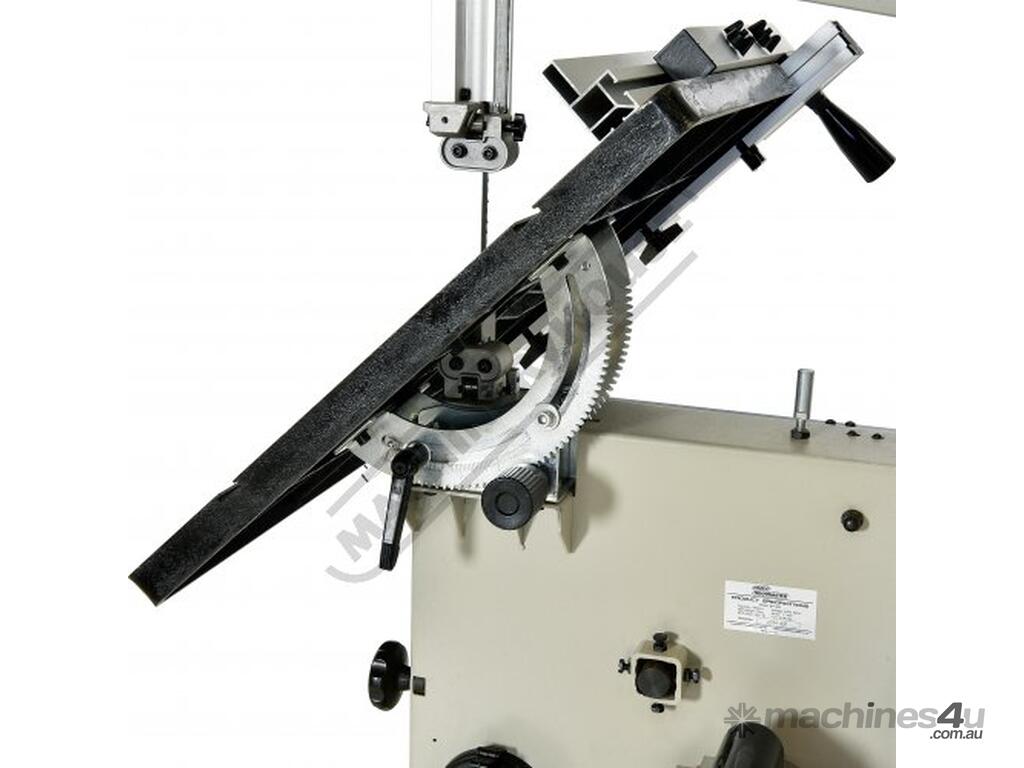

Cast iron table tilts 0-45° with mitre guide
Rack & pinion table tilt mechanism

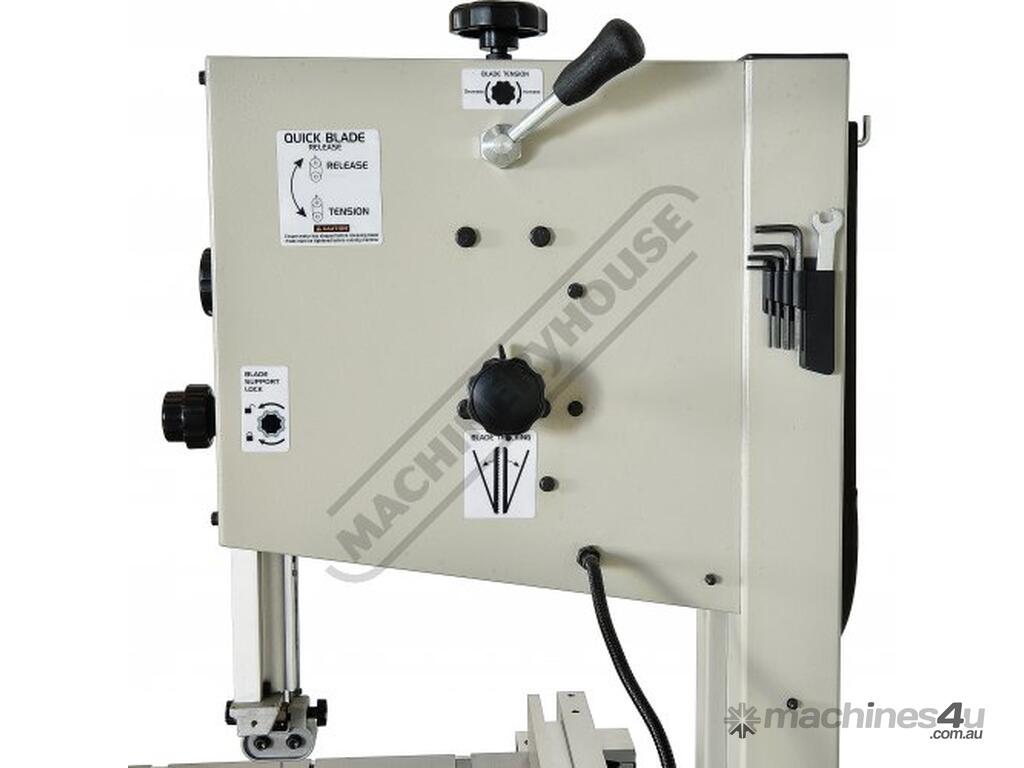

Quick release blade tension lever
Geared rack on cutting height adjustment

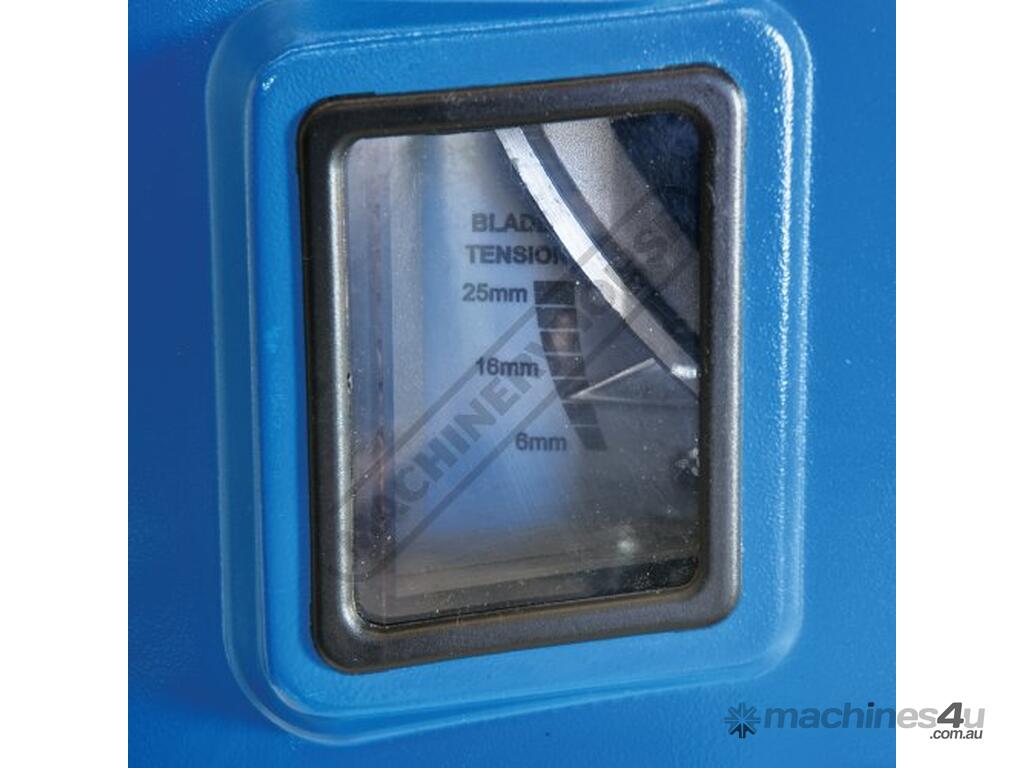

Window in top blade guard for blade tension indicator
2 blade speeds - 370 & 800m/min

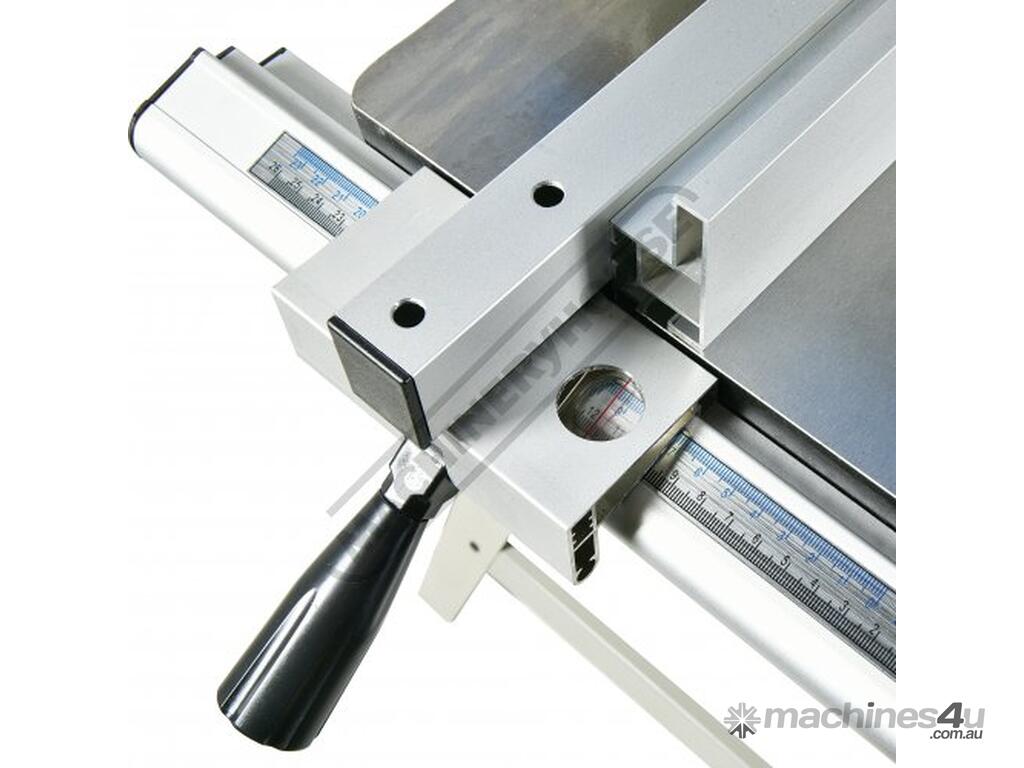

Aluminium rip fence with quick action lock

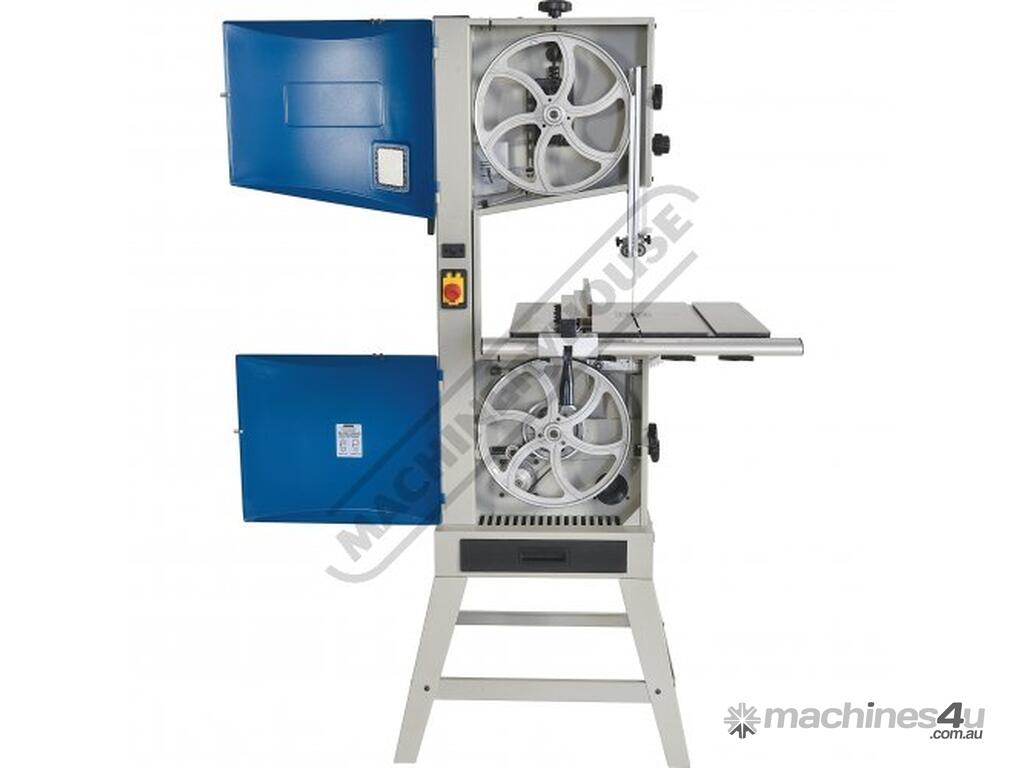

Hinged top & bottom blade guard doors enables quick blade replacement

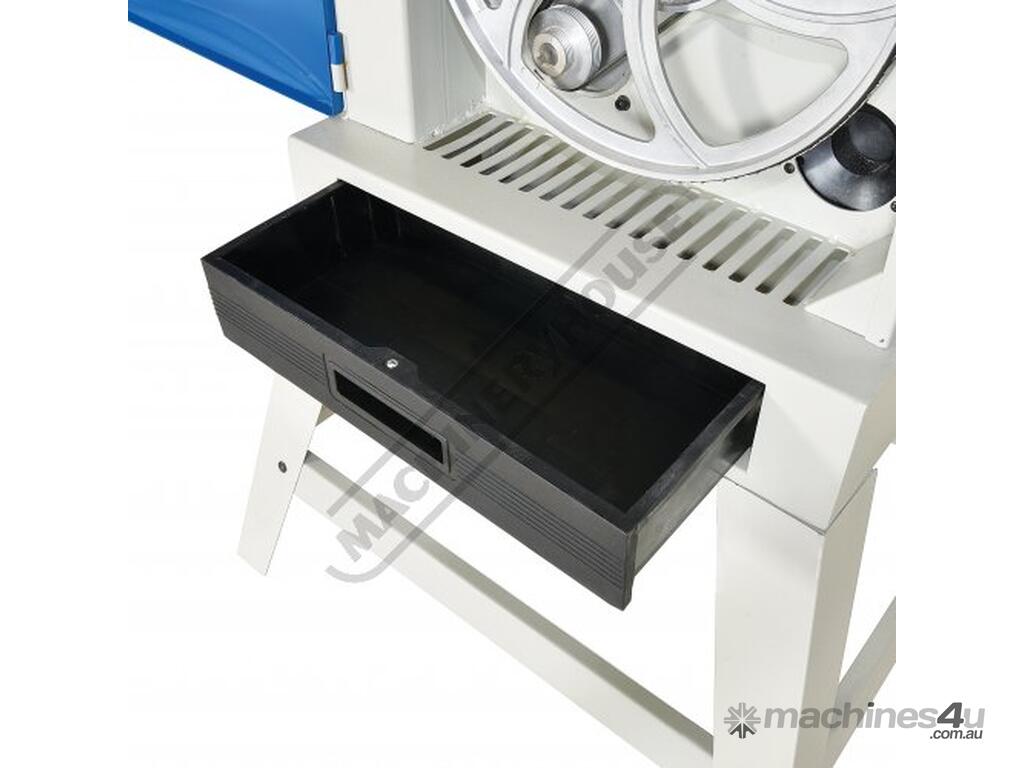

Steel stand with slide dust compartment drawer
100mm dust collector port



Includes:
- Push Stick

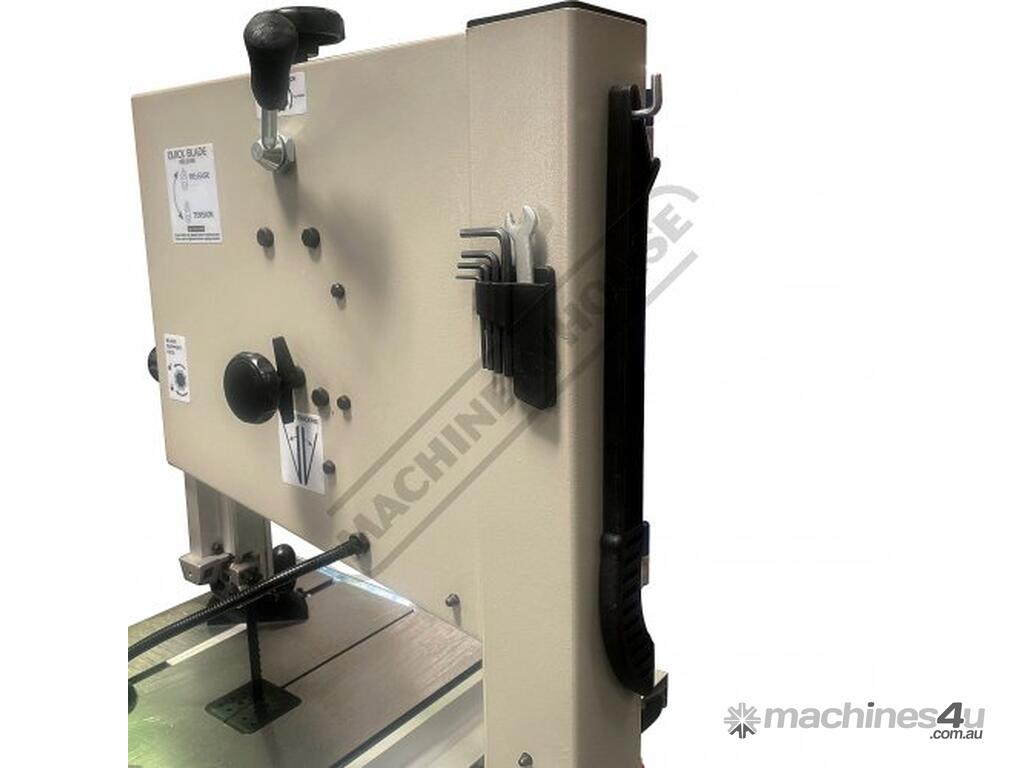

- Allen Keys
- Spanner



Specifications:
ORDER CODE: W955
MODEL: BP-360
Wheel Diameter (Ø) (mm): 360
Throat Capacity (mm): 340
Height Capacity (mm): 225
Table Size (mm): 545 x 515
Frame Type: Steel
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 10
Blade Code (Suits): W955A,W955B, W955F
Blade Size (L x W x T) (mm): 2560 x 16 x 0.65
Floor Space (W x D x H) (mm): 920 x 800 x 1710
Nett Weight (kg): 88
