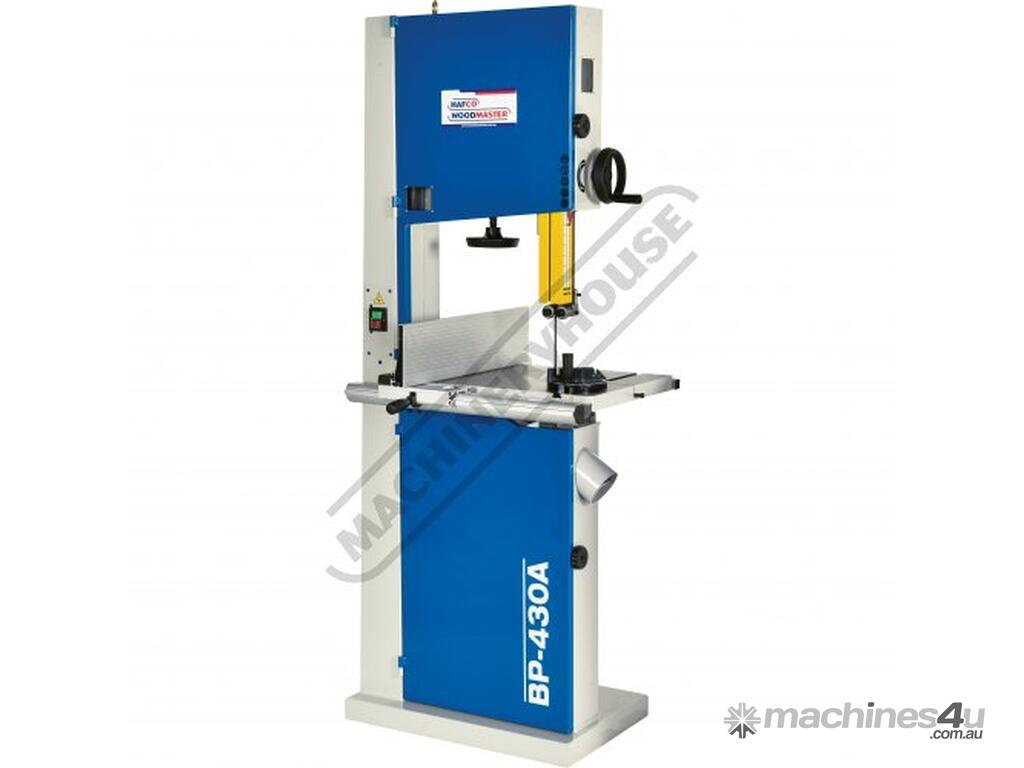

BP-430A Wood Band Saw 2 Blade Speeds - 488 & 1010m/min & Includes Automatic Electronic Motor Braking

HAFCO-WOODMASTER BP-430A Wood Band Saw 2 Blade Speeds - 488 & 1010m/min & Includes Automatic Electronic Motor Braking System 415mm Throat Depth x 310mm Height Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W4330

A wood bandsaw is probably the most versatile machine in any workshop and often the first machine used when preparing timber. This BP-430A bandsaw now includes a electronic safety motor brake system to quickly stop the blade, and a powerful 1500W - 2hp 240V motor, large cutting capacities and all manufactured to quality standards we expect of our range of machines.

The BP-430A manufactured in Taiwan offers excellent safety features including interlocked blade guard doors, safety magnetic nvr power switch, 2 x height option fence, twin extraction ports and is all compliant to CE standard. A rigid welded steel chassis cast iron table and heavy-duty ball bearing blade guides are included, along with a rigid rip fence and precision mitre fence.

An often overlooked feature is the ease of changing the blade; The BP-430A has a quick release blade tensioning lever which substantially speeds up the process of blade changing. Two belt speeds offer the right speed of 488 & 1010m/min. for cutting either a large or small job.

Features:
Quality Taiwanese manufacture
415mm throat capacity
Extra high cutting capacity - 310mm
Powerful 2hp - 240V motor
Automatic electronic motor braking system to quickly stop blade

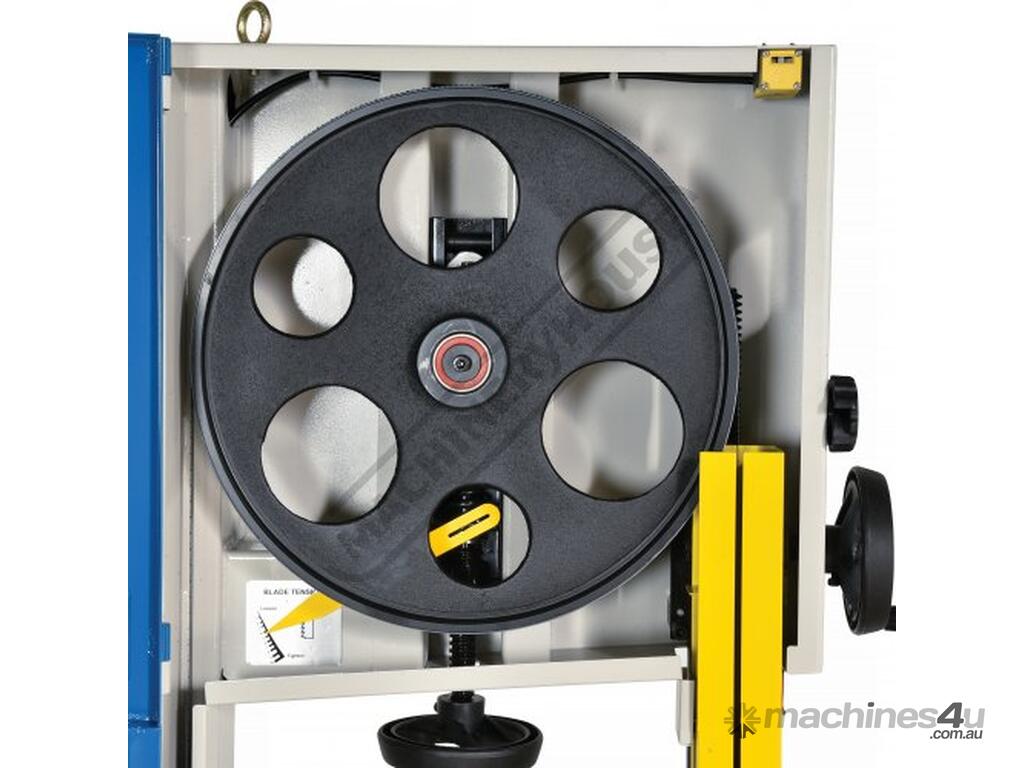

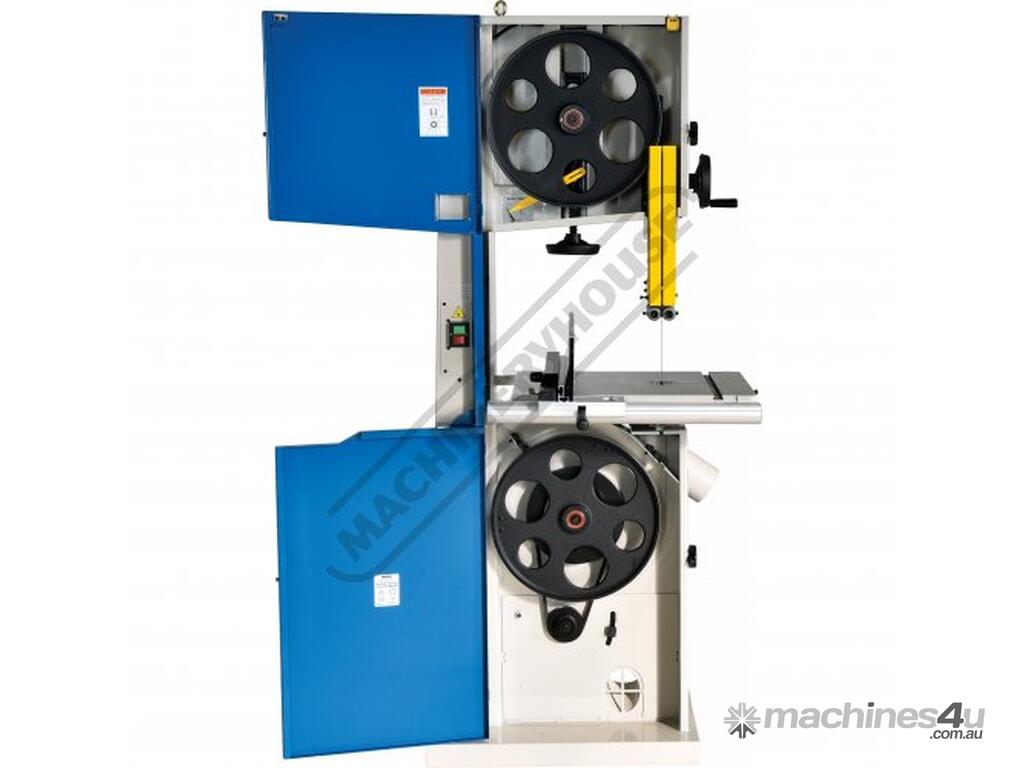

Ø430mm (17") heavy duty cast iron wheels balanced for performance
Two blade speeds 488/1010m/min

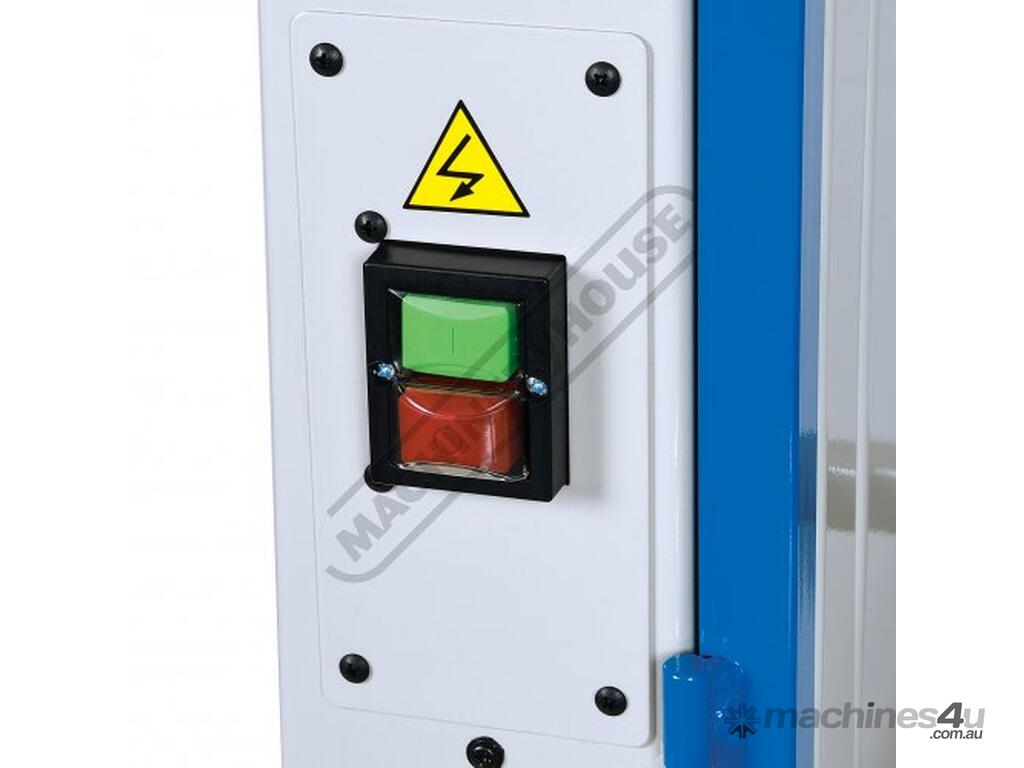

Magnetic NVR on/off switch

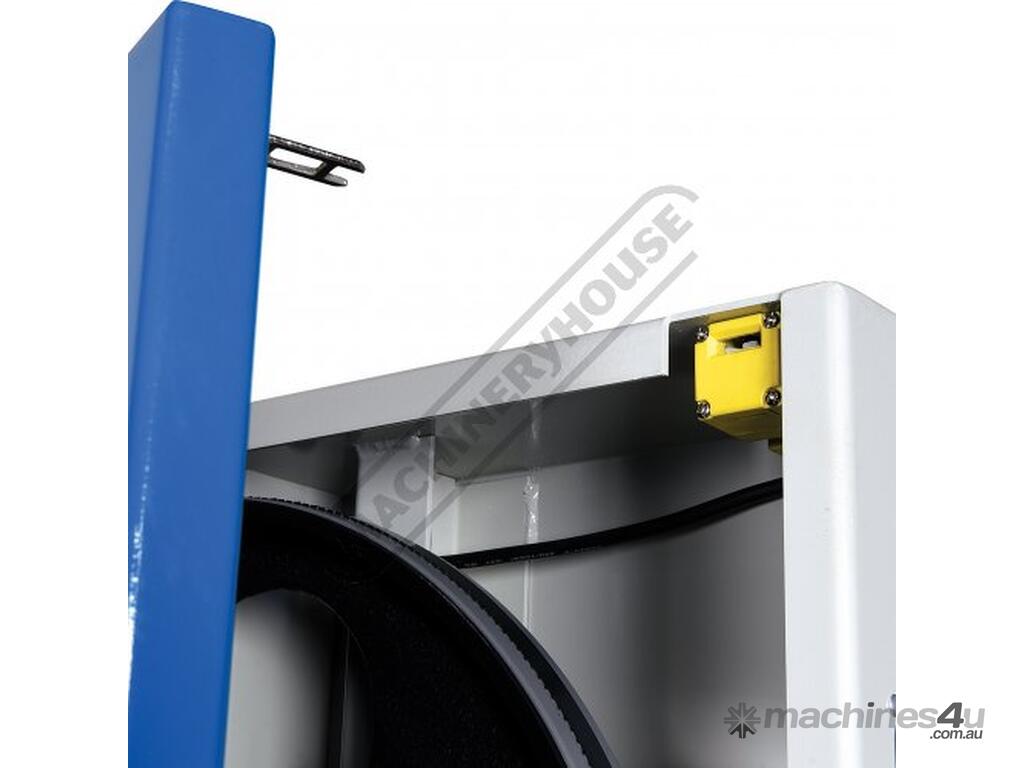

Micro-switch protection on hinged blade guard doors

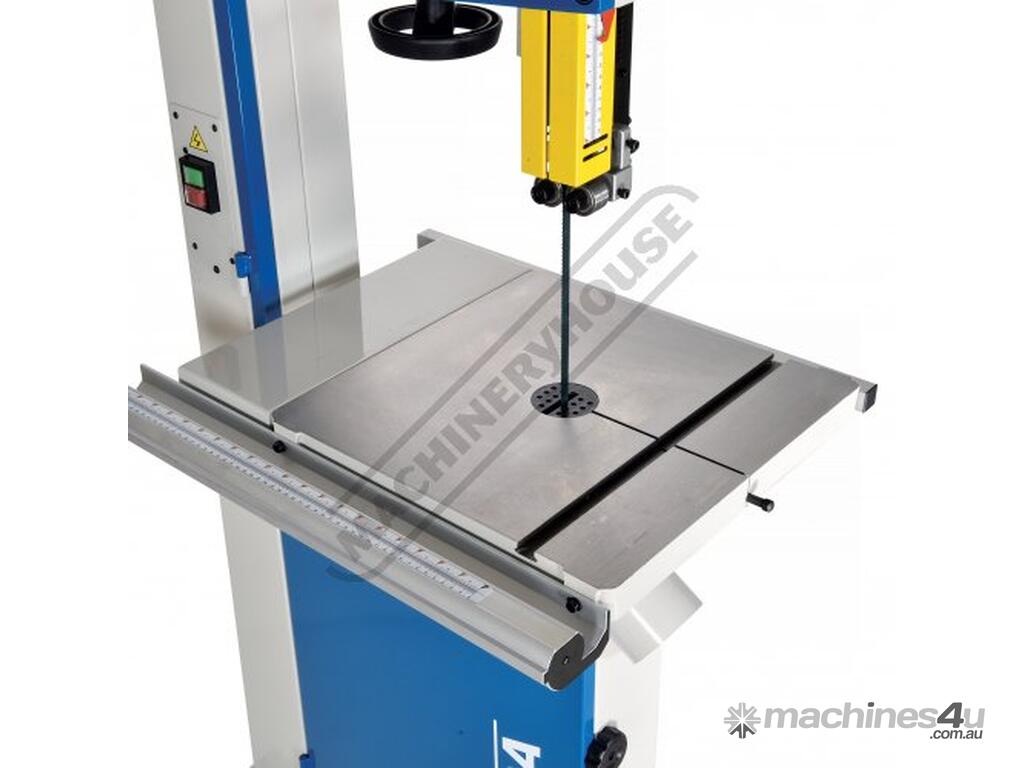

Large cast iron table tilts to -10° to +45°

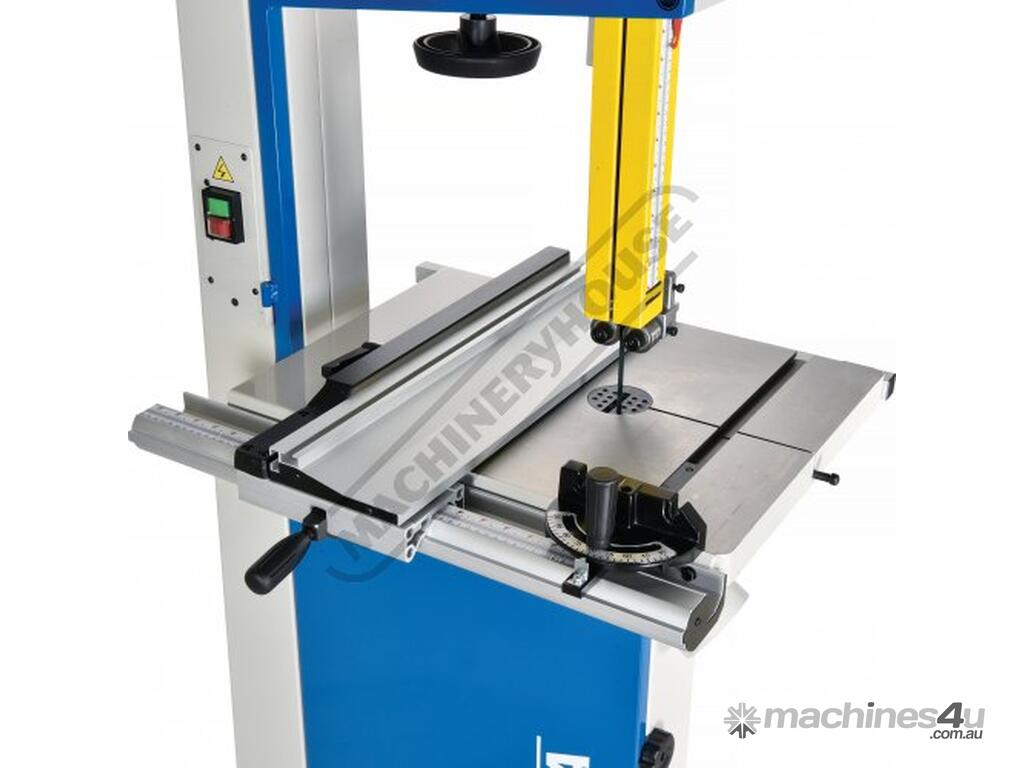

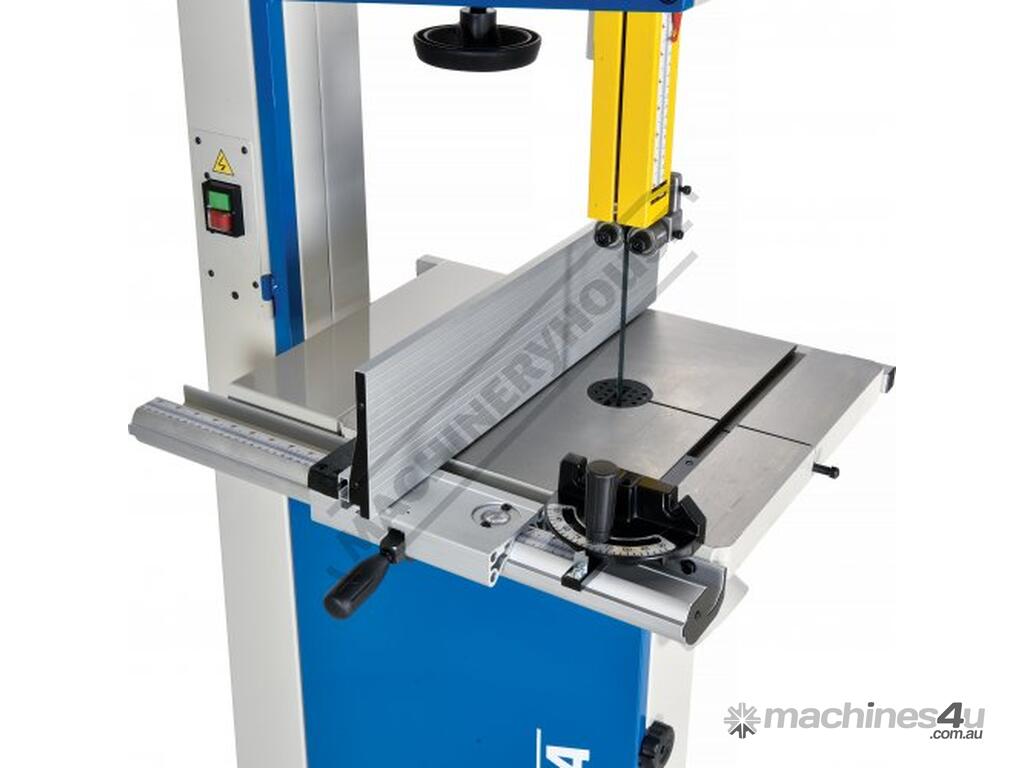

Aluminium extruded High / Low ripping fence - 150mm & 12mm

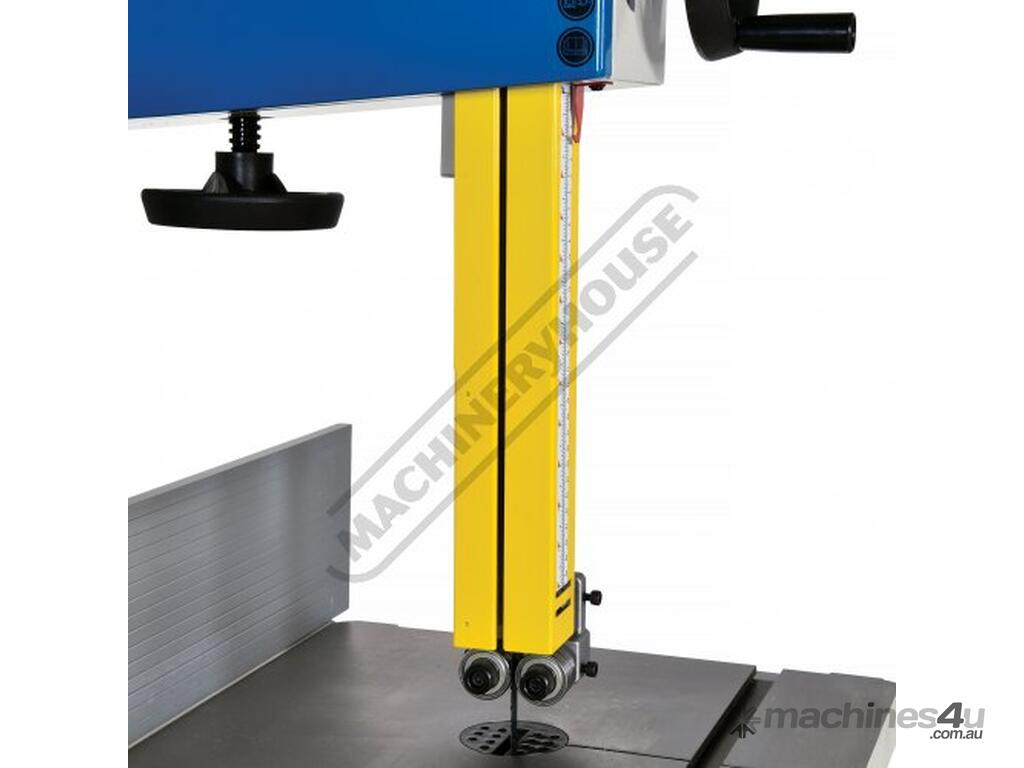

Double ball bearing guides with grooved rear thrust bearing for maximum blade support
Quick-action blade tension

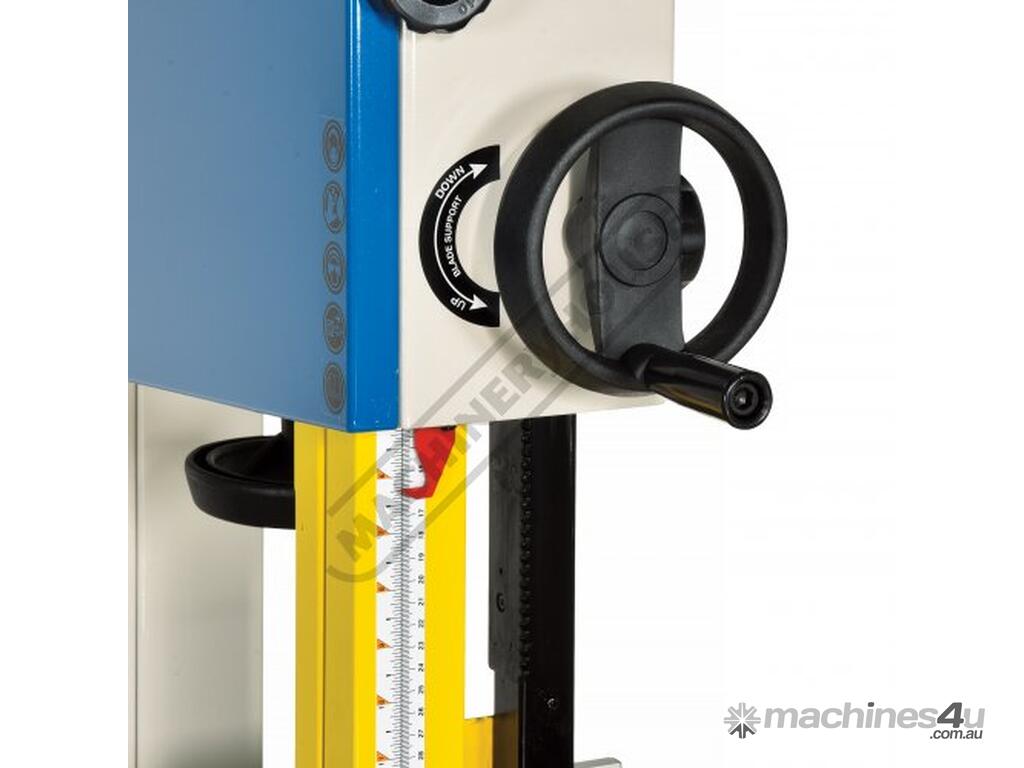

Rack & pinion adjustment on top blade guide

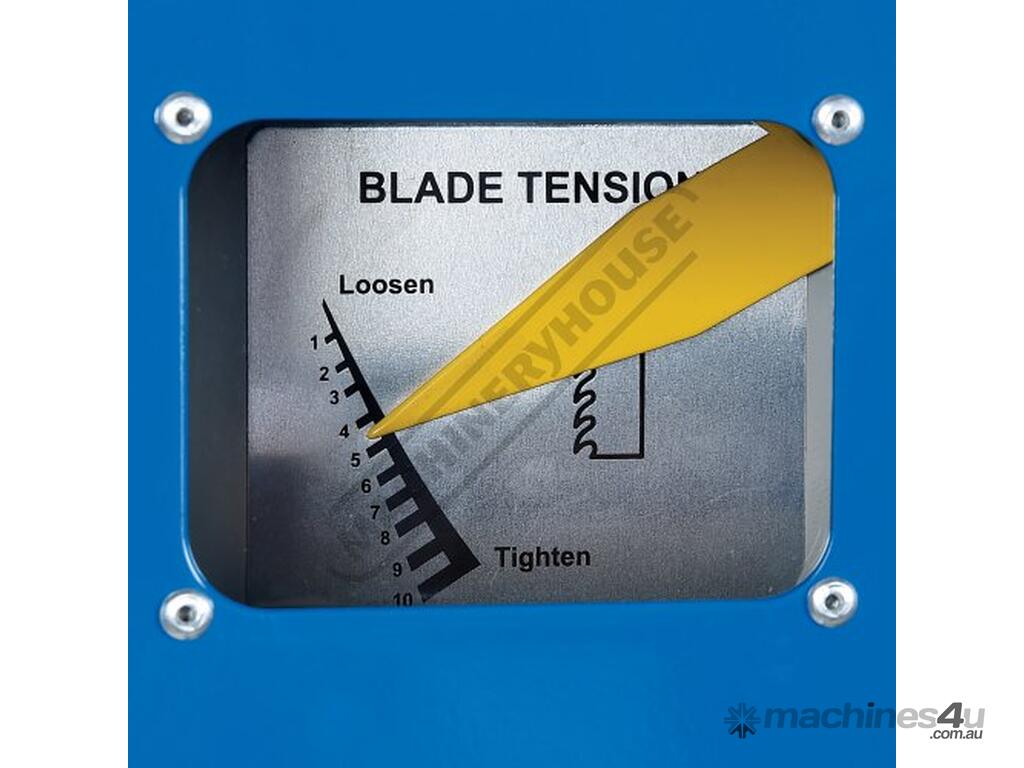

Two viewing windows make blade tracking and tensioning possible while the machine is running
Twin Ø100mm (4") dust ports for efficient dust extraction
CE safety standard compliant

Includes:
- Aluminium extruded High / Low ripping fence

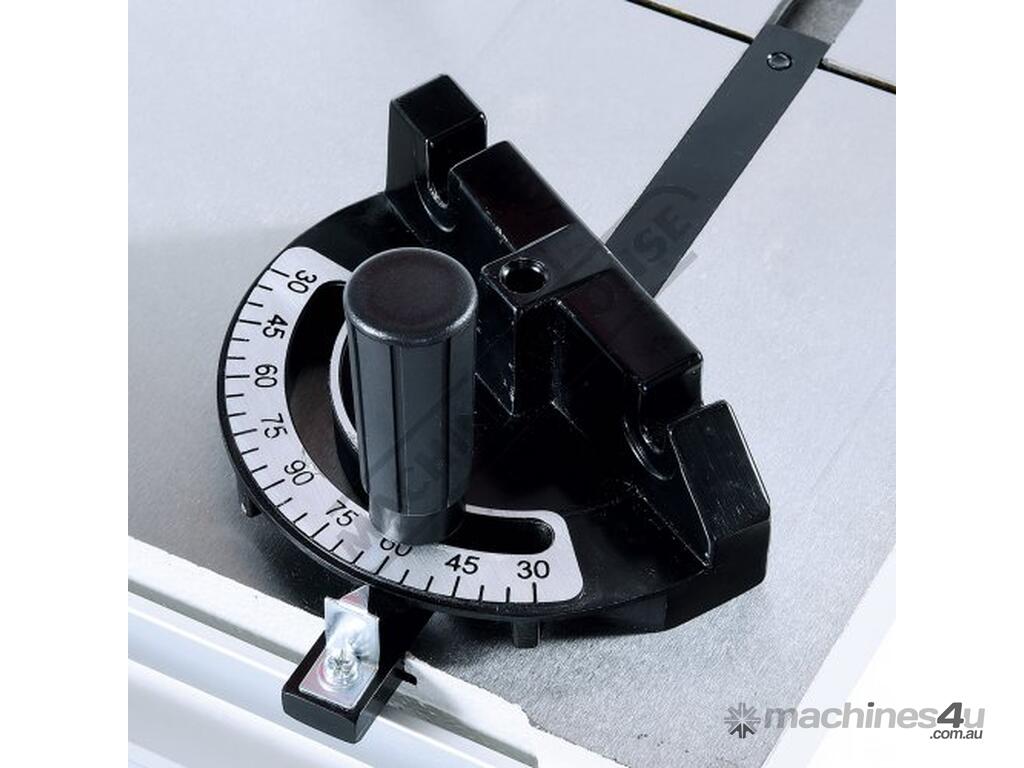

- Mitre gauge
- 6TPI Blade - 3345 x 16 x 0.65mm



Specifications:
ORDER CODE: W4330
MODEL: BP-430A
Wheel Diameter (Ø) (mm): 430
Throat Capacity (mm): 415
Height Capacity (mm): 310
Table Size (mm): 585 x 435 with Extension
Frame Type: Steel
Motor Power (kW / hp): 1.5 / 2 (Electronic Brake System)
Voltage / Amperage (V / amp): 240 / 10
Blade Code (Suits): W433A, W433B, W433C
Blade Size (L x W x T) (mm): 3345 x 16 x 0.80
Floor Space (W x D x H) (mm): 850 x 830 x 1860
Nett Weight (kg): 181
