BP-480 CE Wood Band Saw 2 Blade Speeds - 488 & 1010m/min & Includes Magnetic Safety Brake System - 2

HAFCO-WOODMASTER BP-480 CE Wood Band Saw 2 Blade Speeds - 488 & 1010m/min & Includes Magnetic Safety Brake System - 240V 465mm Throat Depth x 310mm Height Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W4344

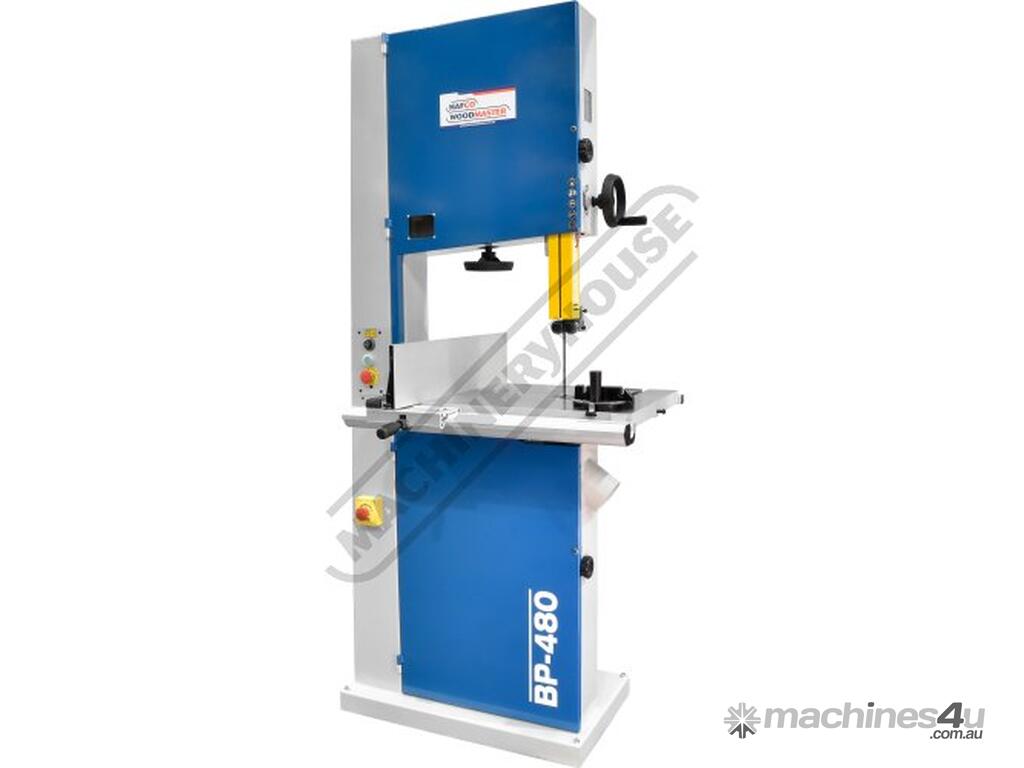

Manufactured in Taiwan, the CE Safety Compliant BP-480 is equipped with a powerful 1.5kW, 2hp brake motor and offers a cutting capacity of 465mm depth x 310mm height.

Safety is paramount, with CE-compliant features including a 2-second blade stopping time, interlocked blade guard doors, a magnetic NVR power switch, an emergency stop switch, and a keyed motor brake release for safe blade changes.

Balanced Ø480mm cast iron blade wheels minimise vibration for smoother operation, while two blade speeds (488 & 1010m/min) ensure versatility for both large and small tasks.

Features:
Quality Taiwanese manufacture
Powerful 2hp - 240V braked motor - CE Safety Compliant
Keyed brake release enhances safety during blade changes
465mm throat capacity
Extra high cutting capacity - 310mm

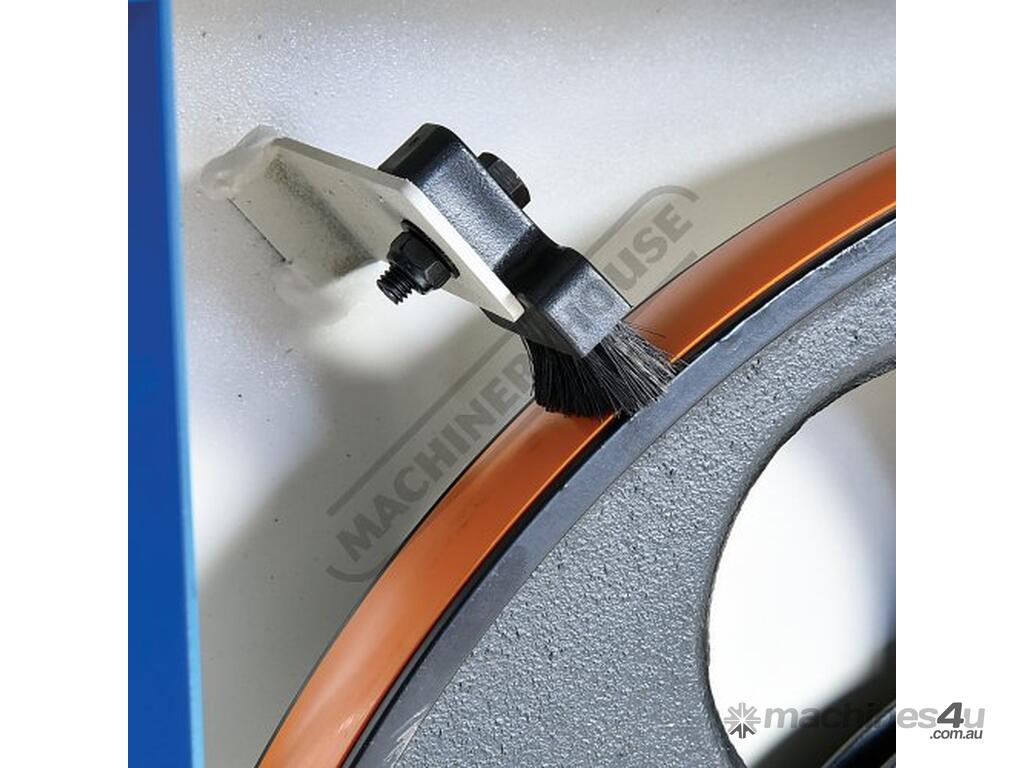

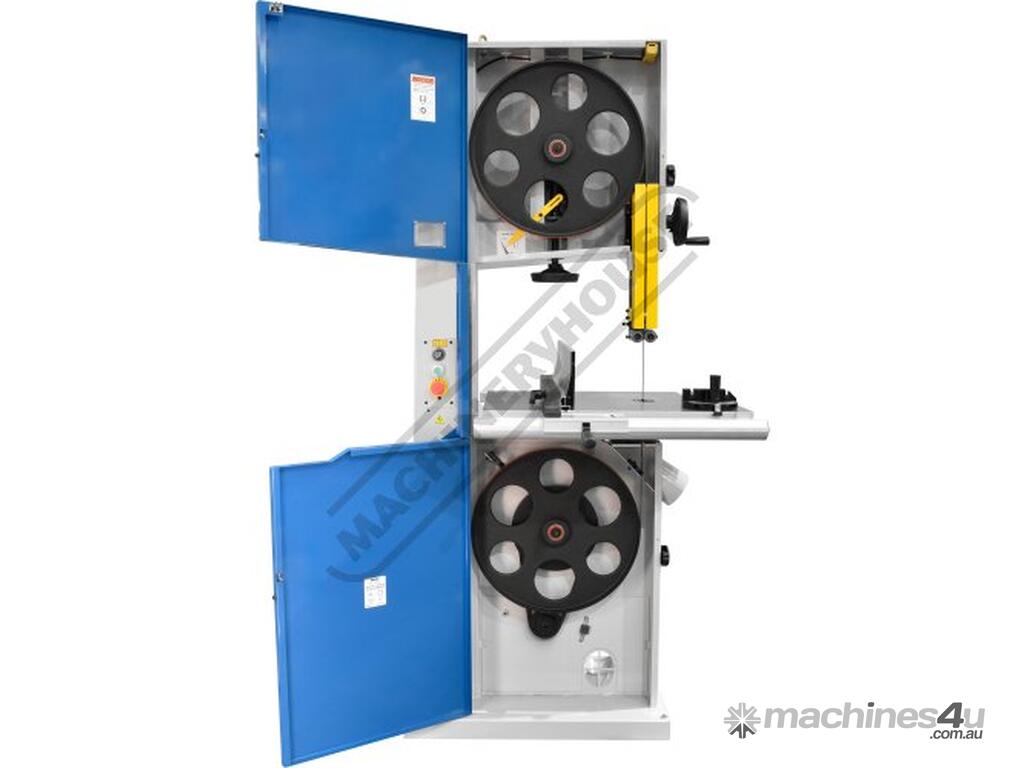

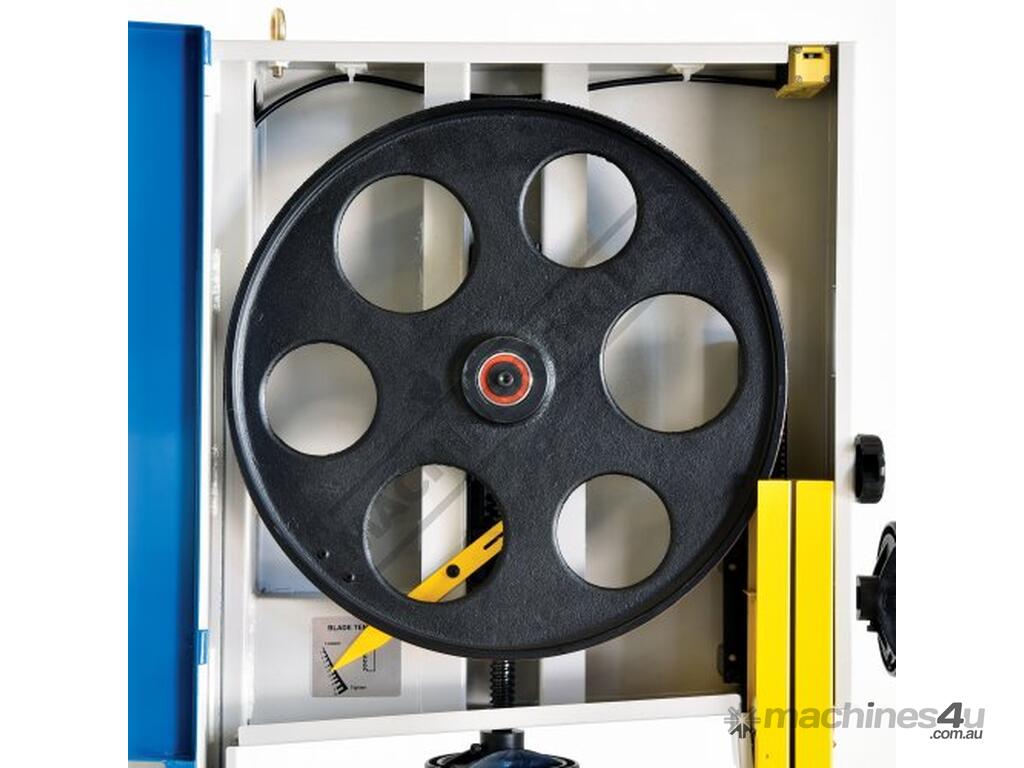

Ø480mm heavy duty cast iron wheels
Two blade speeds 488/1010m/min

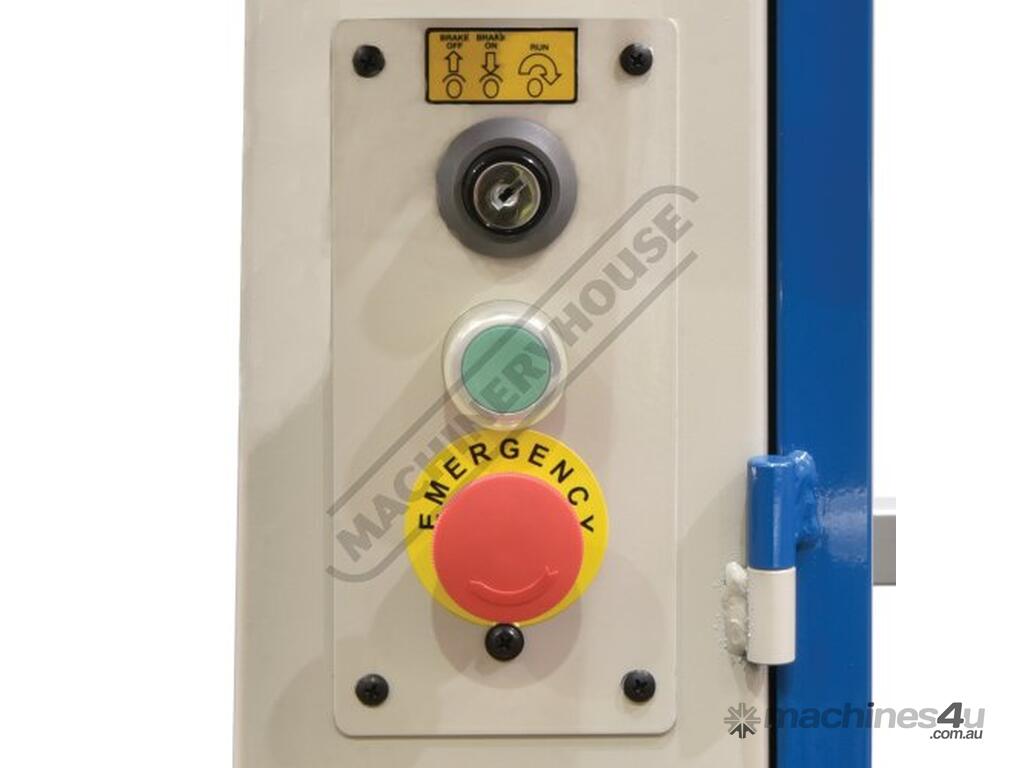

Magnetic NVR on/off switch
Emergency stop switch

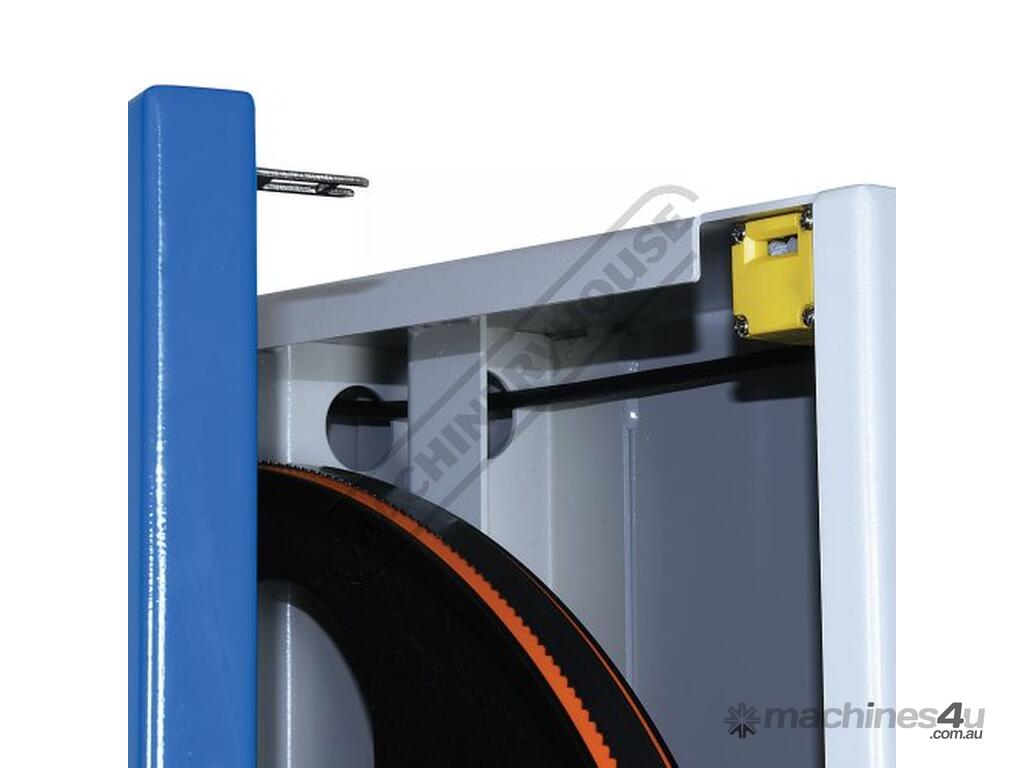

Micro-switch protection on hinged blade guard doors

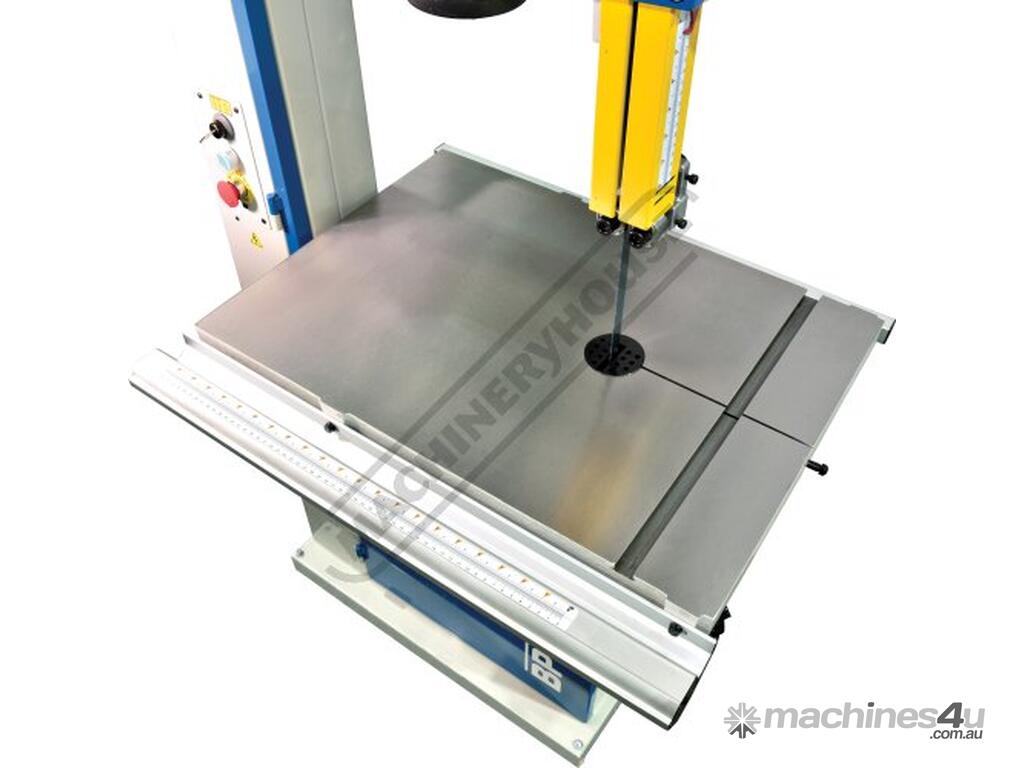

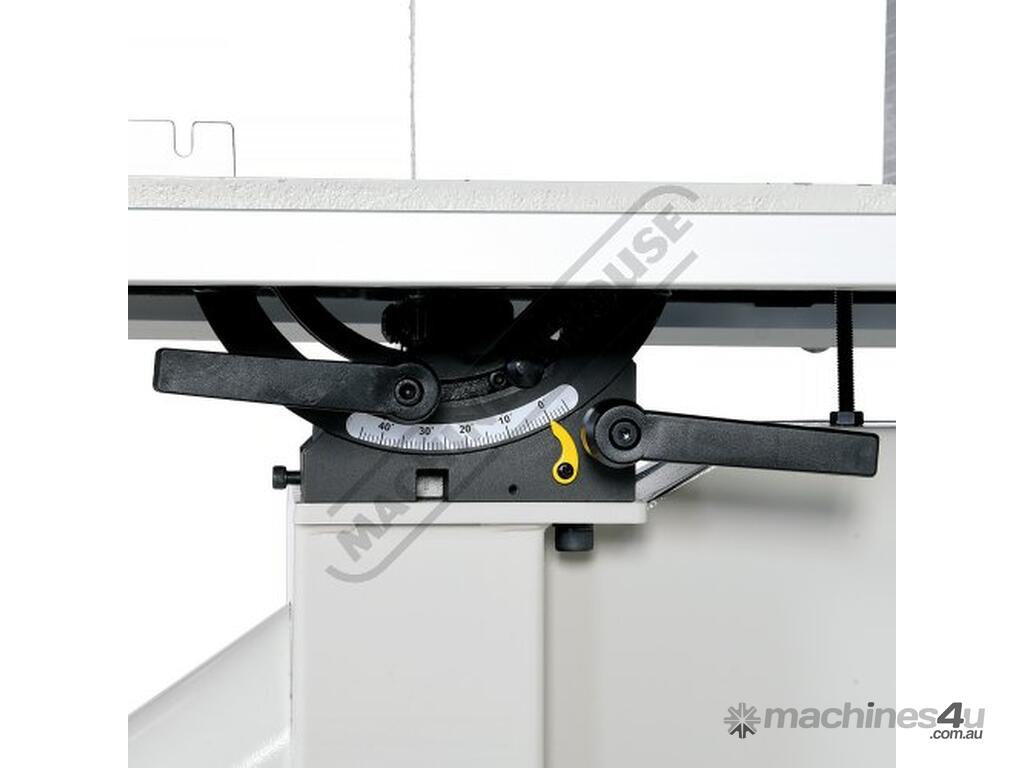

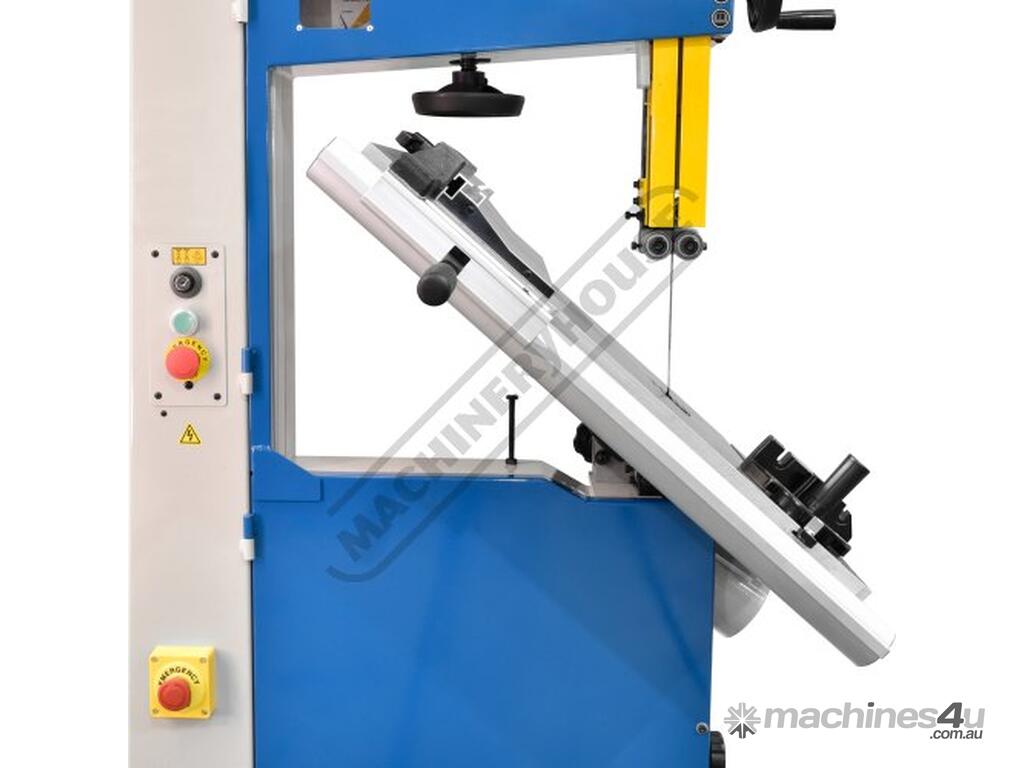

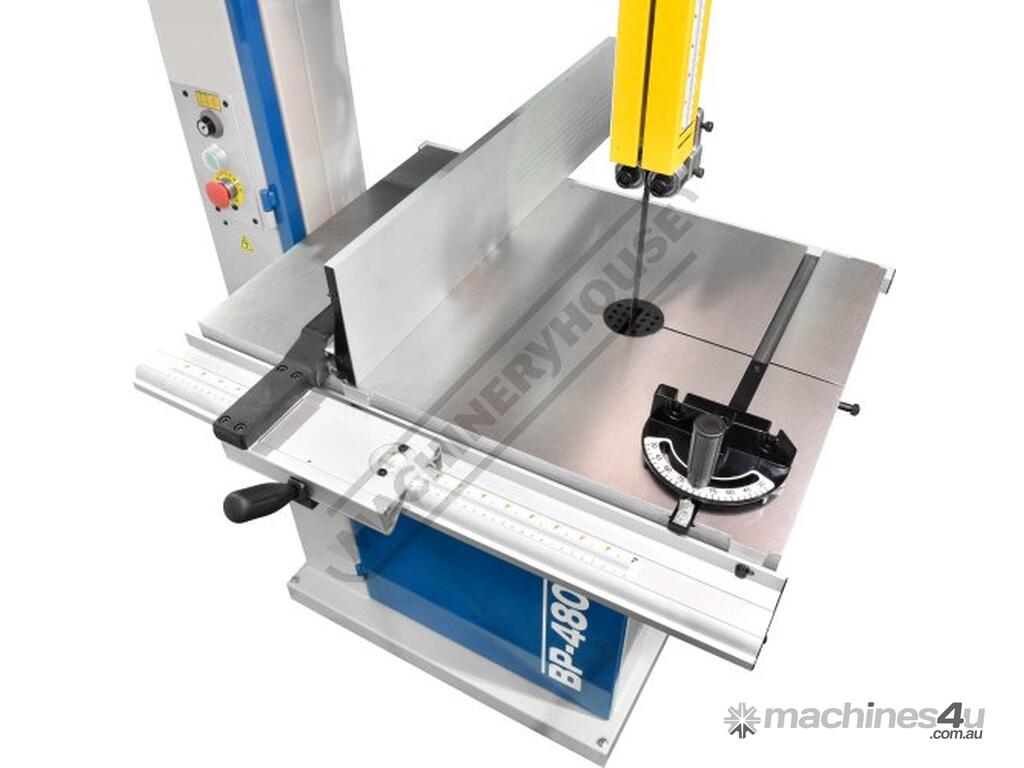

Large cast iron table tilts to -5° to +45°

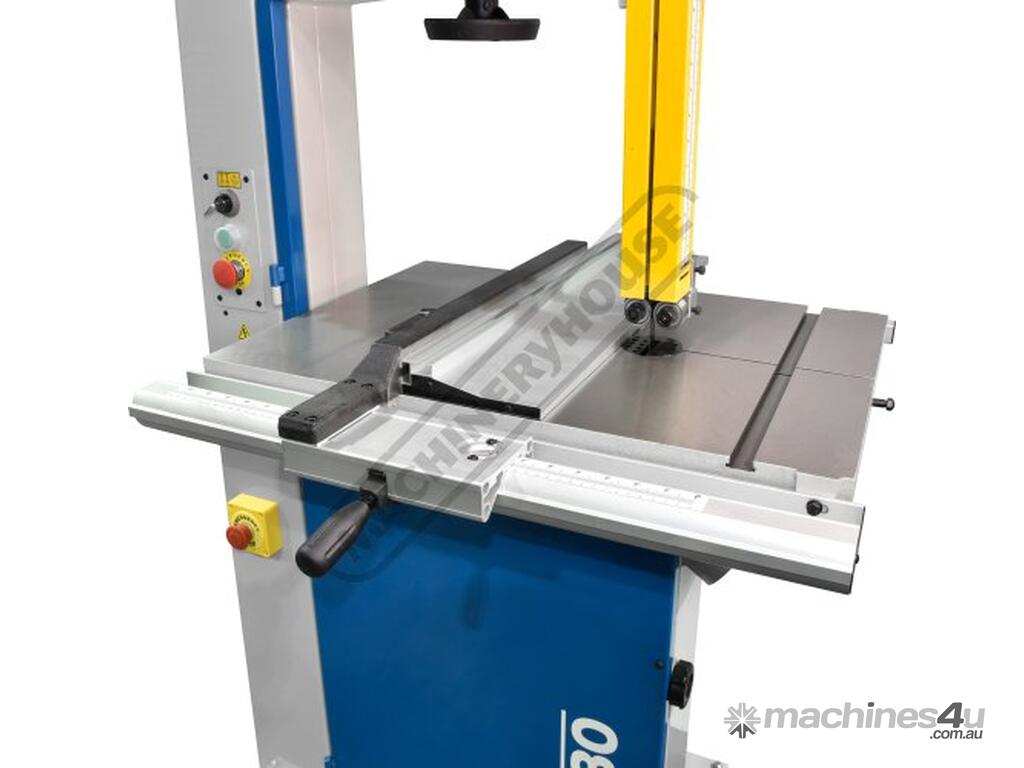

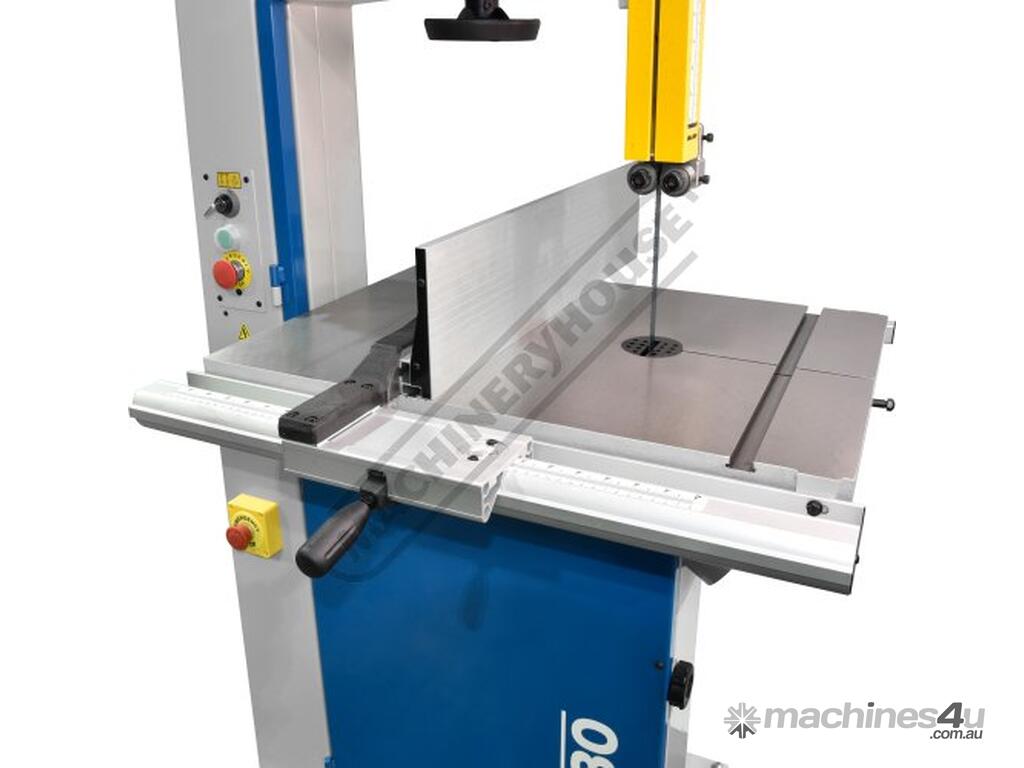

High / Low ripping fence - 150mm & 12mm

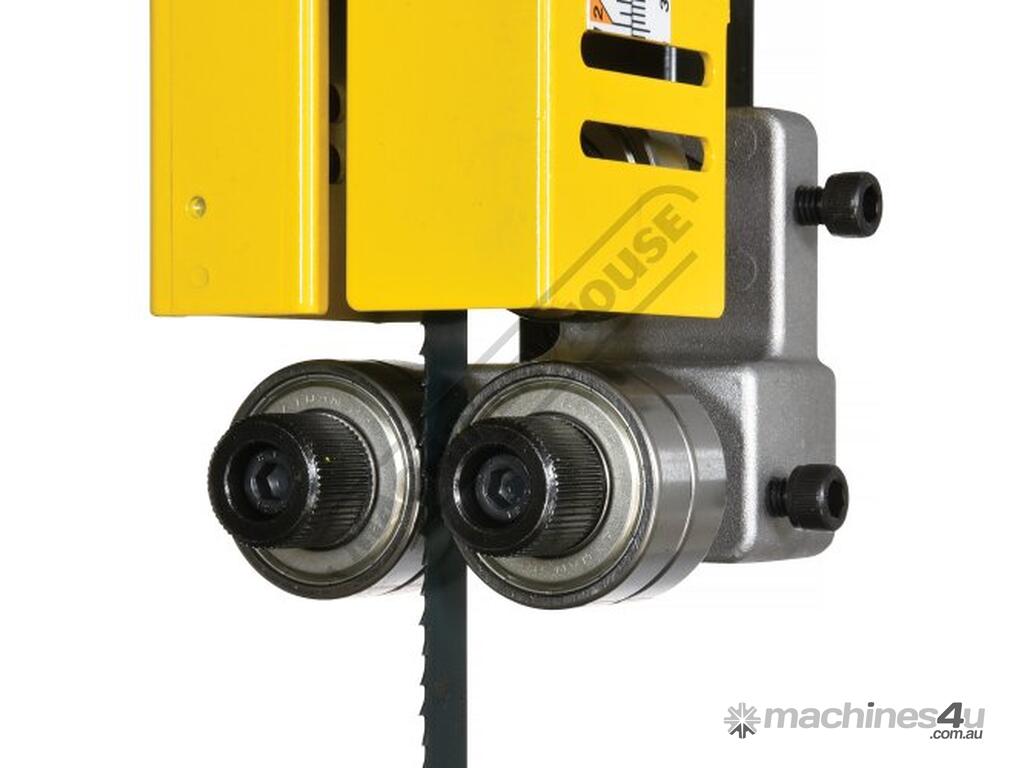

Double ball bearing guides with grooved rear thrust bearing for maximum blade support

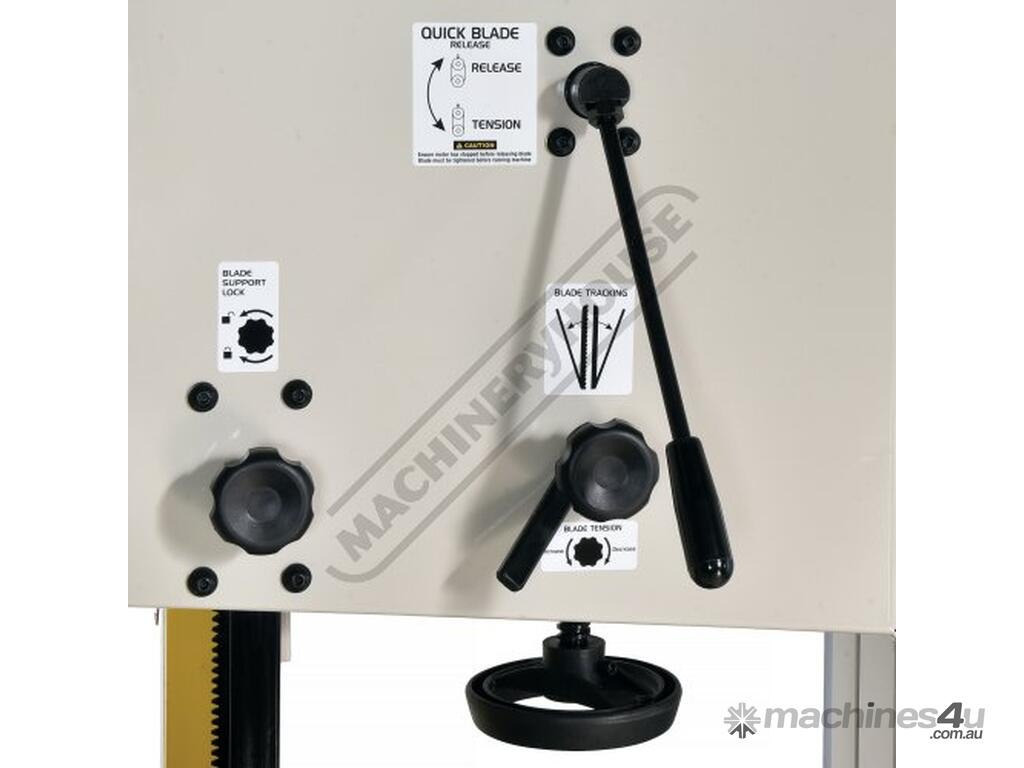

Quick-action blade tension

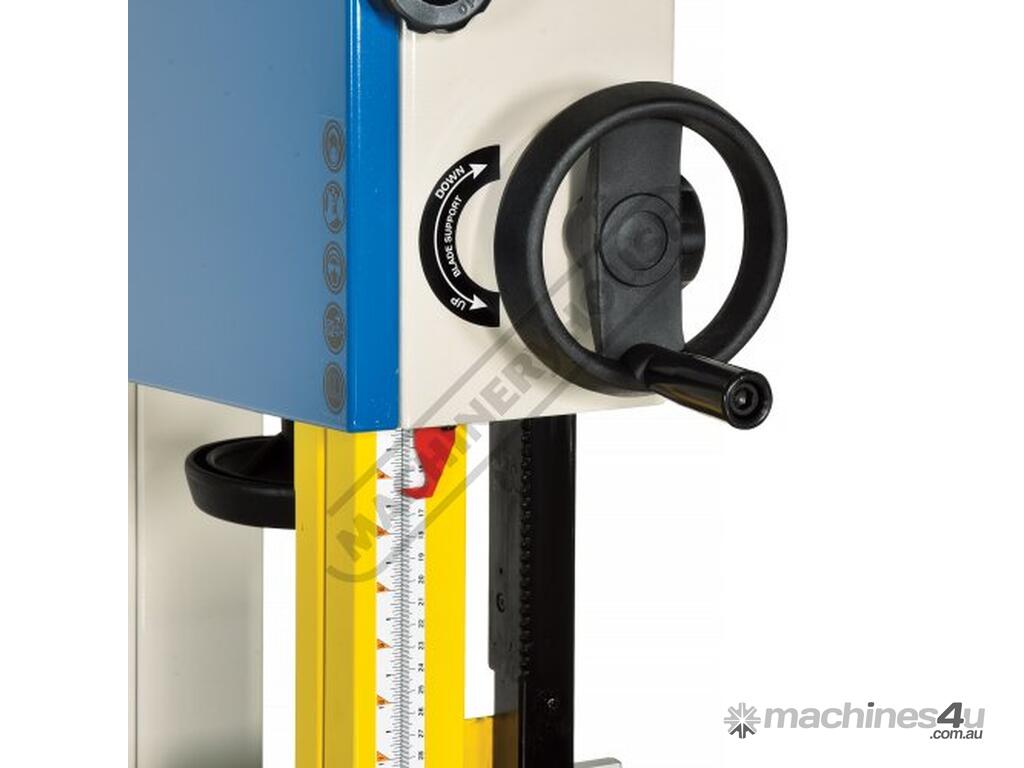

Rack & pinion adjustment on top blade guide

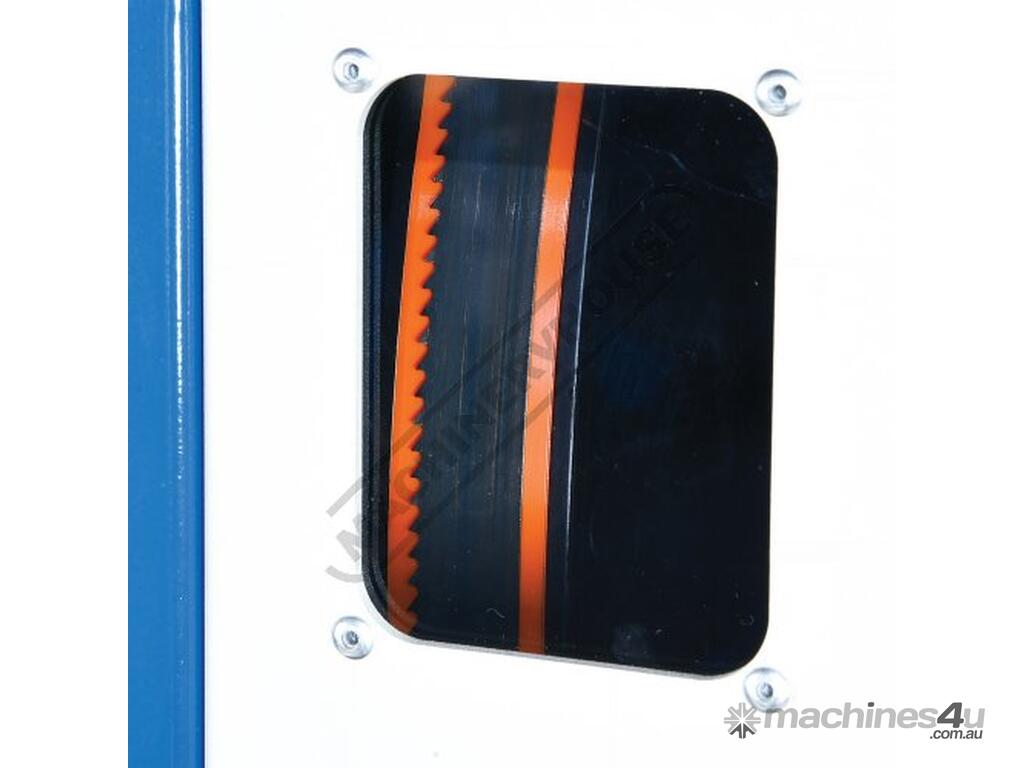

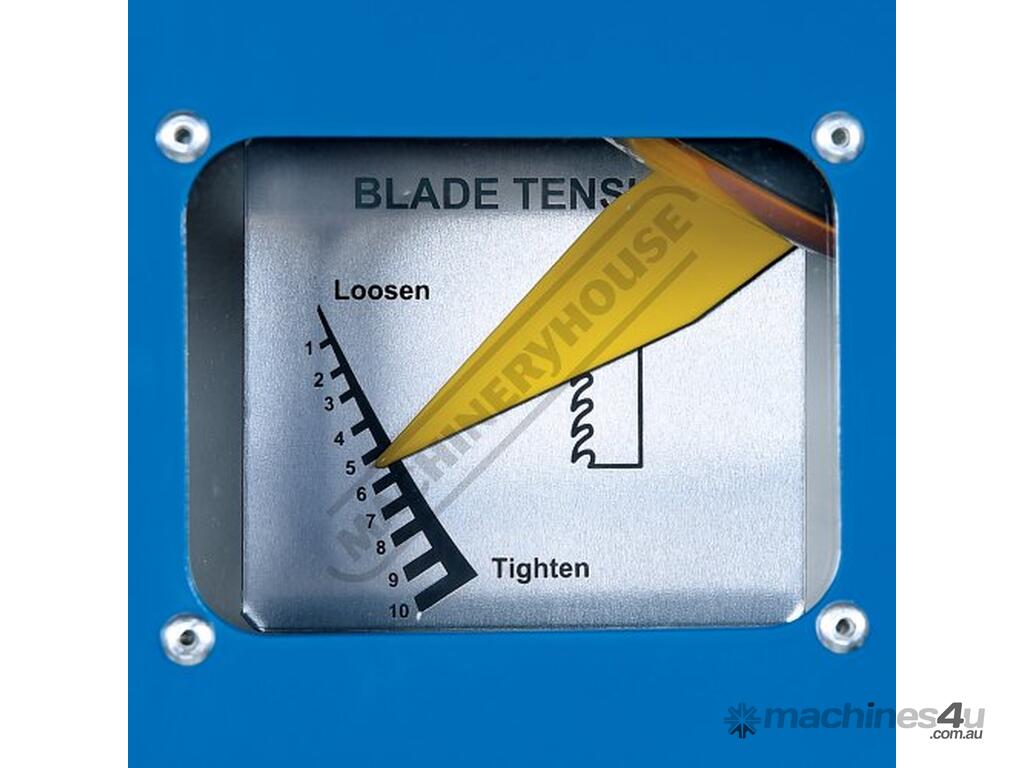

Two viewing windows make blade tracking and tensioning possible while the machine is running

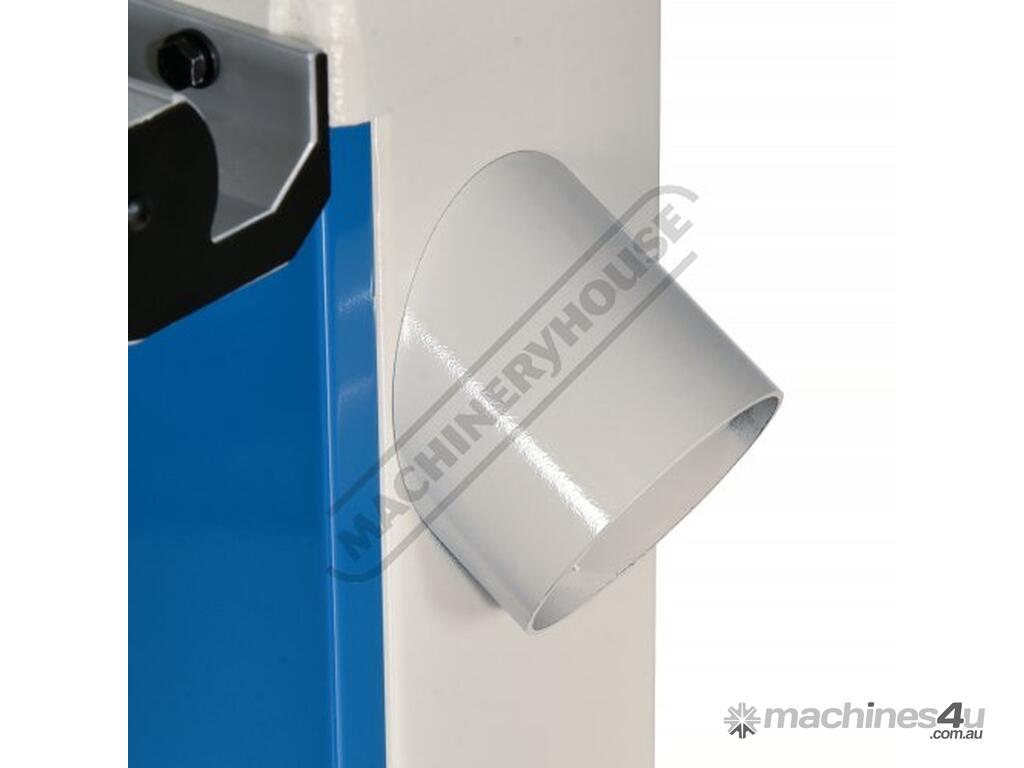

Twin Ø100mm (4") dust ports for efficient dust extraction

Includes:
- High / Low ripping fence

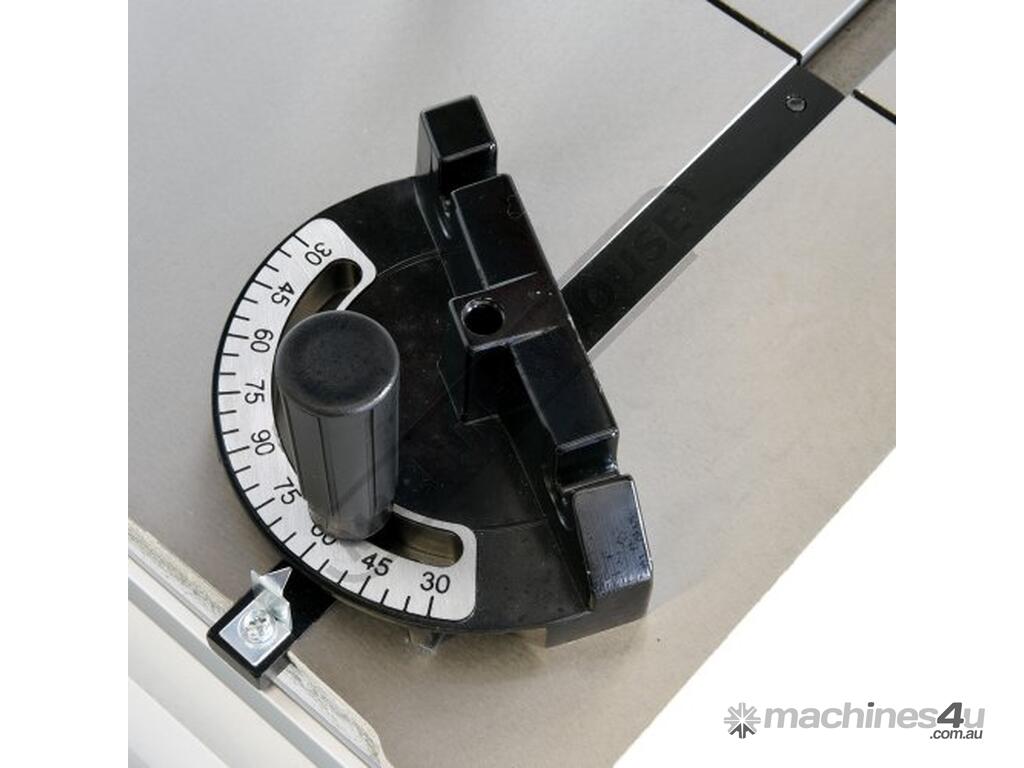

- Mitre gauge
- 6TPI Blade - 3630 x 19 x 0.8mm



Specifications:
ORDER CODE: W4344
MODEL: BP-480
Wheel Diameter (Ø) (mm): 480
Throat Capacity (mm): 465
Height Capacity (mm): 310
Table Size (mm): 480 x 480
Frame Type: Steel
Motor Power (kW / hp): 1.5 / 2 [with Brake System]
Voltage / Amperage (V / amp): 240 / 15
Blade Code (Suits): W434A, W434B
Blade Size (L x W x T) (mm): 3630 x 19 x 0.80
Floor Space (W x D x H) (mm): 960 x 850 x 1935
Nett Weight (kg): 174
