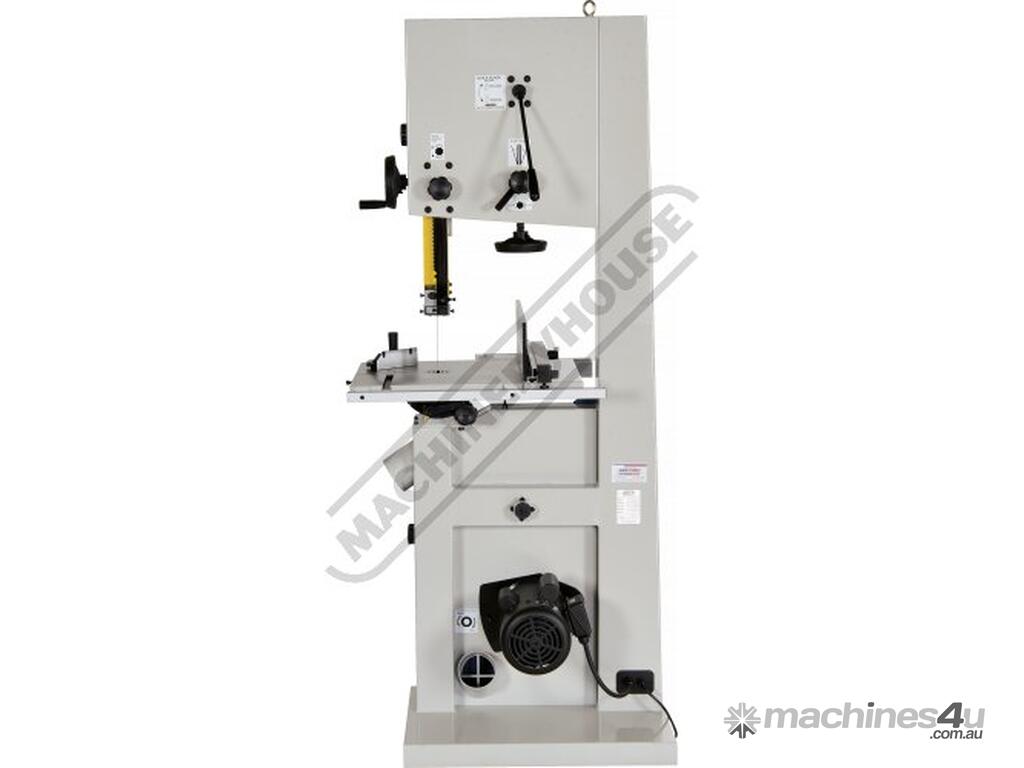

BP-480A Wood Band Saw 2 Blade Speeds - 488 & 1010m/min & Includes Automatic Electronic Motor Braking

HAFCO-WOODMASTER BP-480A Wood Band Saw 2 Blade Speeds - 488 & 1010m/min & Includes Automatic Electronic Motor Braking System 465mm Throat Depth x 310mm Height Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W4340

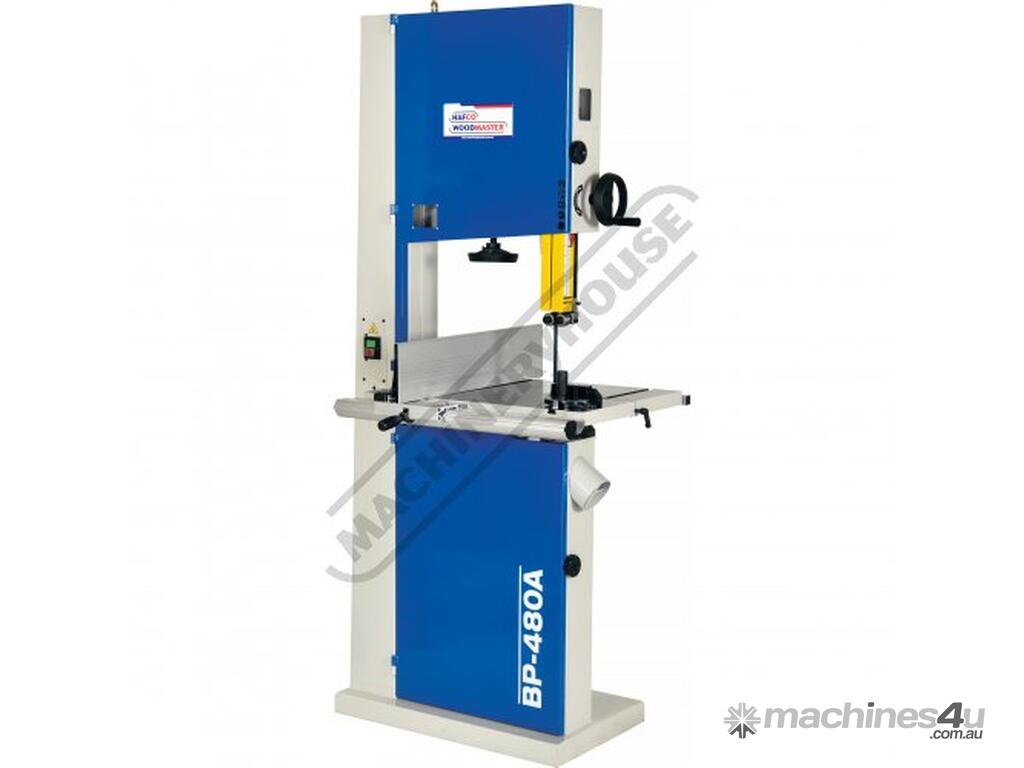

The BP-480A is the big brother of the BP-430A bandsaw and offers a larger cutting capacity of 465mm depth x 310mm height. It also includes a electronic safety motor brake system to quickly stop the blade, and the powerful 1500W, 2hp 240V motor drives a 2-speed pulley system that allows you to cut a wide variety of timber sections with ease. The welded steel frame is extraordinary rigid allowing for higher blade tension with a quick release blade tensioning lever that substantially speeds up the process of changing the blade.

The BP-480A also manufactured in Taiwan offers excellent safety features including interlocked blade guard doors, safety magnetic nvr power switch, 2 x height option fence, twin extraction ports and is all compliant to CE standard. The cast iron table and heavy-duty ball bearing blade guides are included, along with a rigid rip fence and precision mitre fence.

Worm gear systems incorporated for both table tilting and blade guidepost movement are used for quick & easy adjustment. Another very important feature that is also often forgotten is that the machine offers cast iron blade wheels that are balanced for smooth running and helps eliminate excessive vibration.

An often overlooked feature is the ease of changing the blade; The BP-480A has a quick release blade tensioning lever which substantially speeds up the process of blade changing. Two belt speeds offer the right speed of 488 & 1010m/min. for cutting either a large or small job.

Features:
Quality Taiwanese manufacture
465mm throat capacity
Extra high cutting capacity - 310mm

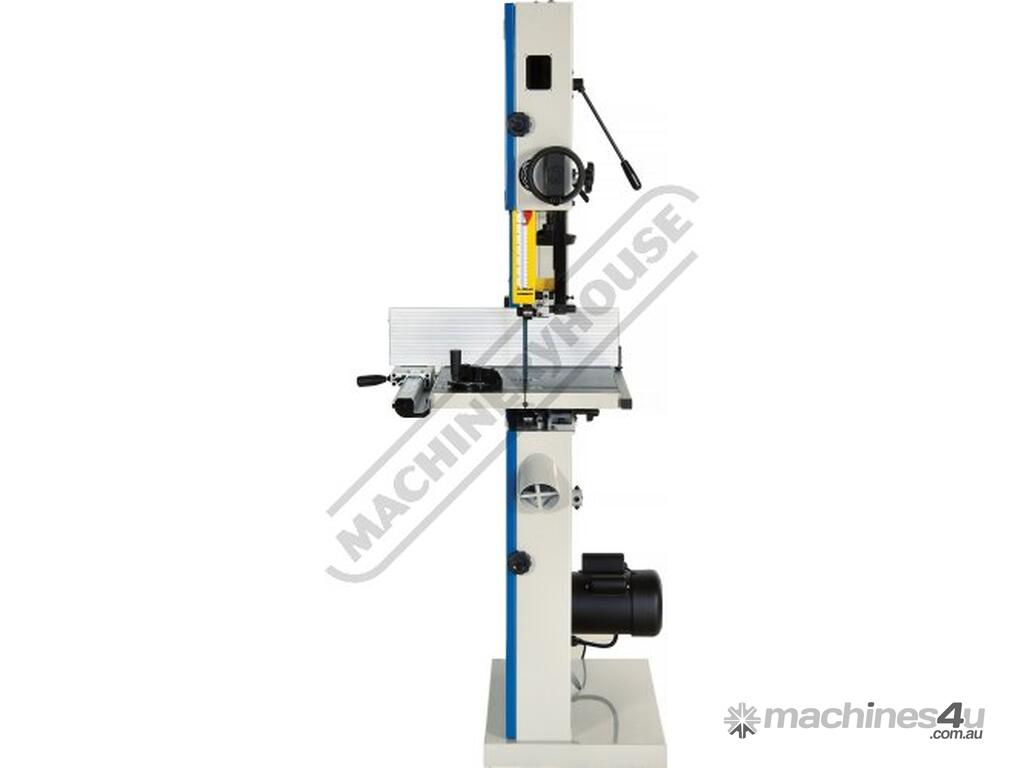

Powerful 2hp - 240V motor
Automatic electronic motor braking system to quickly stop blade

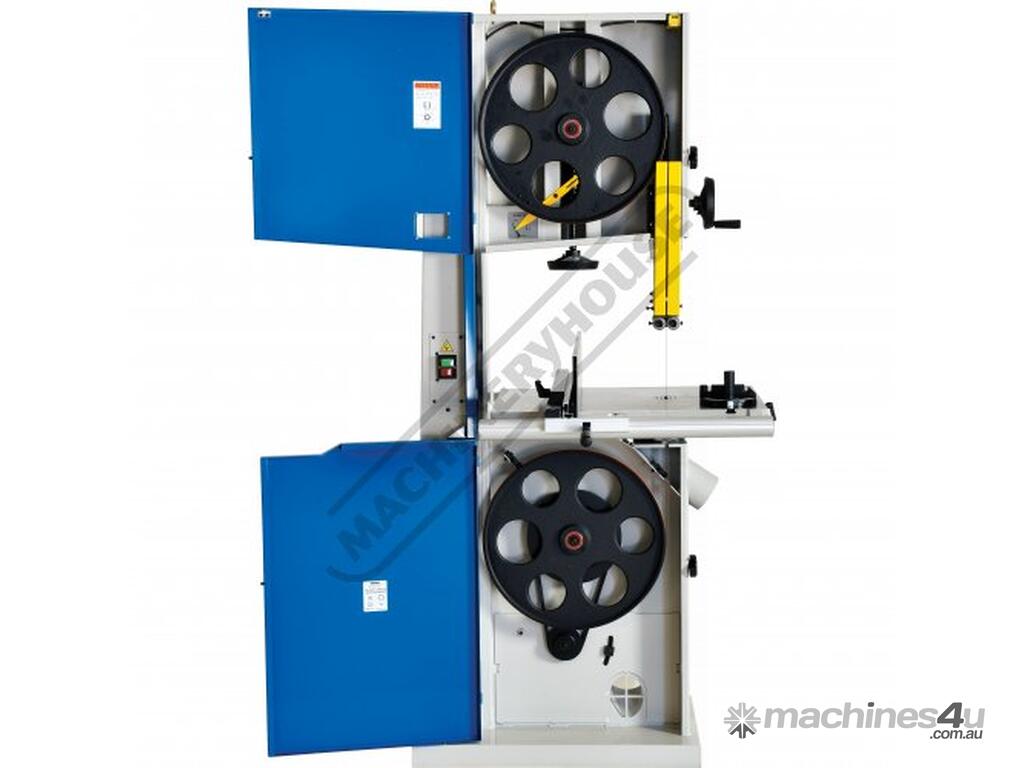

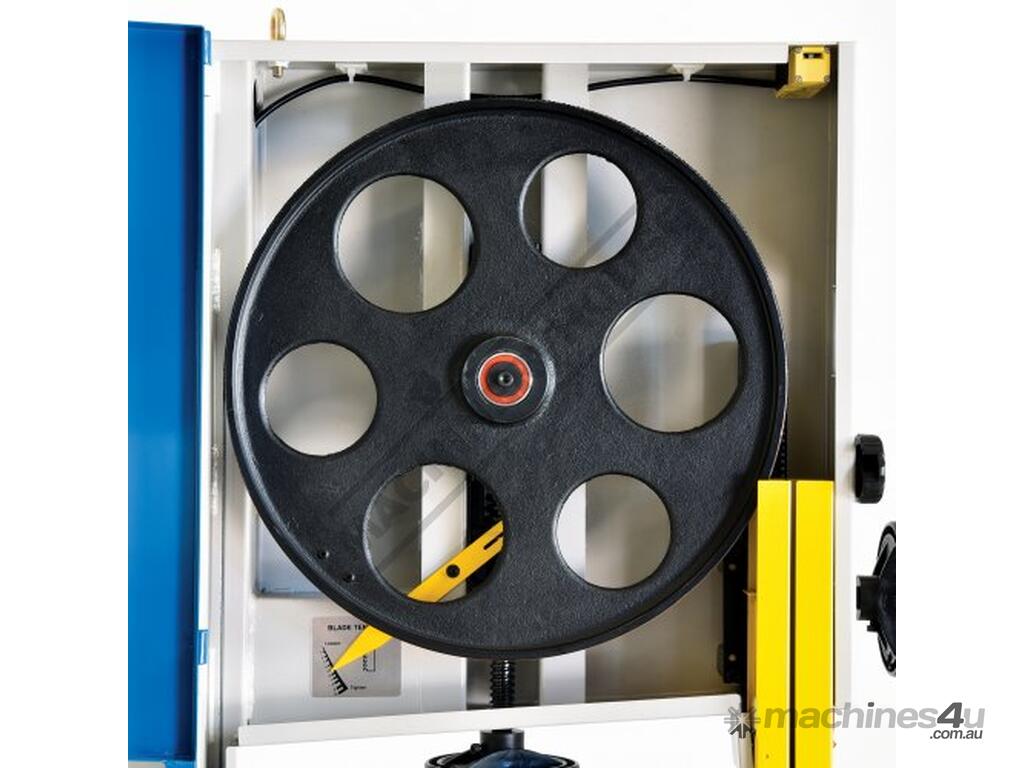

Ø480mm (19") heavy duty cast iron wheels balanced for performance
Two blade speeds 488/1010m/min
Magnetic NVR on/off switch

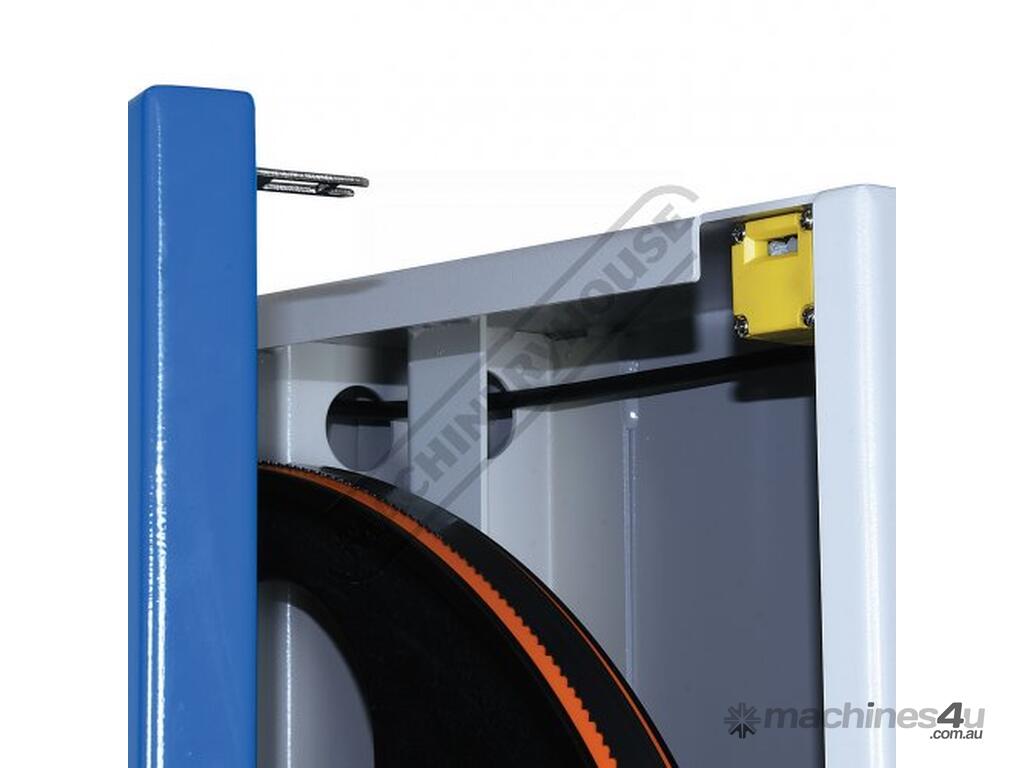

Micro-switch protection on hinged blade guard doors

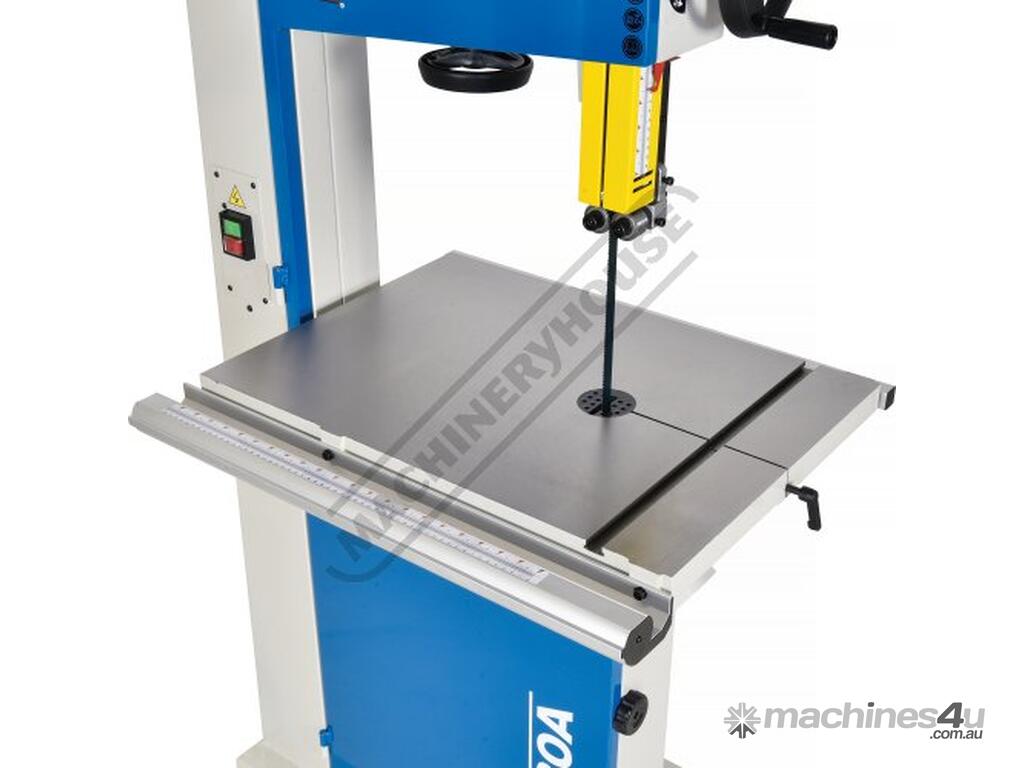

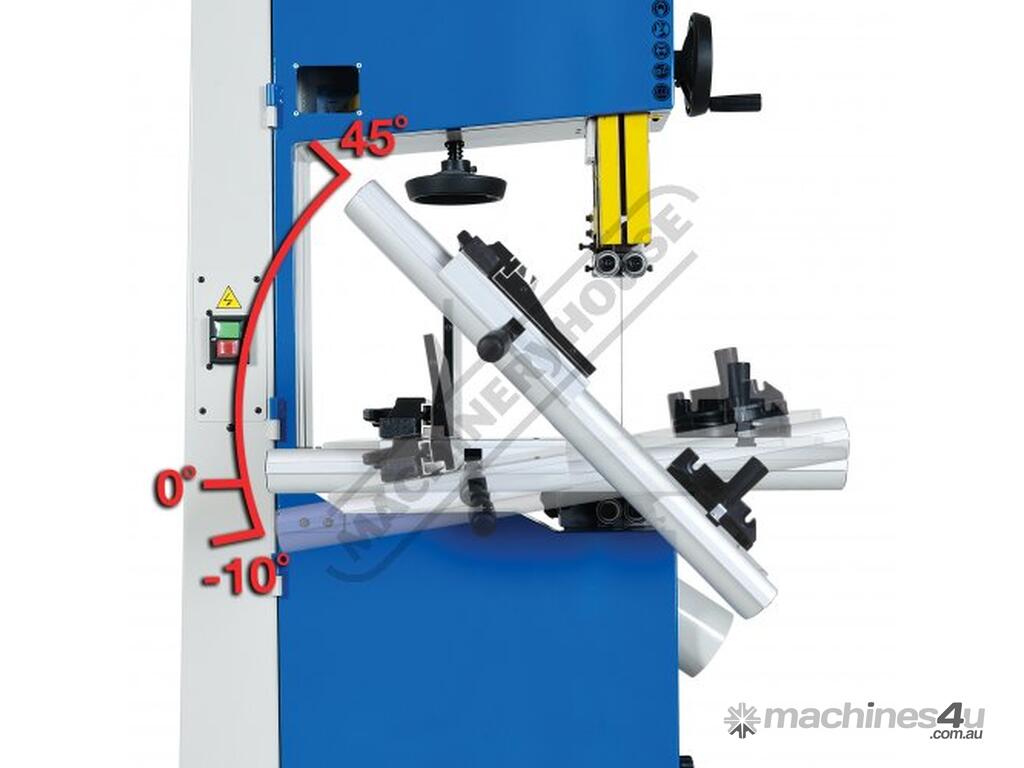

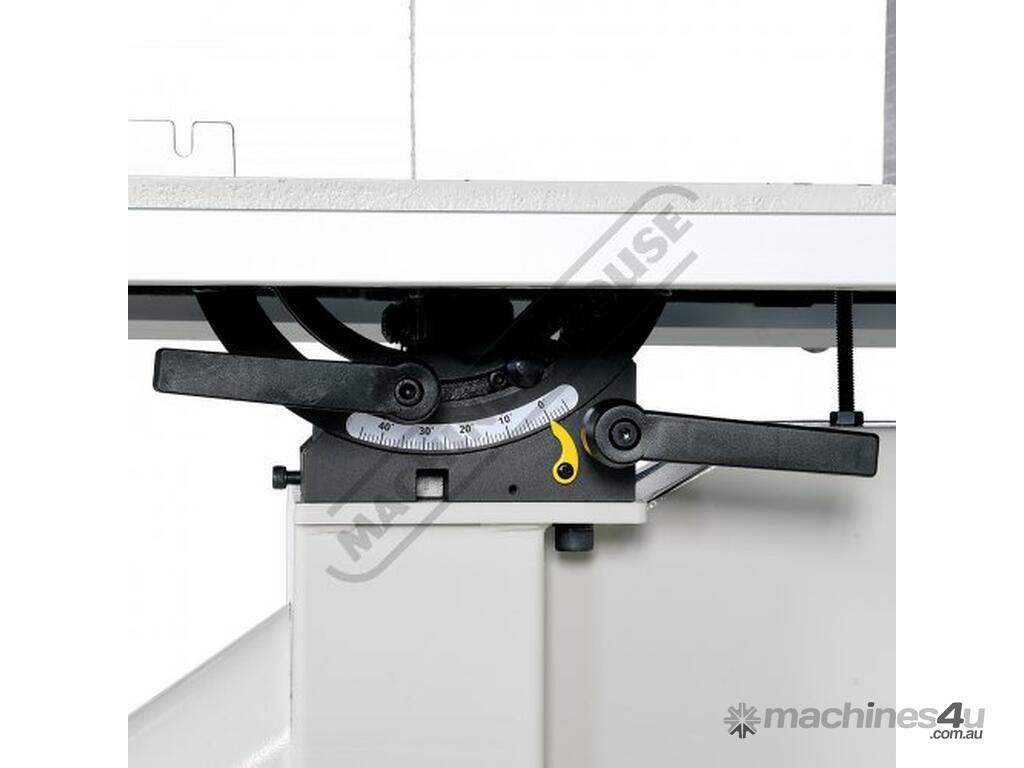

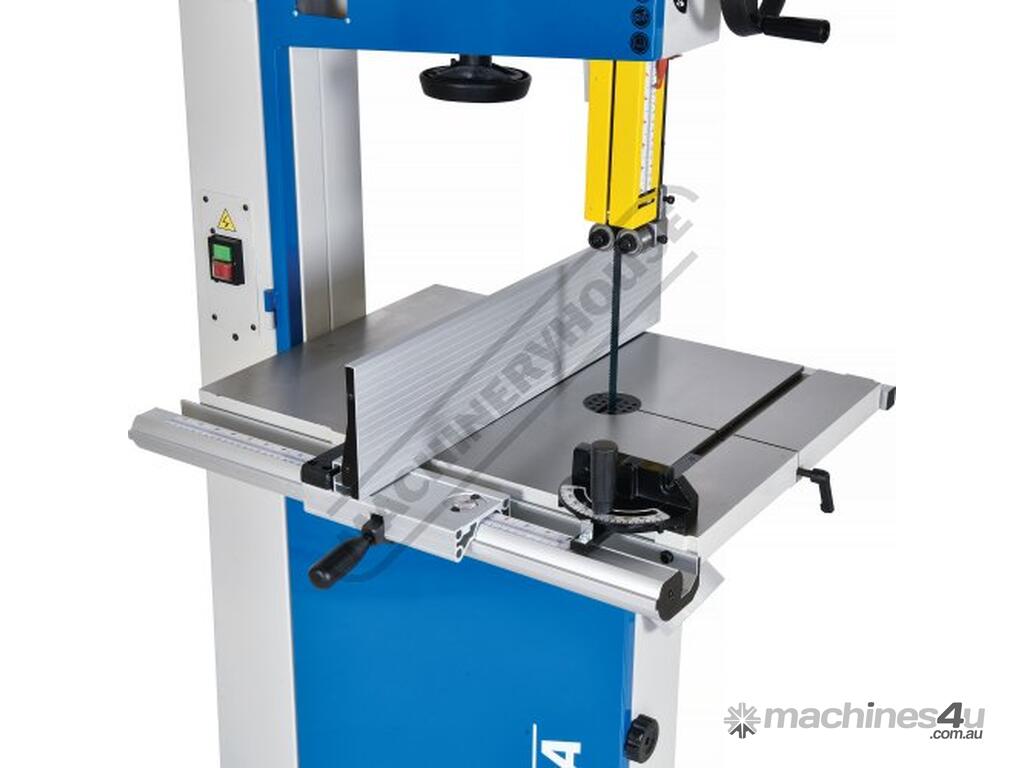

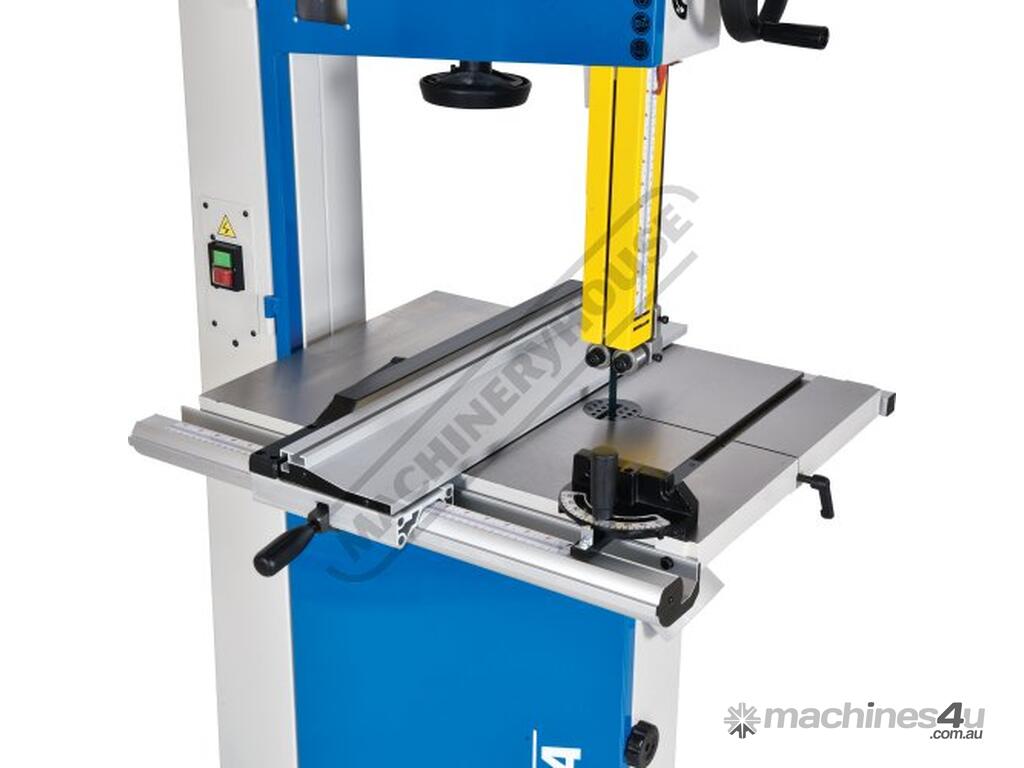

Large cast iron table tilts to -10° to +45°

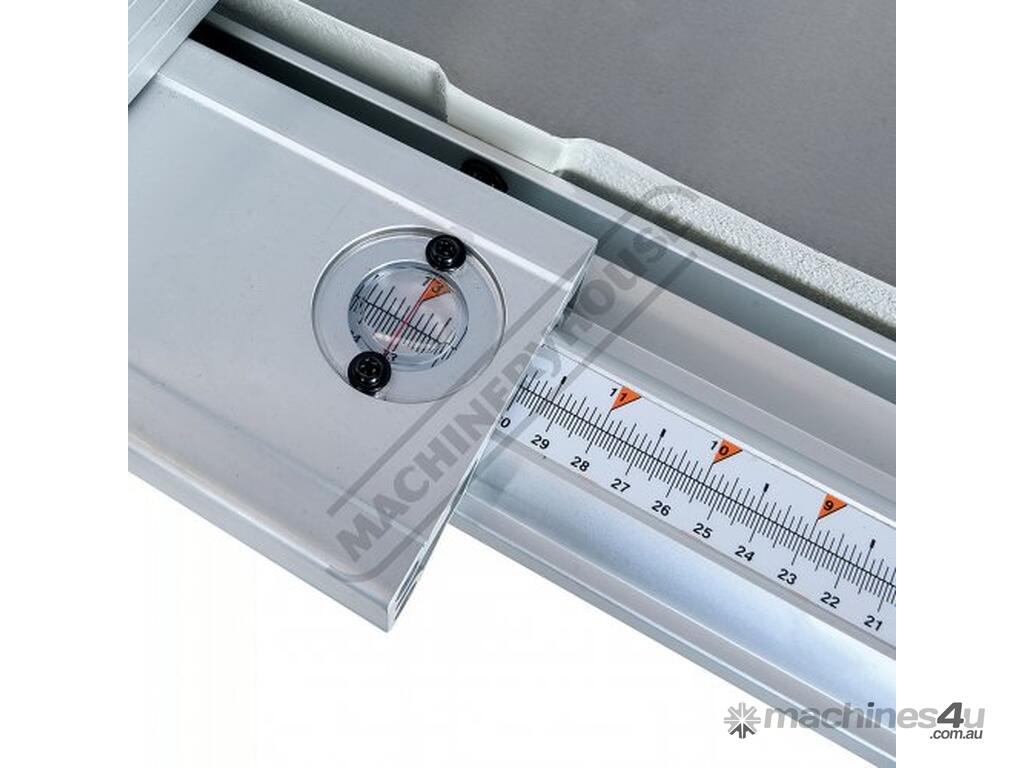

Aluminium extruded High / Low ripping fence - 150mm & 12mm

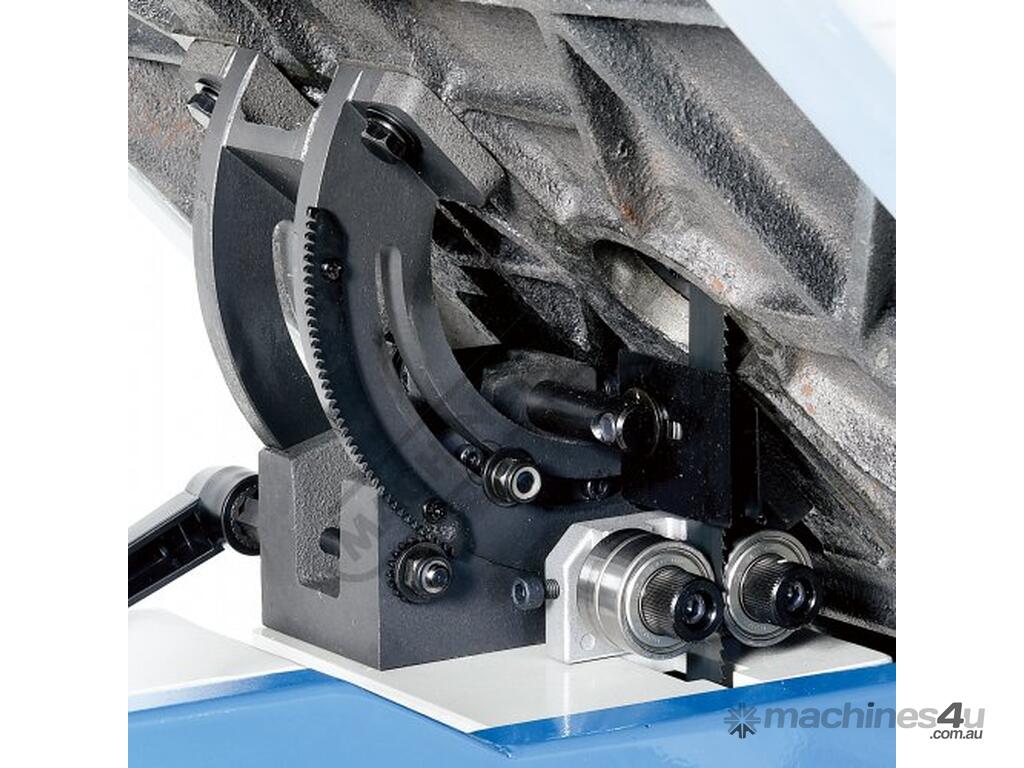

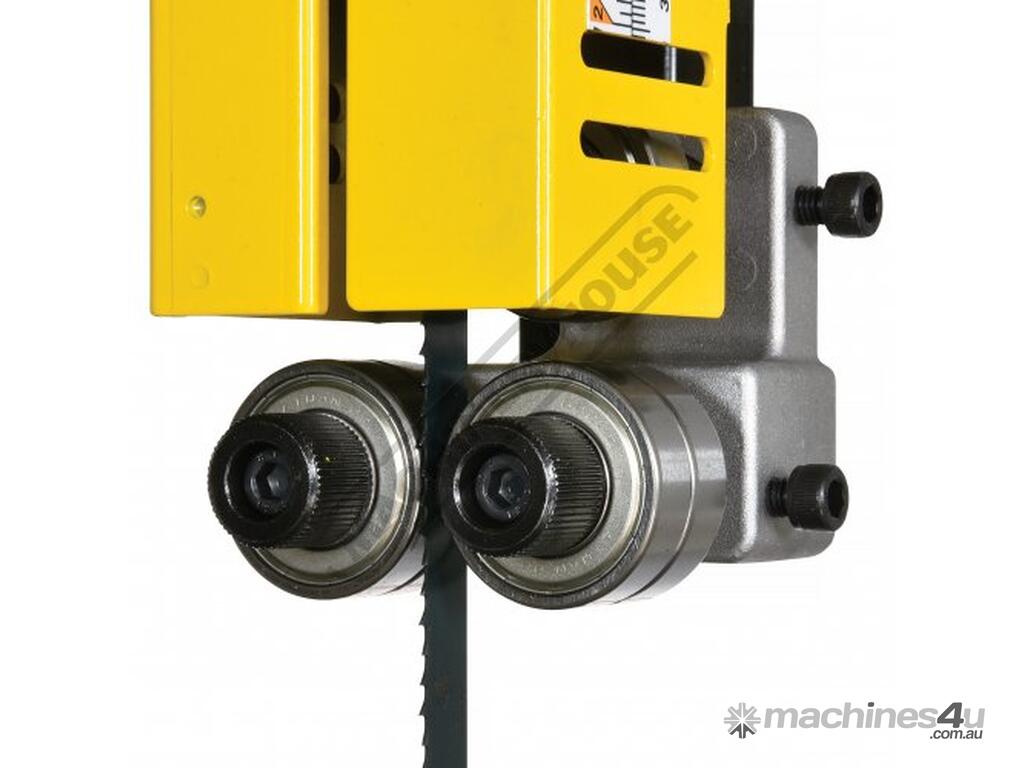

Double ball bearing guides with grooved rear thrust bearing for maximum blade support
Quick-action blade tension

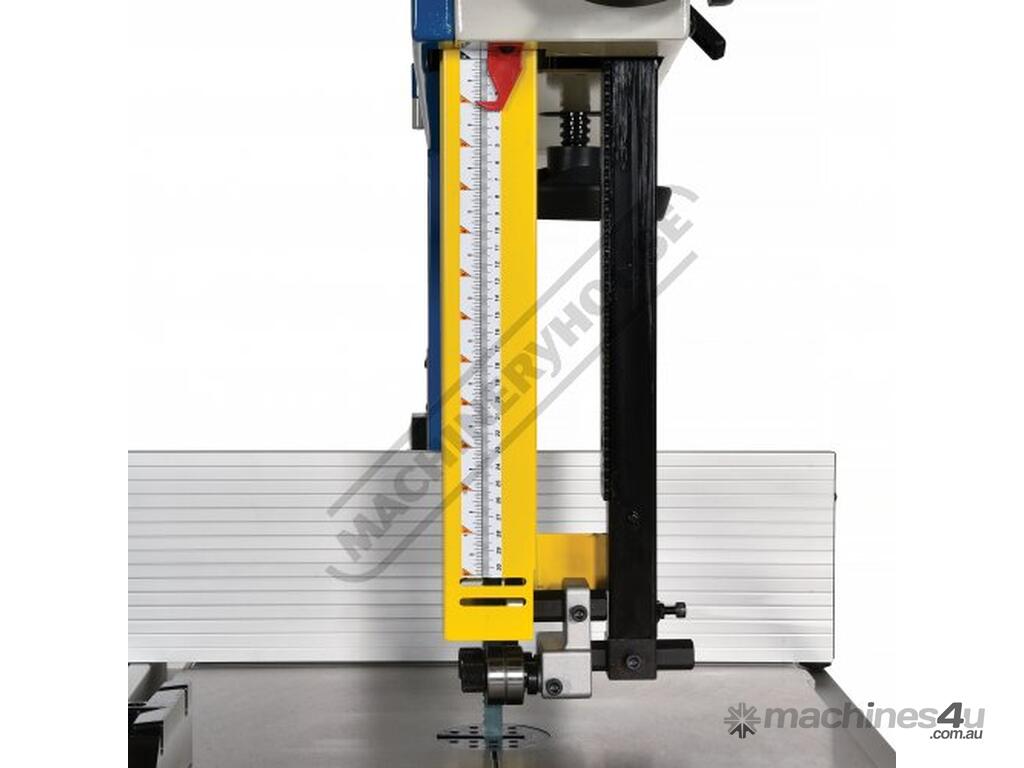

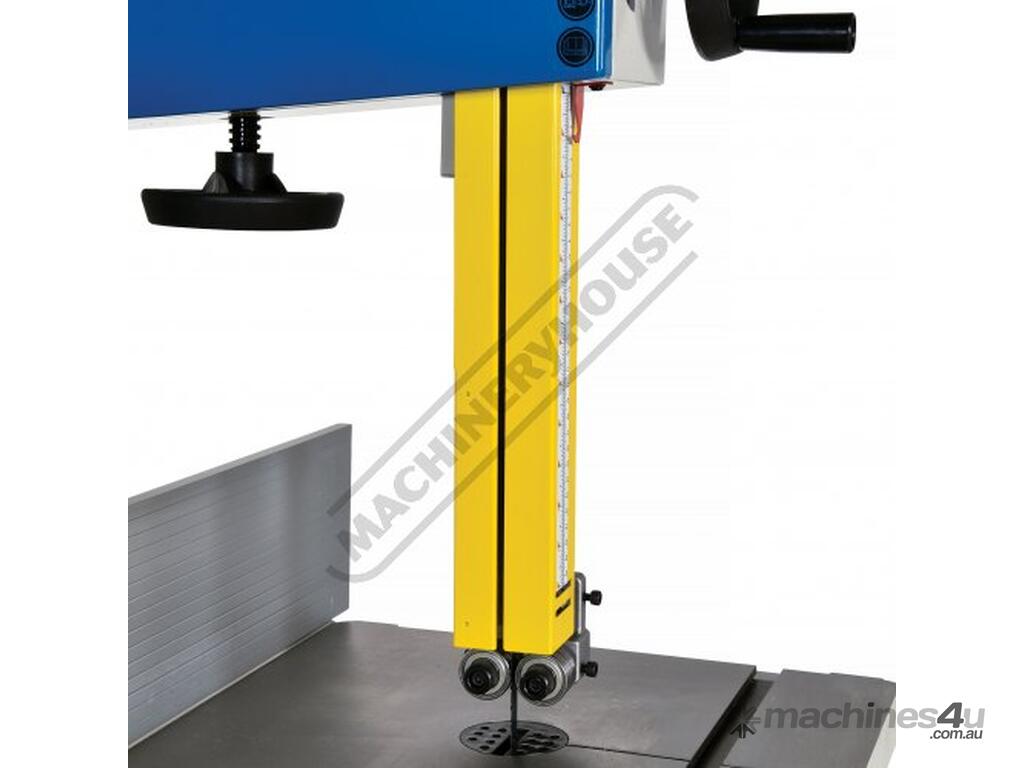

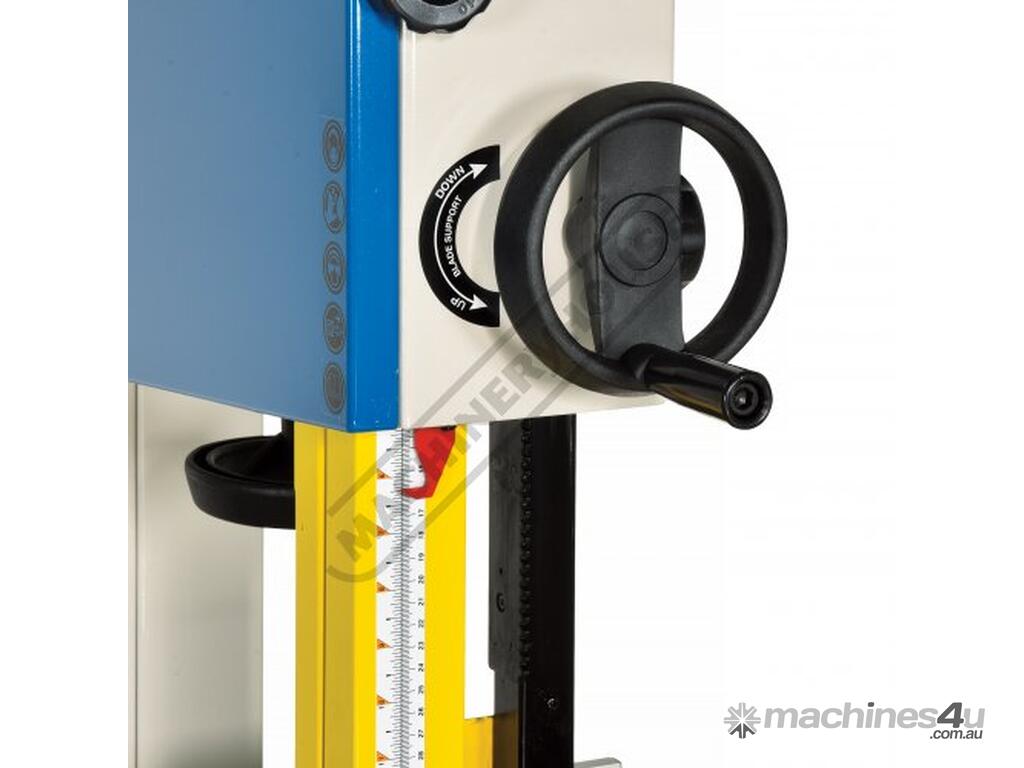

Rack & pinion adjustment on top blade guide
Two viewing windows make blade tracking and tensioning possible while the machine is running
Twin Ø100mm (4") dust ports for efficient dust extraction
CE safety standard compliant

Includes:
- High / Low ripping fence

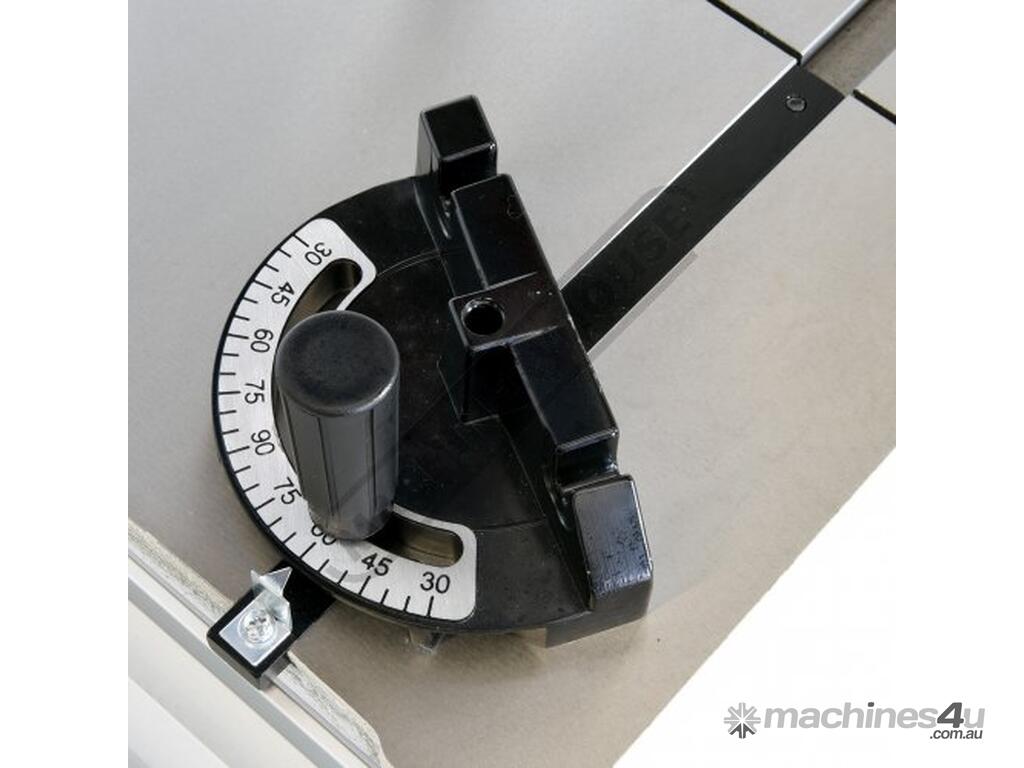

- Mitre gauge
- 6TPI Blade - 3630 x 19 x 0.8mm



Specifications:
ORDER CODE: W4340
MODEL: BP-480A
Wheel Diameter (Ø) (mm): 480
Throat Capacity (mm): 465
Height Capacity (mm): 310
Table Size (mm): 680 x 480
Frame Type: Steel
Motor Power (kW / hp): 1.5 / 2 (Electronic Brake System)
Voltage / Amperage (V / amp): 240 / 10
Blade Code (Suits): W434A, W434B
Blade Size (L x W x T) (mm): 3630 x 19 x 0.80
Floor Space (W x D x H) (mm): 960 x 850 x 1935
Nett Weight (kg): 214
