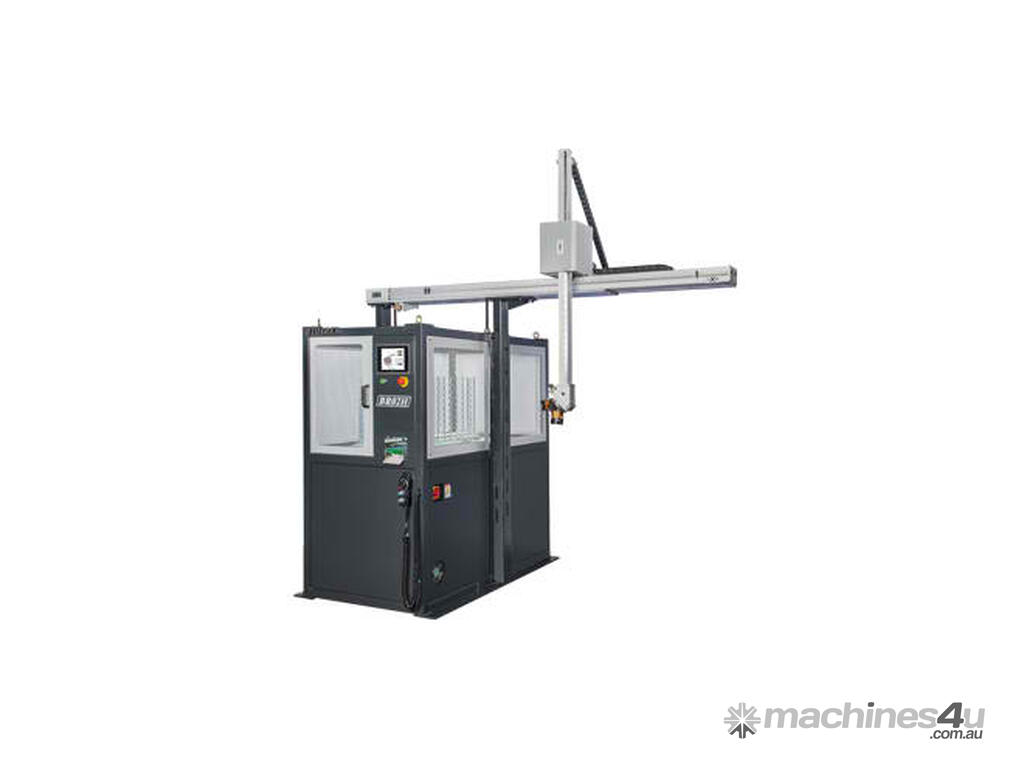

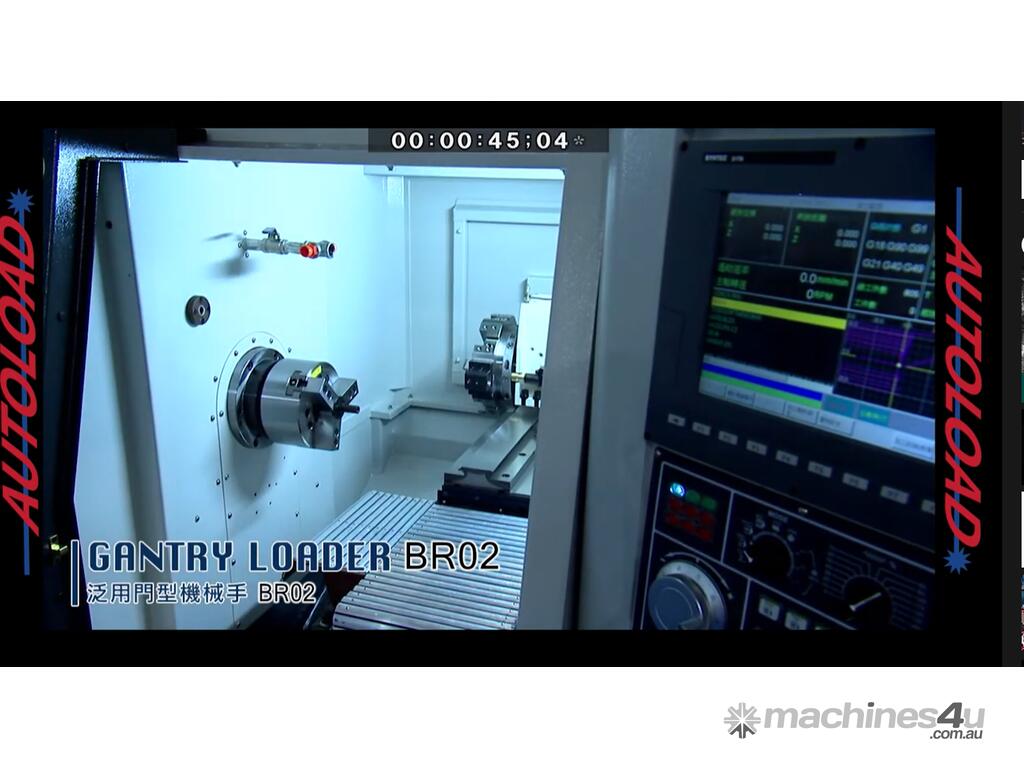

BR02H (2 AXIS) G Gantry Loader - 2 Axis Controlled

The BR02H (2 Axis) G Gantry Loader offers precise and efficient automated material handling, improving productivity and reducing downtime. Its 2-axis design ensures reliable performance across various industrial applications

Features
The software of gantry loader is compatible with any controller of CNC lathe.
X-axis travel speed reaches 90 ~ 120 m/min.
Z-axis travel speed is 60 m/min.
Gripper design meets customers requirements.
Rigid structure features maximum stability without vibration at high speed travel.
Installed independently, no interference with operation of lathe.
Machine height is adjustable to suit lathe.
Loading area is guarded with safety light curtains or doors.
Z-axis is designed as telescopic type with 2 stages stroke. Travel quickly and reduce required height of building.(Optional)
Multi-patents.
Rotary stack storage.
2 axis controlled gantry loader.
X, Z-axis are simultaneously controlled.
X, Z-axis are driven by servo motors, featuring fast movement and high positioning accuracy.
X, Z-axis slideways are mounted with linear motion guides.
Z-axis with telescopic type is available. (Optional)
Rotary cylinder for clamping can be replaced with servo controlled ‘B’ axis.(Optional)
Clamping capacity is from 20mm to 150mm diameter within 3 kgf.
Optional Y axis varies with lathe.
Parts conveyor. (Option)

Available on request
