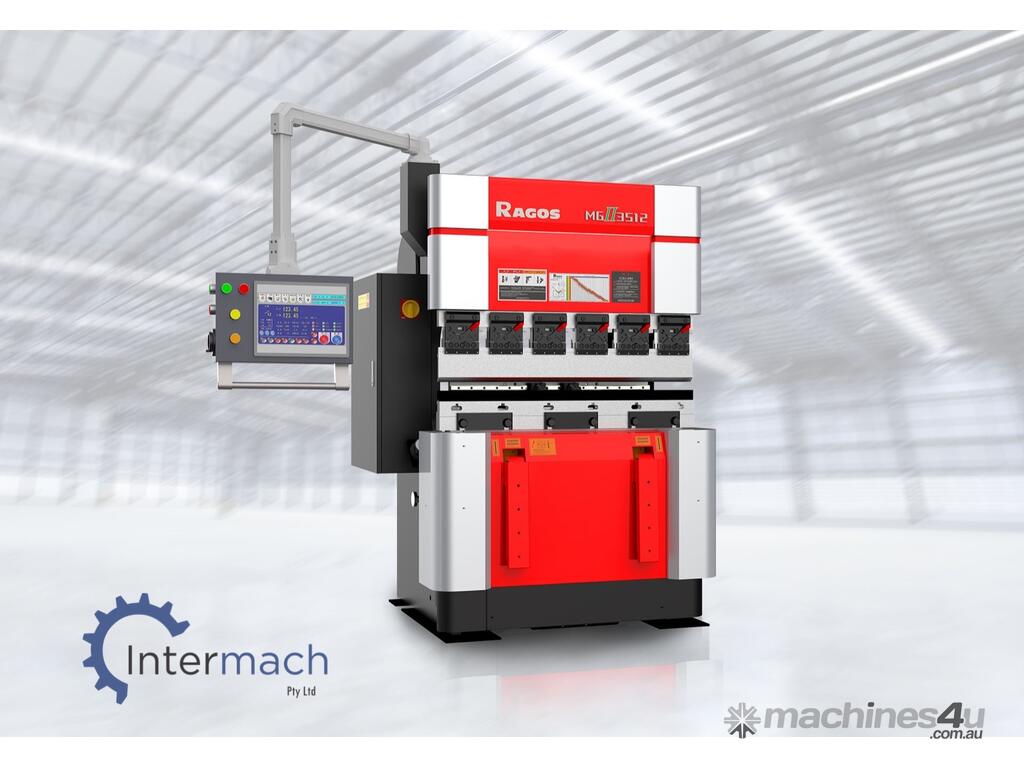

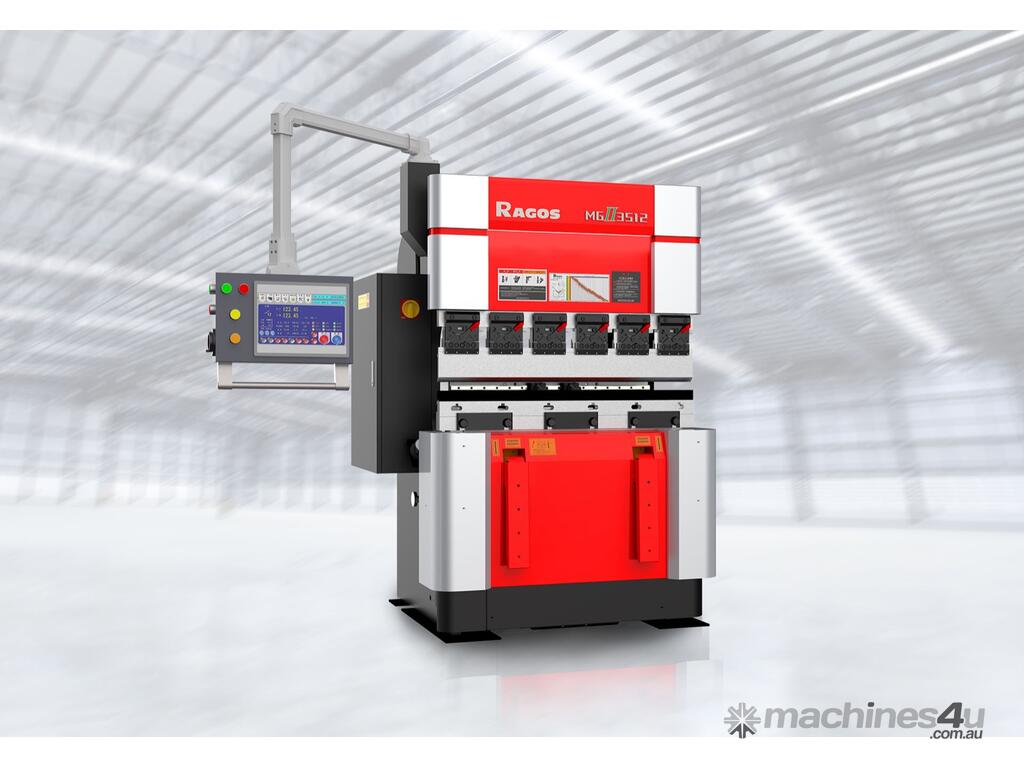

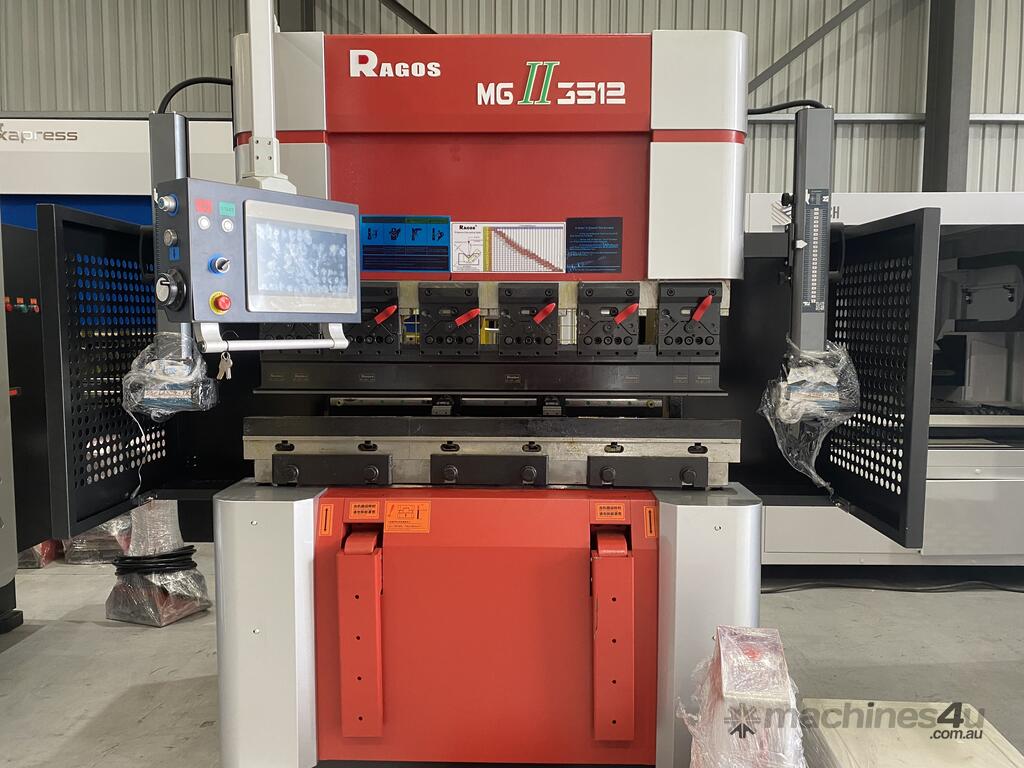

* BRAND NEW * | Ragos MG Series (MG 3512) | CNC Bending Machine

The most-trusted machine retailer in Australia is proud to present to you the latest MG series machines from Ragos. They come equipped with a highly rigid, annealed machine frame and a modern CNC system for high-speed and high-precision bending.

Ragos has strictly controlled the quality of its products and, consequently, has dominated the global market.

The MG series is the best lower-drive CNC bending machine in the world. The working efficiency is three times higher than upper-drive bending machines. Maximum bending speed is 25 bends/min, and the positioning accuracy is less than 0.03 mm.

----------------------------------------------------------------------------------------------------------------------------------

PRODUCT INFORMATION:

- Model: MG 3512

- Nominal pressure: 35 Ton

- Bending length:1200 mm

- Distance of side: 1020 mm

- Main motor power: 3.0 kW

- Cylinders: 1 pc

----------------------------------------------------------------------------------------------------------------------------------

- MACHINE DIMENSIONS:

- Length: 1465 mm

- Width: 1200 mm

- Height: 1960 mm

----------------------------------------------------------------------------------------------------------------------------------

MACHINING CAPACITY:

- Mild steel: 4mm

- Stainless steel: 2mm

----------------------------------------------------------------------------------------------------------------------------------

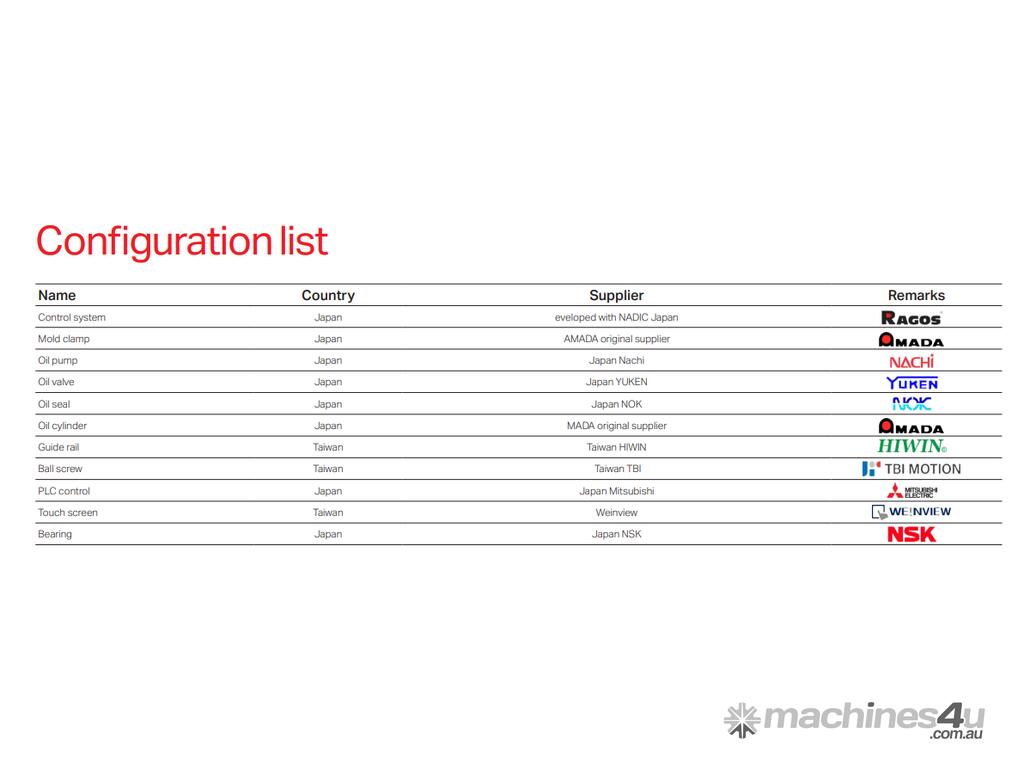

CONFIGURATION LIST:

- Control system | Japan (Developed with NADIC)

- Mold clamping | Japan (AMADA)

- Oil pump | Japan (NACHI)

- Oil valve | Japan (YUKEN)

- Oil seal | Japan (NOK)

- Cylinder | Japan (AMADA)

- Guide rail | Taiwan (HIWIN)

- Ball screw | Taiwan (TBI)

- PLC control | Japan (MITSUBISHI)

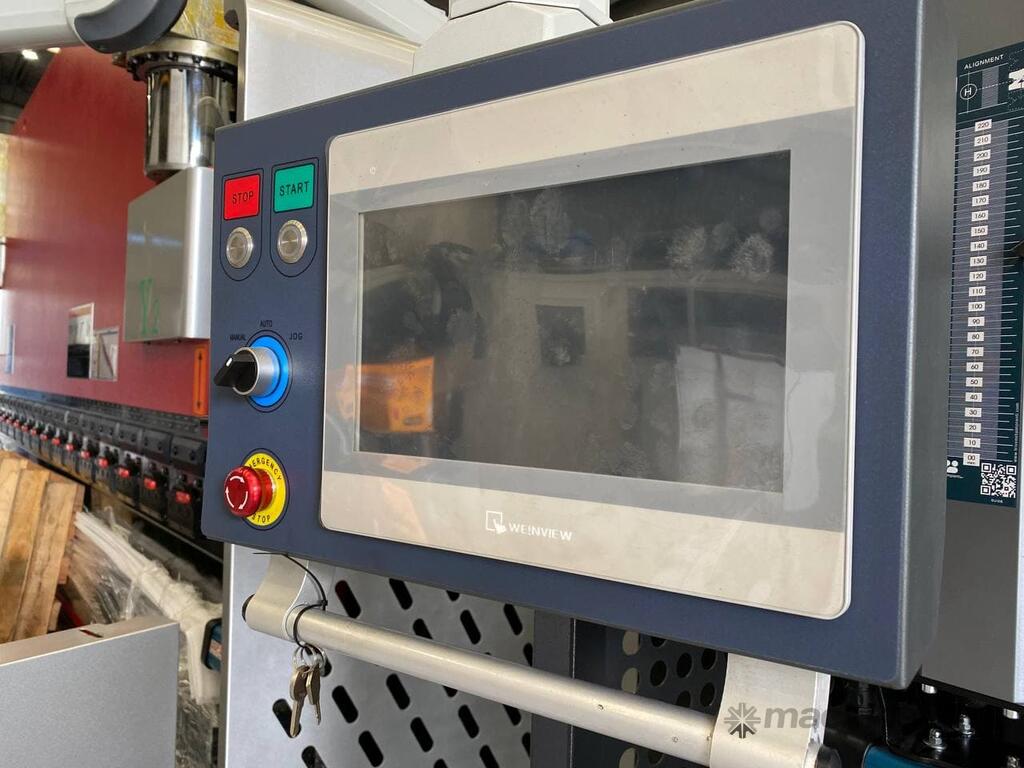

- Touch screen | Taiwan (WEINVIEW)

- Bearing | Japan (NSK)

- Plus much more

If you require additional product information, please download the attached PDF.

----------------------------------------------------------------------------------------------------------------------------------

Here at Intermach, we offer:

- FREE DEMOS of the machines we have in our showroom.

- FREE EXPERT CONSULTATIONS to help you select a machine that suits your operational and financial requirements.

- FREE INSTALLATION AND TRAINING upon purchase.

- CONSISTENT AND COMPETITIVE PRICING for our machines based on their capacity.

- AND A LOCAL SUPPORT TEAM OF HIGHLY EXPERIENCED ENGINEERS who are on call for swift repair of any issues that might arise with a machine.

As part of our mission statement, Intermach prioritises customer satisfaction. To that end, we have a growing wealth of references nation-wide who can attest to the high quality of our machines and service.

Phone our sales team now to book a demonstration or a consultation. We look forward to hearing from you!

----------------------------------------------------------------------------------------------------------------------------------
