BREDEL - SPX 15 - High Performance Hose Pump

BREDEL - SPX 15 - High Performance Hose Pump / Peristaltic Metering Pump.
The pumping action results from alternately compressing and relaxing a machined hose between the pump housing and the compressing shoes. The fluid ahead of the shoe is pushed towards the discharge while the rebounding hose behind the shoe draws more fluid in. With 100% compression at all times, the pump does not slip, providing unbeatable metering accuracy and pressure performance. With no pump seals, seats or valves, abrasive slurries are no problem. With the fluid contacting only the inner wall of the hose, the pump is perfect for aggressive chemicals.
Model: SPX 15.
Power: 3 Phase, 415V, 0.37kW.
Speed: 43 RPM.

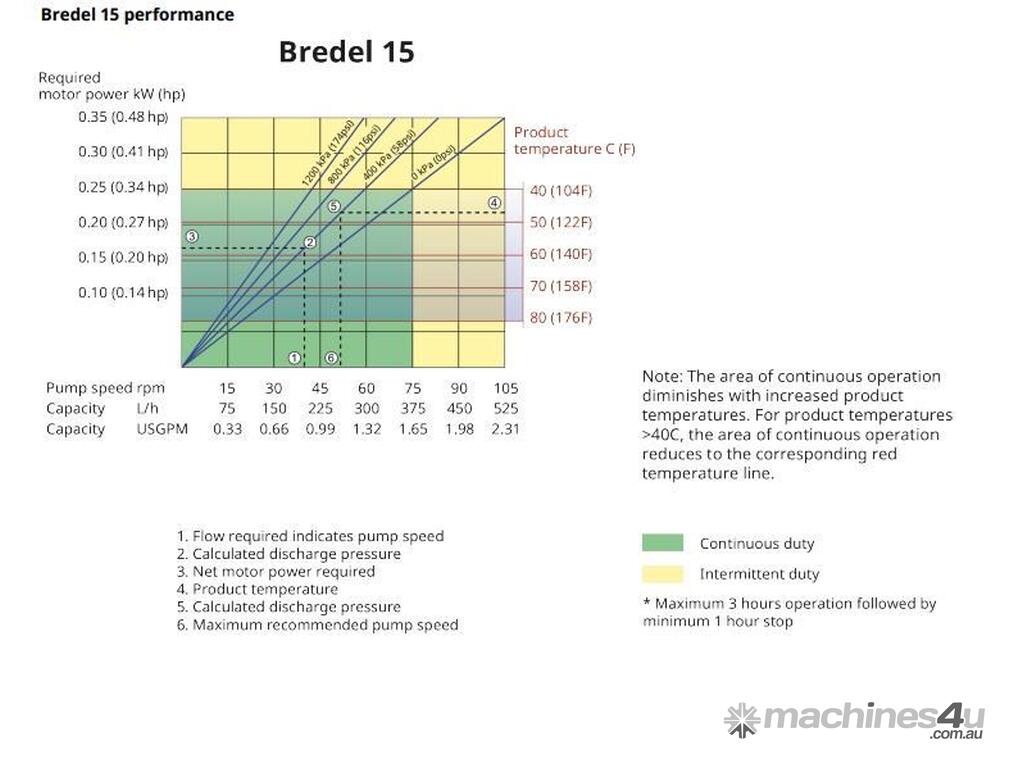

Performance Specs -
Max flow: 525 litre/hour.
Capacity: 0.083 litre/rev.
Max discharge pressure: 12 bar.
Max temperature: 80C.
Inner diameter pump element: 15mm.
Lubricant required: 0.5 litres.
Starting torque: 60 Nm.
Features and benefits:
- Dry running and self-priming.
- Suction capability up to 9.5 mWC (354 inWC).
- No seals, ball-checks, diaphragms, glands, immersed rotors, stators or pistons toleak, clog, corrode or replace.
- Handles abrasive slurries, corrosive acids, gaseous liquids.
- No slippage, allowing true positive displacement for accurate, repeatable metering.
- No ancillary equipment, check valves, sealing water flush systems or run-dry protection required.
- Fully reversible to blow out suction and drain lines safely.
2 Units available
