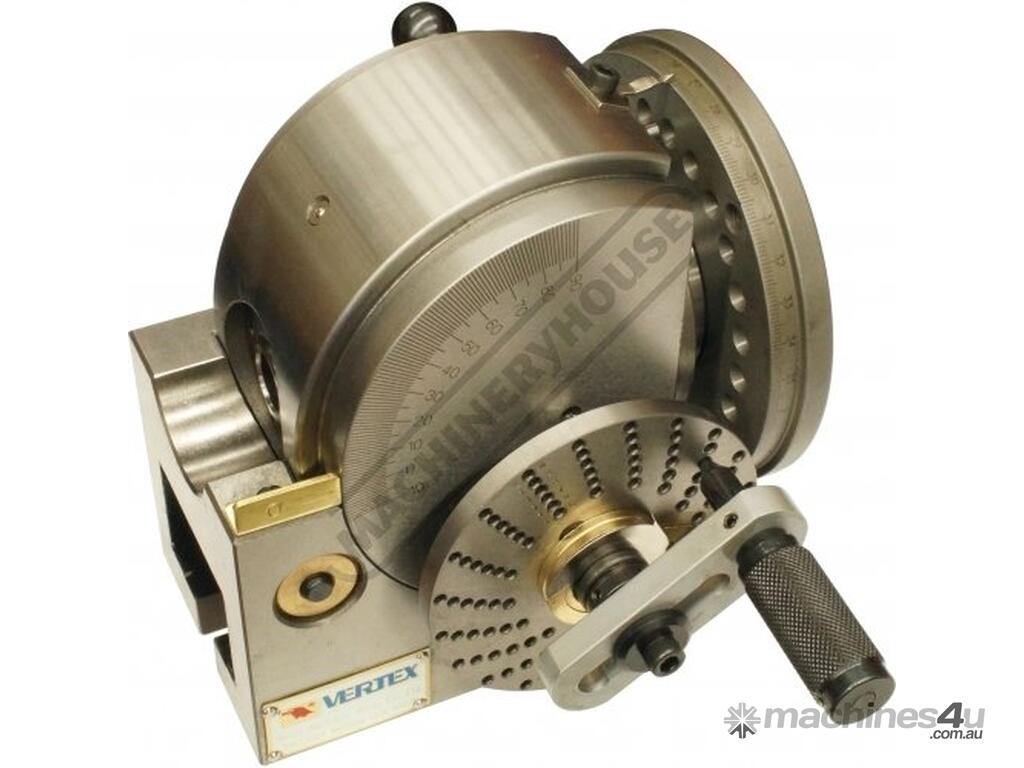

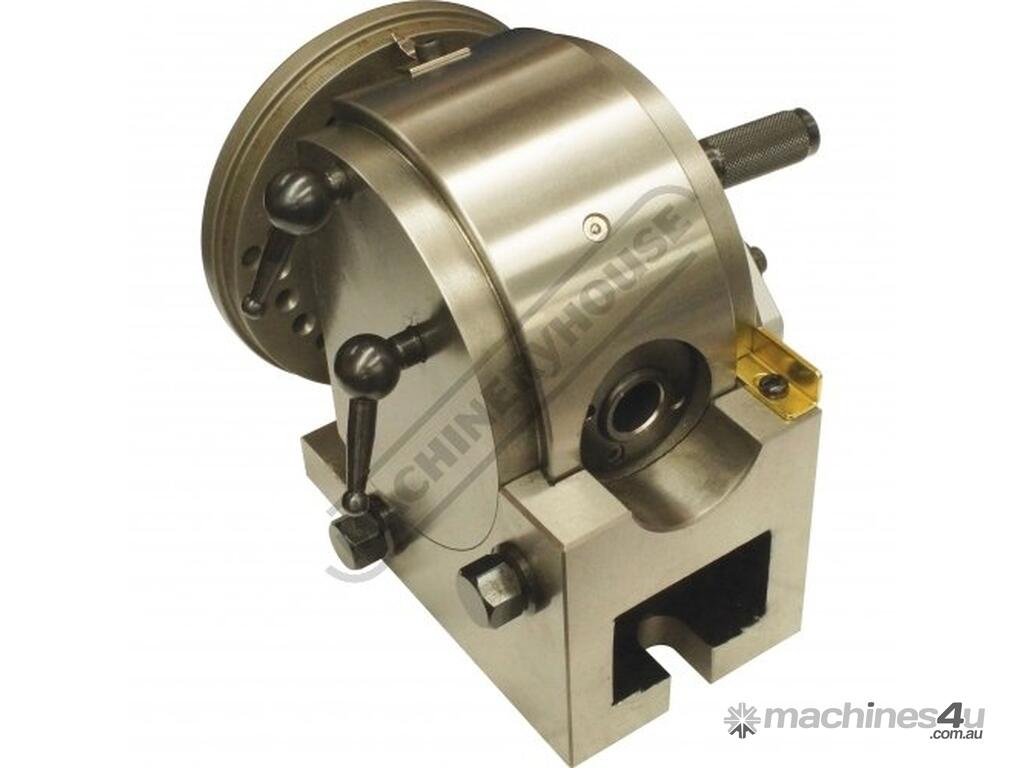

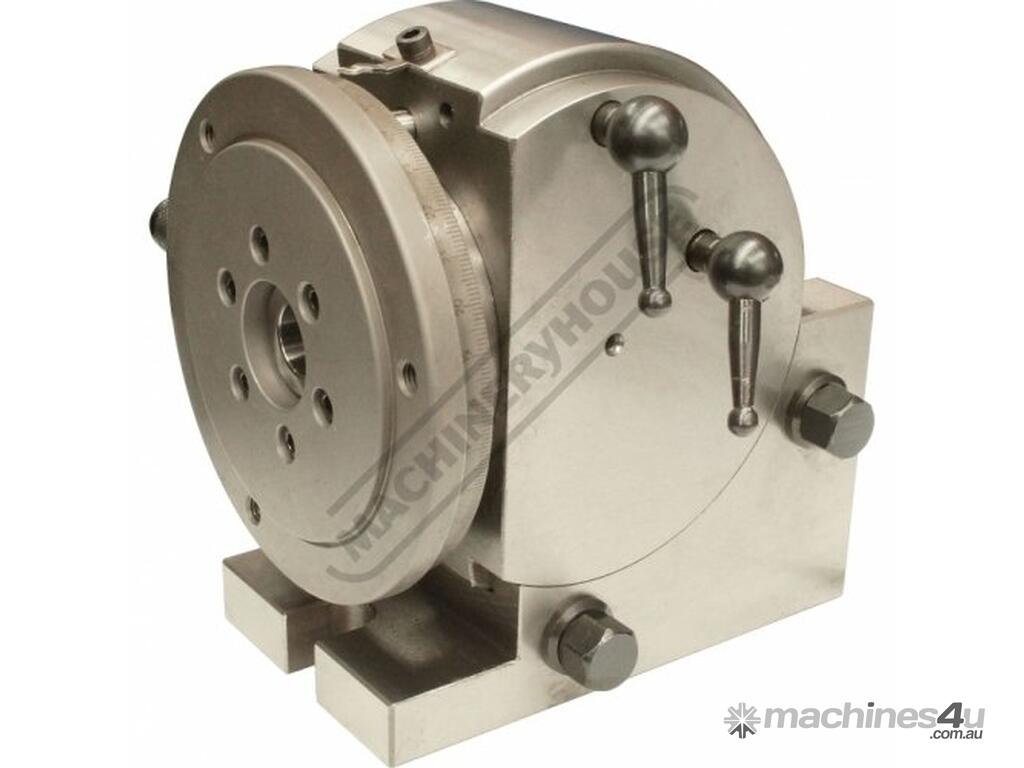

BS-0 Vertex Dividing Head - Semi Universal 100mm Centre Height Suits 130mm 3-Jaw Chuck

VERTEX BS-0 Vertex Dividing Head - Semi Universal 100mm Centre Height Suits 130mm 3-Jaw Chuck
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D001

Manufactured in Taiwan

The Vertex Dividing Head is a tool that is used to divide a circle into equal spacers. The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.

The Vertex Semi Universal Dividing Head can be tilted through a full 90 degrees from horizontal to vertical making it a must when manufacturing bevel gears or key-ways in tapers.

Features:
The Vertex Dividing Head is suitable for direct and indirect indexing
Hardened and ground spindle rigidly held between taper roller bearings
Improved design with spindle spigot nose for a more accurate chuck mount
Worm is hardened and ground with ratio between worm and worm wheel 40:1
Direct indexing designed for quick divisions of No's & 24
The head can be swivelled from 10º below horizontal to 90º vertical
Designed to carry out all types of gear cutting precision dividing
Slotted base on dividing head & tailstock for use with key steel to align quickly on machine

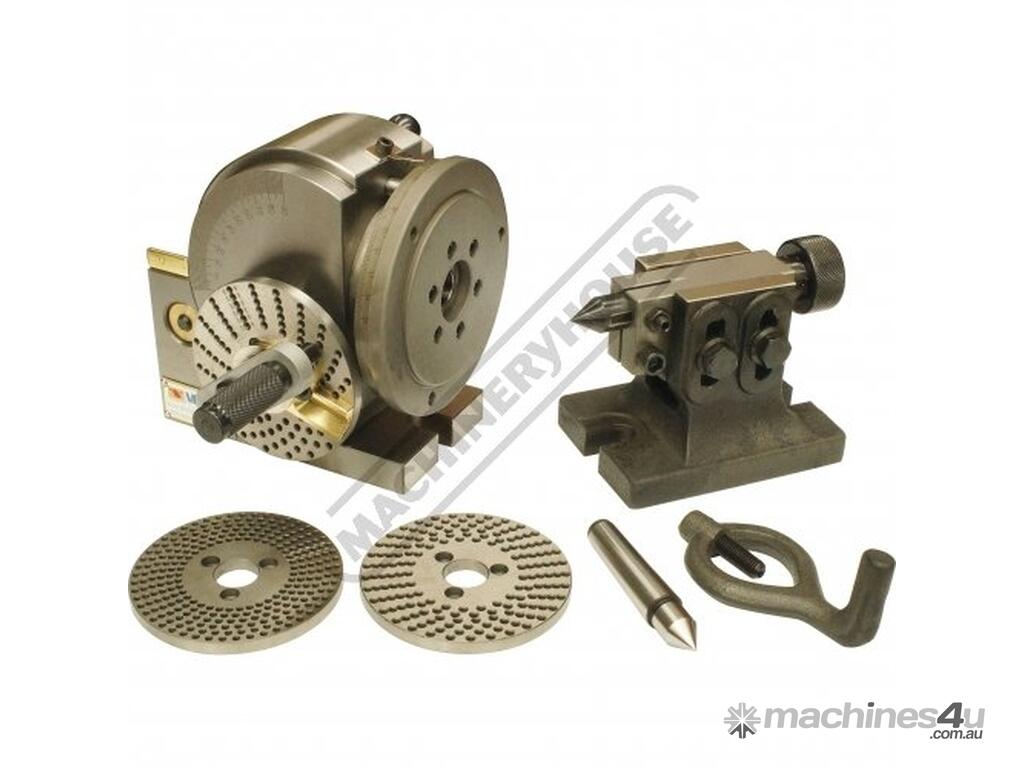

Includes:
- Backing plate suits 130mm front mount 3 jaw chuck
- Dividing plates
- Tailstock
- Dead centre
- Drive dog



Specifications:
ORDER CODE: D001
MODEL: BS-0
Taper (MT): MT2
Bore (mm): 18
A (mm): 189
B (mm): 140
H (mm): 173
h (mm): 100
a (mm): 160
b (mm): 91
g (mm): 13
A1 (mm): 167
B1 (mm): 80
H1 (mm): 107.5
h1 (mm): 100
a1 (mm): 130
b1 (mm): 92
g1 (mm): 13
Nett Weight (kg): 20
