BS-1 Vertex Dividing Head - Semi Universal Package Deal 128mm Centre Height Includes 160mm 3-Jaw Chu

VERTEX BS-1 Vertex Dividing Head - Semi Universal Package Deal 128mm Centre Height Includes 160mm 3-Jaw Chuck
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K4005

Manufactured in Taiwan

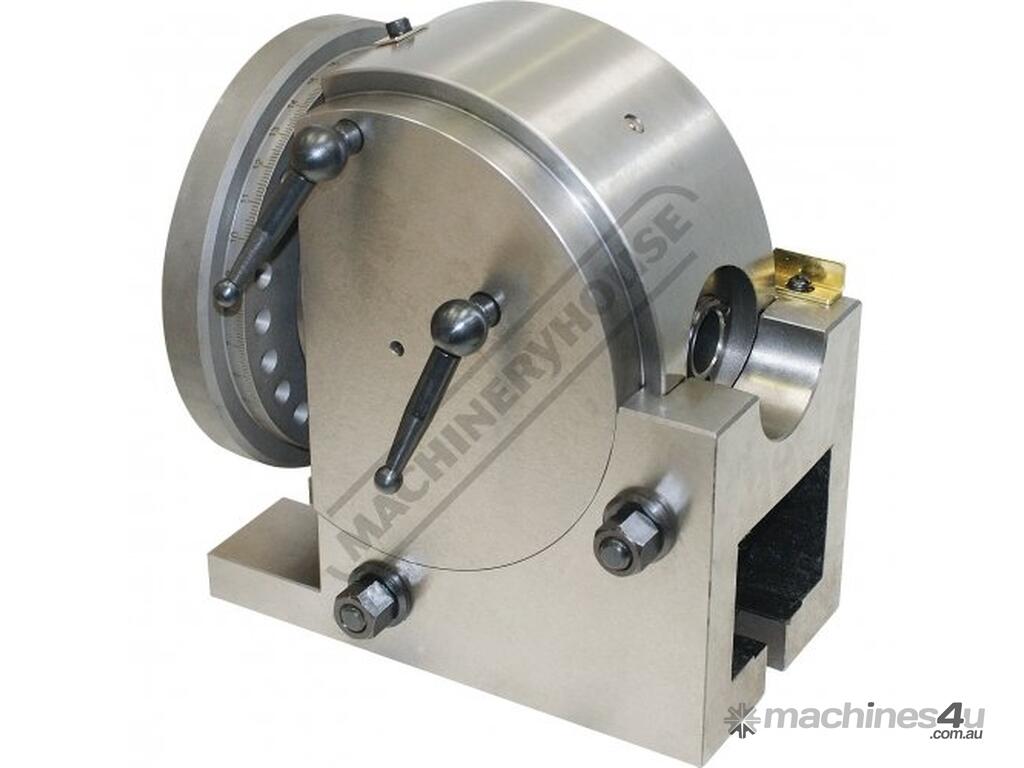

The Vertex Dividing Head is a tool that is used to divide a circle into equal spacers. The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.

The Vertex Semi Universal Dividing Head can be tilted through a full 90 degrees from horizontal to vertical making it a must when manufacturing bevel gears or key-ways in tapers.

Features:
The Vertex Dividing Head is suitable for direct and indirect indexing
Hardened and ground spindle rigidly held between taper roller bearings
Improved design with spindle spigot nose for a more accurate chuck mount
Worm is hardened and ground with ratio between worm and worm wheel 40:1
Direct indexing designed for quick divisions of No's & 24
The head can be swivelled from 10º below horizontal to 90º vertical
Designed to carry out all types of gear cutting precision dividing
Slotted base on dividing head & tailstock for use with key steel to align quickly on machine

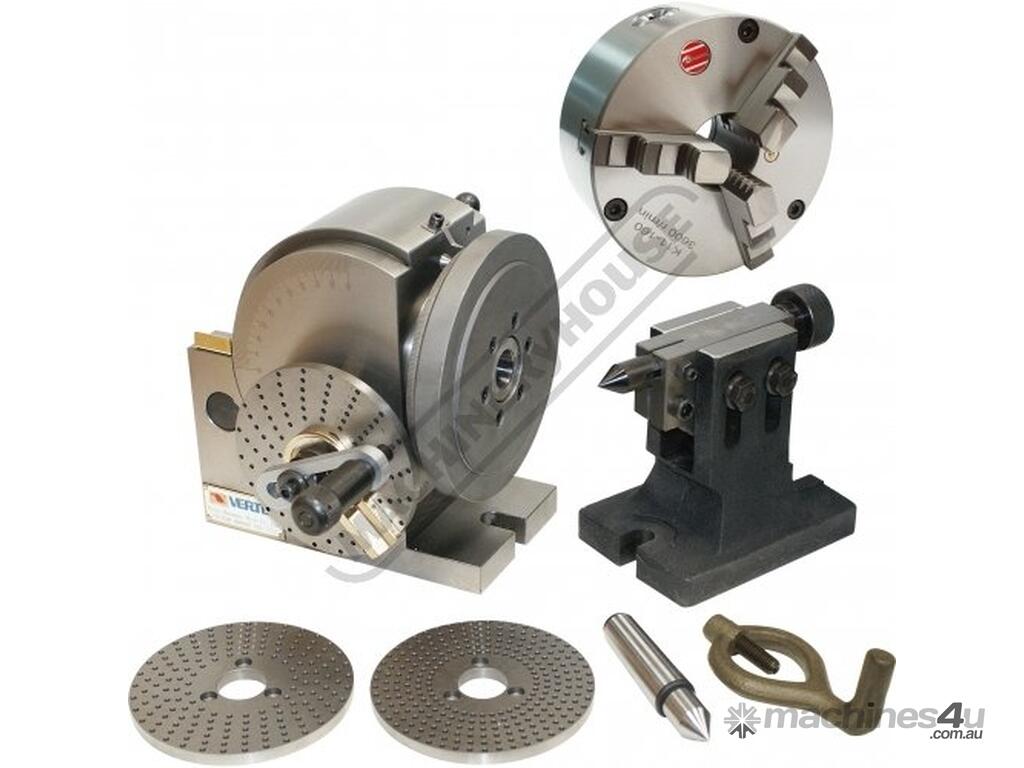

Includes:

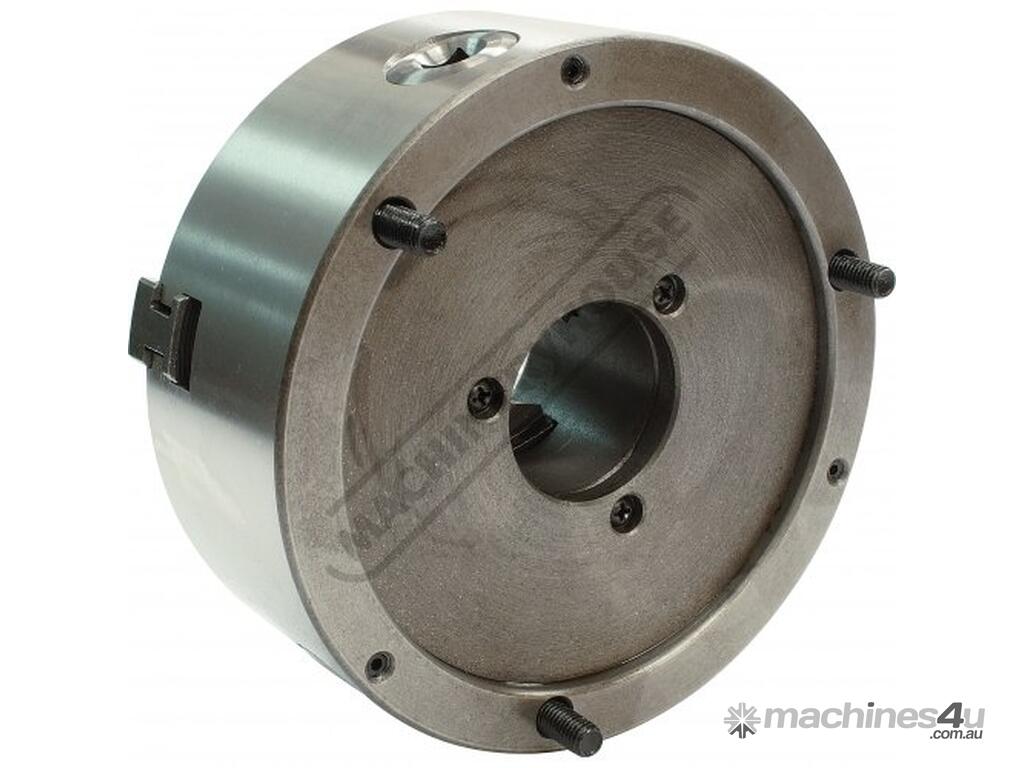

- Backing plate suits 160mm front mount 3 jaw chuck
- Dividing plates
- Tailstock
- Dead centre
- Drive dog

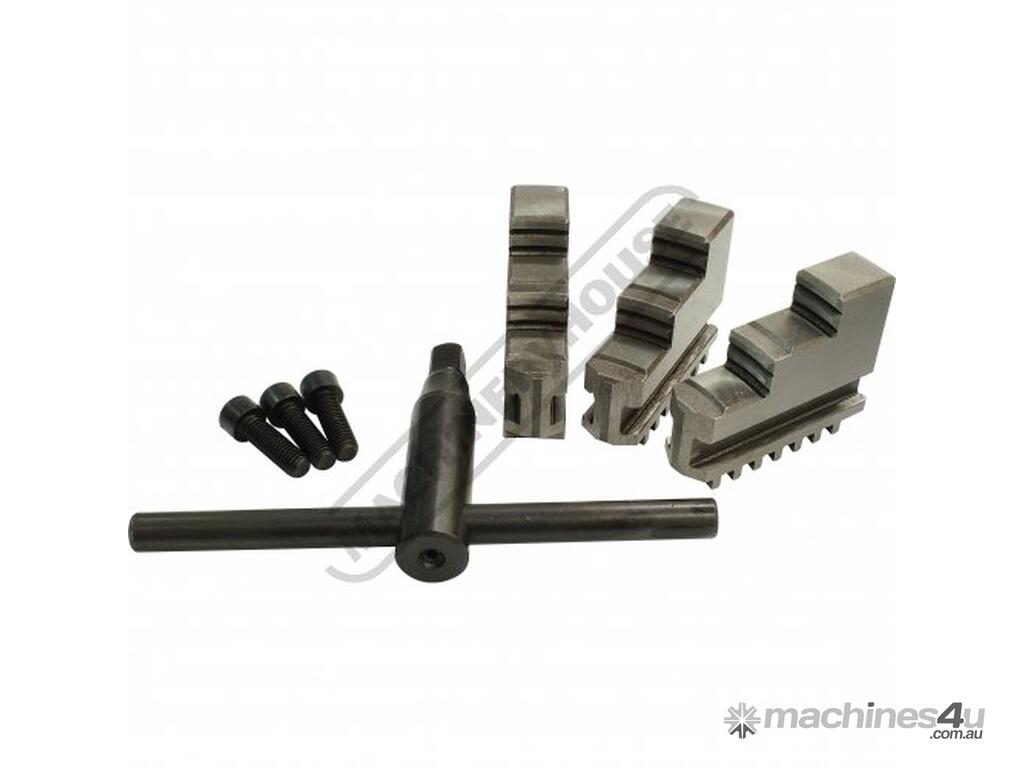

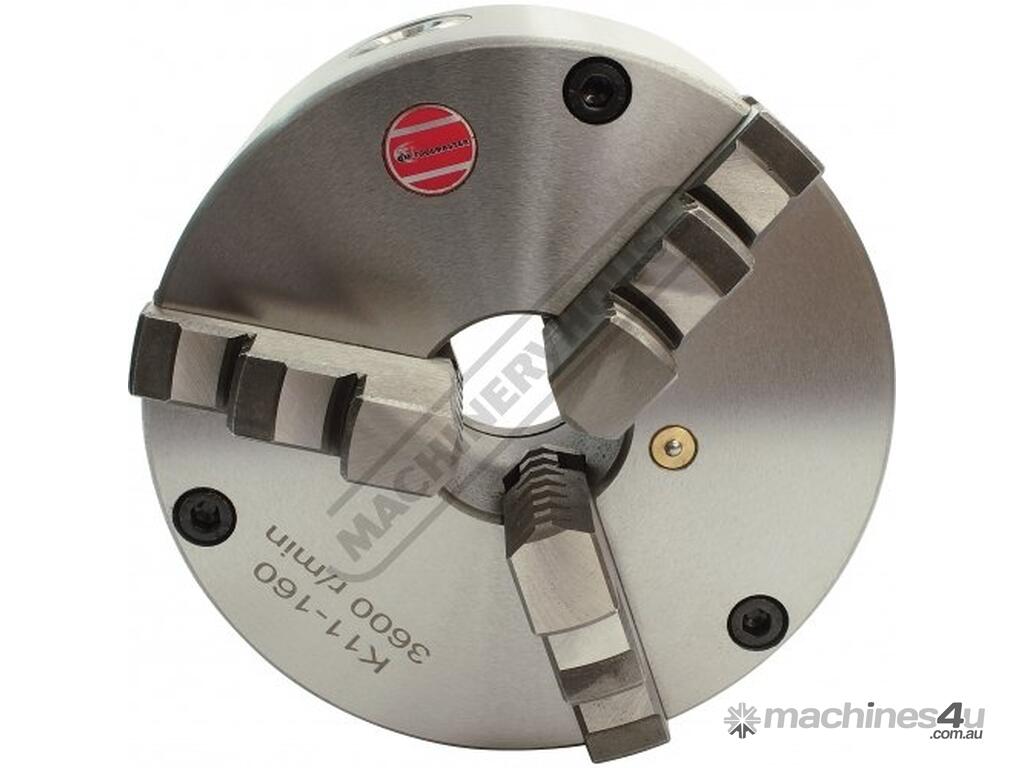

- K11 SERIES - 160mm Front Mount 3 Jaw Self Centring Lathe Chuck



Specifications:
ORDER CODE: K4005
MODEL: BS-1 Package
Taper (MT): MT3
Bore (mm): 20
A (mm): 293
B (mm): 156
H (mm): 220
h (mm): 128
a (mm): 207
b (mm): 114
g (mm): 16
A1 (mm): 191
B1 (mm): 88
H1 (mm): 137
h1 (mm): 128
a1 (mm): 150
b1 (mm): 108
g1 (mm): 16
Nett Weight (kg): 38
