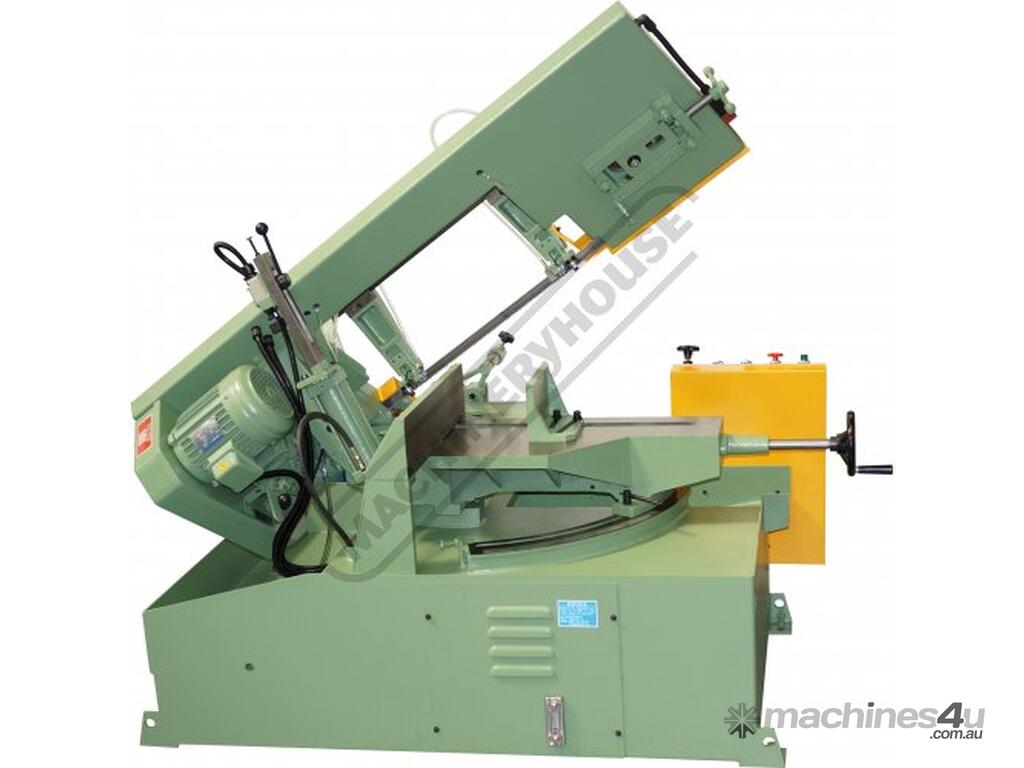

BS-10AS Semi - Automatic, Swivel Head Metal Cutting Band Saw 4 Cutting Speeds, Mitre Cuts Up To 45º

HAFCO-METALMASTER BS-10AS Semi - Automatic, Swivel Head Metal Cutting Band Saw 4 Cutting Speeds, Mitre Cuts Up To 45º & Hydraulic Arm Rise 400 x 230mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B029

Manufactured in Taiwan

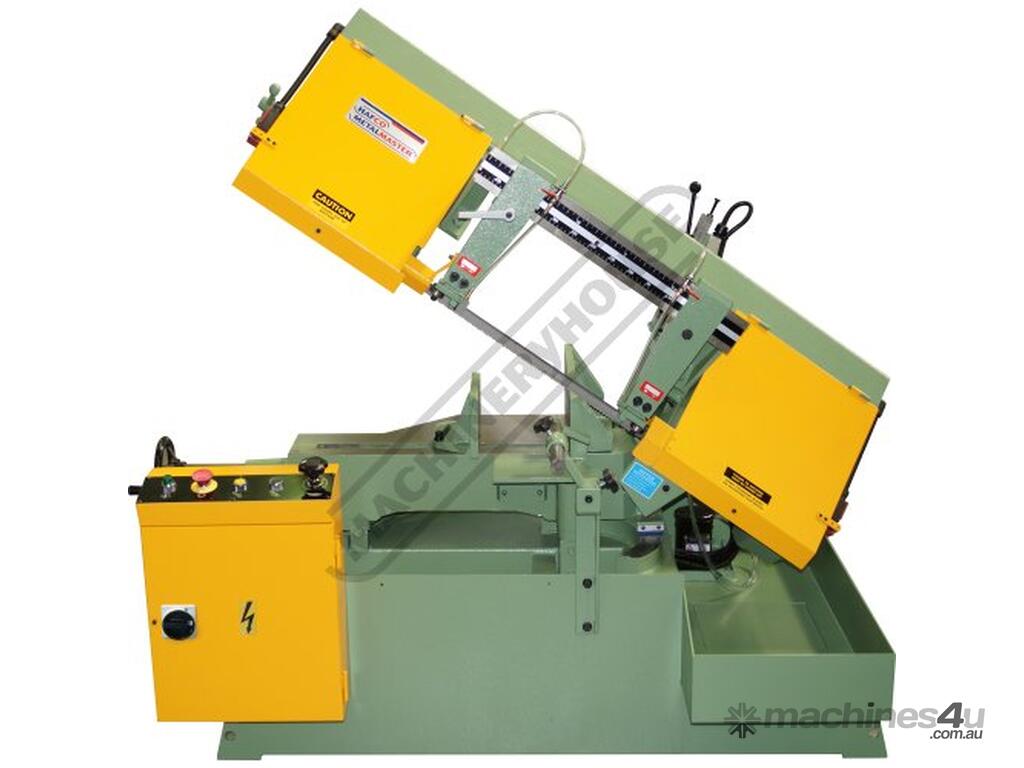

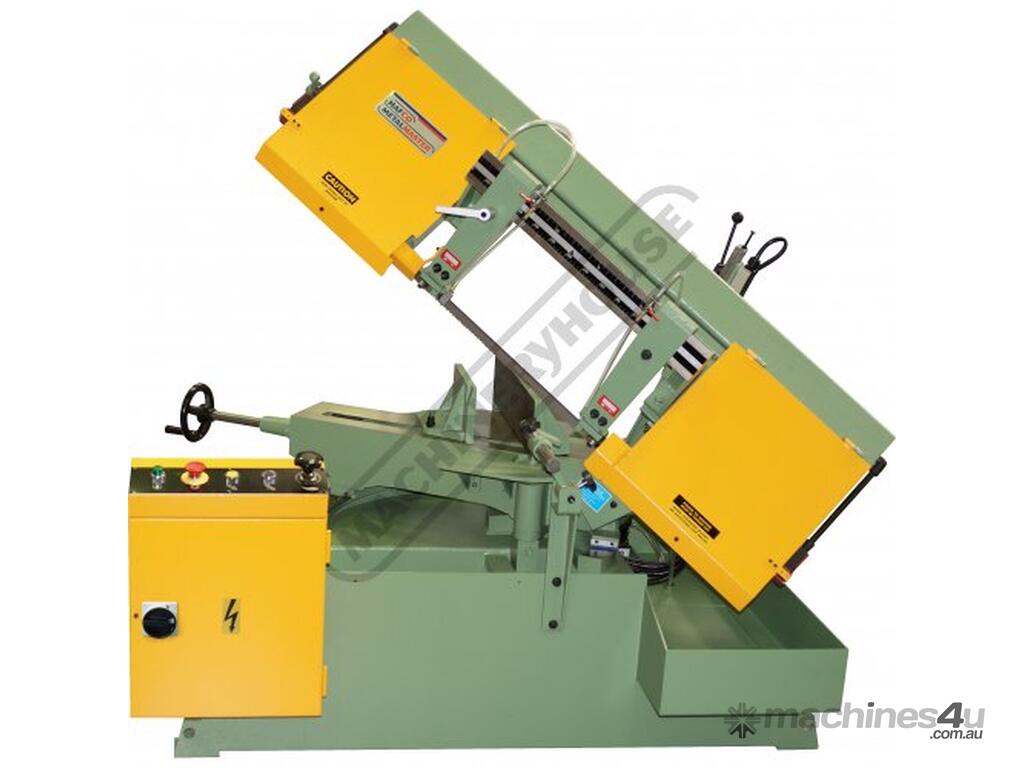

The BS-10AS heavy duty metal cutting band saw has many features on offer with a swivel head to cut mitres up to 45 degrees, 4 blade speed system, hydraulic feed control a cutting capacity of up to 250mm diameter or 400 x 230mm in steel at 90º and two ball bearings per side with carbide blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliability and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and engineering workshops. If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.

Features:
400 x 230mm (W x H) rectangular capacity
Swivel head for easy angle cutting without moving material
Semi-automatic operation machine returns to open height position after finishing the cutting process
Hydraulic operated system raising and lowering the cutting beam
Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45º using swivel head

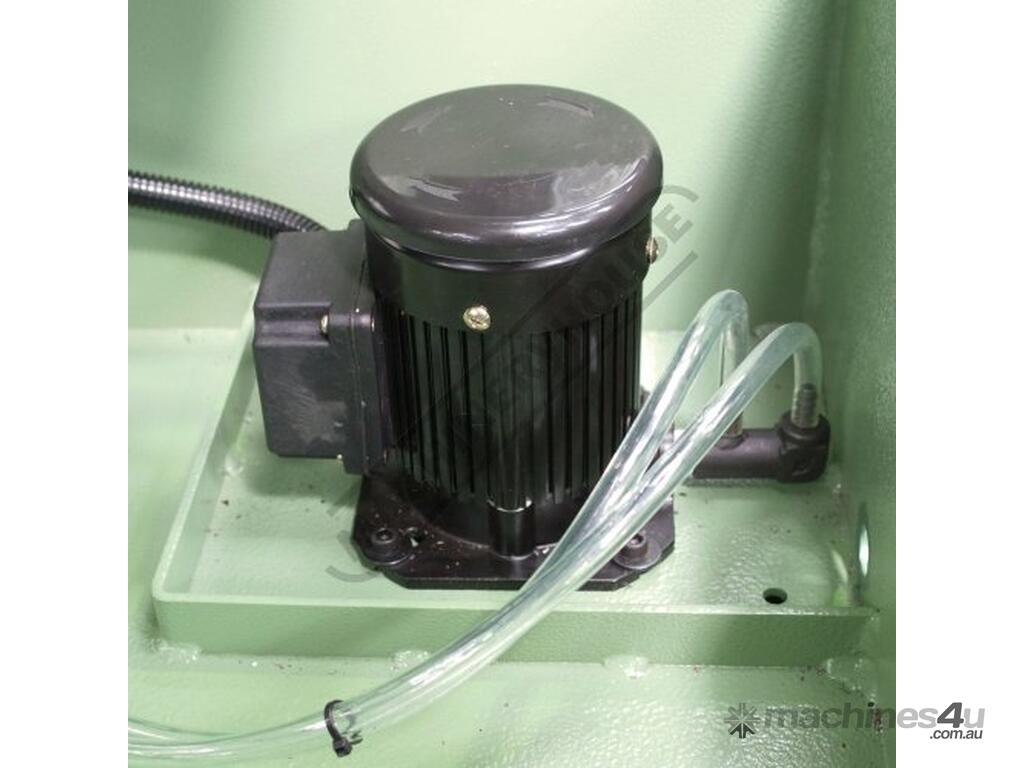

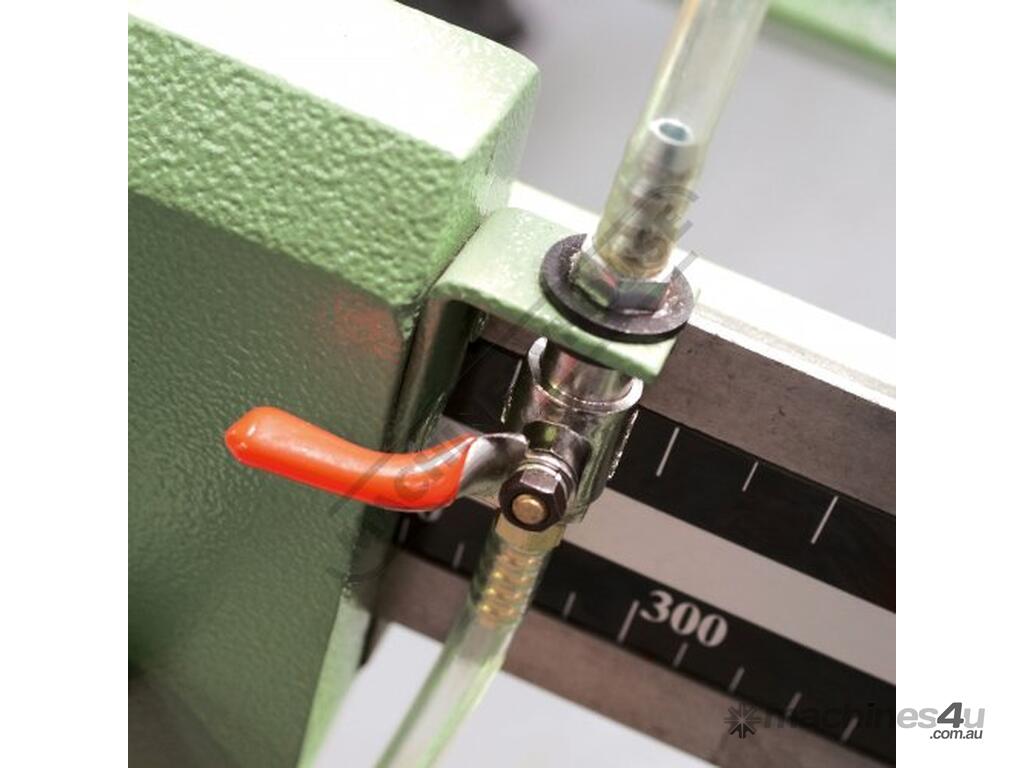

Built-in coolant system for maximum cutting efficiency

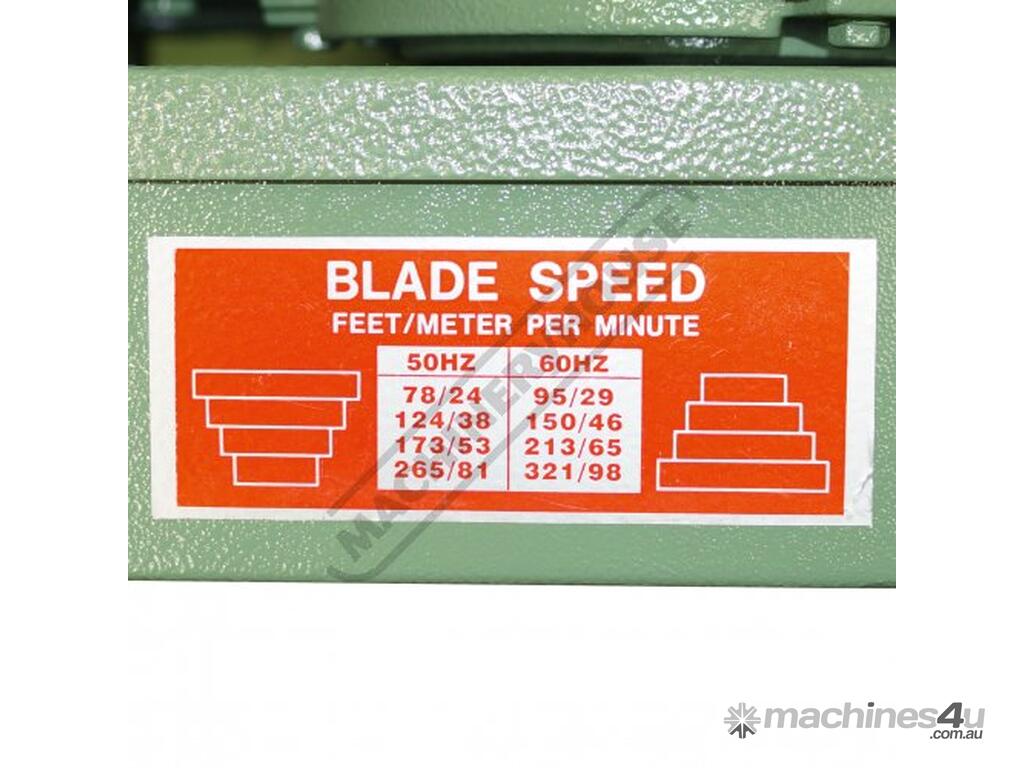

Adjustable 4-speed pulley drive system enabling -81mpm cutting speeds

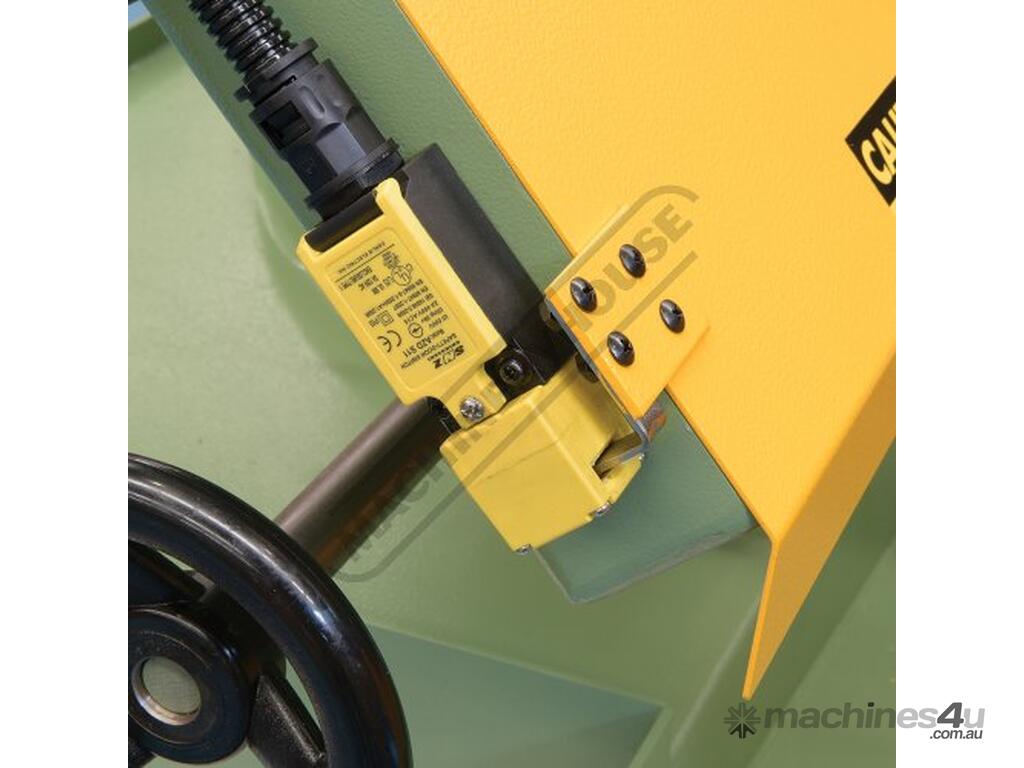

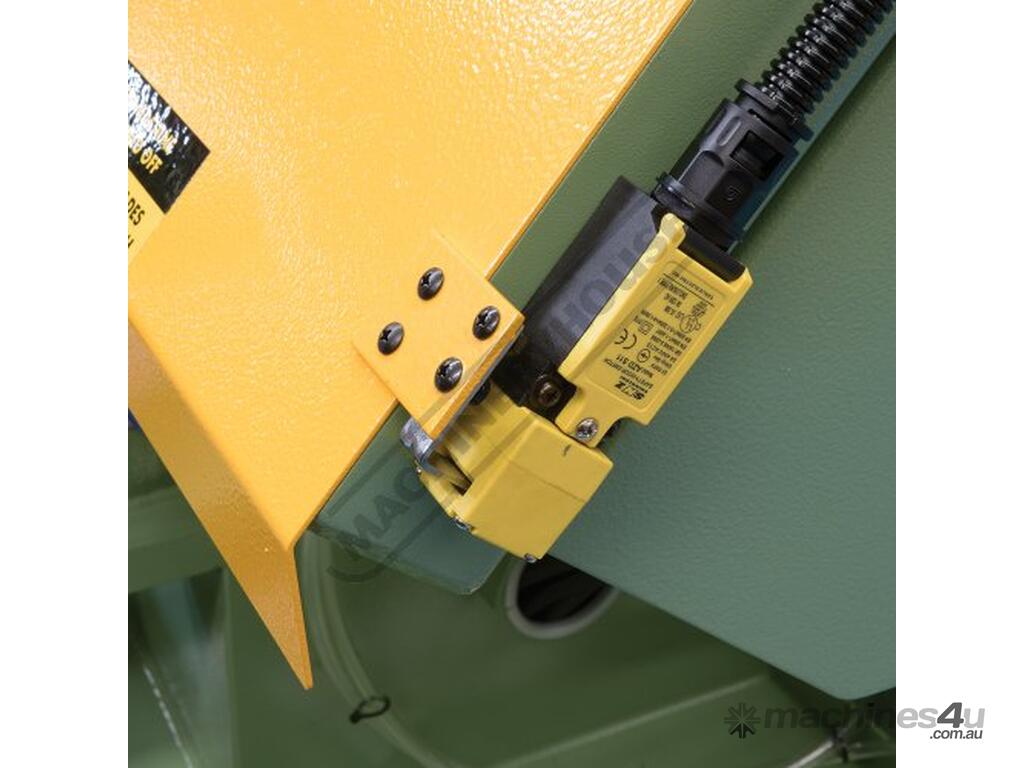

Limit switch stops machine when cut is complete

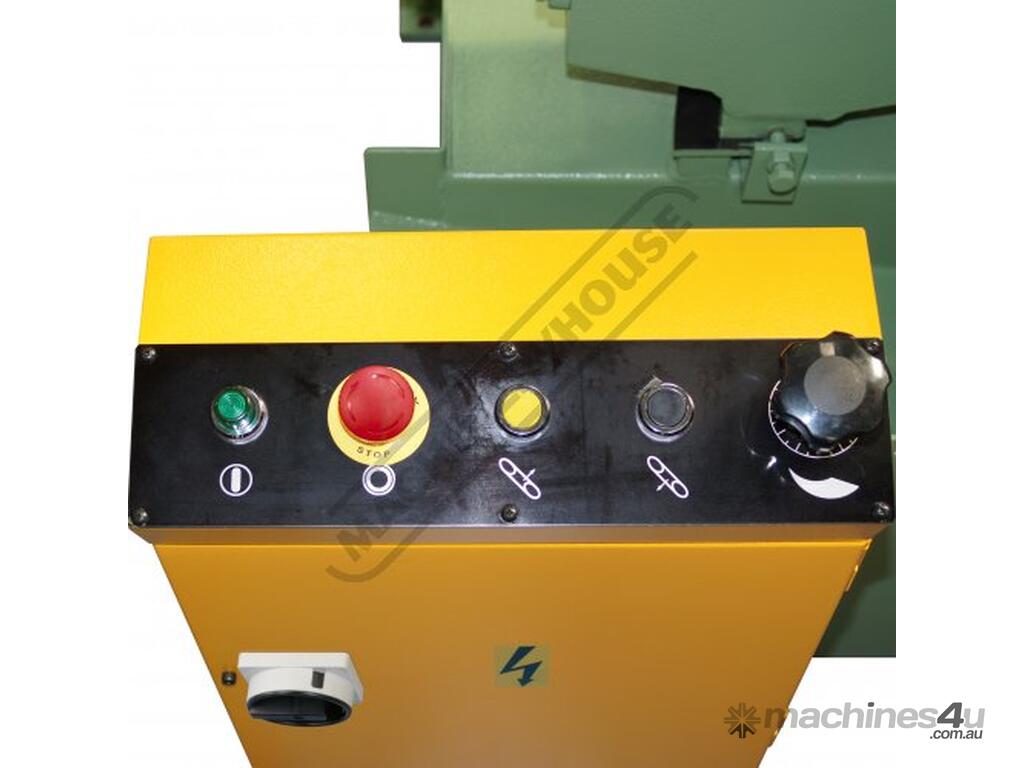

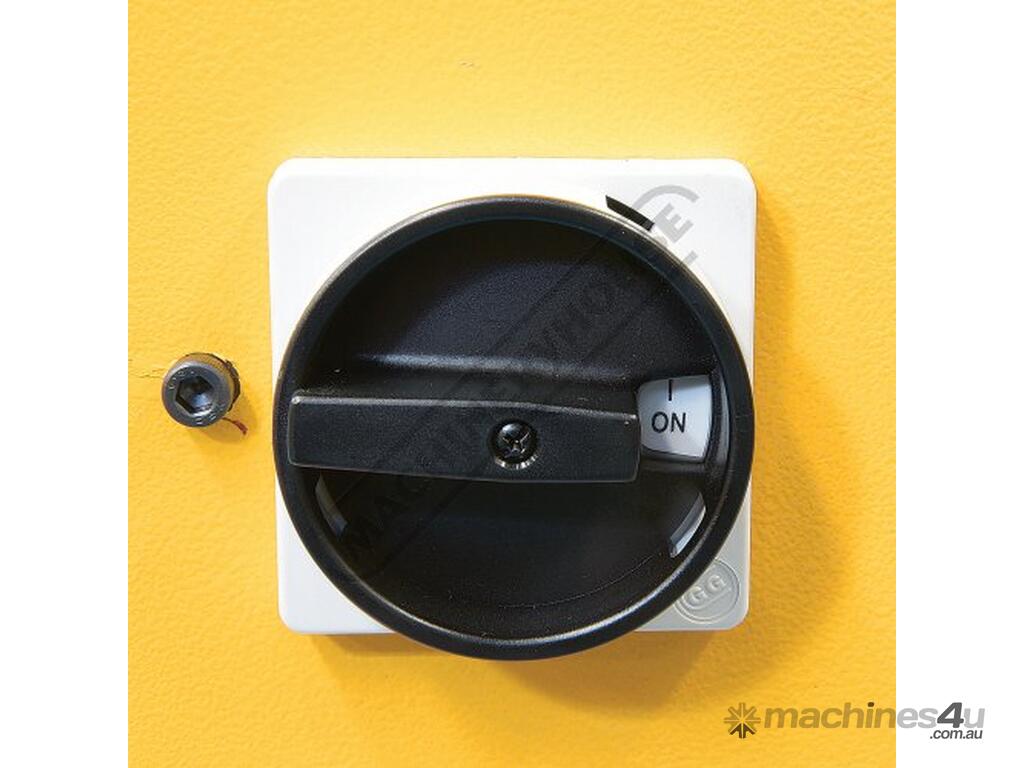

Electric control panel mounted on base for quick operation

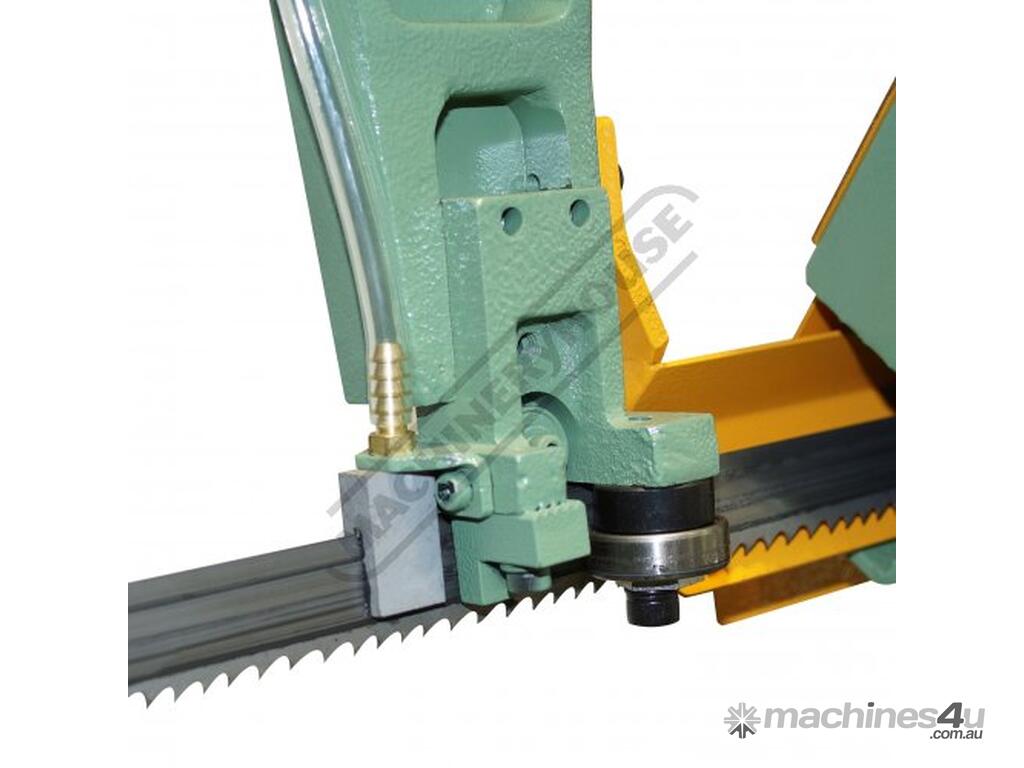

Combination roller bearing & carbide blade guides
Heavy duty cast Iron blade wheels

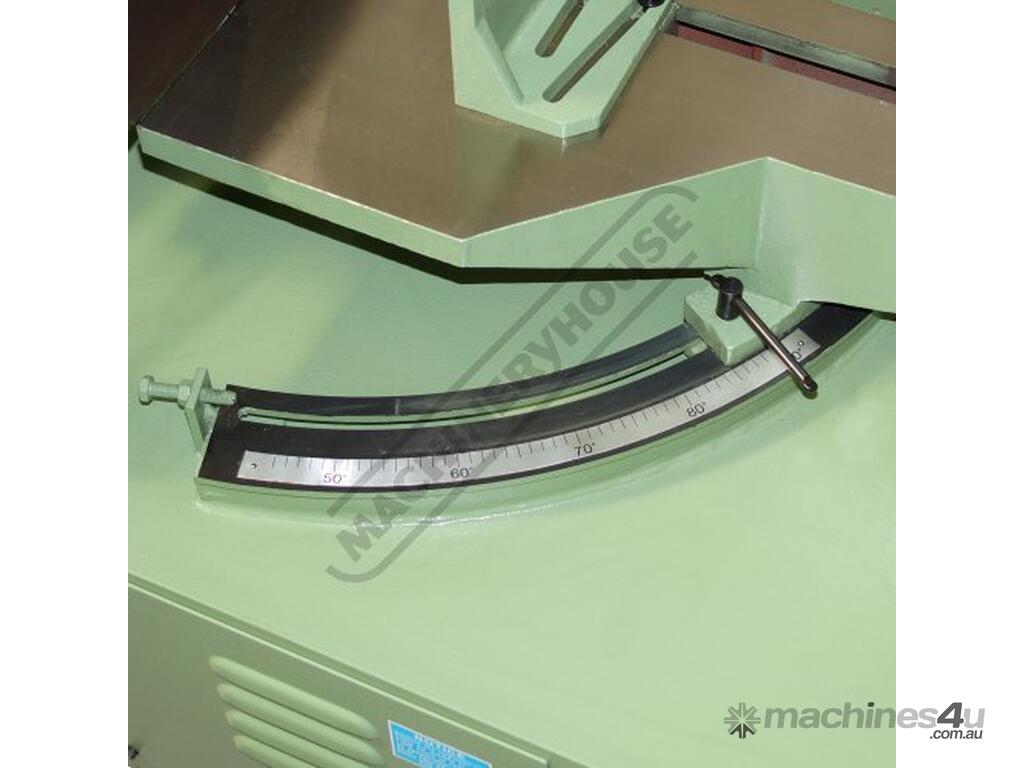

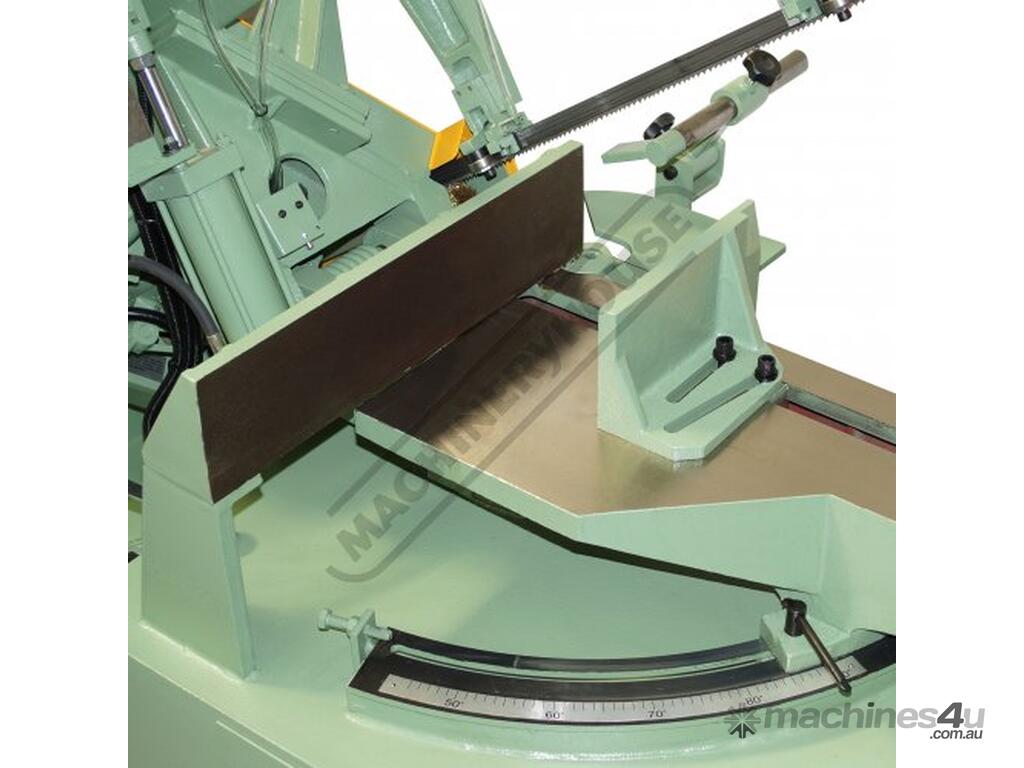

Large mitre scale - easy to read
Cast iron frame with heavy duty fabricated base

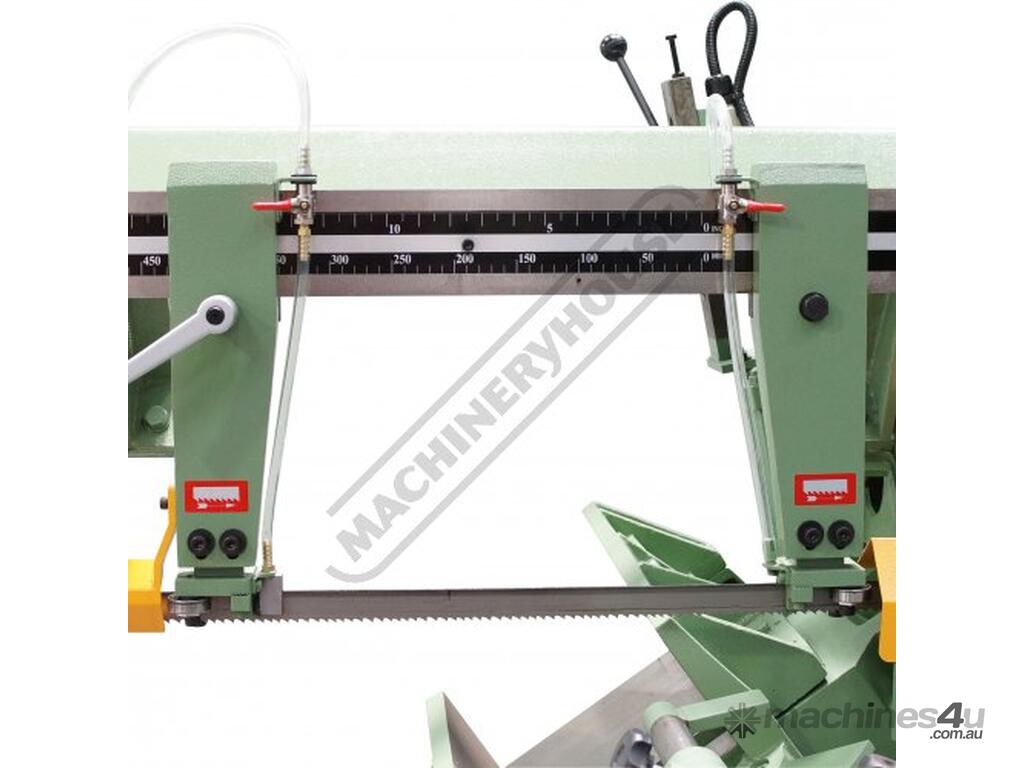

Adjustable blade roller guides provides accurate cutting

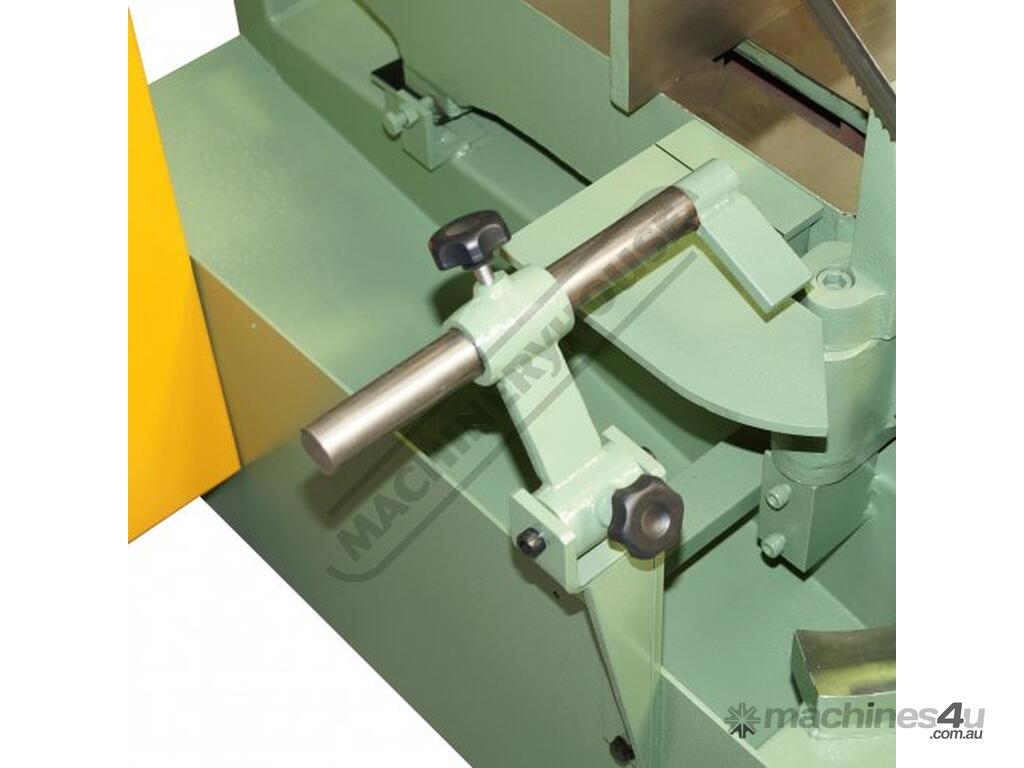

Adjustable length stop for repetition cutting

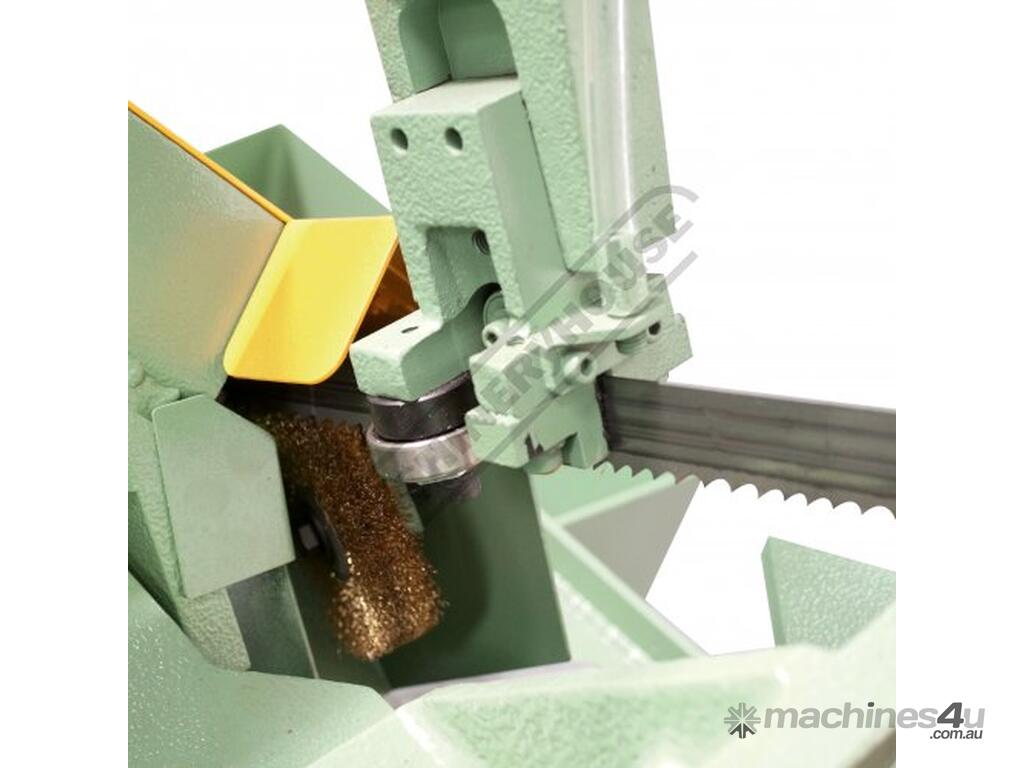

Wire wheel brush to clean swarf from blade
Heavy-duty gearbox drive

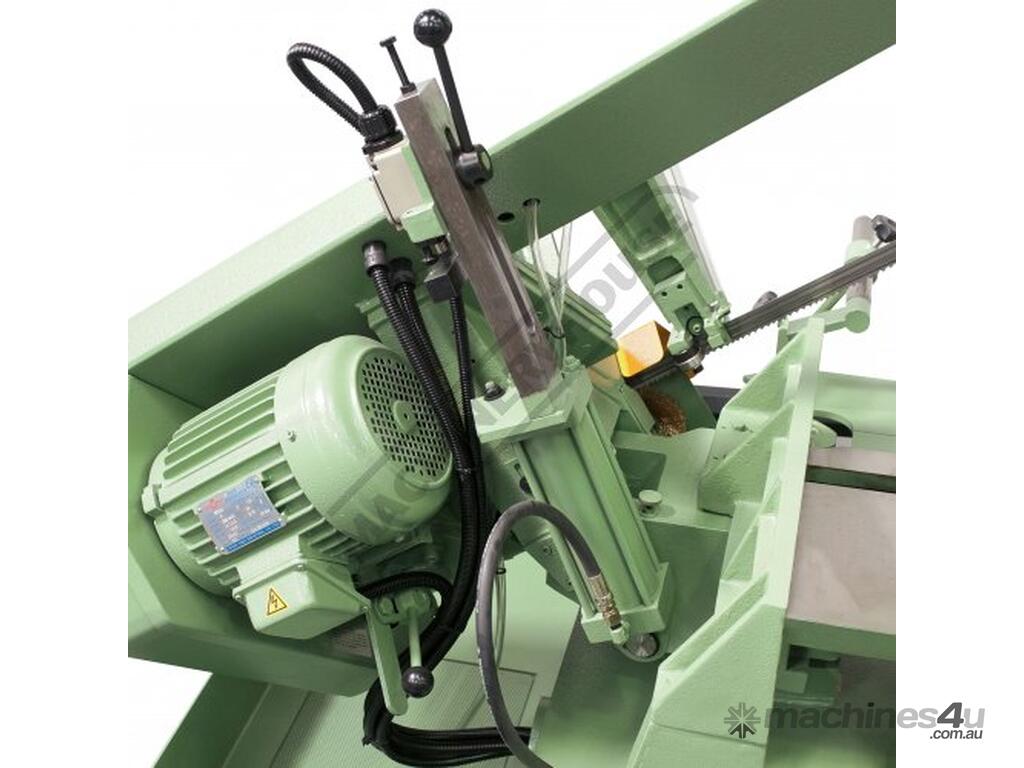

1.5kW / 2hp 415V motor


Specifications:
ORDER CODE: B029
MODEL: BS-10AS
Operation Type: Swivel Head
Operation Type: Semi - Automatic
Round 90º (mm): 250
Round 45º (mm): 250
Round 60º (mm): ~
Square 90º (mm): 230
Square 45º (mm): 175
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 400 x 230
Rectangle (W x H) 45º (mm): 205 x 155
Rectangle (W x H) 60º (mm): ~
Coolant System: Yes
Table Working Height (mm): 650
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic

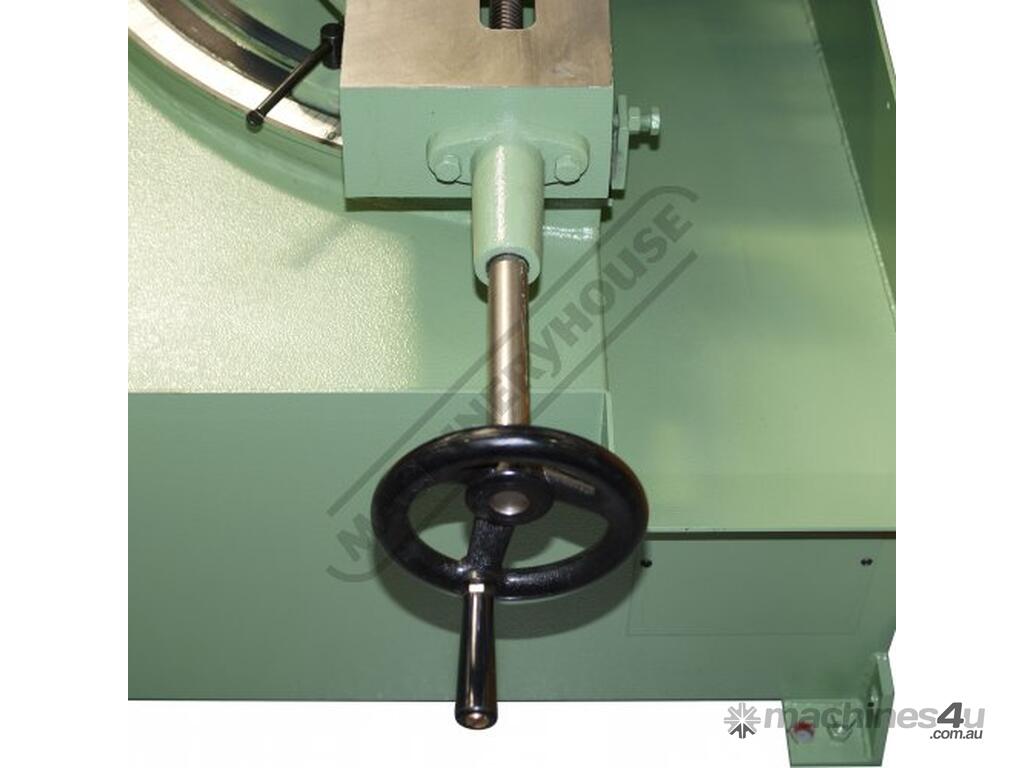

Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): -81
Blade Size (L x W x T) (mm): 3352 x 27 x 0.9
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 610
