BS-10LS Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 45º, Quick Action Material Clamp, Includ

HAFCO-METALMASTER BS-10LS Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 45º, Quick Action Material Clamp, Includes Laser Line Guide & Hydraulic Downfeed Control 468 x 250mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B021

Manufactured in Taiwan

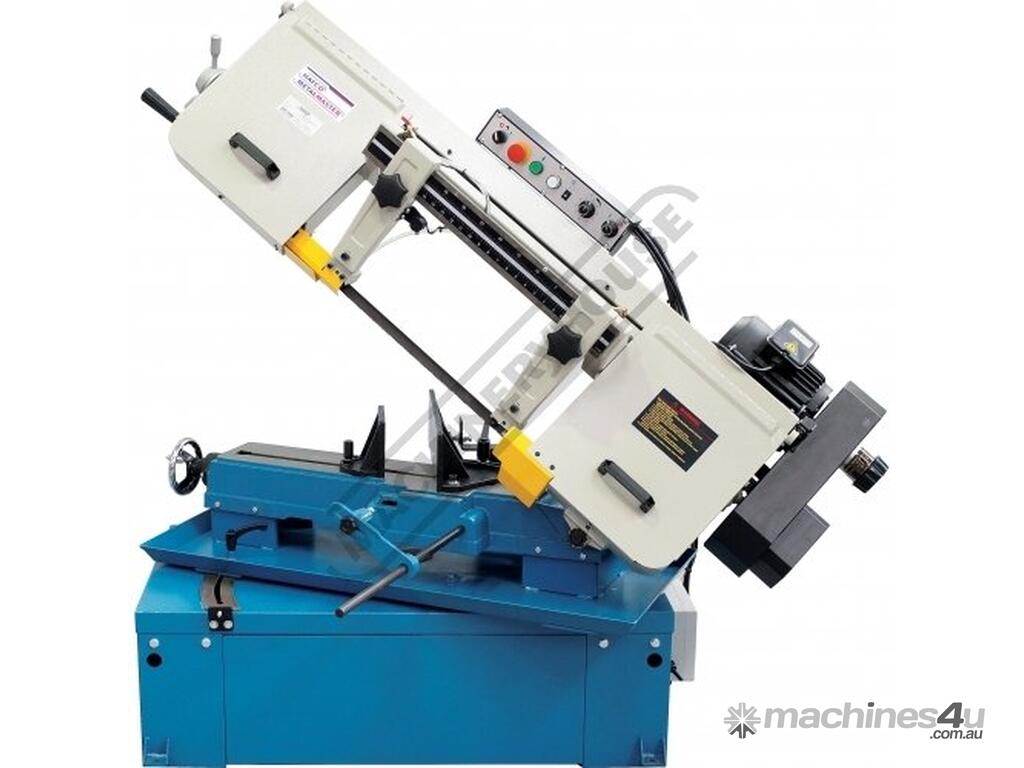

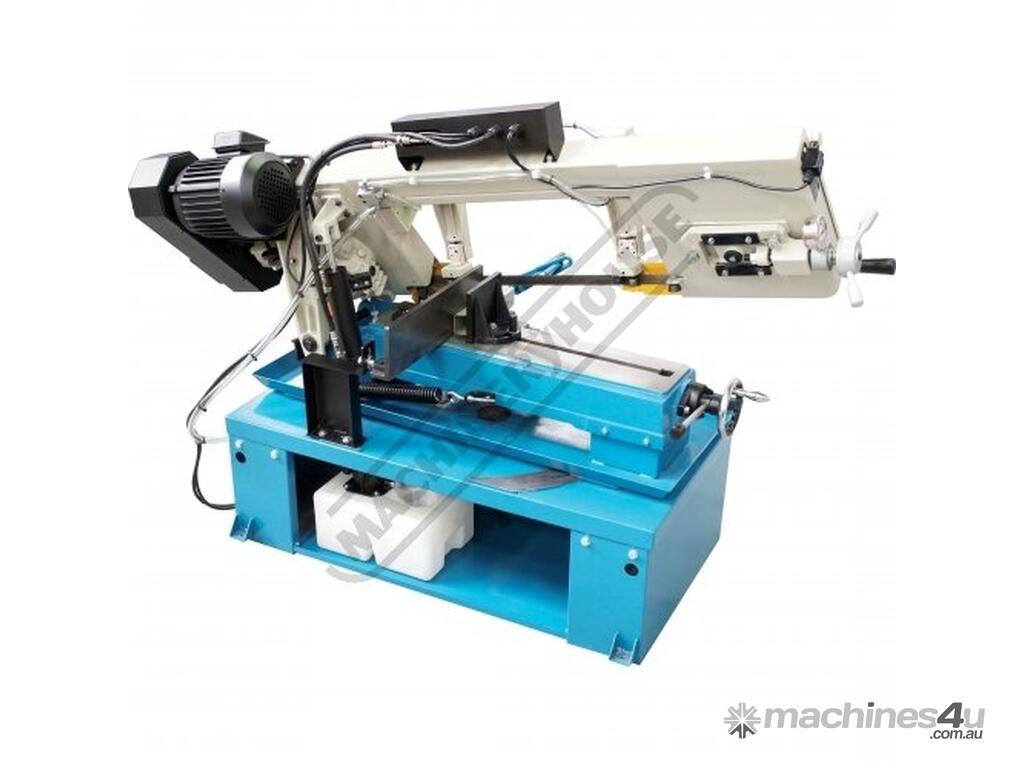

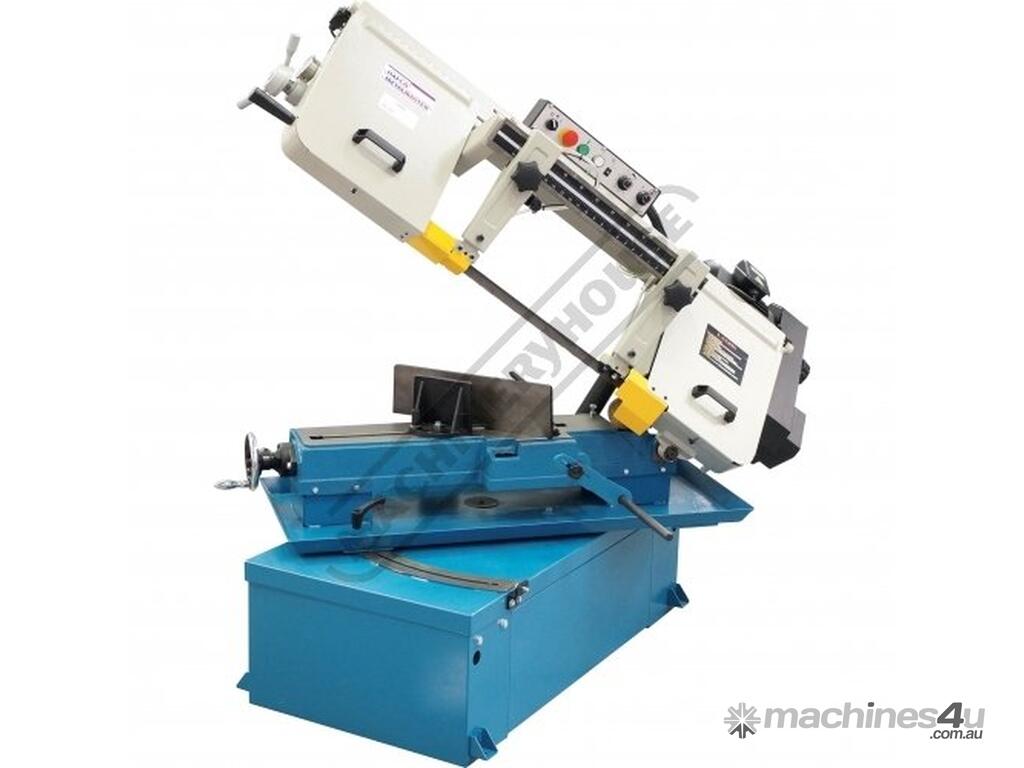

The BS-10LS heavy duty metal cutting band saw has many features on offer with a swivel base to cut mitres up to 45 degrees, variable speed control, hydraulic feed control a cutting capacity of up to 250mm diameter or 468 x 250mm in steel at 90º and two ball bearings per side on the blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable dial system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliably and accurate cuts!

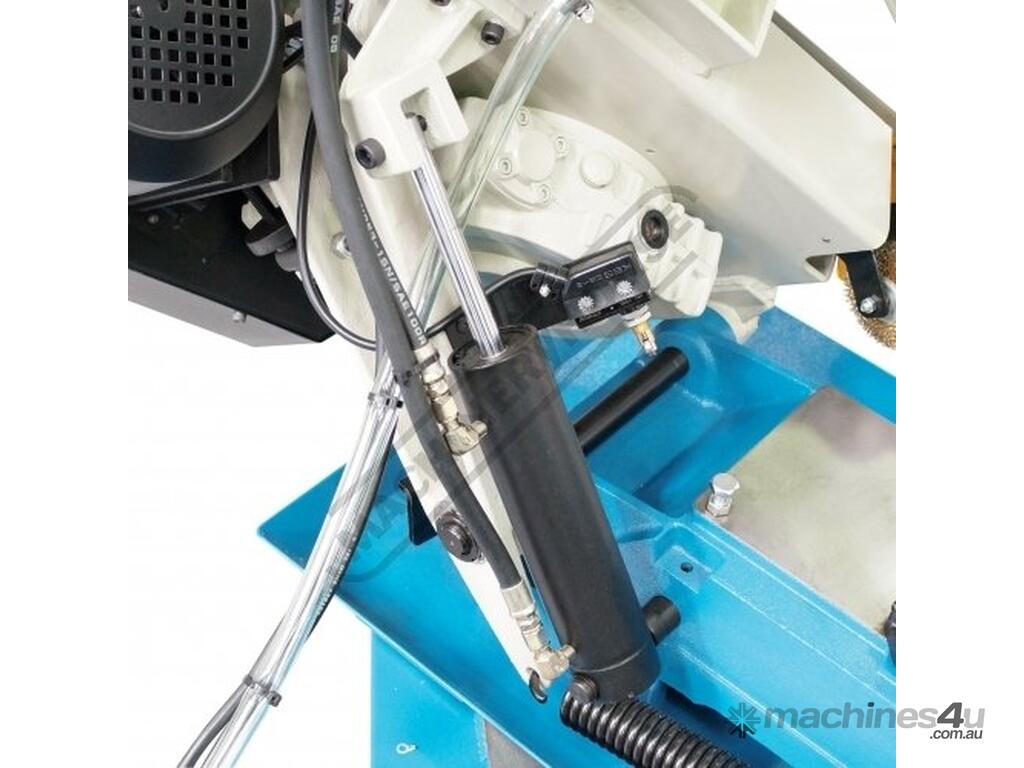

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and engineering workshops. . If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.

Features:
468 x 250mm (W x H) rectangular capacity
Swivel head for easy angle cutting without moving material
Adjustable hydraulic feed cutting rate for multiple applications

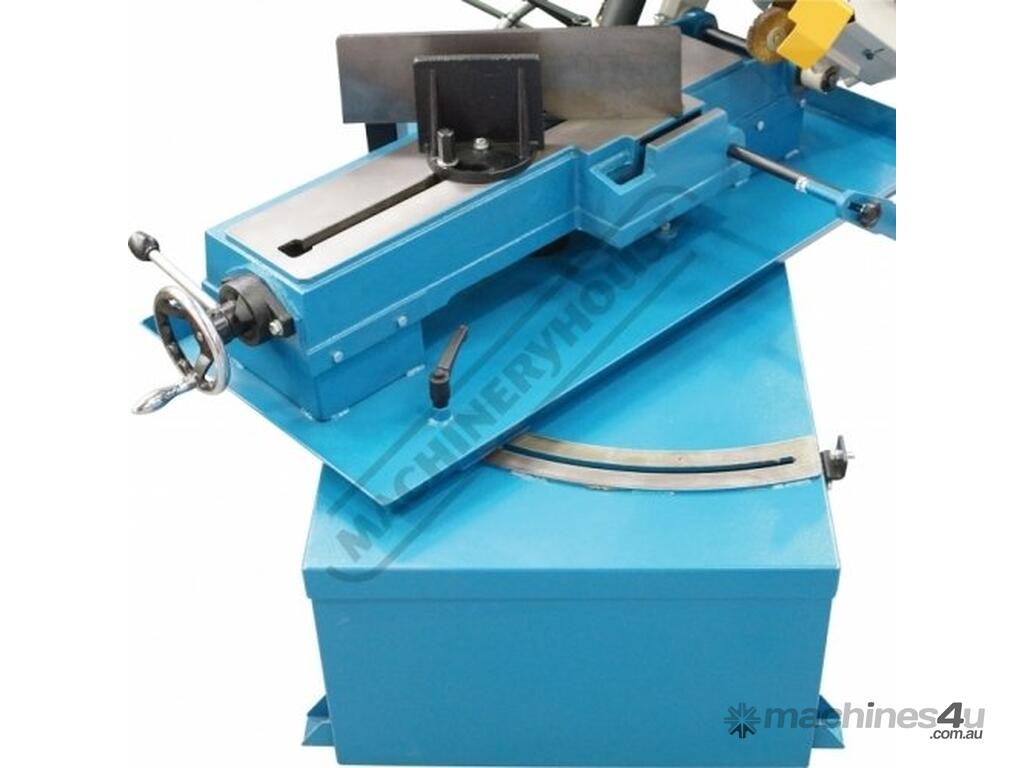

Mitre cuts to 45º using swivel head
Built-in coolant system for maximum cutting efficiency

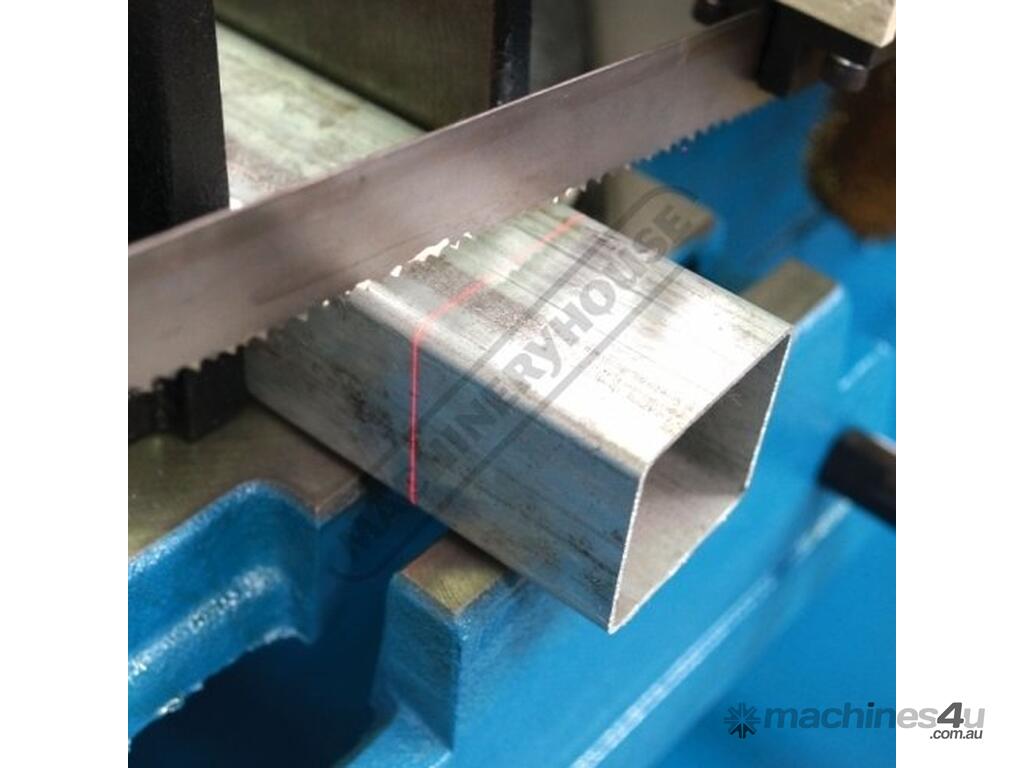

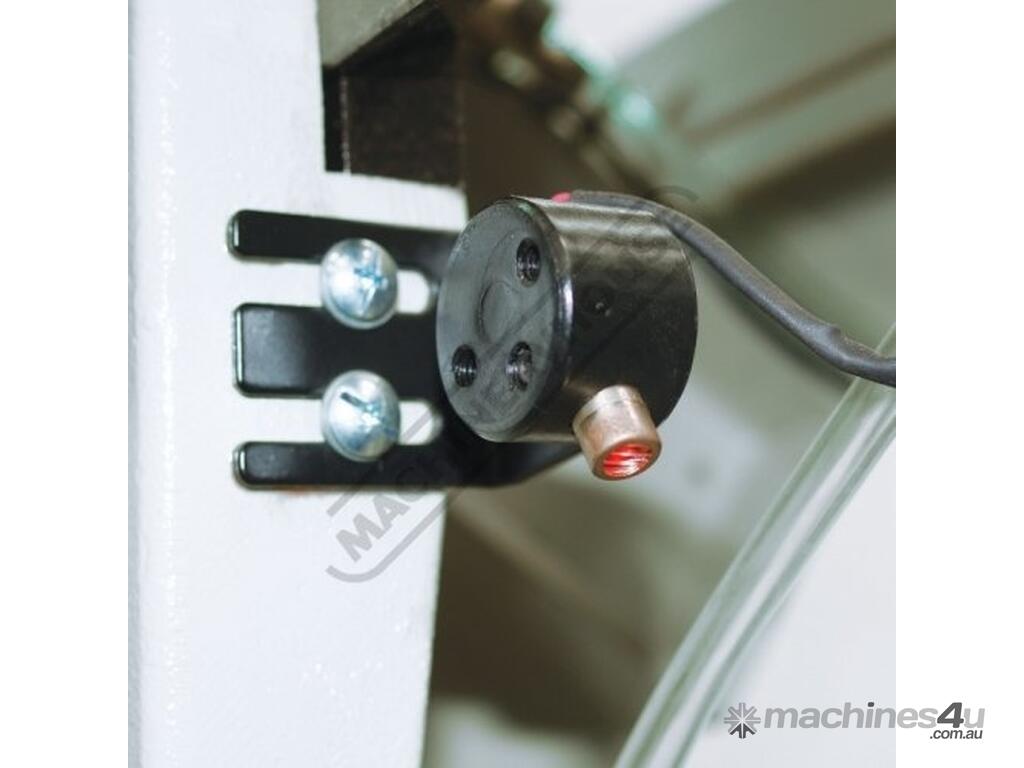

Laser line guide assist in lining up material positioning

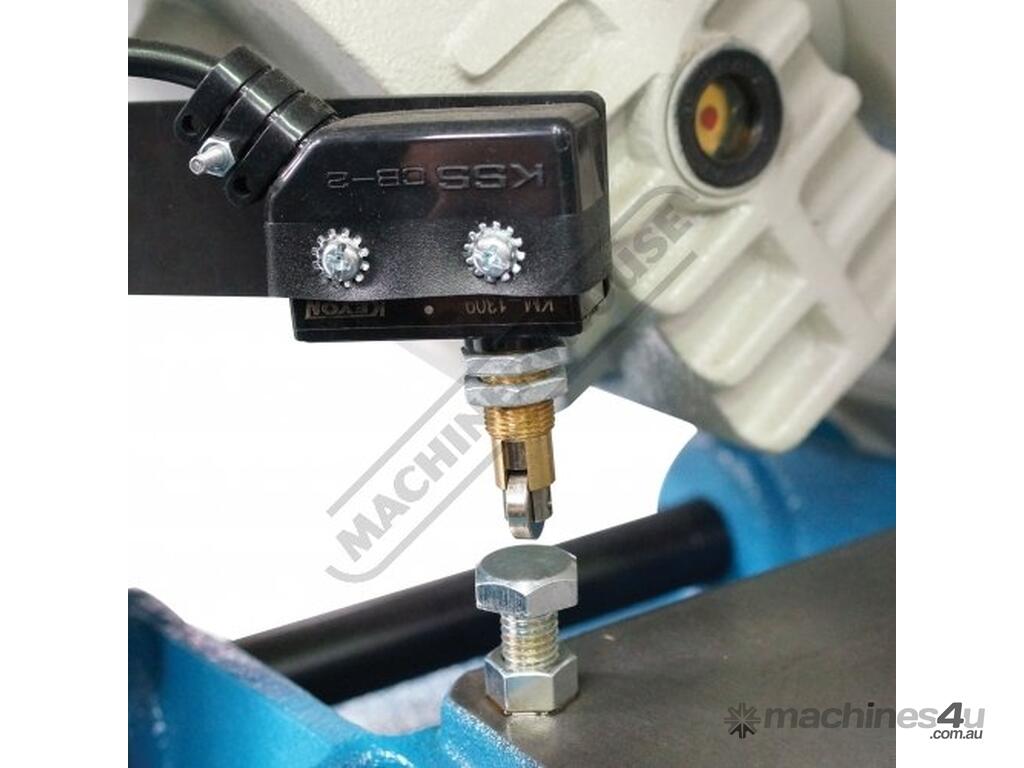

Limit switch stops machine when cut is complete

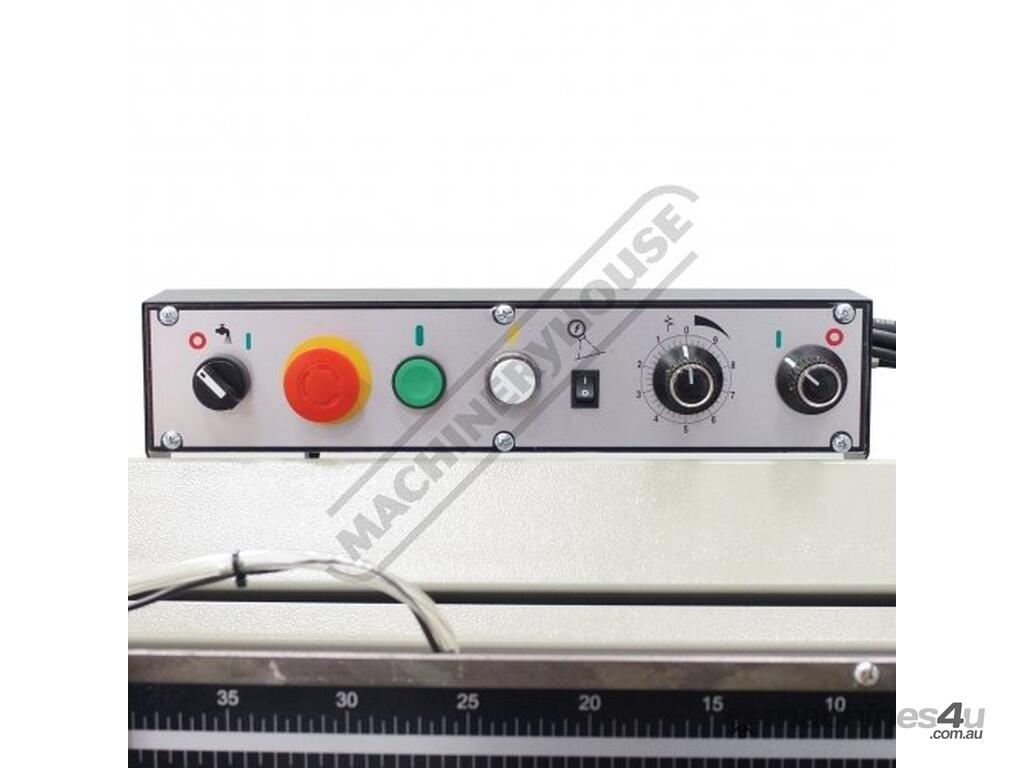

Control panel located on top of arm for easy use

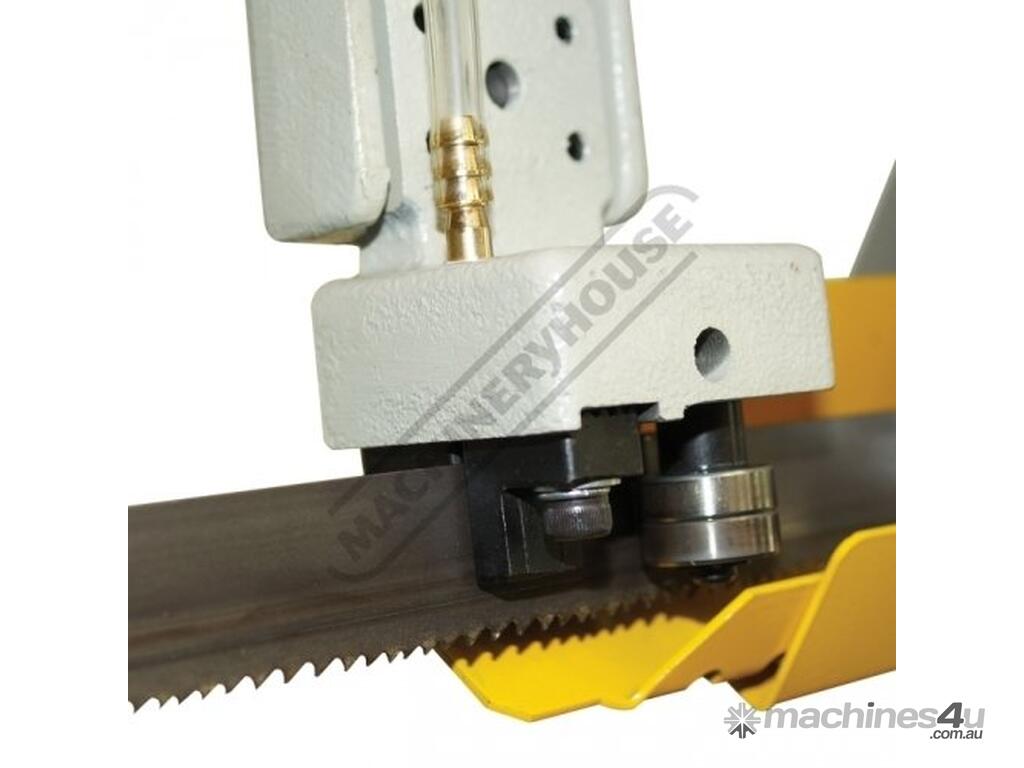

Combination roller bearing & Carbide blade guides

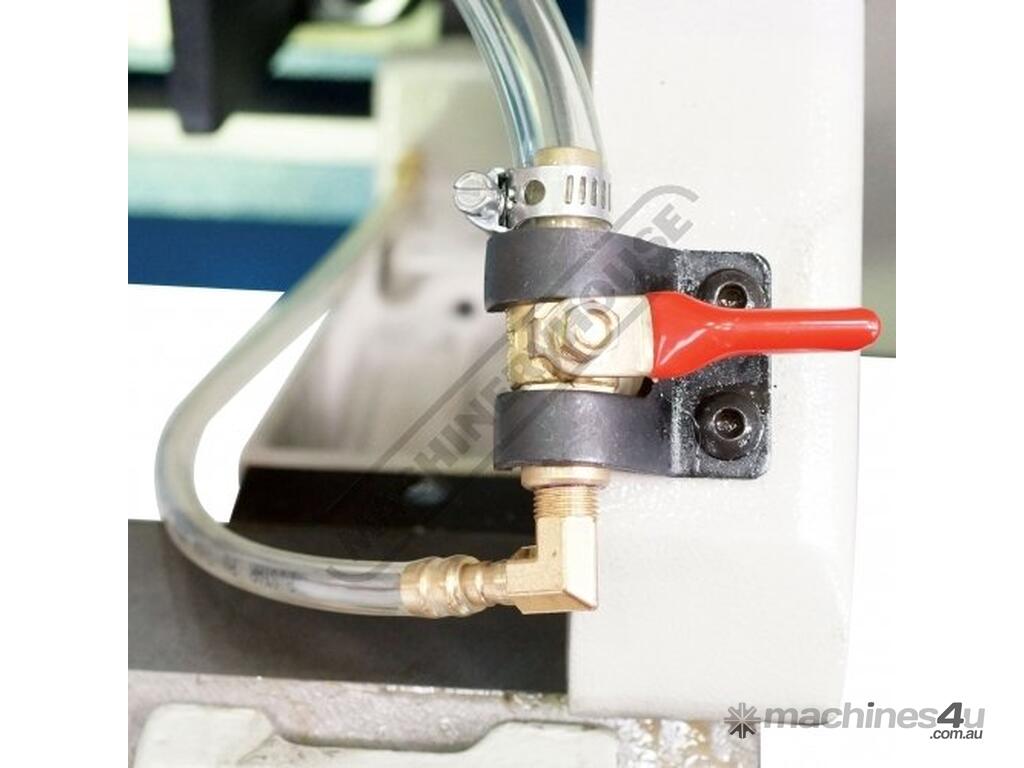

Coolant system with flow control valve
Large mitre scale - easy to read
Cast iron frame with heavy duty fabricated base

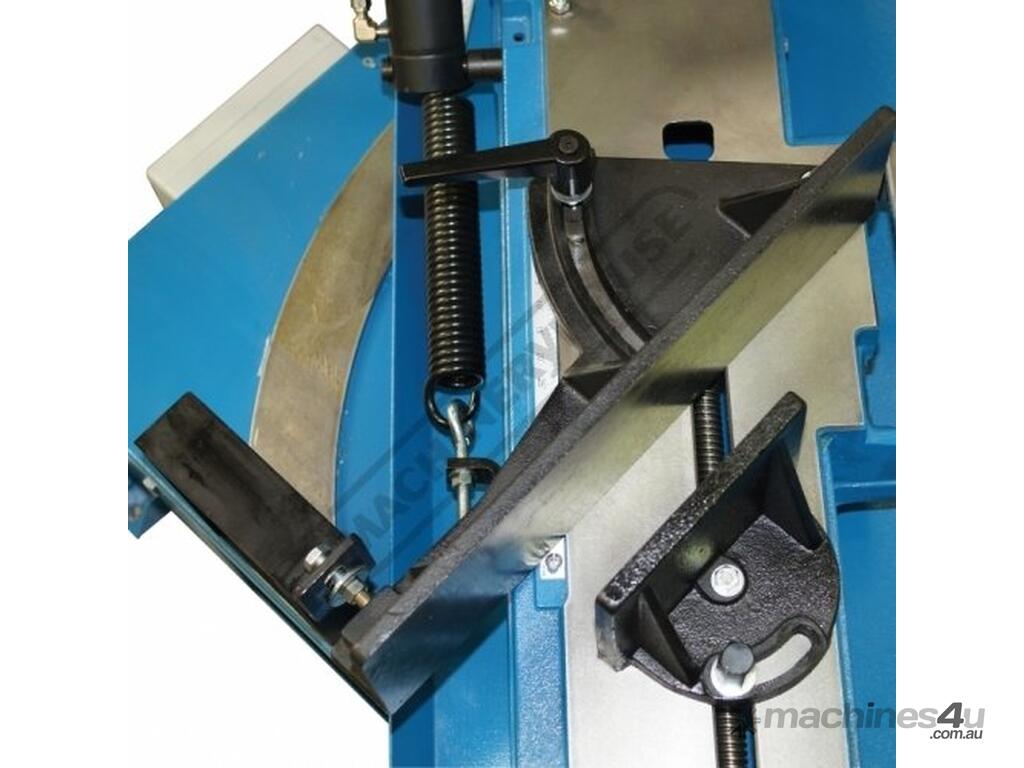

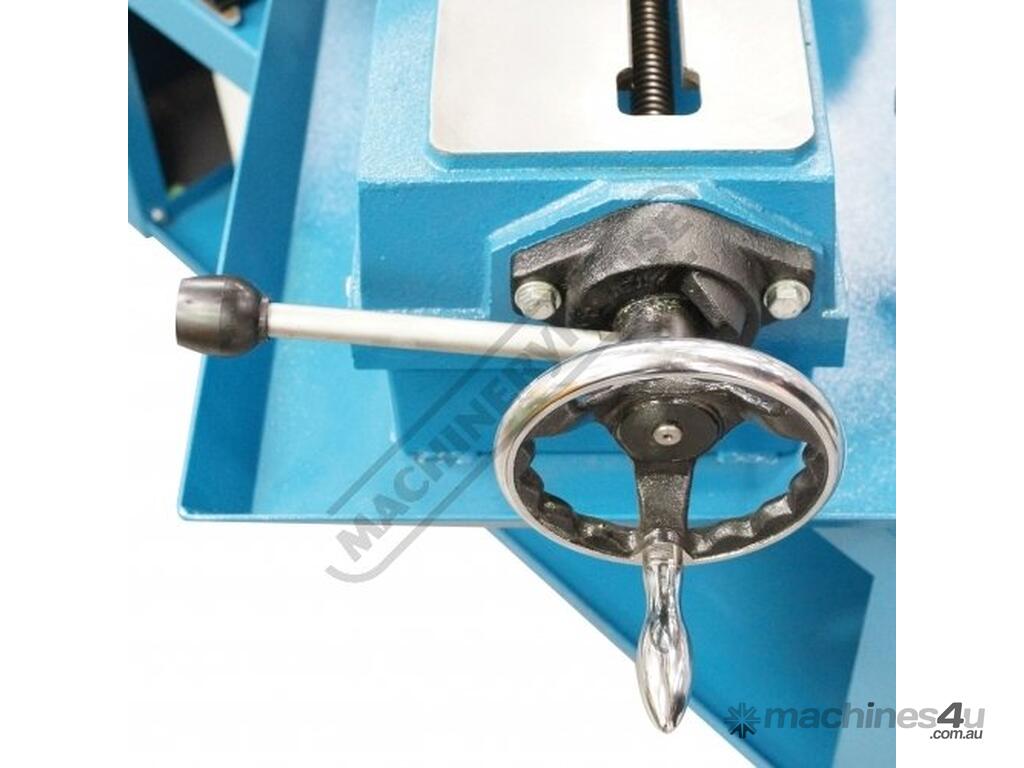

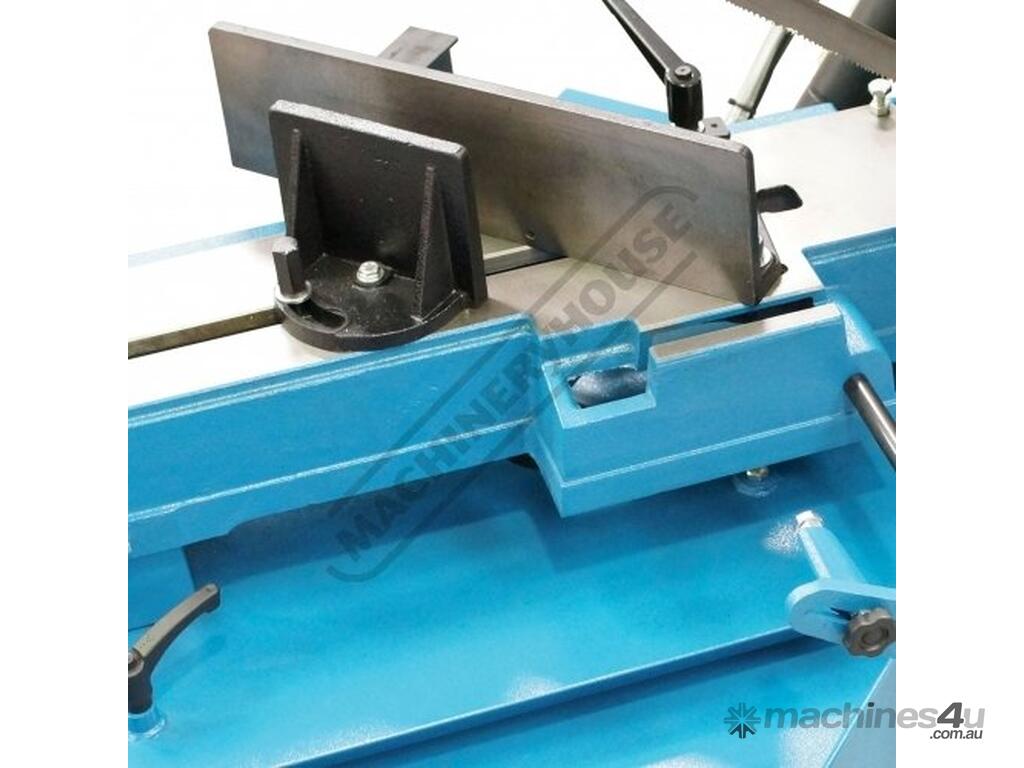

Quick action material clamping system

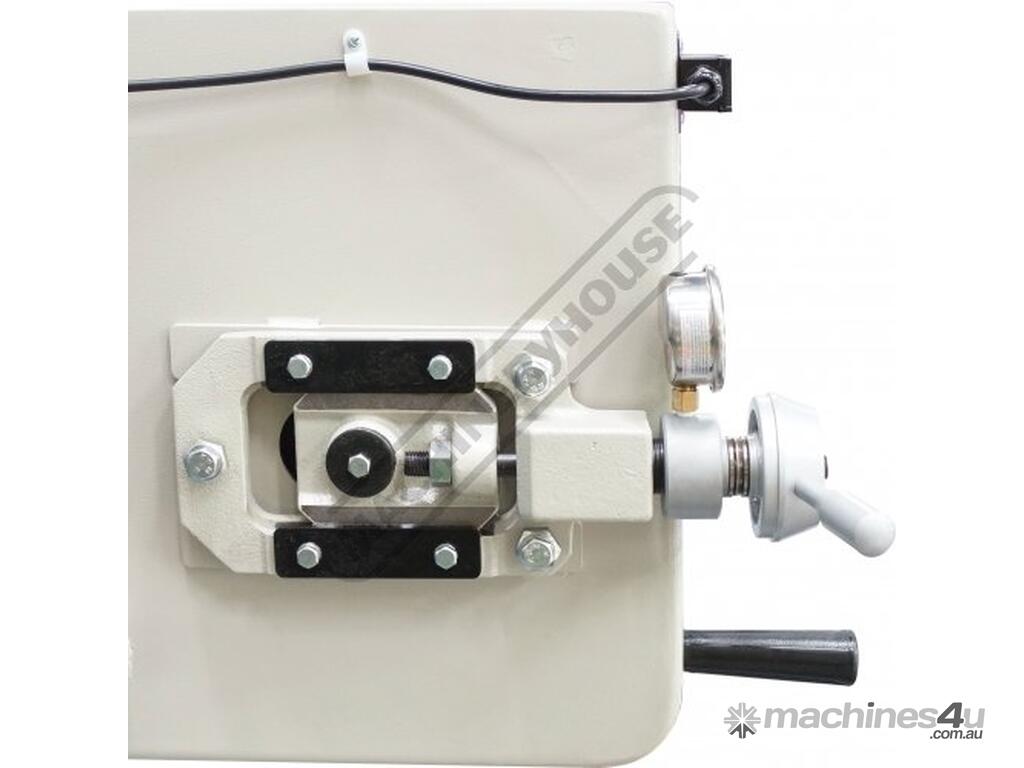

Adjustable blade roller guides provides accurate cutting

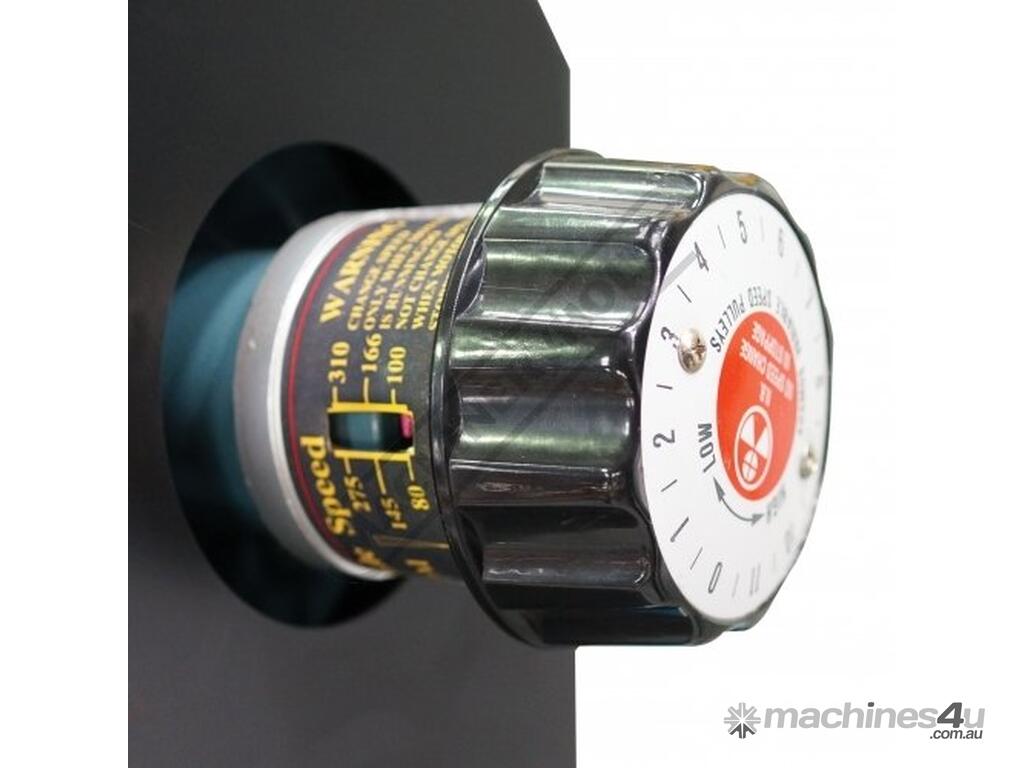

Variable speed drive system changes blade speed from 18-102mpm

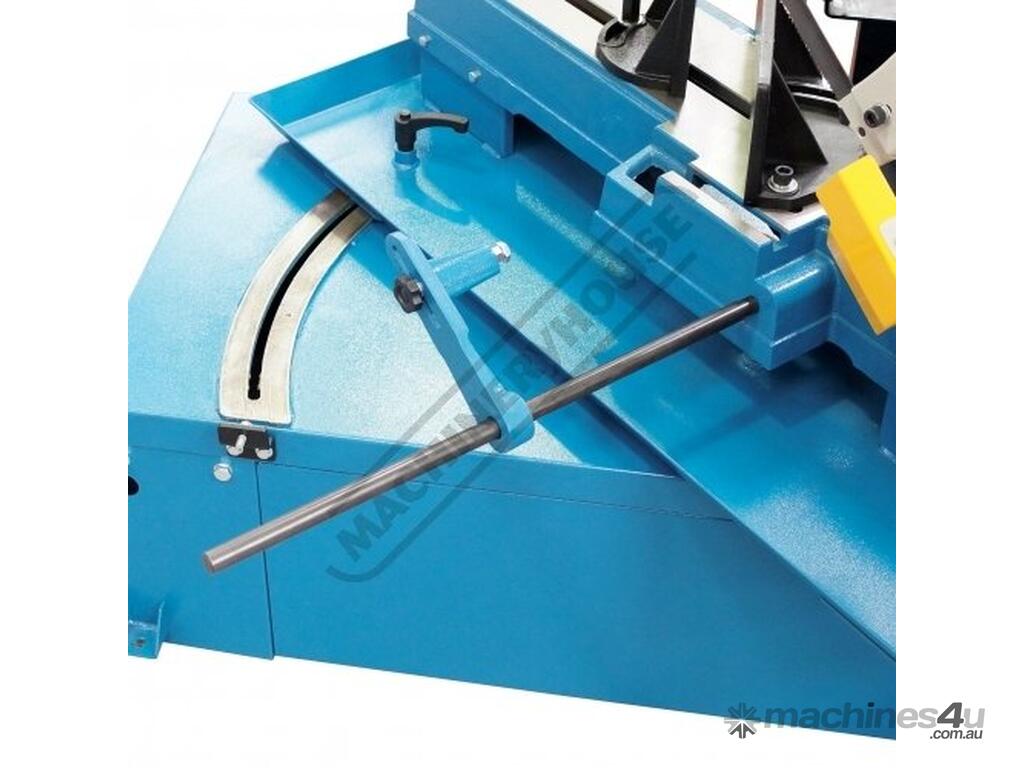

Adjustable length stop for repetition cutting
Automatic electric cut-out switch

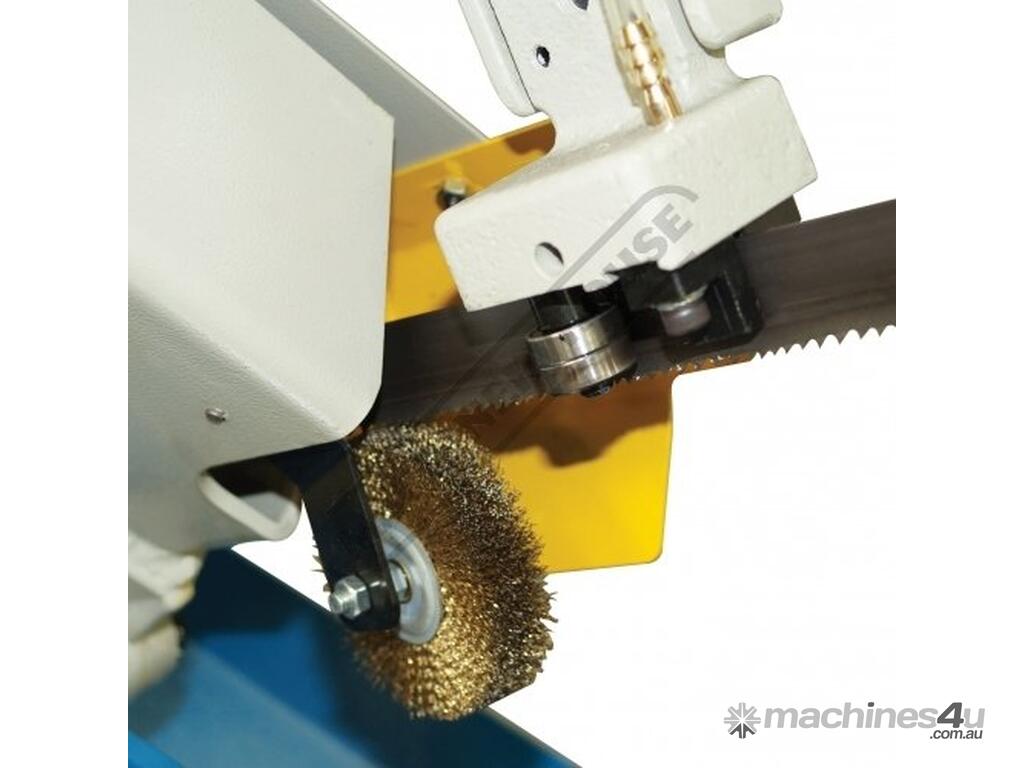

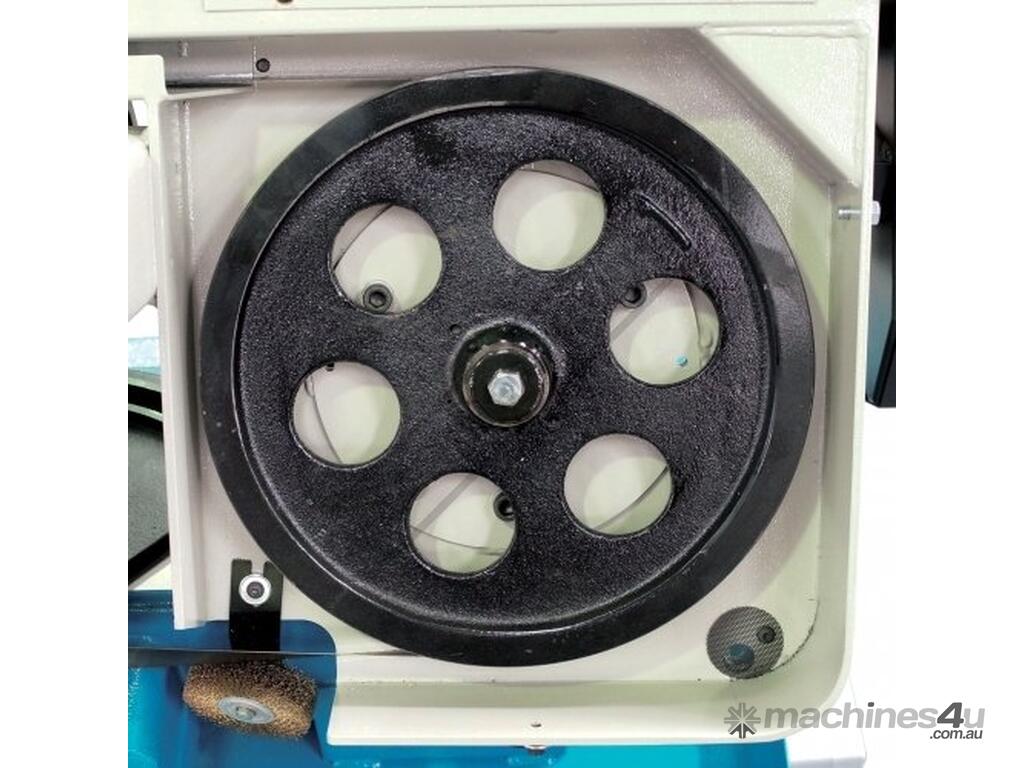

Wire wheel brush to clean swarf from blade
Heavy-duty gearbox drive
Heavy-duty 1.5kW 415V fully enclosed fan-cooled motor


Specifications:
ORDER CODE: B021
MODEL: BS-10LS
Operation Type: Swivel Head
Operation Type: ~
Round 90º (mm): 250
Round 45º (mm): 235
Round 60º (mm): ~
Square 90º (mm): 250
Square 45º (mm): 235
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 468 x 250
Rectangle (W x H) 45º (mm): 250 x 240
Rectangle (W x H) 60º (mm): ~
Coolant System: Yes
Table Working Height (mm): 570
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 18-102
Blade Size (L x W x T) (mm): 3090 x 27 x 0.9
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 380
