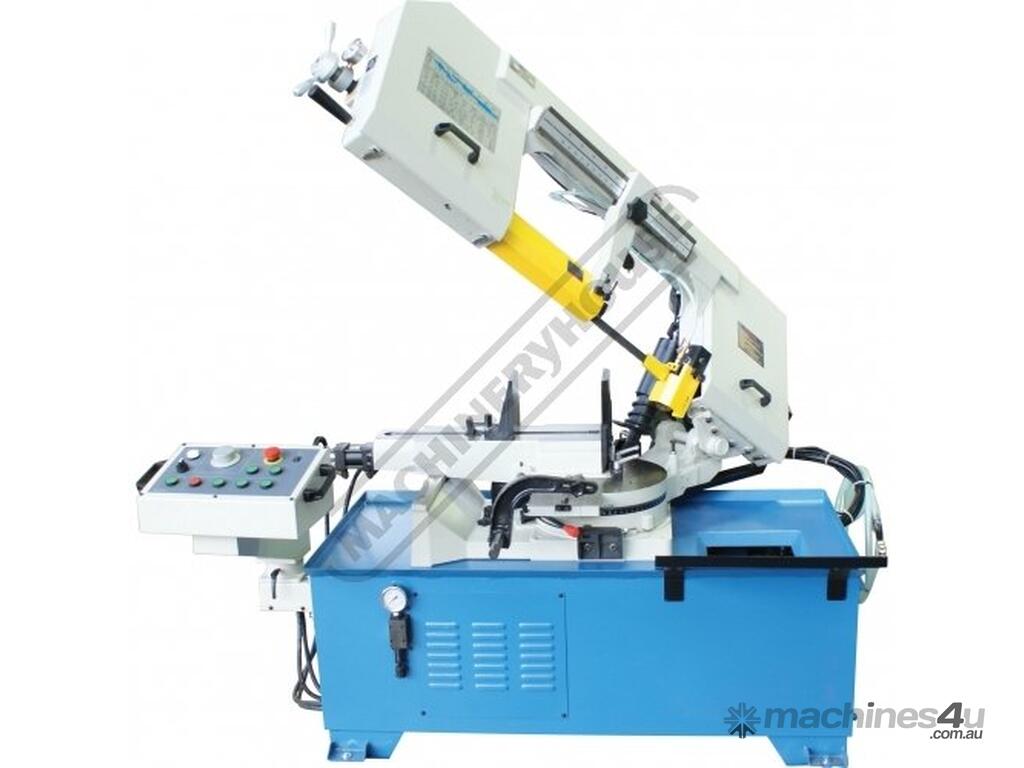

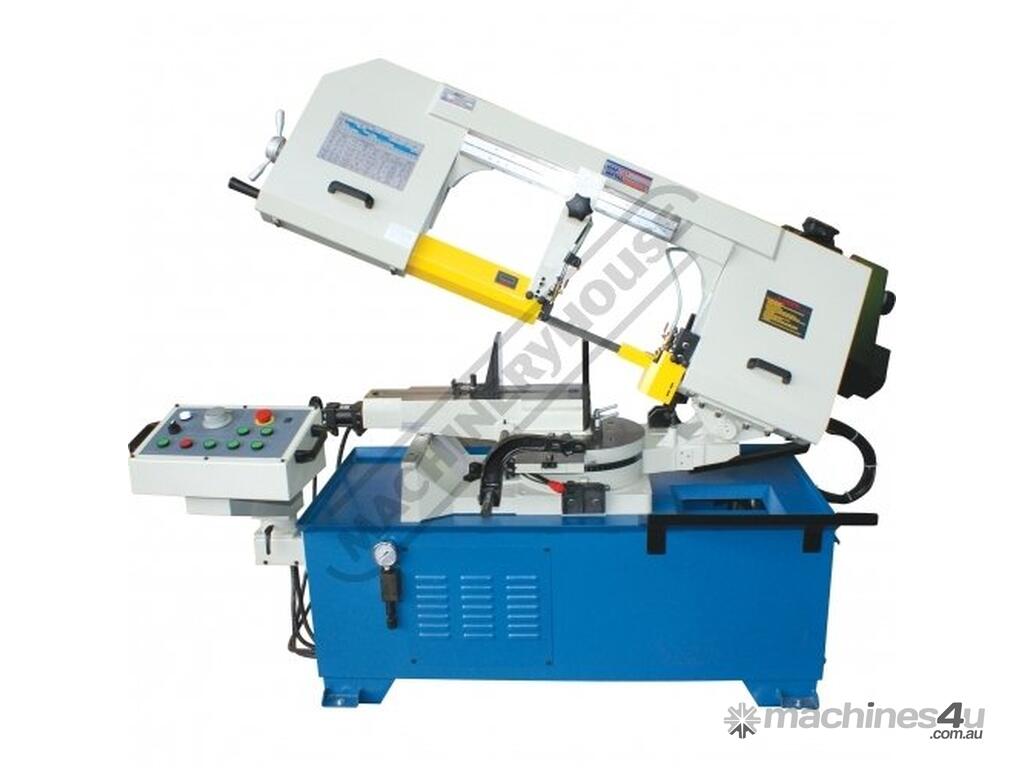

BS-13DS Semi - Automatic, Swivel Head-Dual Mitre Metal Cutting Band Saw Variable Cutting Speeds, Dua

HAFCO-METALMASTER BS-13DS Semi - Automatic, Swivel Head-Dual Mitre Metal Cutting Band Saw Variable Cutting Speeds, Dual Mitre Cuts Up To 60º, Laser Line Guide, Hydraulic Vice Clamping & Includes Hydraulic Downfeed Control 458 x 235mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B030

Manufactured in Taiwan

The BS-13DS Industrial duty metal cutting band saw has many features on offer with a double mitre swivel head to cut mitres up to 45 degrees left and 60 degrees right with a variable blade speed system, hydraulic feed control a cutting capacity of up to 330mm diameter or 458 x 235mm in steel at 90º and three ball bearings per side with carbide blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable dial system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliability and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete and automatically returning to set height position. The weight of the head is counter balanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and industrial engineering workshops. If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.

Features:
458 x 235mm (W x H) rectangular capacity

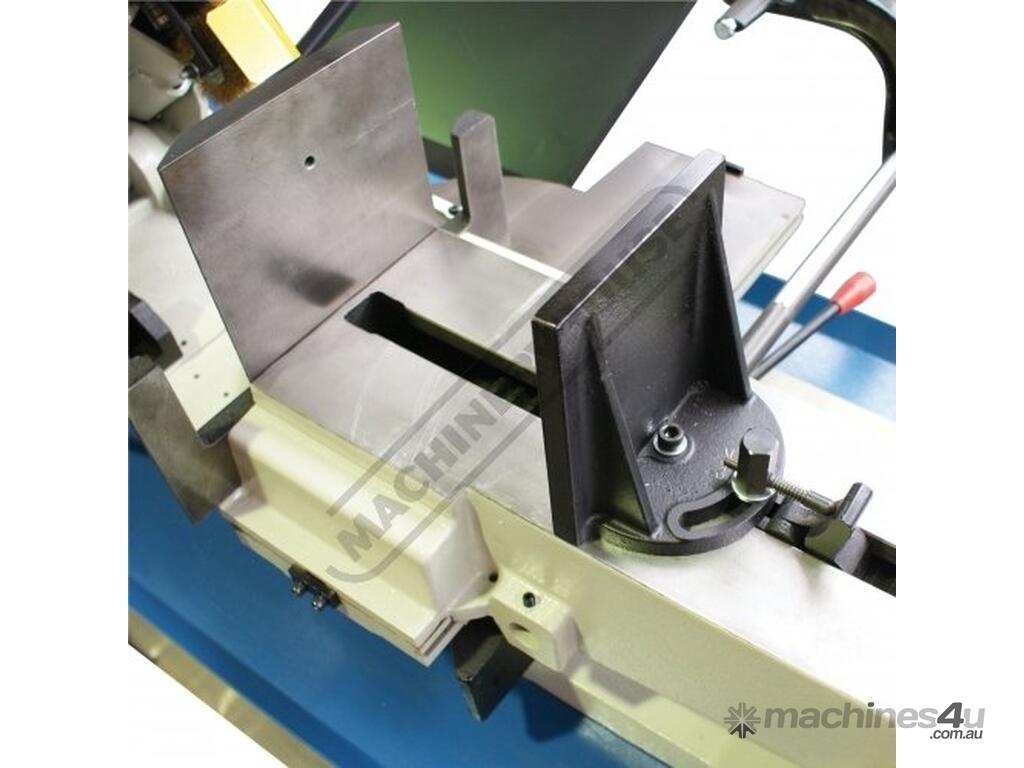

Double mitre swivel head for easy angle cutting without moving material
Semi-automatic operation machine returns to open height position after finishing the cutting process

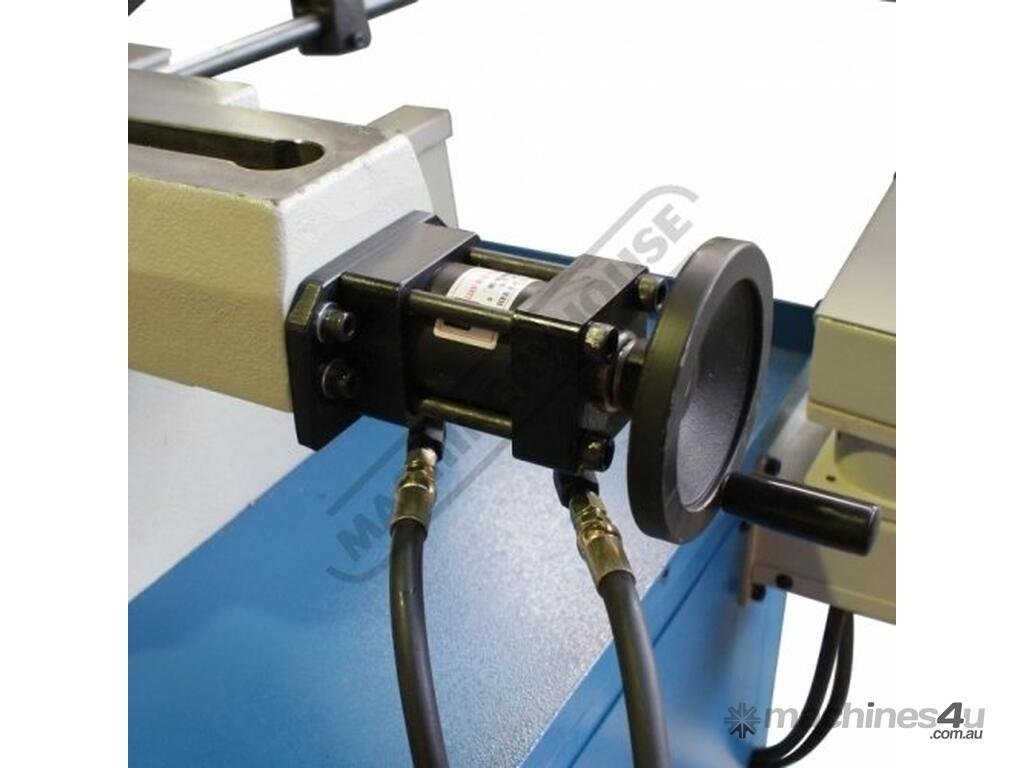

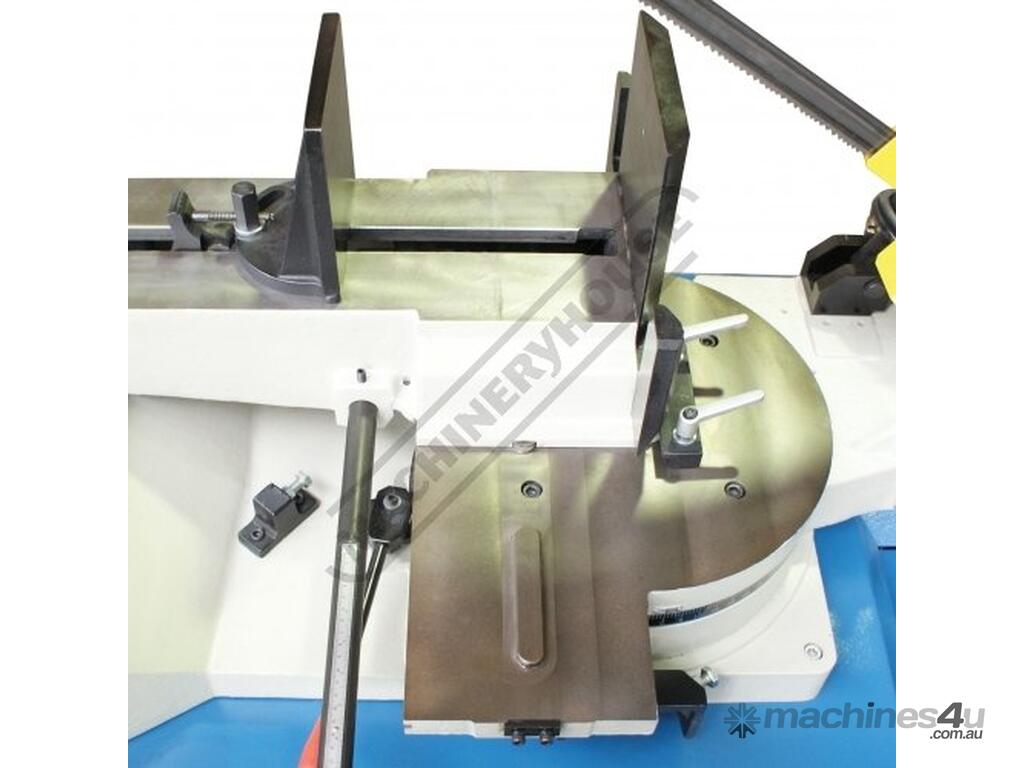

Automatic hydraulic vice incorporated with a manual hand wheel

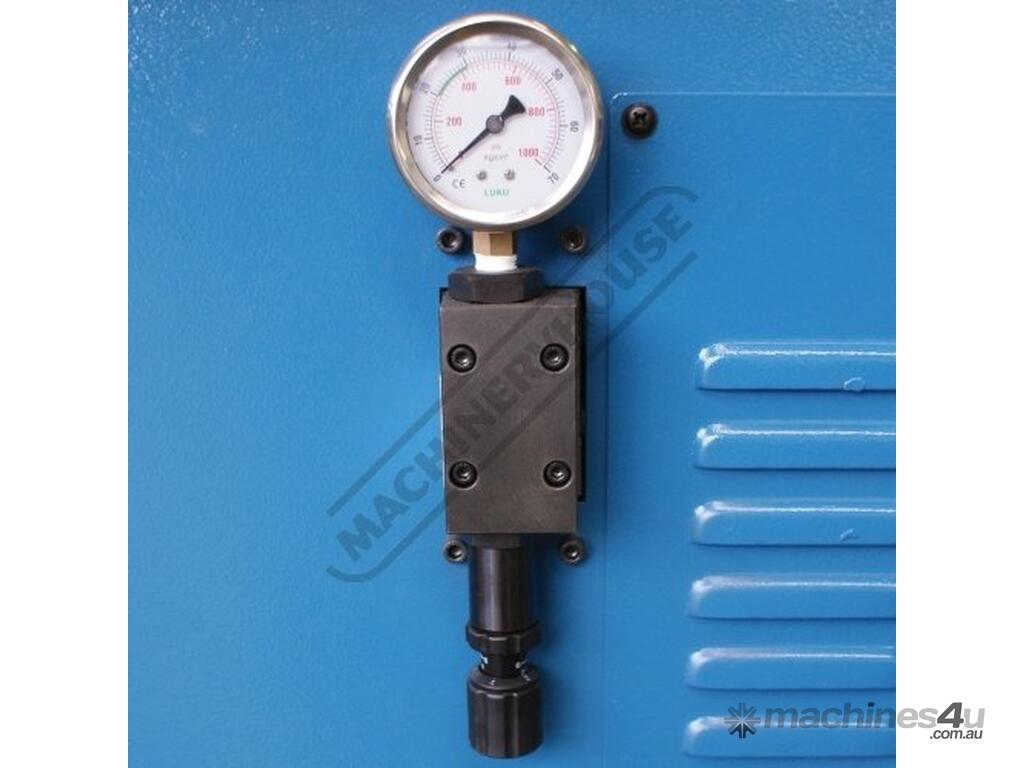

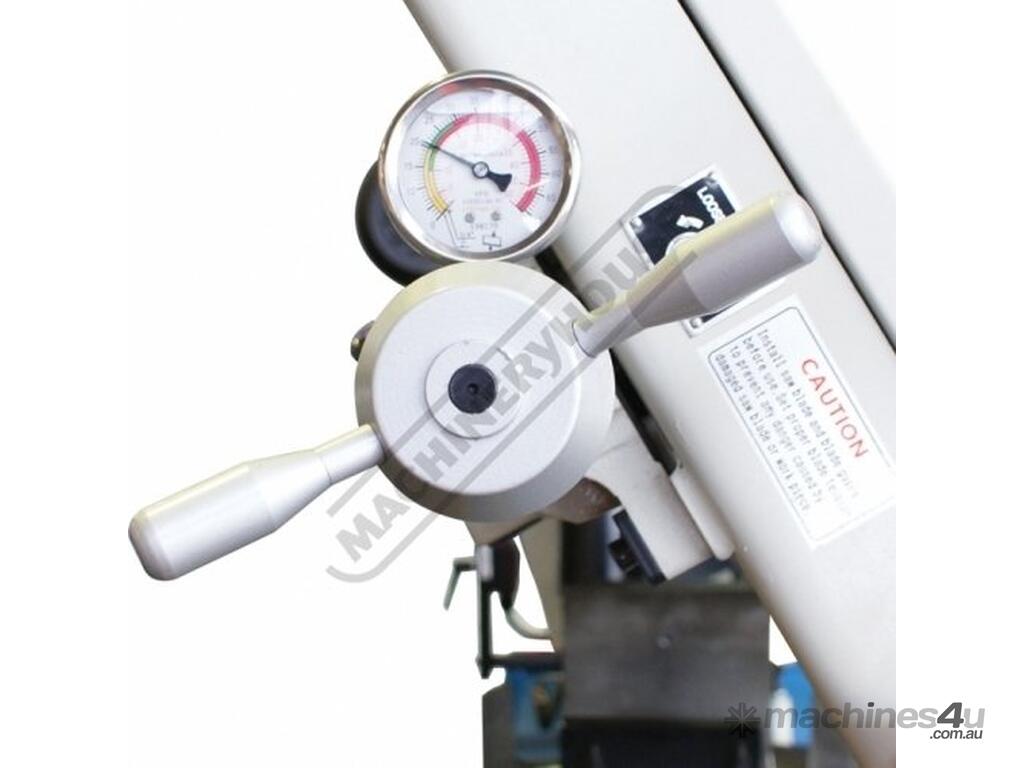

Adjustable hydraulic vice pressure regulator

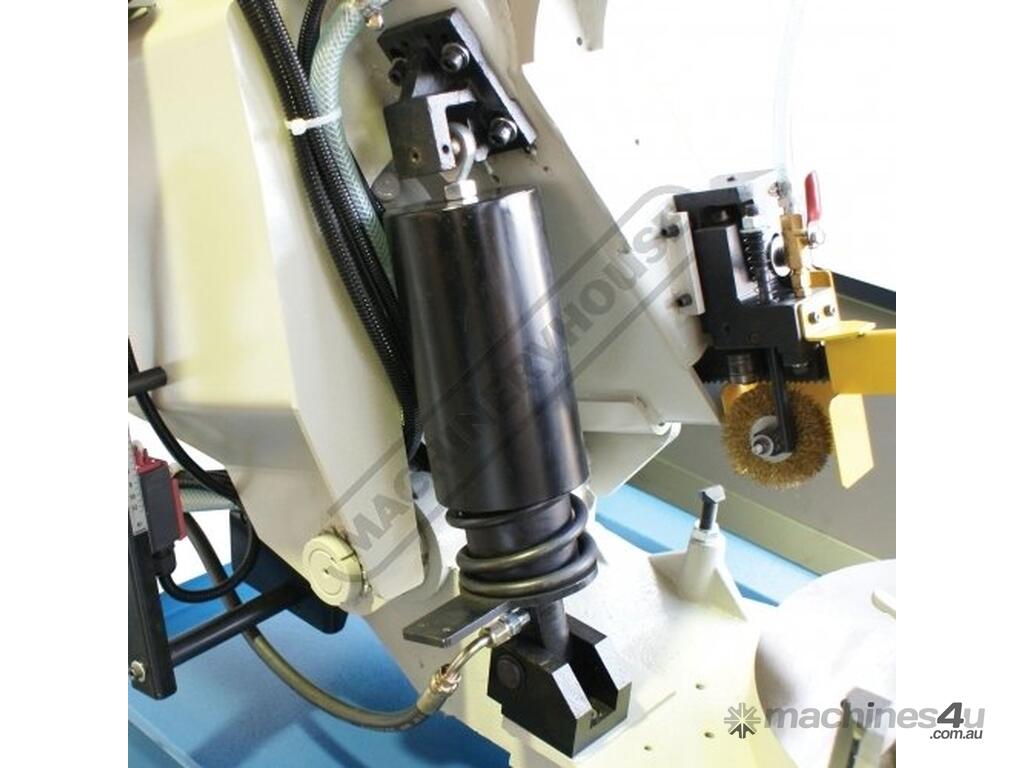

Hydraulic operated system raising and lowering the cutting beam
Adjustable hydraulic feed cutting rate for multiple applications

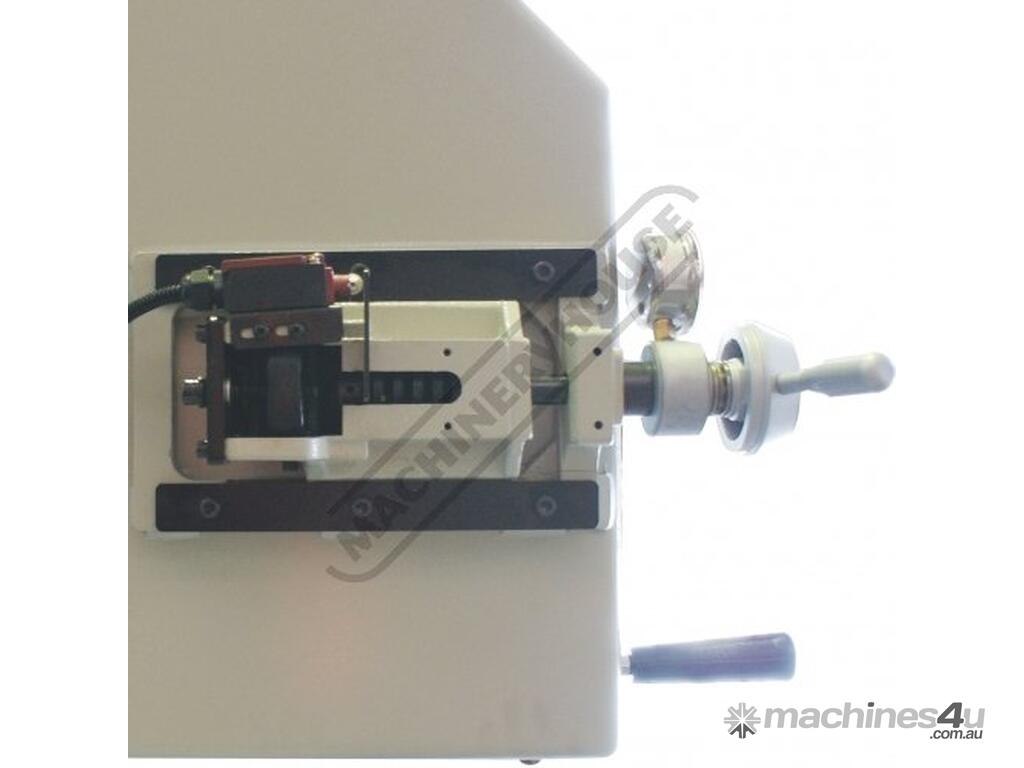

Blade breakage sensor fitted that automatically shuts machine off
Mitre cuts to 45º right & 60º left using swivel head

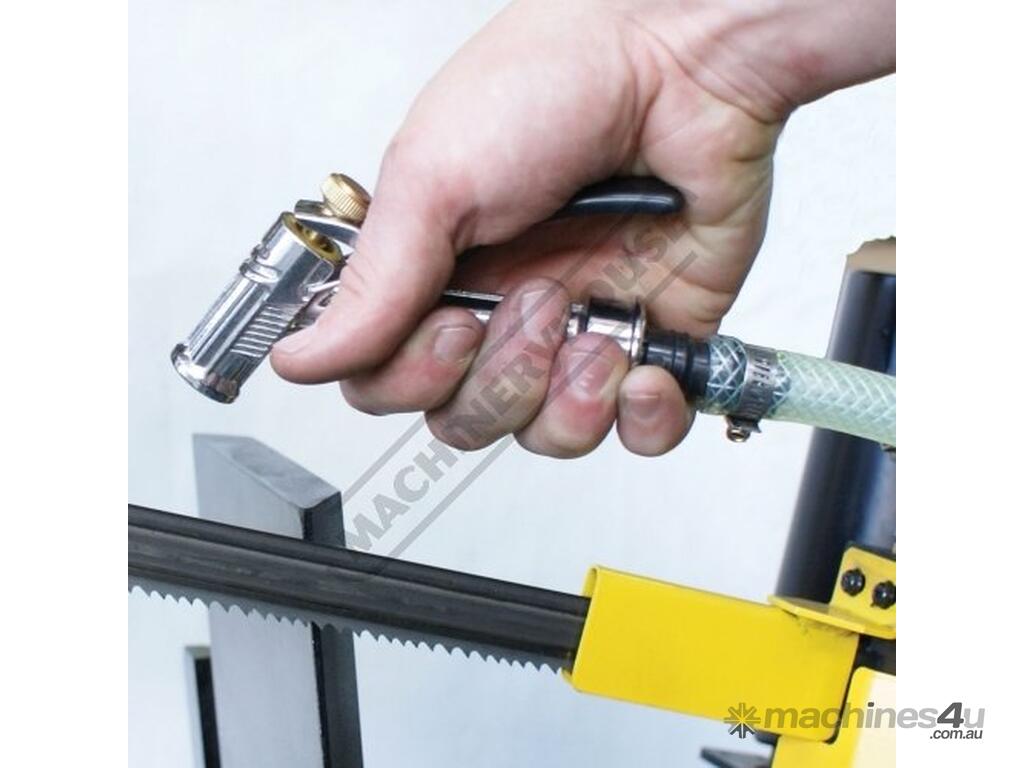

Built-in coolant system for maximum cutting efficiency with wash down trigger

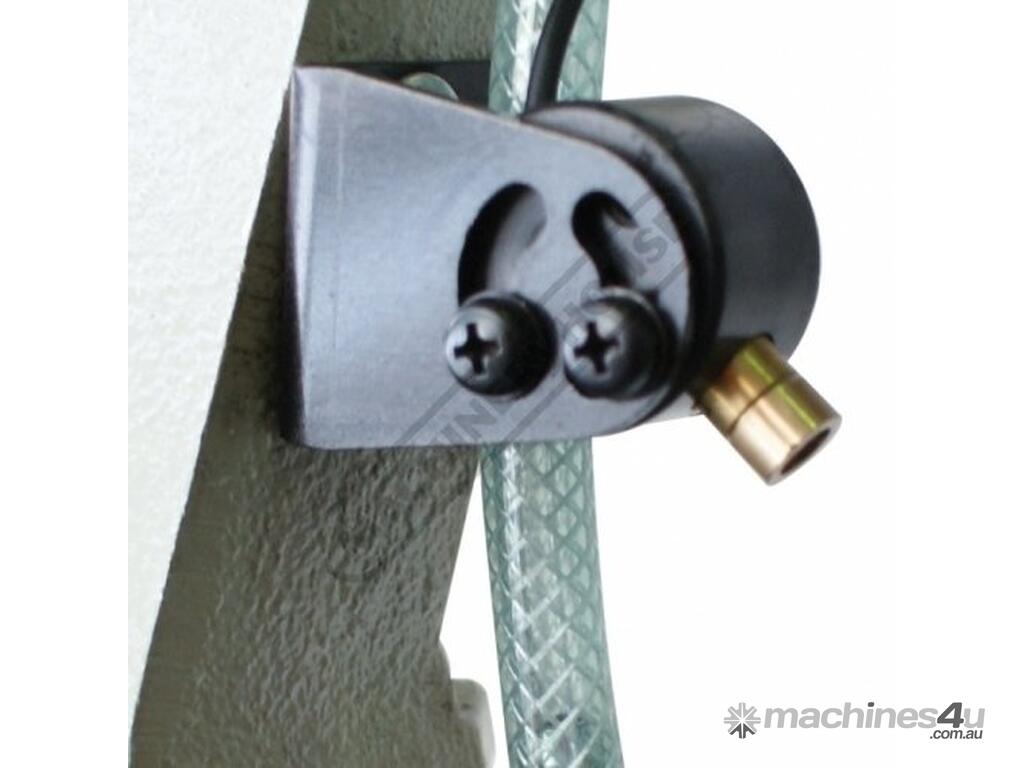

Laser line guide assist in lining up material positioning

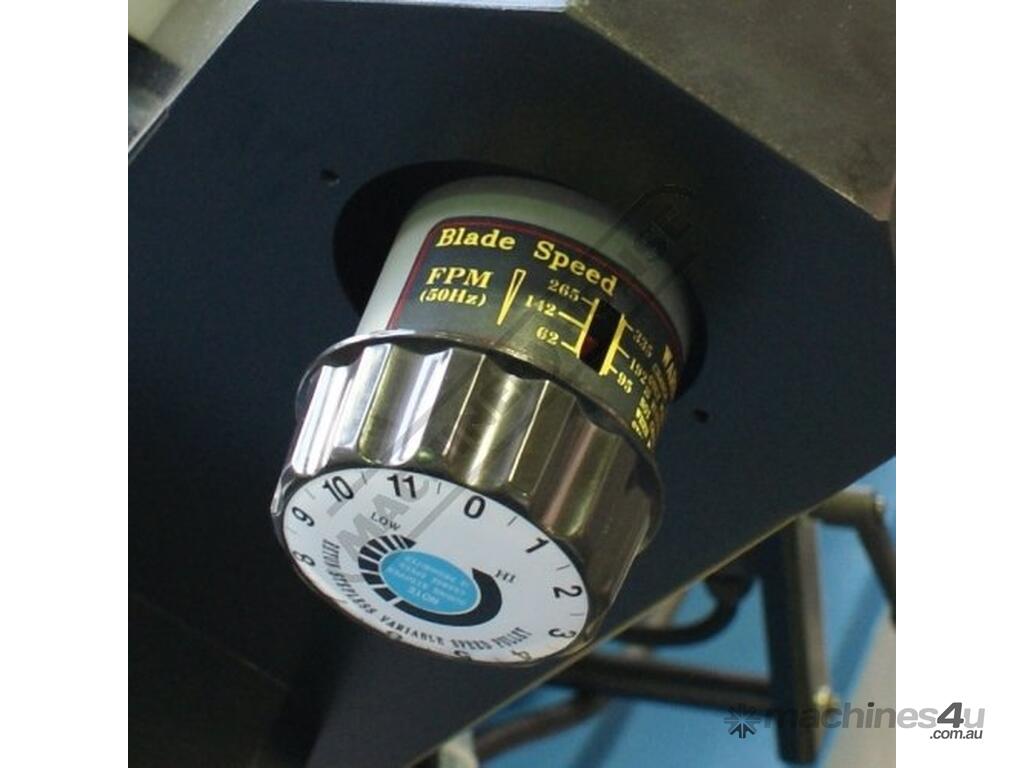

Adjustable variable blade speed system enabling 19-102mpm cutting speeds

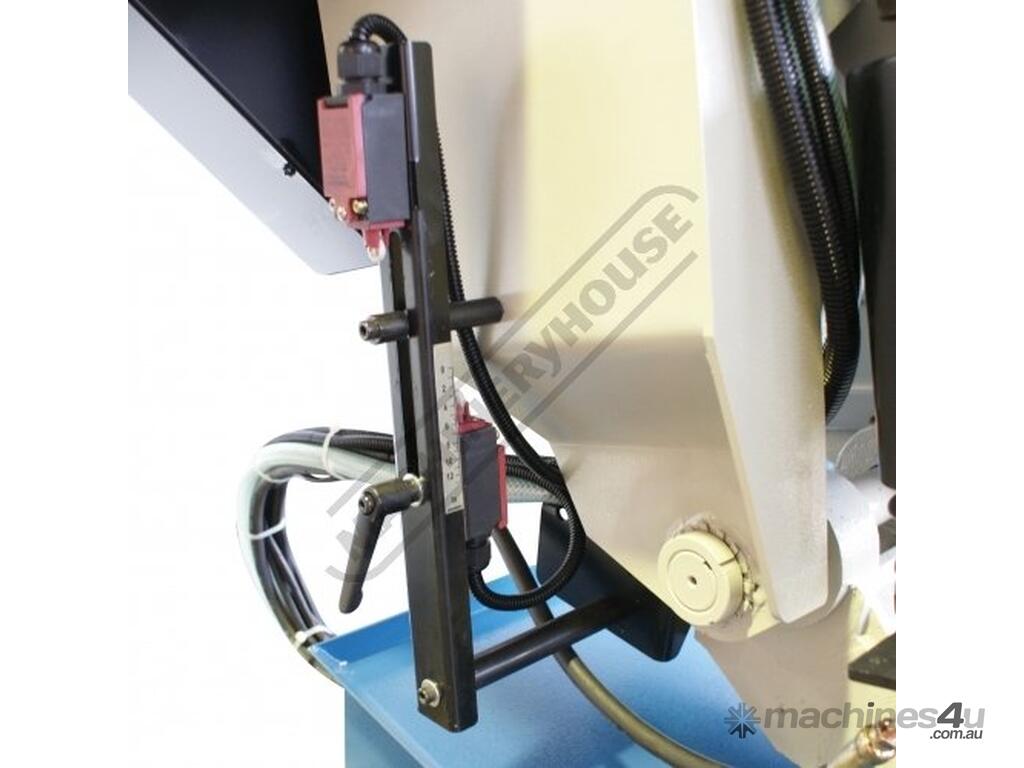

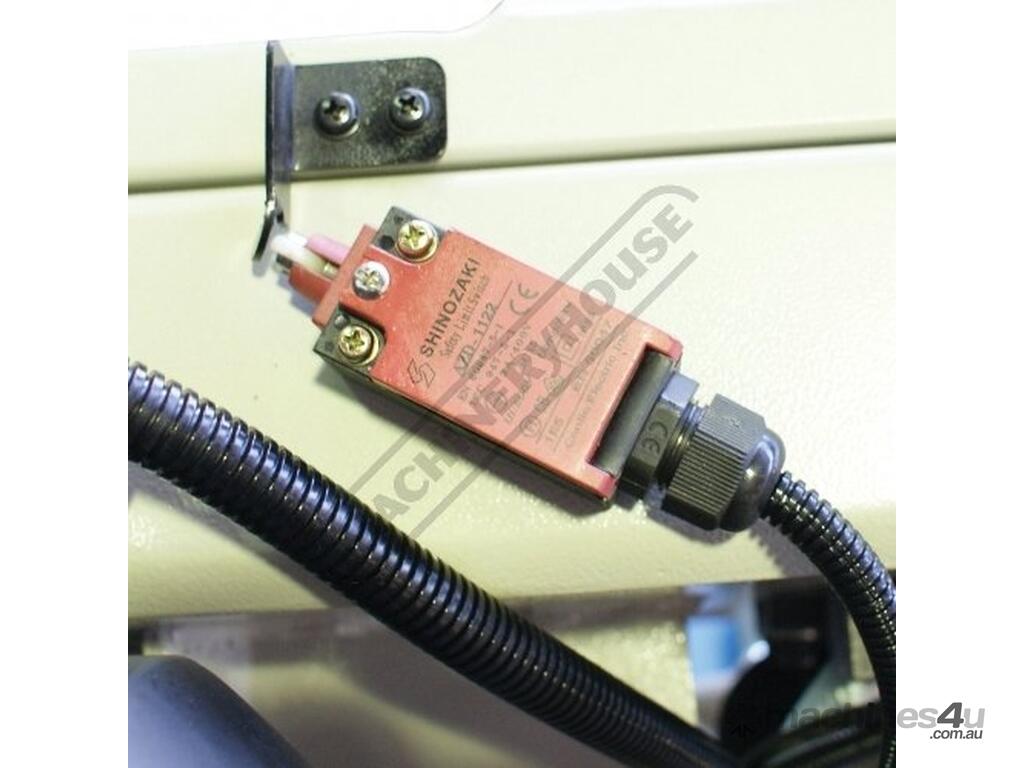

Limit switch stops machine and raises cutting beam when cut is complete

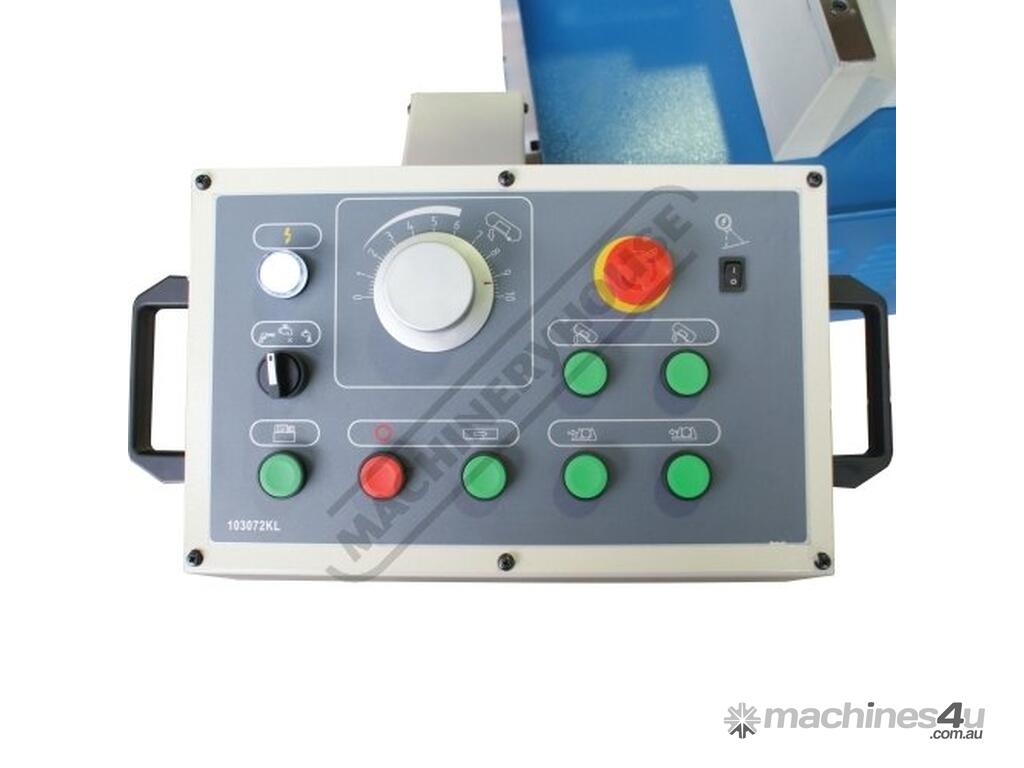

Swivelling electric control panel mounted on base for quick operation

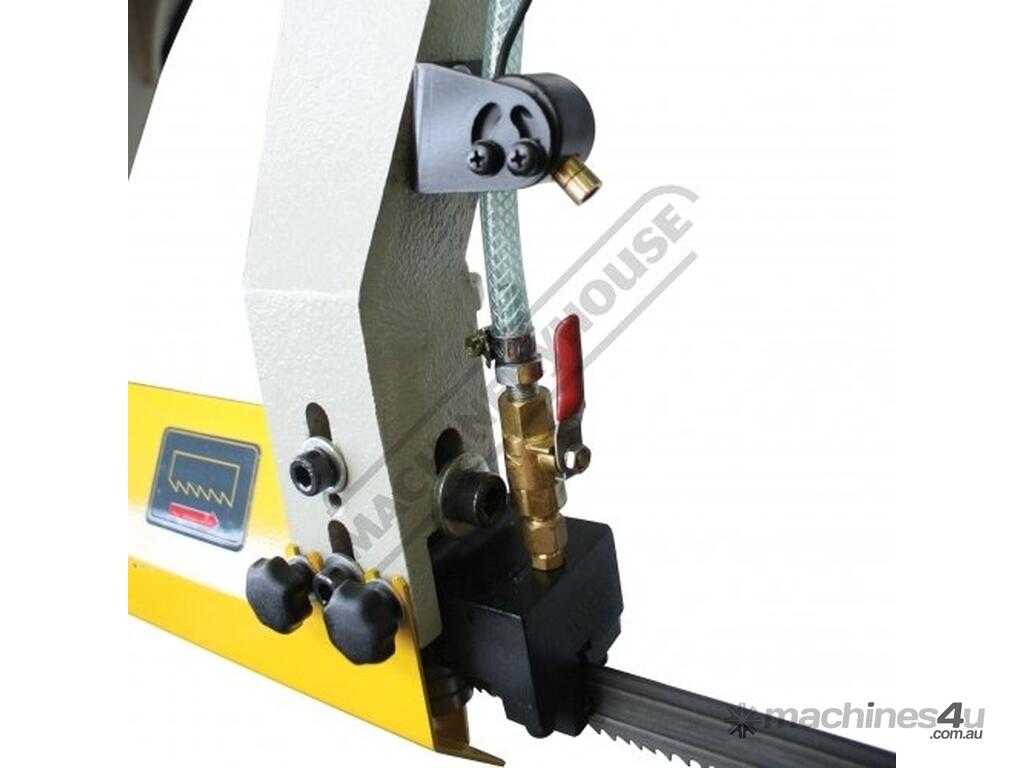

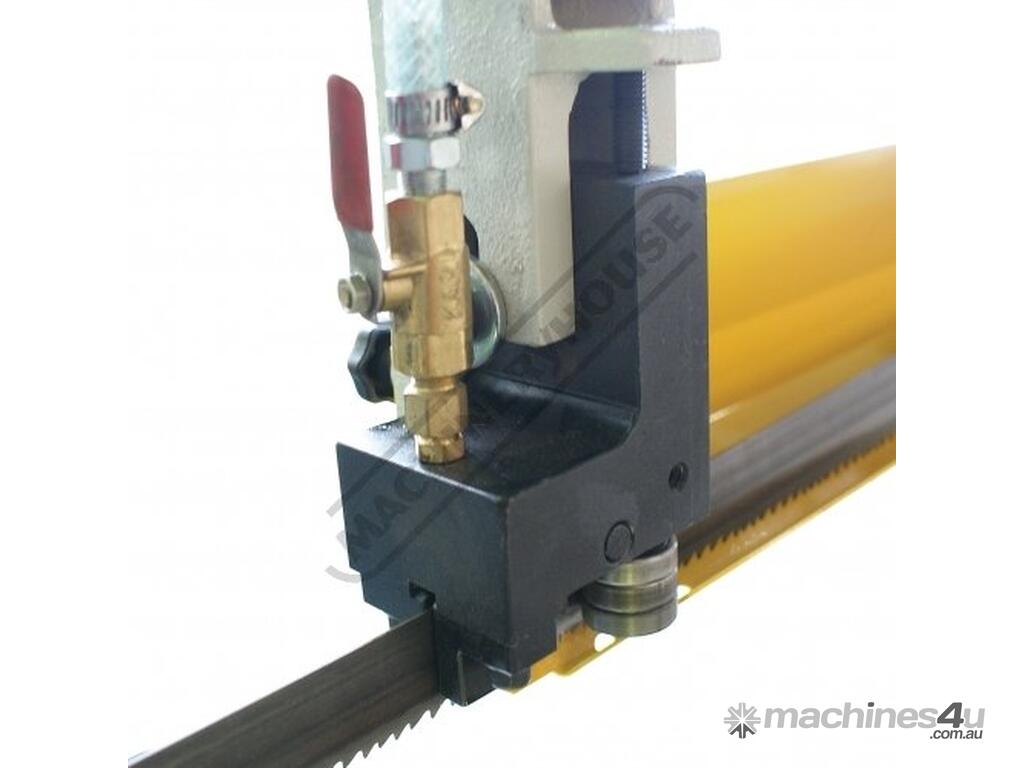

Combination roller bearing & carbide blade guides
Heavy duty cast iron blade wheels

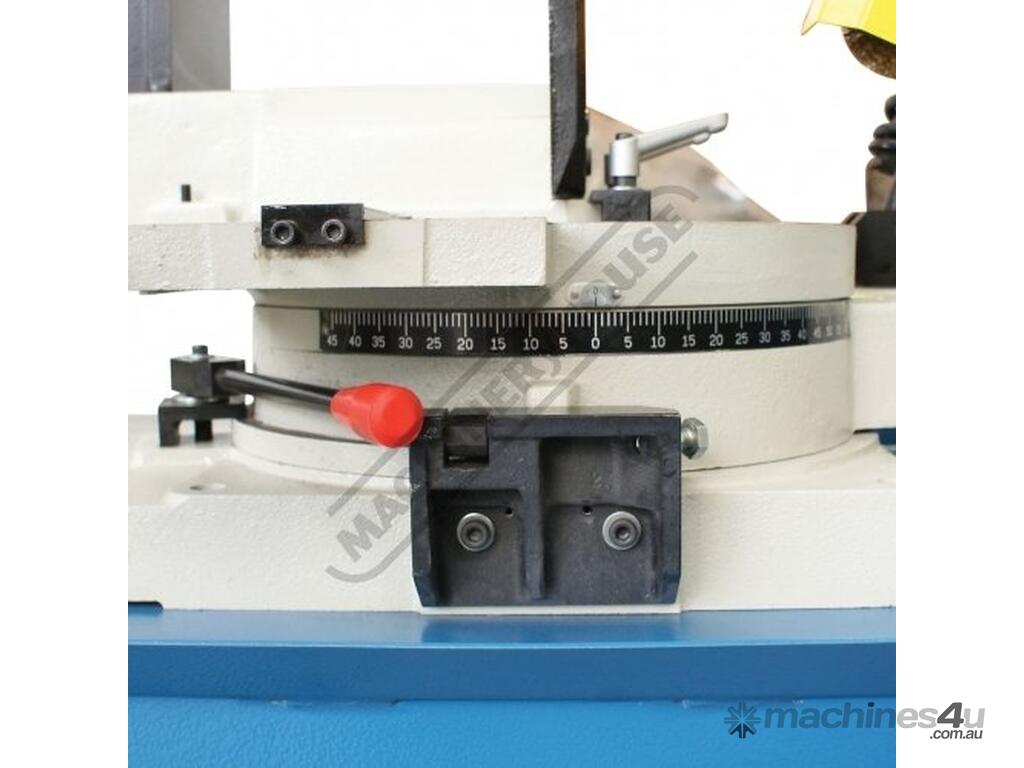

Large mitre scale - easy to read
Cast Iron frame with heavy duty fabricated base
Adjustable blade roller guides provides accurate cutting
Adjustable length stop for repetition cutting

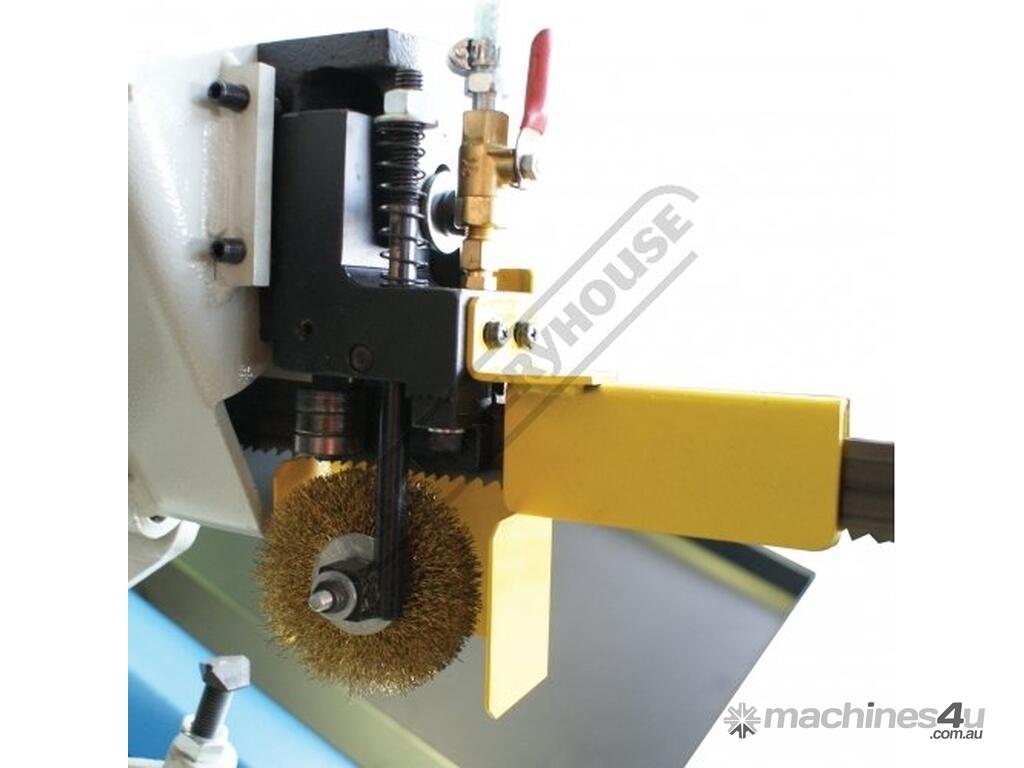

Wire wheel brush to clean swarf from blade
Industrial-duty gearbox driven by a 1.5kW / 2hp 415V motor


Specifications:
ORDER CODE: B030
MODEL: BS-13DS
Operation Type: Swivel Head - Dual Mitre
Operation Type: Semi - Automatic
Round 90º (mm): 330
Round 45º (mm): 330
Round 60º (mm): 204
Square 90º (mm): 330
Square 45º (mm): 280
Square 60º (mm): 160
Rectangle (W x H) 90º (mm): 458 x 235
Rectangle (W x H) 45º (mm): 310 x 170
Rectangle (W x H) 60º (mm): 204 x 80
Coolant System: Yes
Table Working Height (mm): 840
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 19-102
Blade Size (L x W x T) (mm): 3810 x 27 x 0.9
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 600
