BS-2 Dividing Head - Universal 132.7mm Centre Height Suits 200mm 3-Jaw Chuck

VERTEX BS-2 Dividing Head - Universal 132.7mm Centre Height Suits 200mm 3-Jaw Chuck
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D003

Manufactured in Taiwan

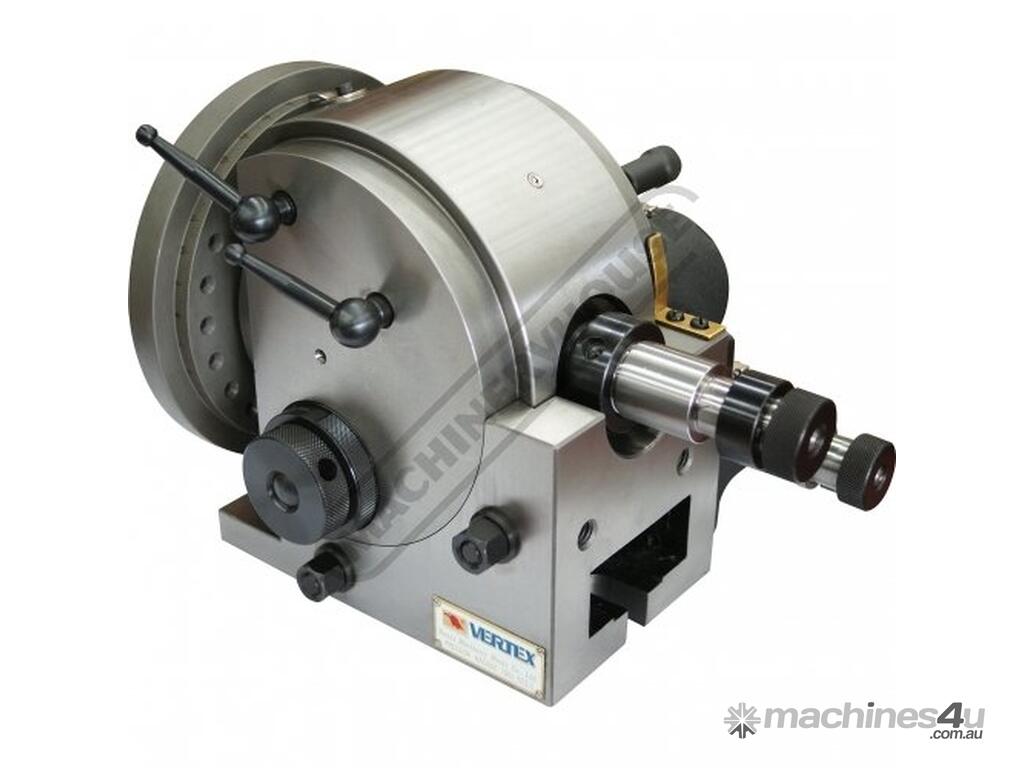

The Vertex Dividing Head is a tool that is used to divide a circle into equal spacers. The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.

The Vertex Semi Universal Dividing Head can be tilted through a full 90 degrees from horizontal to vertical making it a must when manufacturing bevel gears or key-ways in tapers.

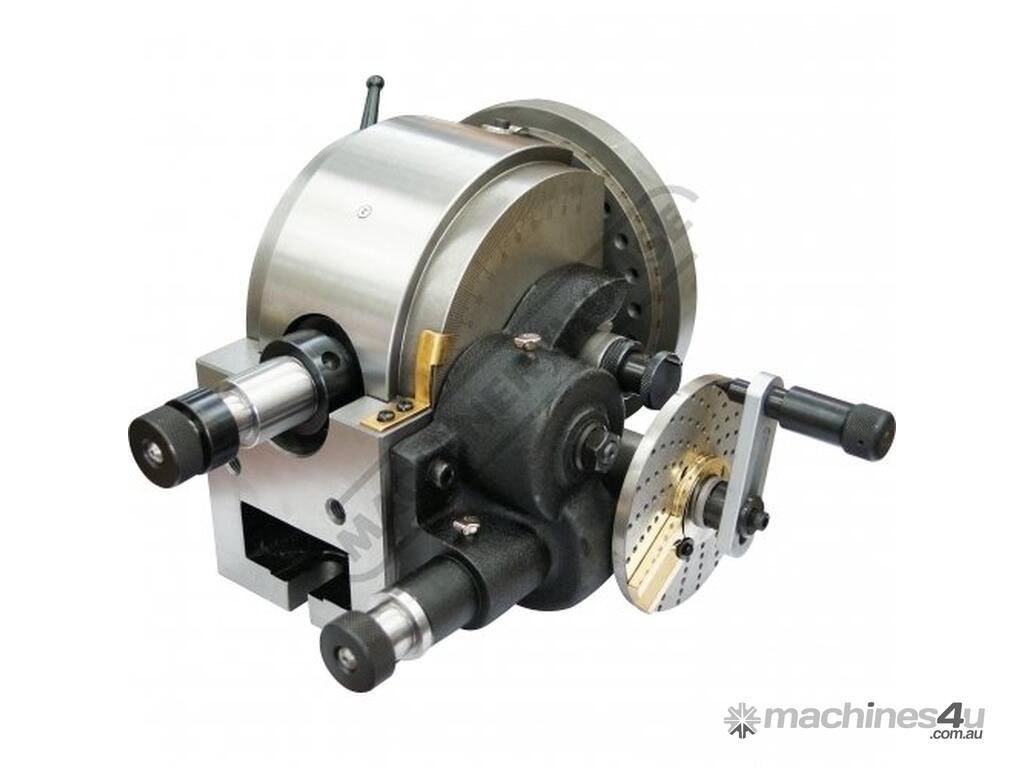

Features:

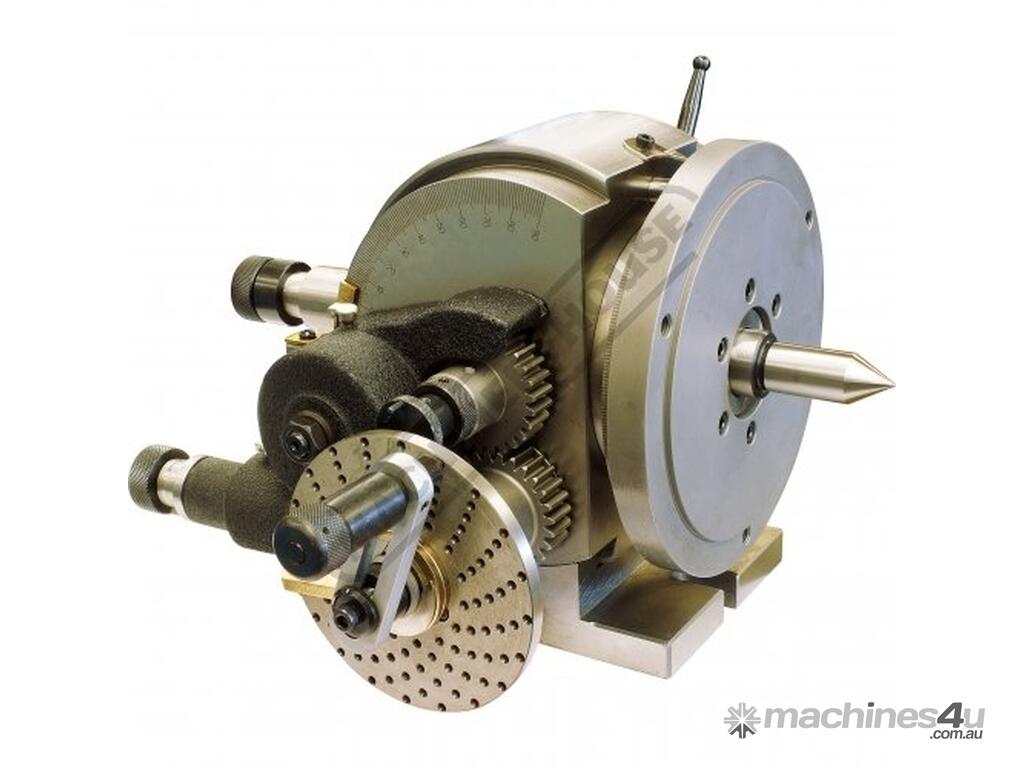

Differential indexing capable via supplied gears
The Vertex Dividing Head is suitable for direct and indirect indexing
Hardened and ground spindle rigidly held between taper roller bearings
Threaded spindle nose for chuck mount
Worm is hardened and ground with ratio between worm and worm wheel 40:1
Direct indexing designed for quick divisions of No's & 24
The head can be swivelled from 10º below horizontal to 90º vertical
Designed to carry out all types of gear cutting precision dividing
Slotted base on dividing head & tailstock for use with key steel to align quickly on machine

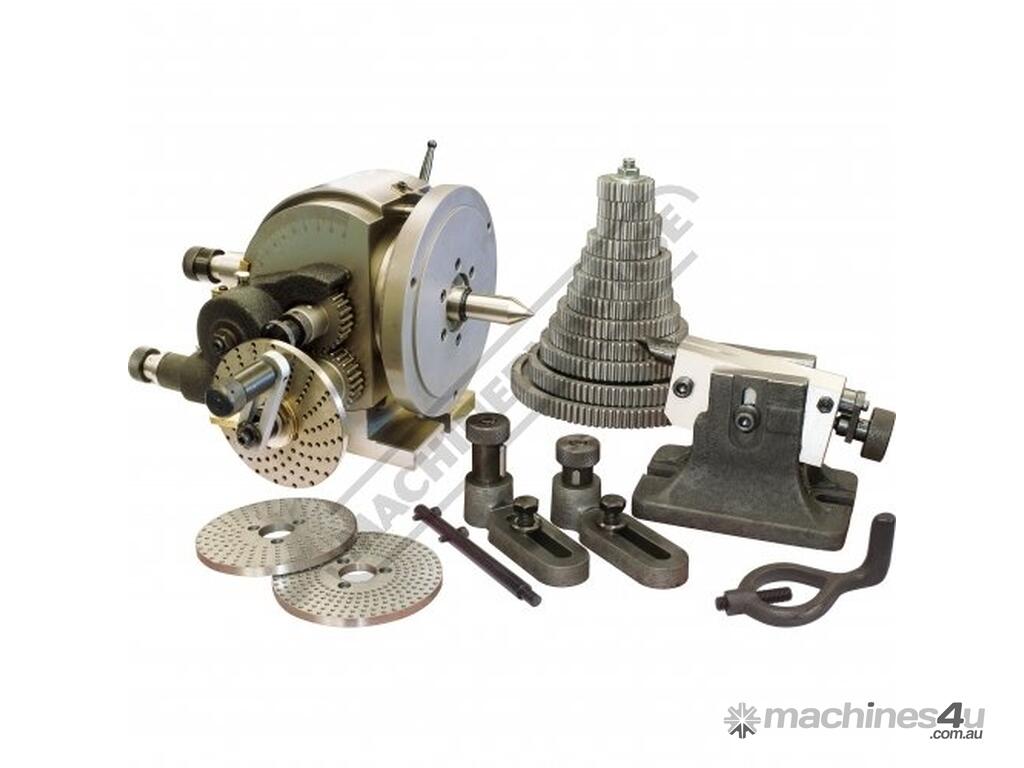

Includes:
- 12 x gears with mounting system for helical cutting
- Backing Plate suits 200mm front mount 3 jaw chuck
- Dividing plates
- Tailstock
- Dead centre
- Drive dog



Specifications:
ORDER CODE: D003
MODEL: BS-2
Taper (MT): MT4
Bore (mm): 25.4
A (mm): 365
B (mm): 272
H (mm): 236
h (mm): 132.7
a (mm): 213
b (mm): 134
g (mm): 16
A1 (mm): 205 - 255
B1 (mm): 86
H1 (mm): 139
h1 (mm): 132.7
a1 (mm): 175
b1 (mm): 124
g1 (mm): 16
Nett Weight (kg): 66
