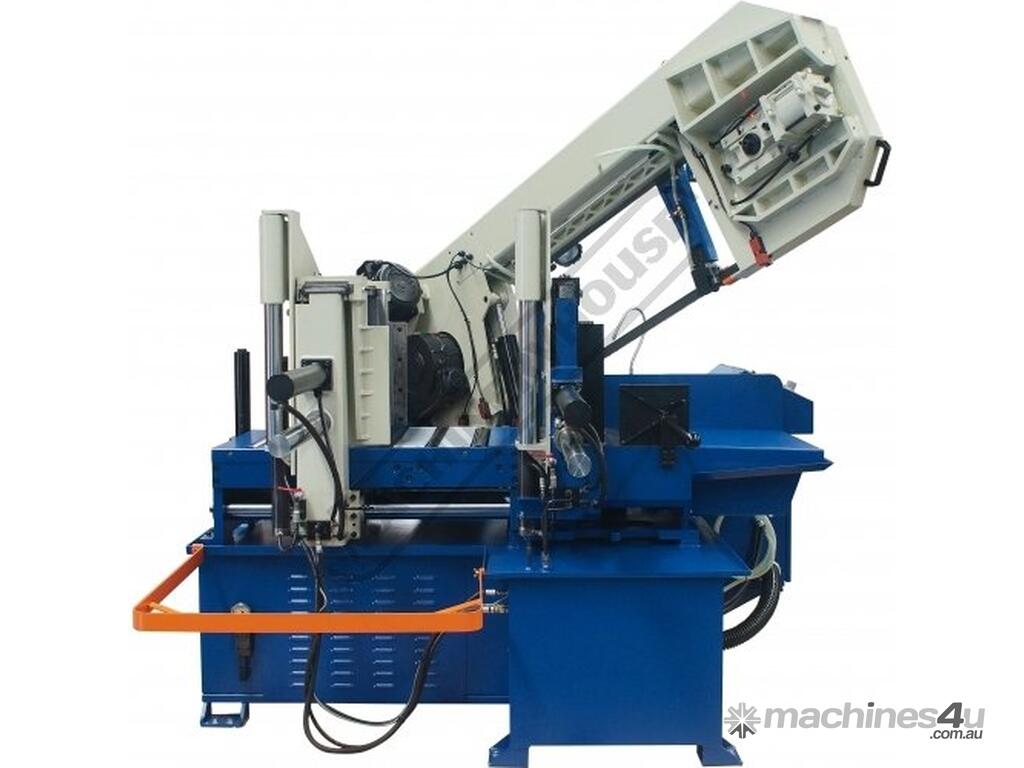

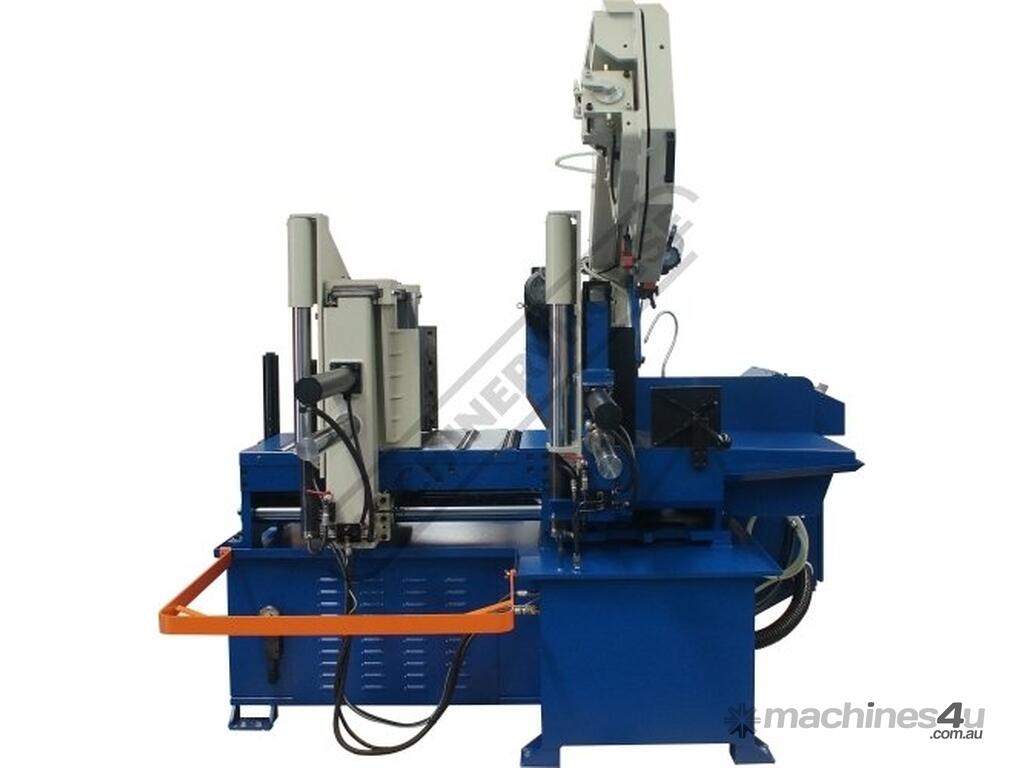

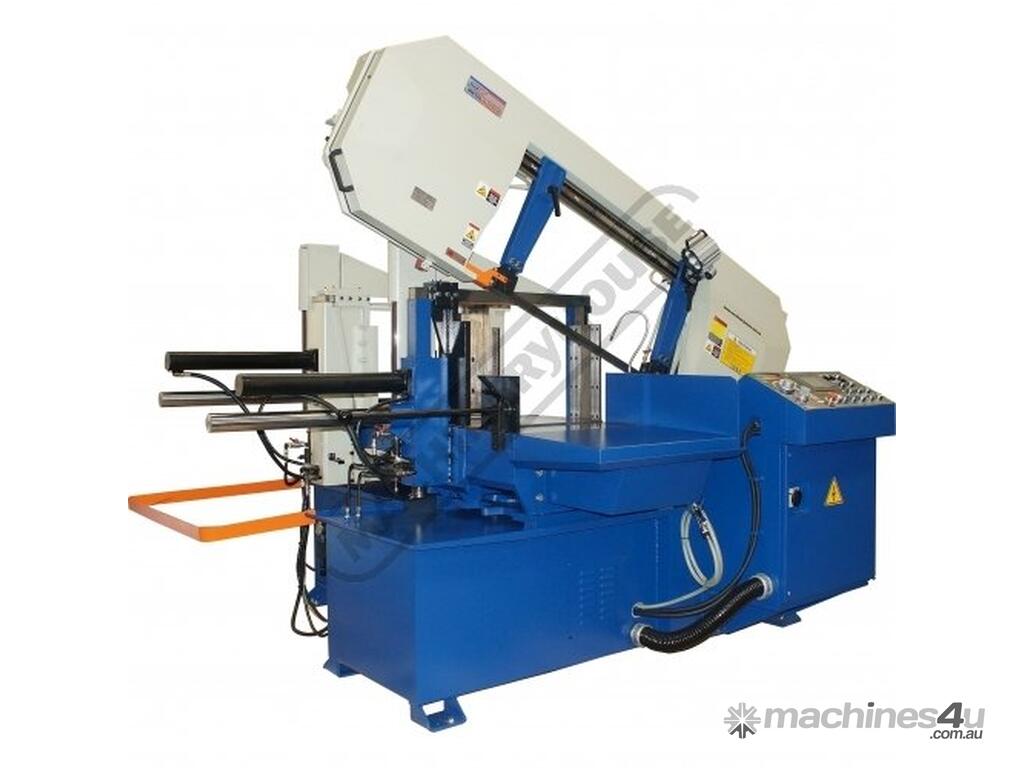

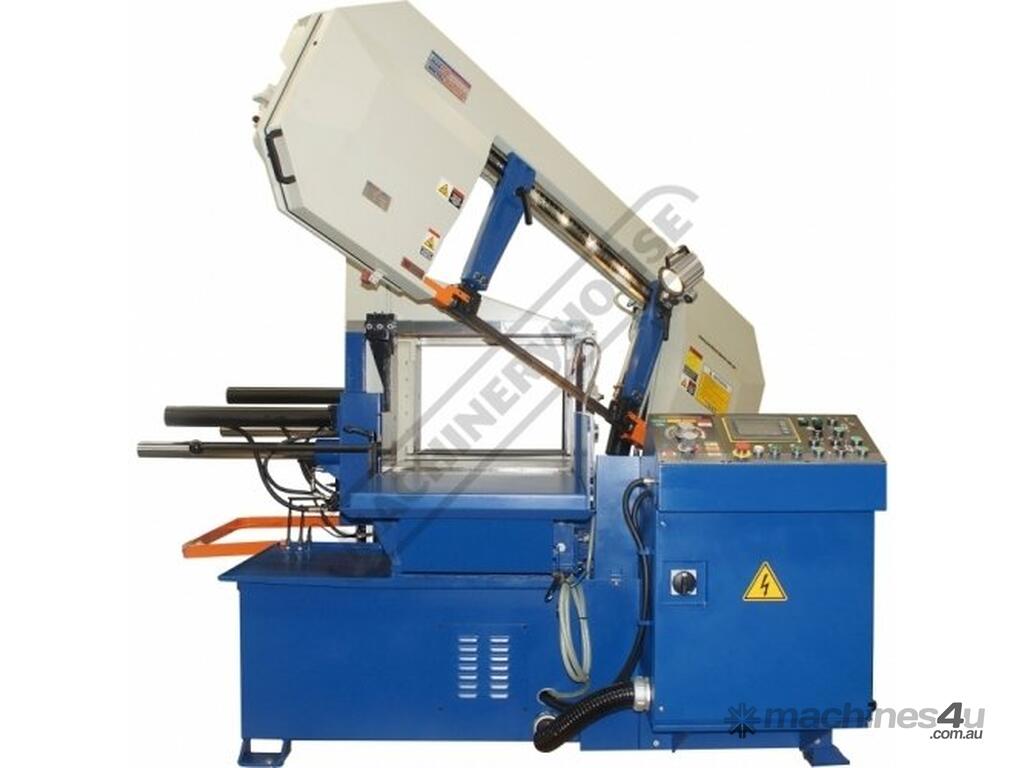

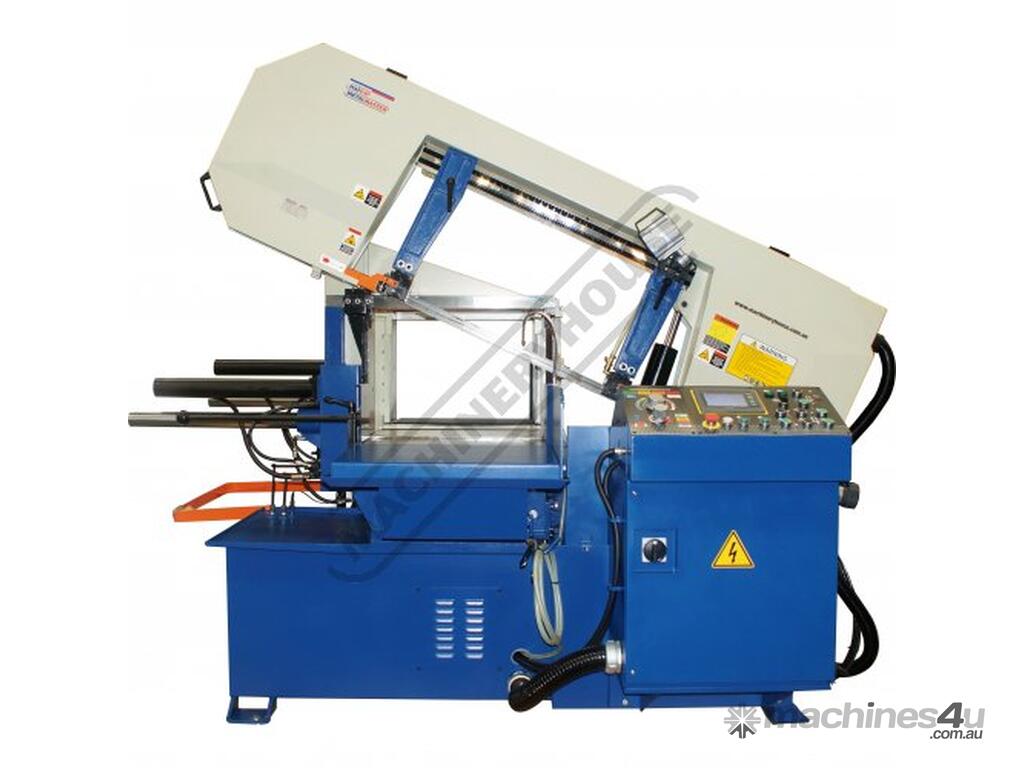

BS-460FAS NC Swivel Head Metal Cutting Band Saw - Automatic Hitch Feed Inverter Variable Blade Speed

HAFCO-METALMASTER BS-460FAS NC Swivel Head Metal Cutting Band Saw - Automatic Hitch Feed Inverter Variable Blade Speed Control, Mitre Cuts Up To 45º, Hydraulic Vice Clamping with Pressure Regulator & Includes Hydraulic Downfeed Control 610 x 380mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B112

Manufactured in Taiwan

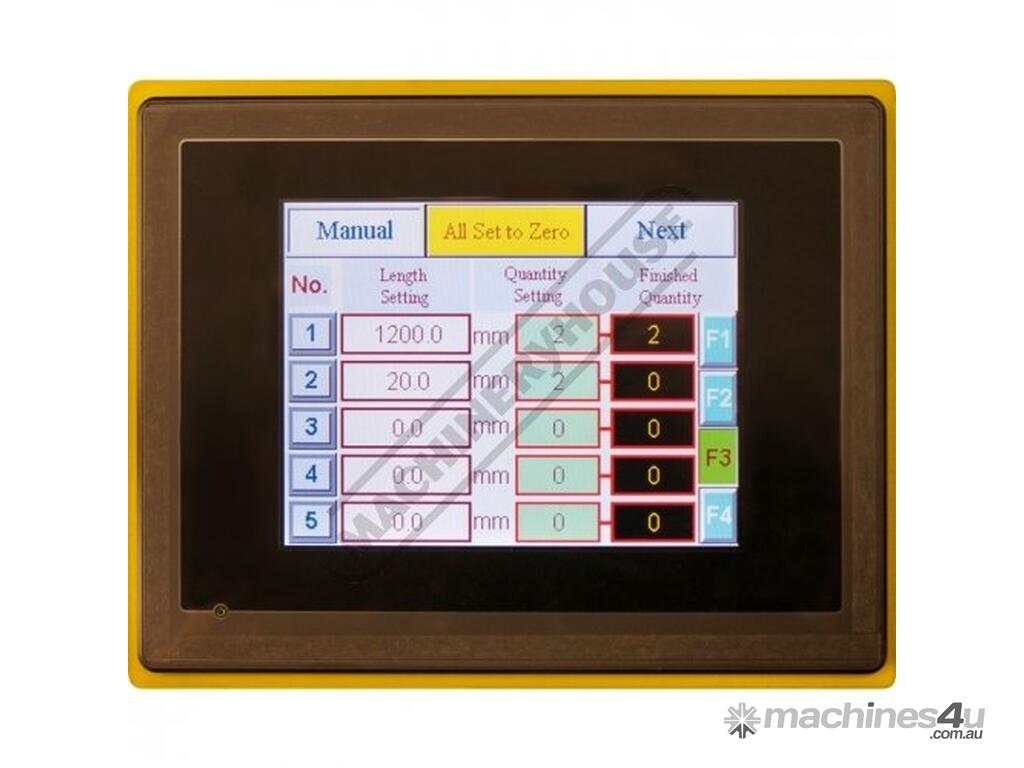

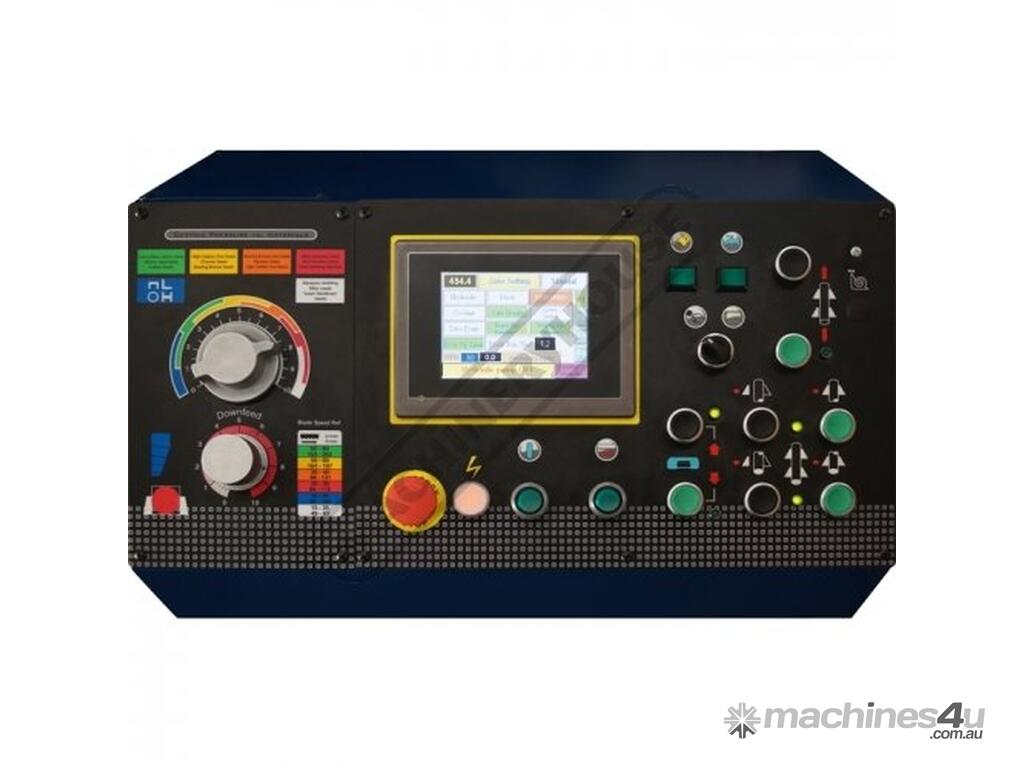

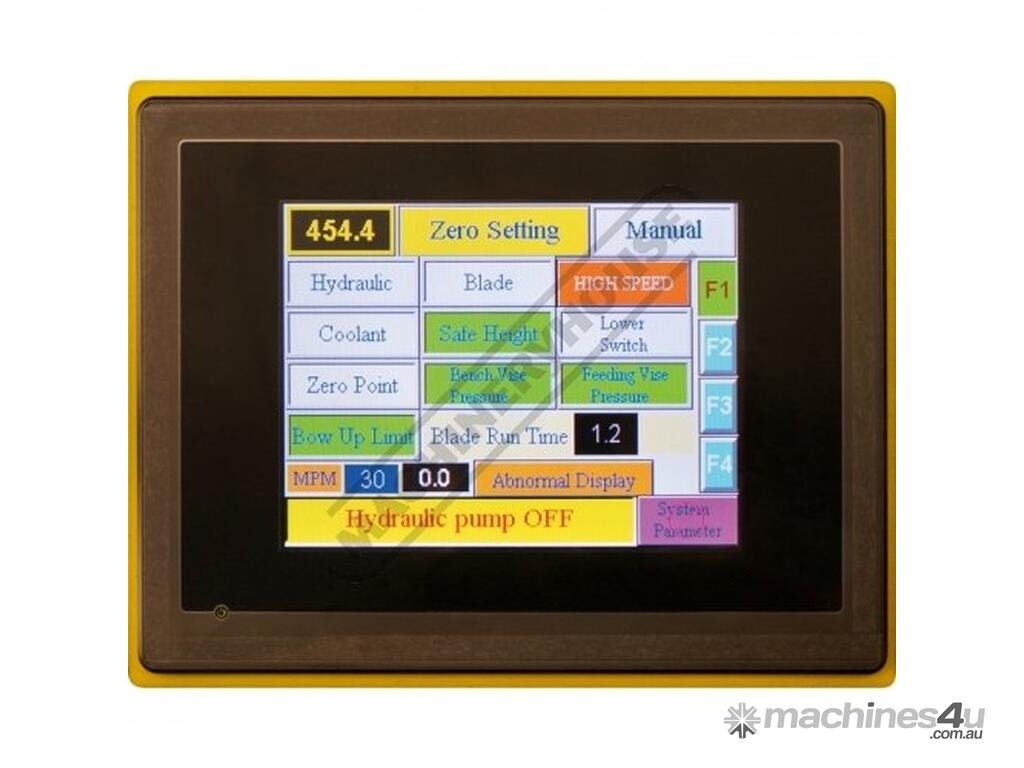

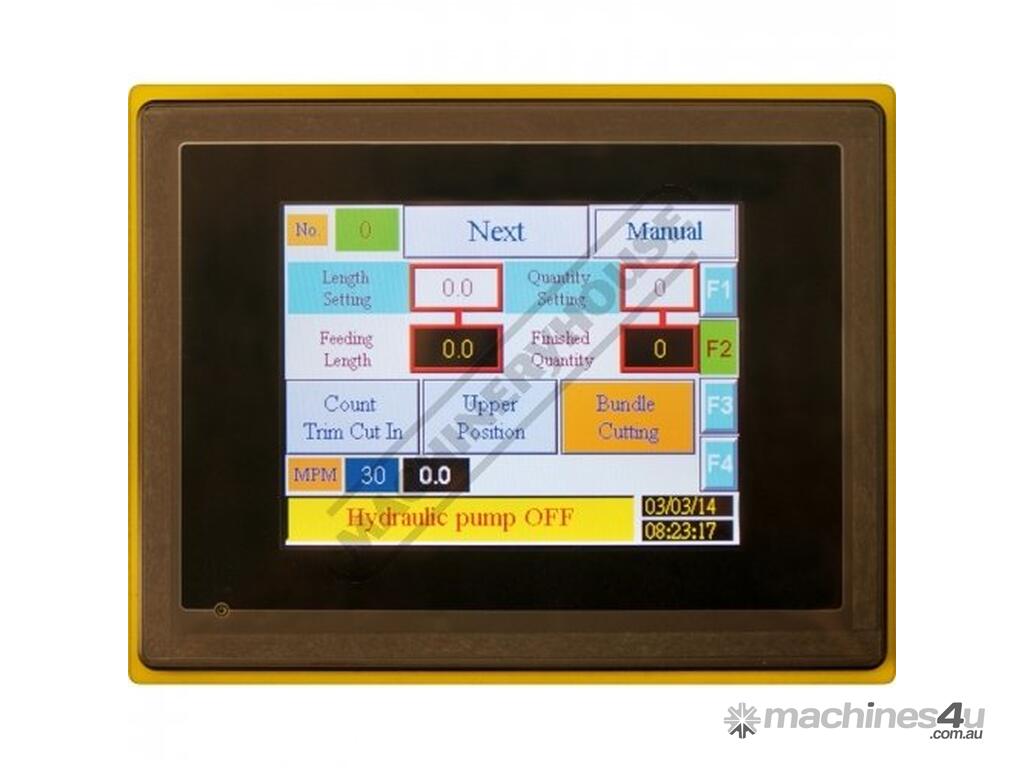

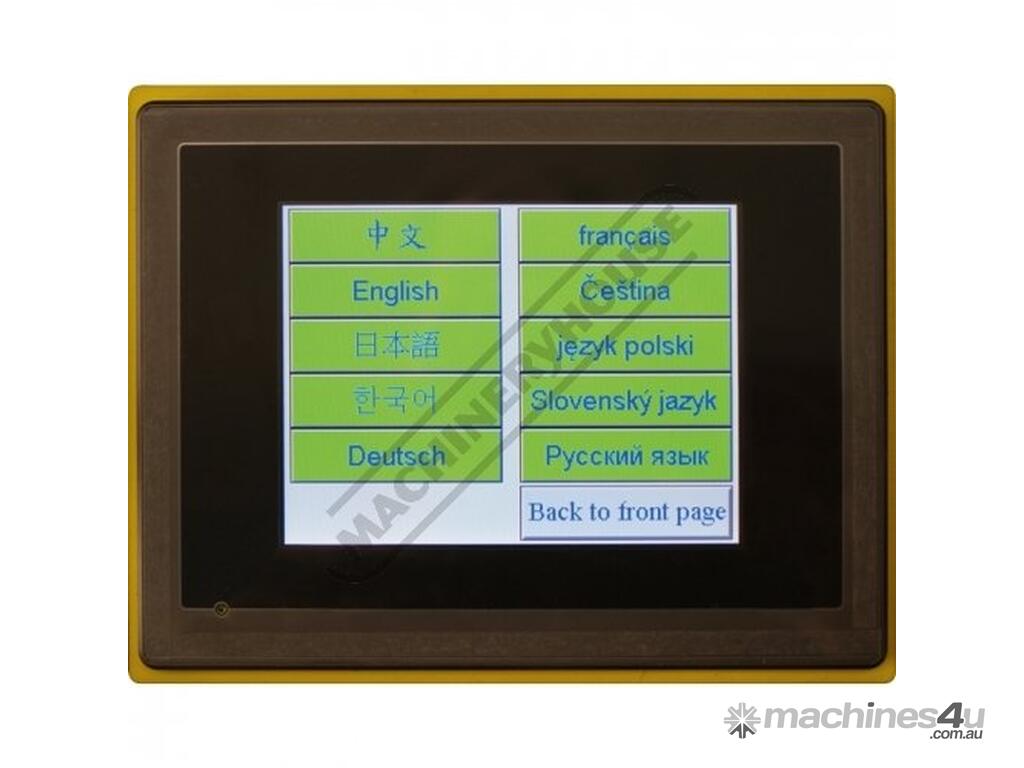

Fully automatic and intelligent HMI touch screen programmable control accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system

Features:

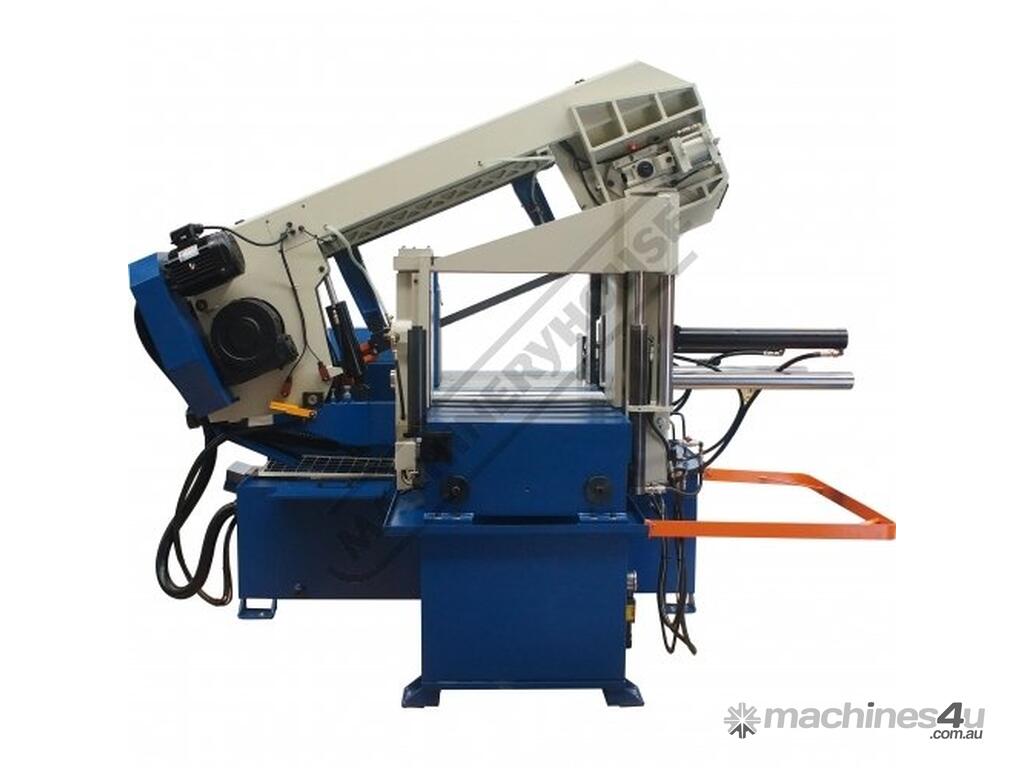

Swivelling head for mitre cutting to 45 degree

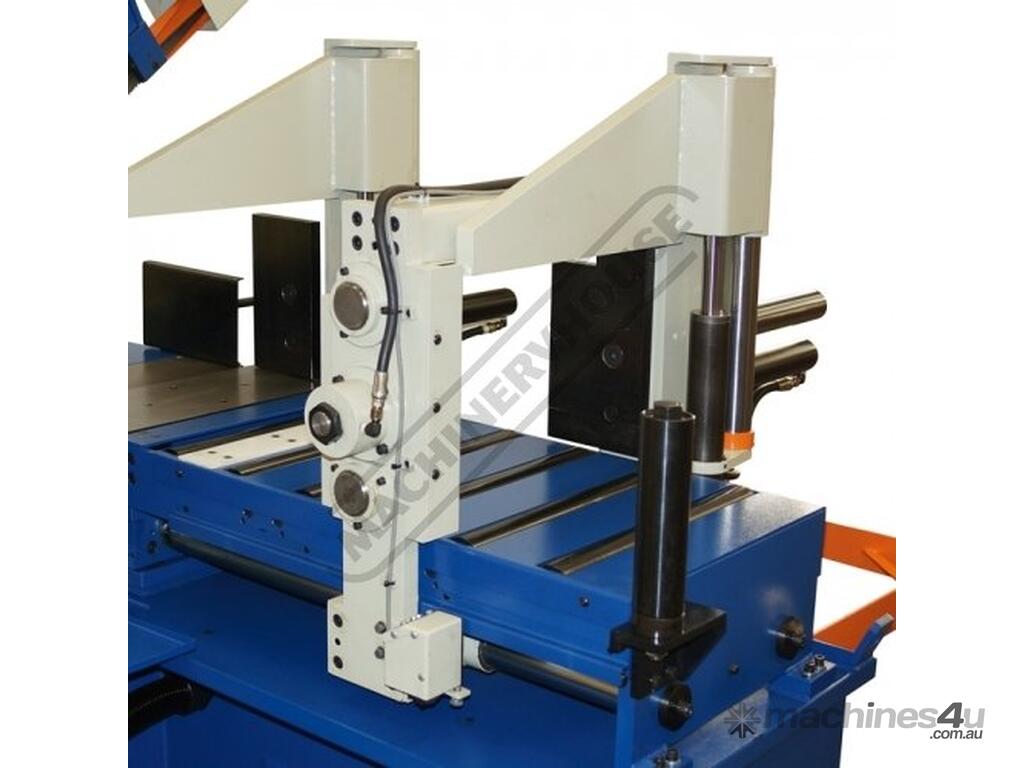

Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun

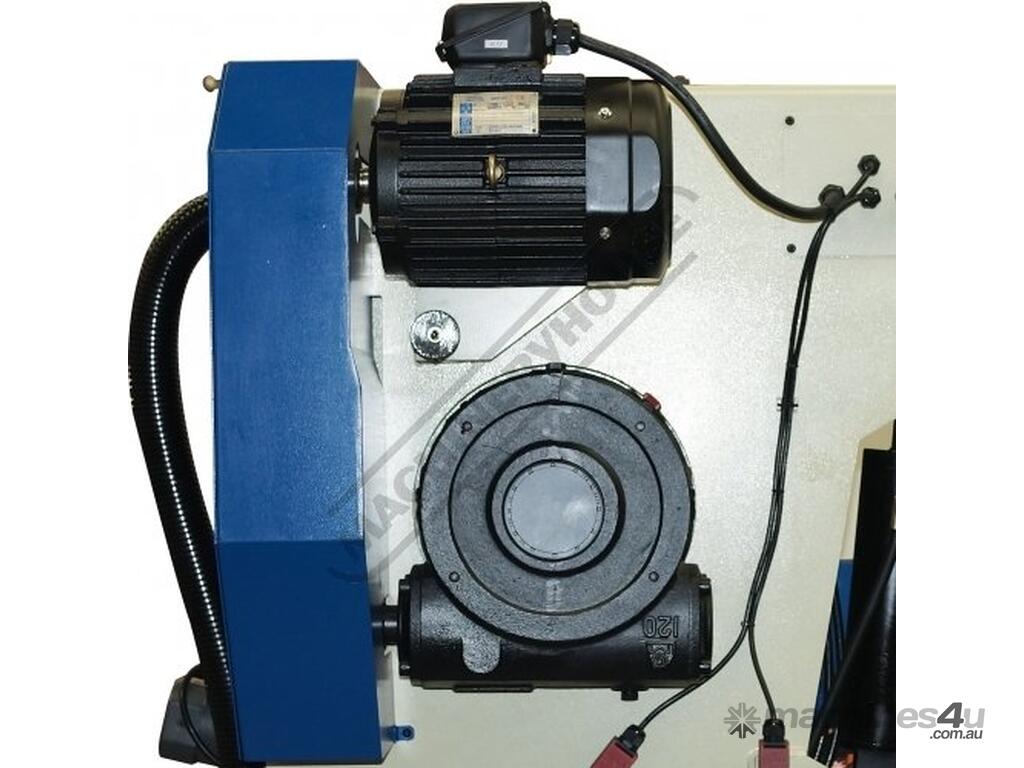

Inverter controlled infinitely variable blade speed 25-85mpm
Precision feed pressure & feed rate dual valve system for optimal performance in any material

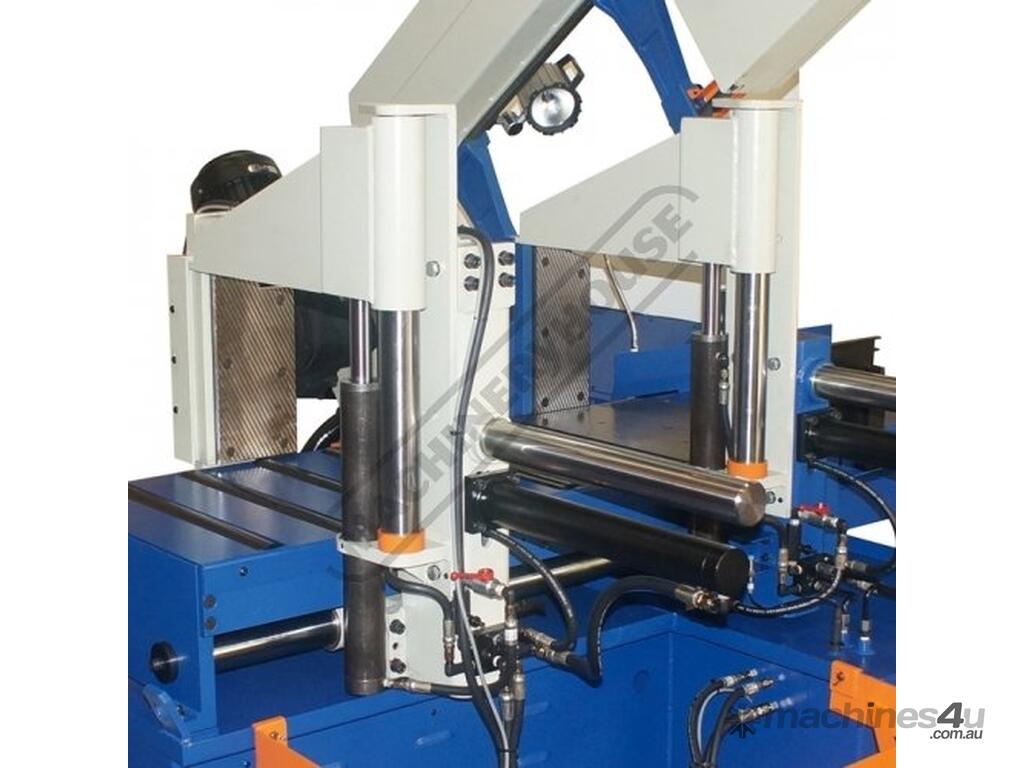

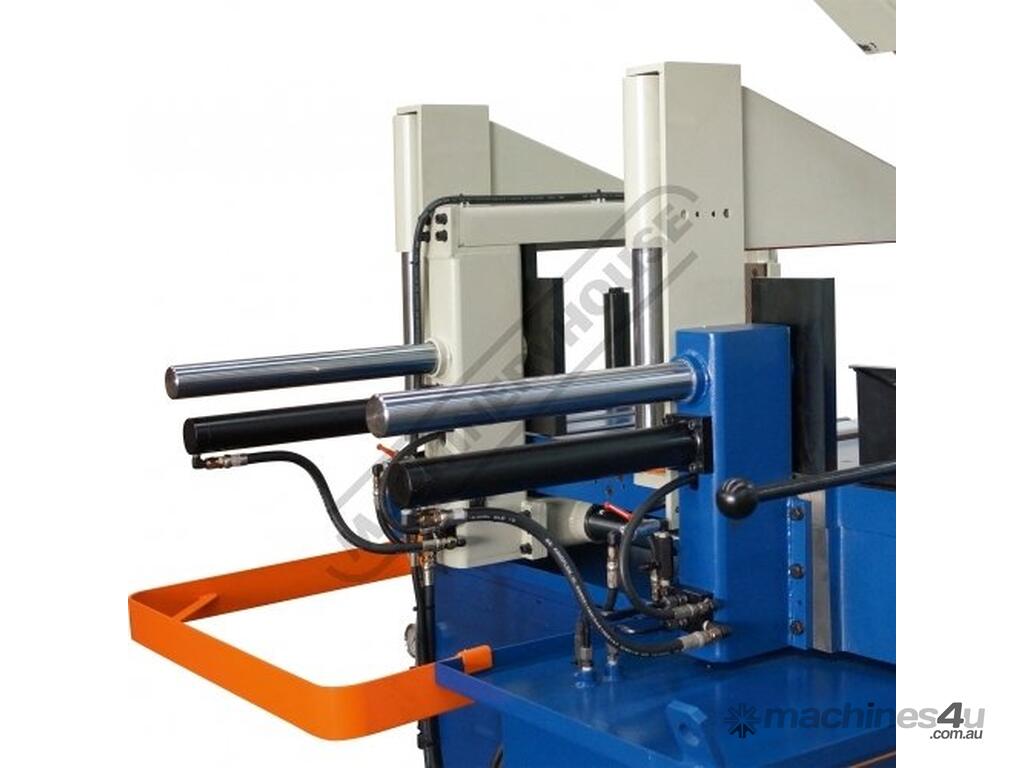

Hydraulic retracting rear vice jaw (feeding vice only) reduces friction from jaws rubbing on material during the feeding process
Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life

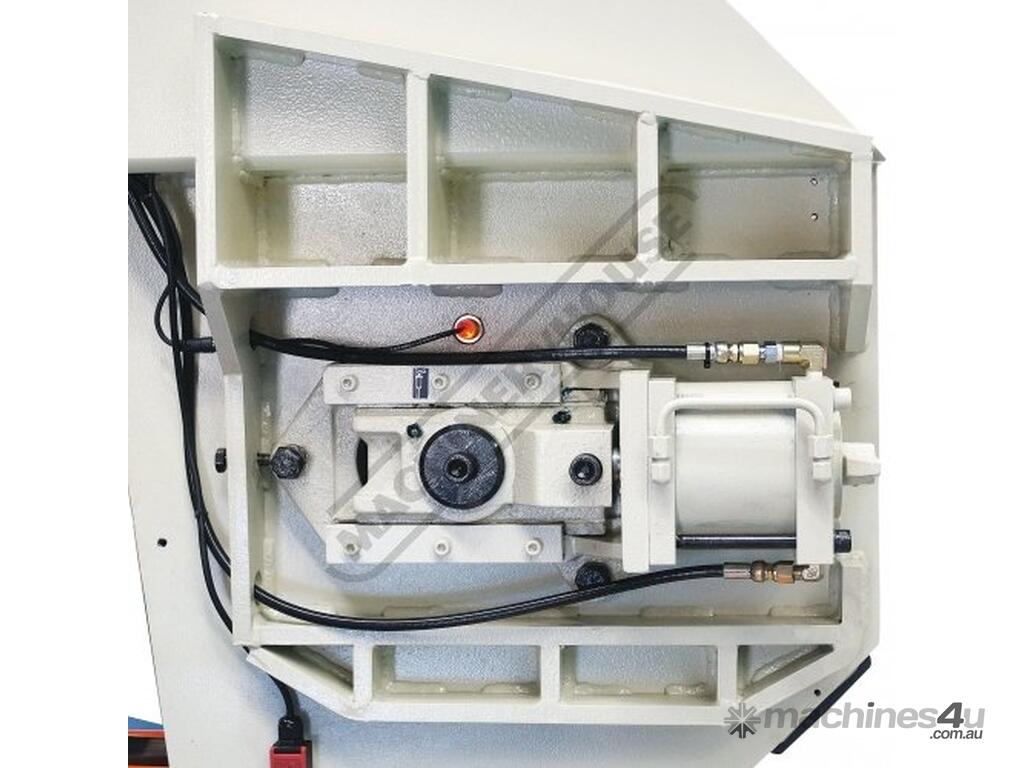

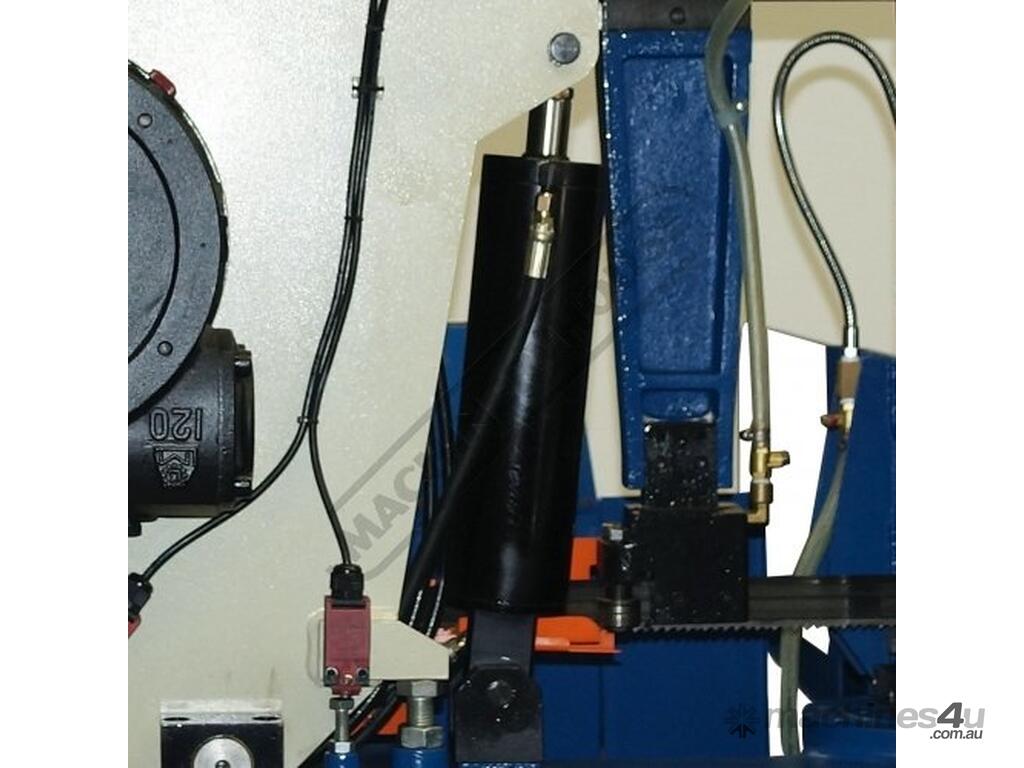

Hydraulic blade tensioning system with maximum pressure of 30kg/cm2
Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped

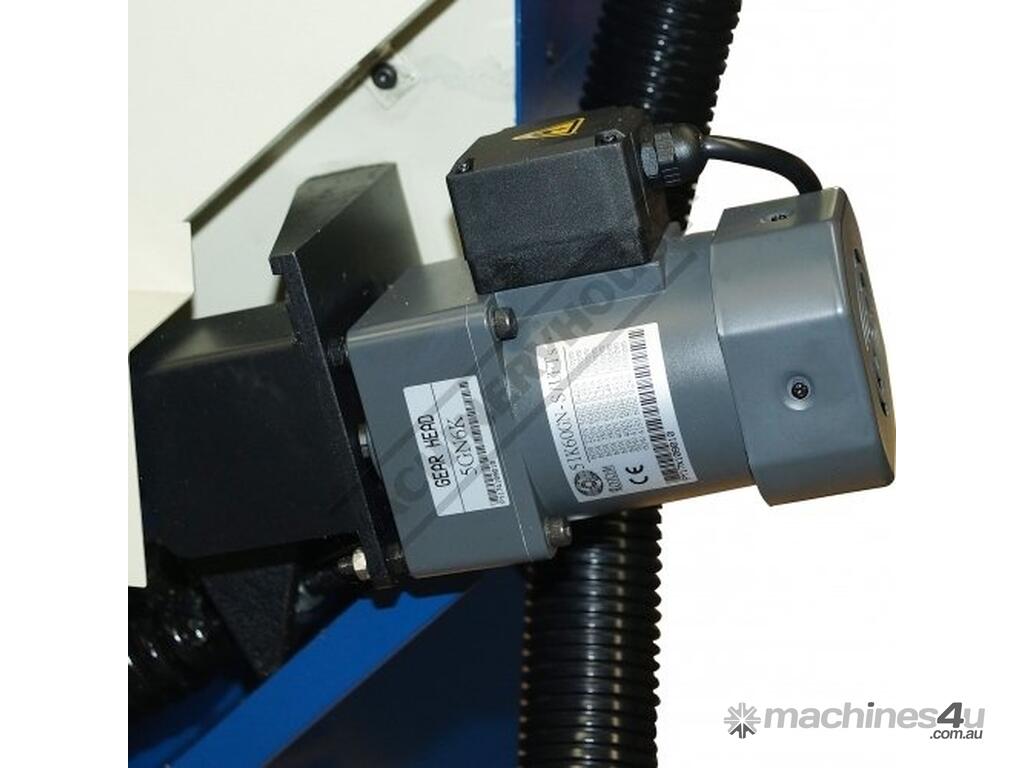

Synchronised power driven blade cleaning brush removes swarf from blade
Full stroke hydraulic vice for quick & easy set-up of jobs
Hydraulic swarf conveyor directs excess waste to side of machine.
Dual vice clamping providing burr free cut

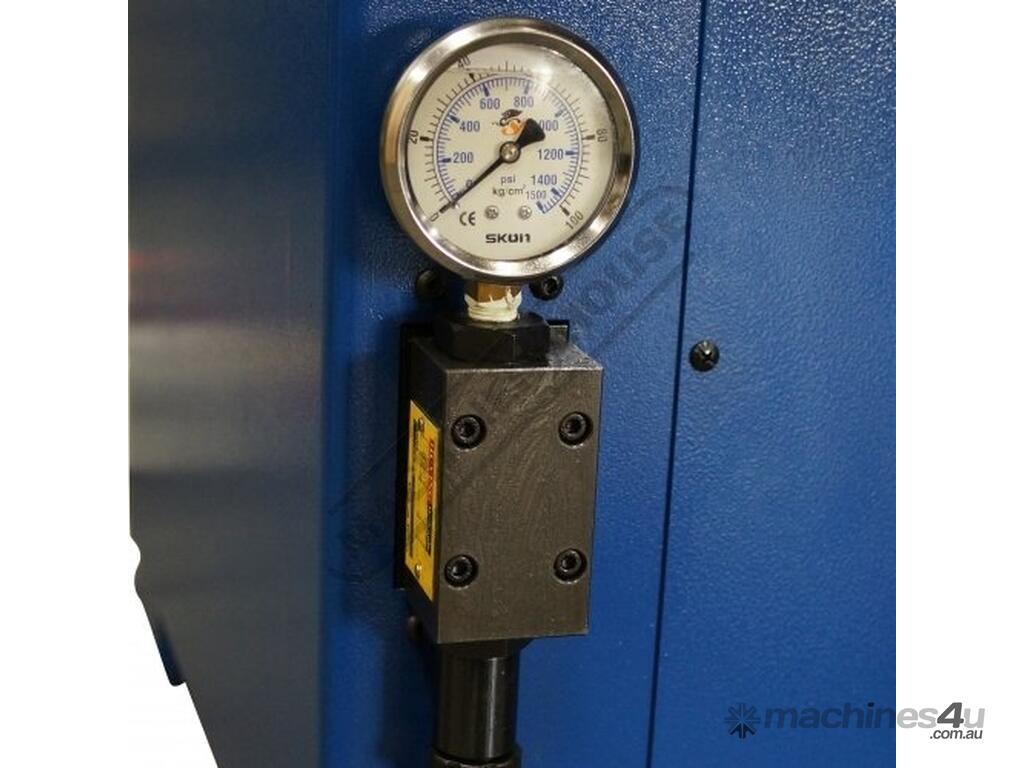

Adjustable vice pressure regulator


Specifications:
ORDER CODE: B112
MODEL: BS-460FAS
Operation Type: Swivel Head
Operation Type: Automatic - Hitch Feed
Round 90º (mm): 460
Round 45º (mm): 380
Round 60º (mm): ~
Square 90º (mm): 460
Square 45º (mm): 380
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 610 x 380
Rectangle (W x H) 45º (mm): 380 x 380
Rectangle (W x H) 60º (mm): ~
Coolant System: Yes
Table Working Height (mm): 925
Cutting Head Beam Type: Fully-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return

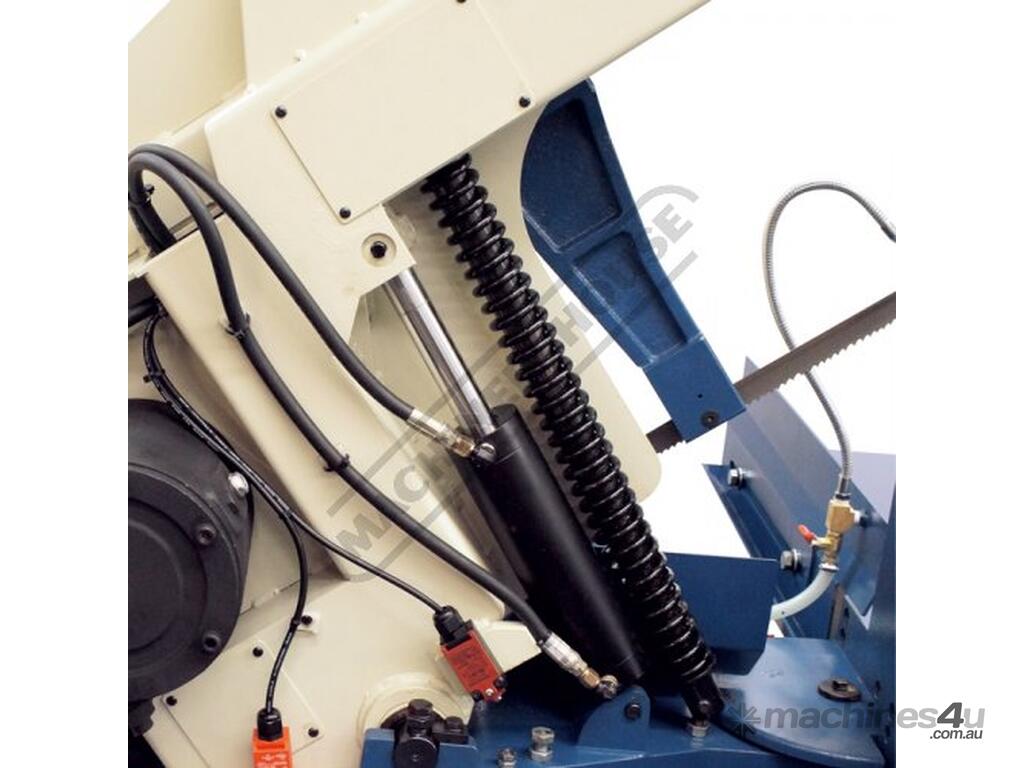

Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: Yes
Blade Steps / Speeds (m/min): Variable 25-85
Blade Size (L x W x T) (mm): 5330 x 41 x 1.3
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1770
