BS-4A Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º In Mitre Vice 150 x 100mm (W x H) R

HAFCO-METALMASTER BS-4A Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º In Mitre Vice 150 x 100mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B002

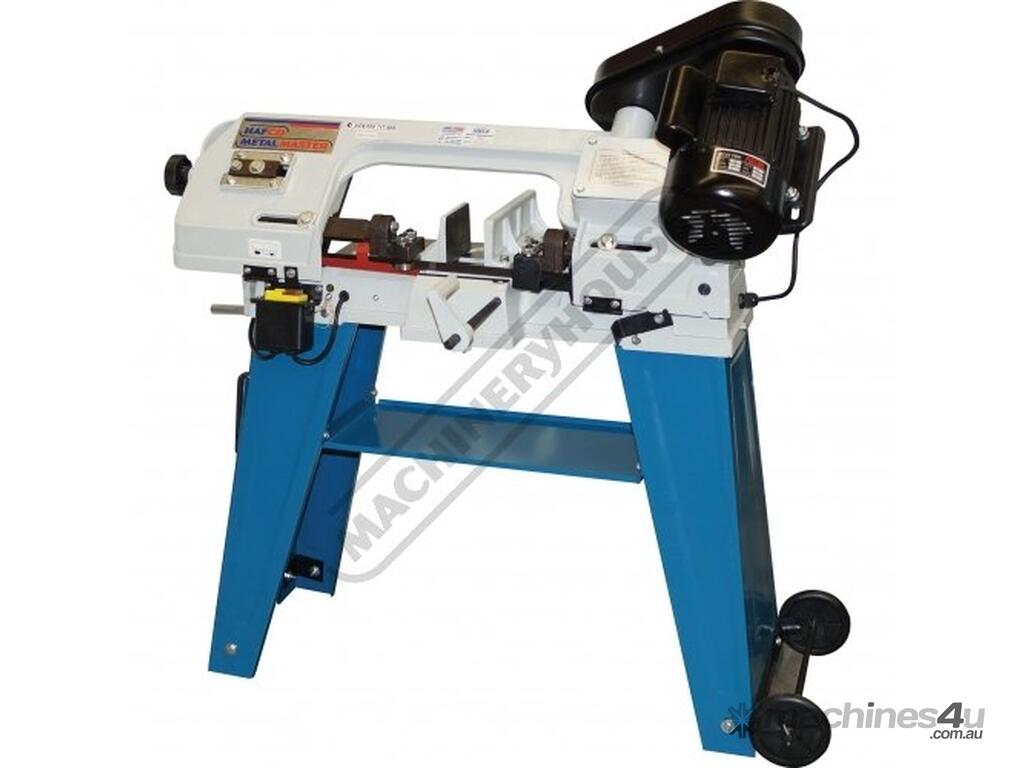

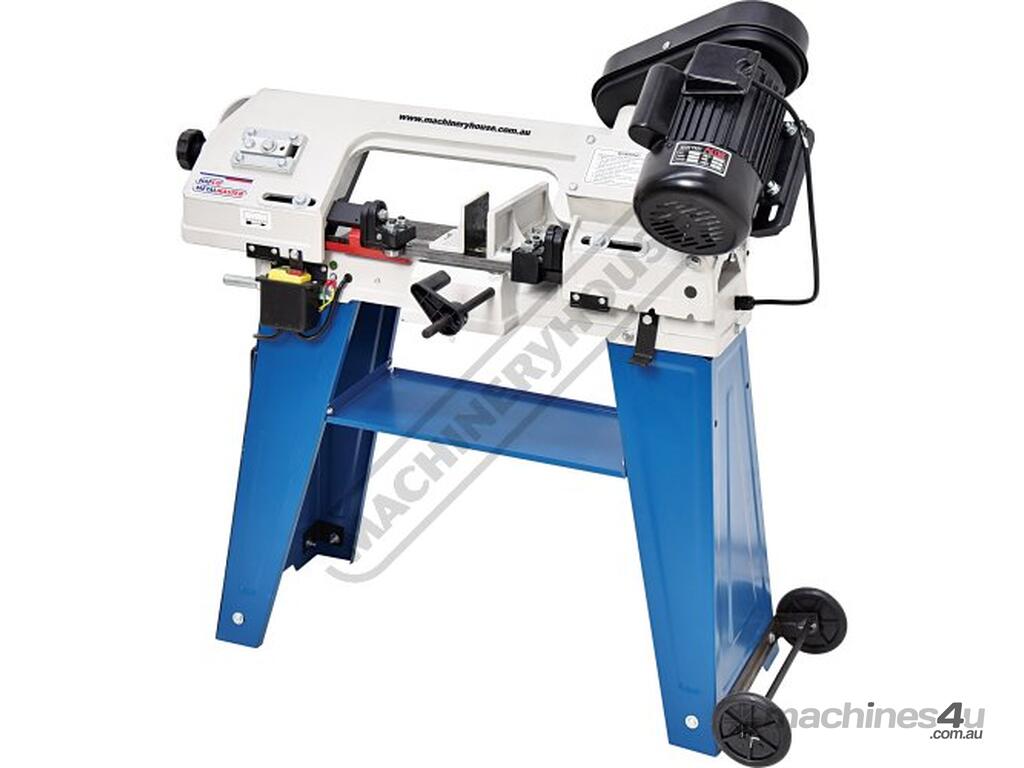

The BS-4A is an economically priced metal cutting band saw with a robust four-legged stand cross braced with a under tray and built-in mitre cutting capability. The ball bearing guided blade can be driven at a choice of three speeds via a reduction gearbox, depending on the type of material being cut and there is an automatic cut-off, adjustable for height, for stopping the motor when the cut is complete.

One notable feature on this saw are the rear mounted wheels on the stand allowing it to be portable, ideal for maintenance shops, light steel fabrications, and engineering workshops. A well priced and very effective machine for cutting steel bars, angles, channels, tubes and so on.

Features:
150 x 100mm (W x H) rectangular capacity
Ideal for cutting tube pipe solid steel non-ferrous and wood
Adjustable spring tension screw regulating cutting feed rate

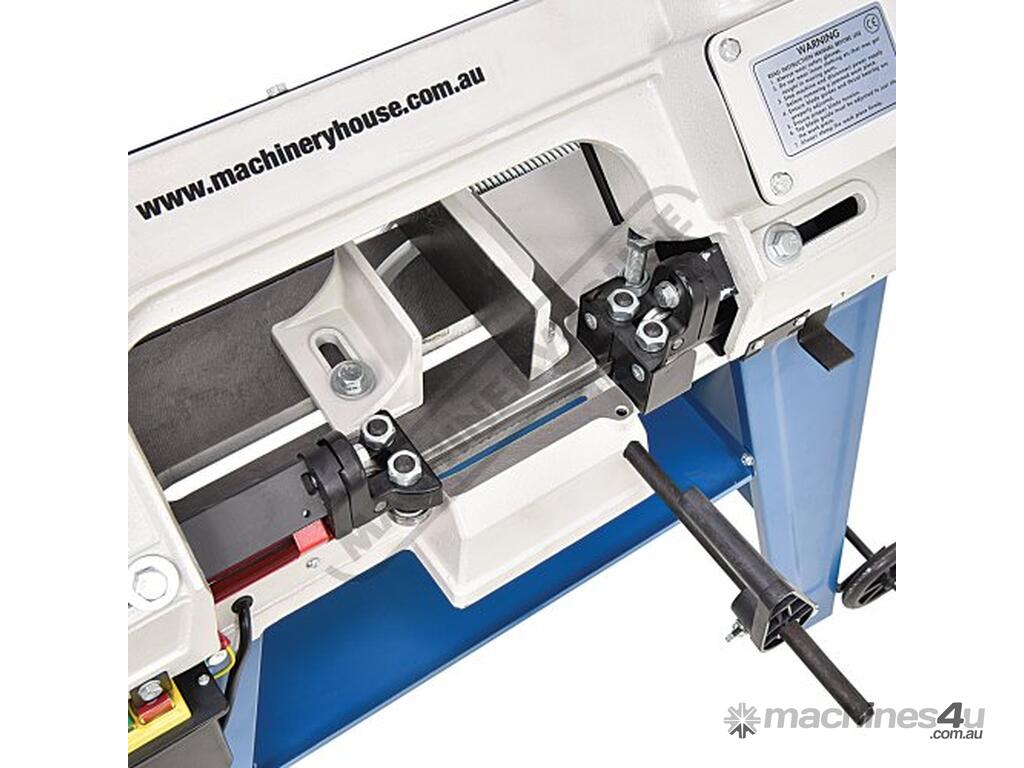

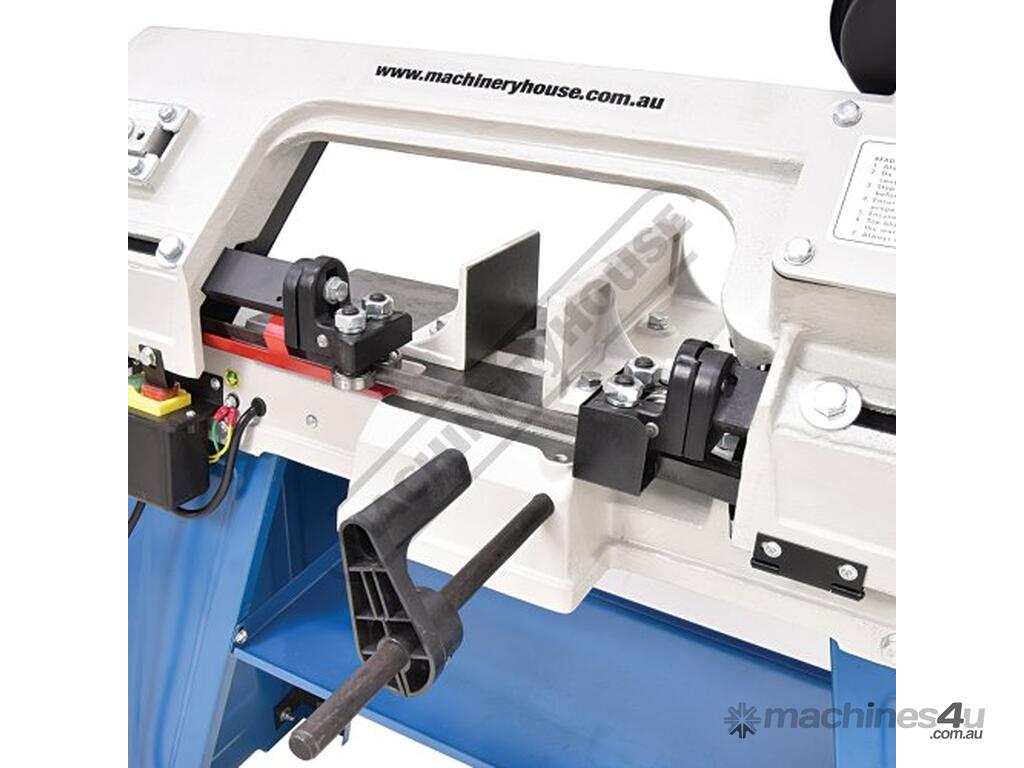

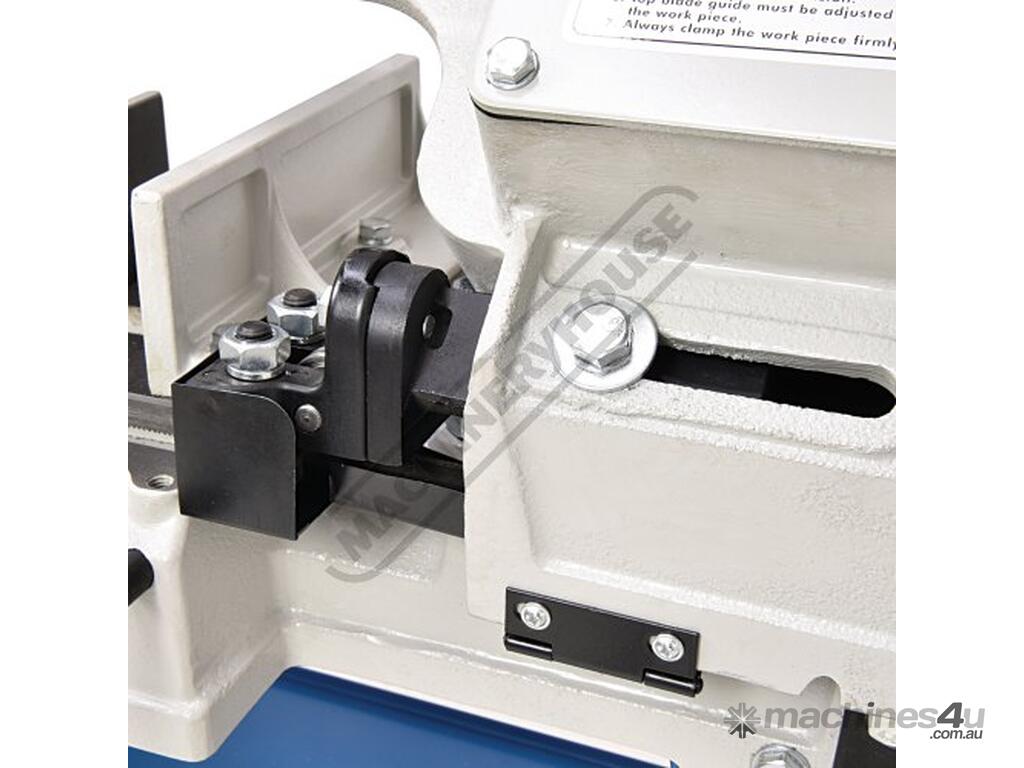

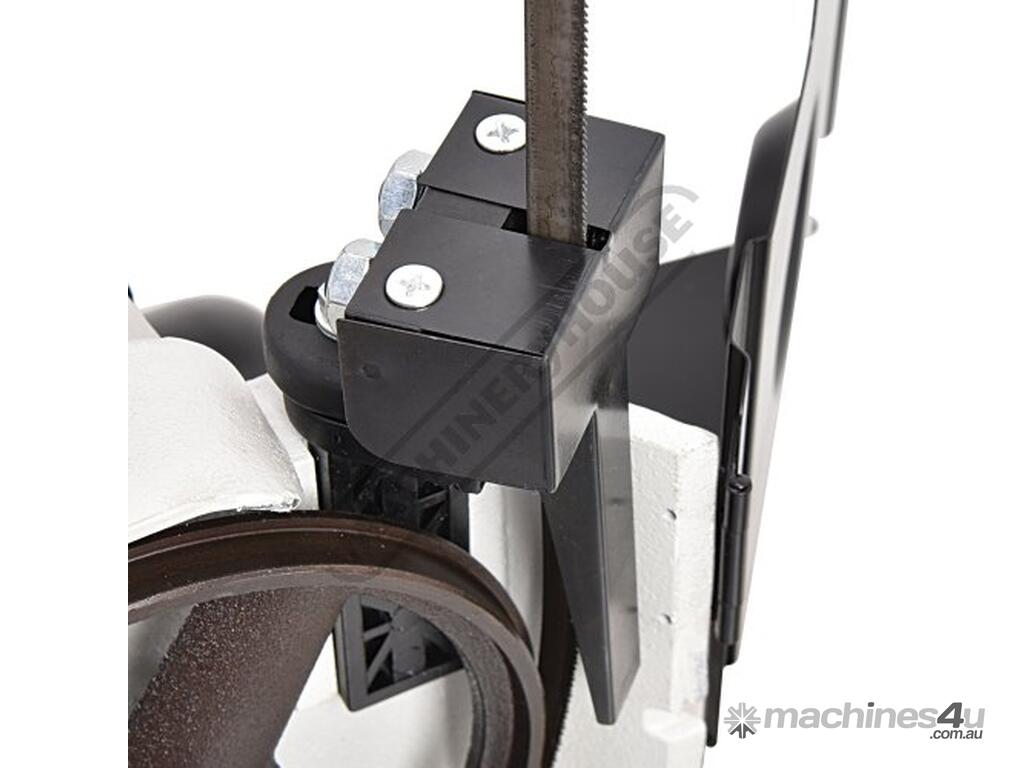

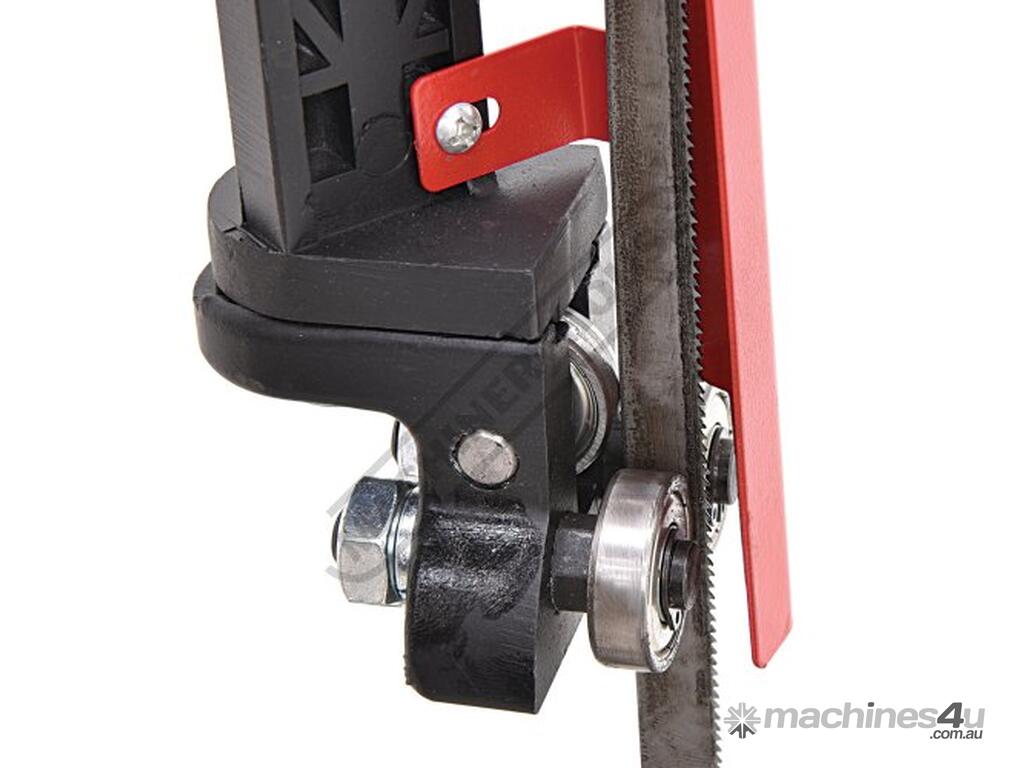

Fully-adjustable blade roller for accurate and straight cutting

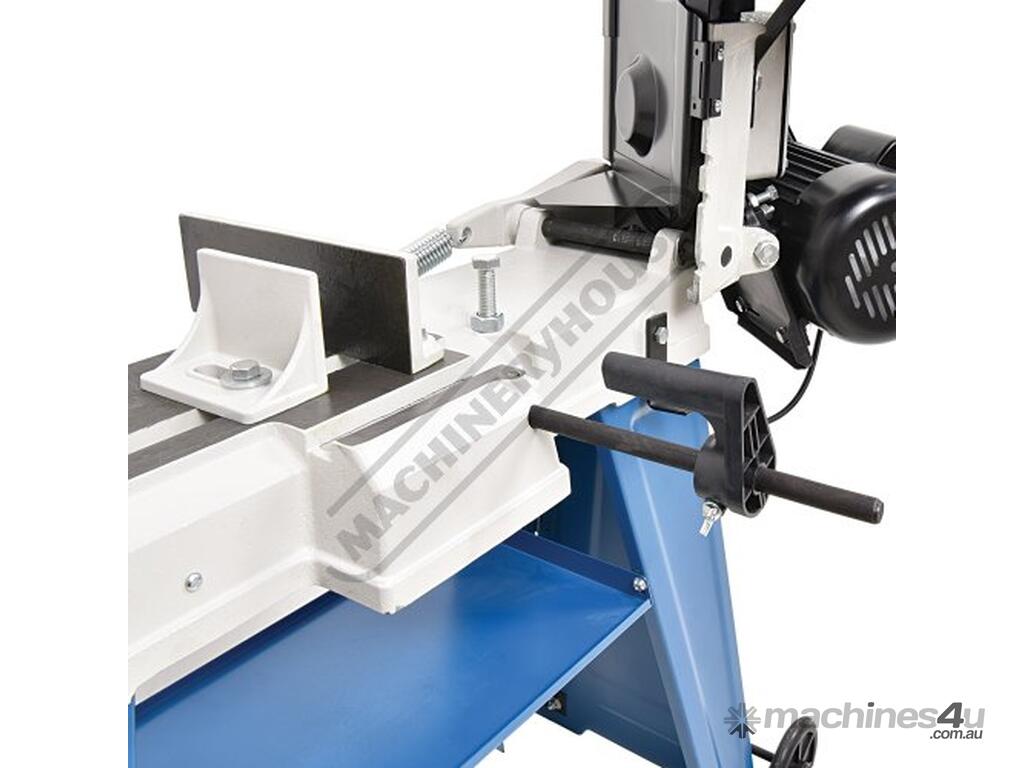

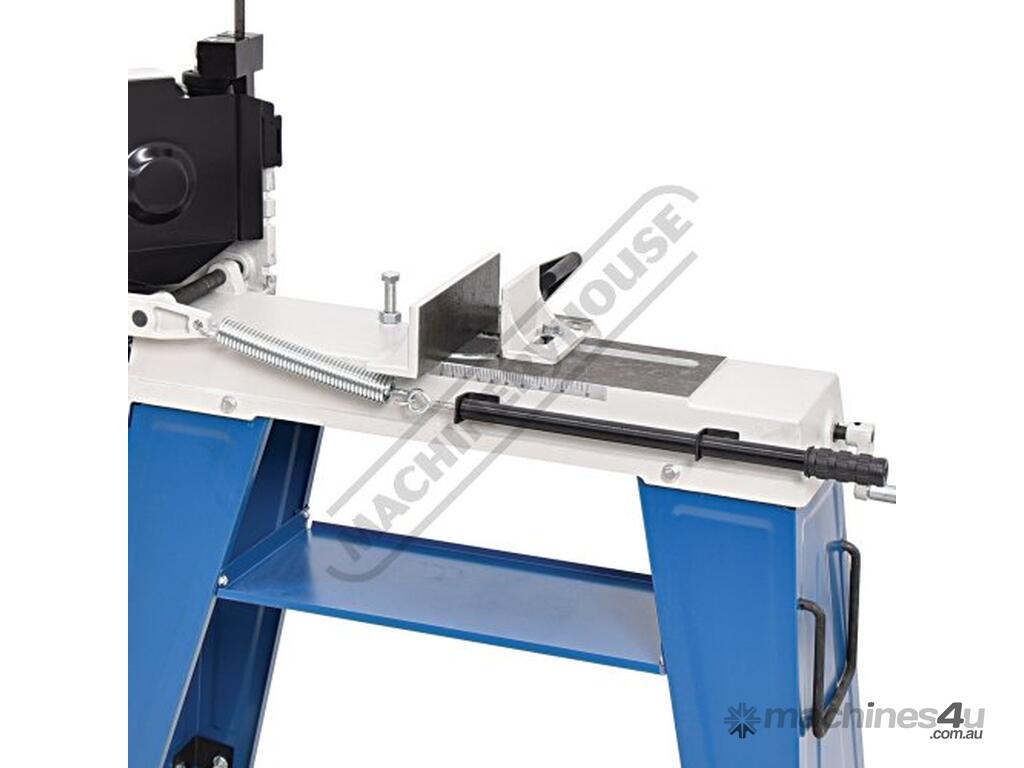

Adjustable length stop for repetition cutting
3-speed pulley drive system

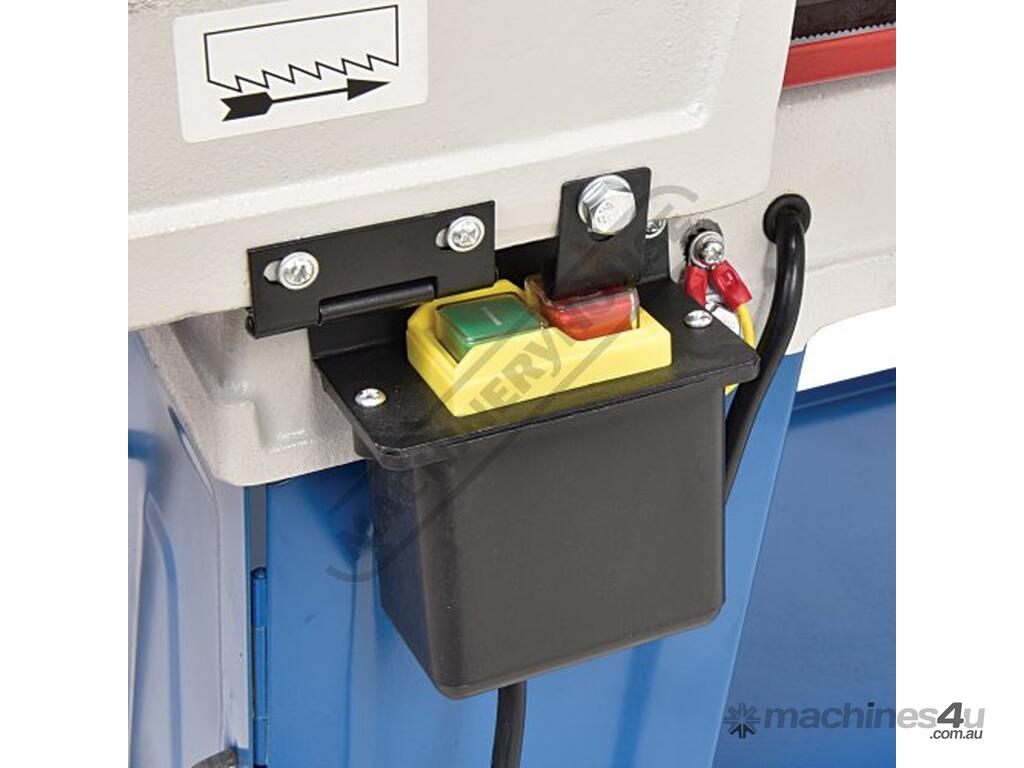

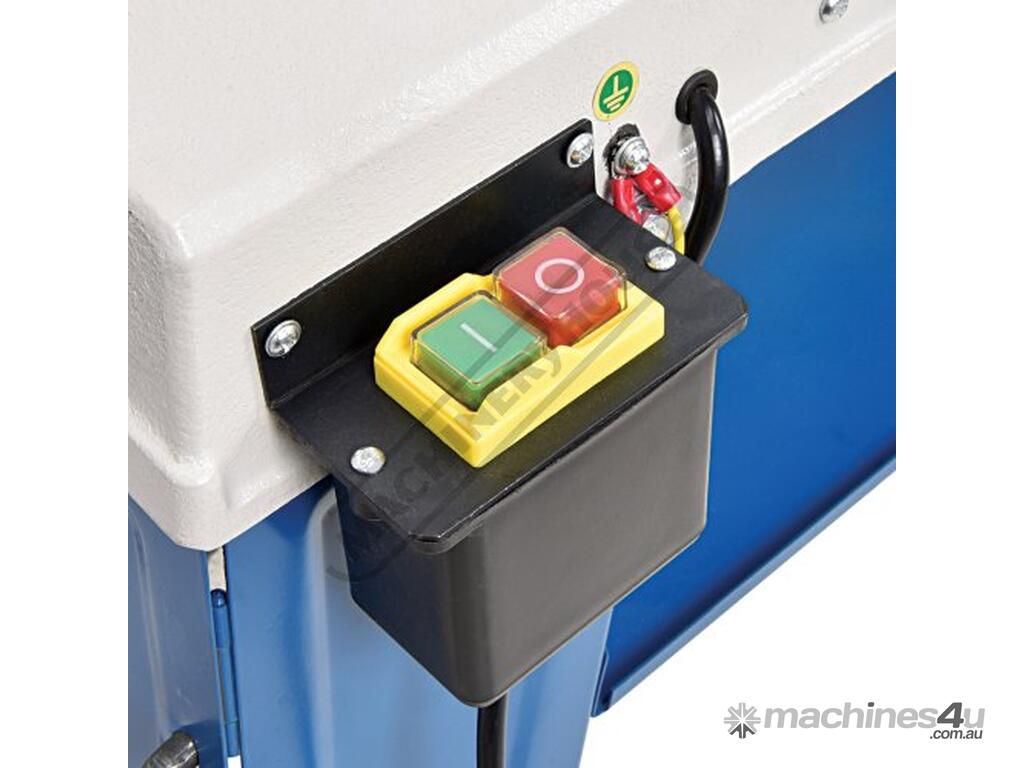

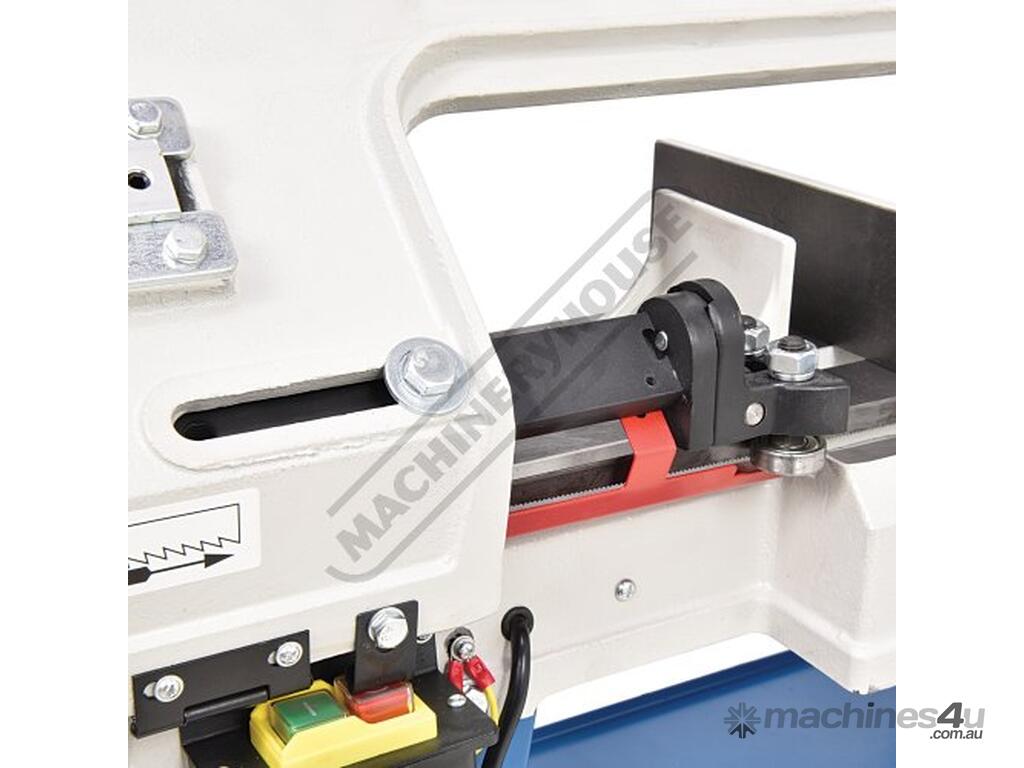

Automatic electric cut-out switch

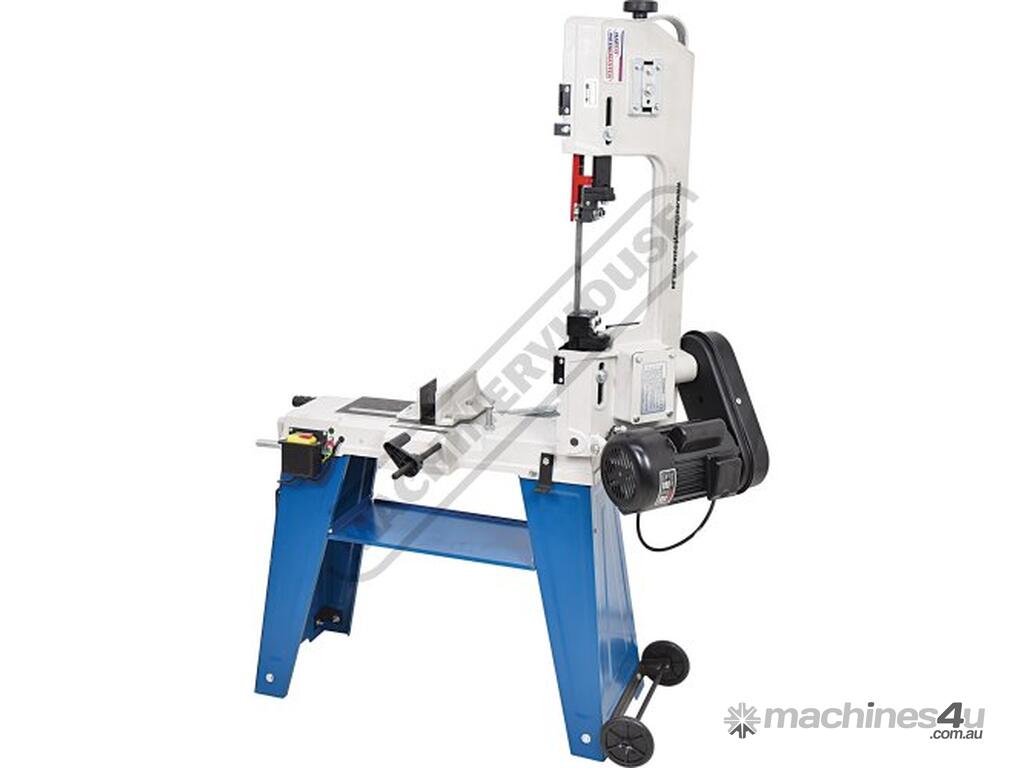

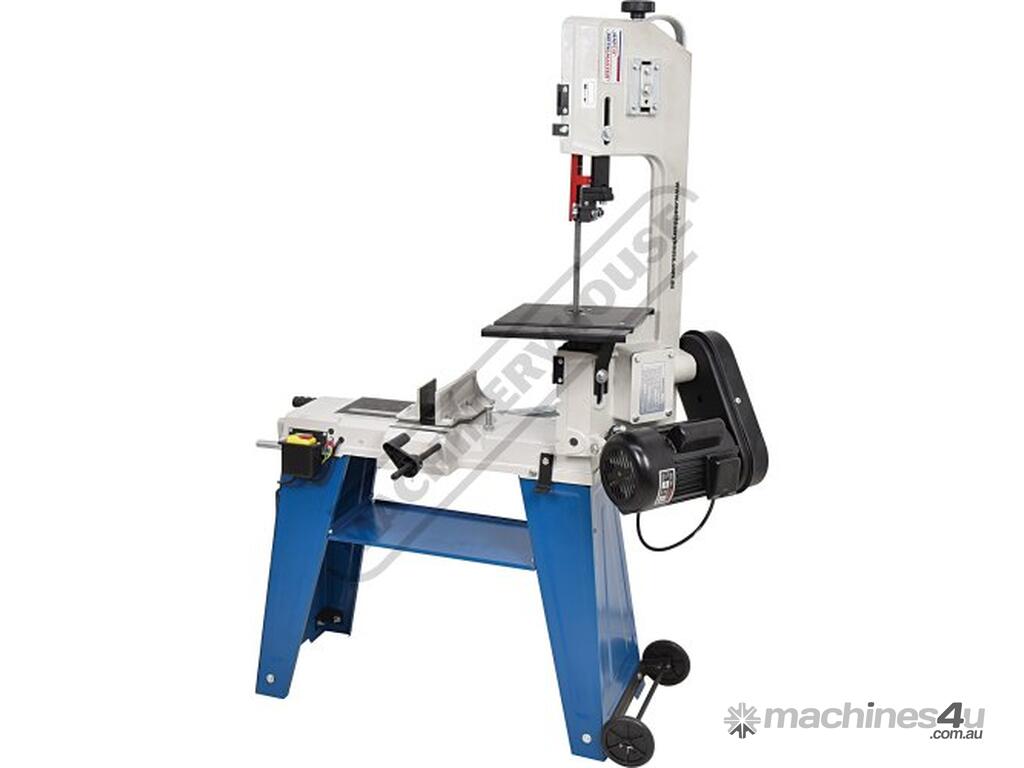

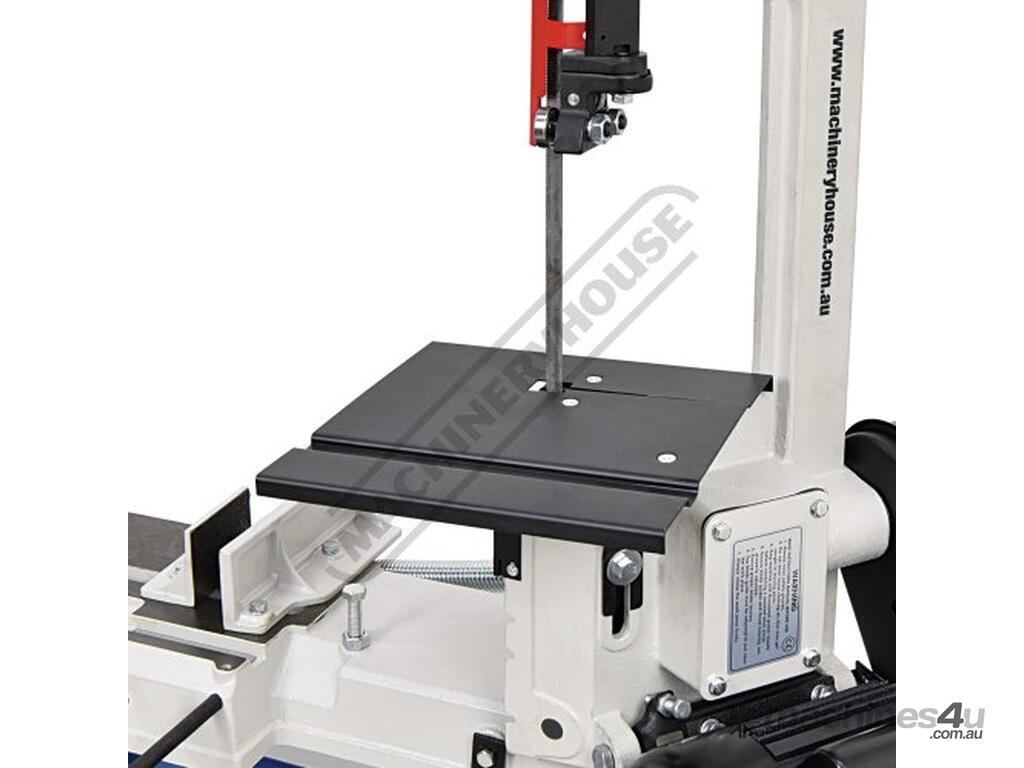

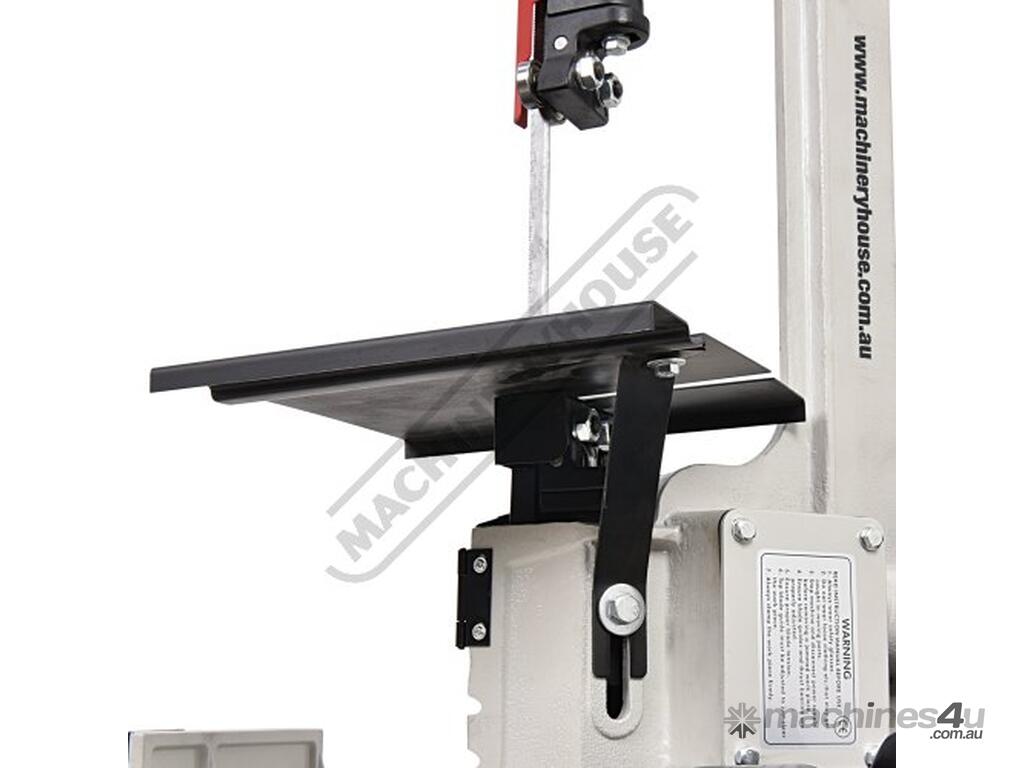

Vertical cutting table included

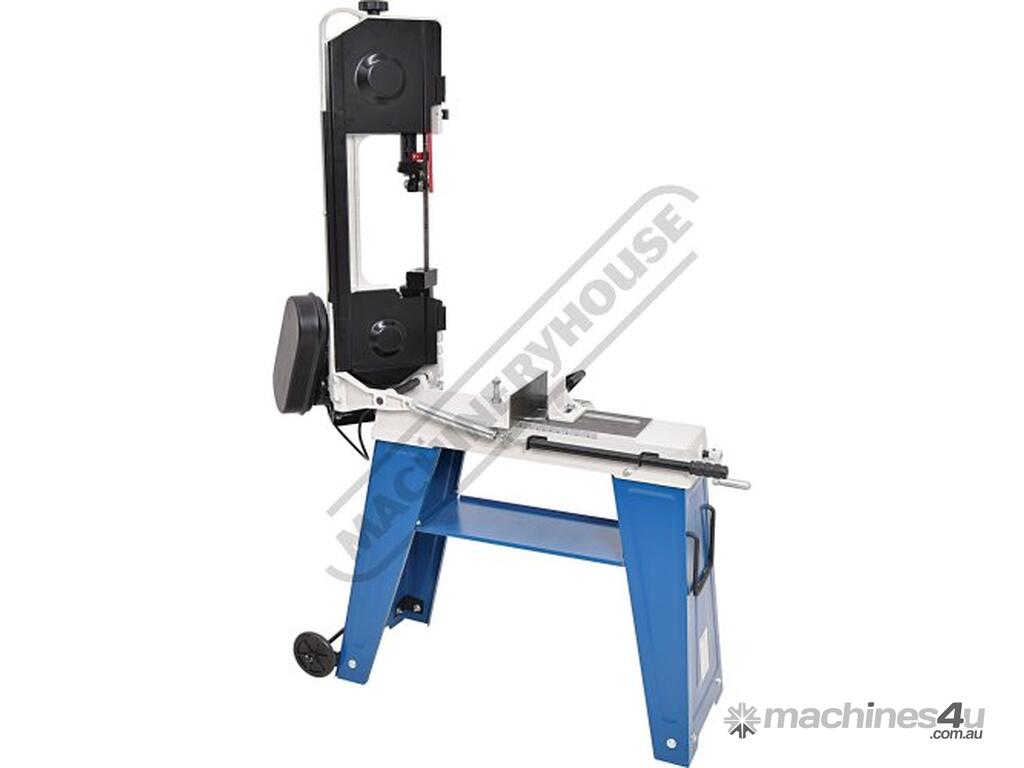

Portable - on wheels for site work

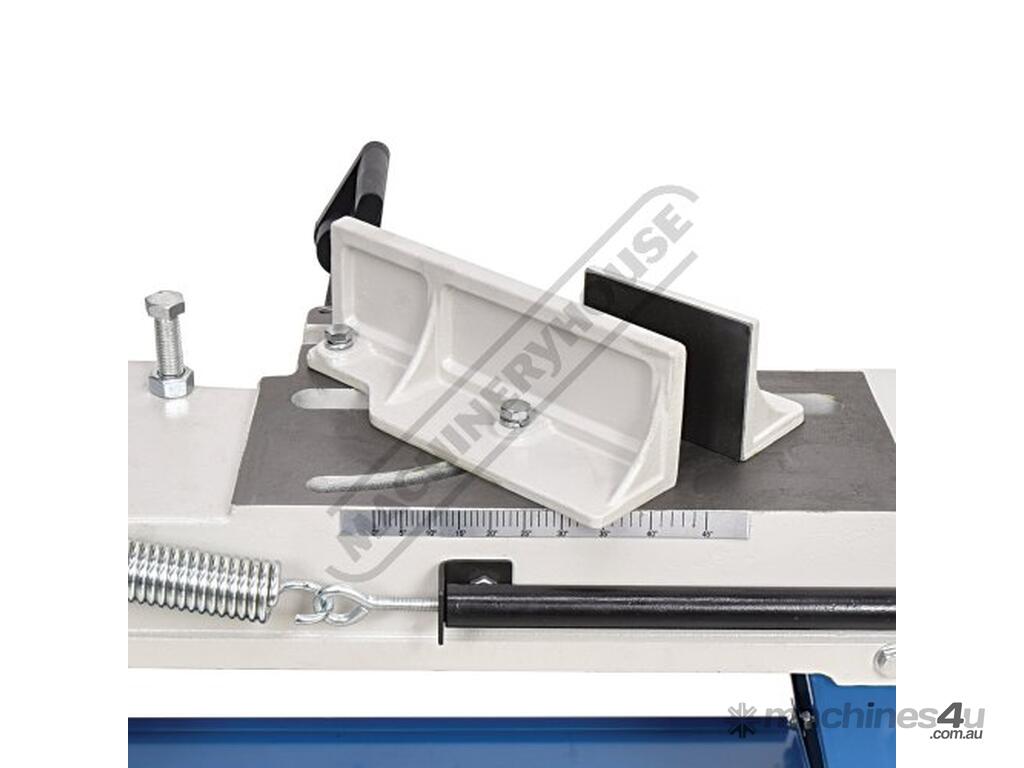

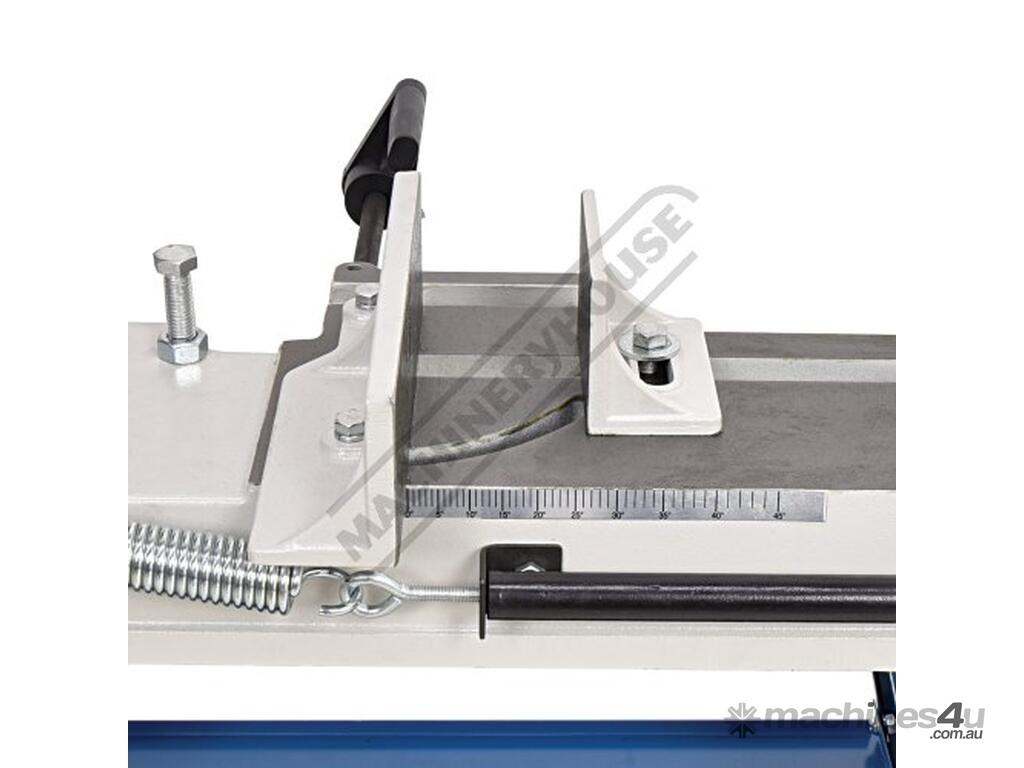

Cuts to 45º in mitre vice
Sealed worm and pinion gearbox drive


Specifications:
ORDER CODE: B002
MODEL: BS-4A
Operation Type: Fixed Head
Operation Type: ~
Round 90º (mm): 100
Round 45º (mm): 72
Round 60º (mm): ~
Square 90º (mm): 100
Square 45º (mm): 72
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 150 x 100
Rectangle (W x H) 45º (mm): 72 x 100
Rectangle (W x H) 60º (mm): ~
Coolant System: ~
Table Working Height (mm): 620
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Adjustable Spring Type
Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min):
Blade Size (L x W x T) (mm): 1645 x 12.7 x 0.65
Motor Power (kW / hp): 0.375 / 0.5
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 65
