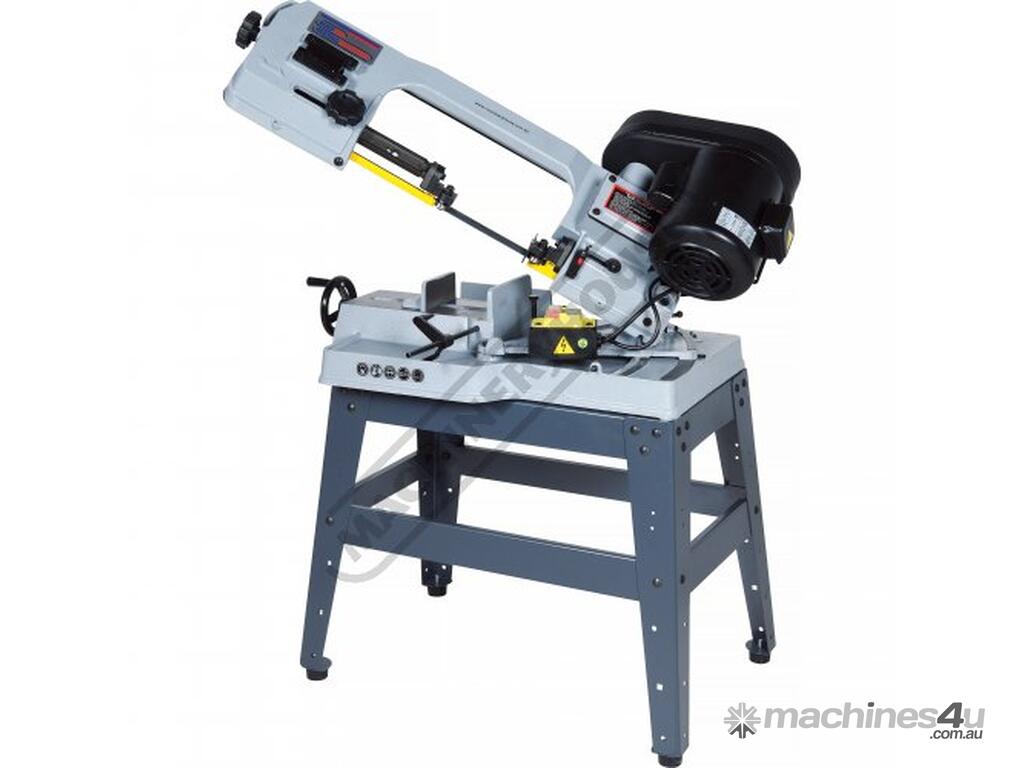

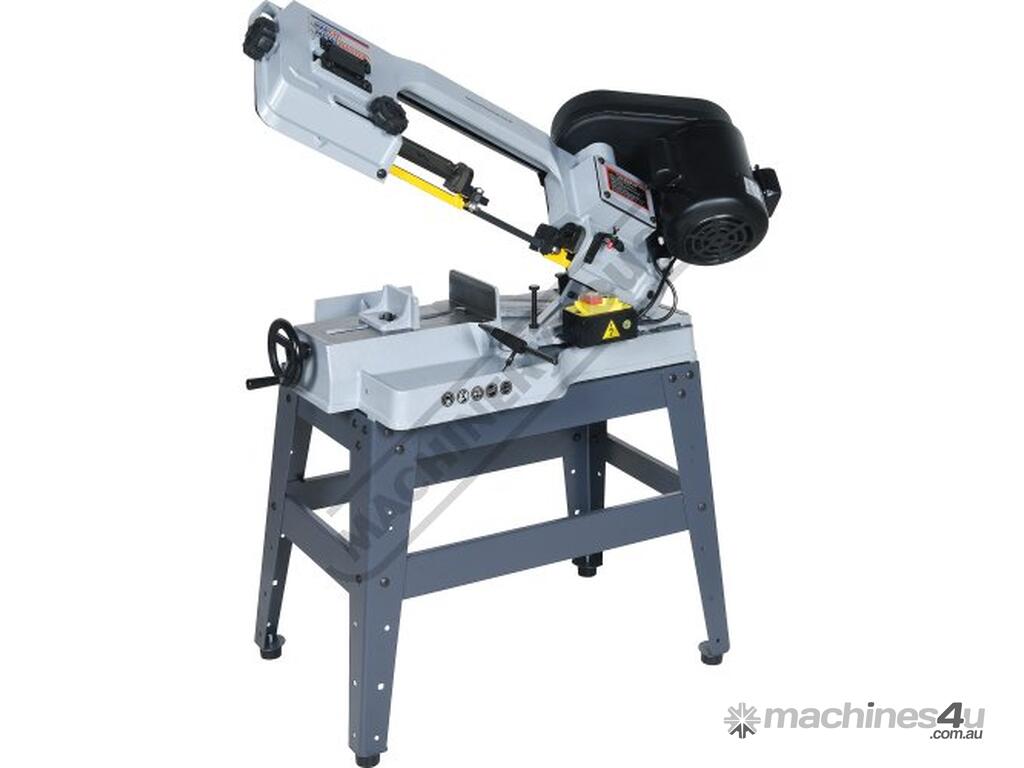

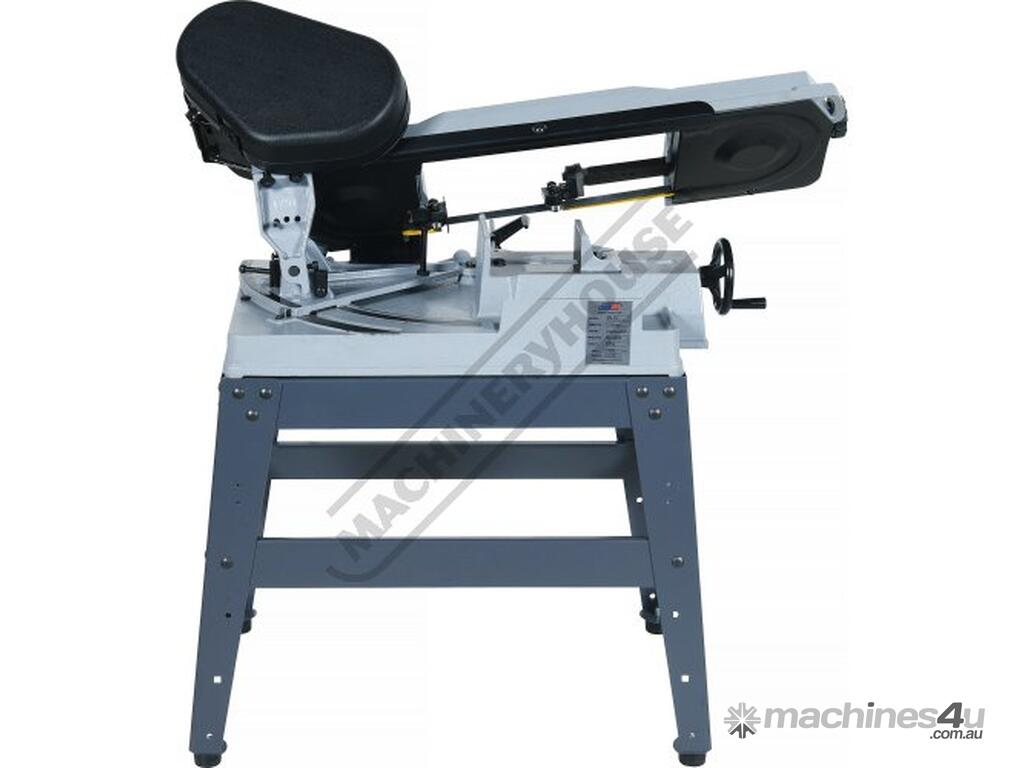

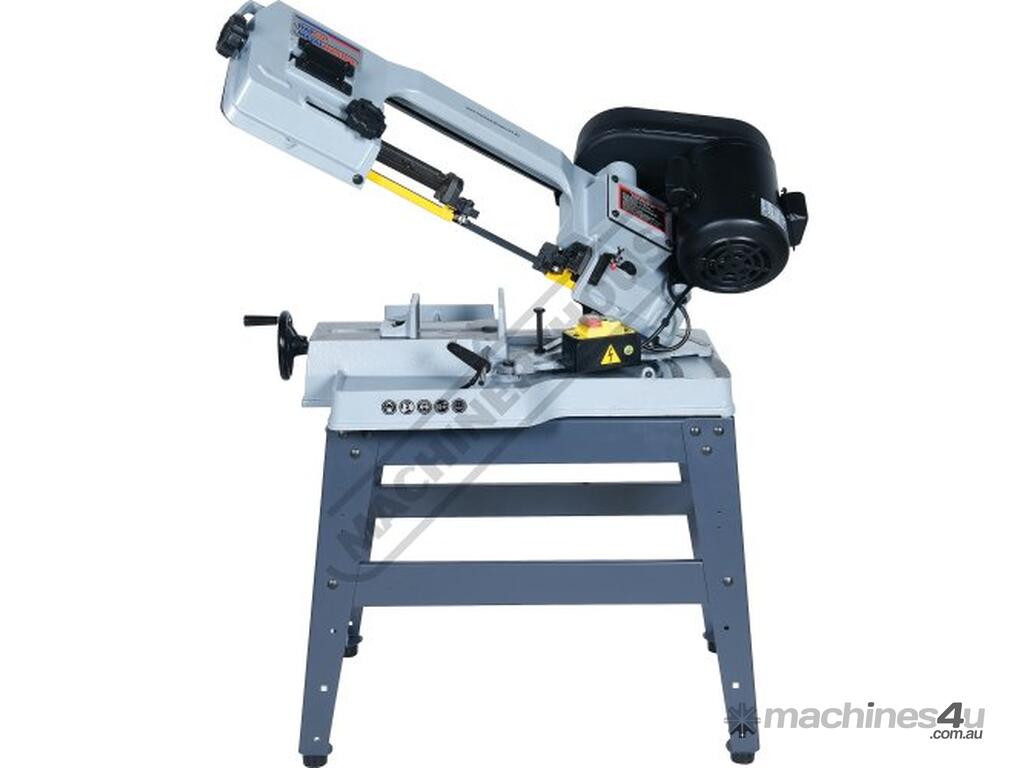

BS-5S Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 45º & Includes Vertical Cutting Table 180

HAFCO-METALMASTER BS-5S Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 45º & Includes Vertical Cutting Table 180 x 110mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B003

Manufactured in Taiwan

The BS-5S is step up from the BS-4A & BS-5 simply by the unique designed of the swivel head enables the material to be located in its original clamping position, therefore when cutting long material at an angle it wont interfere with other items around the work shop.

This economically priced metal cutting band saw incorporates a wide and robust four-legged stand cross braced with four leg supports for additional stability when cutting longer and heavier material. The ball bearing guided blade can be driven at a choice of three speeds via a reduction gearbox, depending on the type of material being cut and there is an automatic cut-off, adjustable for height, for stopping the motor when the cut is complete.

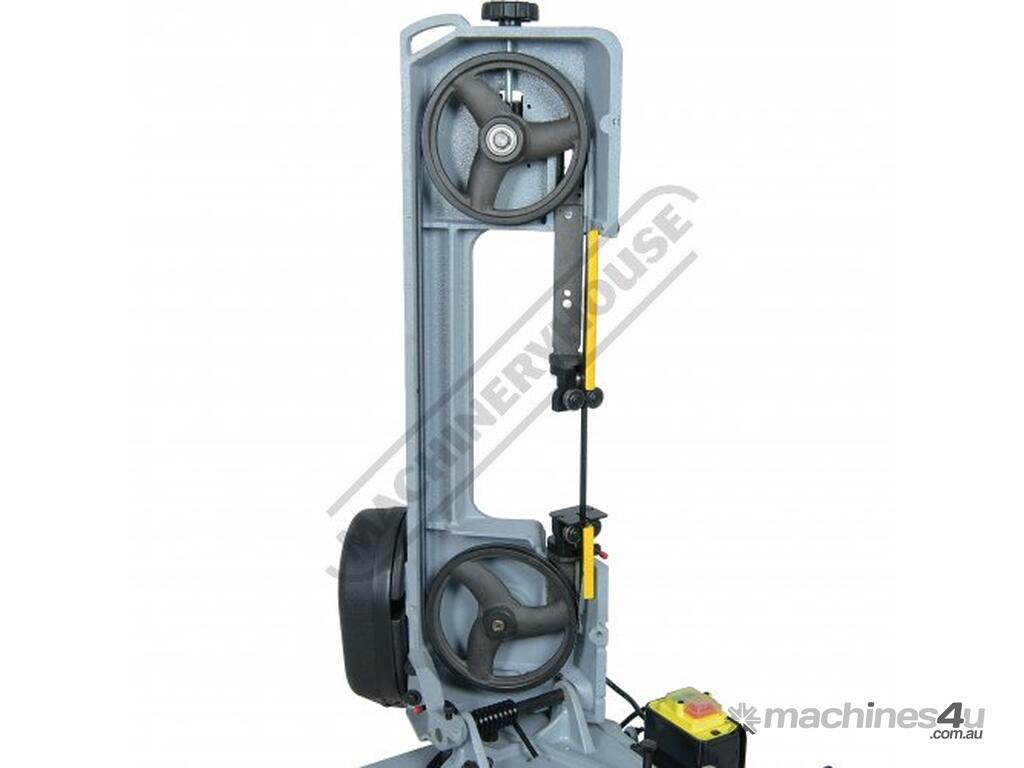

One notable feature on this saw is it supplied with an additional work table enabling the operator to use this machine in a vertical operation, ideal for maintenance shops, light steel fabrications, and engineering workshops. A well priced and very effective machine for cutting steel bars, angles, channels, tubes and so on.

Features:
180 x 110mm (W x H) rectangular capacity
Ideal for cutting tube pipe solid steel non-ferrous and wood

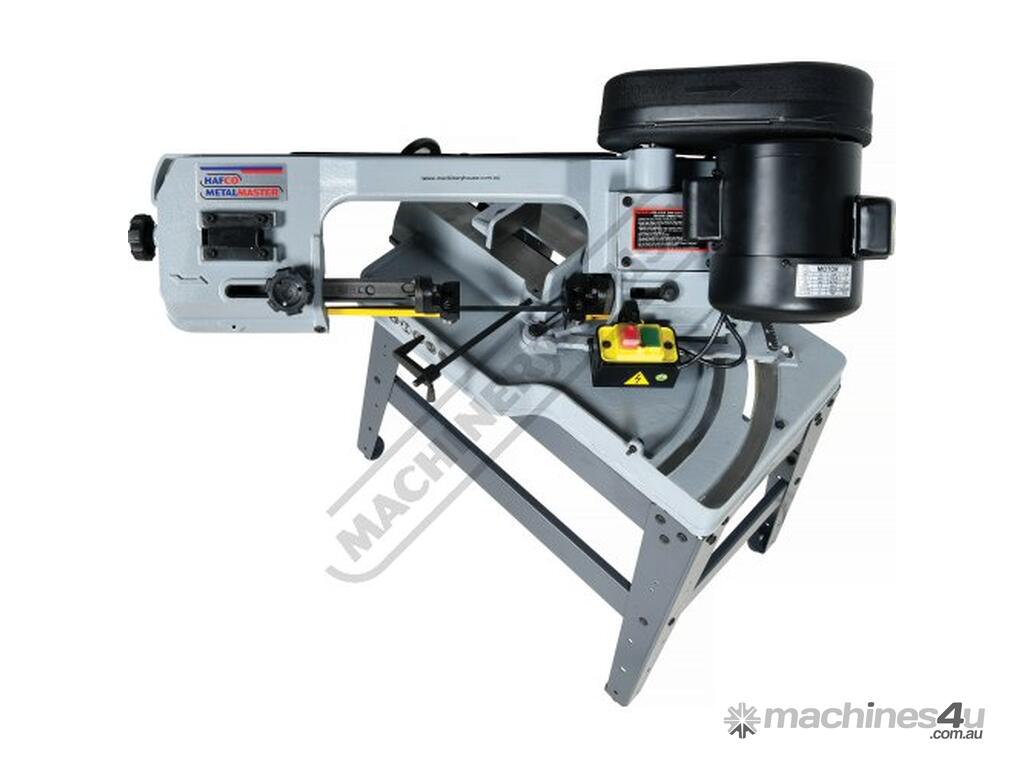

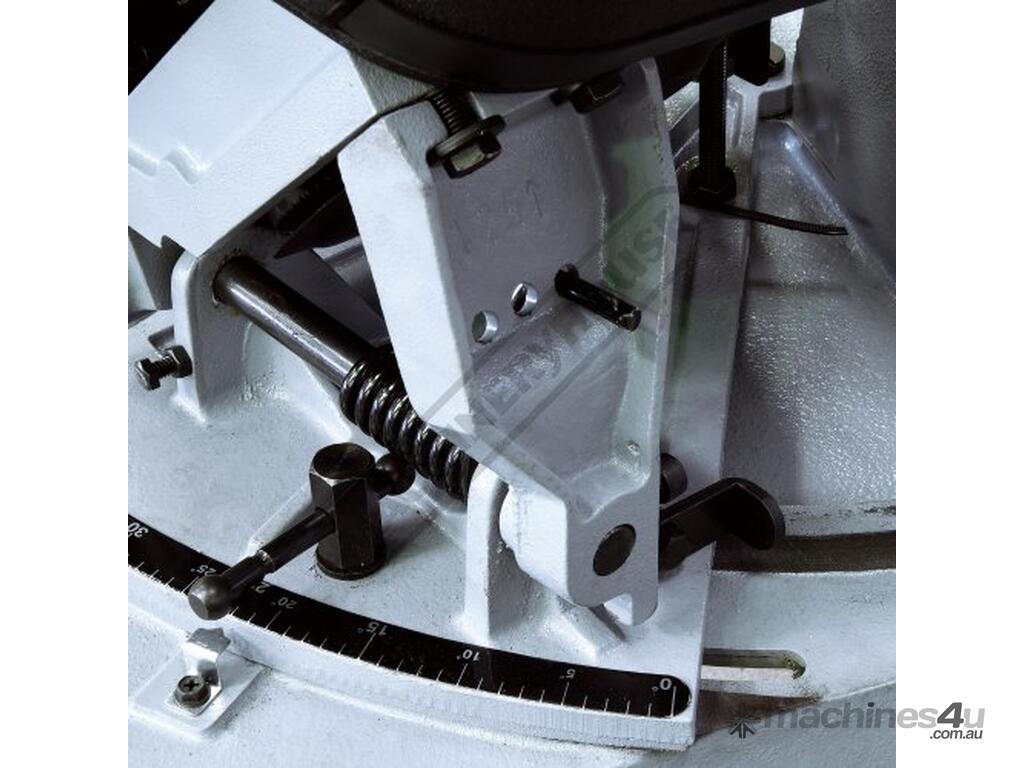

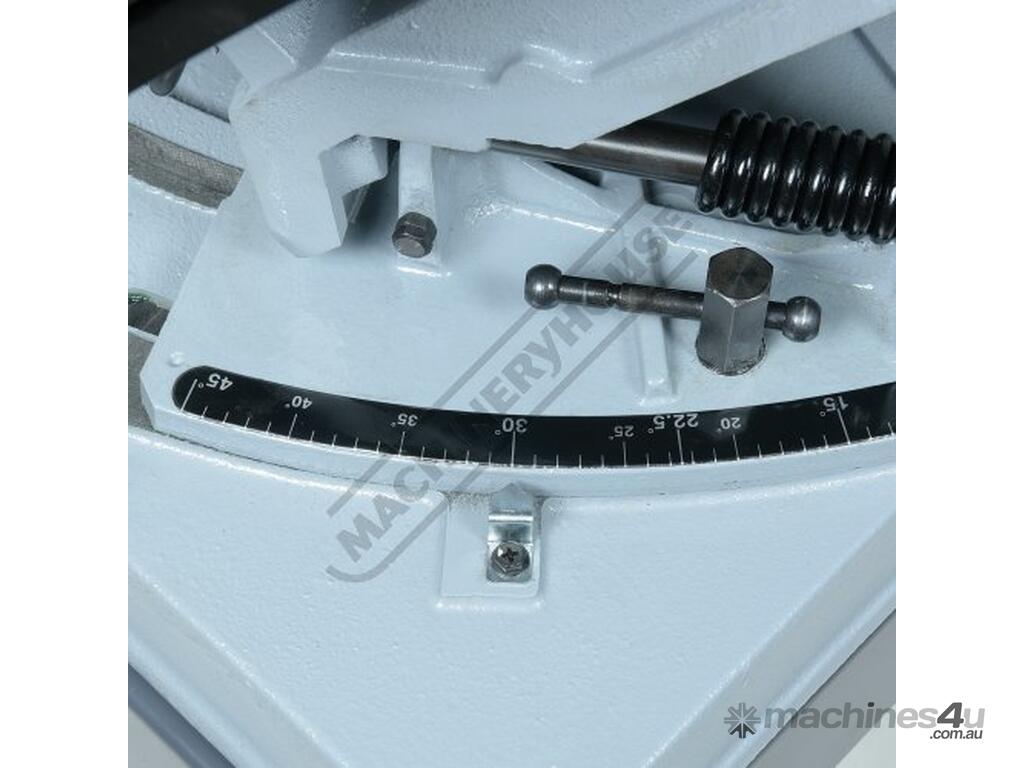

45º swivel head for easy angle cutting without moving the material

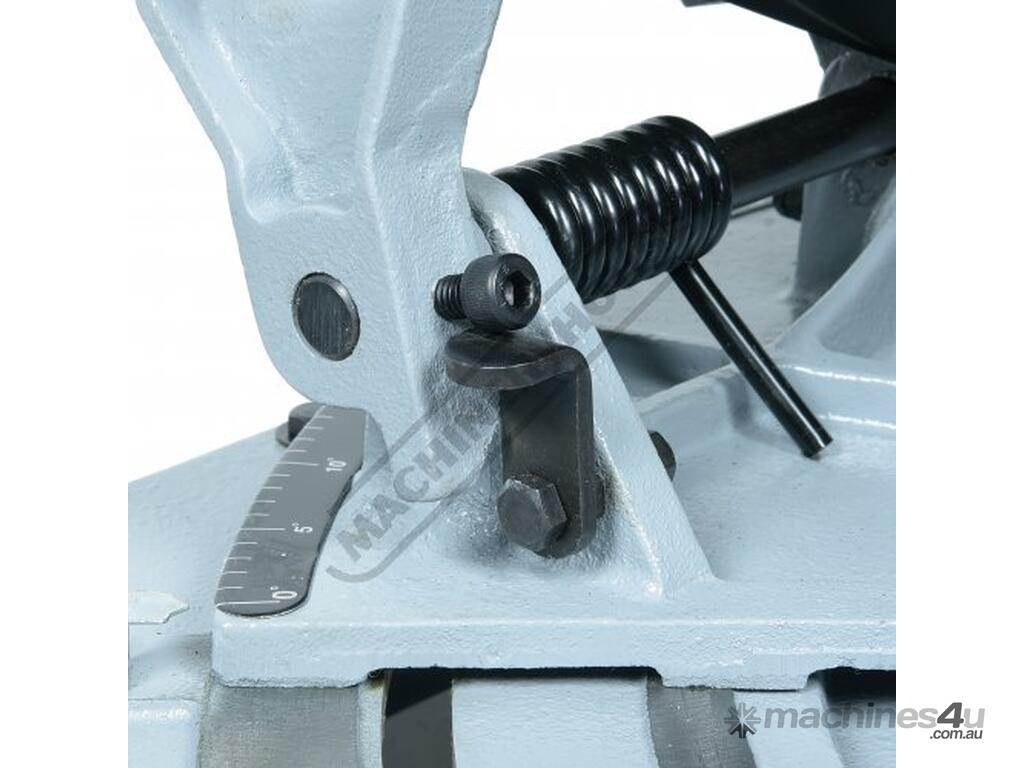

Adjustable spring tension regulating cutting feed rate

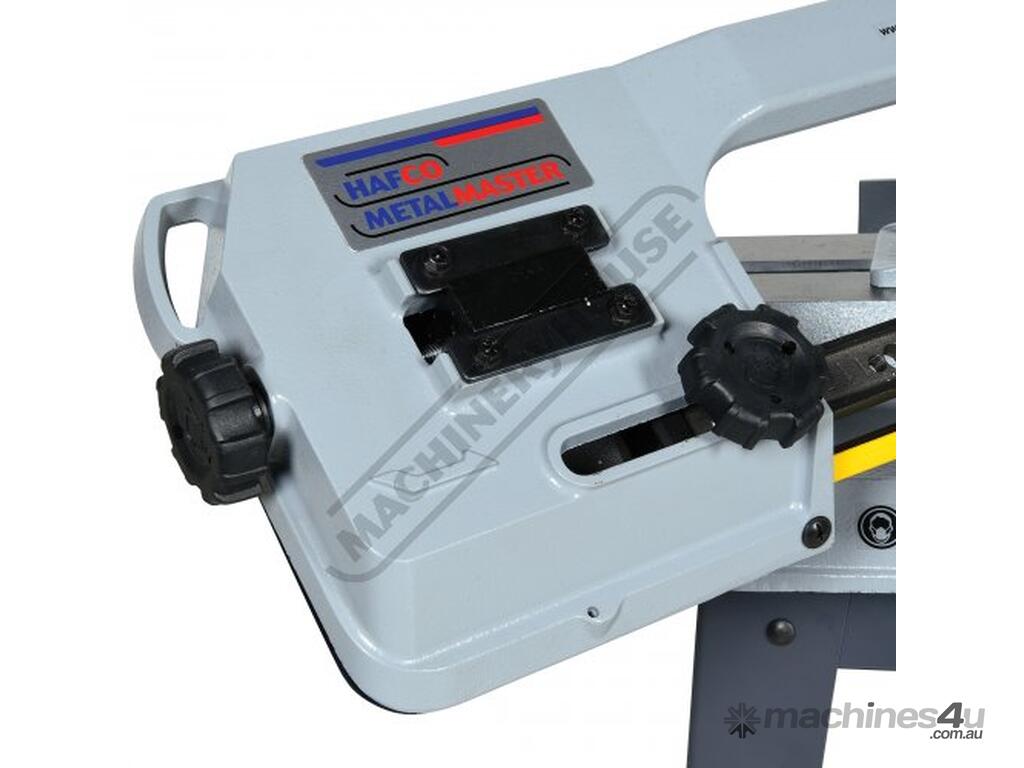

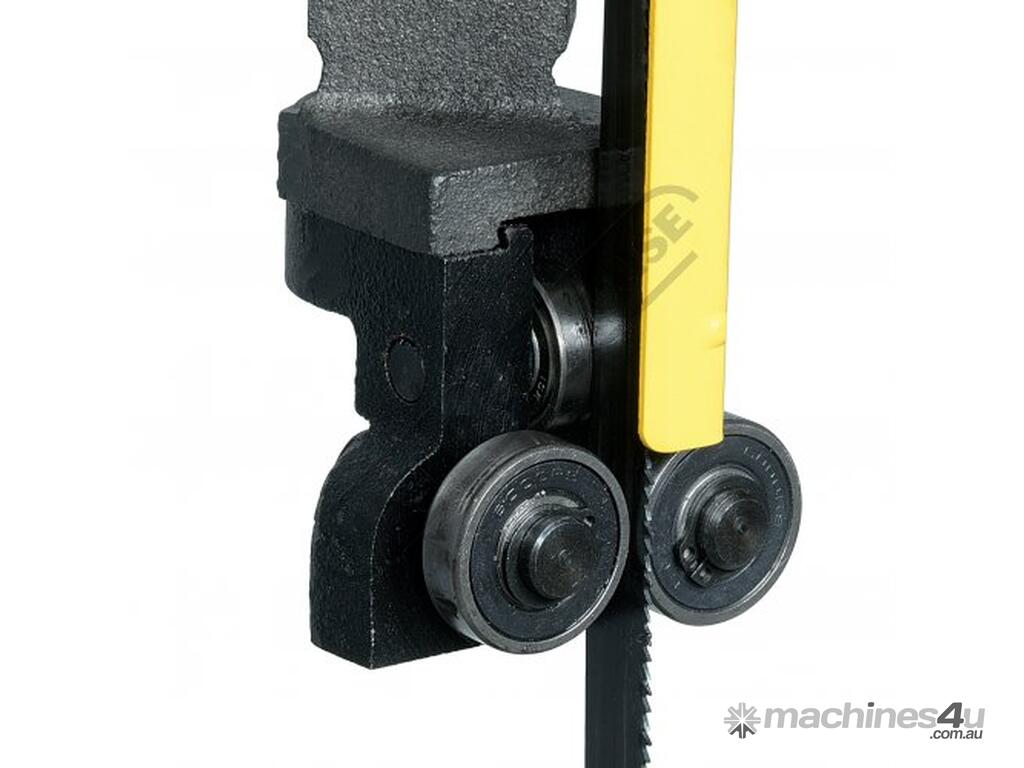

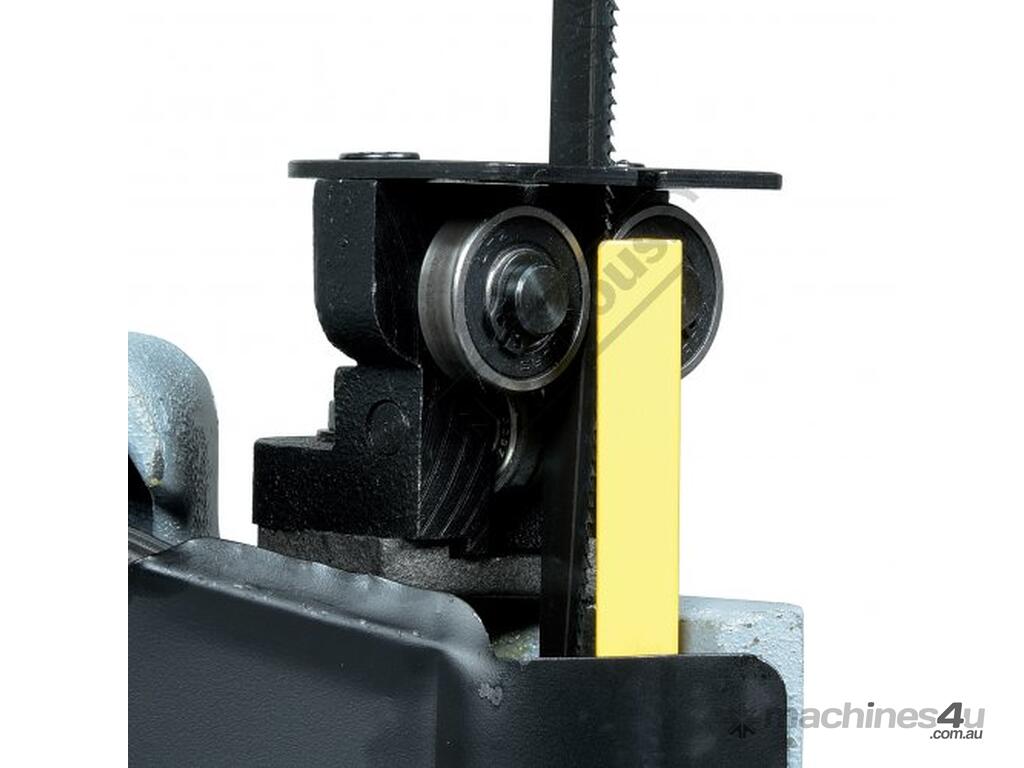

Fully-adjustable blade roller for accurate and straight cutting
Adjustable length stop for repetition cutting

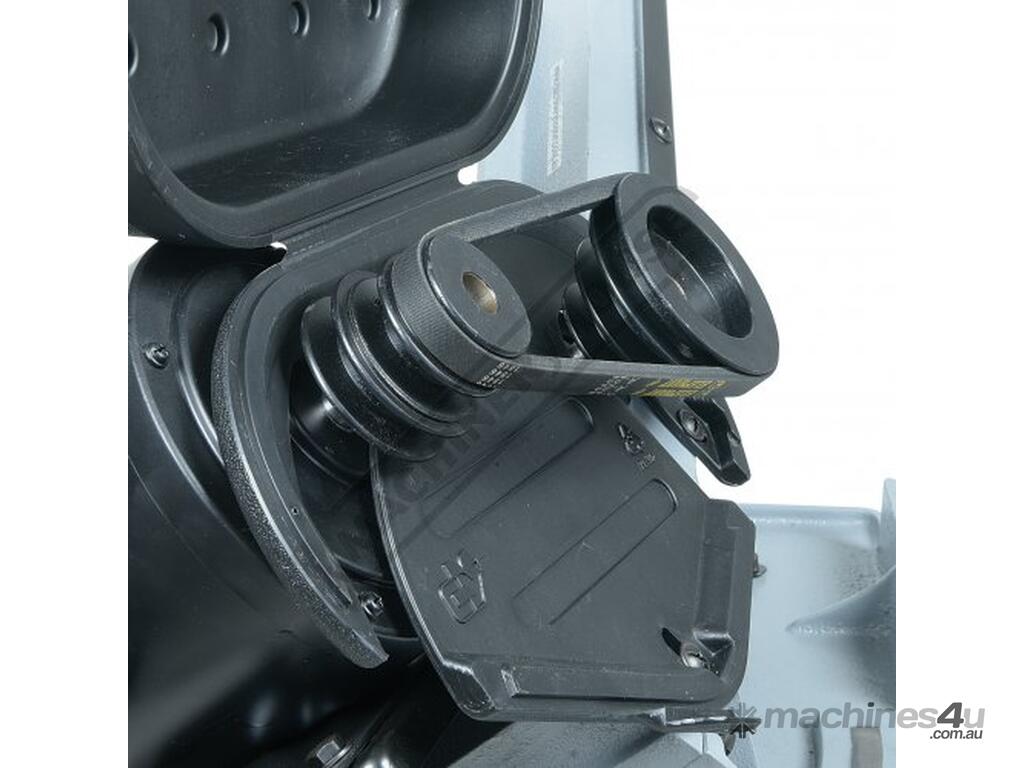

3-speed pulley drive system

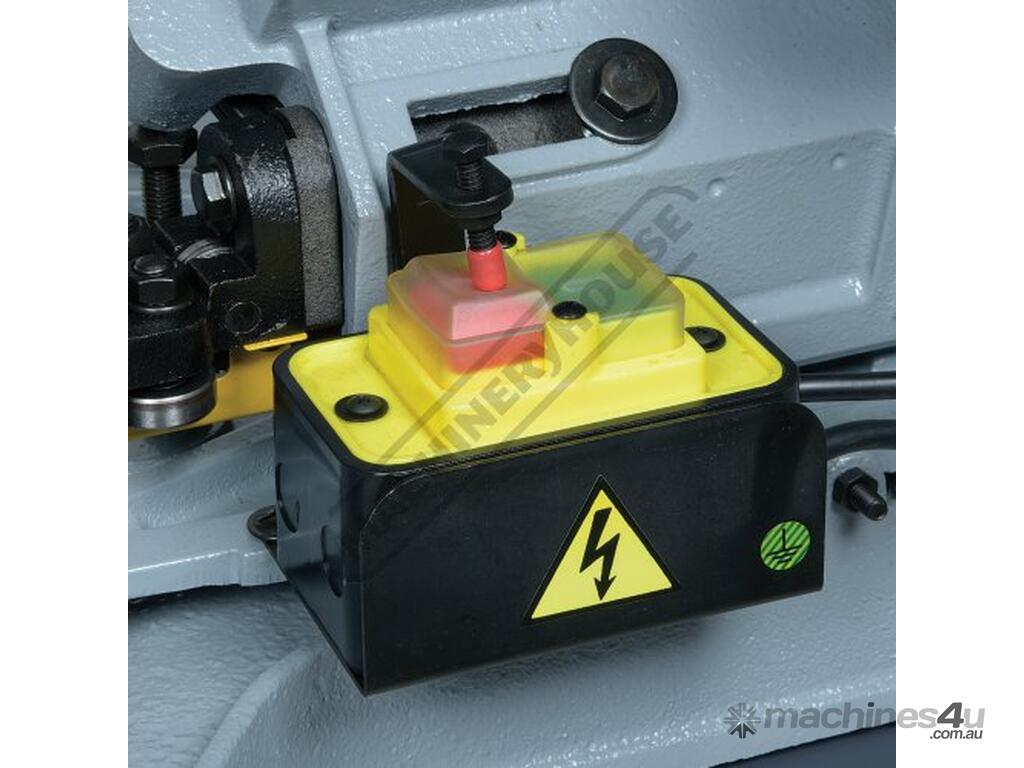

Automatic electric cut-out switch

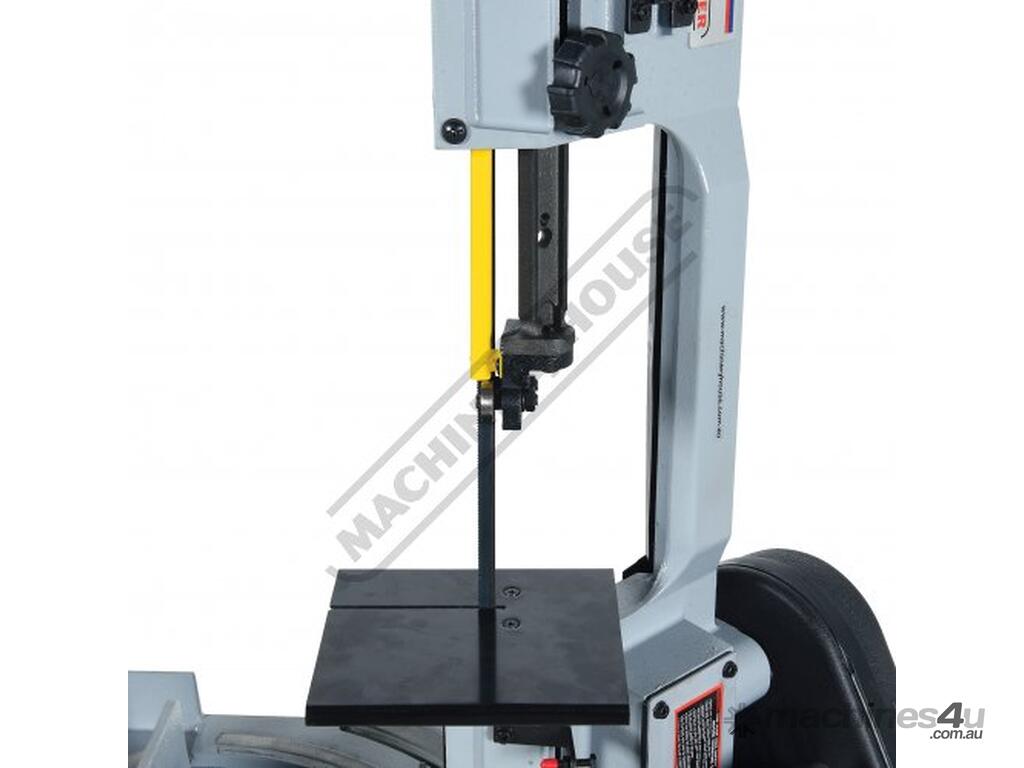

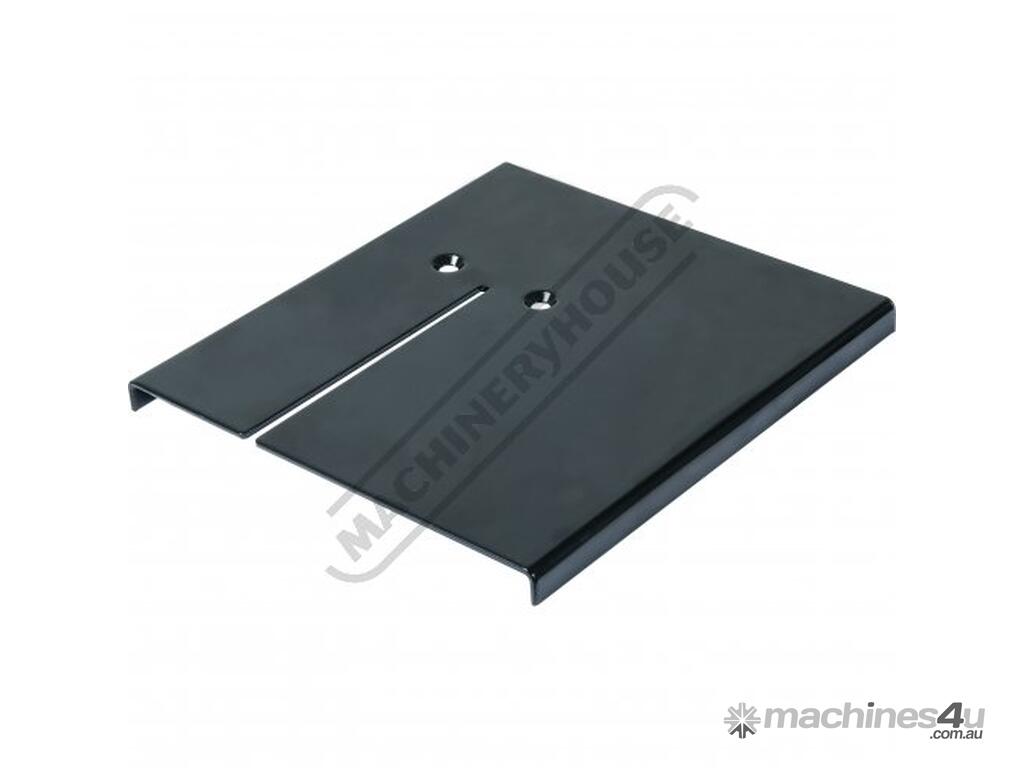

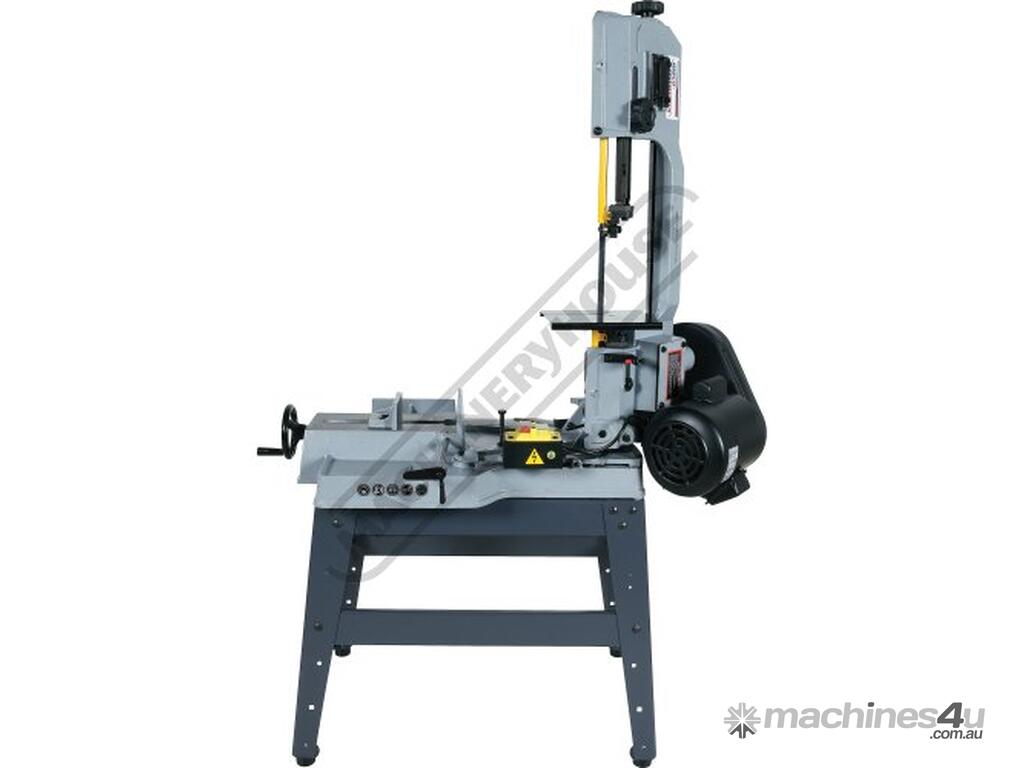

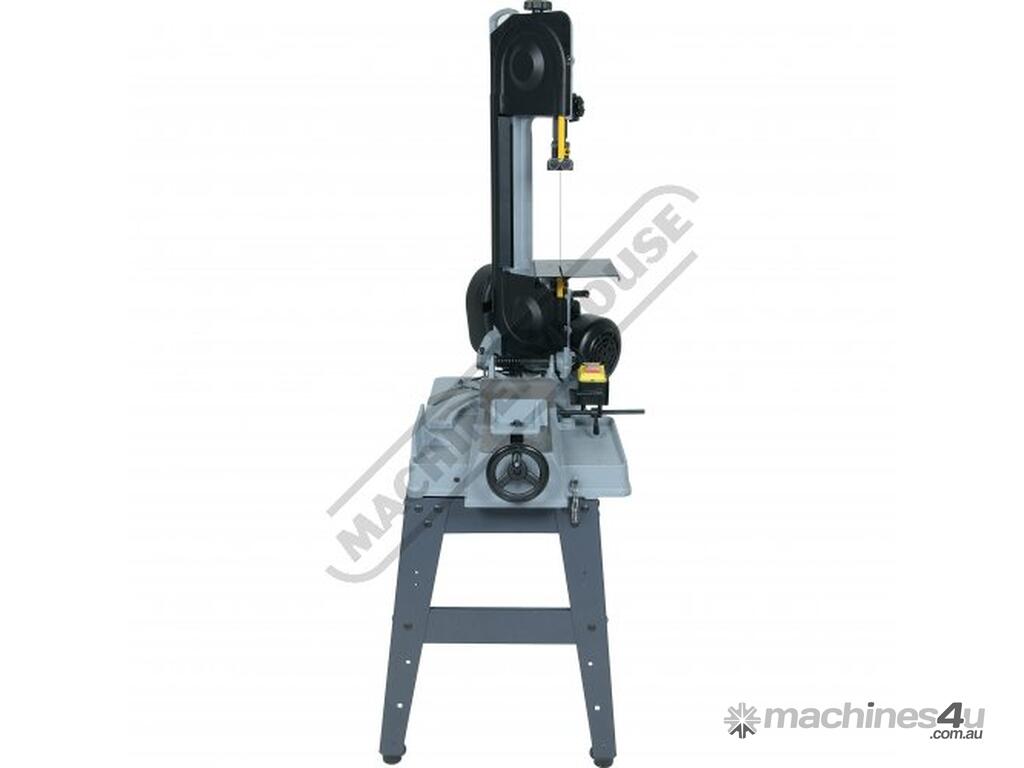

Vertical cutting table included
Sealed worm and pinion gearbox drive


Specifications:
ORDER CODE: B003
MODEL: BS-5S
Operation Type: Swivel Head
Operation Type: ~
Round 90º (mm): 110
Round 45º (mm): 80
Round 60º (mm): ~
Square 90º (mm): 110
Square 45º (mm): 75
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 180 x 110
Rectangle (W x H) 45º (mm): 110 x 72
Rectangle (W x H) 60º (mm): ~
Coolant System: ~
Table Working Height (mm): 680
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Fixed Spring Type

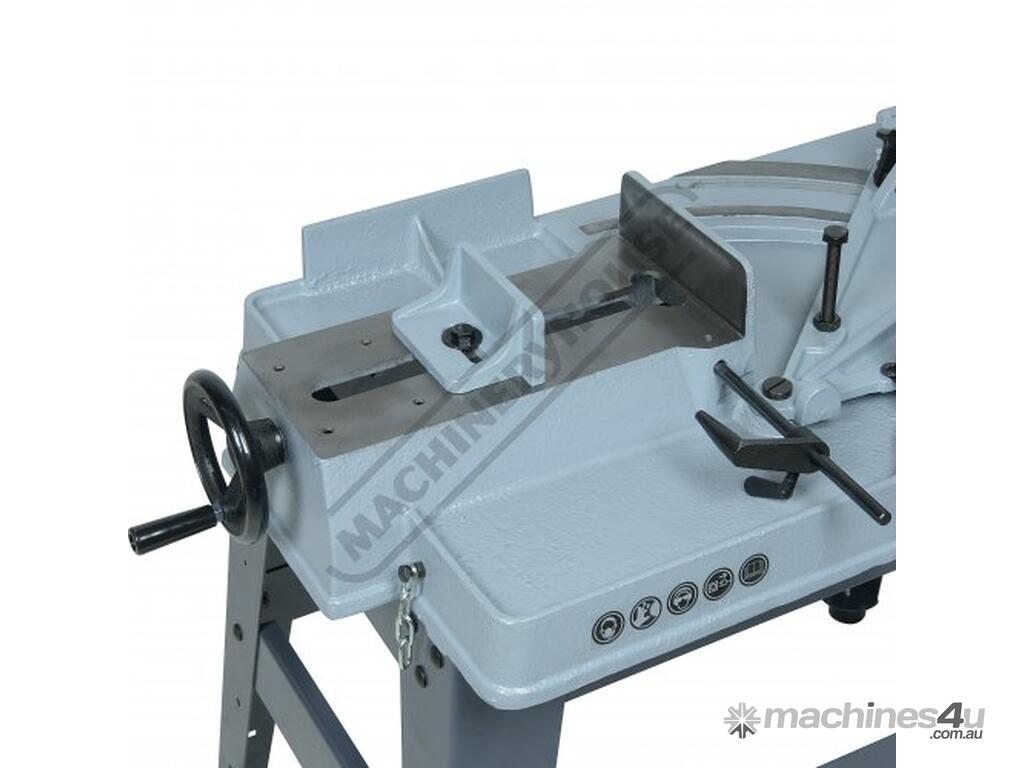

Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min):
Blade Size (L x W x T) (mm): 1727 x 12.7 x 0.65

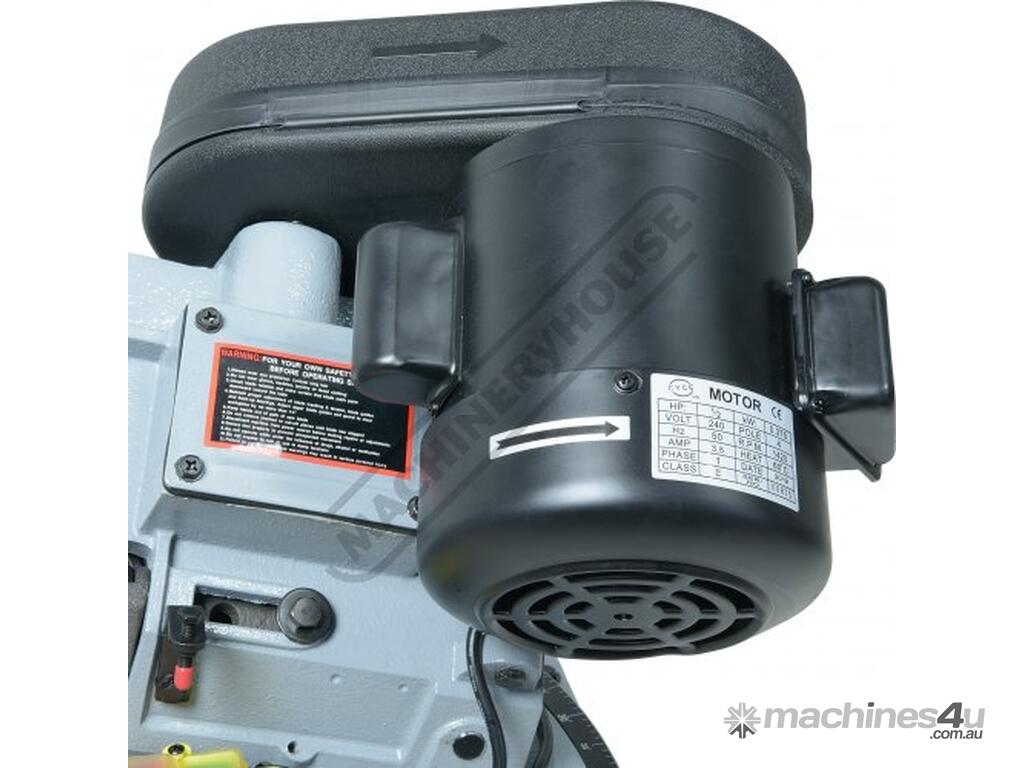

Motor Power (kW / hp): 0.375 / 0.5
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 70


To Purchase Online Please Visit The Machineryhouse & Search For 'B003'
