BS-5V Portable Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 60º, Compact Design & Only 23kg 1

HAFCO-METALMASTER BS-5V Portable Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 60º, Compact Design & Only 23kg 130 x 125mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B004

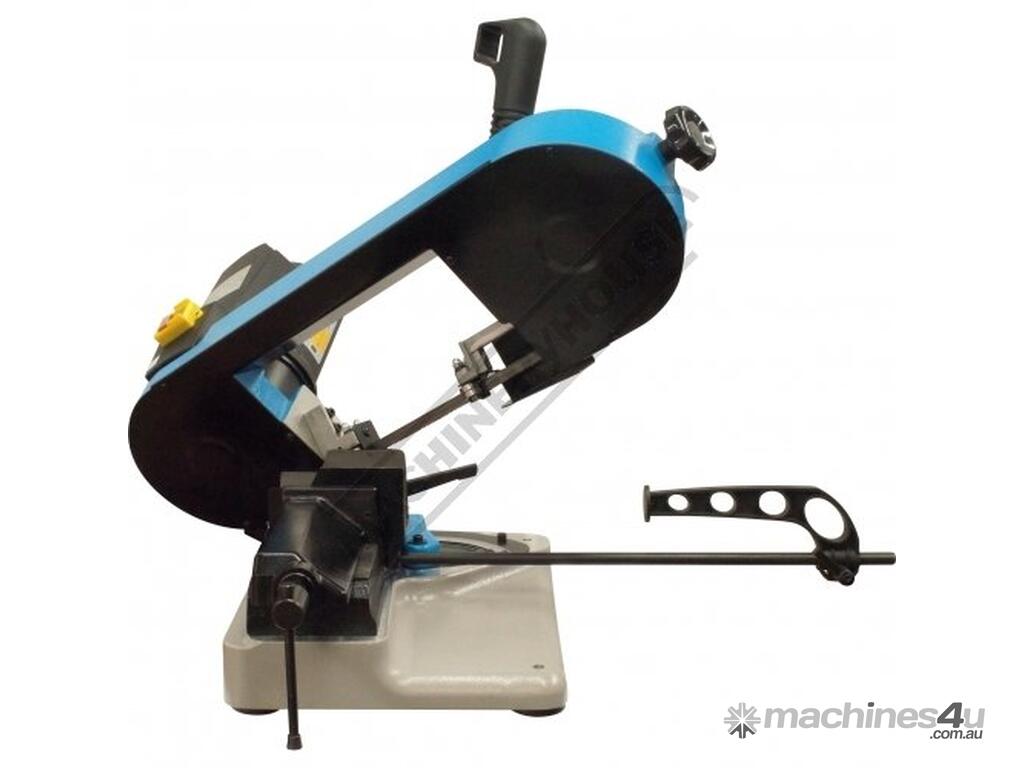

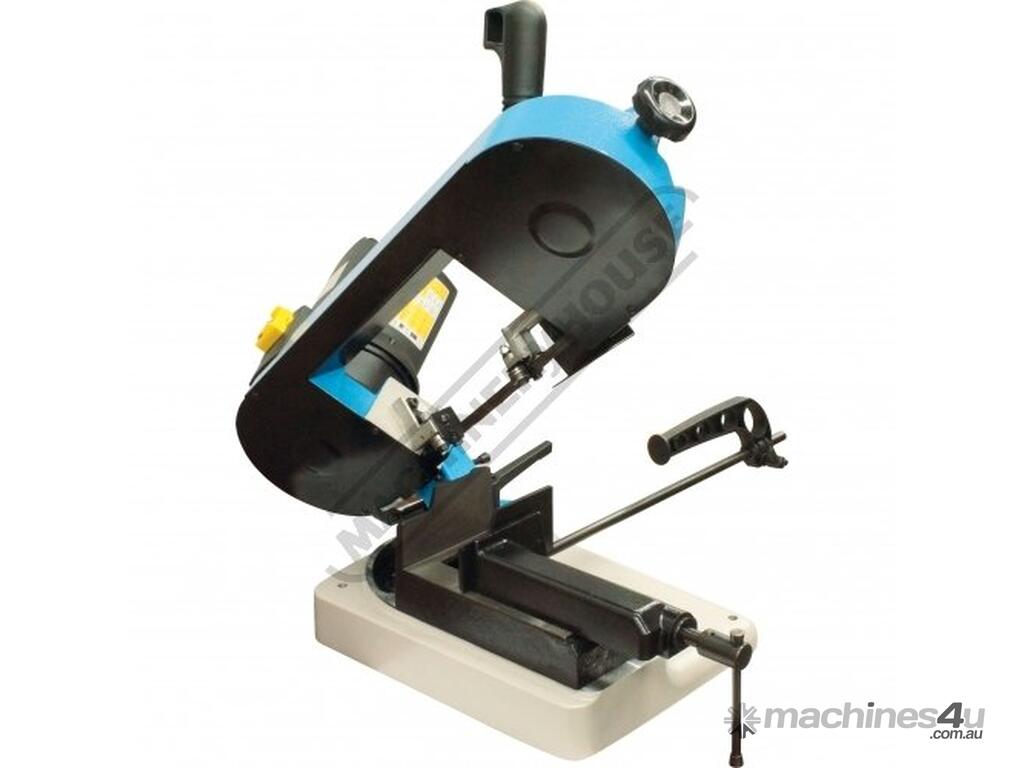

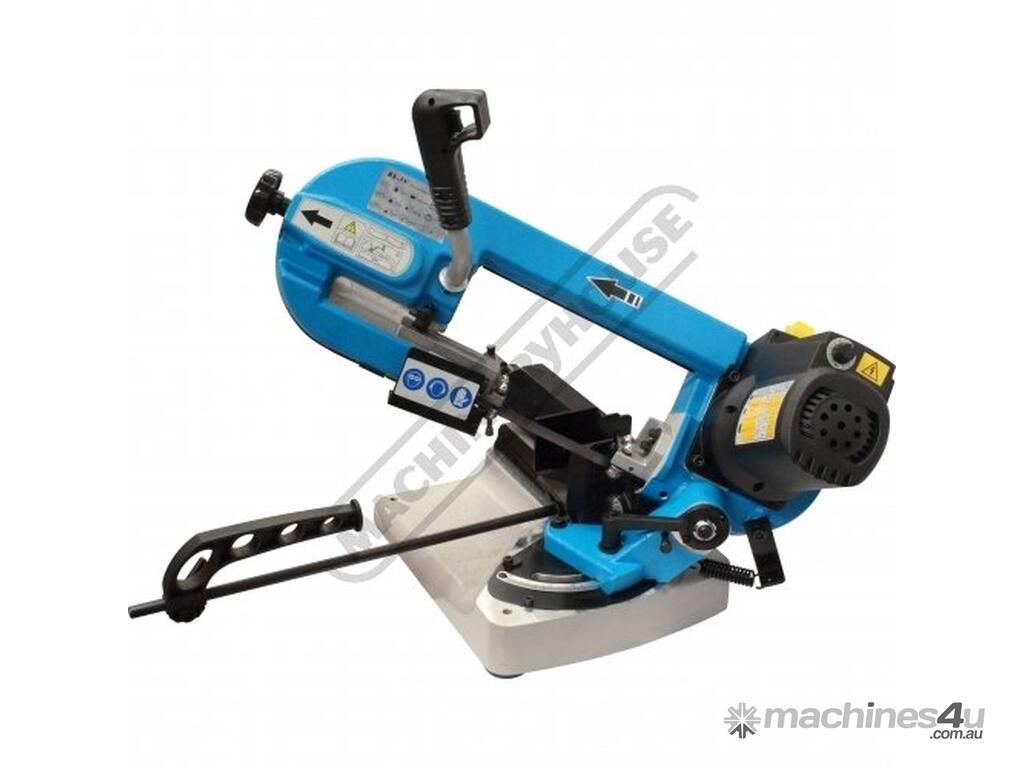

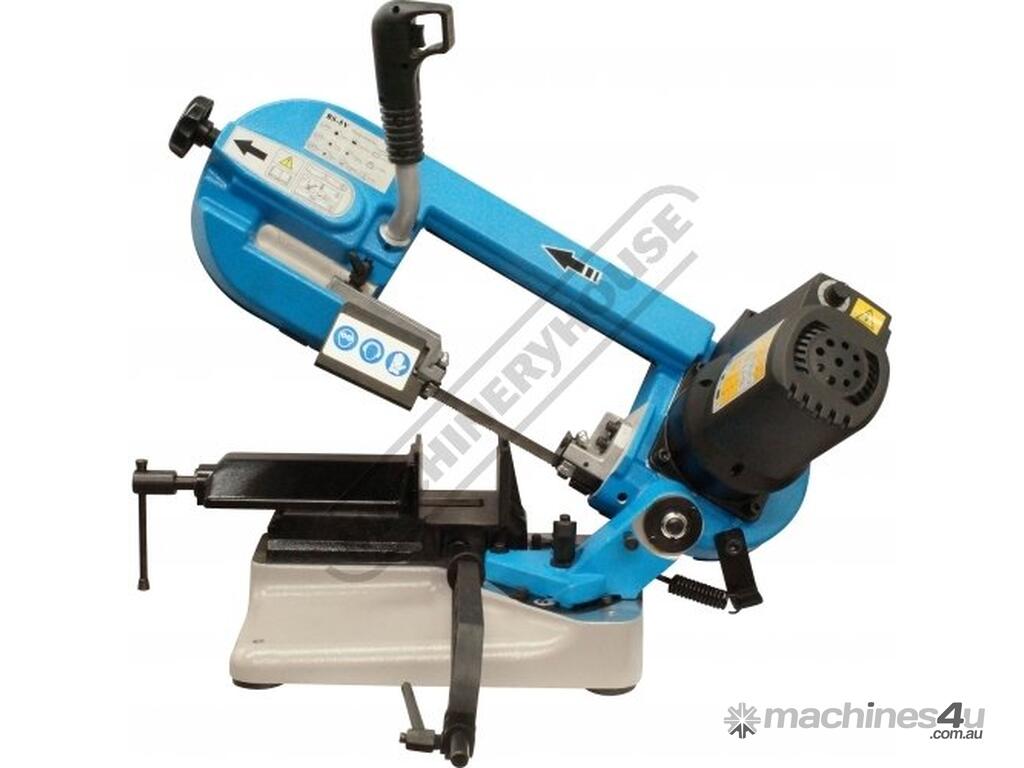

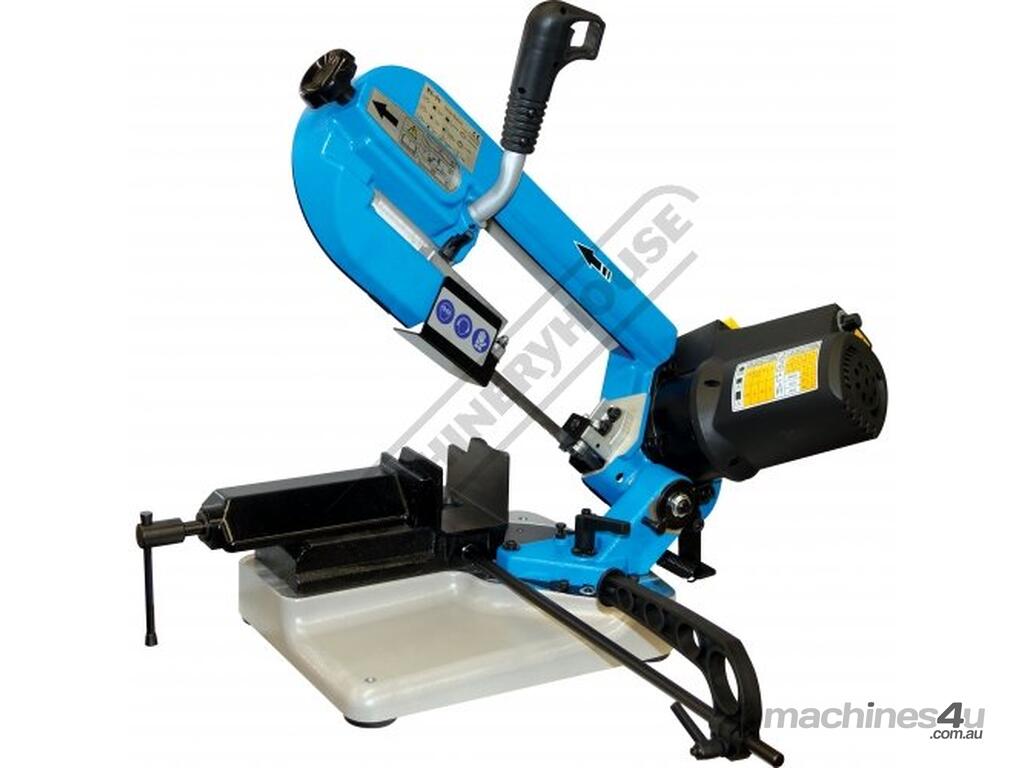

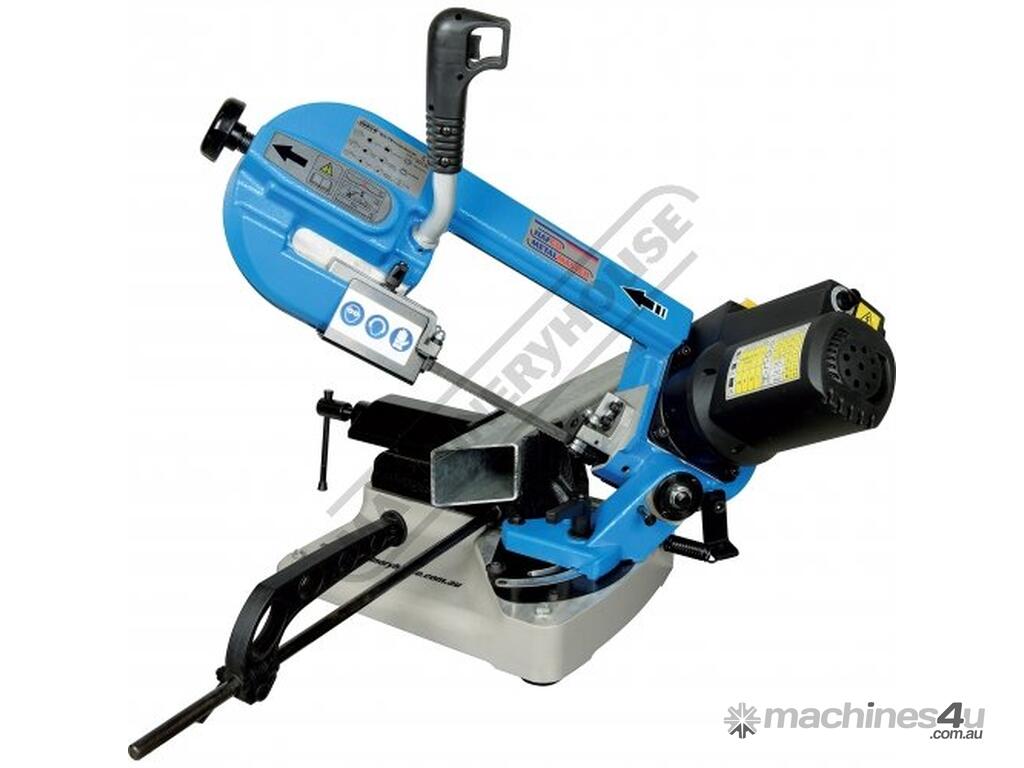

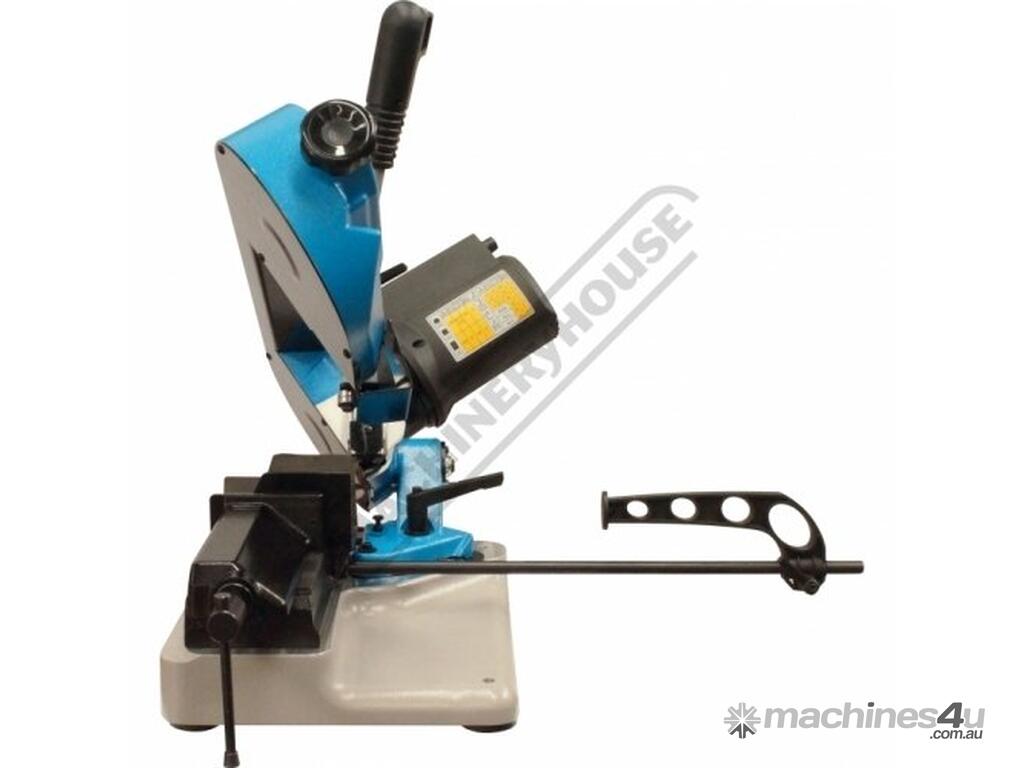

The BS-5V is the smallest portable swivel head metal cutting band saw in our range. It is very suitable for the home model engineer where space may be tight but an accurate machine is required. Constructed mainly from cast alloy and steel, it has a very rigid bow that enables a high degree of tension to be applied to the blade. The whole bow and motor assembly can be swivelled from 0° to 60° to create accurate mitre cuts.

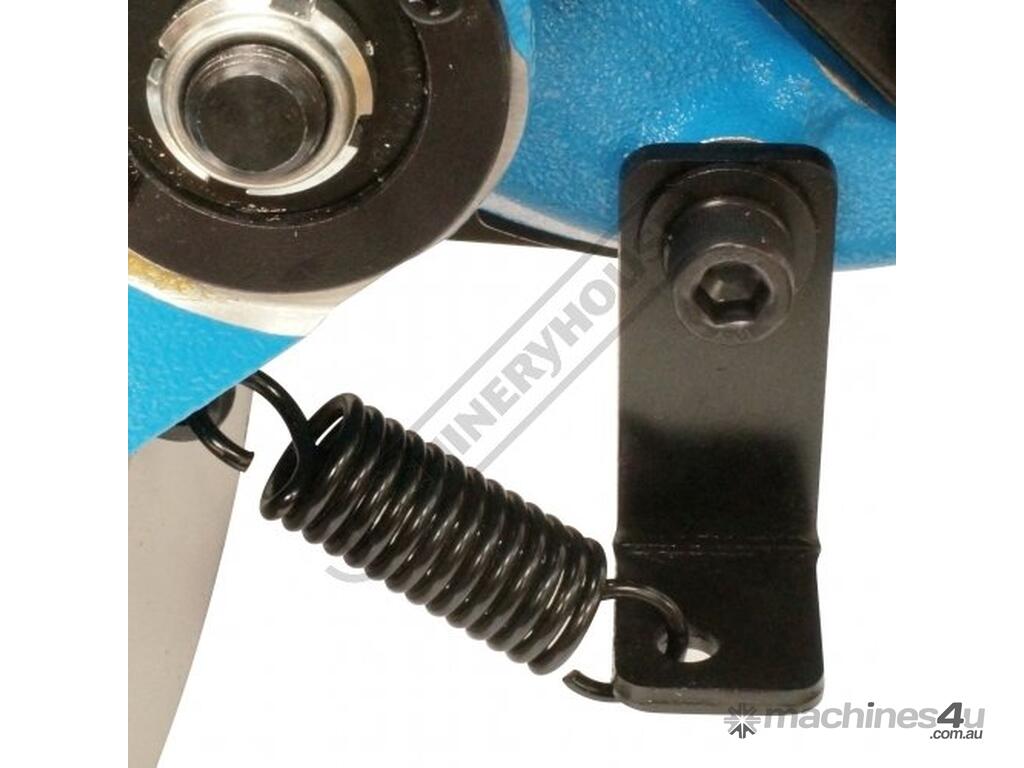

The blade is firmly guided by double ball bearing and is driven via the direct drive motor fitted with variable speed, so the blade speed can be adjusted to suit the task in hand. The conveniently located hand trigger switch on the bow and a spring system supports the weight of the bow during operation. This is a compact and very well made machine and it can be relied on to deliver an accurate cut every time.

Features:
Compact & portable design for the smaller workshop where space is at a premium

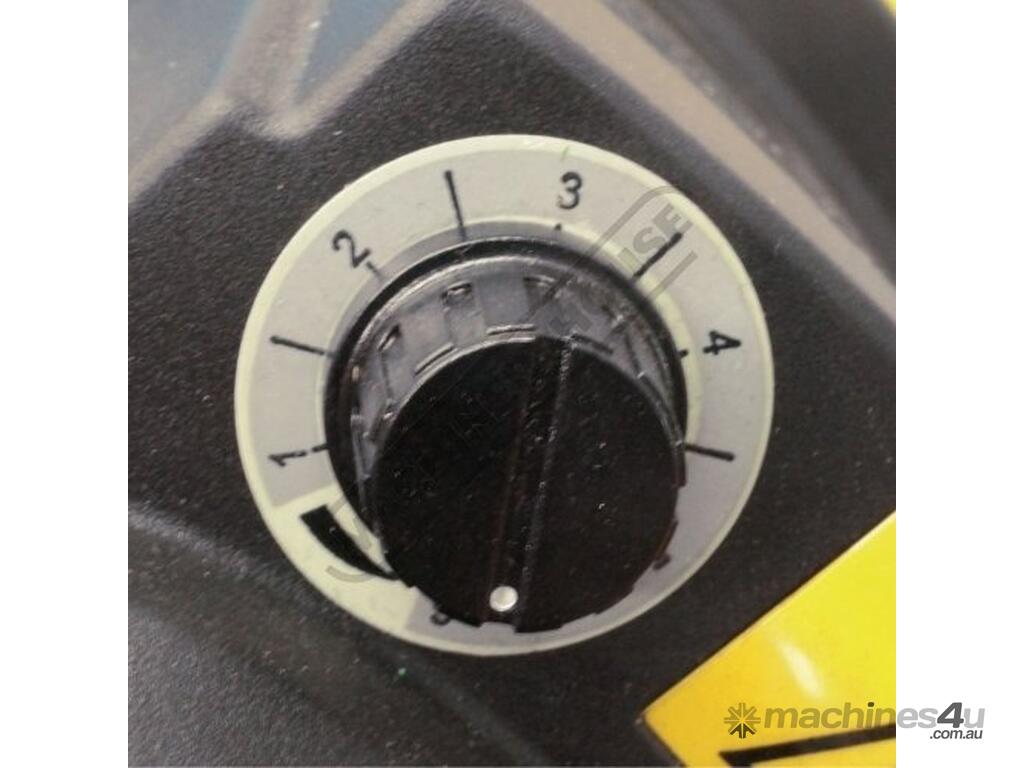

Electronic variable blade speed 30-80mpm

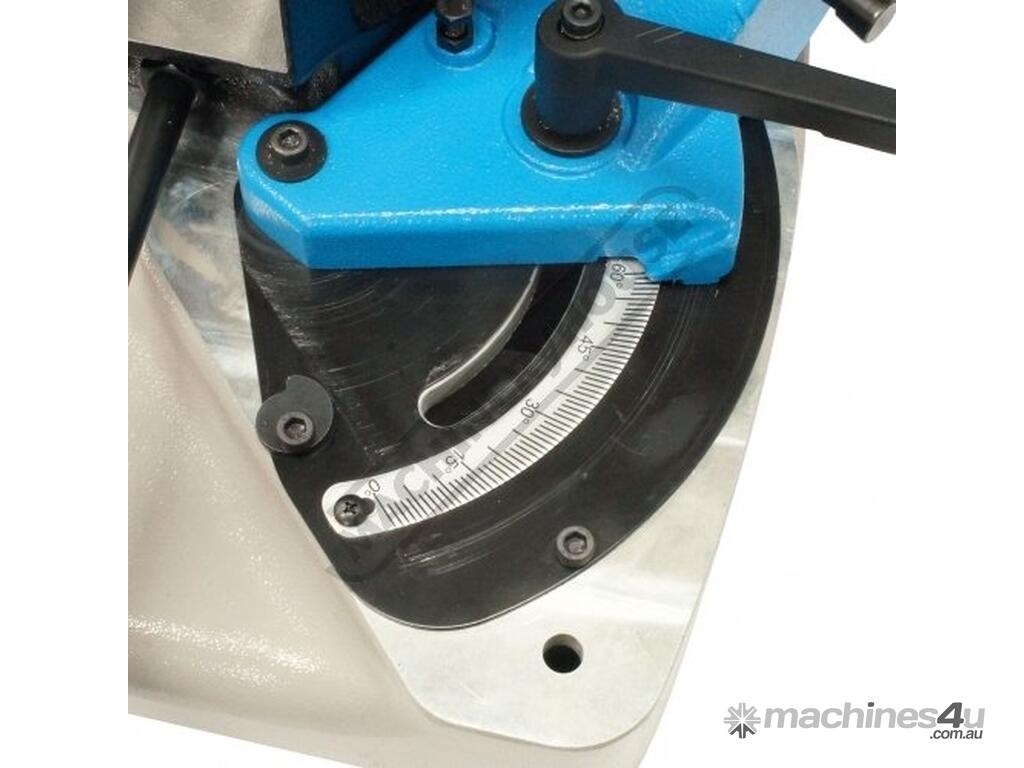

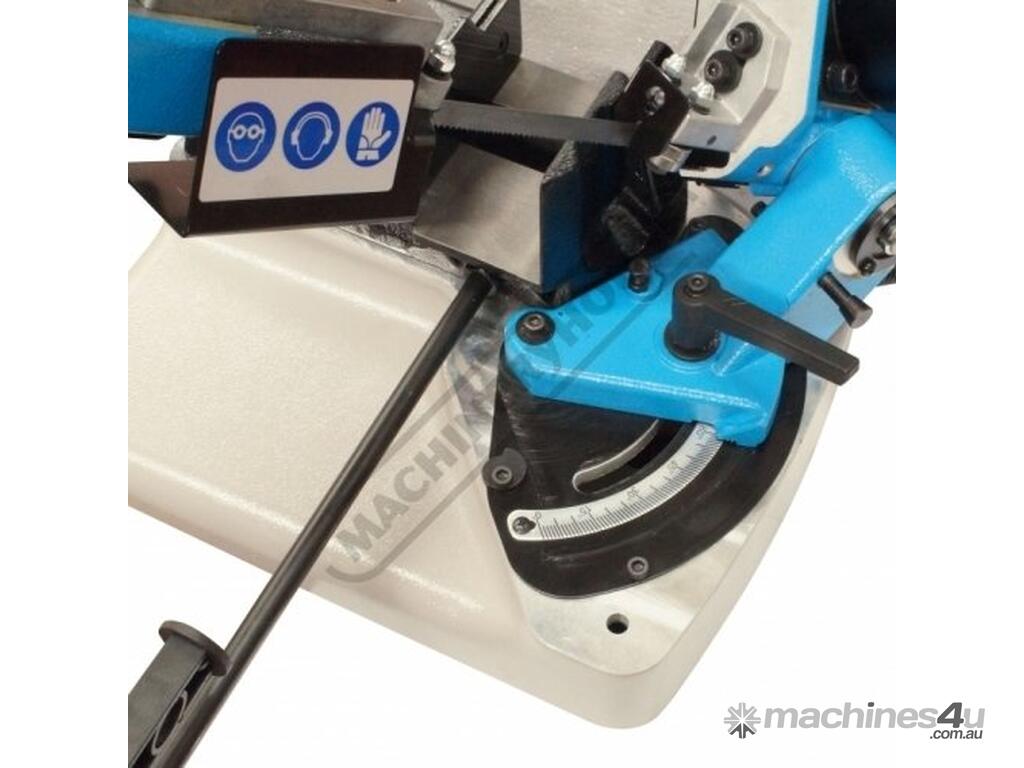

Swivel head to 60º using calibrated scale

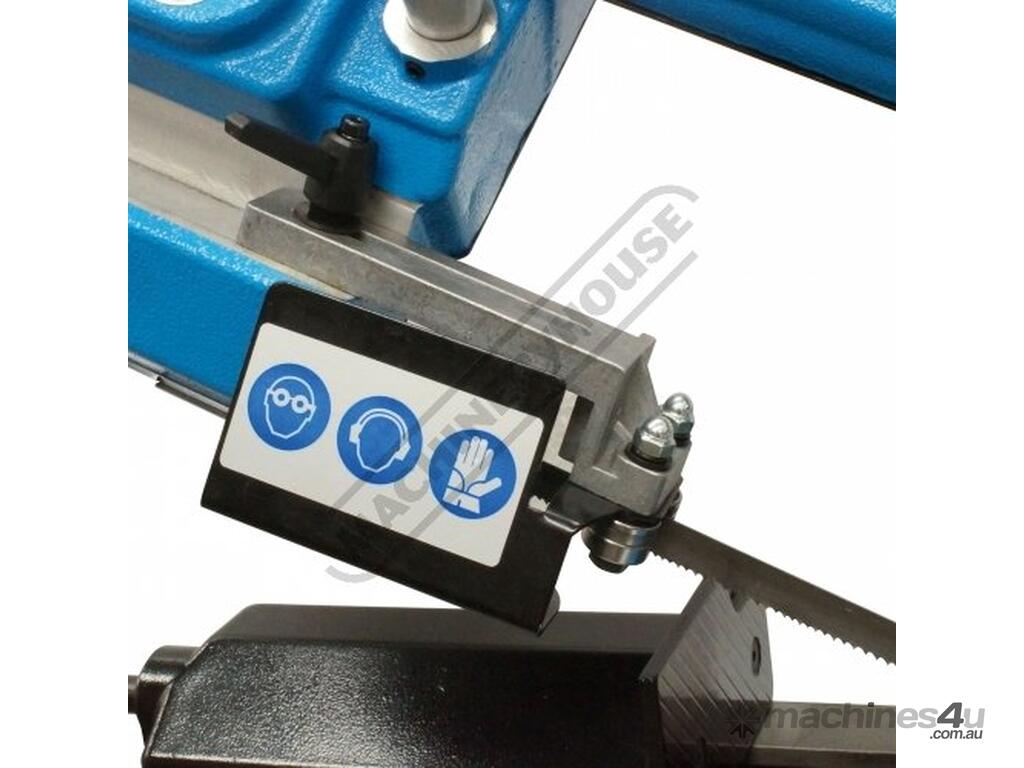

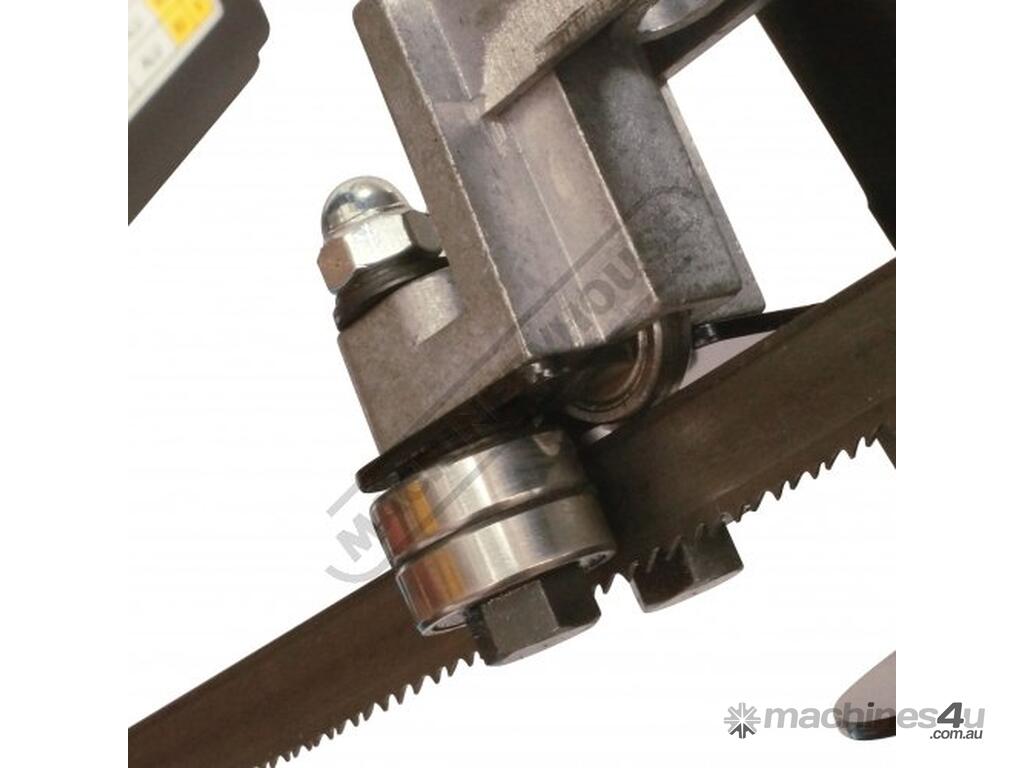

Adjustable double ball bearing blade guides
Cast aluminium base & saw bow frame

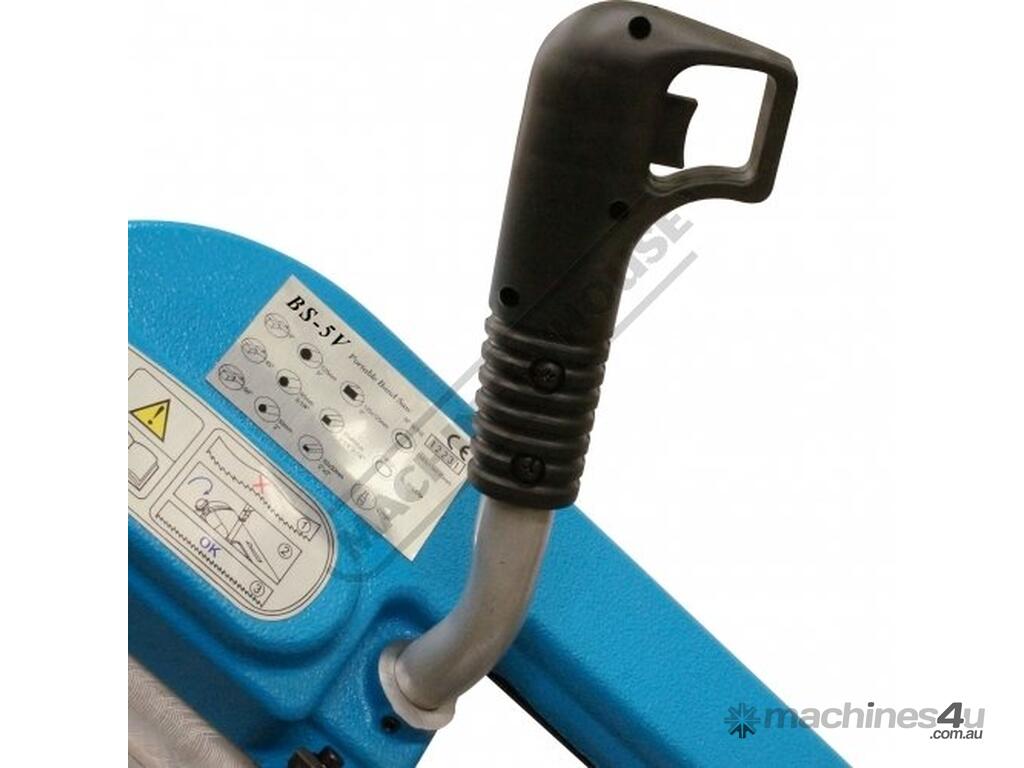

Operational handle with start trigger switch

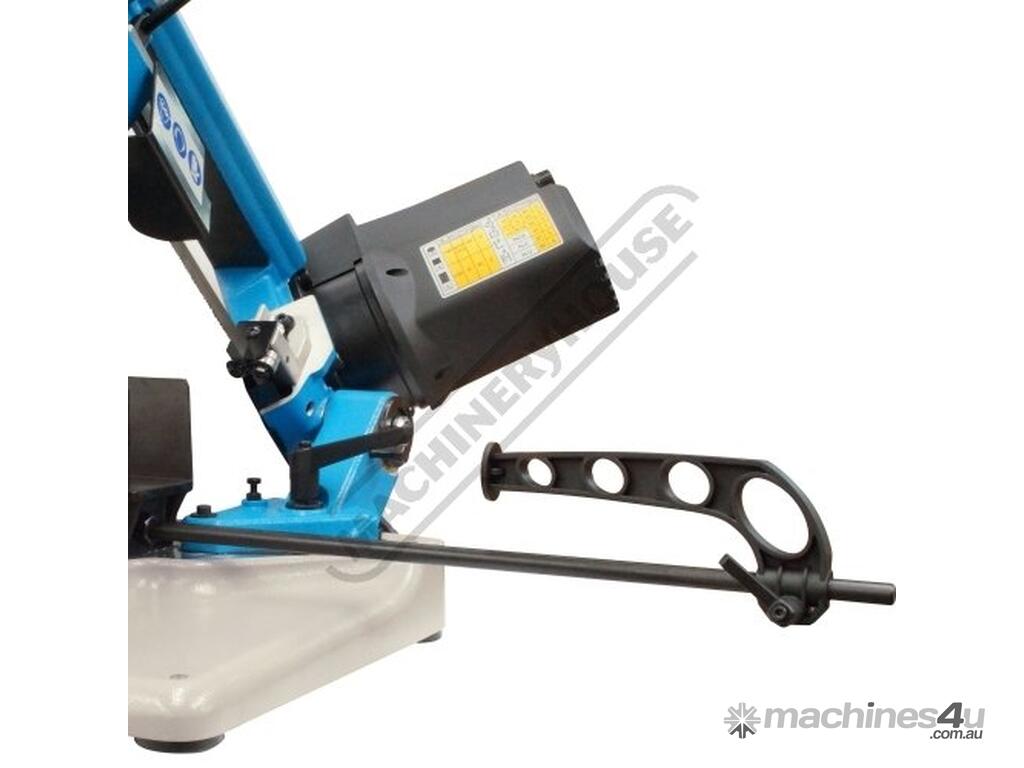

Adjustable length stop for repetition cutting
Quiet running direct drive variable speed motor

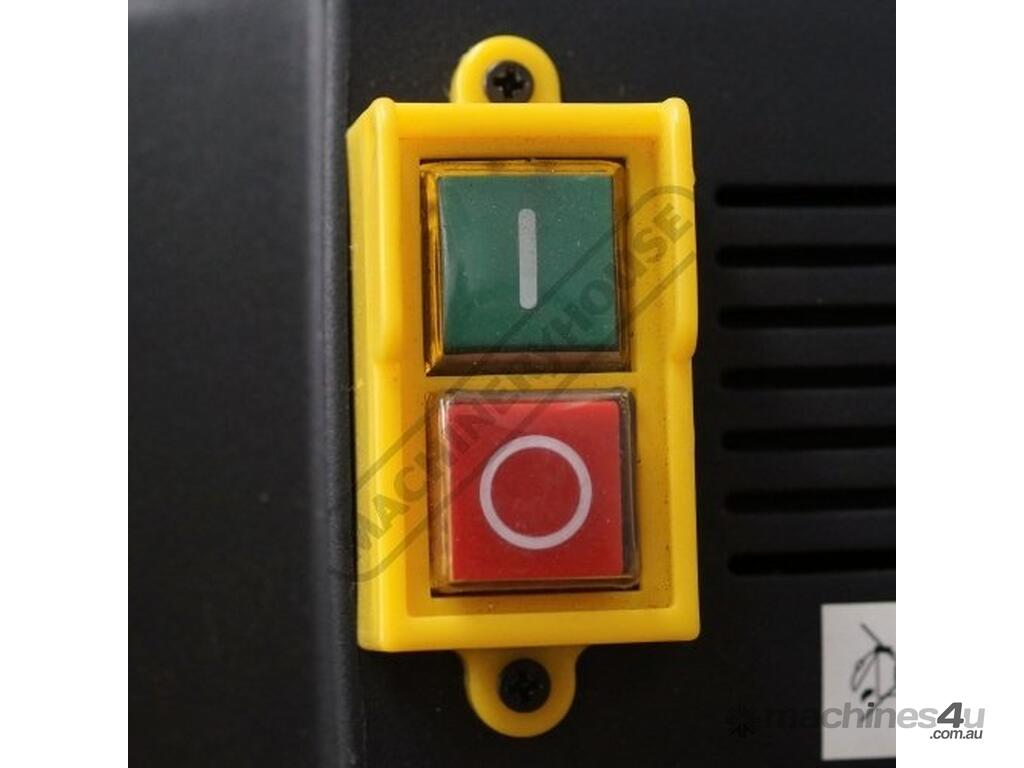

Safety magnetic main power switch
1kW / 1.3hp 240V motor

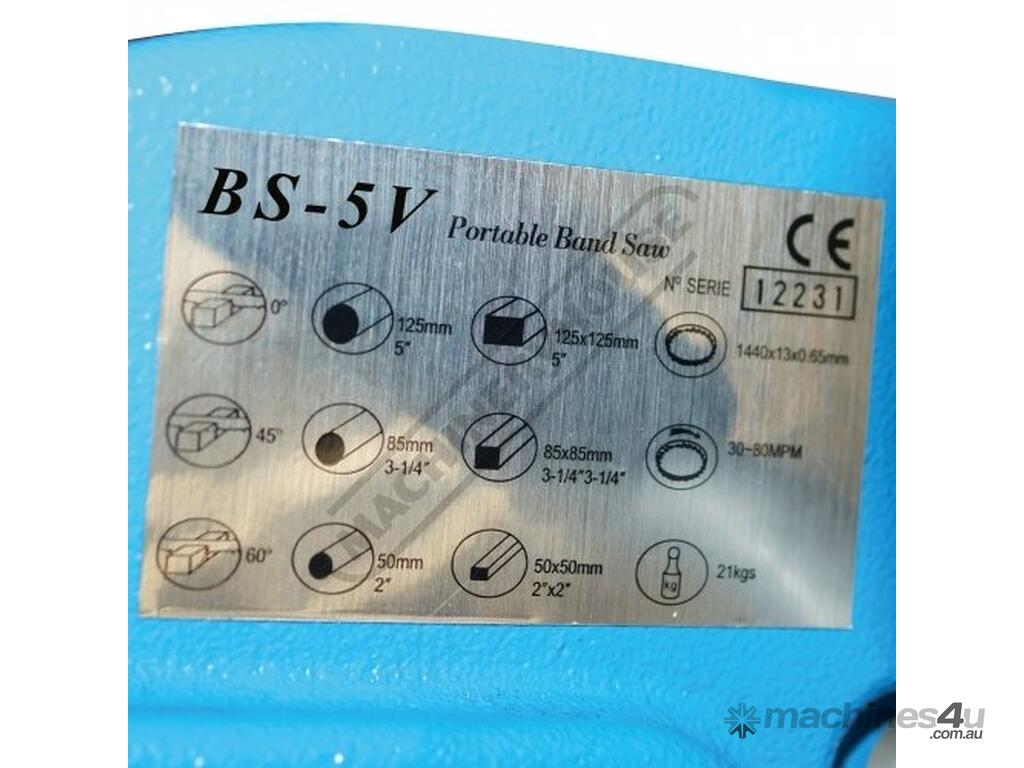

Specifications:
ORDER CODE: B004
MODEL: BS-5V
Operation Type: Swivel Head
Operation Type: ~
Round 90º (mm): 125
Round 45º (mm): 80
Round 60º (mm): 50
Square 90º (mm): 125
Square 45º (mm): 80
Square 60º (mm): 50
Rectangle (W x H) 90º (mm): 130 x 125
Rectangle (W x H) 45º (mm): 80 x 80
Rectangle (W x H) 60º (mm): 50 x 50
Coolant System: ~
Table Working Height (mm): 110
Cutting Head Beam Type: Manual Return
Cutting Head Beam Return: Spring Assist Return
Cutting Head Down Feed Control: Manual

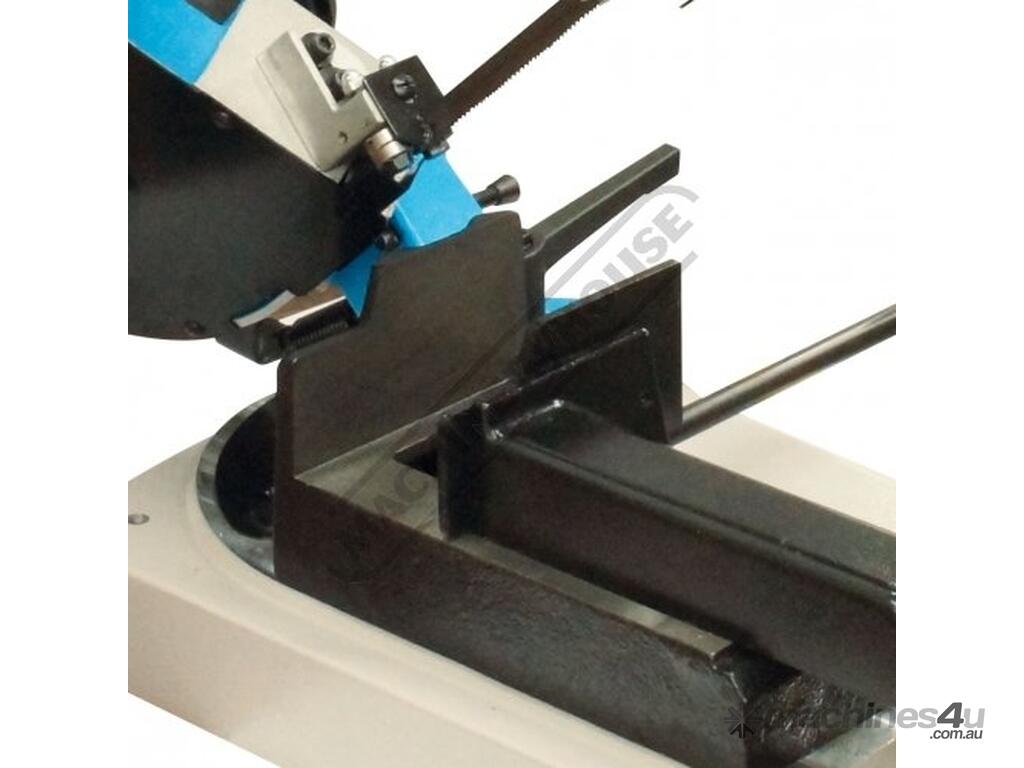

Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 30-80
Blade Size (L x W x T) (mm): 1440 x 12.7 x 0.65
Motor Power (kW / hp): 1 / 1.3
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 23
