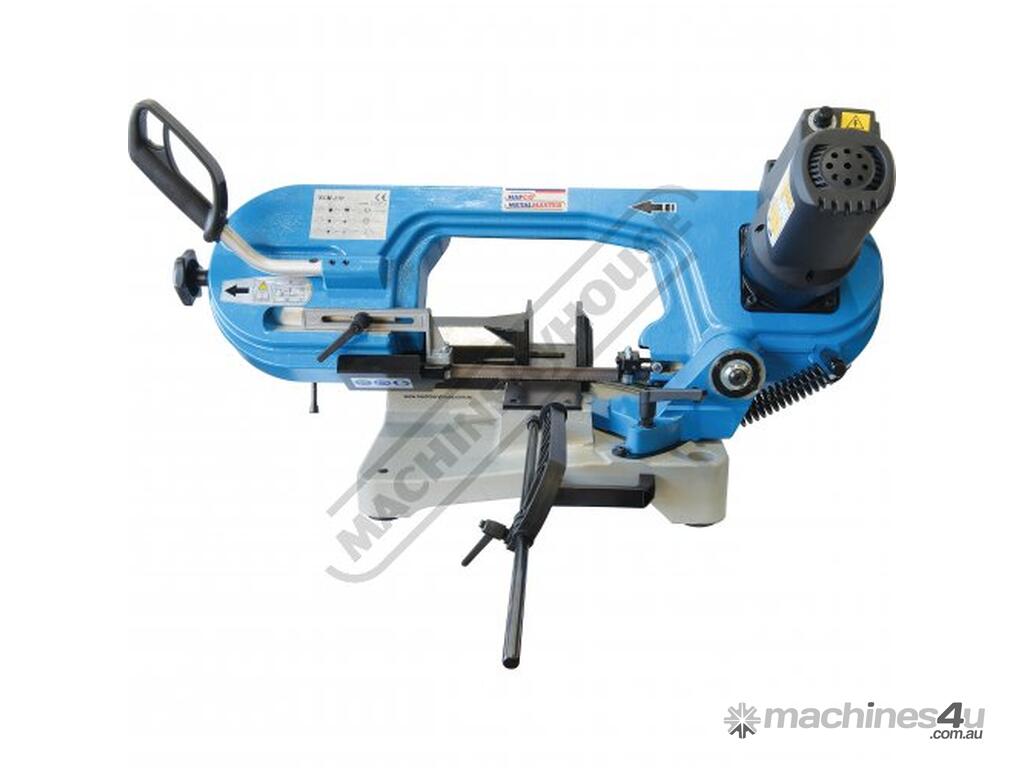

BS-6V Portable Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 60º, Accepts 19mm Wide Blades, Co

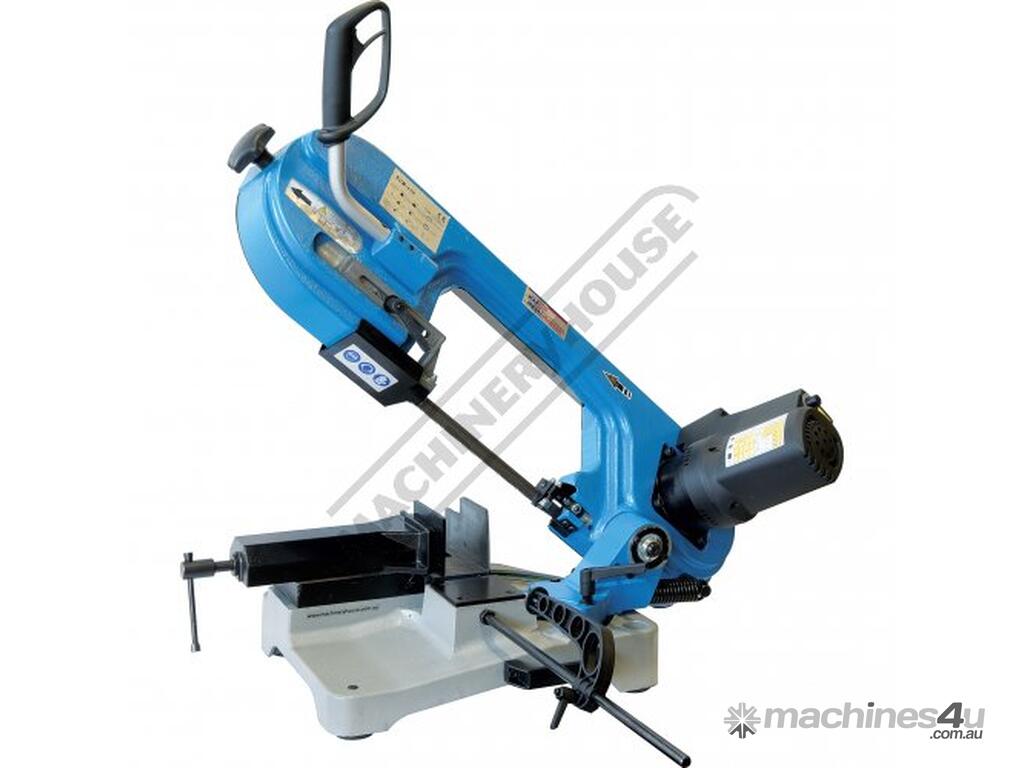

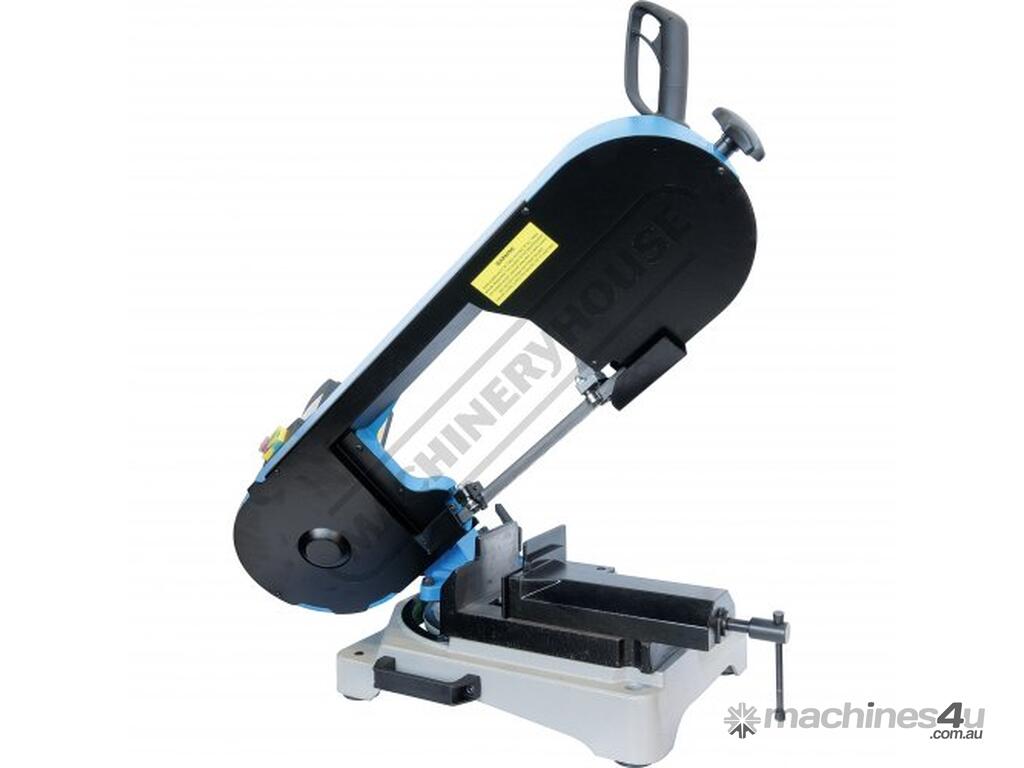

HAFCO-METALMASTER BS-6V Portable Swivel Head Metal Cutting Band Saw Mitre Cuts Up To 60º, Accepts 19mm Wide Blades, Compact Design & Only 38kg 170 x 170mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B005

The BS-6V swivel head metal cutting band saw is the bigger brother from the BS-5V family and only 38kg it is still easily portable onto job sites. It is very suitable for the home model engineer where space may be tight but an accurate machine is required. Constructed mainly from cast alloy and steel, it has a very rigid bow that enables a high degree of tension to be applied to the blade and accepts a 19mm wide blade for durable & accurate cutting. The whole bow and motor assembly can be swivelled from 0° to 60° to create accurate mitre cuts.

The blade is firmly guided by double ball bearing and is driven via the direct drive motor fitted with variable speed, so the blade speed can be adjusted to suit the task in hand. The conveniently located hand trigger switch on the bow and a spring system supports the weight of the bow during operation. This is a compact and very well made machine and it can be relied on to deliver an accurate cut every time.

Features:
Compact & portable design for the smaller workshop where space is at a premium
19mm wide variable pitch M42 bi-metal blade for increased accuracy & durability

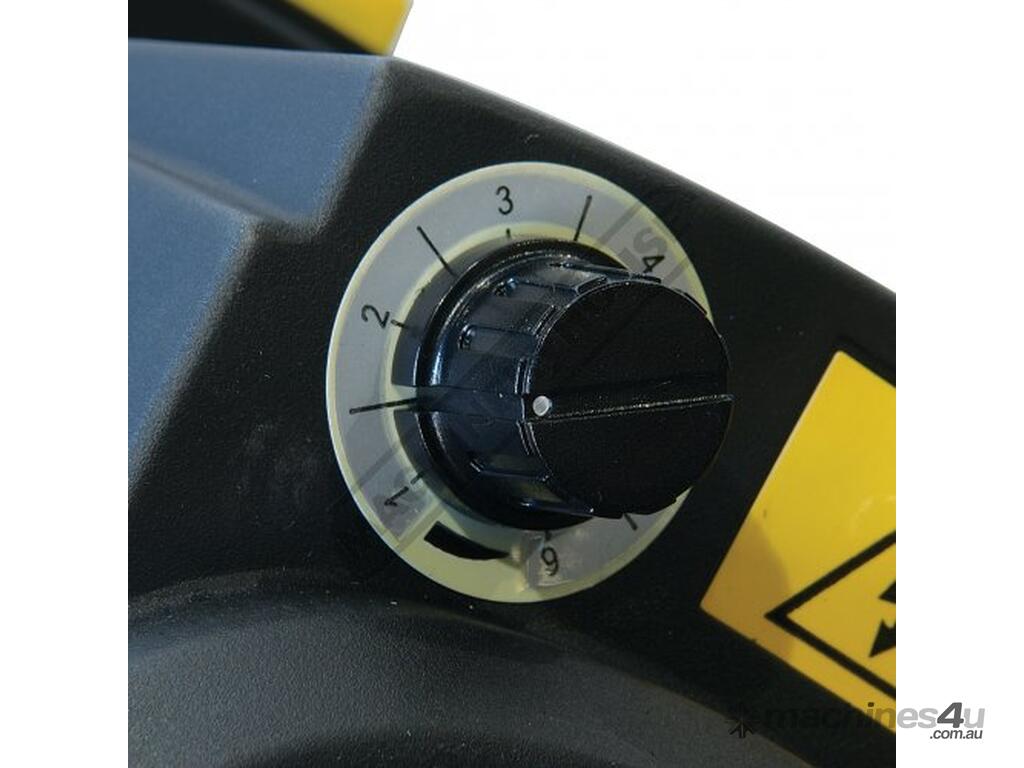

Electronic variable blade speed 30-80mpm

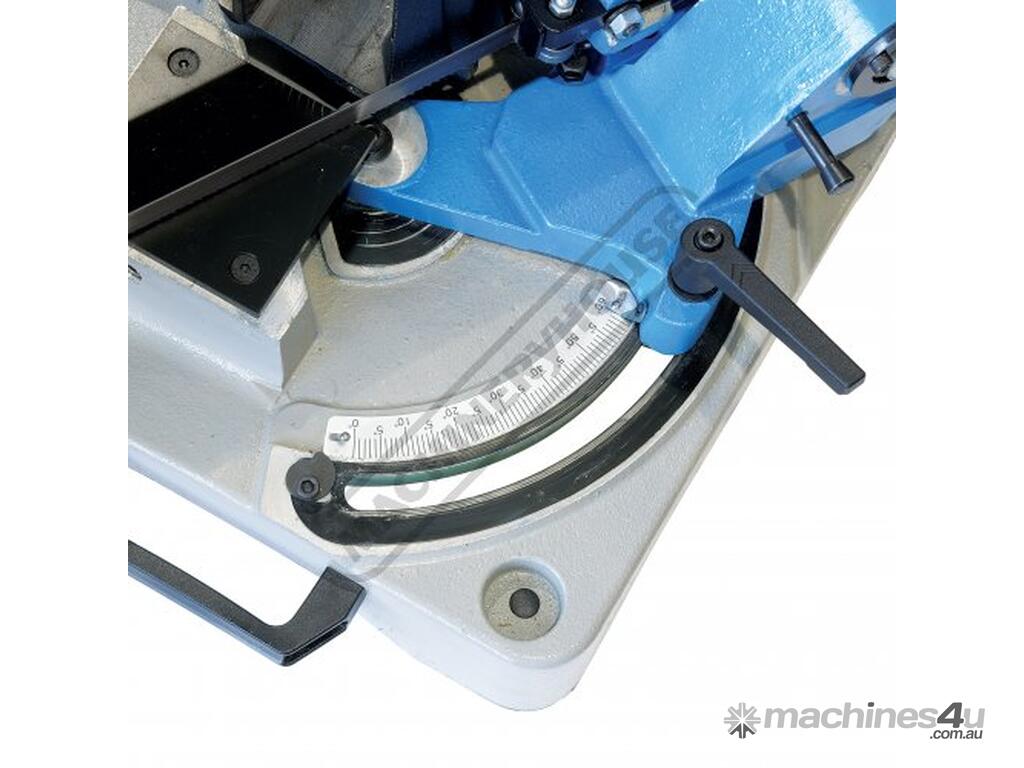

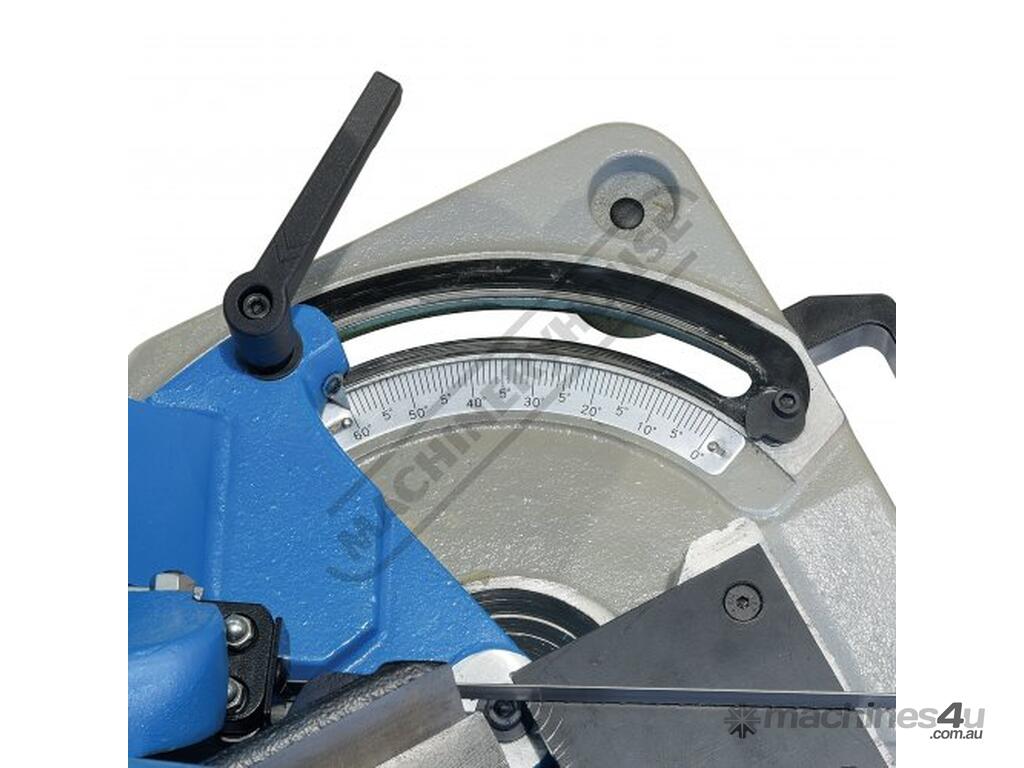

Swivel head to 60º using calibrated scale

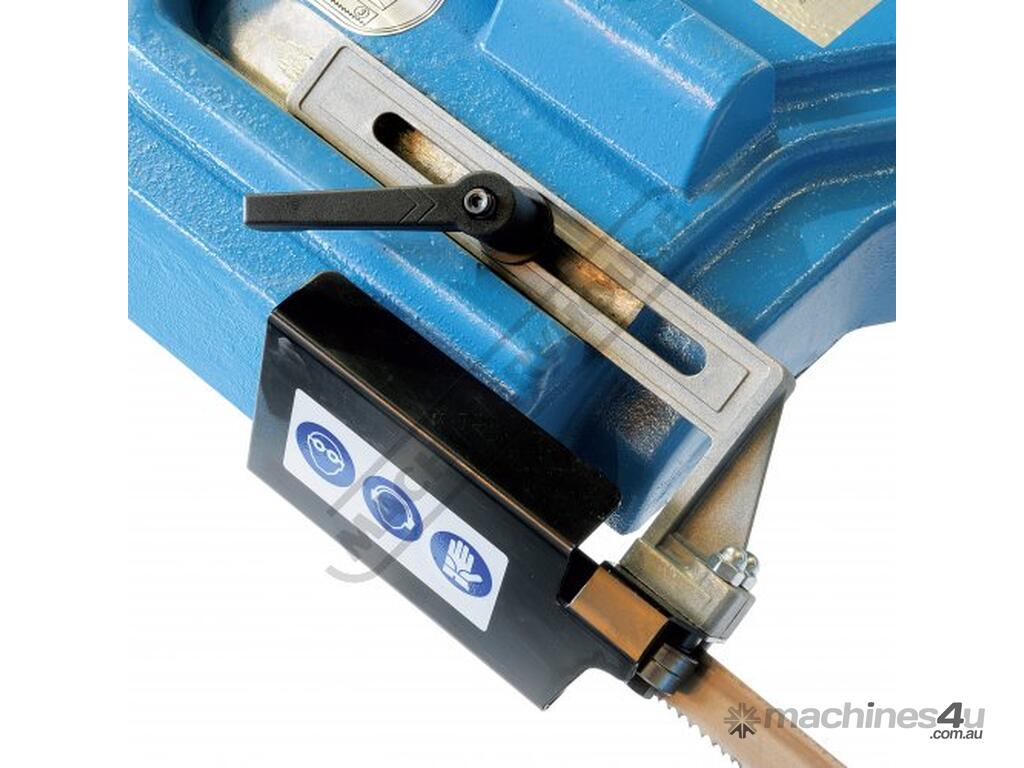

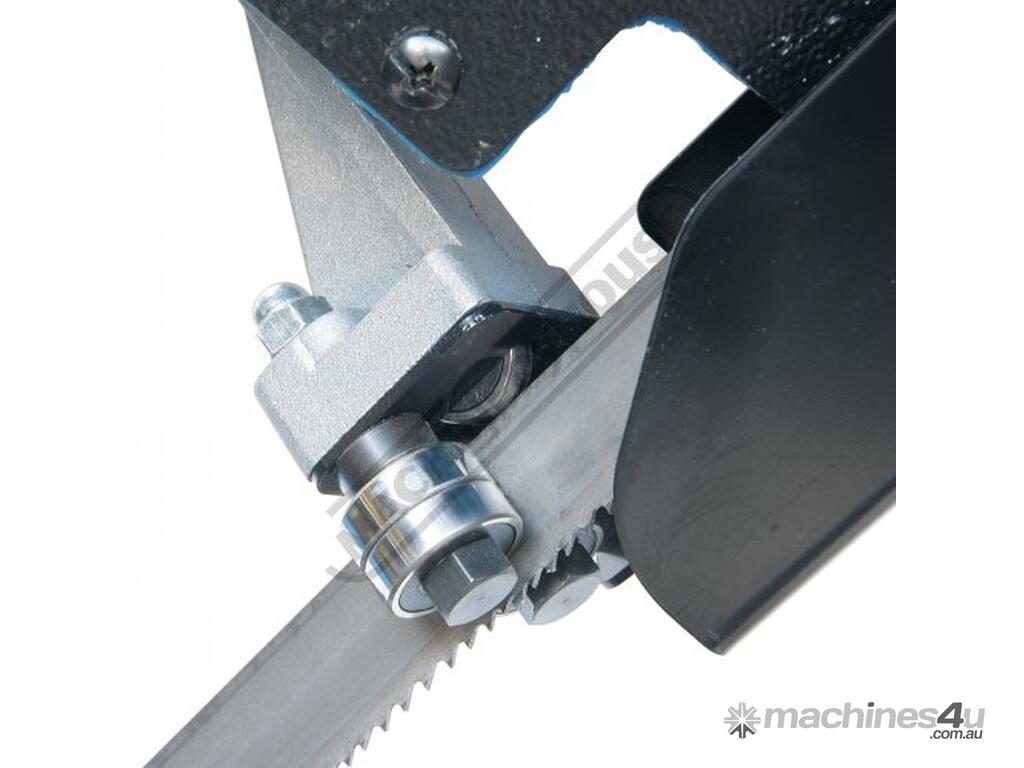

Adjustable double ball bearing blade guides

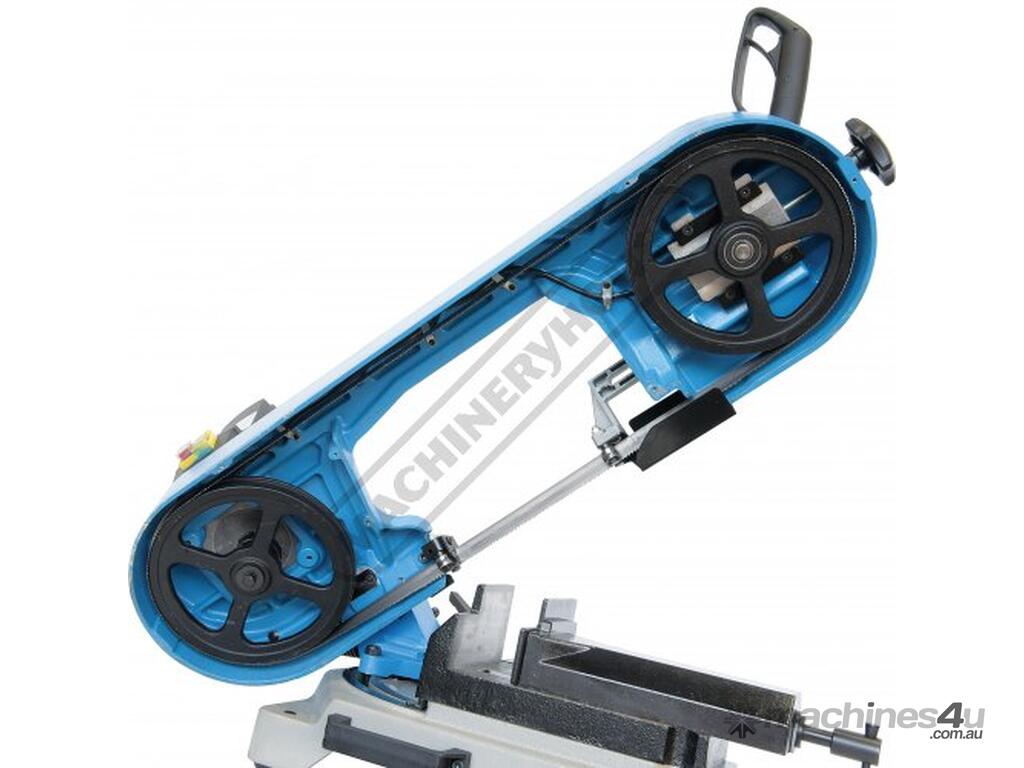

Cast aluminium base & saw bow frame
Quiet running direct drive variable speed motor

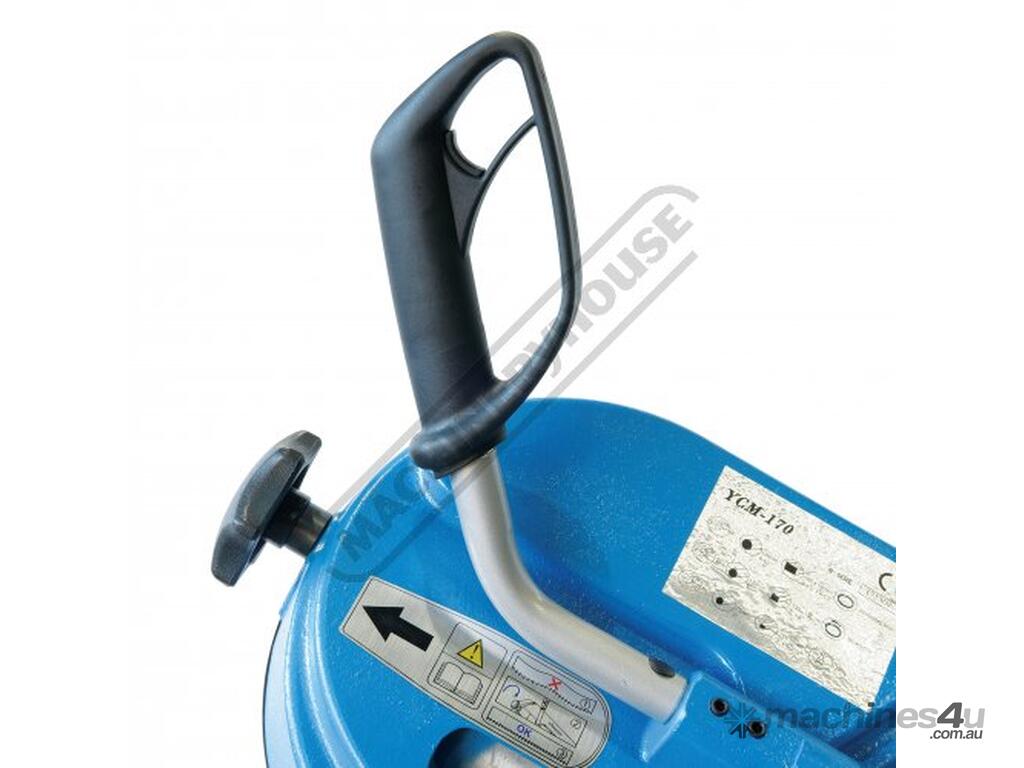

Operational handle with start trigger switch
Adjustable length stop for repetition cutting

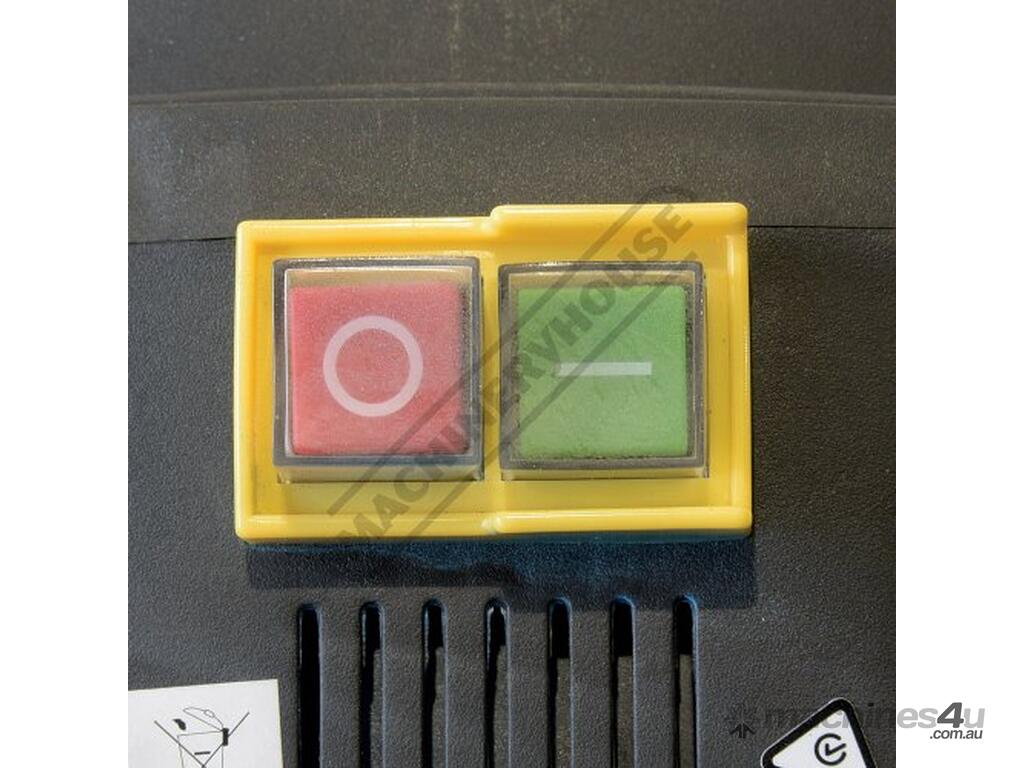

Safety magnetic main power switch
1.65kW / 2.2hp 240V motor


Specifications:
ORDER CODE: B005
MODEL: BS-6V
Operation Type: Swivel Head
Operation Type: ~
Round 90º (mm): 170
Round 45º (mm): 125
Round 60º (mm): 75
Square 90º (mm): 170
Square 45º (mm): 125
Square 60º (mm): 70
Rectangle (W x H) 90º (mm): 170 x 170
Rectangle (W x H) 45º (mm): 125 x 125
Rectangle (W x H) 60º (mm): 75 x 70
Coolant System: ~
Table Working Height (mm): 137
Cutting Head Beam Type: Manual Return
Cutting Head Beam Return: Spring Assist Return
Cutting Head Down Feed Control: Manual
Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 30-80
Blade Size (L x W x T) (mm): 2035 x 19 x 0.8
Motor Power (kW / hp): 1.65 / 2.2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 38
