BS-916A Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Inc

HAFCO-METALMASTER BS-916A Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 350 x 228mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B015

Manufactured in Taiwan

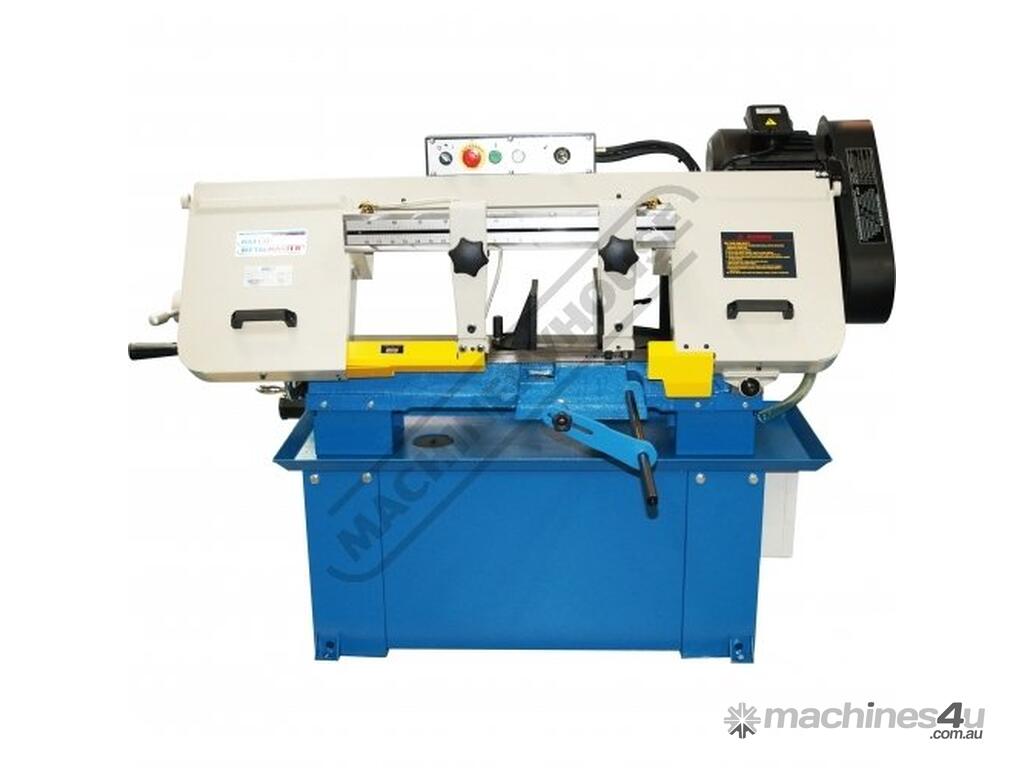

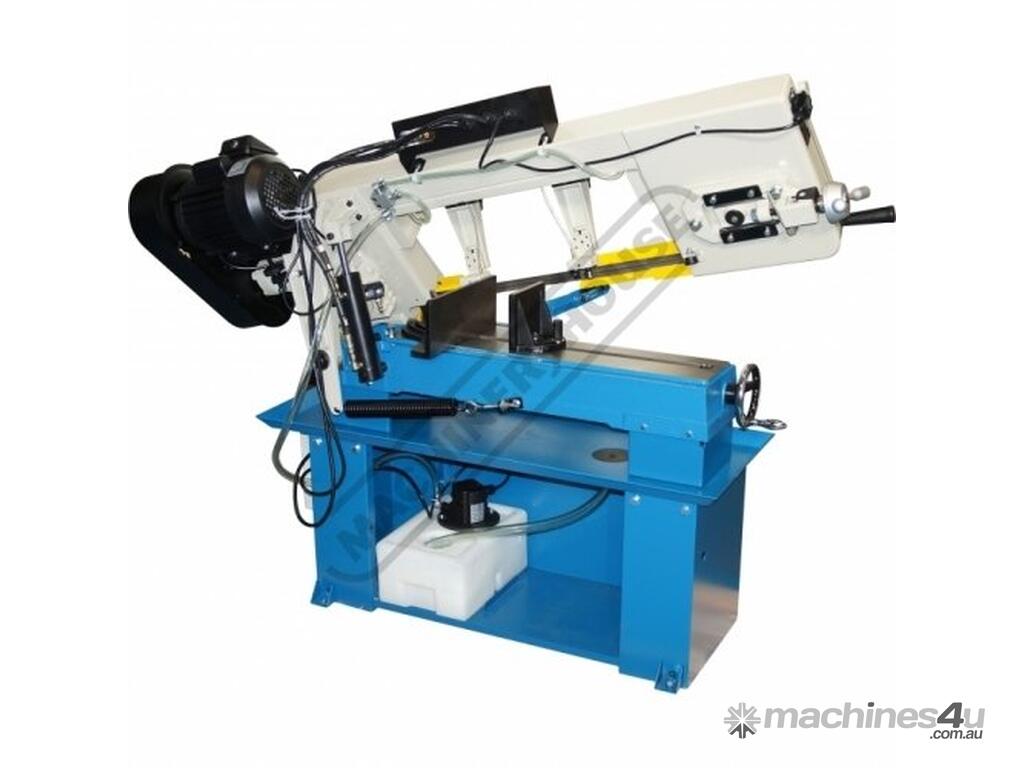

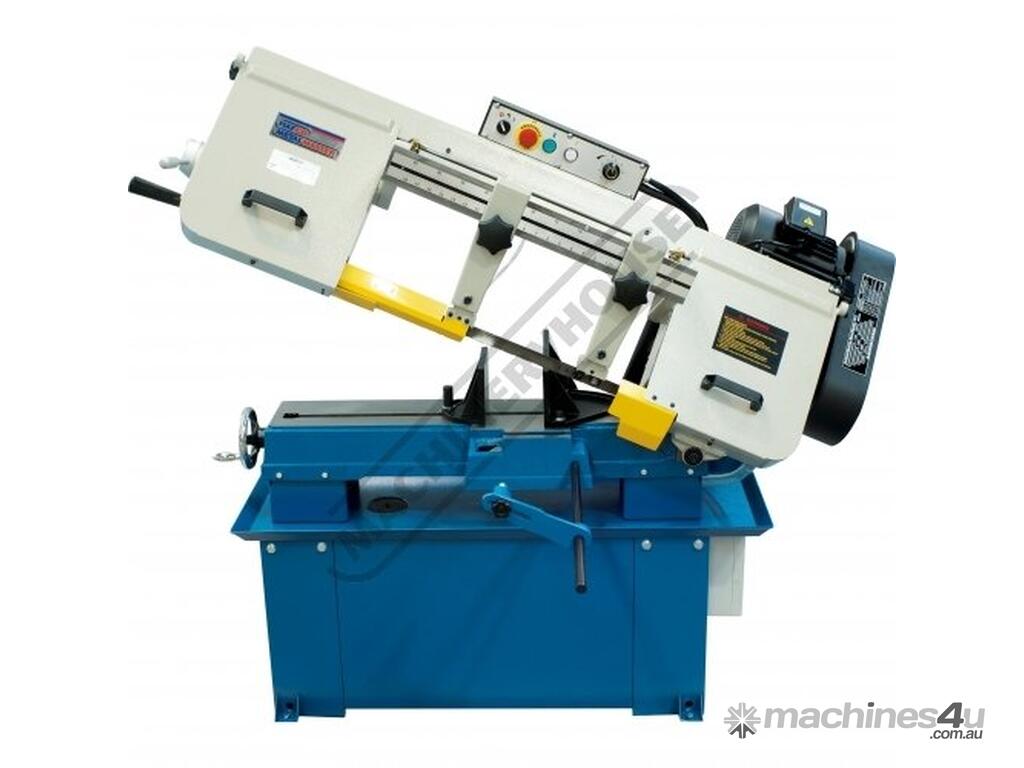

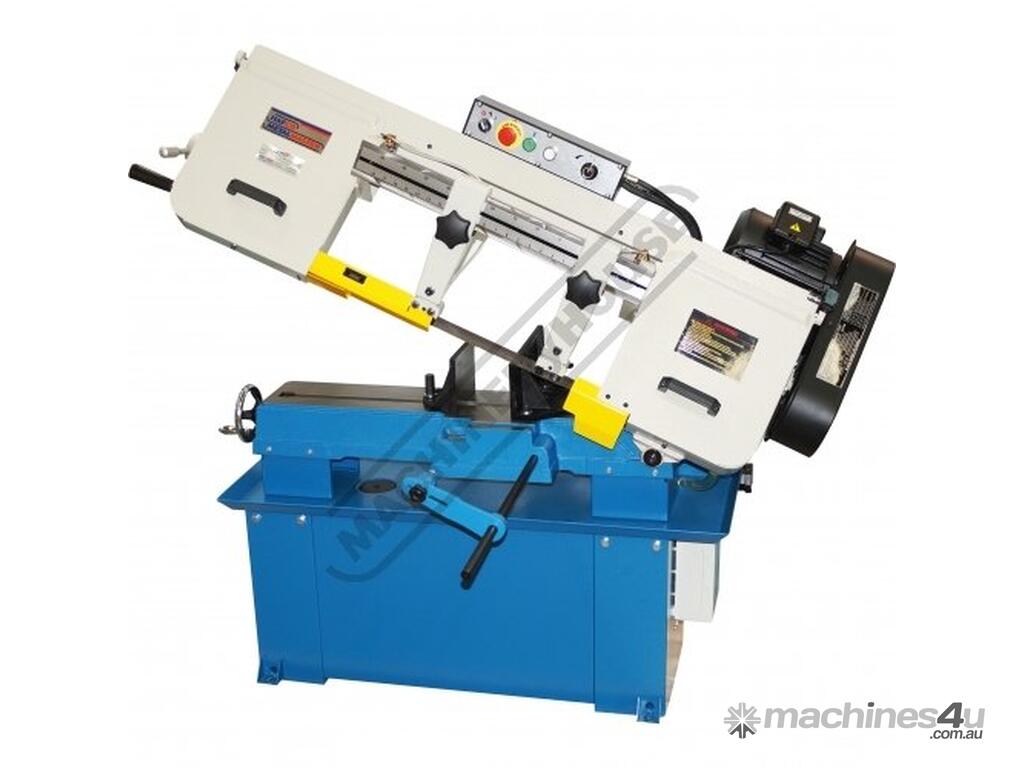

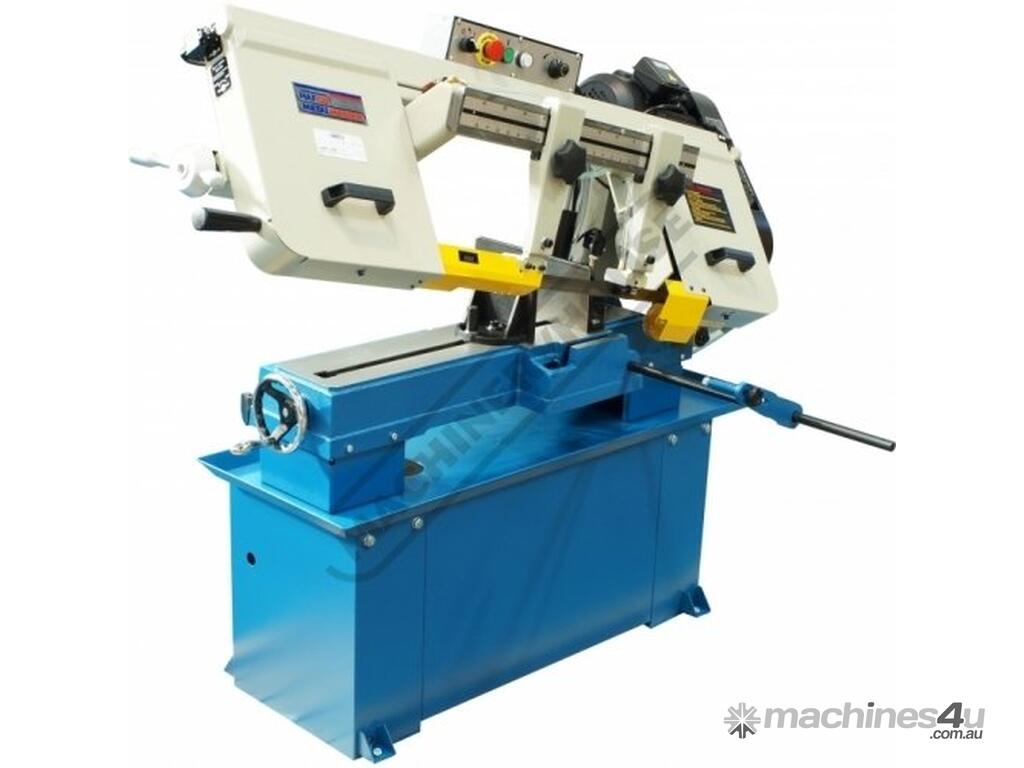

The BS-916A is a largest 240 volt band saw suitable for the medium/heavy fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system, quick action sliding vice and greatly increased cutting capacity

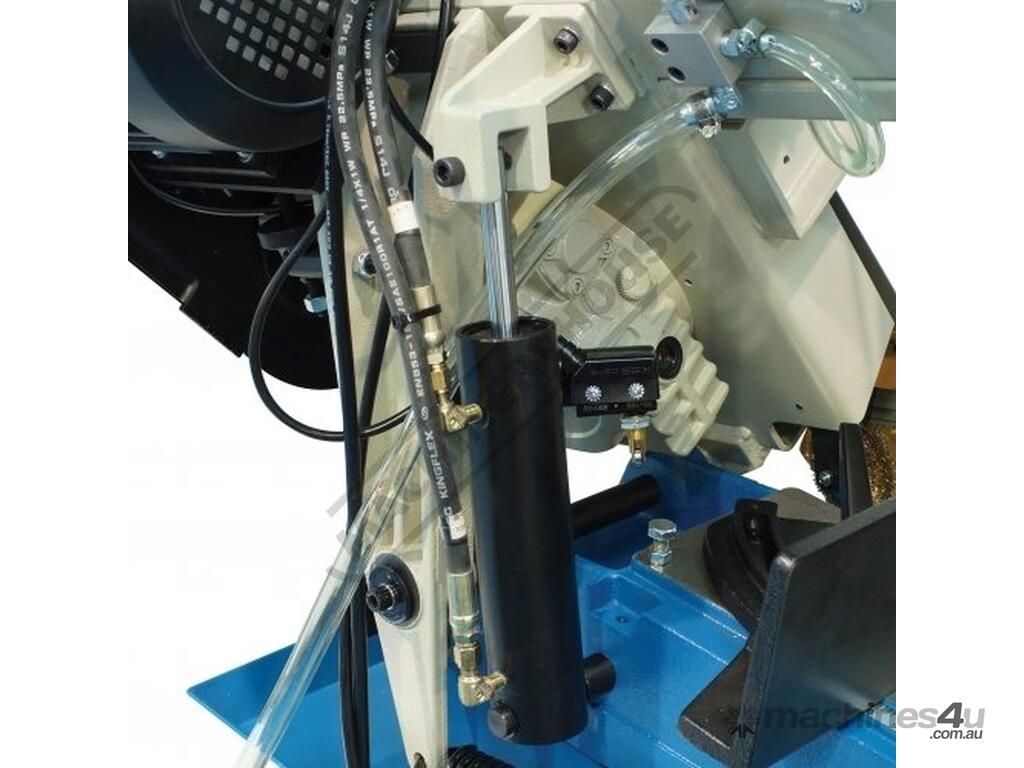

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.

Features:
350 x 228mm (W x H) rectangular capacity
Adjustable hydraulic feed cutting rate for multiple applications

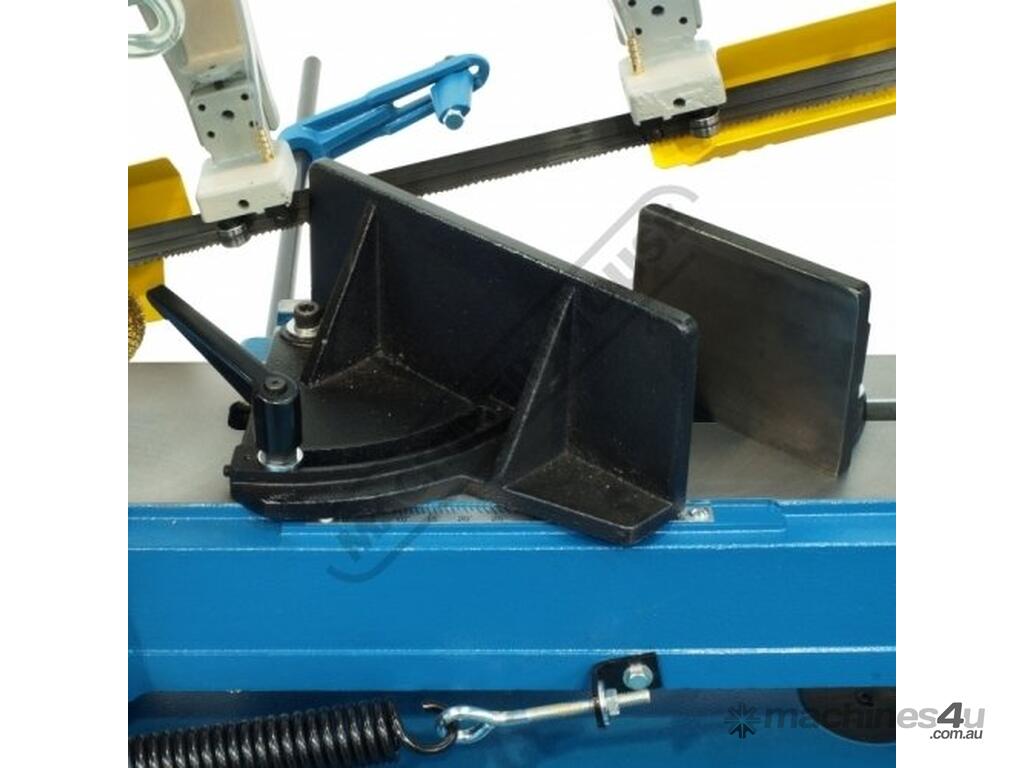

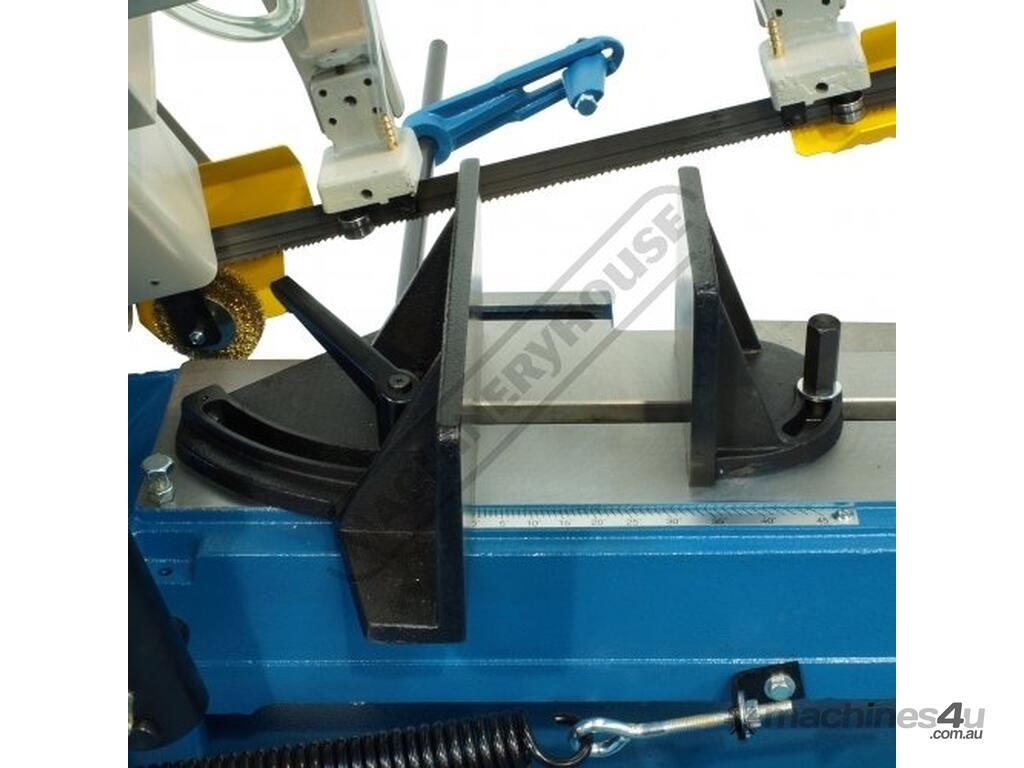

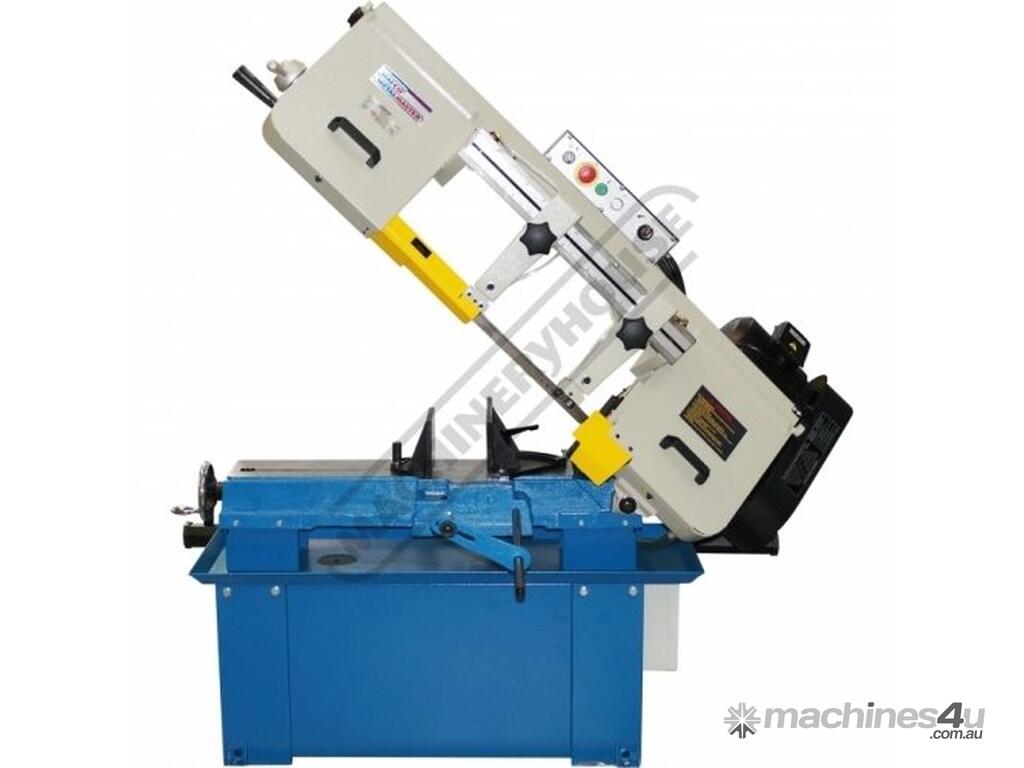

Mitre cuts to 45º using calibrated vice
Built-in coolant system for maximum cutting efficiency

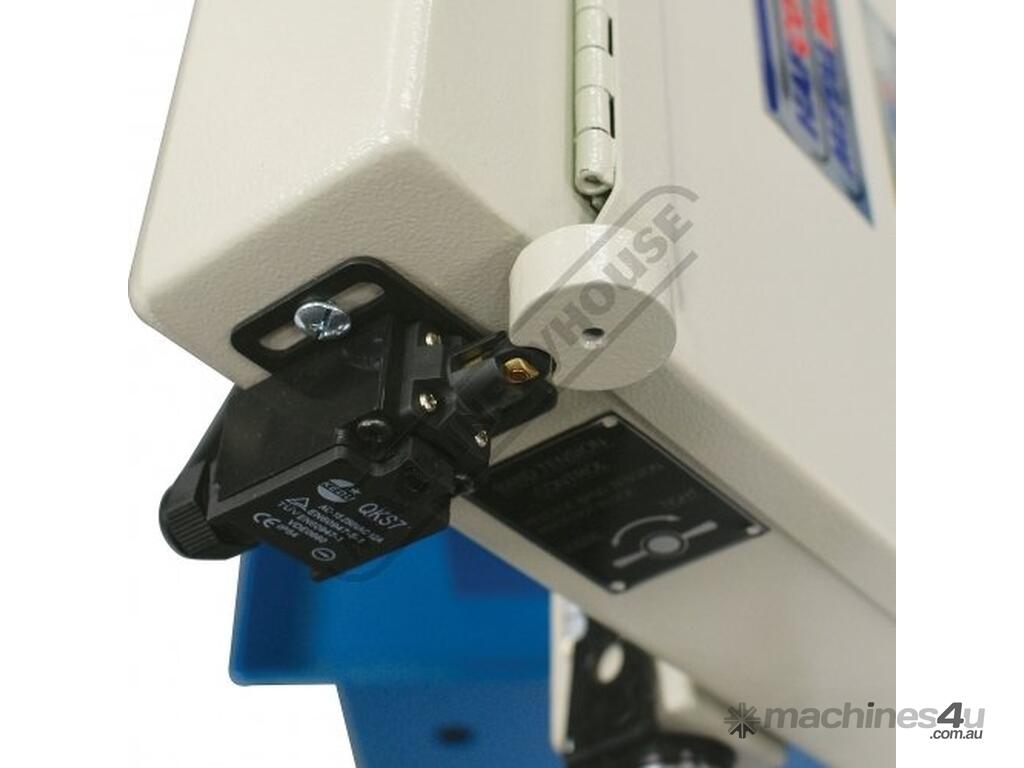

Limit switch stops machine when cut is complete

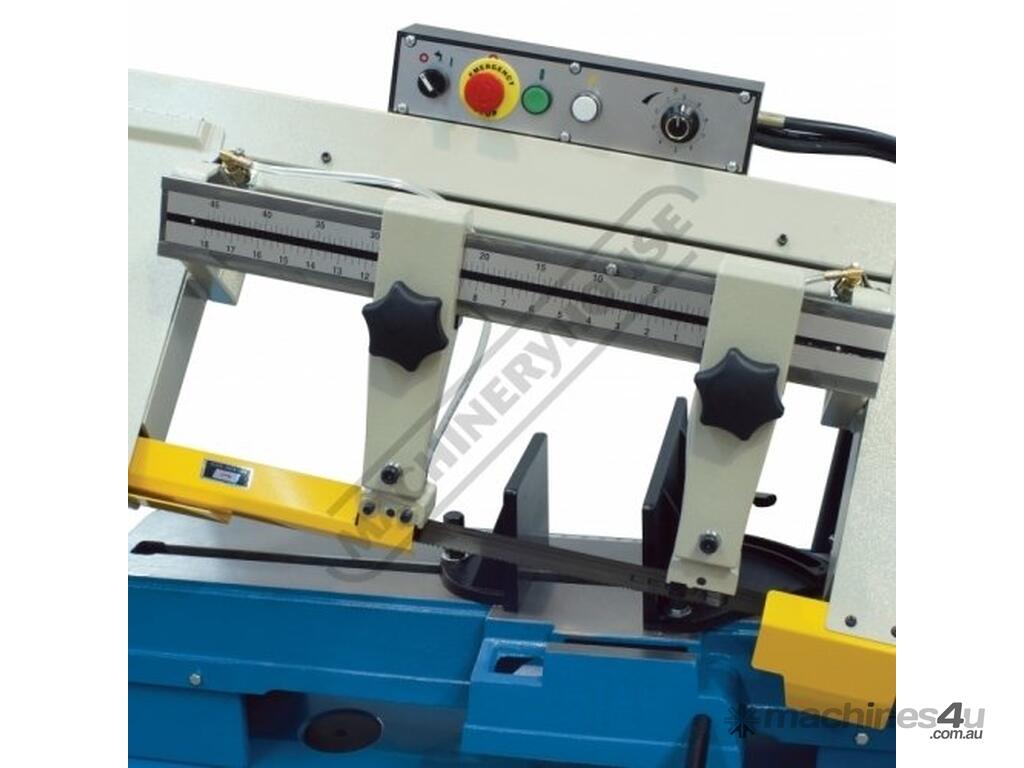

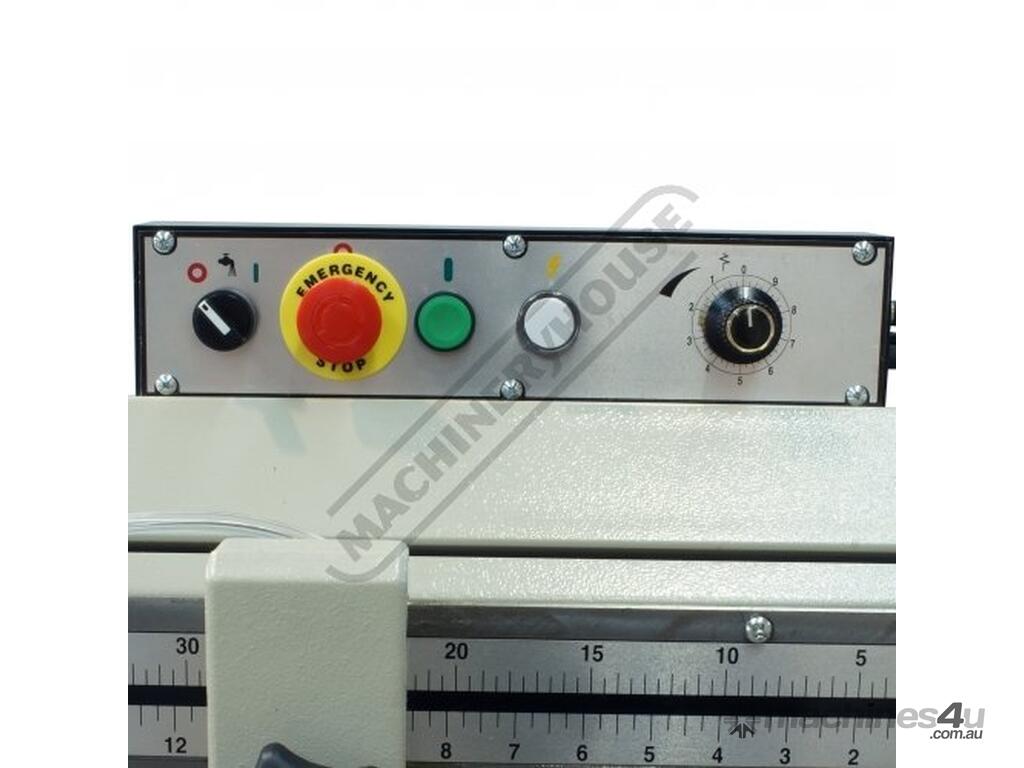

Control panel located on top of arm for easy use

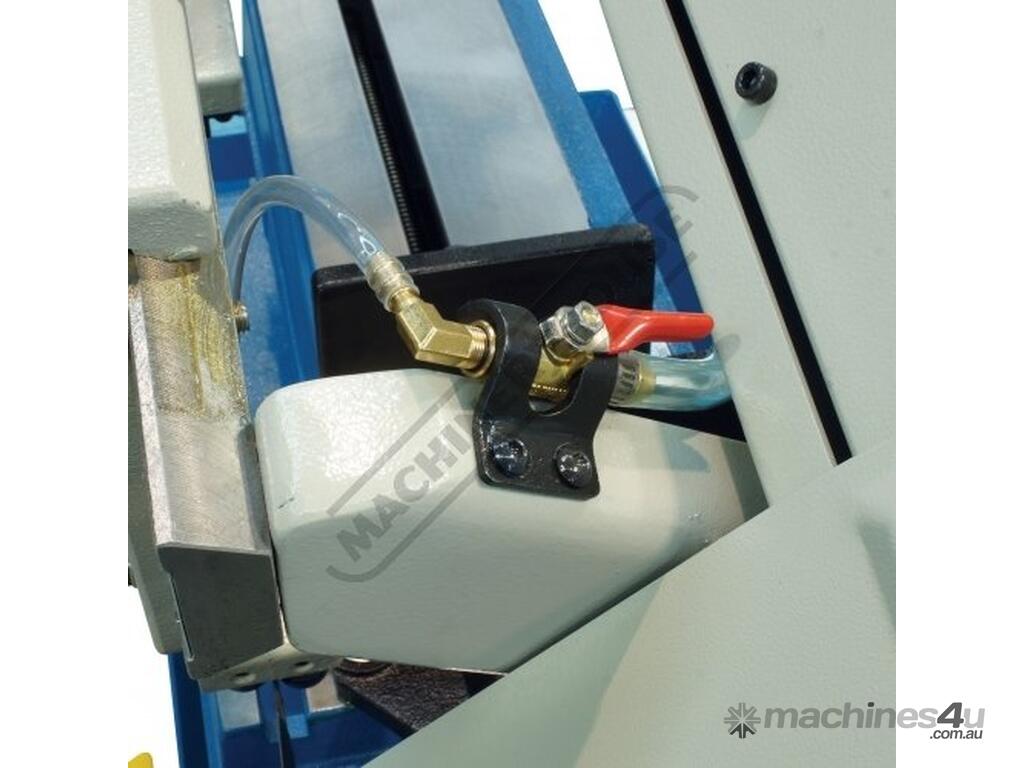

Coolant system with flow control valve
Cast iron frame with heavy duty fabricated base
Quick action material clamping system

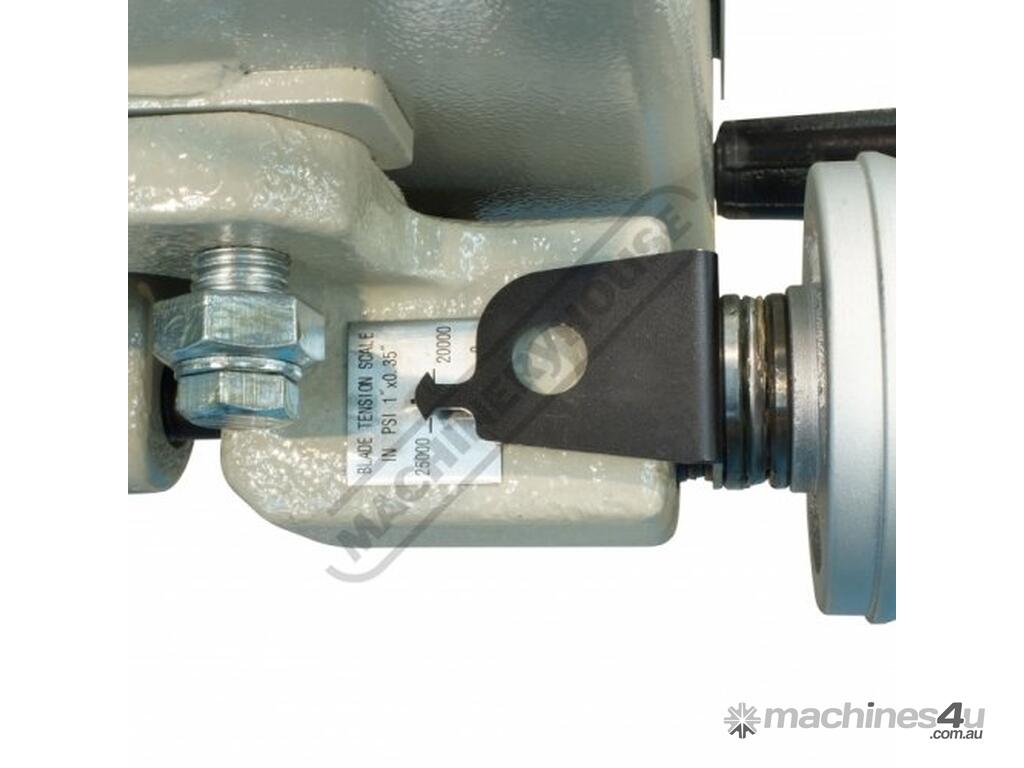

Blade tension lever with scale for optimum settings

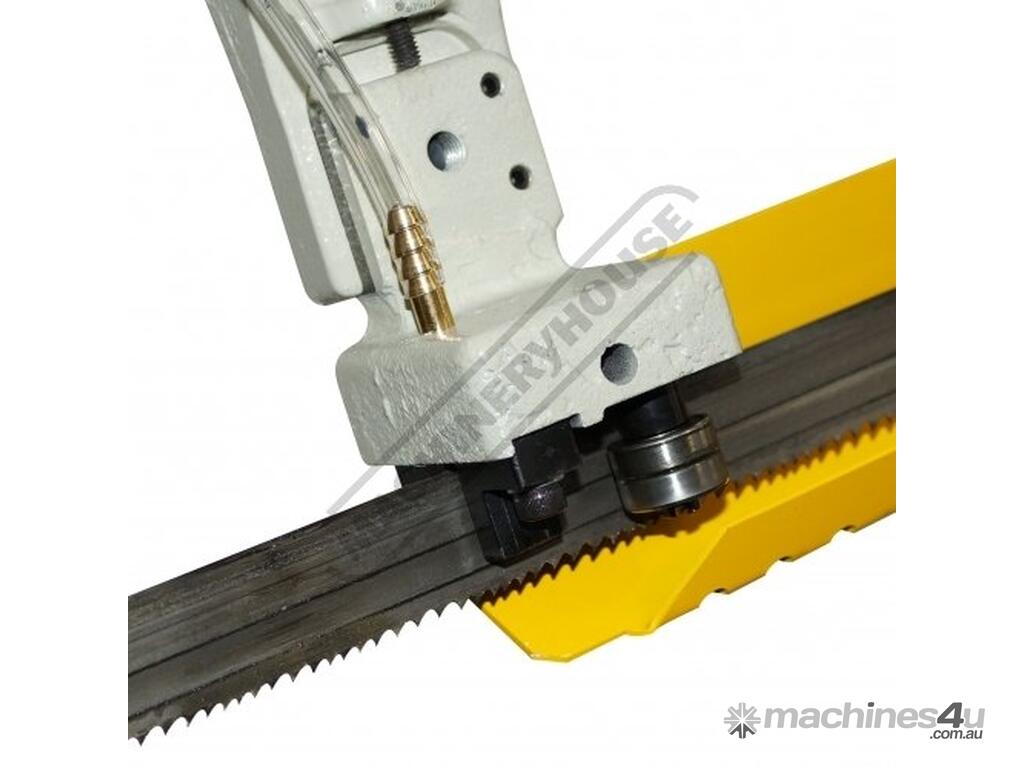

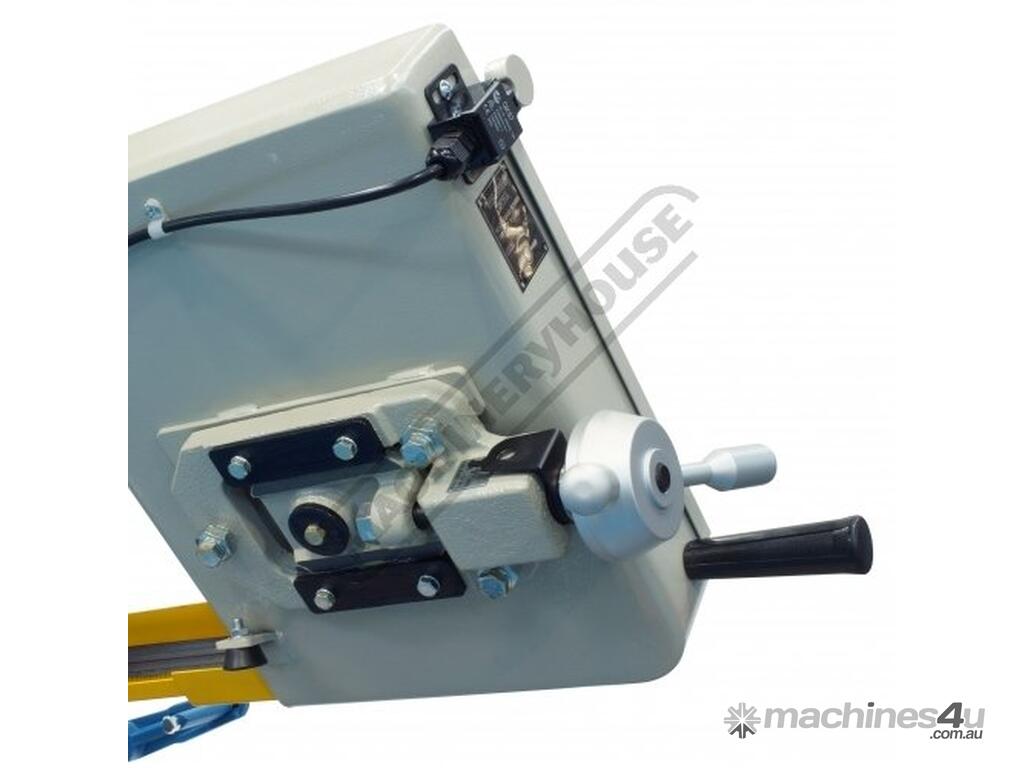

Combination roller bearing & carbide blade guides

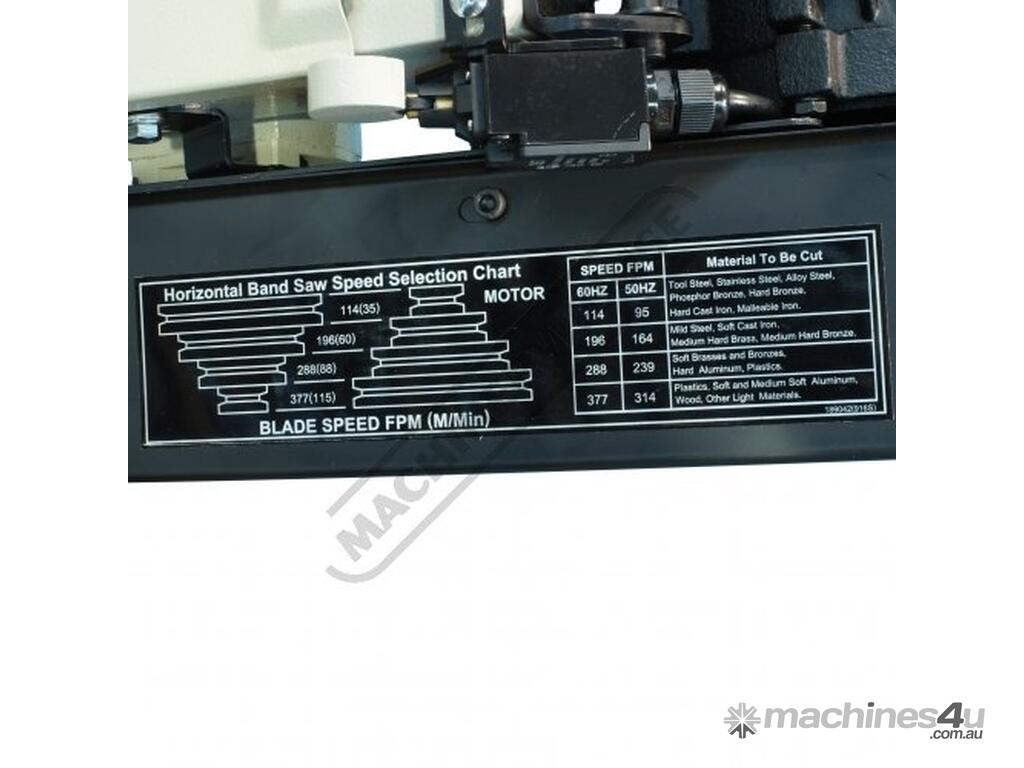

Adjustable 4-speed pulley drive system enabling -72mpm cutting speeds

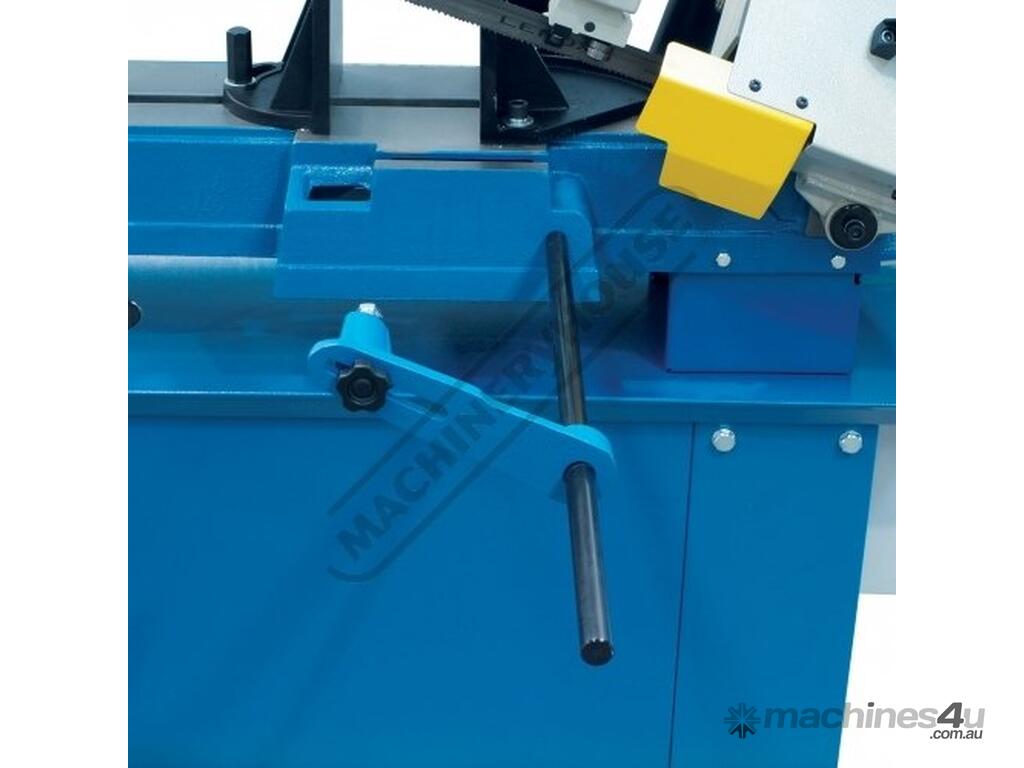

Adjustable length stop for repetition cutting

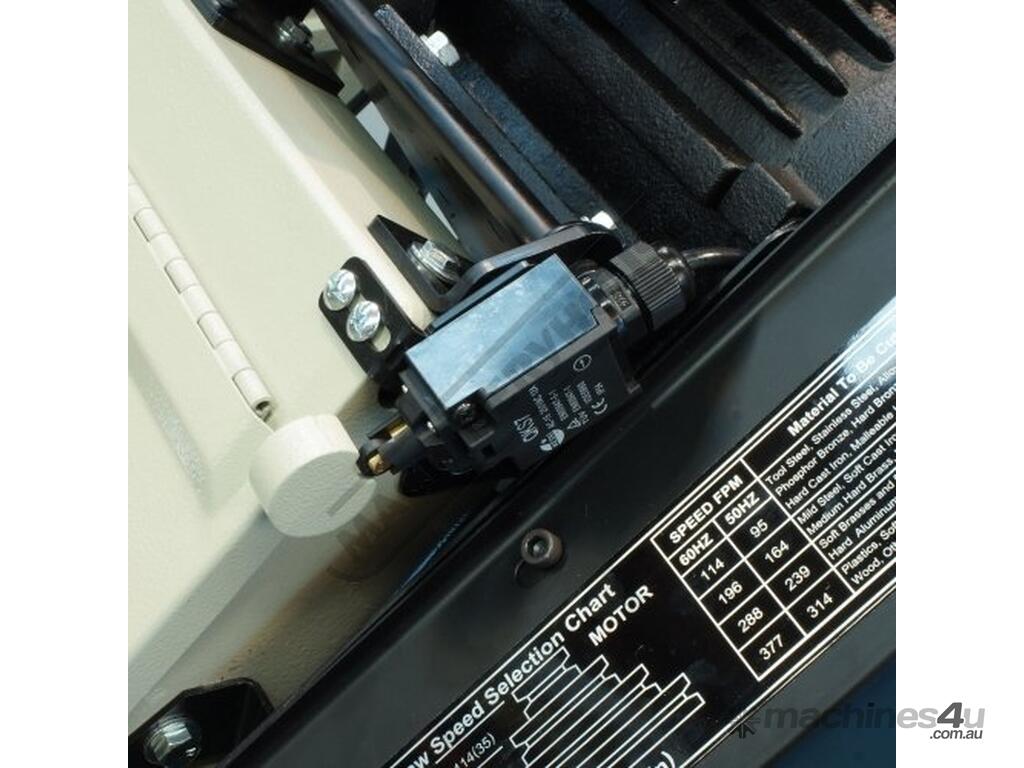

Automatic electric cut-out switch

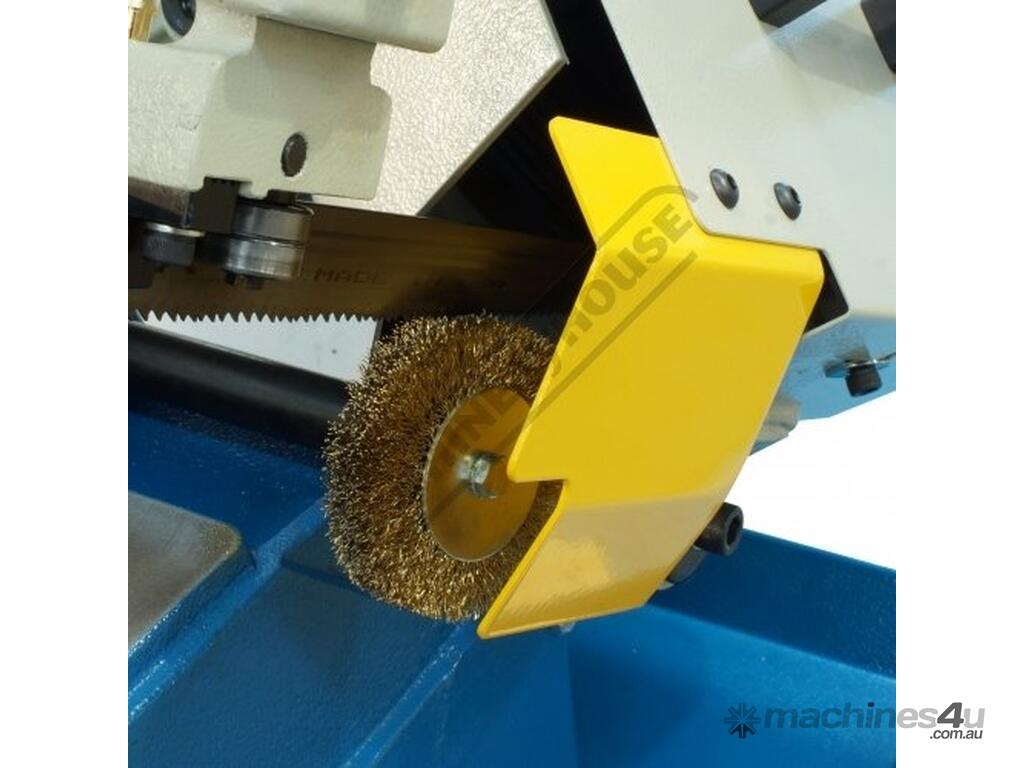

Wire wheel brush to clean swarf from blade
Heavy-duty gearbox drive
Heavy-duty 1.1kW 240V fully enclosed fan-cooled motor


Specifications:
ORDER CODE: B015
MODEL: BS-916A
Operation Type: Fixed Head
Operation Type: ~
Round 90º (mm): 228
Round 45º (mm): 180
Round 60º (mm): ~
Square 90º (mm): 228
Square 45º (mm): 150
Square 60º (mm): ~
Rectangle (W x H) 90º (mm): 350 x 228
Rectangle (W x H) 45º (mm): 240 x 180
Rectangle (W x H) 60º (mm): ~
Coolant System: Yes
Table Working Height (mm): 675
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Manual
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): -72
Blade Size (L x W x T) (mm): 2908 x 27 x 0.9
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 290


To Purchase Online Please Visit The Machineryhouse & Search For 'B015'
