BTM25 Rod / Bolt Threading Machine M8 - M24, 5/16" - 1" BSW & UNC & 3/8" - 1" UNF Bolt Threading Ca

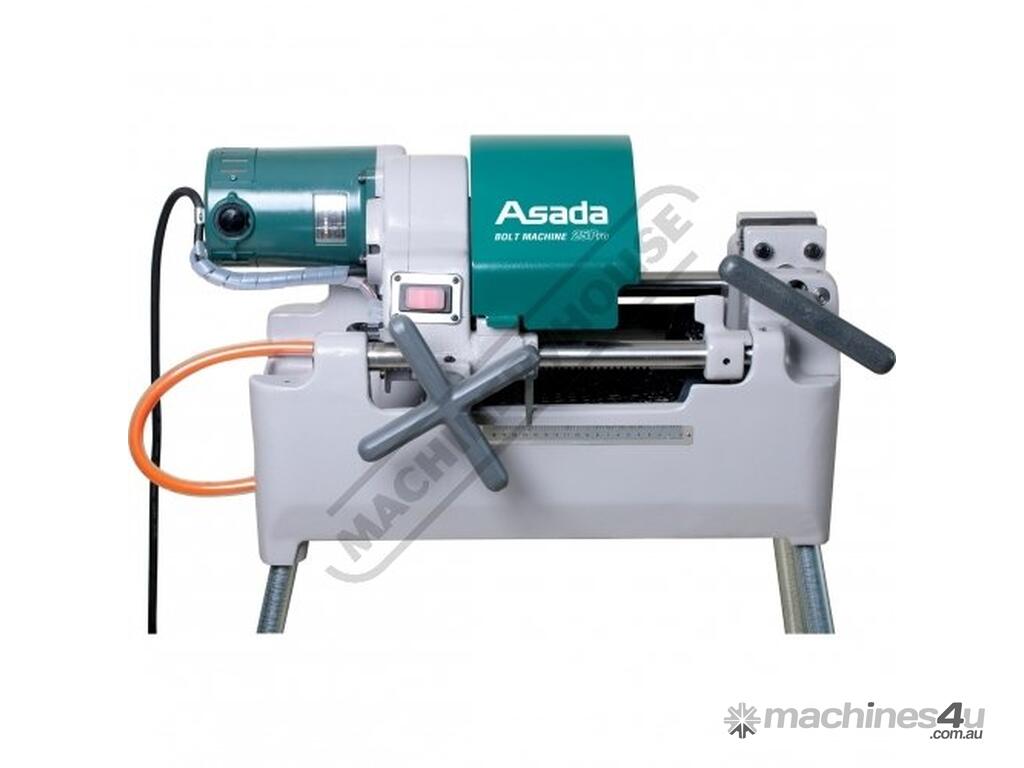

ASADA BTM25 Rod / Bolt Threading Machine M8 - M24, 5/16" - 1" BSW & UNC & 3/8" - 1" UNF Bolt Threading Capacity Proven Japanese Design & Technology
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T021

Speed bolt threads up to 24mm

Proven Japanese Design & Technology
Beaver - Designed for airtight threading

Perfect for Job sites
Construction sites for anchor bolts, turn-buckles, stud bolts and suspension bolts

Machine is for right hand threading only (A separate machine for left hand threading only is available on request)

Features:
M8 - M24 threading capacity - additional dies required
5/16" - 1" BSW threading capacity - additional dies required
5/16" - 1" UNC threading capacity - additional dies required
3/8" - 1" UNF threading capacity - additional dies required
Dedicated machine designed specifically for threading bolt and rod
Faster spindle speed than Pipe Threading Machines
Heavy duty machine
Spindle speed 80rpm

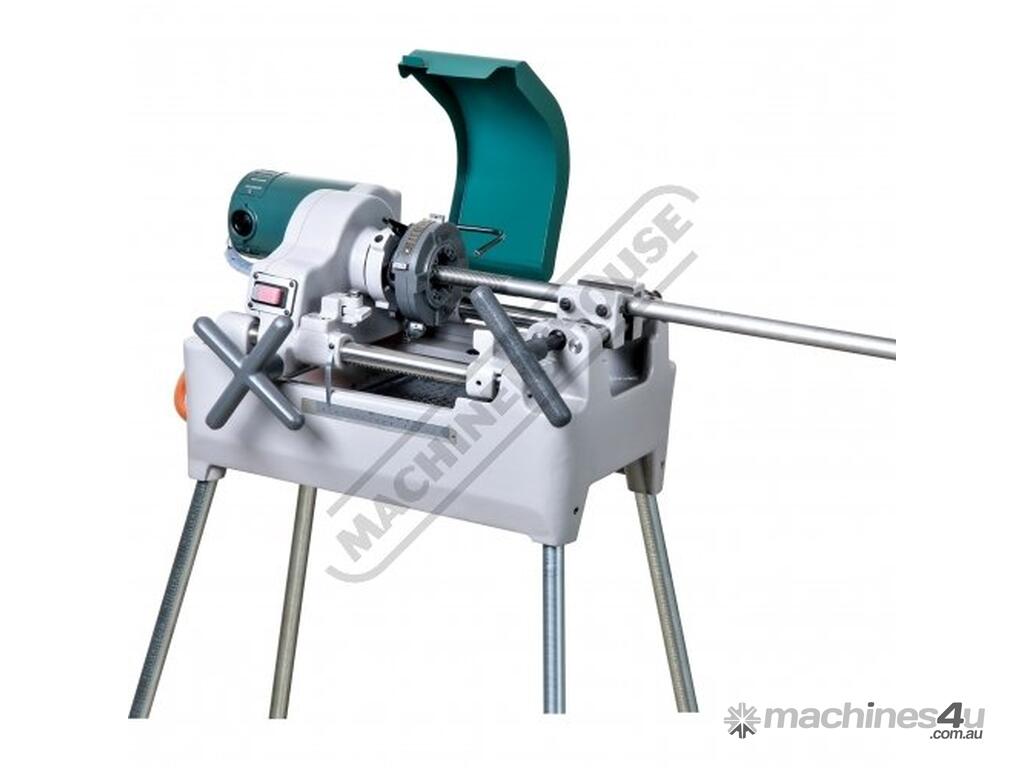

Rod is held in vice to allow threading of long lengths or bent material
Compact and light for easy installation and transportation
Designed for easy maintenance
Large volume oil tank for efficient cooling and threading lubrication
Automatic dies opening and lubrication oil system
1.5hp 240V motor with overload protection

Includes:
- M12 dies
- M14 - M16 dies



Specifications:
ORDER CODE: T021
MODEL: BTM25
Capacity (mm): 8- 24
Nett Weight (kg): 45
