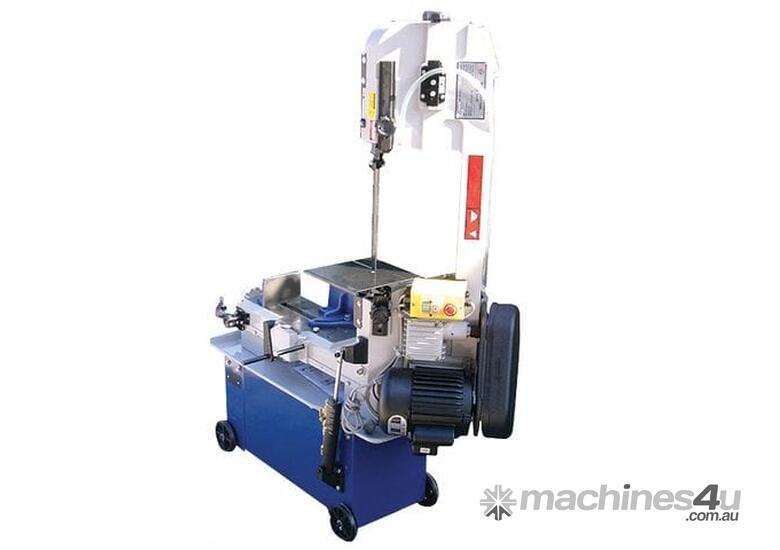

Bandsaw, 180mm Cap, 4 Speed 240V 1PH, Horizontal & Vertical Cut - UE712A by ITM

Features



Horizontal vertical cutting bandsaw.


Quick positioning swivel vice enables cuts from 0° to 45°.


Fully adjustable hydraulic down feed with separate on/off valve automatic shut-off at end of cut.


Incorporated recirculating coolant system.


Non-voltage return ON/OFF switch emergency stop switch.


4 Blade speeds allows precise cutting of different materials.


Brass chip brush to help extend blade life.


Adjustable material stop for repetitive production.


Fitted on base with wheels for easy manoeuvring.


12 months warranty.


Comes complete with blade.


Made in Taiwan.





SPECIFICATIONS



Motor: 1.0hp Single Phase (240V)


Blade Speed: 4 Speed 22 / 33 / 45 / 65mpm


Blade Size: 19mm x 0.9mm x 2360mm


Bed Height: 572mm


Weight: 130kg



90° Cutting Capacity:



Round: 180mm


Square: 180mm


Rectangle: 300 x 180mm



45° Right Cutting Capacity:



Round: 110mm


Square: 110mm


Rectangle: 120 x 115mm









90° Cutting Capacity:



Round: 220mm


Square: 215mm


Rectangle: 260 x 110mm



45° Right Cutting Capacity:



Round: 150mm


Square: 145mm


Rectangle: 155 x 110mm



60° Right Cutting Capacity:



Round: 90mm


Square: 85mm


Rectangle: 80 x 95mm
