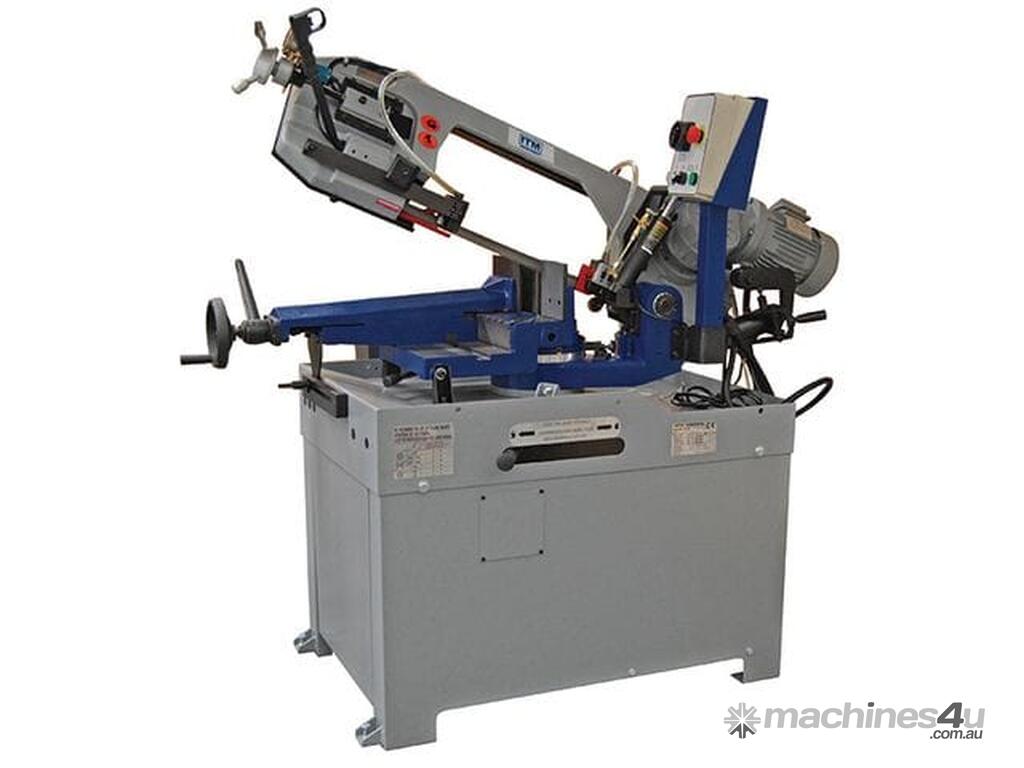

Bandsaw, 240mm Cap, Swivel Head, Dual Mitre, 2 Speed 415V 3PH, HYD Down Feed - WP310DS-3 by ITM

FEATURES



2-way swivel head enables from 0° to 60° mitre cuts.




Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed automatic shut-off at end of cut, for cutting larger material.




Variable speed motor for cutting a wide range of materials.


Dual direction heavy-duty vice.


Hydraulic blade tension gauge.


Incorporated recirculating coolant system.


Brass chip brush to help prevent blade breakage.


Adjustable material stop for repetitive production.


Safety emergency stop switch.


12 months warranty.


Comes complete with stand blade.


Made in Taiwan.





SPECIFICATIONS



Motor: 2.0hp Three Phase (415V)


Blade Speed: 2 Speed 36 / 72mpm


Blade Size: 27mm x 0.9mm x 2725mm


Bed Height: 895mm


Weight: 302kg



90° Cutting Capacity:



Round: 240mm


Square: 235mm


Rectangle: 310 x 165mm





45° Right Cutting Capacity:



Round: 195mm


Square: 185mm


Rectangle: 195 x 130mm





60° Right Cutting Capacity:



Round: 120mm


Square: 85mm


Rectangle: 120 x 90mm





45° Left Cutting Capacity:



Round: 165mm


Square: 140mm


Rectangle: 195 x 60mm
