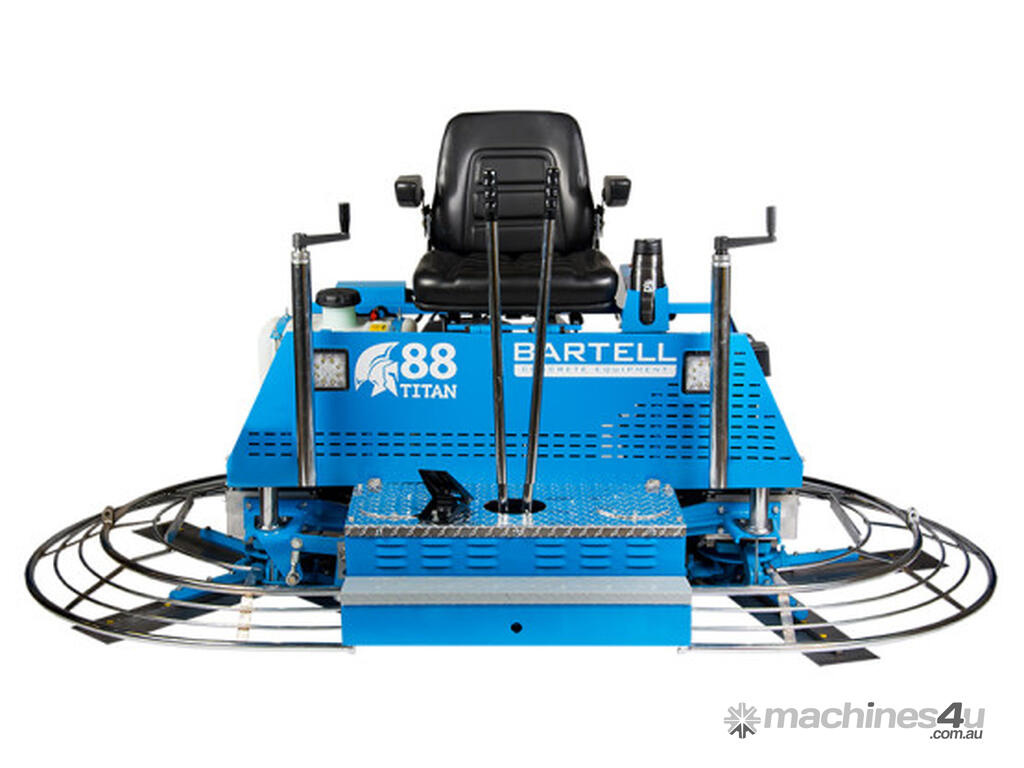

Bartell ride-on power trowels have been engineered to meet the demands of the professional contractor for a lightweight, high production machine with easy maintenance characteristics. To meet the needs of professional contractors, Bartell presents an 88? ride-on trowel. In the overlapping mode, high speed finishing blades permit a polished finish. With clip-on float blades, float procedures produce superior concrete.
The TS88 features ‘U’ joint drive couplings, twin-stick steering control levers, as well as proven, heavy-duty gearboxes. These combined features result in a medium weight, high production float and finish machine with low maintenance characteristics.
-> High speed for superior finishing.
-> Proven Bartell gearboxes for long life and low maintenance.
-> Independent twin stick levers deliver immediate, responsive steering.
-> Dual mode overlapping blades provide a consistently smooth finish while clip-on float blades can be attached for superior float operations.
-> ‘U’ joint couplings furnish reliable drive shaft torque.
-> Light kit and seat adjuster are standard.
Specifications:
-> Engine: Honda GX690
-> Float Blade Size: 10” x 18” (25cm x 46cm)
-> Finish Trowel Size: 6“ x 18” (15cm x 46cm)
-> Combination Blade: Size 8” x 18” (20cm x 46cm)
-> Operating Weight: Up to 620lbs (281kg)
-> Size (L x W x H): 2250 x 1220 x 1300 mm
