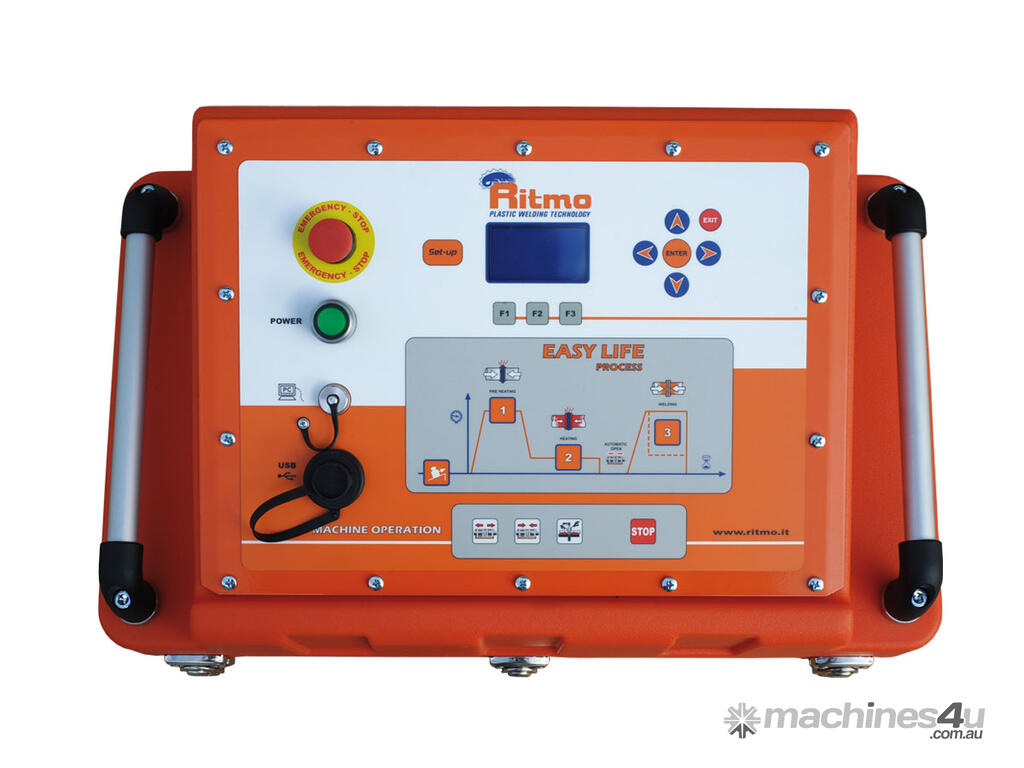

The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.
Materials
HDPE - PP - PB - PVDF
Working range
Ø 125 ÷ 355 mm
Power supply
230 VAC 50/60 Hz
Gearcase absorbed power
1100 W
Total absorbed power
5800 W
Memory
4000 reports
Working temperature
180° ÷ 280° C
Pressure working range
0 ÷ 150 bar
Weight only body machine
100 Kg
Weight gearcase
37 Kg
Dimension machine
1077x510x715 mm
Dimension gearcase
585x384x463 mm
