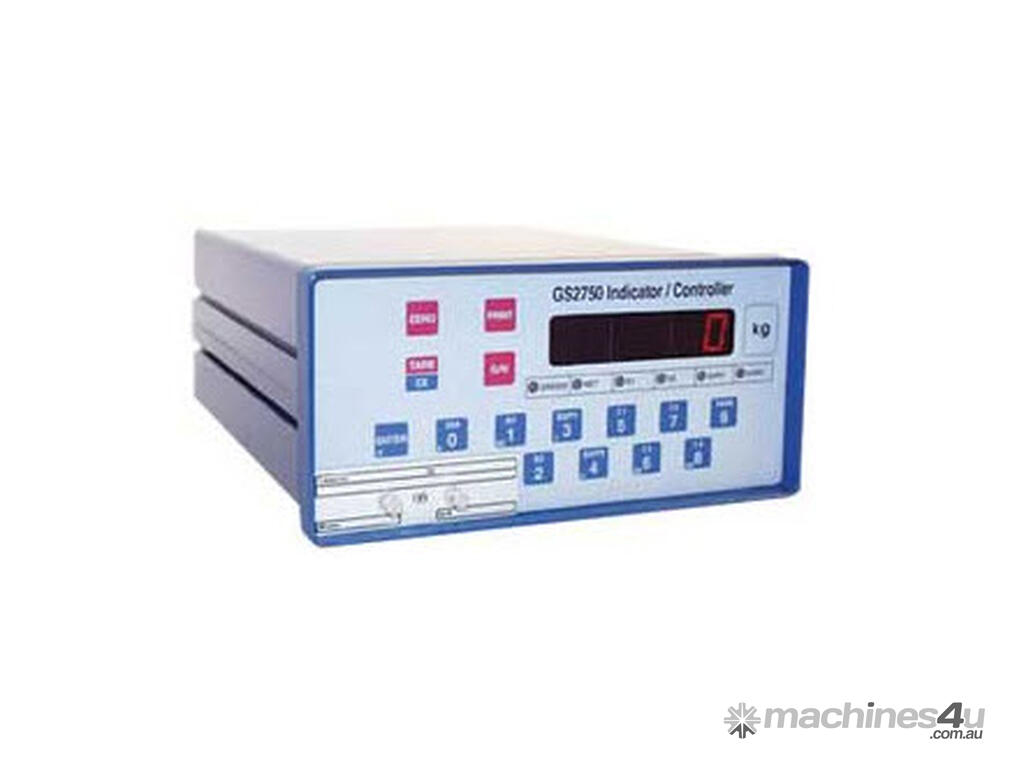

Batch indicator: 4 Setpoints - GS2750

The GS2750 can be used in virtually any batching situation from simple four material setpoints to computer controlled batching with downloaded setpoints.

Ideal for applications requiring
set-point alarms or weigh feeder controls
Connector.
Versatile
• Simple level control
• Alarms
• Batch controlling four single speed feeders or two dual speed feeders.
Connector.
Customisable
Options include: High stability analogue output cards & Serial I/O cards.
Accurate
The GS2750 is reliable and can even provide accurate readings through galvanic barriers.
The GS2750 is the ideal Batch Controller for any application requiring set point alarms or weigh feeder controls.

It’s versatile, intelligent, user configurable with a low cost. A wide range of Options which include High Stability Analog Output Cards and Serial I/O Cards expand the GS2750?s capabilities.

The GS2750 will operate accurately and reliably in Intrinsic Safety applications through Galvanic Barriers (call for circuit examples).

General
All metal silver anodised finished desk
Panel mounted enclosure with S/Steel rear panel
14mm high 7 segmented high intensity red LED display to a maximum of 199,990

Power
Choice of voltage available.
Please specify which voltage:

110/117/ 220/240VAC (+/- 10%)
49 to 62Hz
15VA

Outputs
Four (4) User configurable Outputs as 4 Setpoints or 2 Dual Speed or 4 Single Speed Feeders
Optically Isolated Open Collector, capable of sinking a maximum of 500mA 5VDC to 48VDC
Remote Keyboard Interface
High Speed 62.5K RS422 GS Serial Output for Remote Displays and Controllers


Options:
RS232/422/485 & 20mA Serial Output & I/O
High Accuracy 12 & 14 Bit 4-20mA & 0-10VDC Analog Outputs
BR2 Time & Date
Parallel BCD Output


Front
198mm W x 96mm H
Body
184mm W x 90mm H x 246mm D
Panel Mount
Cutout 186mm x 92m Rear Projection 234mm plus 60mm for cables
