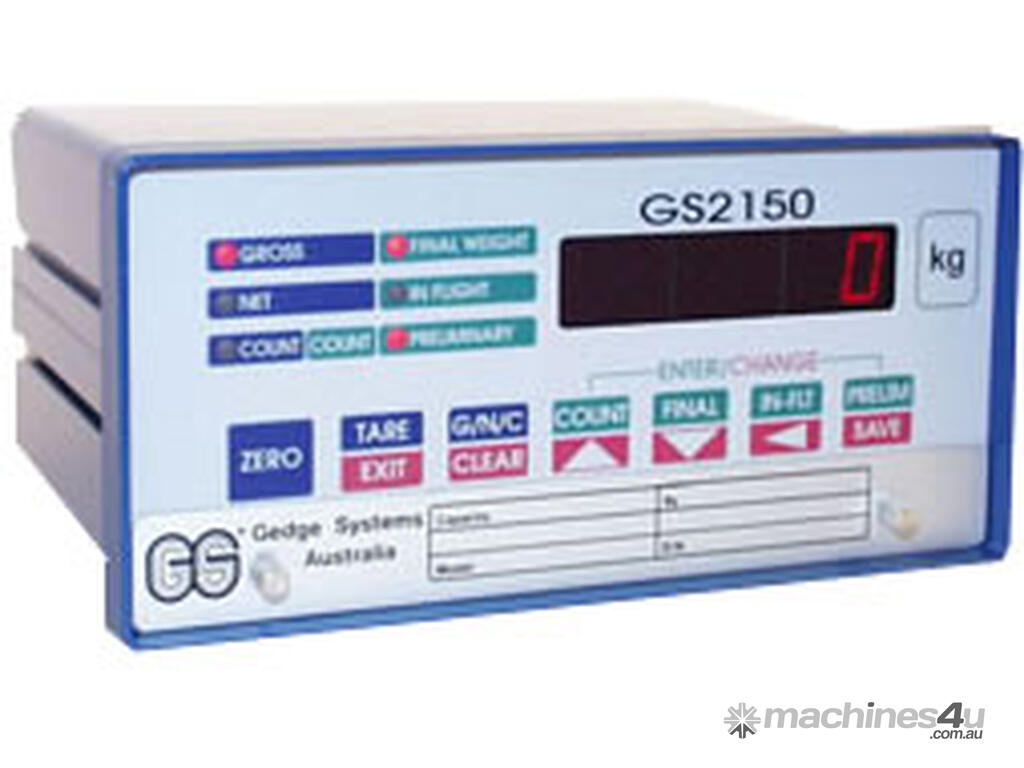

Batch indicator: Easy to Program - GS2150

GS2150 has all batching logic built-in. Add load cells & push button inputs
and you’re ready to fill bags, boxes, bottles – anything – easily!

Key features of the GS2150:
Batches Powders; Liquids; Semi Solids; Potatoes; Fruits – anything that can be fed into a container.
Batched weights can be a few GRAMS in sub gram increments all the way to many TONS in kg increments.
The Complete Low Cost Automated batching solution – all batching logic is “built in”.
Add Load Cells, one or two Push Buttons as INPUTS, a 5VDC~24VDC Power Supply to operate your relays and contactors controlled by the GS2150 OUTPUTS and you are ready to fill bags, bottles, boxes – anything – easily!
Easy to use. Entering weight settings is straightfoward using the GS2150?s sensibly sized front panel layout with clearly labelled functions and logical operating procedure.
Short 180mm rear projection including connectors enables fitment in standard 210 depth enclosures.
Very easy to setup and calibrate. Weight calibration takes very little time and few steps – for ZERO key CAL then ZERO; for WEIGHT CALIBRATION apply a known weight key CAL then SPAN, enter the weight and the rest is FULLY AUTOMATIC.
FOUR Optically Isolated Outputs rated 5VDC to 45VDC 1A for control of FAST & SLOW Speed Material Feeders, ZERO BAND & BATCH COMPLETE Indication. Outputs can operate most solenoids without external relays.
FOUR Optically Isolated Inputs from your Push Buttons/Switches or PLC rated 5VDC to 24VDC for START, STOP, KEYBOARD LOCK and TARE functions.
Every internal setting, function and operation of every GS2150 is 100% TESTED including THERMAL STABILITY over 0oC to 40oC.
Applications:
Filling Machines for Sachets, Small Bags and Containers.
Filling Machines for Sacks and Boxes of Potatoes, Fruits and Vegetables.
Filling Machines for 20kg BAGS of Cements and other Powders.
Batching IN or Batching OUT applications from large HOPPERS or BINS.
Accurate DOSING applications.
Anything that requires VERY ACCURATE batched weights. The GS2150?s up to 800 sample per second rate ASSURES HIGH ACCURACY.
