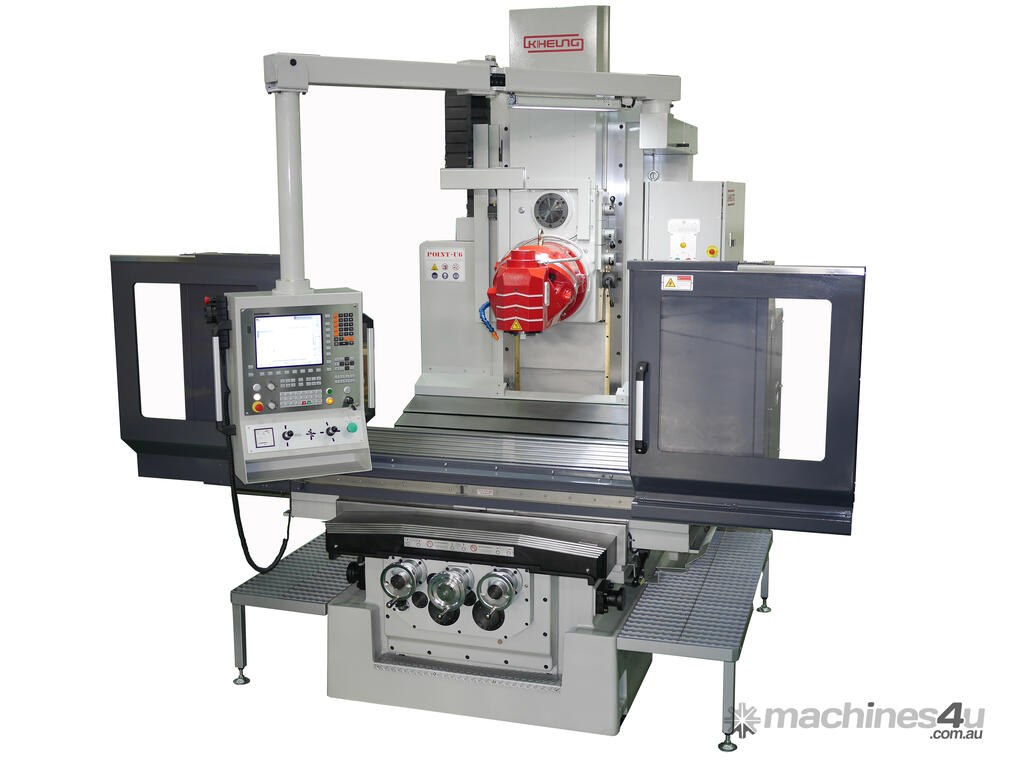

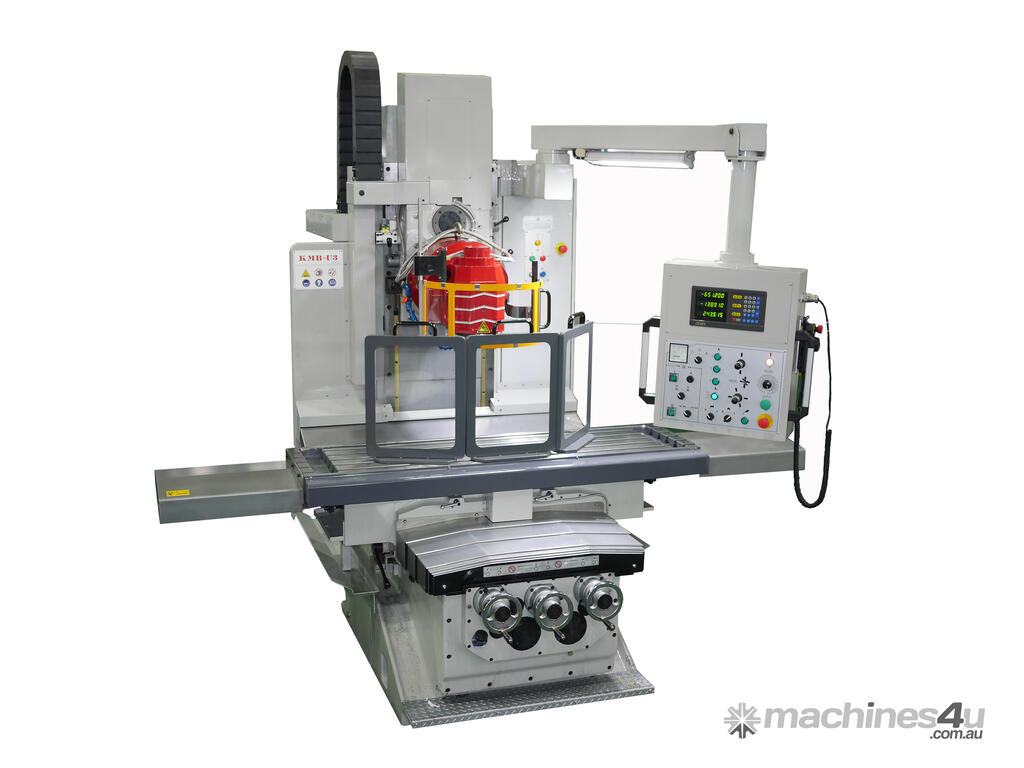

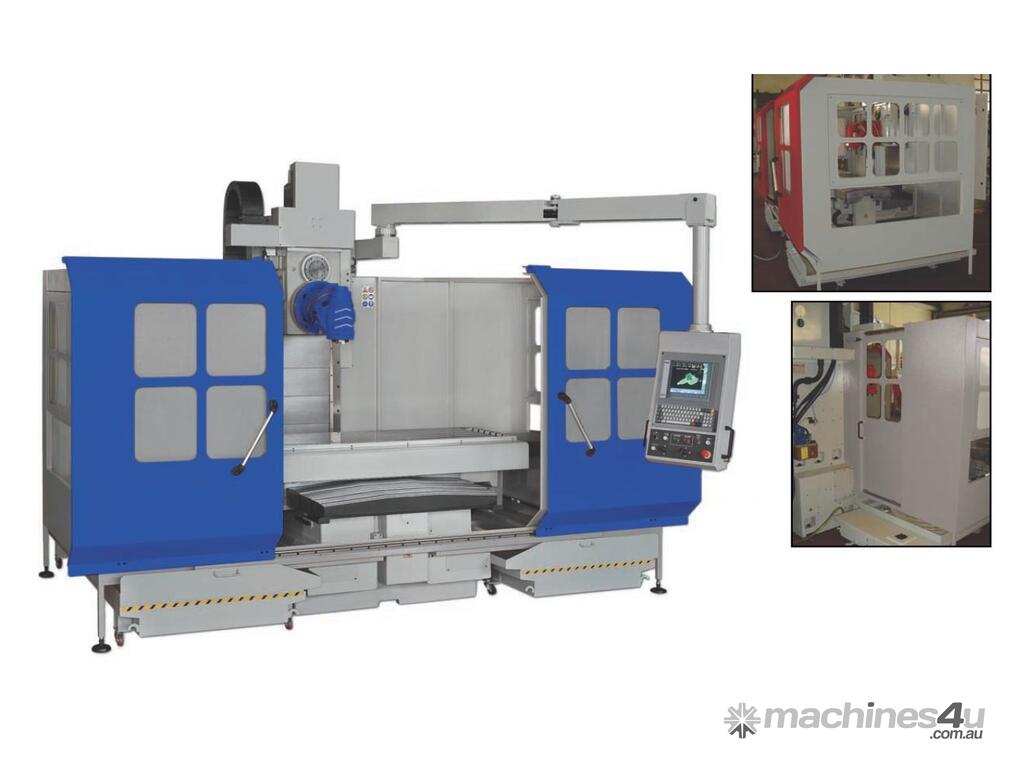

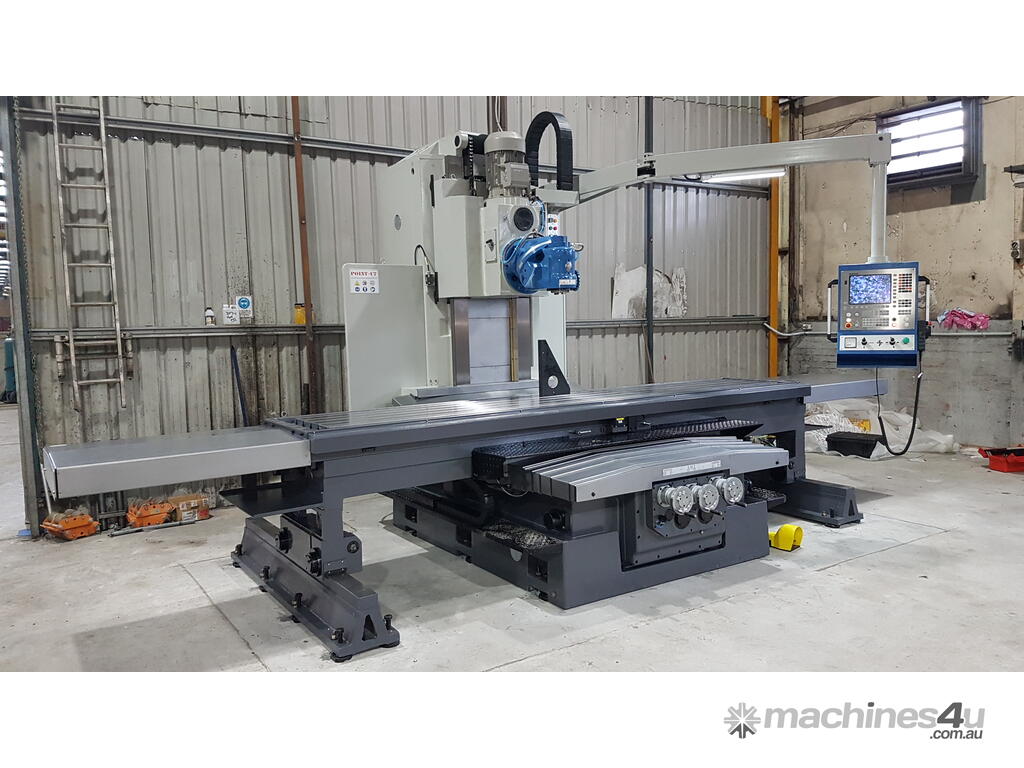

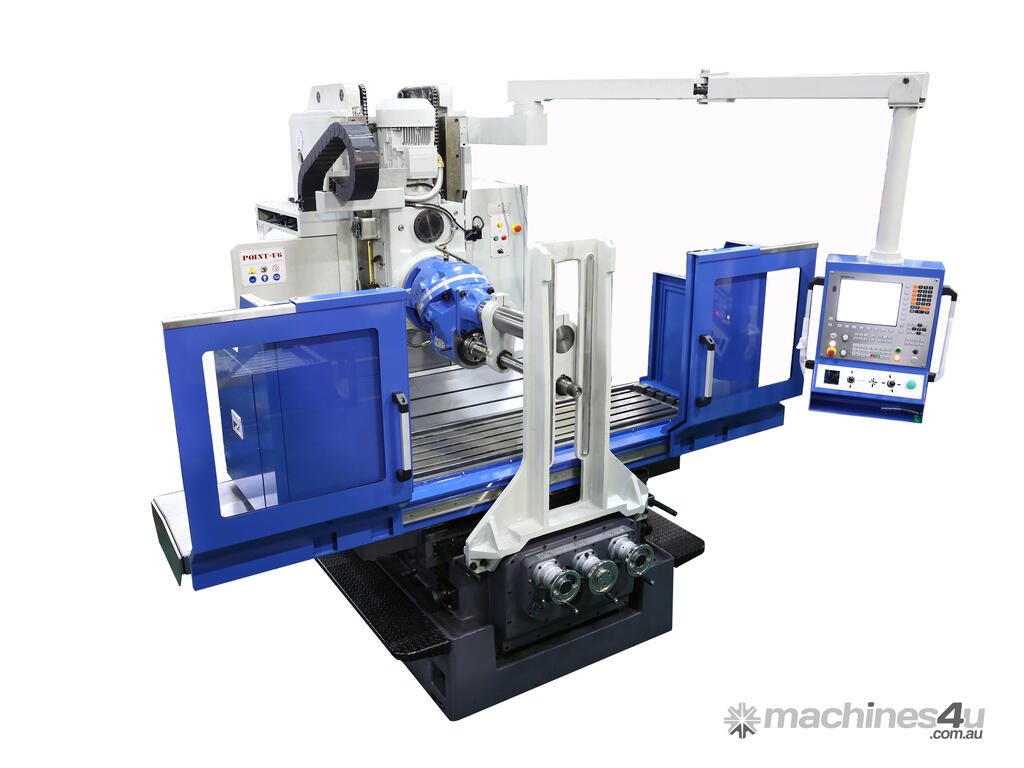

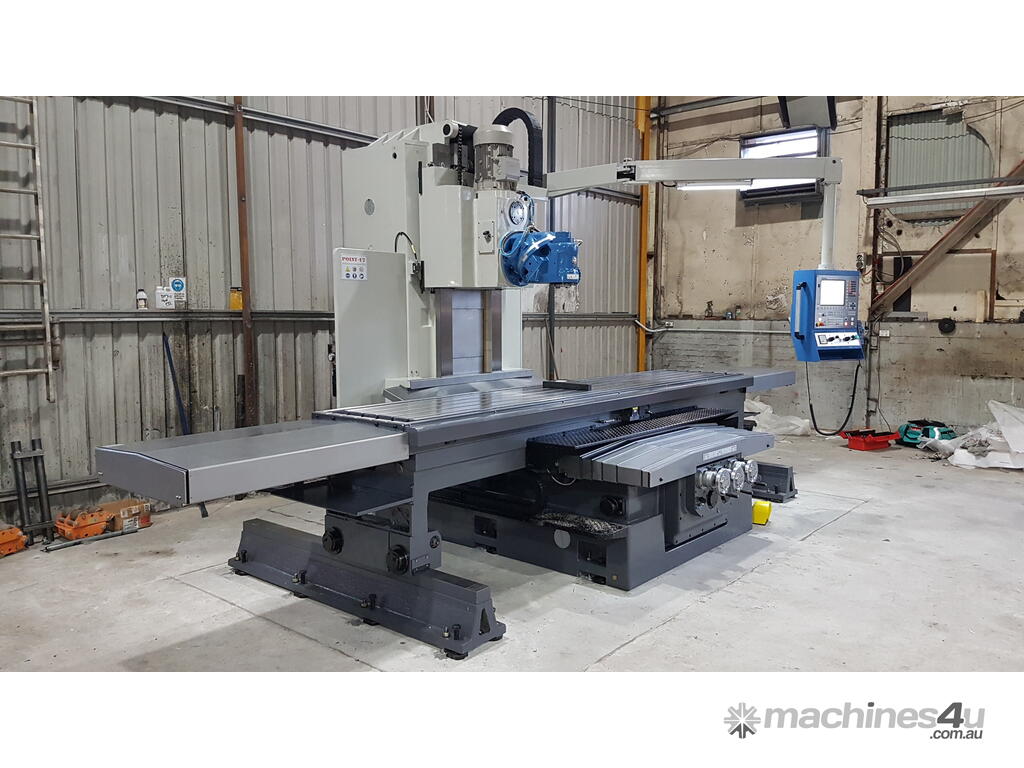

Bed Type Milling Machine Point U7

KIHEUNG milling machines are manufactured in Korea to exacting engineering standards using only Korean,German or Japanese components and are sold worldwide.
Their extremely rigid construction is designed for heavy machining, combined with high cutting performance & high level accuracy.
They are recognised for their safety record, quality ,design and support .
These powerful machines use Heavy Duty universal bi-rotary heads which can easily be turned to any angle including compound, vertical, horizontal.
The column is of a rugged box-type construction and its ground slide ways are very wide to support & securely guide the powerful spindle head.
The bed is one piece double box construction and carries lubrication oil and coolant.

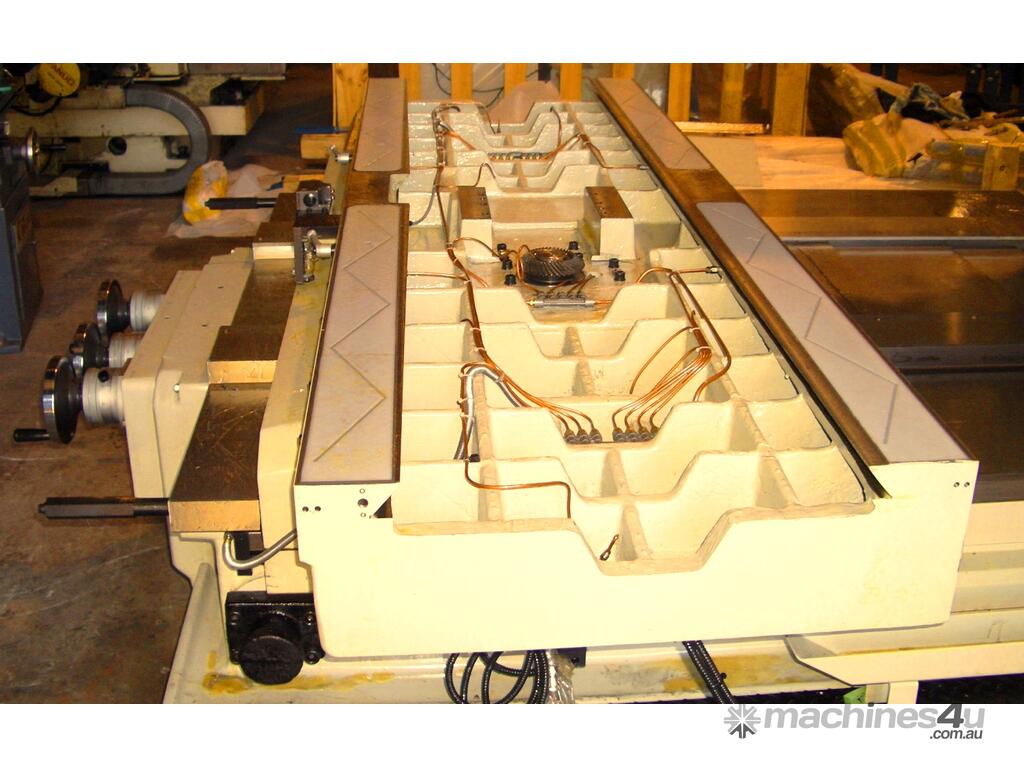

The massive hardened and ground Bed slide ways provide maximum stability to the saddle.
The saddle has a rigid box-type construction to cope with loads during heavy-duty cutting.

FEATURES
• Spindle - Electro Magnetic Brake "on/off" option.
• Jog Button – mounted near Universal head for ease of Setting Up & Gear changing.
• Turcite “B” on X/Y surface to reduce friction & extend life /accuracy.

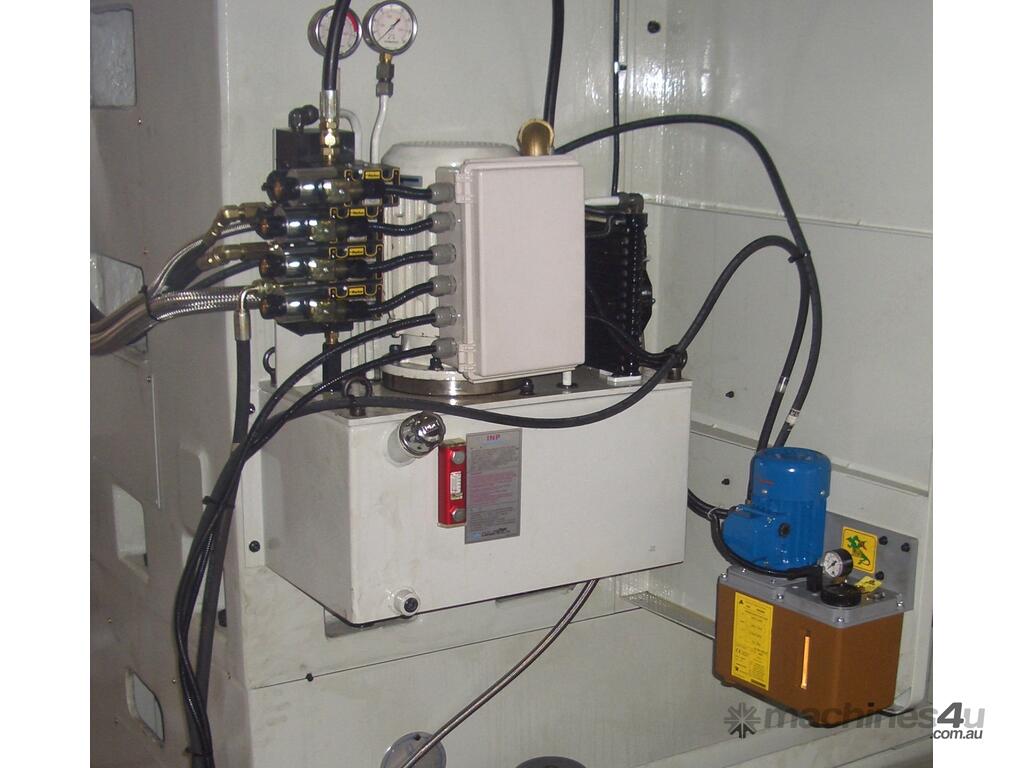

• Automatic Centralized Lubrication System for all Slideways and Ball Screws
• Hydraulic Tool Clamping is "push button" + Foot Control for safe removal of heavier tooling.
• The Hydraulic Tool Clamping is a “Fail Safe “ system as used on all large Machining Centres.
• Roving MPG Handwheel to assist with quick /safe set-up of larger jobs.

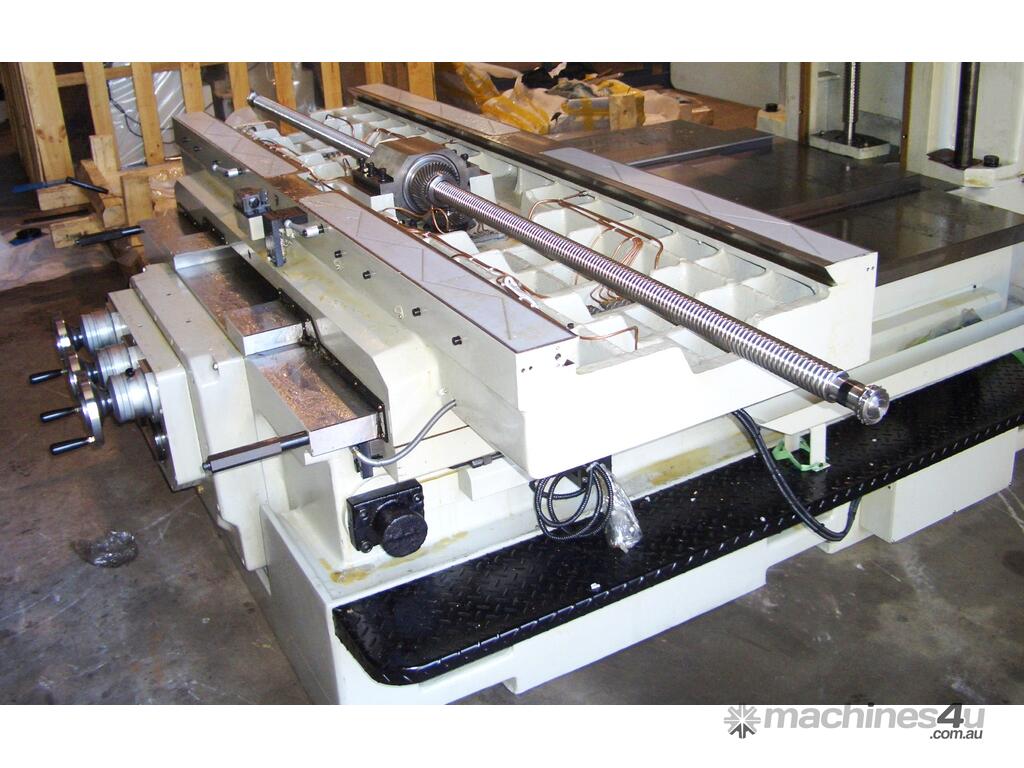

• Precision Ball Screws with double pre-loaded nuts on X/Y/Z Axis.
• The 12 Spindle Speeds 40-1600rpm are variable (-50% + 5%) by dial.
• Feed is variable - controlled by dial.
• Large heavy duty Telescopic steel slide way covers.
• The Universal Head is designed to give maximum clearance & visibility for access and safety.
• Bed Mill Table design provides maximum work piece stability & safety.
• Table height is designed to be at a constant "ergonomic" height.
• The Electrical system meets or exceeds Australian & CE standards.
• The "POINT" series uses a TNC128 Heidenhain Control allowing for Manual / Semi CNC use.
It uses standard Conversational Programming and also includes the following cycles:
Peck Drilling ,Tapping , Rectangular & Circular Hole patterns, Pocket Milling

KMB/Point U3........$94,000 - $114,000 + gst

KMB/Point U6........$117,400 - $139,450 + gst

KMB/Point U7.......$154,100 - $178,600 + gst
