Bendmak Section Rolls PRO60 IN STOCK

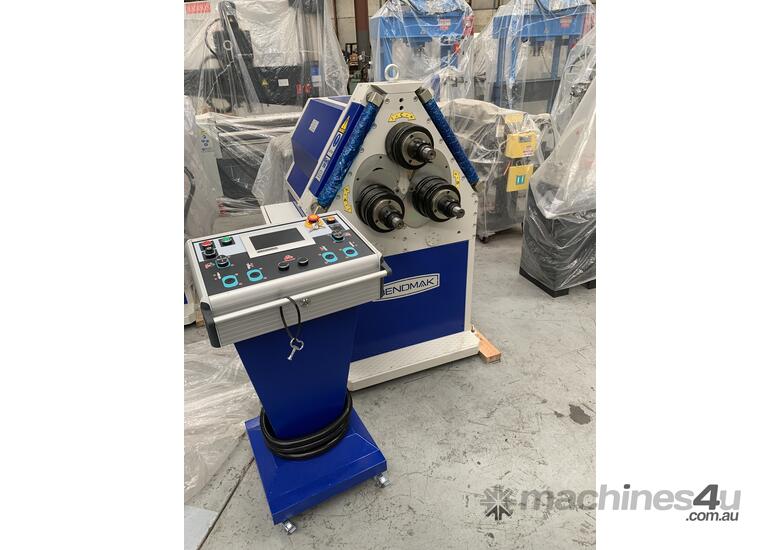

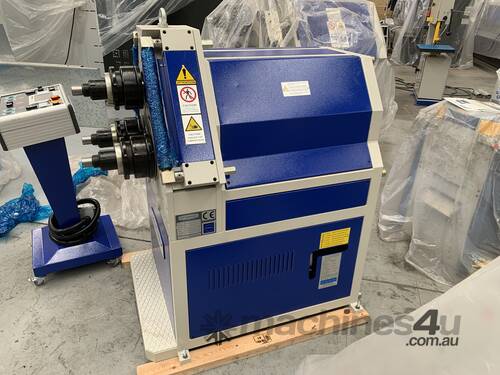

BENDMAK model PRO 60 Profile Bending Machine.


Specification
Max. Profile-sections, minimum bend diameter.
Flat Bar 80 x 20 Ø 1200 mm
Flat Bar on Edge 60 x 20 Ø 500 mm
Square 35 x 35 Ø 1400 mm
Round Ø 40 Ø 800 mm
Tube Ø 70 x 2 Ø 1600 mm
Pipe Ø 60.3 x 3.2 Ø 1000 mm
Rhs 80 x 30 x 3 Ø 6000 mm
Rhs 60 x 60 x 3 Ø 4000 mm
Angle-Flange in 60 x 6 Ø 1000 mm
Angle-Flange out 50 x 6 Ø 1000 mm
Tee-Flange in 70 x 35 x 6 Ø 1000 mm
Tee- Flange out 80 x 40 x 7.5 Ø 1000 mm
Rolls Diameter 177 mm
Shafts Diameter 60/50 mm
Rolling Speed 6.4 rpm
Motor 4 + 0.75 kw
Weight 960 kg
Size 1020 x 1150 x 1050 W x L x H

All capacities related to mild steel 450N/mm².


Standard Equipment
* Rolls driven by hydraulic motor and planetary gearbox.

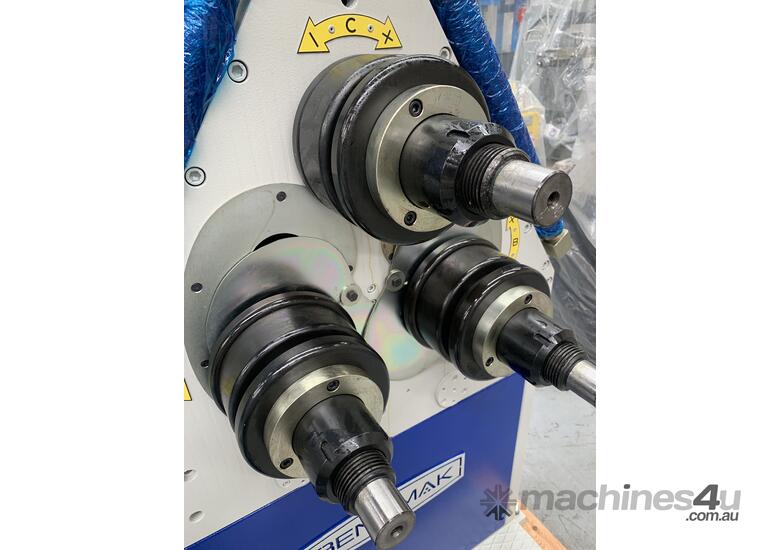

• Standard rolls hardened.
• Shafts hardened and ground.
• Mechanical guide rolls.
• Horizontal and vertical working.
• Torque limiting device protecting against overload during bending.
• Lower rolls adjust hydraulically up and down.
• Digital displays for lower rolls.

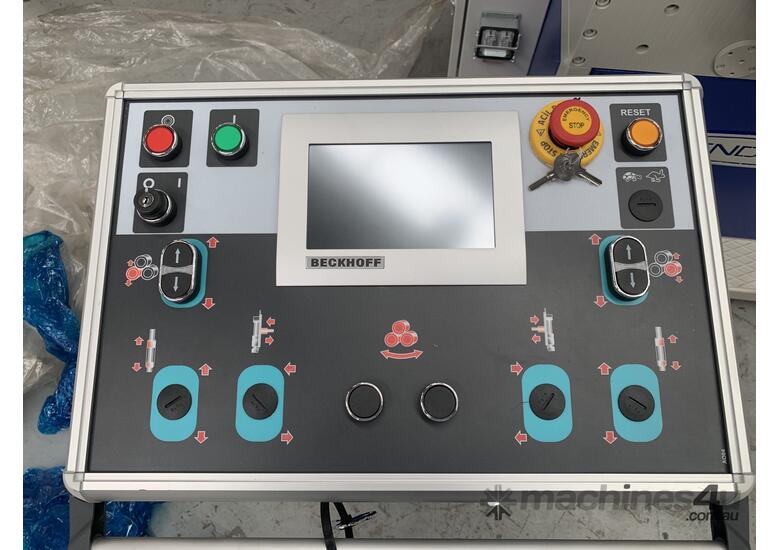

* Mobile control desk.
* Hydraulic and electrical components (Bosch, Parker, Siemens, Telemecanique).
* One set instruction manuals.
