Best Slotter on the Market - TOPTEC CNC 350 SLOTTER

BEST SLOTTER ON THE MARKET. MANY POSITIVE REFRENCES

Made in Taiwan, the TOPTEC CNC series Slotters are the highest quality CNC Slotting Machines available. the easy to use CNC controller and function make it the engineer's choice. We have many happy references.

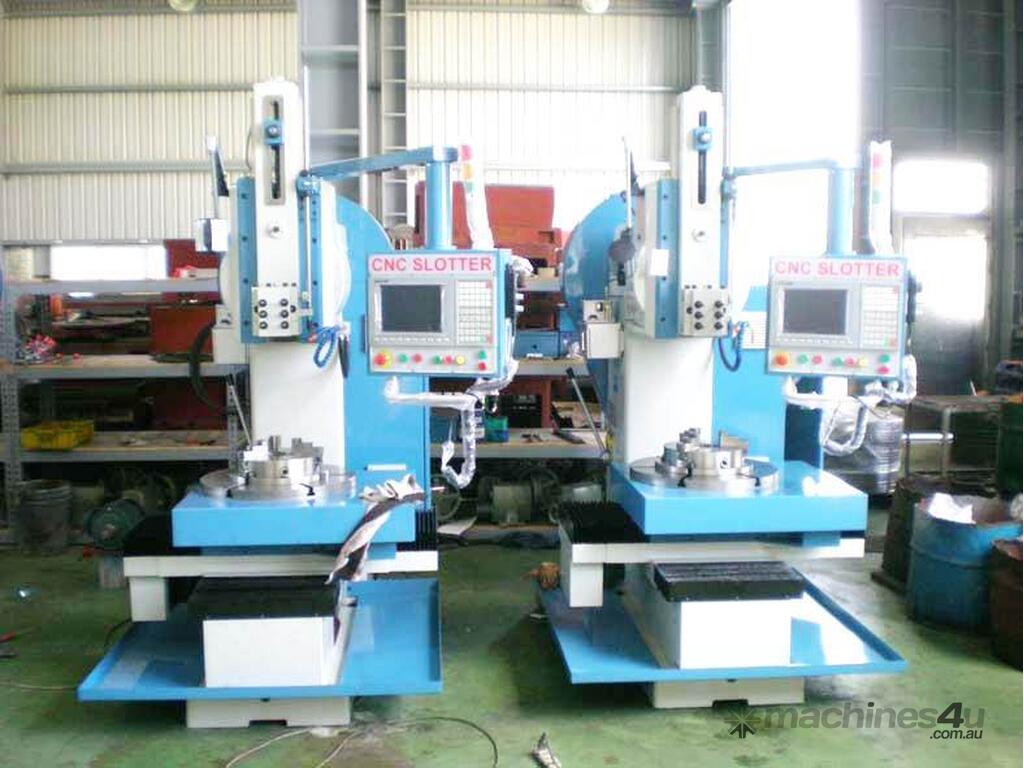

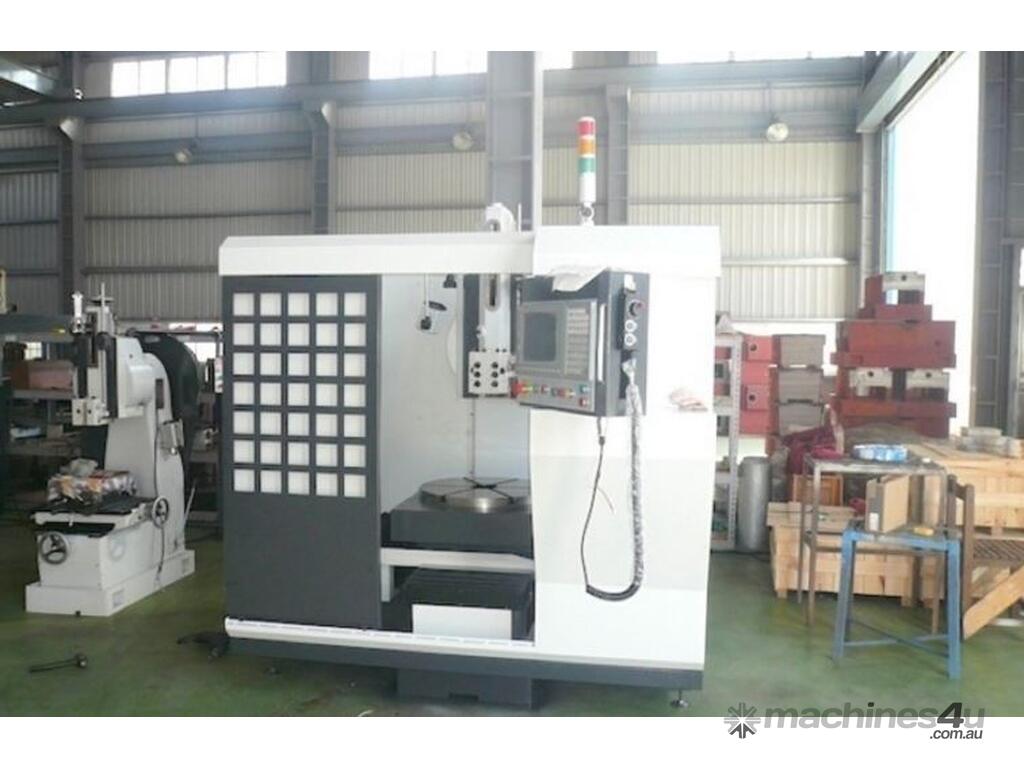

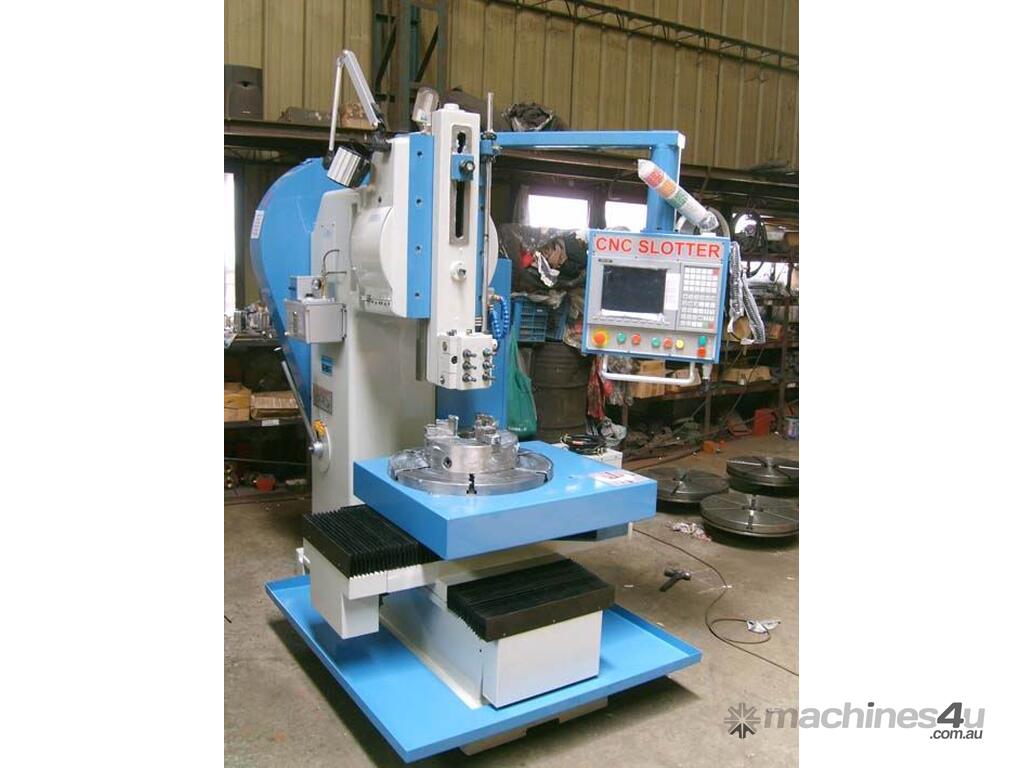

TOPTEC CNC-350-A3 CNC Slotter (3 Axis)

Controller: SYNTEC (Win-CE) 21MA
X,Y axis auto-feed & C axis auto. rotary indexing
Voltage: 220V/3PH/50HZ
Ram travel: 350mm approx.
No. of stroke:8 steps /50hz
(Low: 22,26,31,39spm/min.; High:44,52,61,78spm/min.)
Motor: 5HP 4P/8P

Standard Accessories
1) X,Y axis C3 ballscrews
2) X,Y-axis slideway covers
3) Coolant system with tank & tray
4) Centralized automatic lubrication system
5) MPG Handwheel
6) Halogen work light
7) Alarm light
8) Adjusting tools & box
9) Programmable auto tool backing off
10) Chip box

Optional Accessories
Square tool clamping fixture
Adapter SSAD-50
Strong type 3 jaw 9" chuck (SK-type)
Strong type 3 jaw 12" chuck (SK-type)
Strong type 3 jaw 16" chuck (SK-type)
Transformer (for 380V,415V....except to 220V)
CE Mark
Worktable hole dia.105mm instead of 75mm for special working purposes.
Magnetic chip separator
HSS Blade grinder SLTG-520
Packing size:2130L x 1400W x 2220H (mm)
N.W./G.W.:1800/1900kgs by wooden crate
