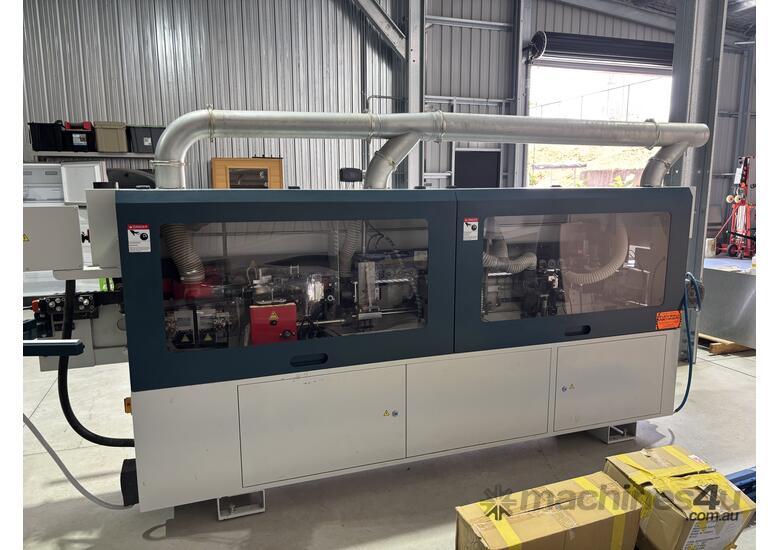

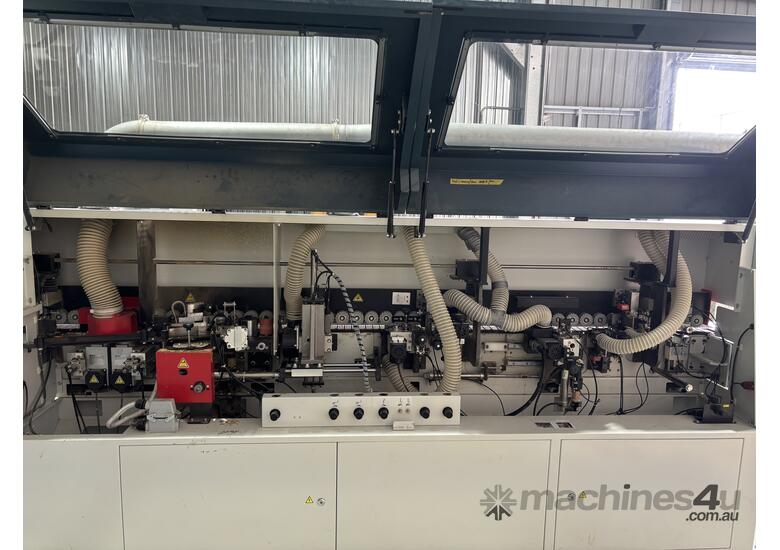

Bi-Matic Prima 5.3 Plus Edgebander

Bi-Matic Prima 5.3 Plus Edgebander

Serial C003.18 Year 2018

Teflon coated gluepot with quick heat up time of 5-6 minutes.

650mm diameter coil support tray for holding coil edgebanding

3mm guillotine for cutting 3mm edgebanding up to 54mm wide

Pressure zone consist of (1) driven and (2) idle pressure rollers

Microprocessor control for turning on and off all working units and control the glue pot temperature

Dual high frequency motor end trim which can be automatically inclined from 0-15o from the control panel

High frequency top and bottom trimmers with nesting tracking rollers and equipped with the Easy-Set system for quick adjustment between various pre-set thicknesses

Equipped with multi function insert tooling for flush and radius trimming (2mm)

Radius scraping unit with 2mm radius tooling with upper nesting rollers and can be pneumatically activated by the control panel. It is also equipped with the Easy-Set system

A chip box collects the scrapings to ensure they do not enter the dust collector

Anti-adhesive liquid sprinkler installed in prior to the scraping unit

Glue scraping unit with rotating tracer wheels to remove any excess glue to provide a pristine finish on the panel

Top & bottom buffing units to polish the edge of the panel
