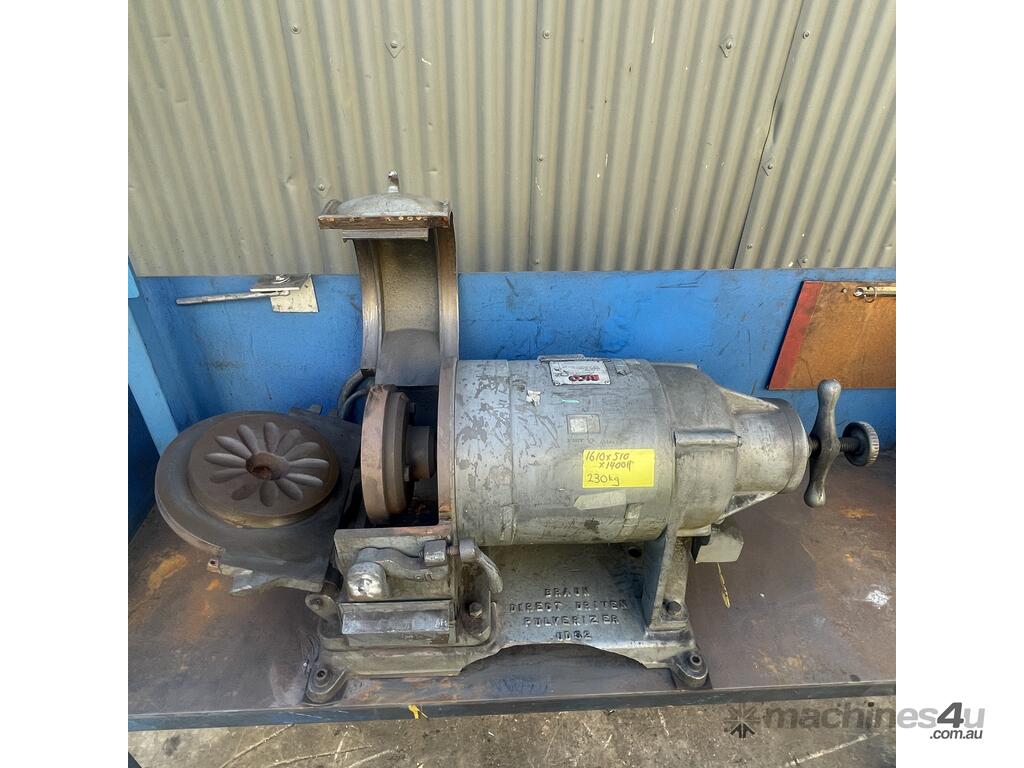

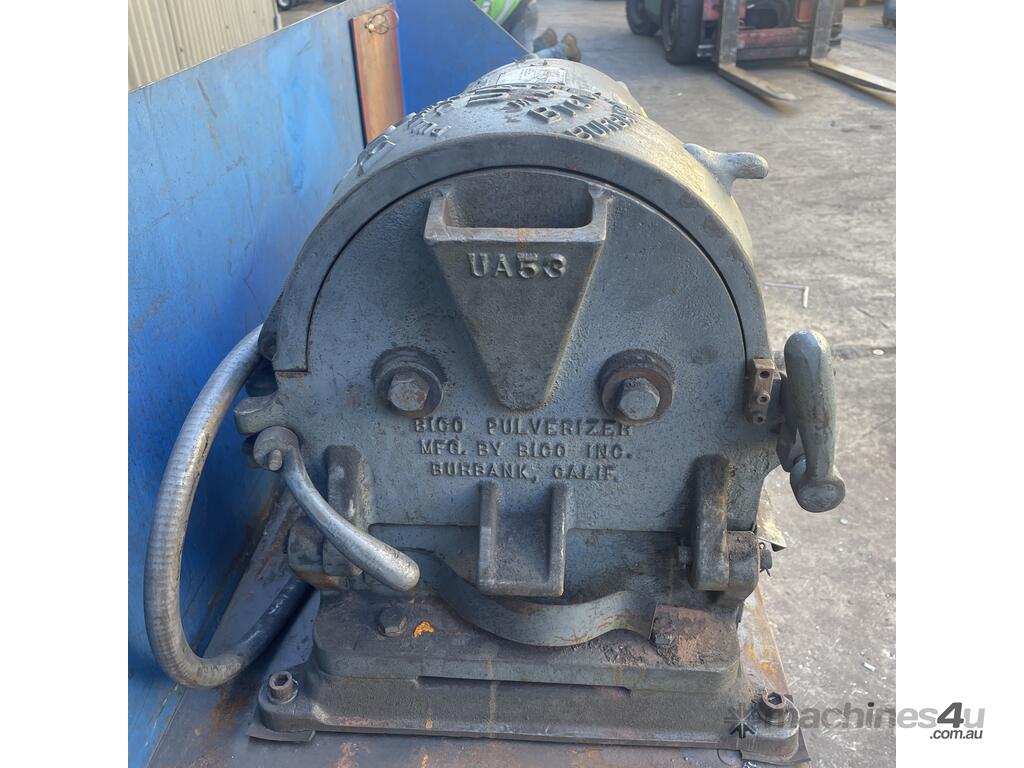

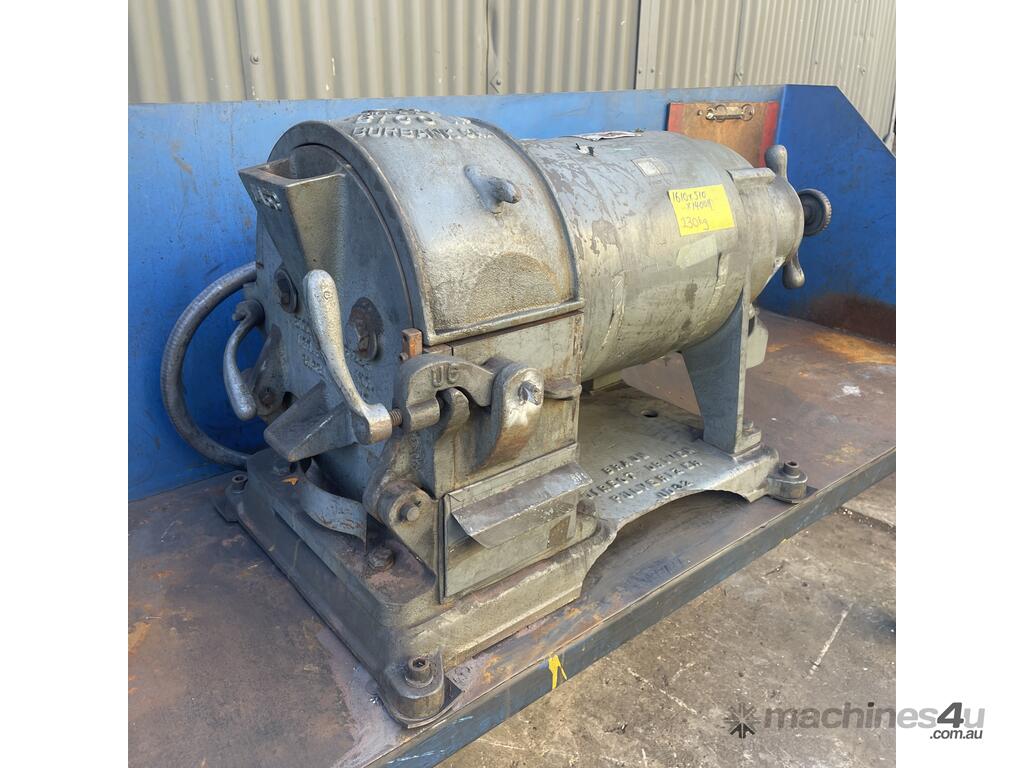

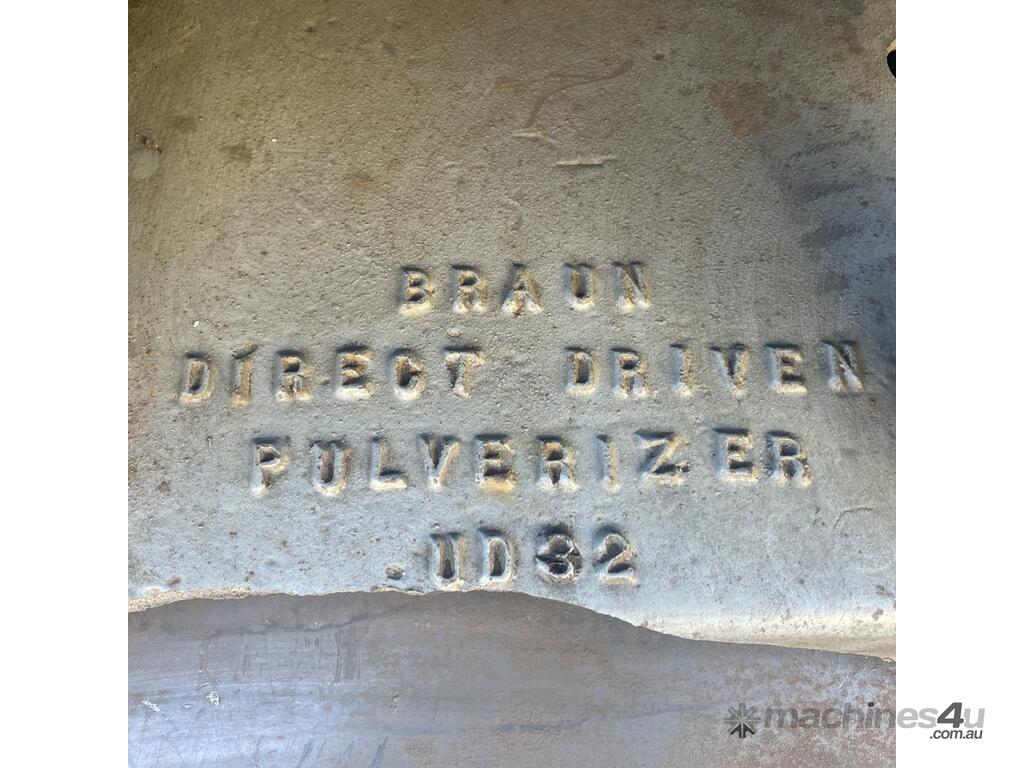

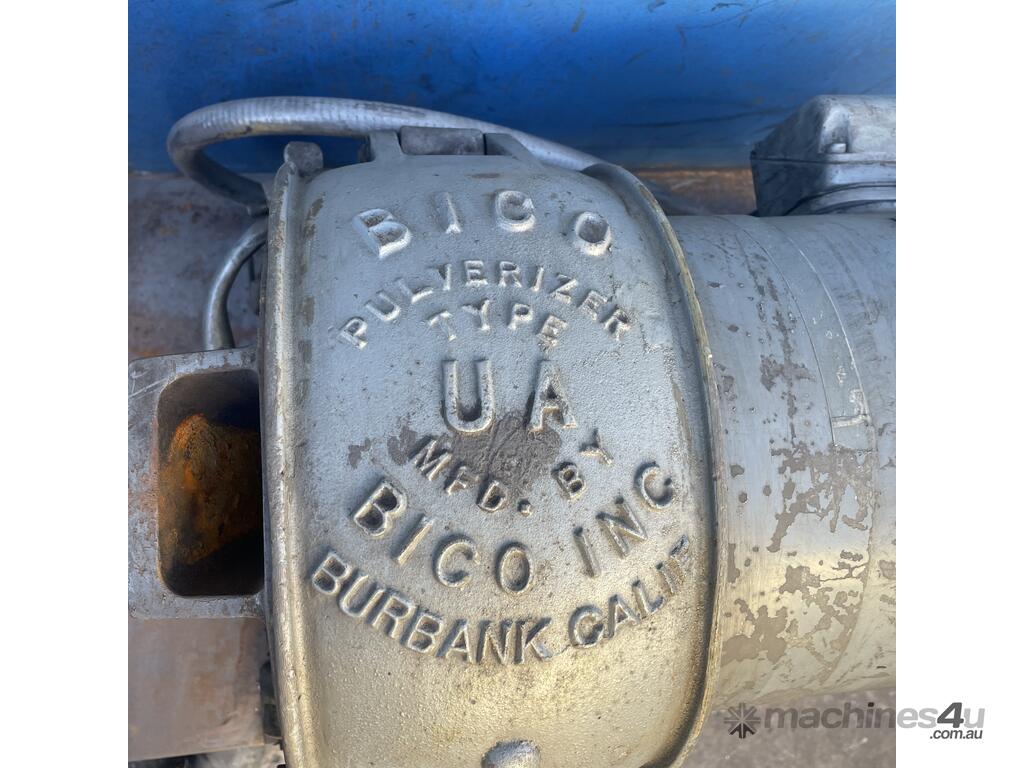

Bico Braun UA-53 Direct Drive PULVERIZER PULVERISER 8" GRINDING PLATES 2HP UD32

Bico Braun UA-53 Direct Drive PULVERIZER PULVERISER 8" GRINDING PLATES 2HP UD32

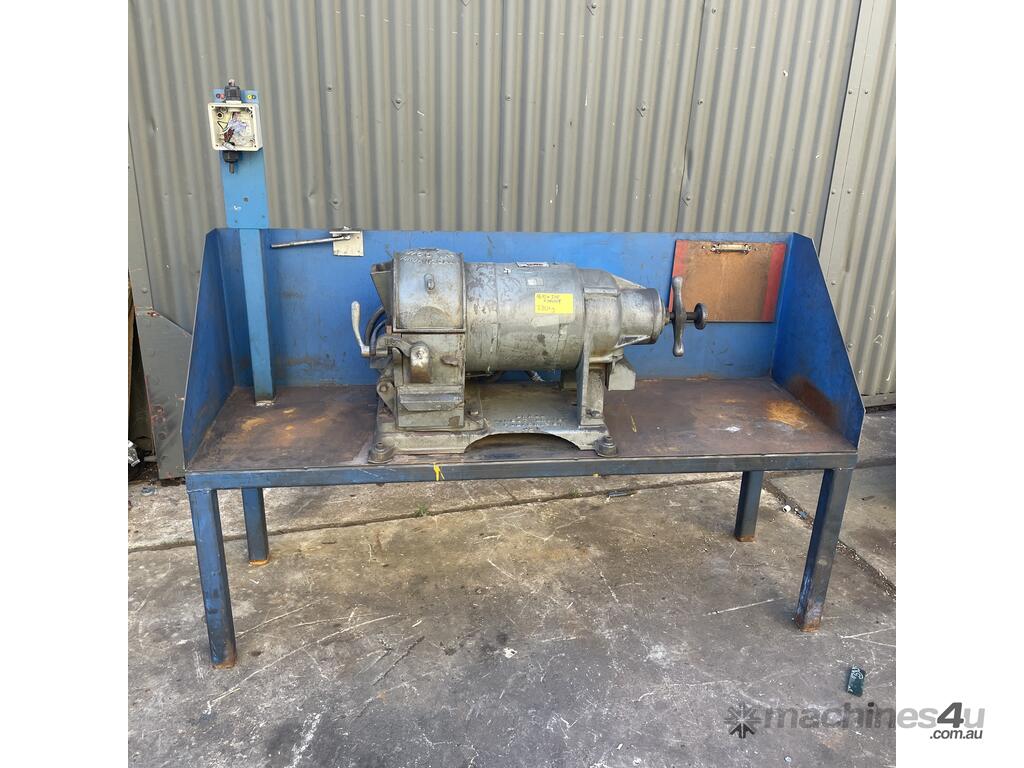

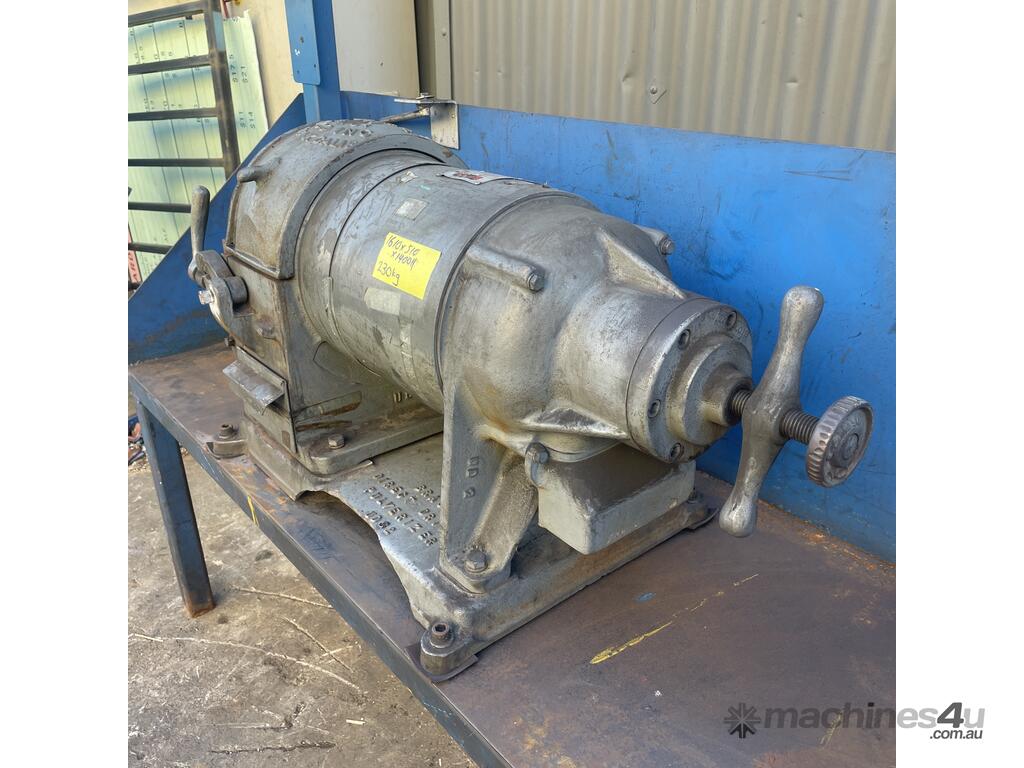

on stand with guards / sides

The following info has been found on other sites, we believe it is correct:

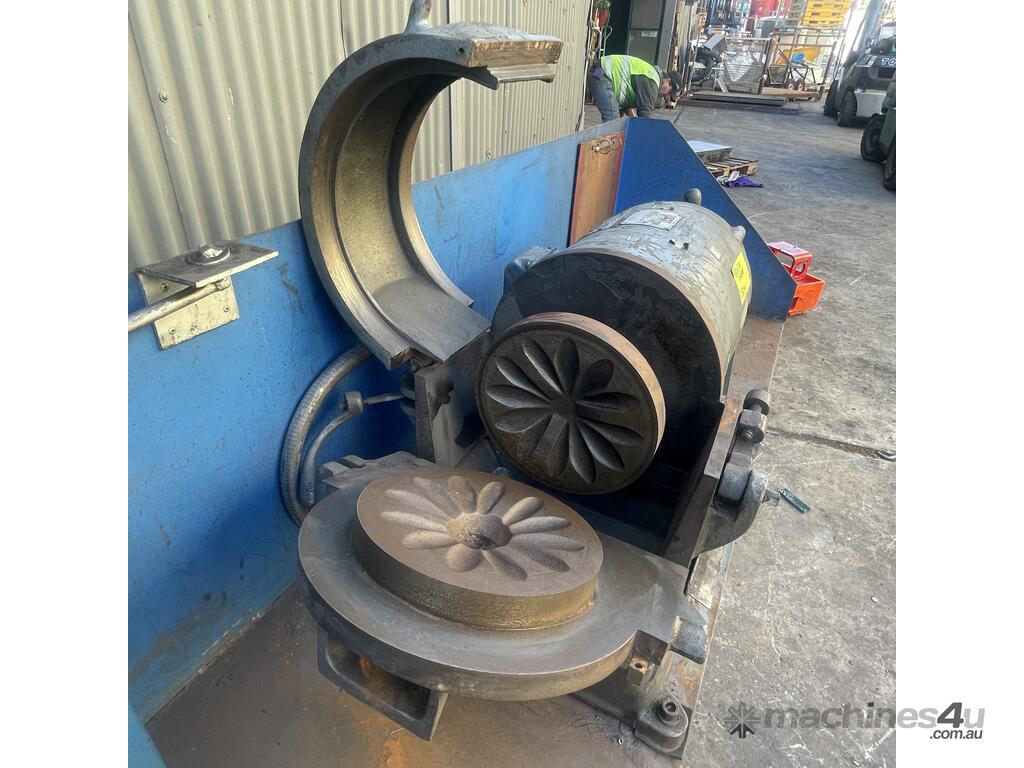

The disk pulverizer will accept a 1/4" dry friable material and reduce it to a fine powder of 150-200 mesh at approximately 1 lb/minute (based on quartz). The 8" grinding plates can be adjusted and locked into position to obtain the required particle size. Plates are offered in a variety of materials and hardness to suit the users grinding needs and budget requirements. The entire grinding chamber is accessible for easy cleaning and greater sample recovery.

GENERAL SPECS

Capacity: 1 lb (per minute)

Input Size: 1/4" Dry Fryable Material

Reduction Output Size: 150 - 200 Mesh

RPM: 900 - 1000

Bico Pulverizer features efficient operation, minimal power consumption, and long service life. It has a compact design and is effective for pulverizing hard rock, ores, and minerals. The grinding chamber is easily accessible for cleaning, maintenance, and complete sample recovery.

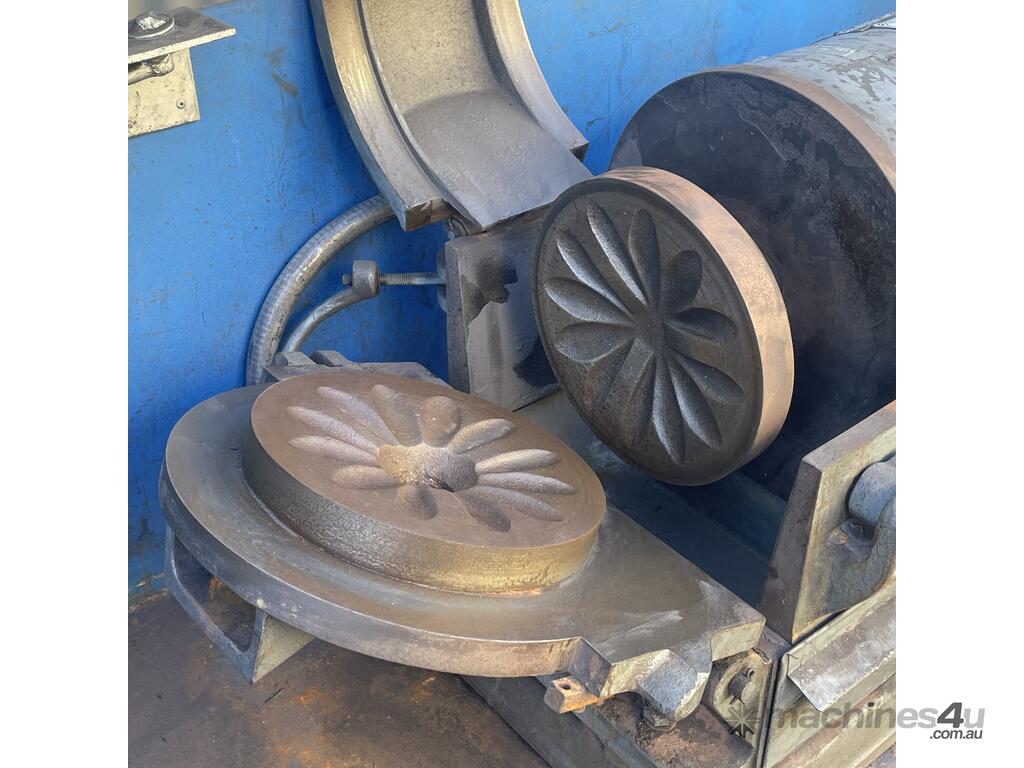

The pulverizer grinds 1/4in (6.4mm) feed material to approximately 75µm (No. 200 sieve size) in a single pass, depending on the material. Throughput is approximately 60lb (27kg) per hour. A threaded knob with a locking lever adjusts the gap between the 8in (203mm) diameter grinding plates to control particle size output. Stationary and revolving grinding plates are easily replaced.

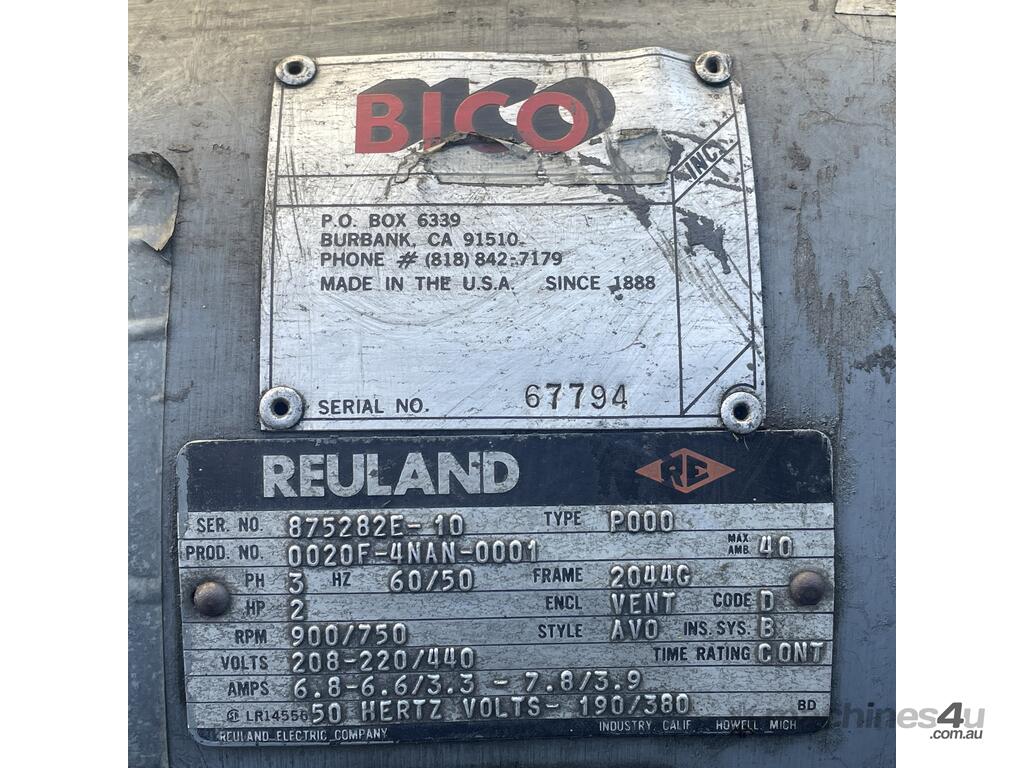

Power from the 2hp motor rotates the shaft at 900–1,000rpm through a double V-belt drive. The motor is totally enclosed and has thermal overload protection. Lubrication to shaft bearings is supplied by manually adjusted grease cups. Operates on 220V, 50/60Hz, 8 amps, 3-phase. Inquire for additional voltages. A motor starting switch is included and must be installed separately on-site.





1610 x 510 x 1400mm
230kg
