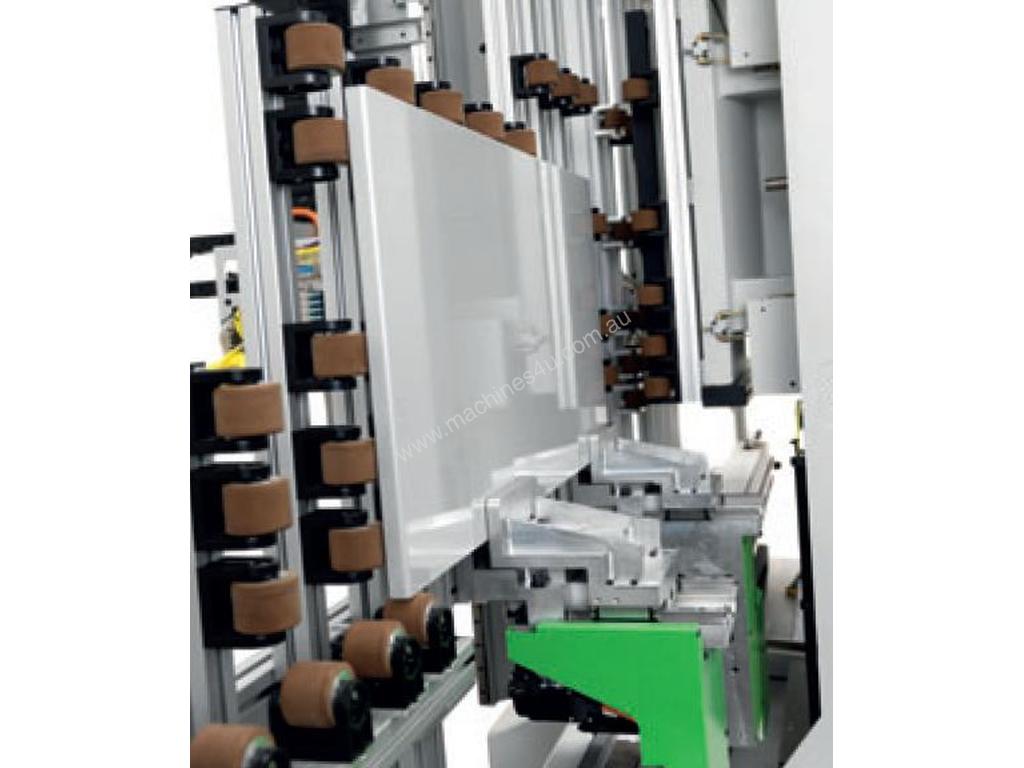

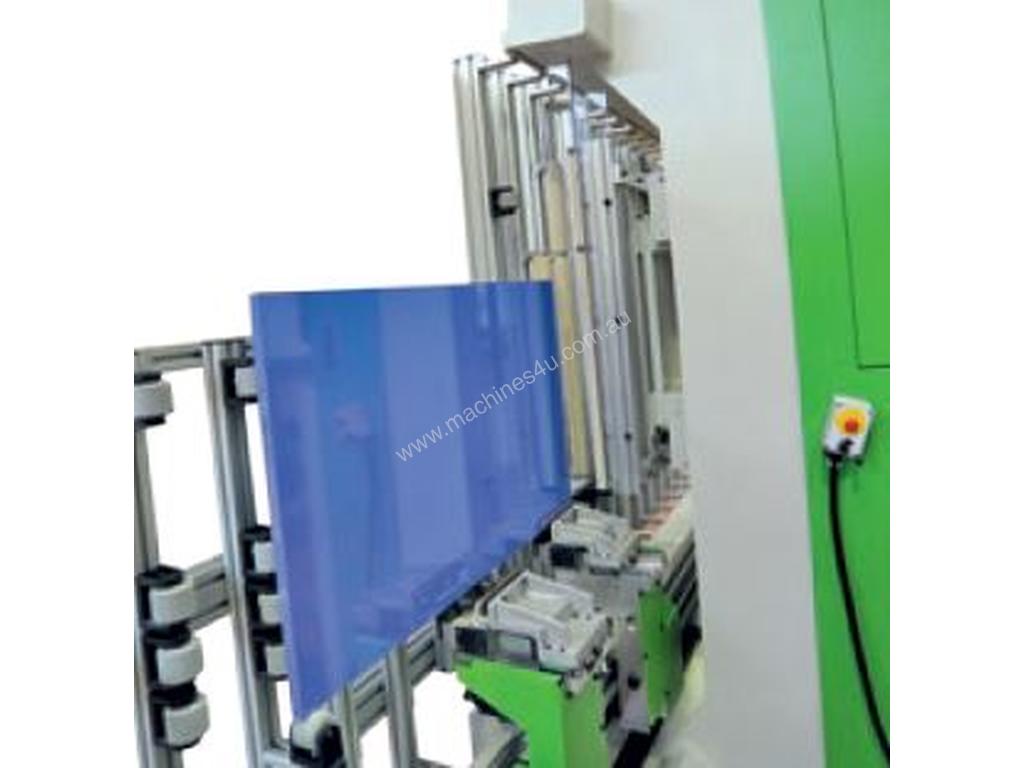

In a reduced space, NC machining centre model EKO 902 combines flexibility to high performances allowing the managing in real time of different panel types. In order to reach a high working productivity, the panel displacement occurs by means of a couple of mobile chucks on controlled axes, while the panel managing in vertical position, which is a distinguishing mark of this machine Bre.Ma, allows working also on delicate surfaces. The EKO 902 has a modular concept and it is able to execute all boring, routing and glue & dowel inserting operations. It is also possible to insert further hardware insertings. It is ideal for companies needing a simple and high-tech product for special or batch-one orders.
Product Details:

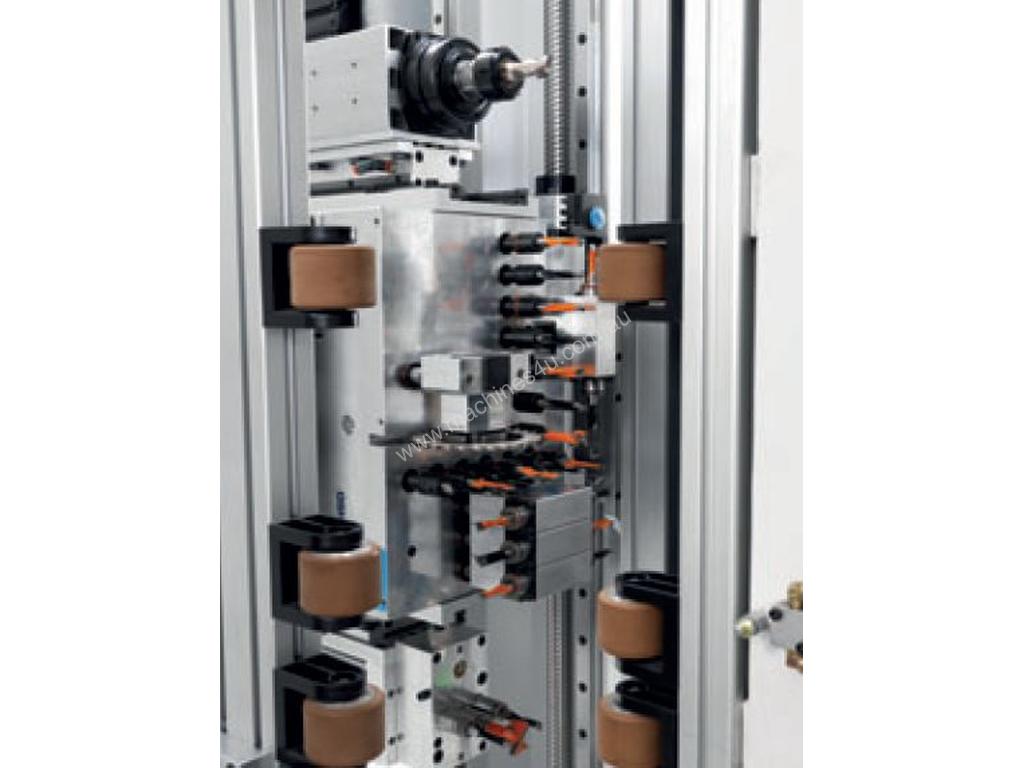

13 Vertical Drilling Spindles
8 Horizontal Drilling Spindles
120mm Diameter Saw
4.5Kw HSD Electrospindle
Hinge boring unit with Independent motor seperate from the drilling head
Loading convayor with idle rollers to support longer panels
Panel Length & Thickness reading system (eliminates operator errors)
Safety Mats
PC Control (Windows Based)
Biesseworks Software Included
Barcode Reader
Optional Extras:
Panel Return System

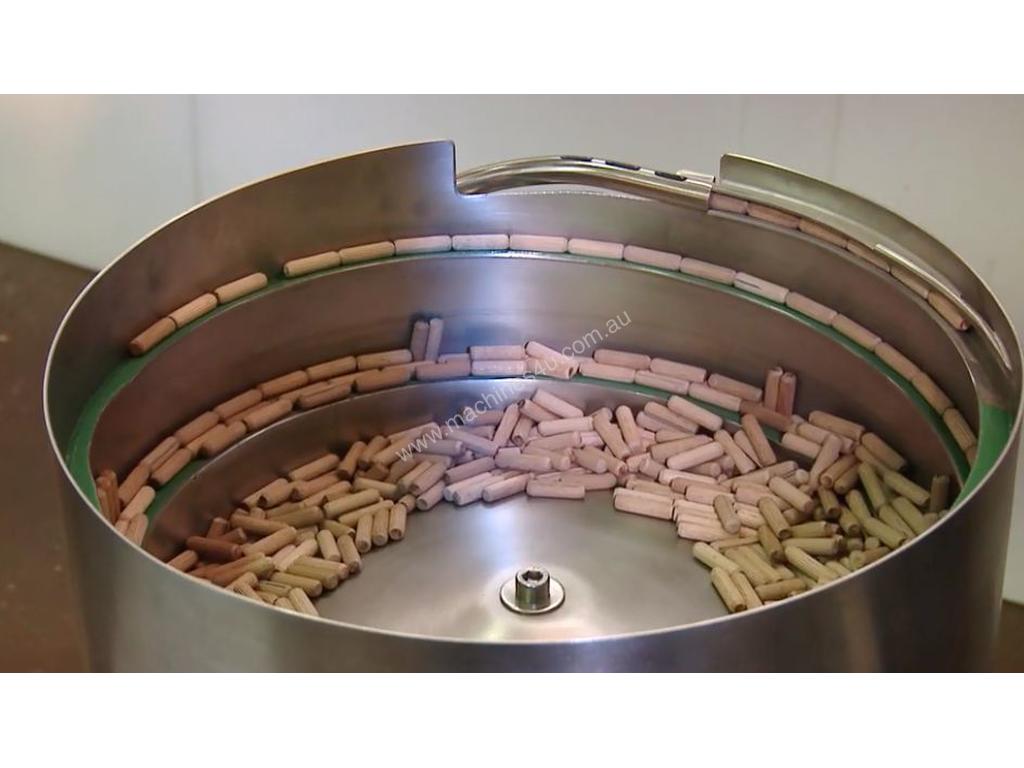

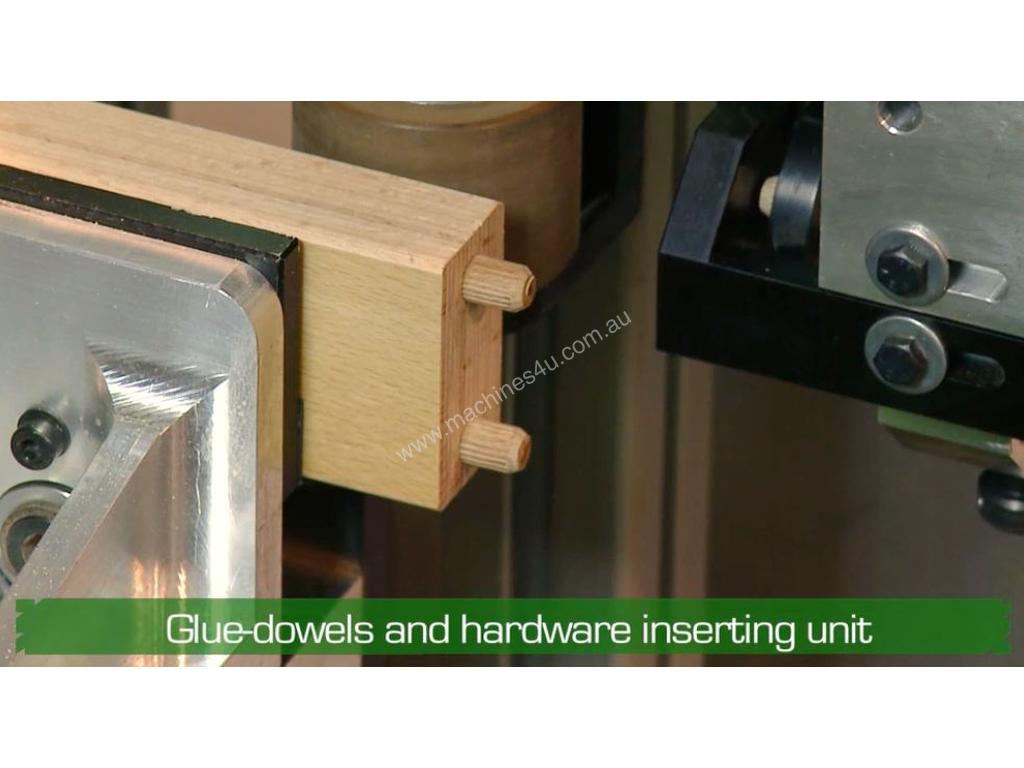

Glue & Dowel Insertion
Hardware Insertion
5 Position Automatic tool changer
