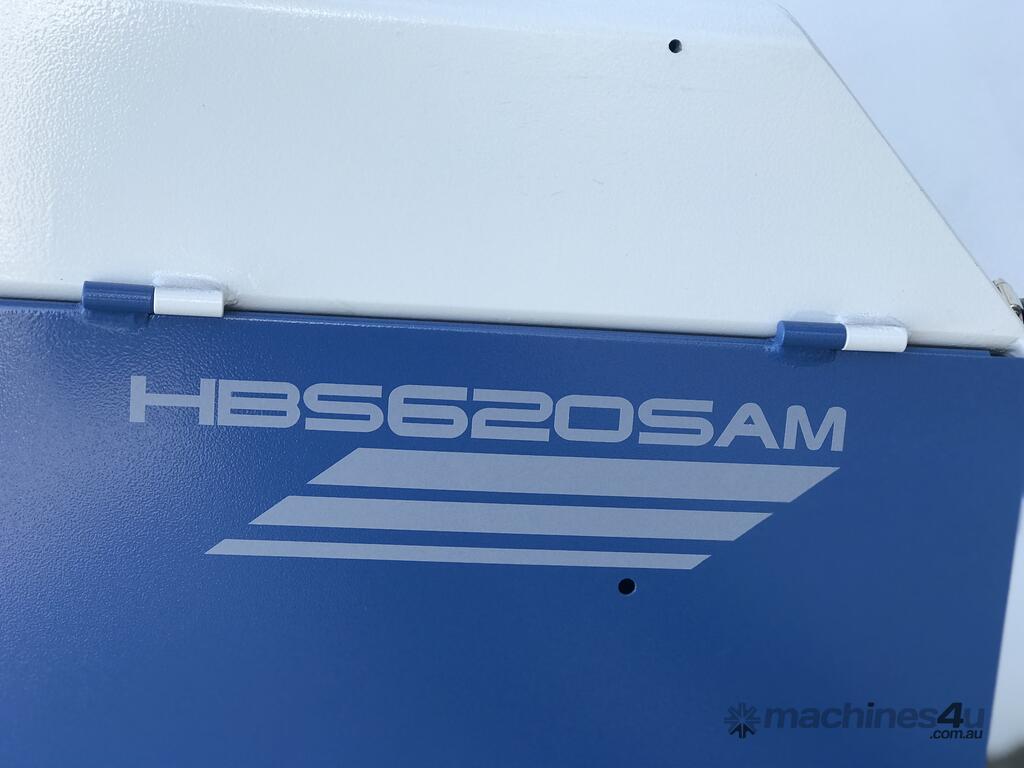

Big 620mm x 450mm Capacity - Double Mitre, Semi Auto, Hydraulic Clamp

Price reduction.
##On Special for a limited time at $18,950.00 + GST##

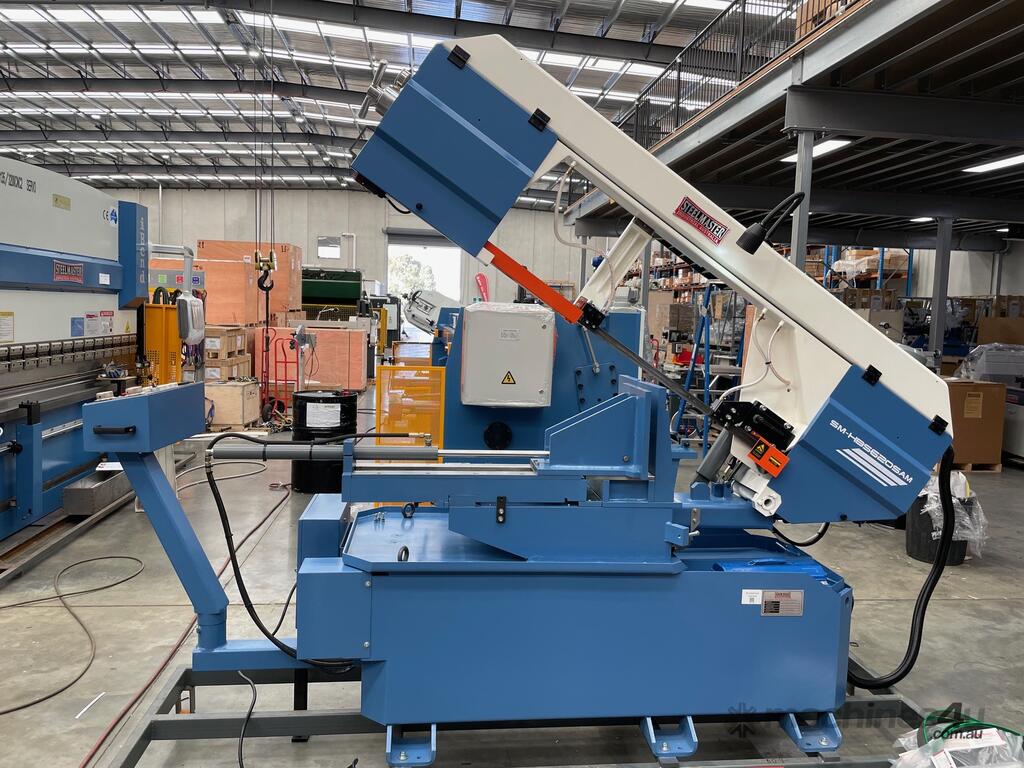

## LARGE DOUBLE MITRE 620MM X 450MM AUTO RETURN SAW ##

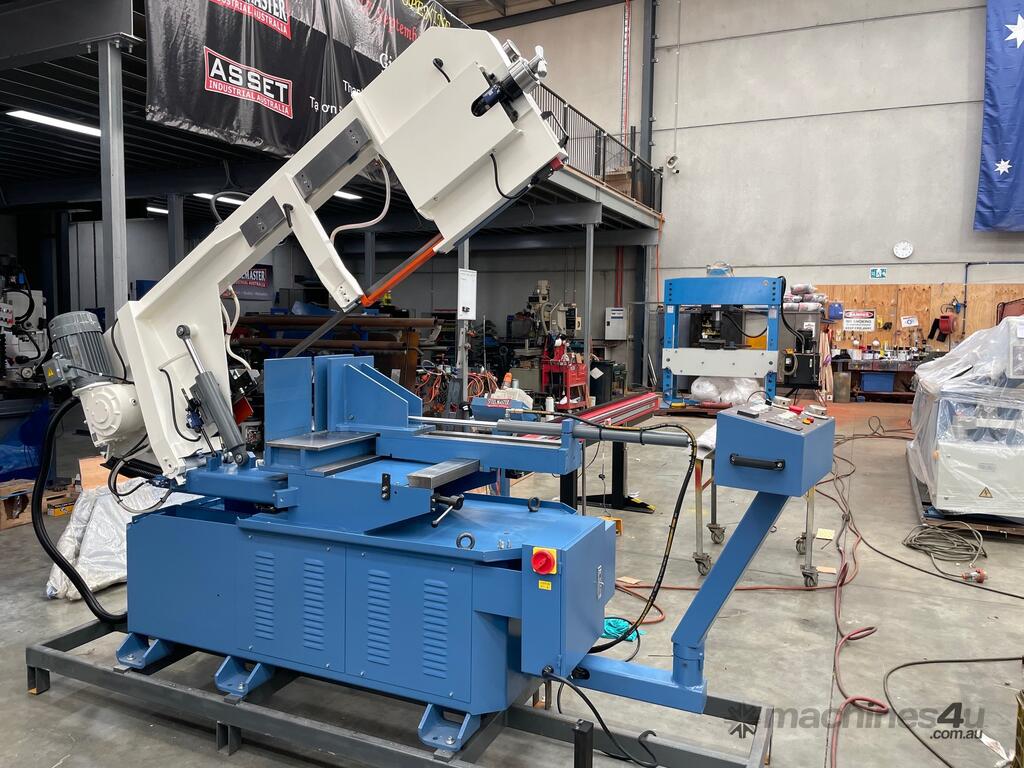

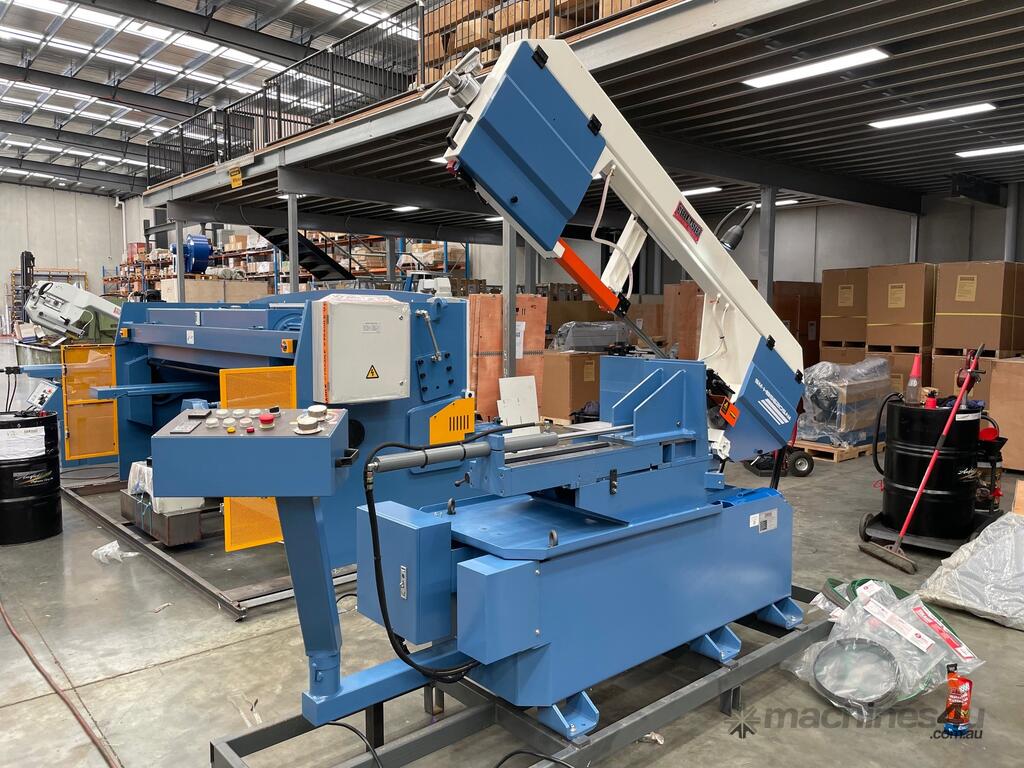

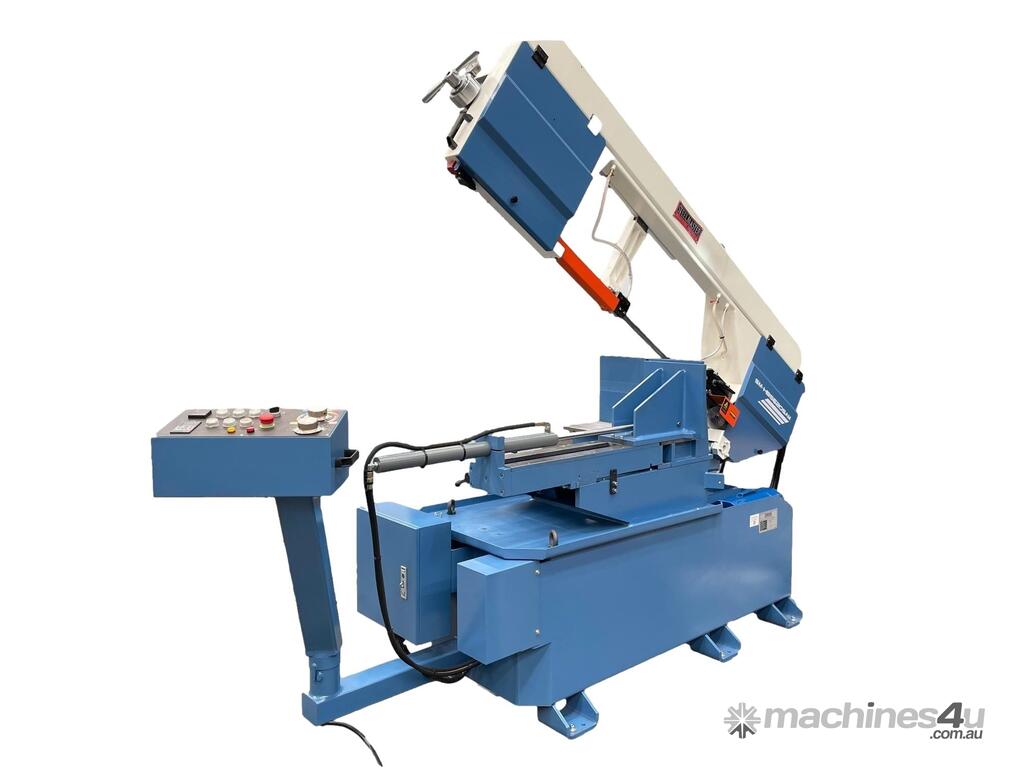

This large capacity semi-automatic full featured Metal-Cutting Bandsaw includes a swivel head to cut miters from -45 degrees to +60 degrees, hydraulic clamping, variable speed control, hydraulic feed control and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else. If you're a Metalworking jobbing or a production shop, you should take a good look at this!

Features
large 620 mm x 440 mm capacity
durable 34 mm wide blade

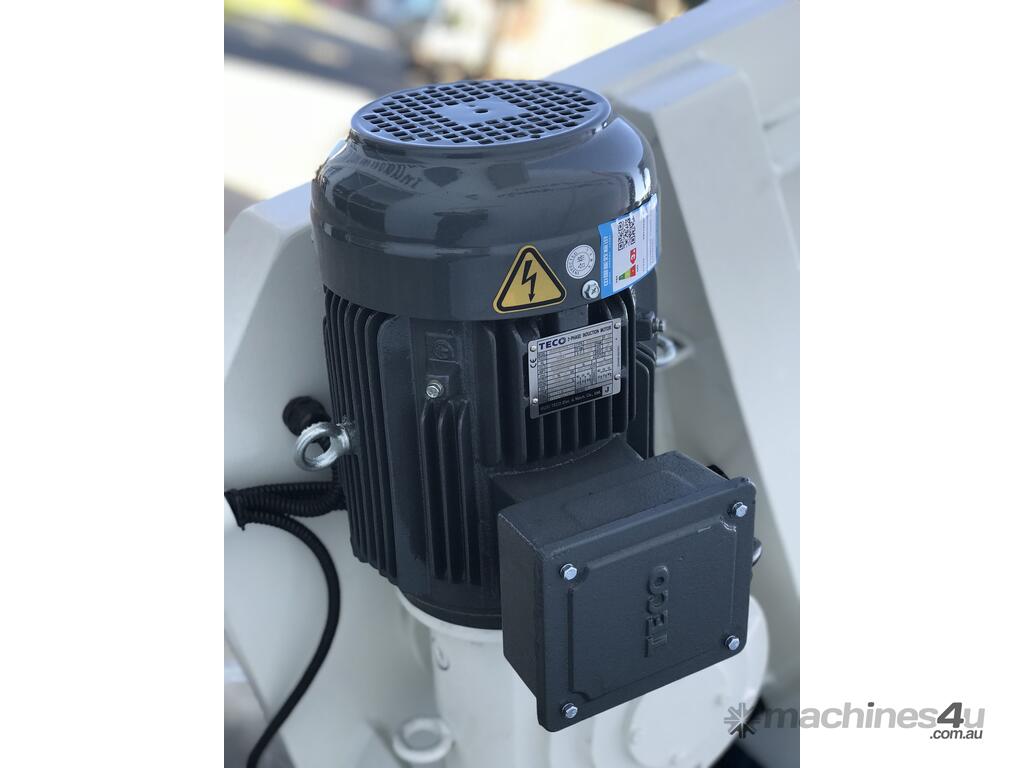

heavy duty 3 phase motor
strong construction design
tungsten carbide blade guides

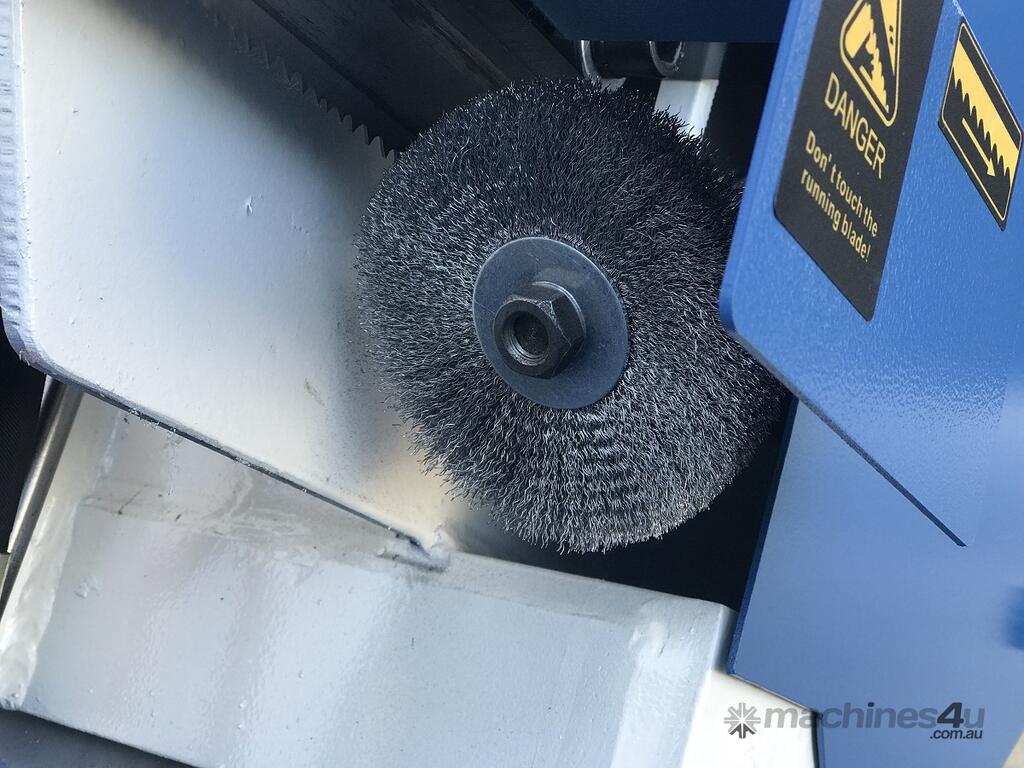

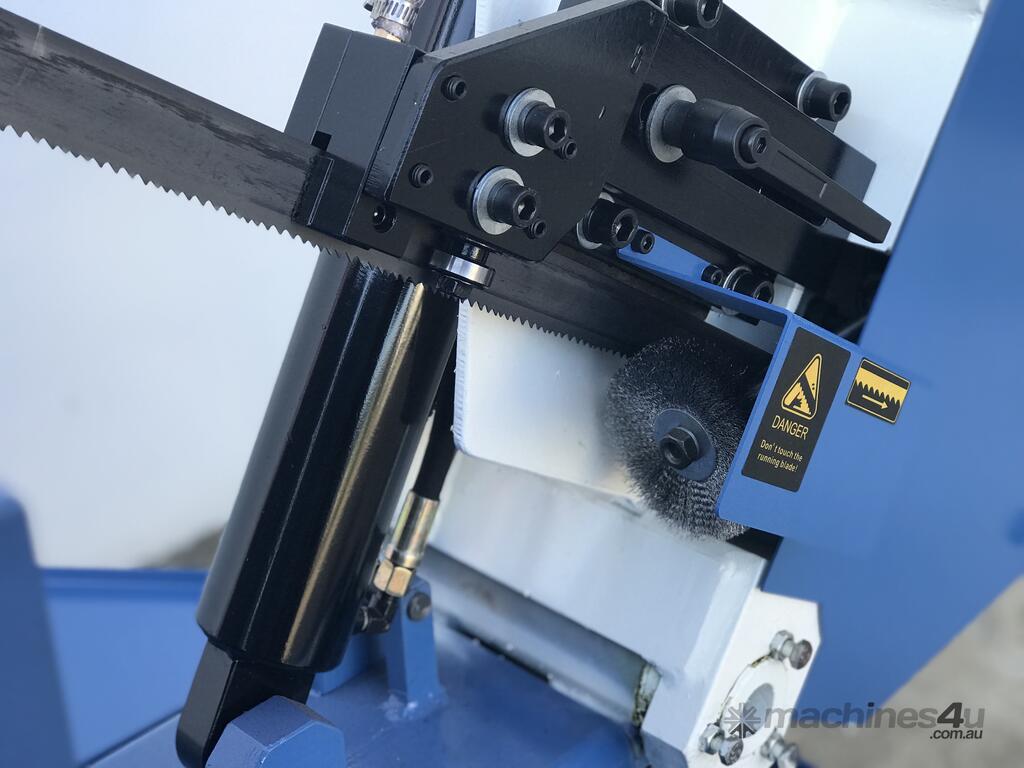

coolant system and twin swarf brushes for increased efficiency

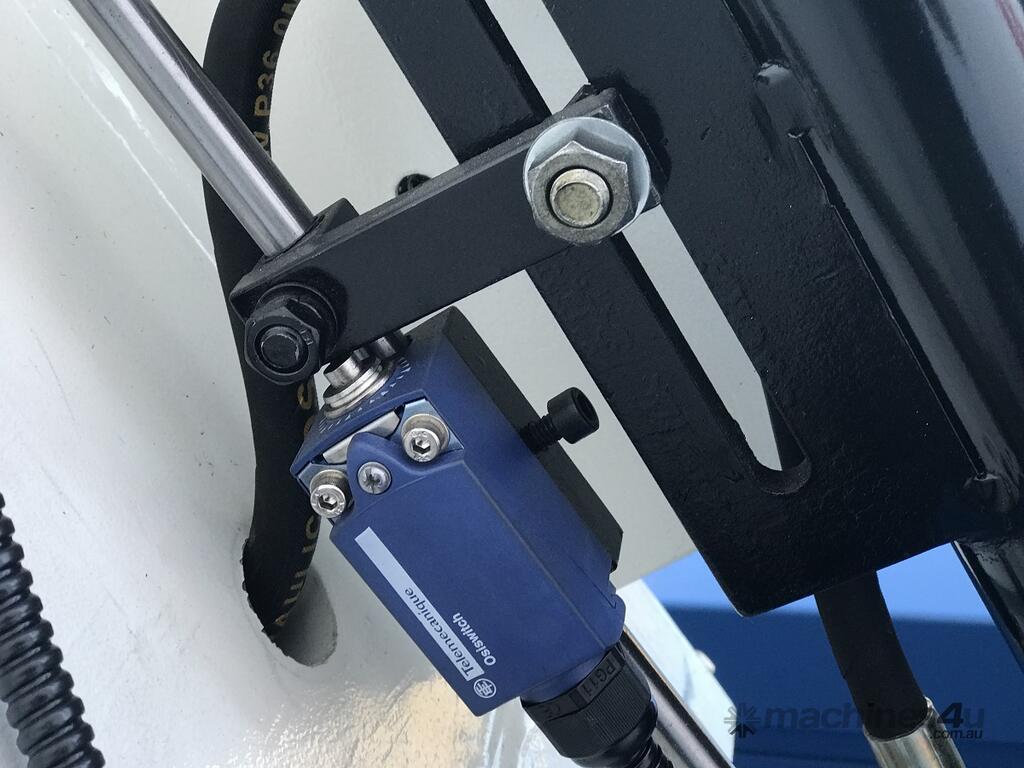

auto cut-off switch

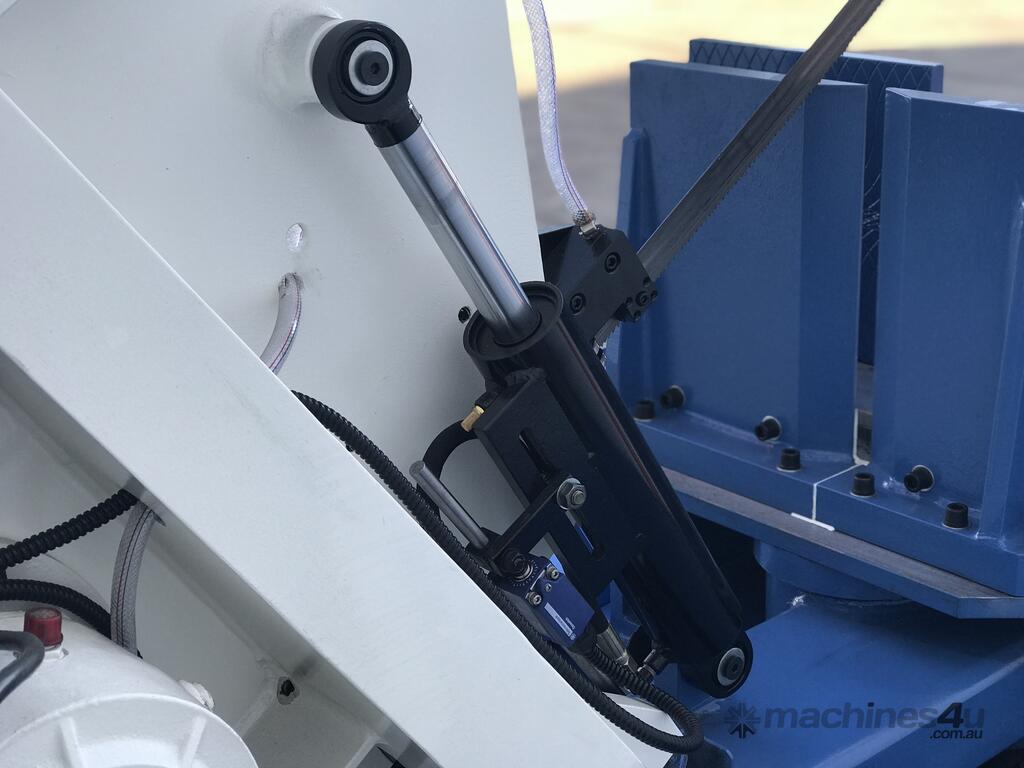

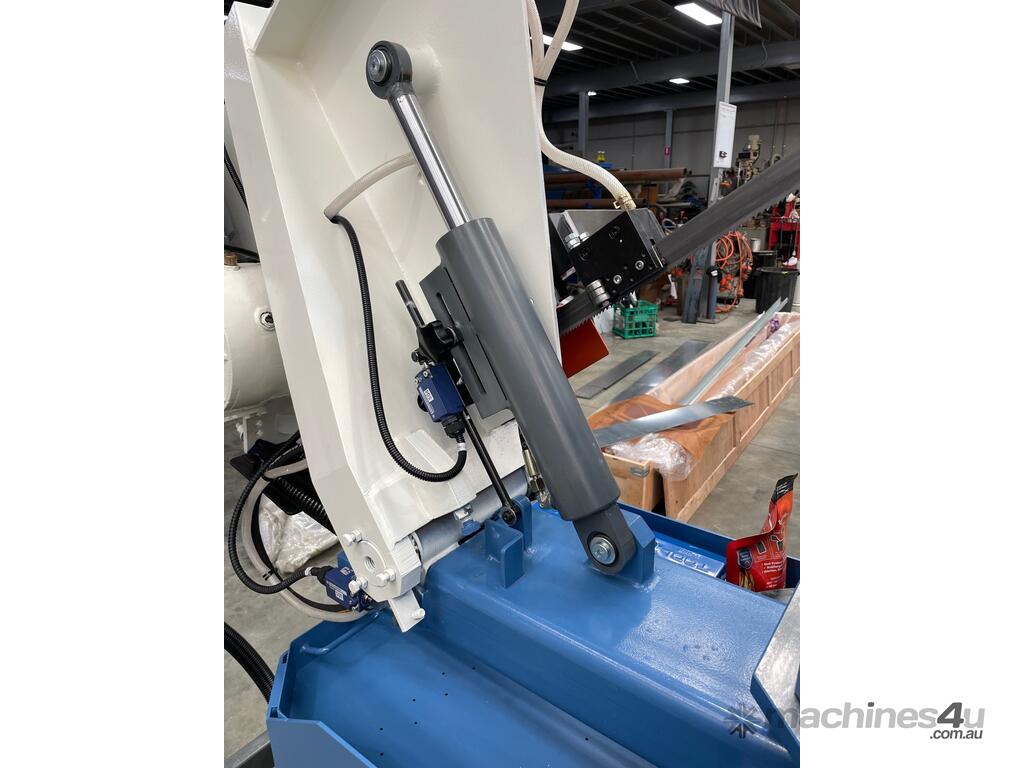

variable hydraulic down feed & auto return

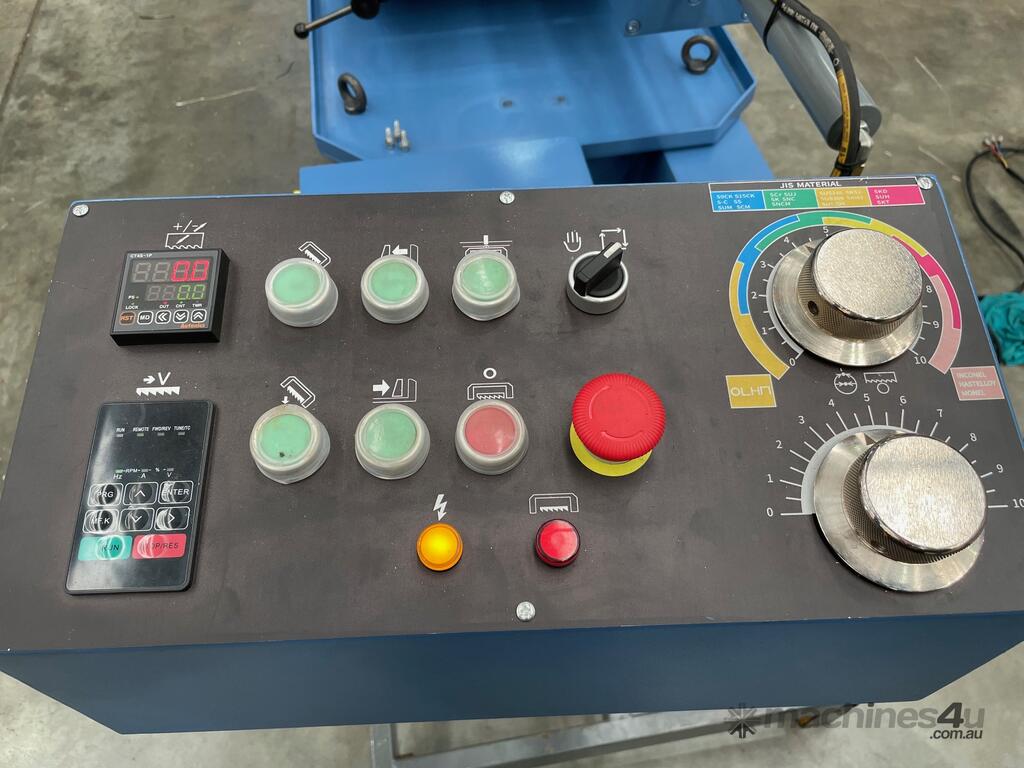

centralised control panel

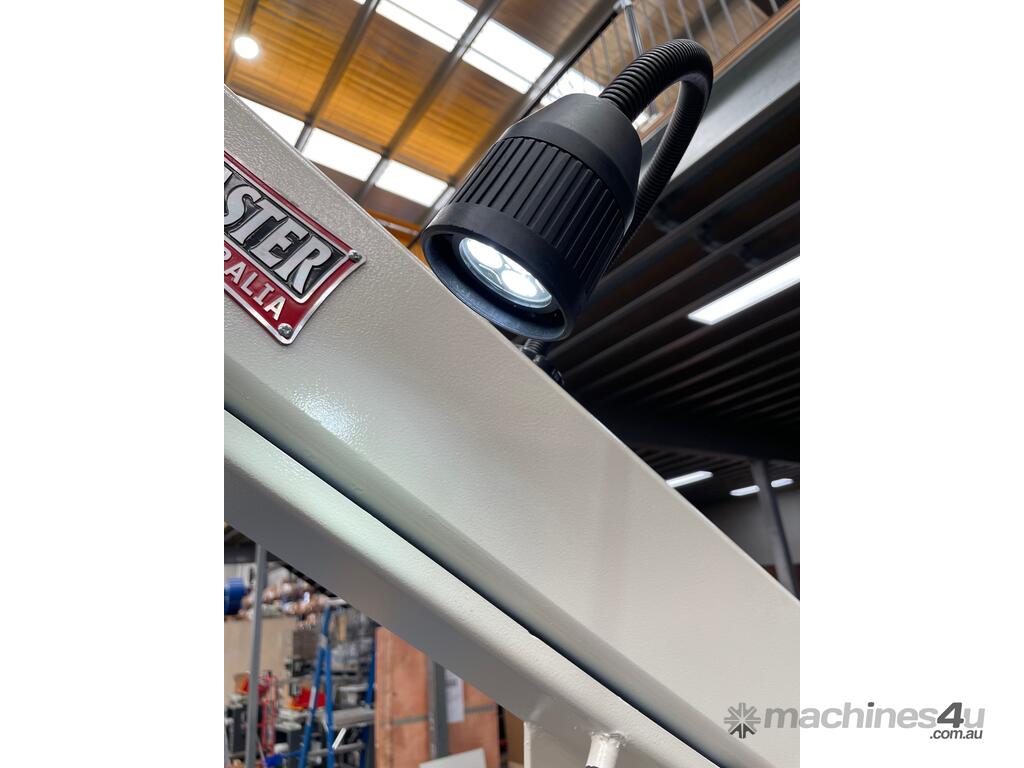

work light fitted standard
blade break detection system
digital angle display setting
twin support arms
3.0 kw 3 Phase operation
variable speed 20-90 MPM
CE compliant

Specifications:
Voltage Volt 3 Phase
Notes & Accessories:
Equipment & Accessories Supplied:
Fitted blade, tool kit, operation manual.

Dimensions:
Length: 2500 (mm)
Width: 1900 (mm)
Height: 1450 (mm)
Weight: 1450 (kg)

Features
Double mitre cutting to 60 degrees left - right
Blade Breakage Detector
Durable 34mm wide blade.
Variable hydraulic down feed system for the automatic
continuous lowering of the saw frame
Automatic beam return
Variable blade speed enables cutting on a variety of materials

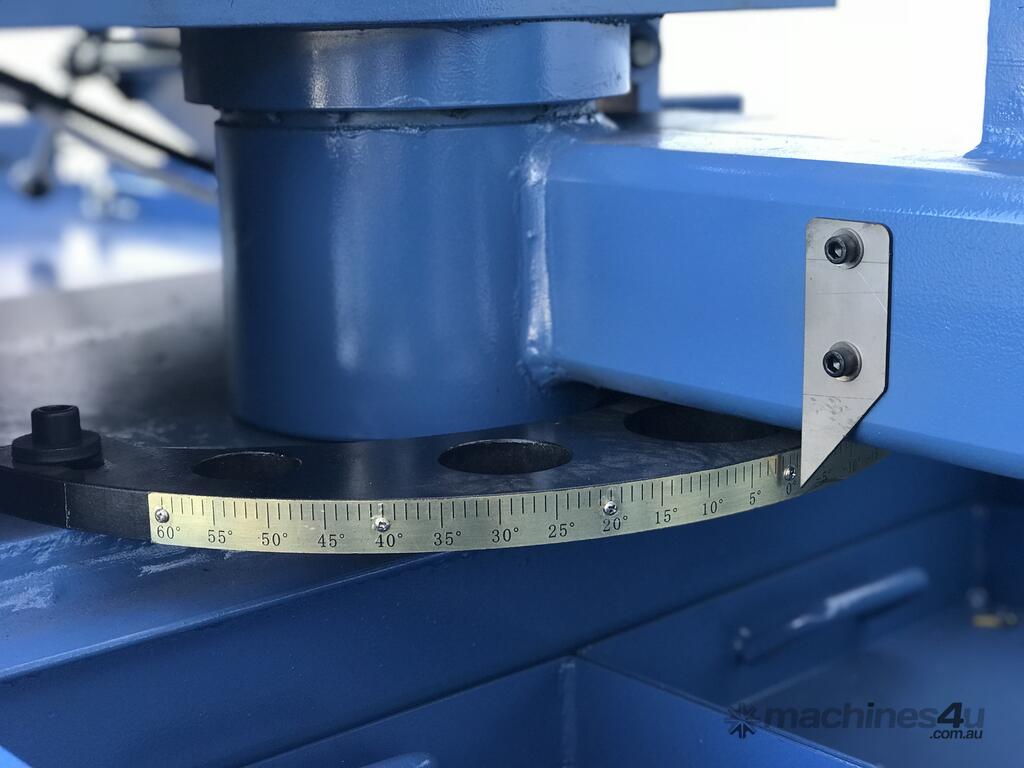

Mitre Angle setting and display

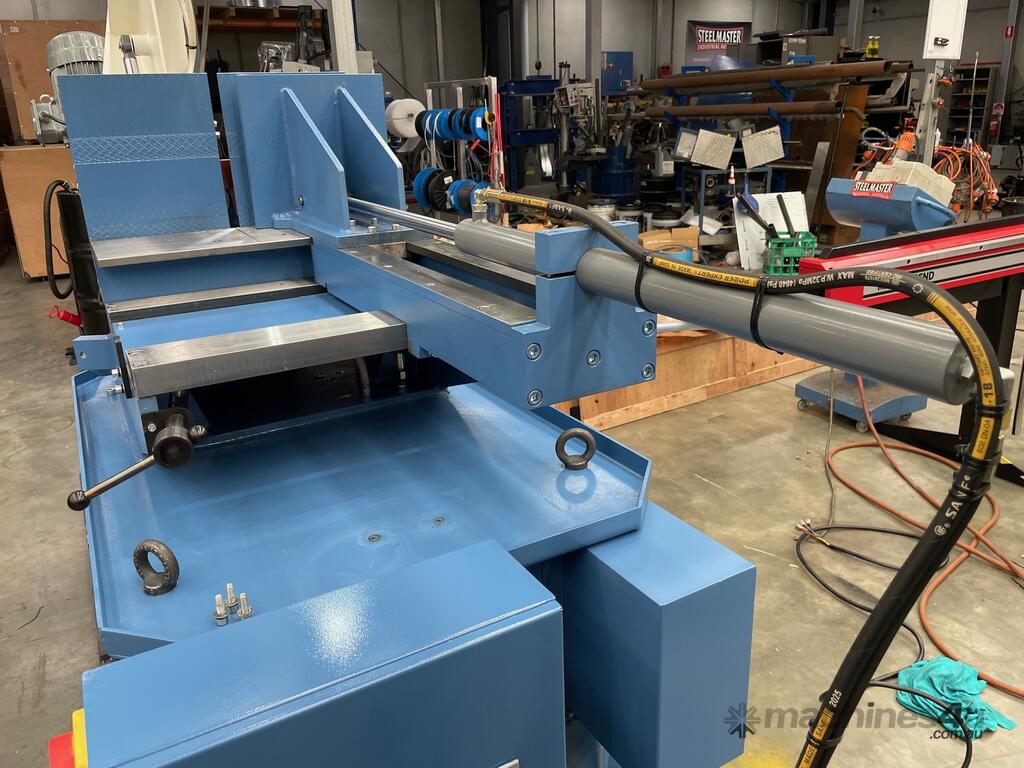

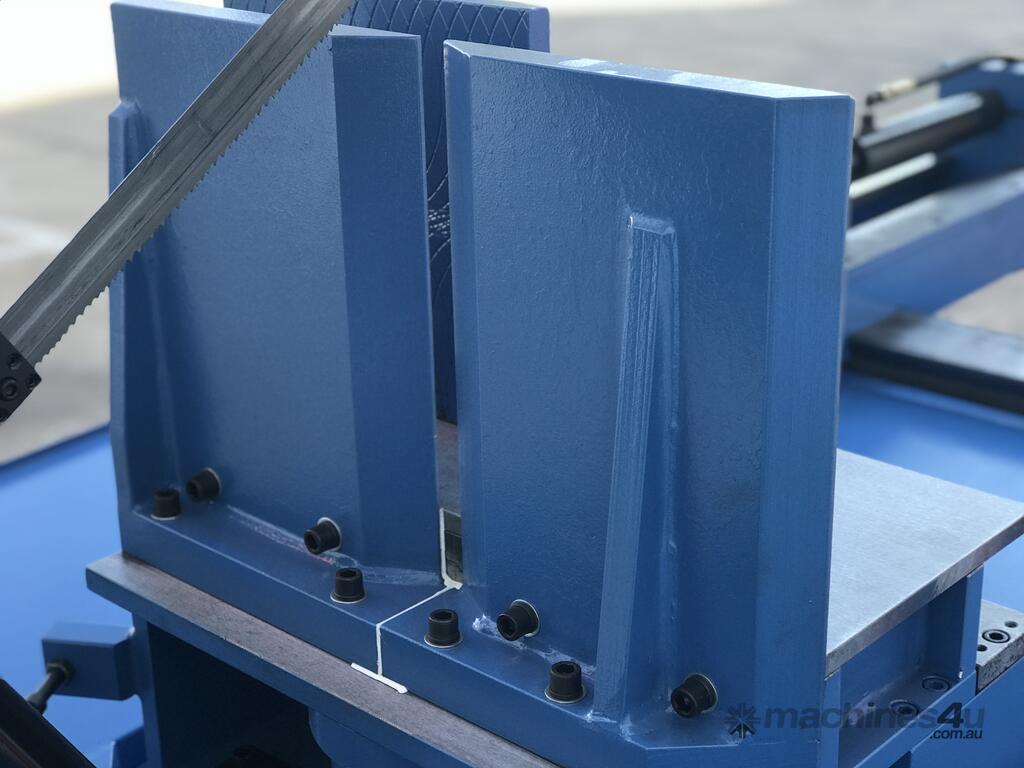

Hydraulic vide clamping standard
Vibration free, low noise operation ensures clean cutting and
high accuracy maintained
Tunsten carbide blade guides.
Stand and coolant system included

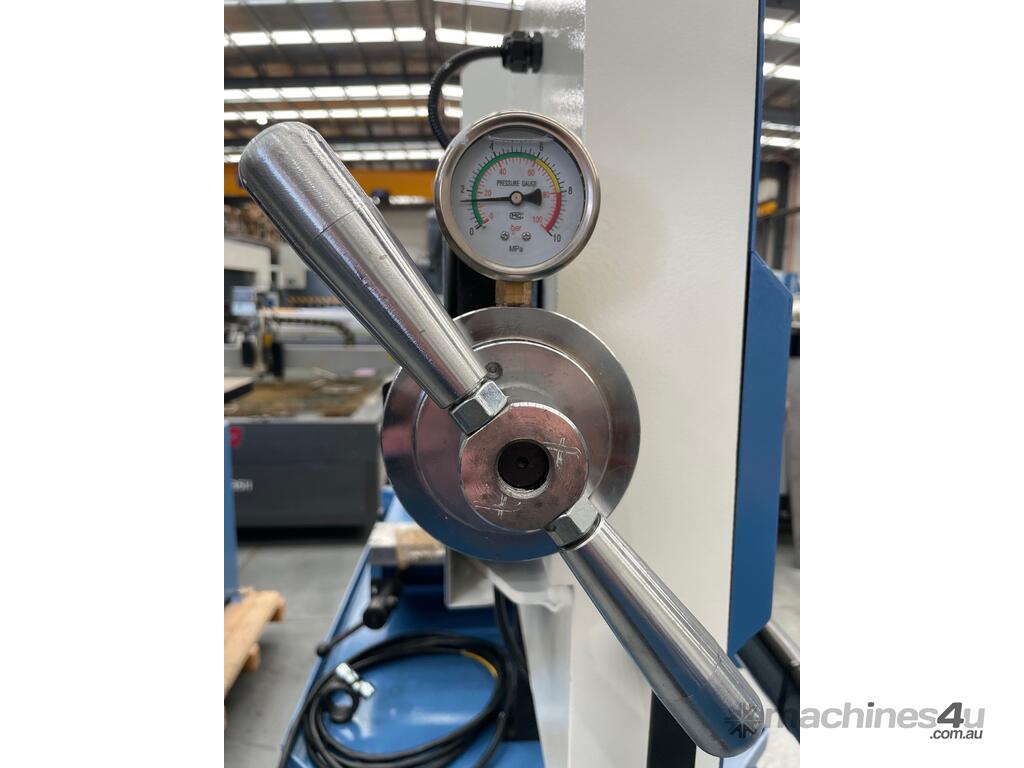

Quick action mitre adjustment
CE compliant

Techncal Data
sku 15-0344
cutting capacities ø (w x h x t)
90° 450 mm
? 60° 350mm (L) 400mm (R)
45° 450 mm
90° 450 mm x 450 mm
? 60° 280mm (L) x 300 mm (R)
45° 400mm (L) x 450 mm(R)
90° 620 mm x 450 mm
? 60° 300mm x 280 mm
45° 510 mm x300 mm
?? 90° 450 mm
beam return hydraulic type / auto return
blade size (l x w x t) 5200 mm x 34 mm x 1.1 mm
speed range 20 ~ 90 m/min
table working height 920 mm
motor power 3.75 / kw/V
dimensions (l x w x h) 2700 mm x 1100 mm x 1500 mm
weight (nt) 1450 kg


Optional Accessories

Motorized conveyors
Bichamp BI-METAL BANDSAW Blades
Model to Suit Length x Width x Thickness Pitch

#######################################
