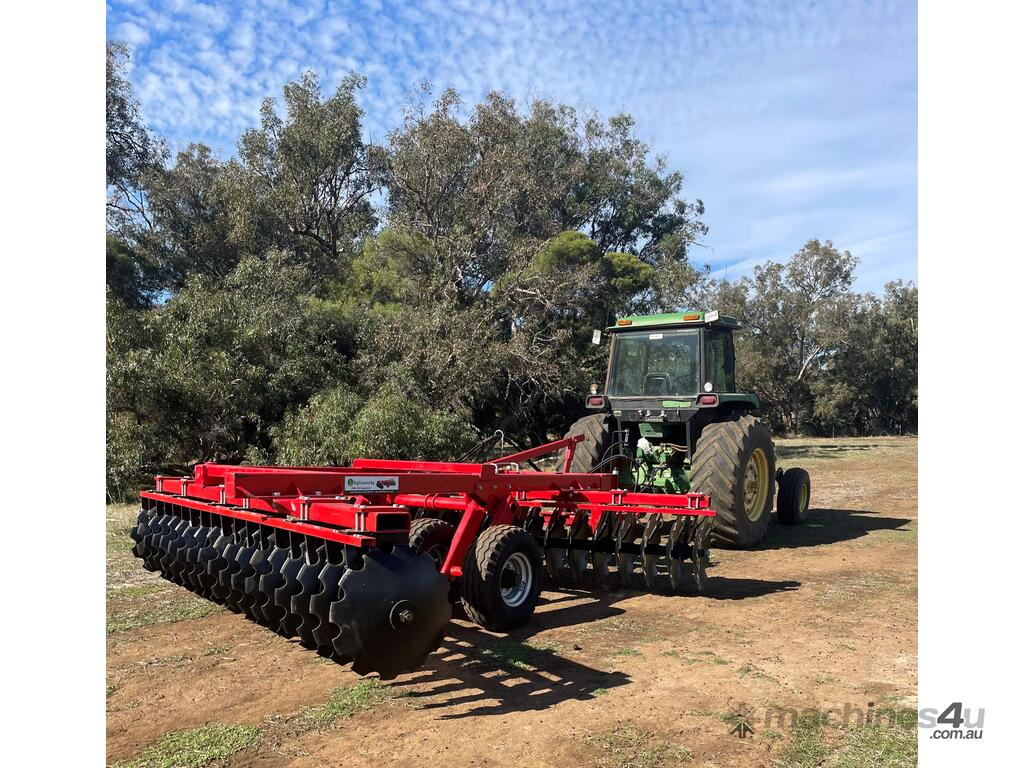

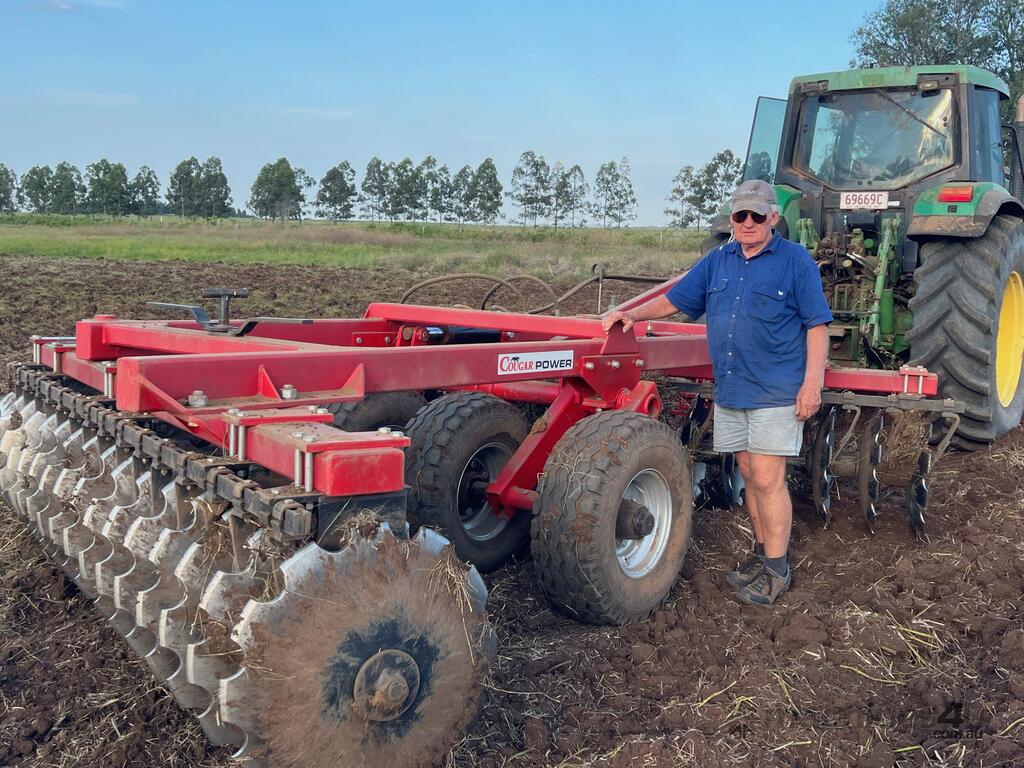

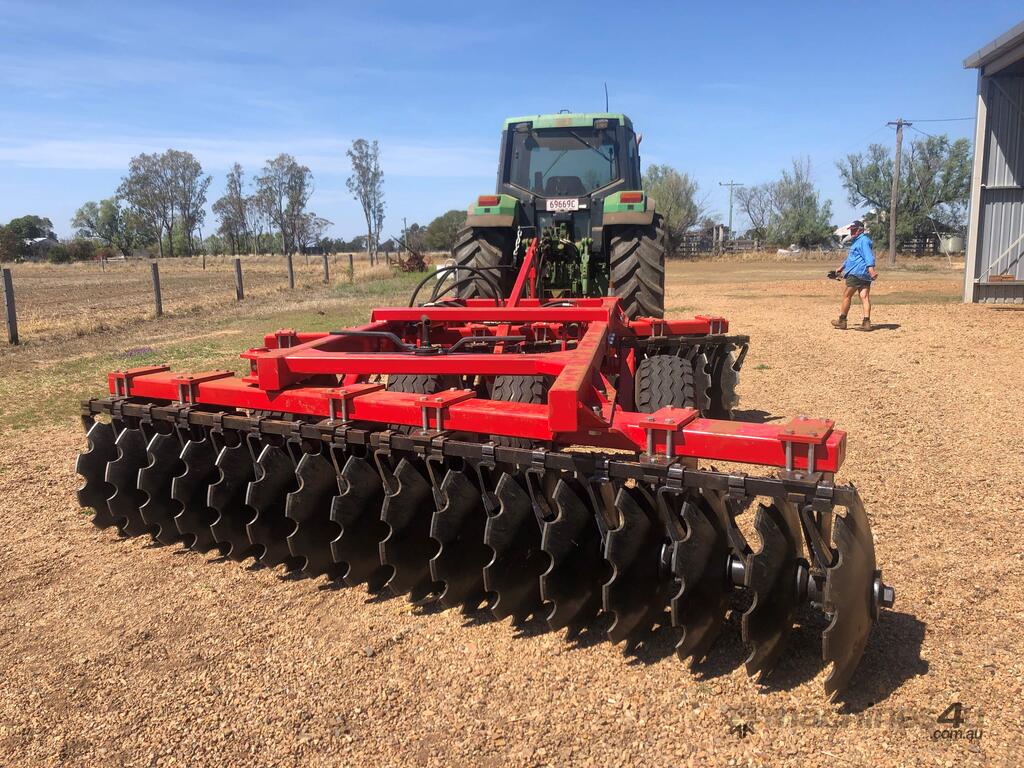

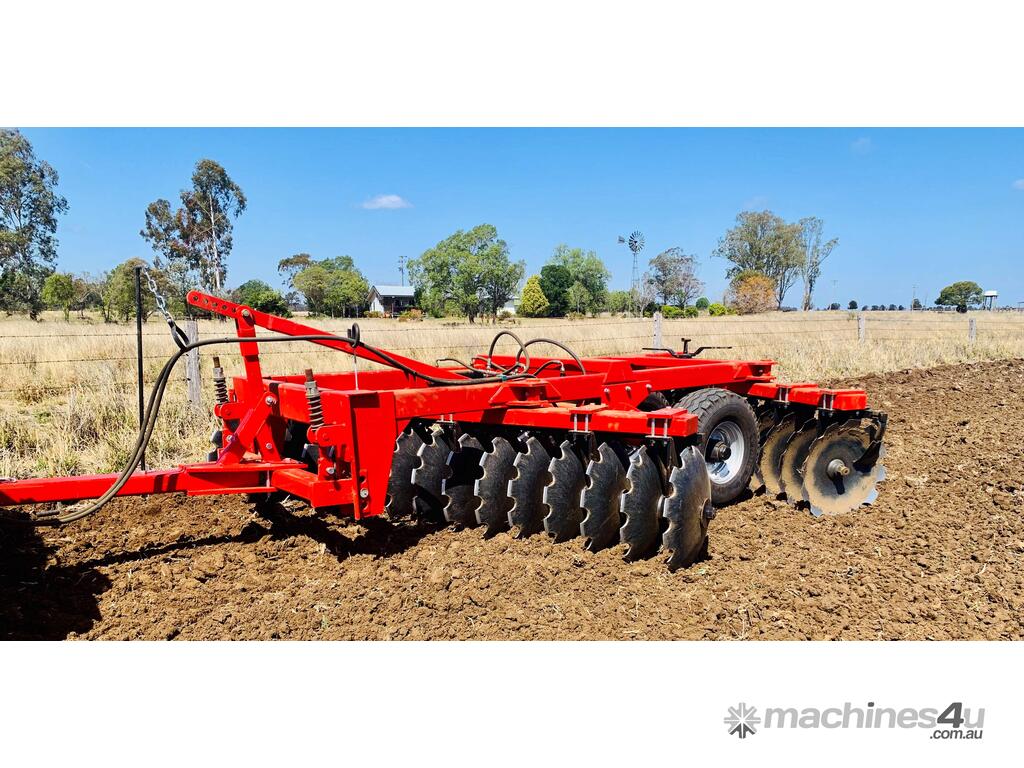

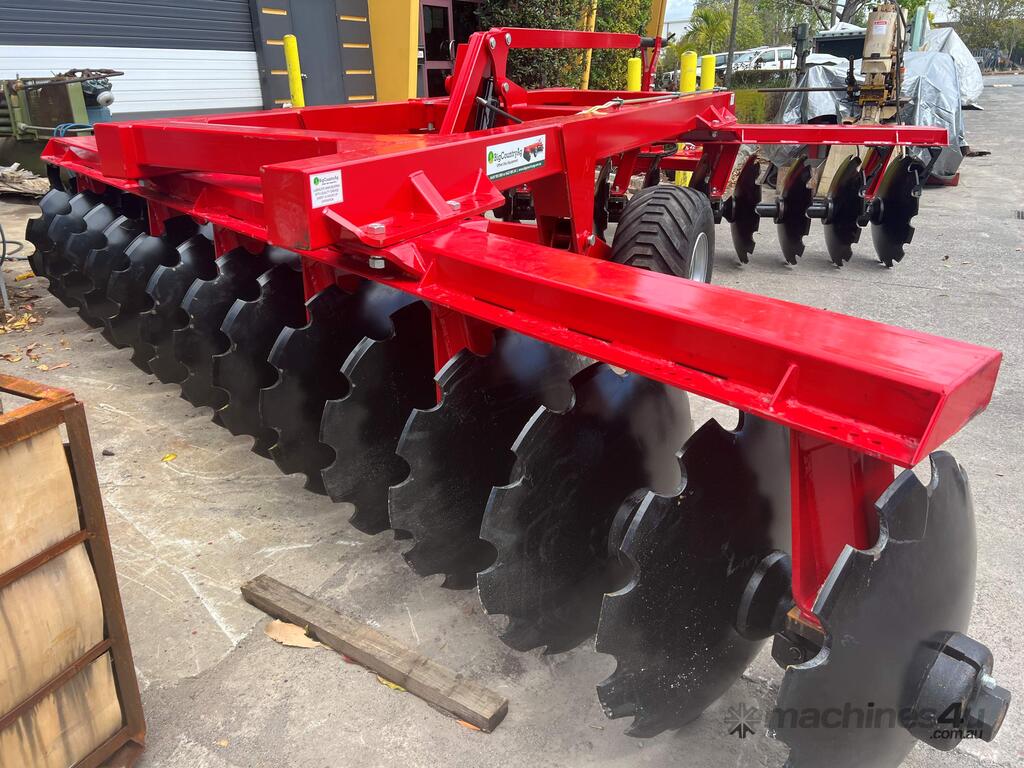

Big Country Ag 32 Plate Offset Disc

Big Country Ag 32 Plate Offset Disc
- Our offsets are designed for Australia.
- Fitted with 710mm (28 inch) x 8.0mm spring steel discs and greasable double taper roller bearing housings,
- Our gang angles are independently adjustable.
- Standard 16 ply industrial floatation tyres, truck rims and hubs.
- Our offsets are a top piece of tillage gear at an affordable price.

- NO OF DISCS: 32,
- CUT WIDTH: 3.50m (11'-6")
- FLOATATION TYRES: 11.5 / 80-15.3 16 Ply,
- MAIN FRAME: 150 x 100 8mm RHS,
- GANG SHAFTS: 55mm Hi-Tensile,

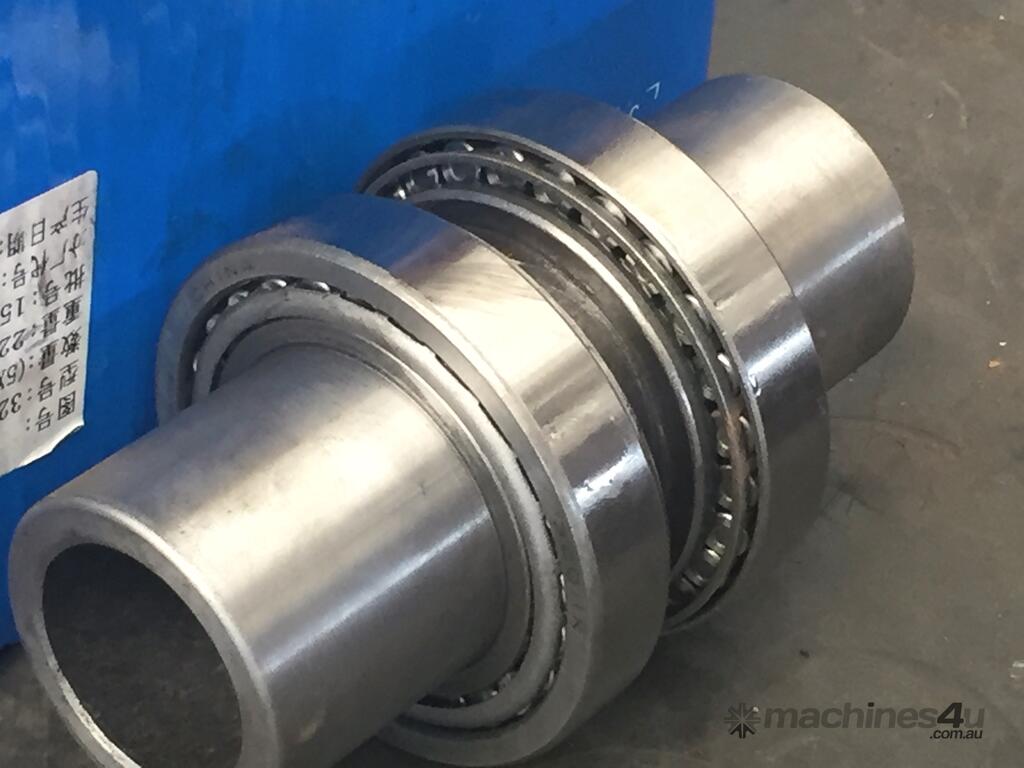

- HEAVY DUTY BEARINGS: Twin Taper Roller Bearings Greaseable,
- DISC SPACINGS: 240mm,
- DISC SCRAPERS: Full Set Standard,
- STEEL DISC SPACERS: Better Trash Flow,

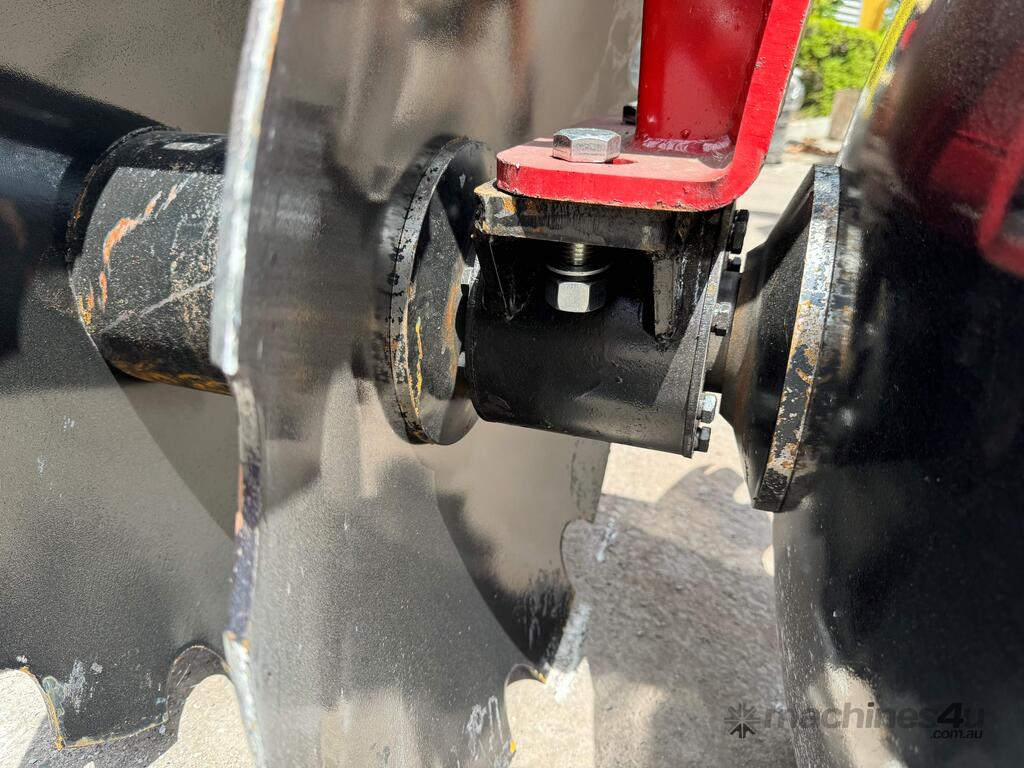

- BEARING HOUSINGS: Heavy Duty Cast Steel,
- BEARING SEALS: Multi Lip Seal,
- AXLE HUBS: Heavy-Duty 8 Stud with Super Single Wheels,
- AXLE SEALS: Multi Lip Seal,
- HYDRAULICS: Top Quality RAMS & JIC Fittings.

12 Month Limited Warranty. Except tyres, & hydraulic hoses.
