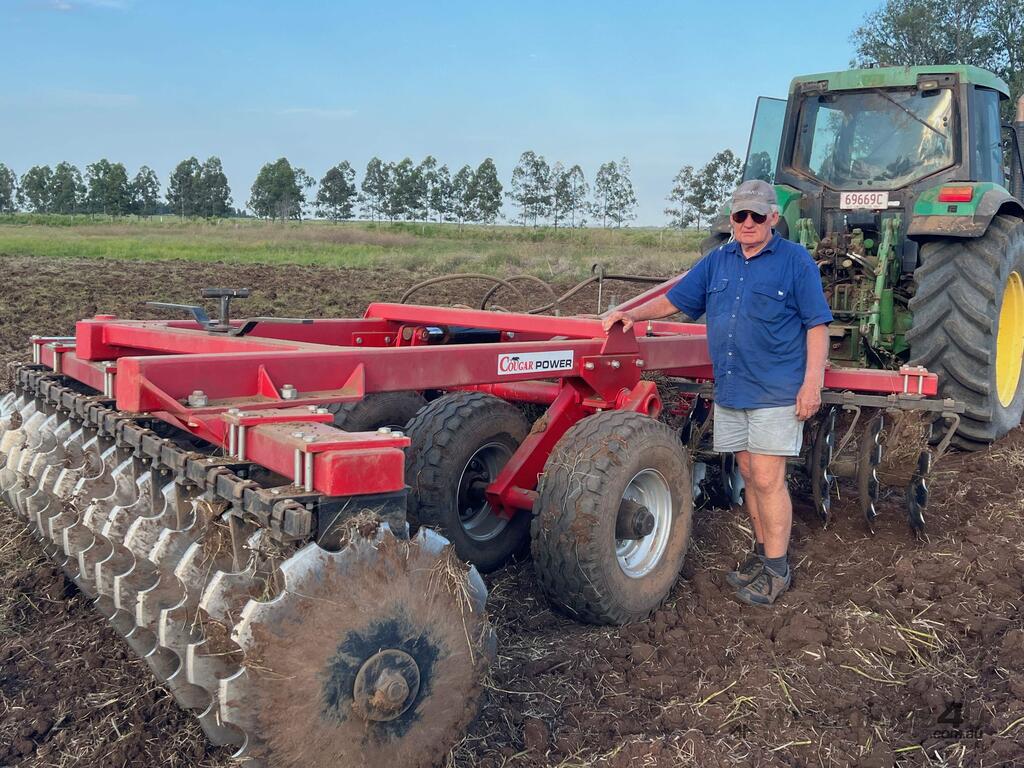

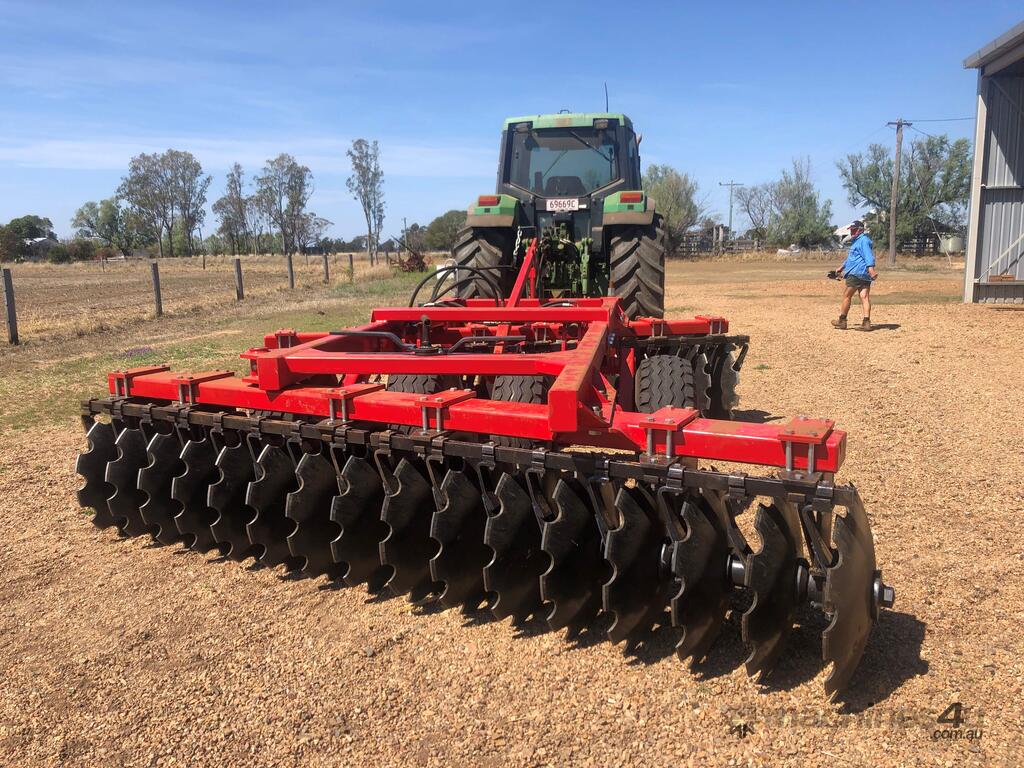

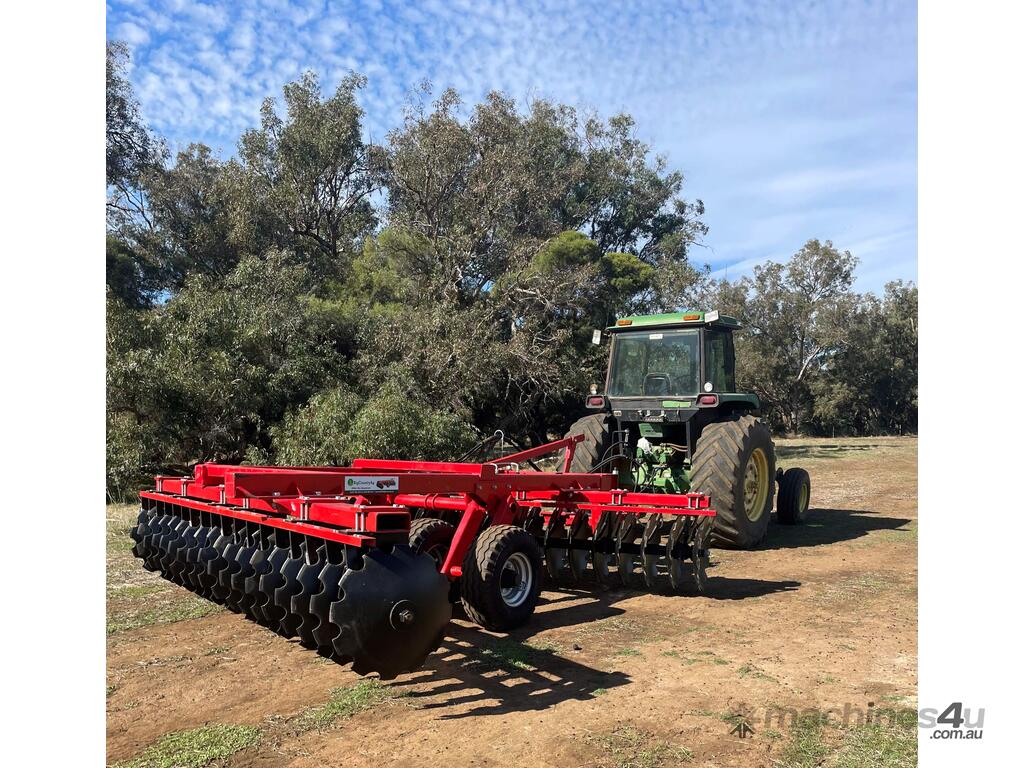

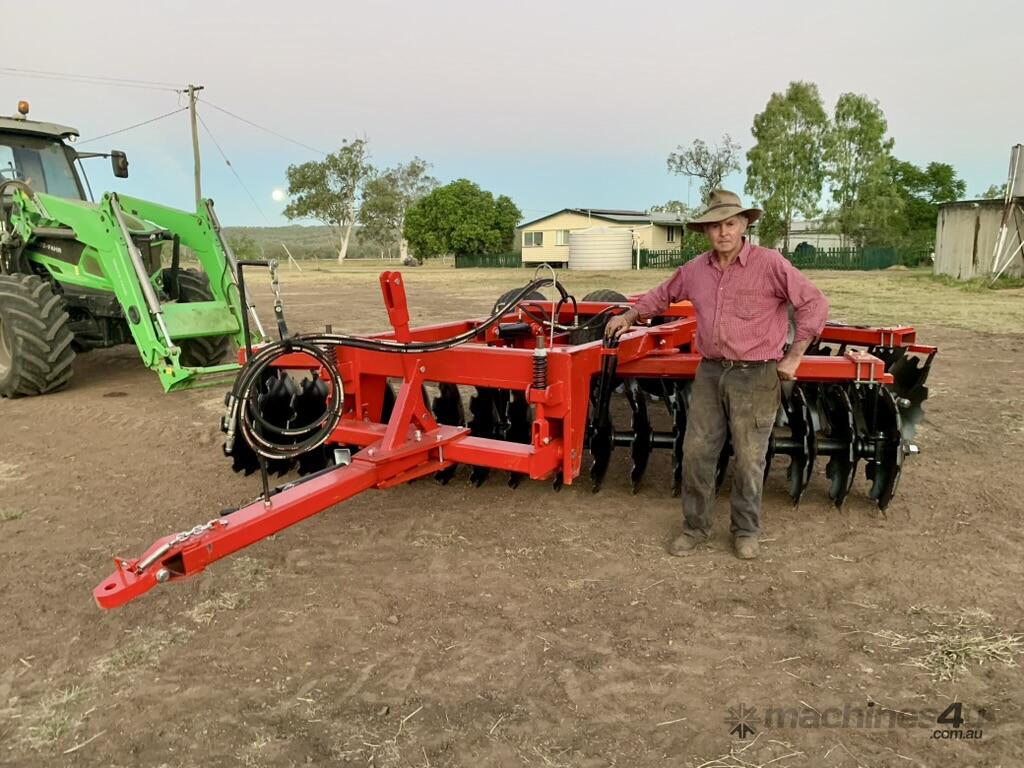

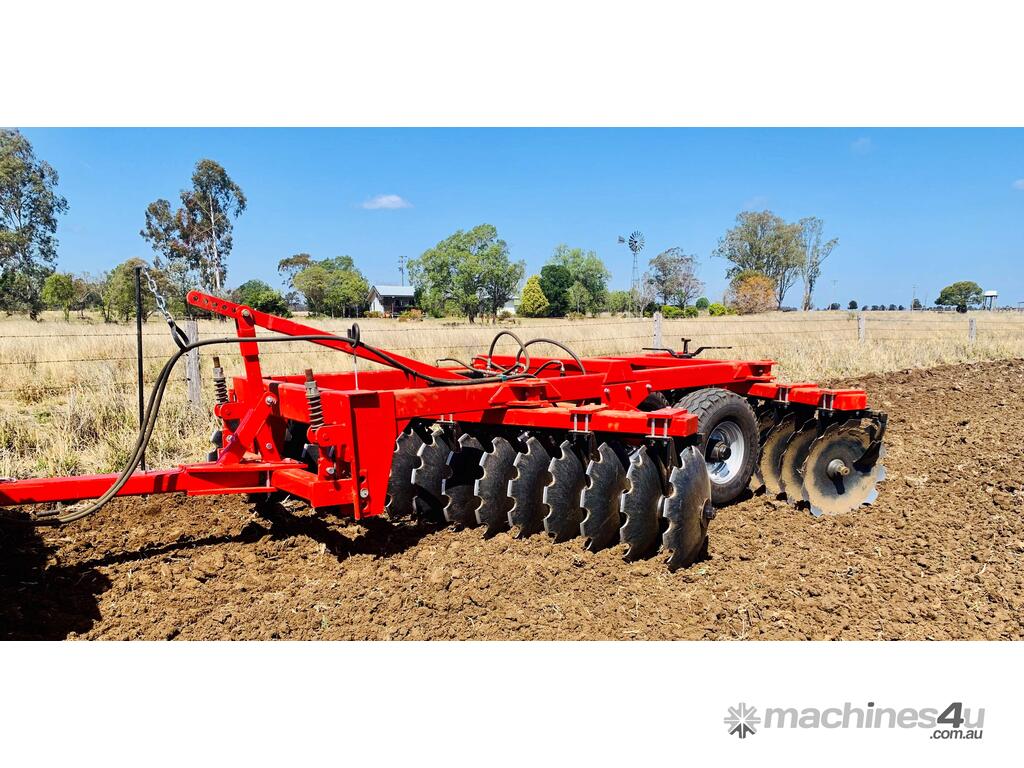

Big Country Ag 36 Plate Offset Disc

Big Country Ag 36 Plate Offset Disc
- Our offsets are designed for Australia.

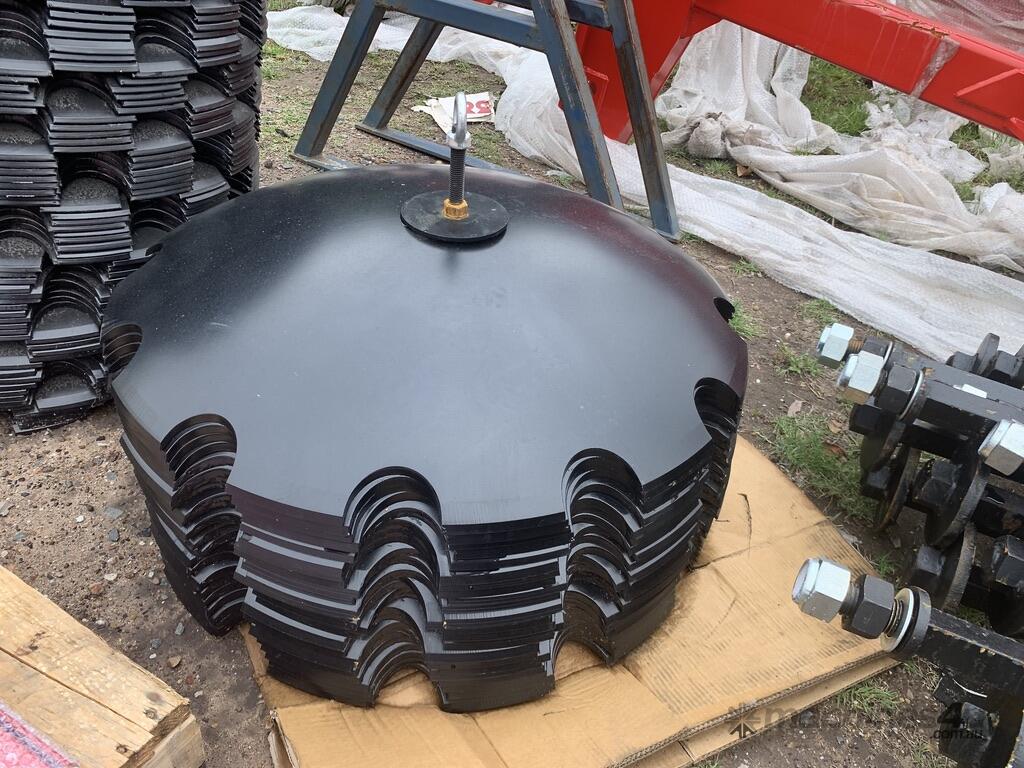

- Fitted with 710mm (28 inch) x 8.0mm spring steel discs and greasable double taper roller bearing housings.
- Our gang angles are independently adjustable.
- Standard big 16 ply industrial floatation tyres, truck rims and hubs.
- Our offsets are a top piece of tillage gear at an affordable price.

- NO OF DISCS: 36,
- CUT WIDTH: 4m (14'),
- DISCS: 710mm (28 inch) x 8.0mm,
- FLOATATION TYRES: 11.5 / 80-15.3 16 Ply,

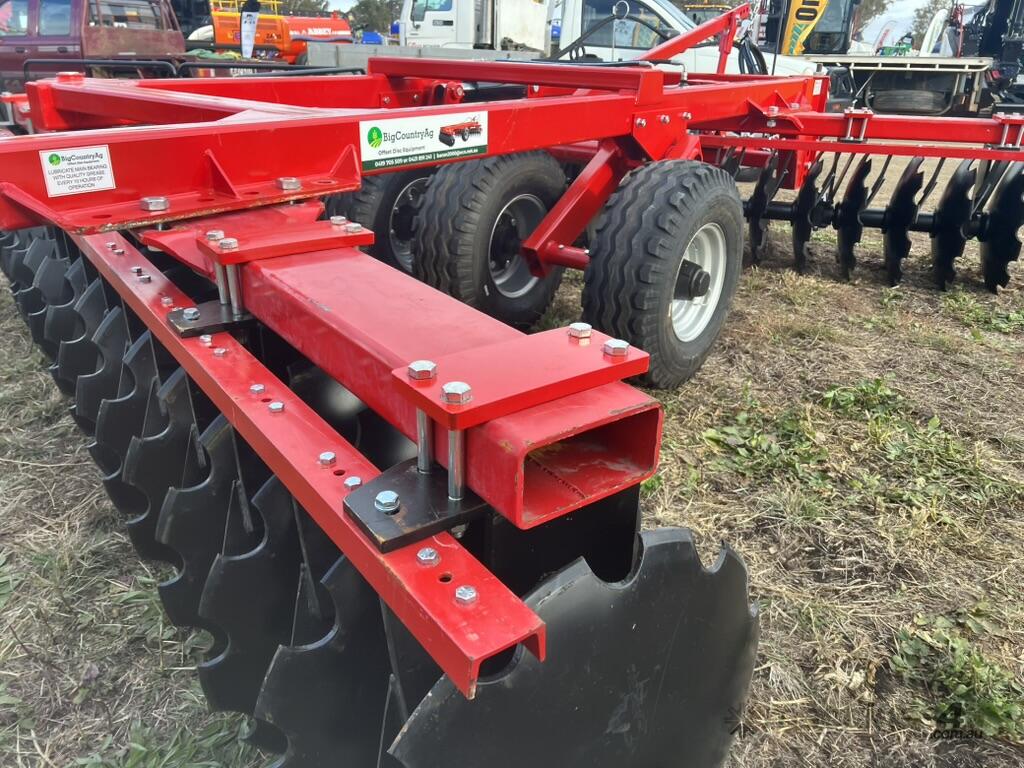

- MAIN FRAME: 150 x 100 8mm RHS,
- GANG SHAFTS: 55mm Hi-Tensile,

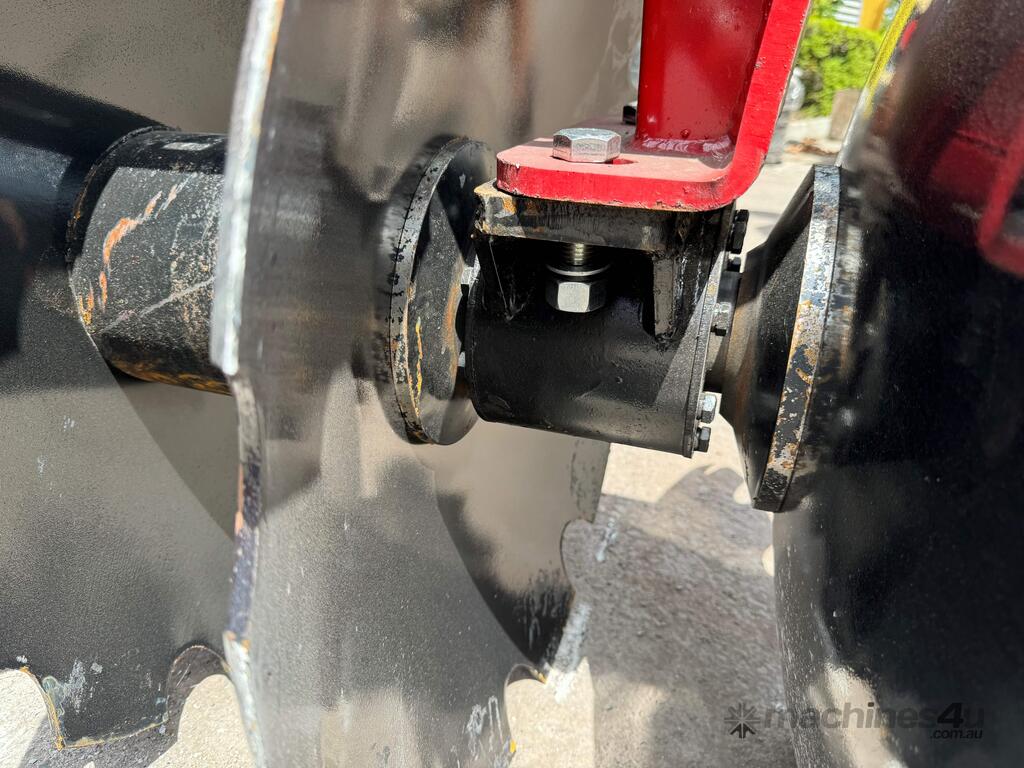

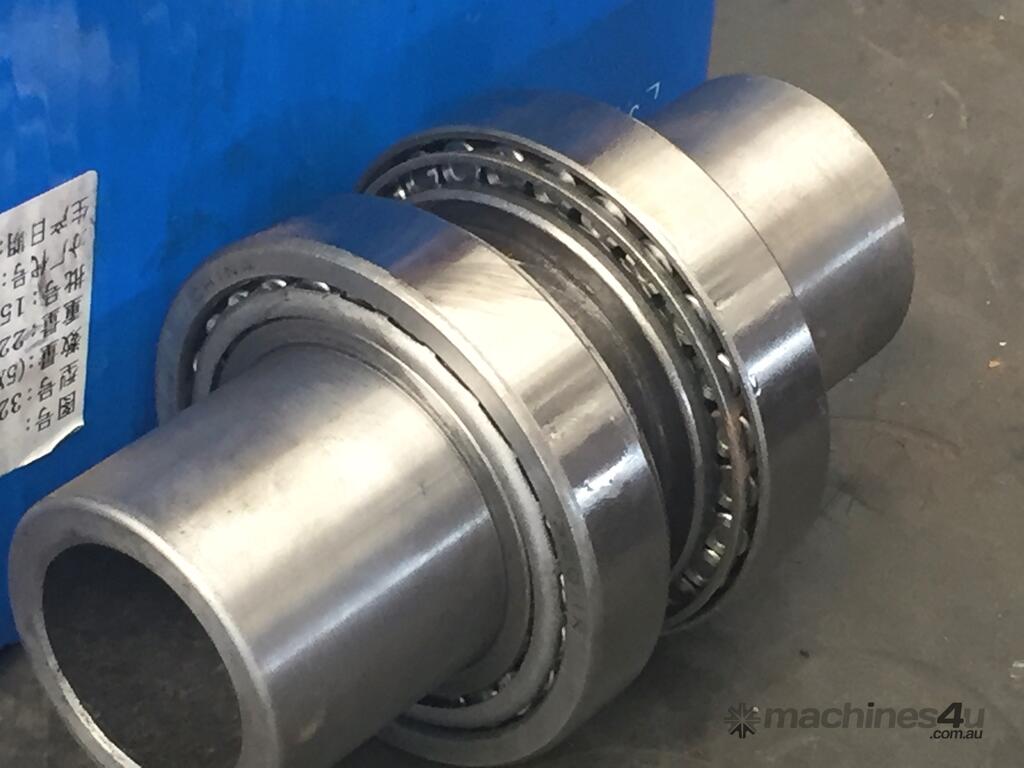

- HEAVY DUTY BEARINGS: Twin Taper Roller Bearings Greaseable,
- DISC SPACINGS: 240mm,
- DISC SCRAPERS: Full Set Standard,
- STEEL DISC SPACERS: Better Trash Flow,
- BEARING HOUSINGS: Heavy Duty Cast Steel,
- BEARING SEALS: Multi Lip Seal,
- AXLE HUBS: Heavy-Duty 8 Stud with Super Single Wheels,
- AXLE SEALS: Multi Lip Seal,

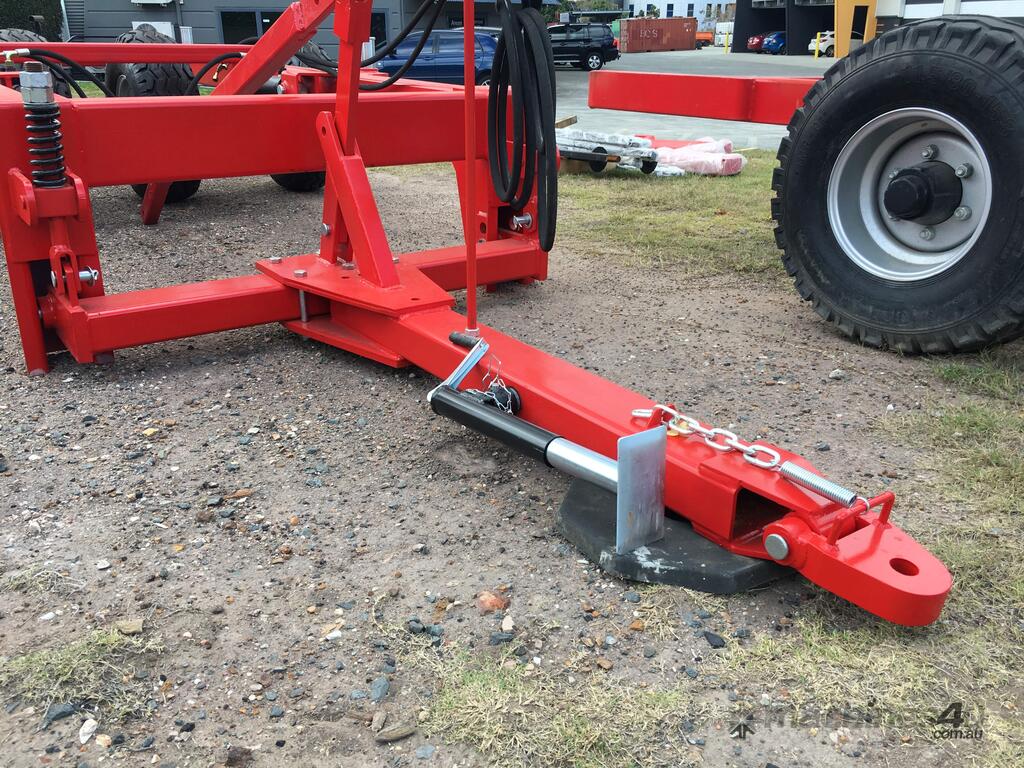

- HYDRAULICS: Top Quality RAMS & JIC Fittings.

12 Month Limited Warranty. Except tyres & hydraulic hoses.
